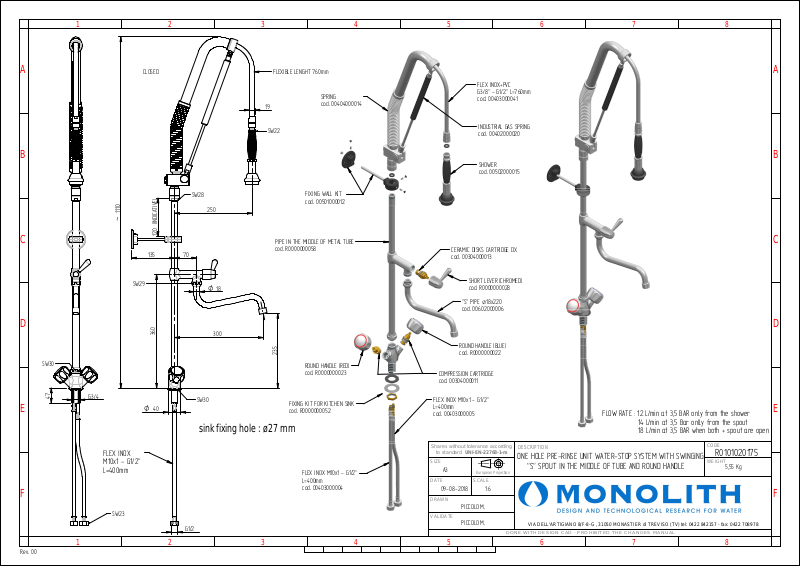

Monolith R 0101020175 Drawing

12345678

A

B

C

CLOSED

FLEXIBLE LENGHT 760mm

19

SW22

SPRING
cod. 00404000014

FLEX INOX+PVC
G3/8" - G1/2" L=760mm
cod. 00403000041

INDUSTRIAL GAS SPRING
cod. 00402000020

A

B

SHOWER
cod. 00502000015

SW28

1110~

120 (INDICATIVE)

135

70

250

PIPE IN THE MIDDLE OF METAL TUBE
cod. R0000000058

FIXING WALL KIT
cod. 00501000012

C

CERAMIC DISKS CARTRIDGE DX
cod. 00304000013

D

E

F

Rev. 00

SW30

47

SW29

18

O

SHORT LEVER (CHROMED)
cod. R0000000028

"S" PIPE ø18x220
cod. 00602000006

D

360

G3/4

40

O

FLEX INOX
M10x1 - G1/2"
L=400mm

SW23

G1/2

12345678

300

235

SW30

sink fixing hole : ø27 mm

ROUND HANDLE (RED)
cod. R0000000023

FIXING KIT FOR KITCHEN SINK
cod. R0000000052

FLEX INOX M10x1 - G1/2"
L=400mm
cod. 00403000004

ROUND HANDLE (BLUE)
cod. R0000000022

COMPRESSION CARTRIDGE
cod. 00304000011

FLEX INOX M10x1 - G1/2"
L=400mm
cod. 00403000005

Shares without tolerance according

to standard

SIZE

A3

DATE

09-08-2018

DRAWN

VALIDATE

UNI-EN-22768-1-m

European Projection

SCALE

1:6

PICCOLO M.

PICCOLO M.

DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL

FLOW RATE : 12 L/min at 3,5 BAR only from the shower
14 L/min at 3,5 Bar onlly from the spout
18 L/min at 3,5 BAR when both + spout are open

DESCRIPTION

ONE HOLE PRE-RINSE UNIT WATER-STOP SYSTEM WITH SWINGING
"S" SPOUT IN THE MIDDLE OF TUBE AND ROUND HANDLE

VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: [phone] - fax: [phone]

CODE

R0101020175

WEIGHT

5,55 Kg
