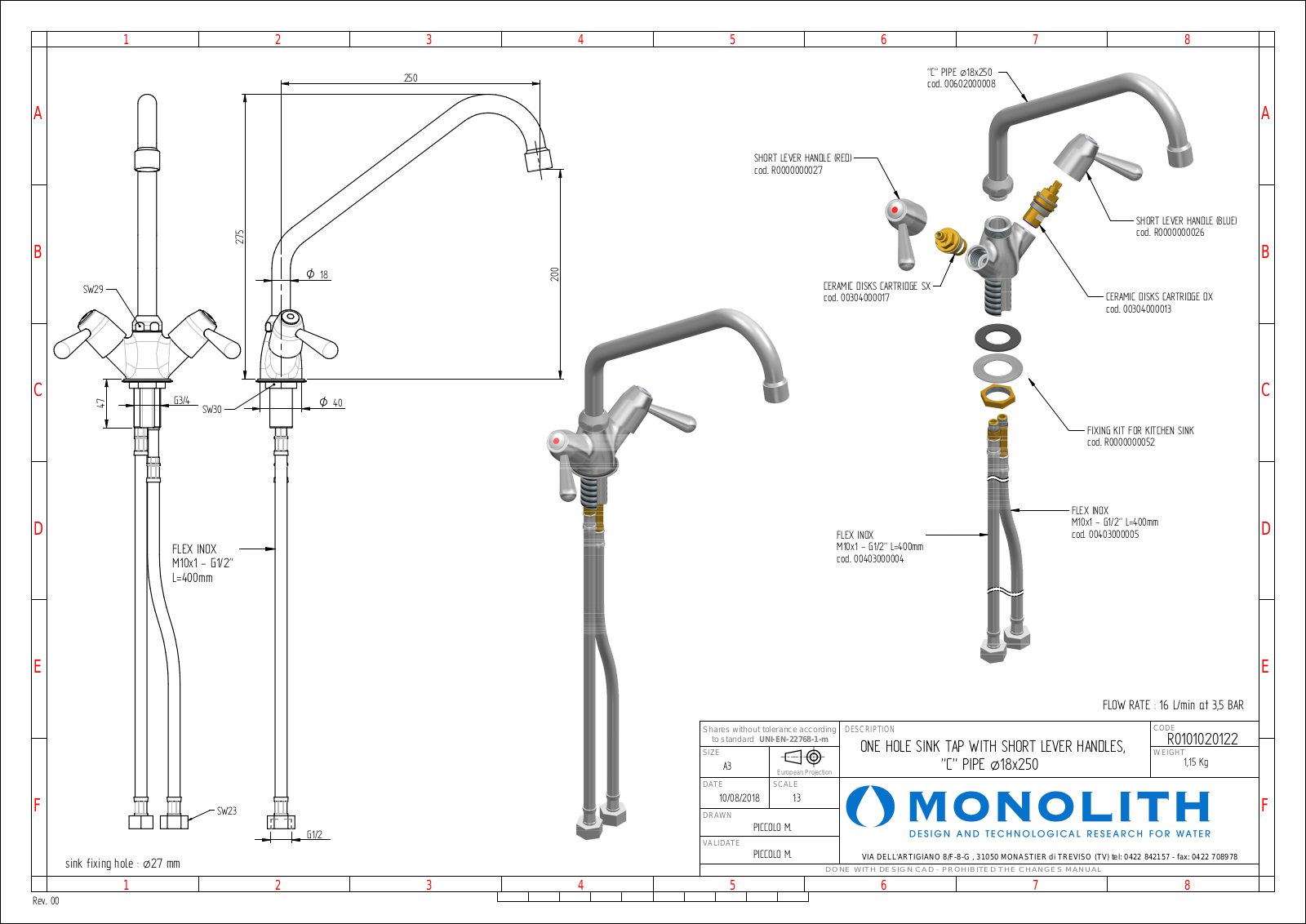

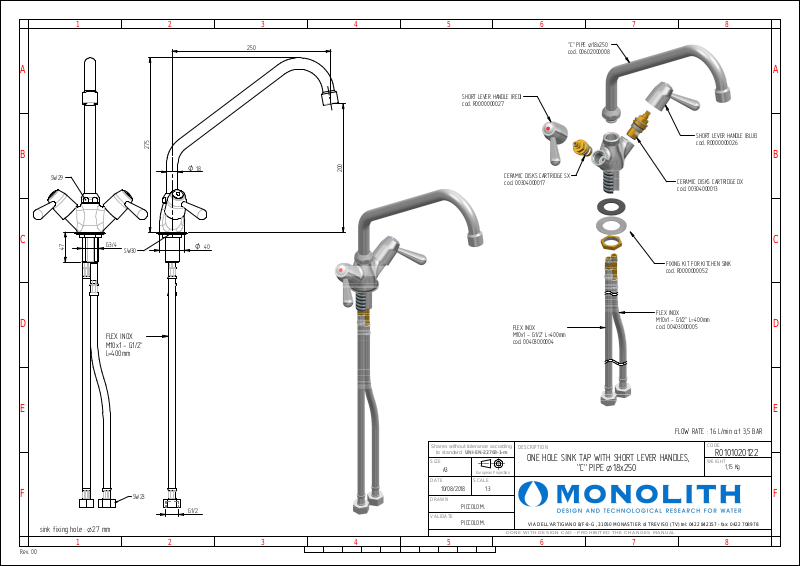

Monolith R 0101020122 Drawing
12345678
A
B
SW29
250
"C" PIPE ø18x250
cod. 00602000008
A
SHORT LEVER HANDLE (RED)
cod. R0000000027
SHORT LEVER HANDLE (BLUE)
275
cod. R0000000026
B
18
O
200
CERAMIC DISKS CARTRIDGE SX
cod. 00304000017
CERAMIC DISKS CARTRIDGE DX
cod. 00304000013
C
D
E
47
G3/4
SW30
FLEX INOX
M10x1 - G1/2"
L=400mm
40
O
FIXING KIT FOR KITCHEN SINK
cod. R0000000052
FLEX INOX
FLEX INOX
M10x1 - G1/2" L=400mm
cod. 00403000004
M10x1 - G1/2" L=400mm
cod. 00403000005
D
E
FLOW RATE : 16 L/min at 3,5 BAR
C
F
sink fixing hole : ø27 mm
Rev. 00
CODE
R0101020122
WEIGHT
1,15 Kg
F
SW23
G1/2
Shares without tolerance according
to standard
SIZE
A3
DATE
10/08/2018
DRAWN
VALIDATE
UNI-EN-22768-1-m
European Projection
SCALE
1:3
PICCOLO M.
PICCOLO M.
DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL
DESCRIPTION
ONE HOLE SINK TAP WITH SHORT LEVER HANDLES,
"C" PIPE ø18x250
VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: 0422 842157 - fax: 0422 708978
12345678
