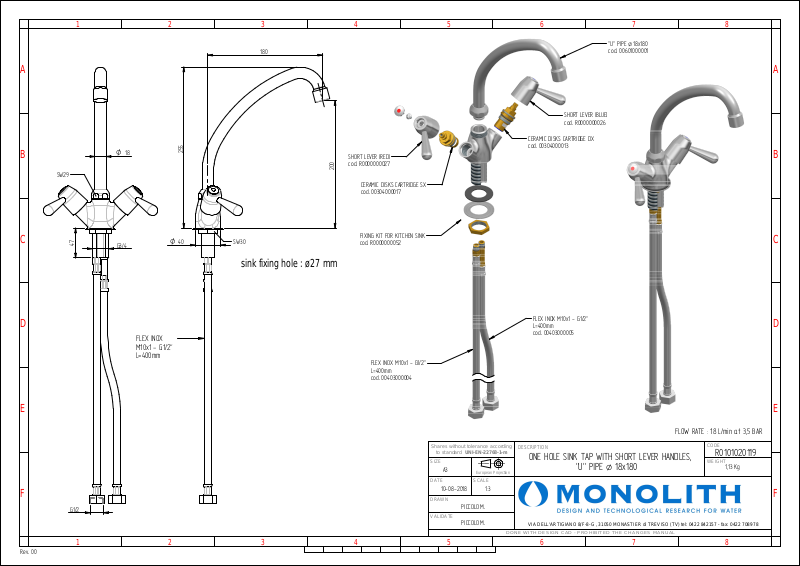

Monolith R 0101020119 Drawing
12345678
"U" PIPE ø18x180
180
cod. 00601000001
A
B
C
SW29
47
O
G3/4
A
SHORT LEVER (BLUE)
cod. R0000000026
CERAMIC DISKS CARTRIDGE DX
18
255
40
O
SW30
SHORT LEVER (RED)
cod. R0000000027
200
CERAMIC DISKS CARTRIDGE SX
cod. 00304000017
FIXING KIT FOR KITCHEN SINK
cod. R0000000052
cod. 00304000013
B
C
sink fixing hole : ø27 mm
D
E
F
Rev. 00
FLEX INOX M10x1 - G1/2"
L=400mm
cod. 00403000005
D
FLEX INOX
M10x1 - G1/2"
L=400mm
FLEX INOX M10x1 - G1/2"
L=400mm
cod. 00403000004
E
FLOW RATE : 18 L/min at 3,5 BAR
CODE
R0101020119
WEIGHT
1,13 Kg
F
G1/2
Shares without tolerance according
to standard
SIZE
A3
DATE
10-08-2018
DRAWN
VALIDATE
UNI-EN-22768-1-m
European Projection
SCALE
1:3
PICCOLO M.
PICCOLO M.
DESCRIPTION
ONE HOLE SINK TAP WITH SHORT LEVER HANDLES,
"U" PIPE ø 18x180
VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: 0422 842157 - fax: 0422 708978
DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL
12345678
