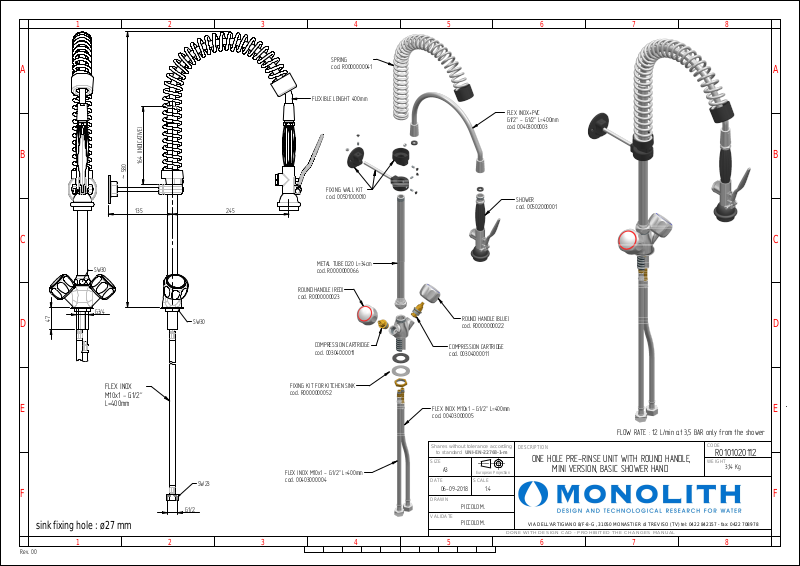

Monolith R 0101020112 Drawing
A
12345678
SPRING
cod. R0000000041
FLEXIBLE LENGHT 400mm
FLEX INOX+PVC
G1/2" - G1/2" L=400mm
cod. 00403000003
A
B
C
D
47
SW30
G3/4
164 (INDICATIVE)
~ 580
FIXING WALL KIT
135
cod. 00501000010
245
SHOWER
cod. 00502000001
C
METAL TUBE D20 L=34cm
cod. R0000000066
ROUND HANDLE (RED)
cod. R0000000023
B
SW30
COMPRESSION CARTRIDGE
cod. 00304000011
ROUND HANDLE (BLUE)
cod. R0000000022
COMPRESSION CARTRIDGE
cod. 00304000011
D
E
F
sink fixing hole : ø27 mm
12345678
Rev. 00
FLEX INOX
M10x1 - G1/2"
L=400mm
G1/2
SW23
FIXING KIT FOR KITCHEN SINK
cod. R0000000052
FLEX INOX M10x1 - G1/2" L=400mm
cod. 00403000004
FLEX INOX M10x1 - G1/2" L=400mm
cod. 00403000005
Shares without tolerance according
to standard
SIZE
A3
DATE
06-09-2018
DRAWN
VALIDATE
UNI-EN-22768-1-m
European Projection
SCALE
1:4
PICCOLO M.
PICCOLO M.
DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL
FLOW RATE : 12 L/min at 3,5 BAR only from the shower
DESCRIPTION
CODE
R0101020112
ONE HOLE PRE-RINSE UNIT WITH ROUND HANDLE,
MINI VERSION, BASIC SHOWER HAND
VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: 0422 842157 - fax: 0422 708978
WEIGHT
3,14 Kg
