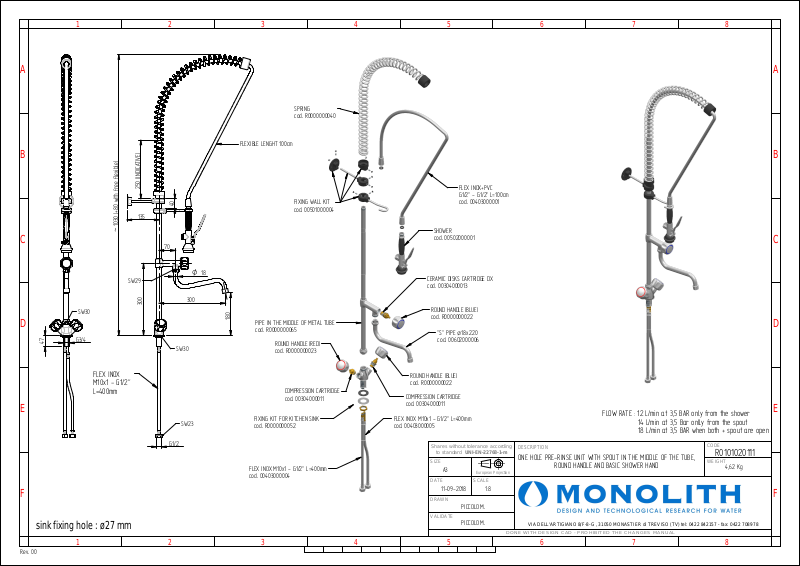

Monolith R 0101020111 Drawing

12345678

A

B

C

A

SPRING
cod. R0000000040

FLEXIBLE LENGHT 100cm

B

250 (INDICATIVE)

40

135

~ 1030 (+80 with free flexible)

70

FIXING WALL KIT
cod. 00501000004

SHOWER
cod. 00502000001

FLEX INOX+PVC
G1/2" - G1/2" L=100cm
cod. 00403000001

C

SW30

D

47

G3/4

FLEX INOX
M10x1 - G1/2"
L=400mm

E

F

sink fixing hole : ø27 mm

12345678

Rev. 00

SW29

300

G1/2

SW30

SW23

300

18

O

180

PIPE IN THE MIDDLE OF METAL TUBE
cod. R0000000065

ROUND HANDLE (RED)
cod. R0000000023

COMPRESSION CARTRIDGE
cod. 00304000011

FIXING KIT FOR KITCHEN SINK
cod. R0000000052

COMPRESSION CARTRIDGE
cod. 00304000011

FLEX INOX M10x1 - G1/2" L=400mm
cod. 00403000005

CERAMIC DISKS CARTRIDGE DX
cod. 00304000013

ROUND HANDLE (BLUE)
cod. R0000000022

"S" PIPE ø18x220
cod. 00602000006

ROUND HANDLE (BLUE)
cod. R0000000022

FLOW RATE : 12 L/min at 3,5 BAR only from the shower
14 L/min at 3,5 Bar onlly from the spout

D

E

18 L/min at 3,5 BAR when both + spout are open

CODE

R0101020111

WEIGHT

4,62 Kg

F

FLEX INOX M10x1 - G1/2" L=400mm
cod. 00403000004

Shares without tolerance according

to standard

SIZE

A3

DATE

11-09-2018

DRAWN

VALIDATE

UNI-EN-22768-1-m

European Projection

SCALE

1:8

PICCOLO M.

PICCOLO M.

DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL

DESCRIPTION

ONE HOLE PRE-RINSE UNIT WITH SPOUT IN THE MIDDLE OF THE TUBE,
ROUND HANDLE AND BASIC SHOWER HAND

VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: [phone] - fax: [phone]
