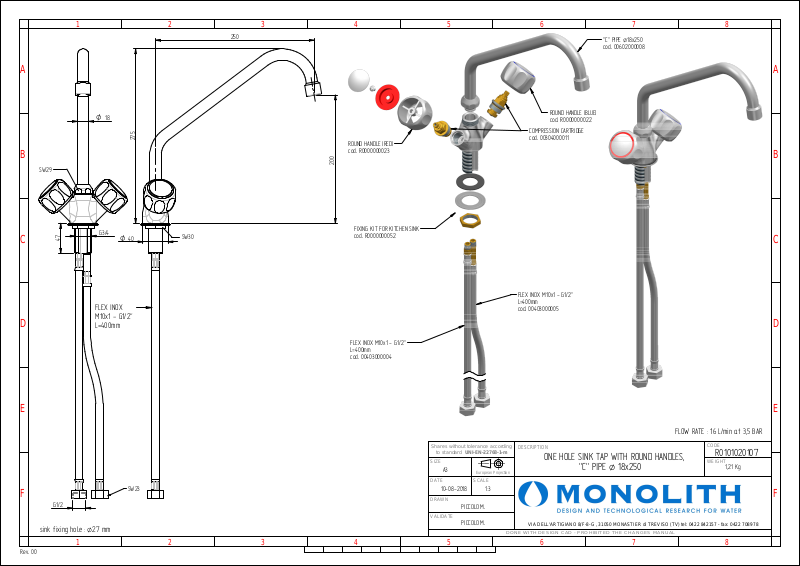

Monolith R 0101020107 Drawing
12345678
A
B
C
SW29
47
O
G3/4
250
"C" PIPE ø18x250
cod. 00602000008
A
18
COMPRESSION CARTRIDGE
275
40
O
SW30
ROUND HANDLE (RED)
cod. R0000000023
200
FIXING KIT FOR KITCHEN SINK
cod. R0000000052
cod. 00304000011
ROUND HANDLE (BLUE)
cod. R0000000022
B
C
D
E
F
G1/2
sink fixing hole : ø27 mm
Rev. 00
FLEX INOX M10x1 - G1/2"
FLEX INOX
L=400mm
cod. 00403000005
M10x1 - G1/2"
L=400mm
FLEX INOX M10x1 - G1/2"
L=400mm
cod. 00403000004
D
E
FLOW RATE : 16 L/min at 3,5 BAR
CODE
R0101020107
WEIGHT
1,21 Kg
F
SW23
Shares without tolerance according
to standard
SIZE
A3
DATE
10-08-2018
DRAWN
VALIDATE
UNI-EN-22768-1-m
European Projection
SCALE
1:3
PICCOLO M.
PICCOLO M.
DESCRIPTION
ONE HOLE SINK TAP WITH ROUND HANDLES,
"C" PIPE ø 18x250
VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: 0422 842157 - fax: 0422 708978
DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL
12345678
