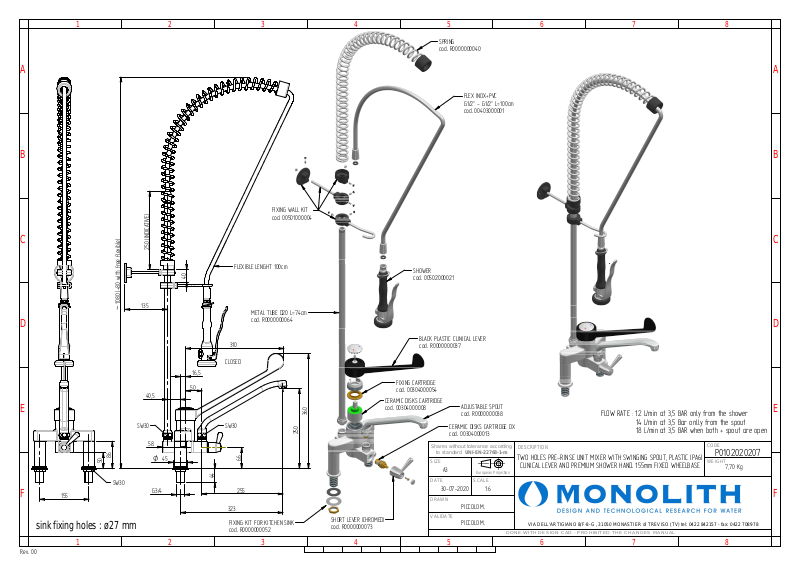

Monolith P 0102020207 Drawing
12345678
SPRING
cod. R0000000040
A
B
C
A
FLEX INOX+PVC
G1/2" - G1/2" L=100cm
cod. 00403000001
B
FIXING WALL KIT
cod. 00501000004
C
250 (INDICATIVE)
D
E
F
155
sink fixing holes : ø27 mm
12345678
Rev. 00
50
86
SW30
FLEXIBLE LENGHT 100cm
40
~ 1080 (+80 with free flexible)
135
SW30
40,5
58
O
G3/4
45
50
16,5
METAL TUBE D20 L=74cm
cod. R0000000064
310
CLOSED
SW30
66
44
255
323
FIXING KIT FOR KITCHEN SINK
cod. R0000000052
CERAMIC DISKS CARTRIDGE
360
250
SHORT LEVER (CHROMED)
cod. R0000000073
cod. 00304000008
SHOWER
cod. 00502000021
BLACK PLASTIC CLINICAL LEVER
cod. R0000000037
FIXING CARTRIDGE
cod. 00304000054
Shares without tolerance according
SIZE
DATE
DRAWN
VALIDATE
ADJUSTABLE SPOUT
cod. R0000000038
CERAMIC DISKS CARTRIDGE DX
cod. 00304000013
to standard
A3
30-07-2020
UNI-EN-22768-1-m
European Projection
SCALE
PICCOLO M.
PICCOLO M.
1:6
FLOW RATE : 12 L/min at 3,5 BAR only from the shower
14 L/min at 3,5 Bar onlly from the spout
18 L/min at 3,5 BAR when both + spout are open
DESCRIPTION
TWO HOLES PRE-RINSE UNIT MIXER WITH SWINGING SPOUT, PLASTIC (PA6)
CLINICAL LEVER AND PREMIUM SHOWER HAND. 155mm FIXED WHEELBASE
VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: 0422 842157 - fax: 0422 708978
DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL
D
E
CODE
P0102020207
WEIGHT
7,70 Kg
F
