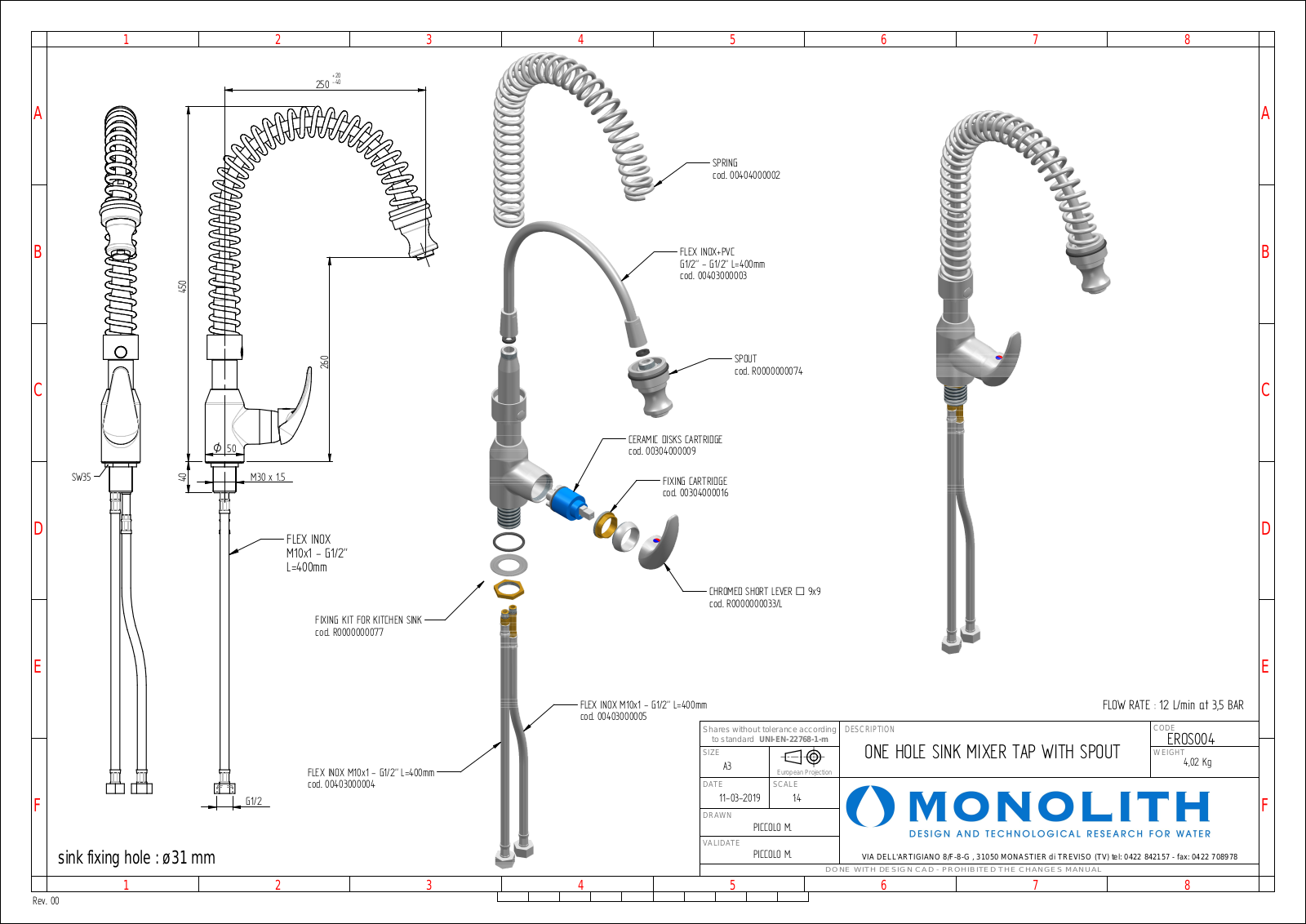

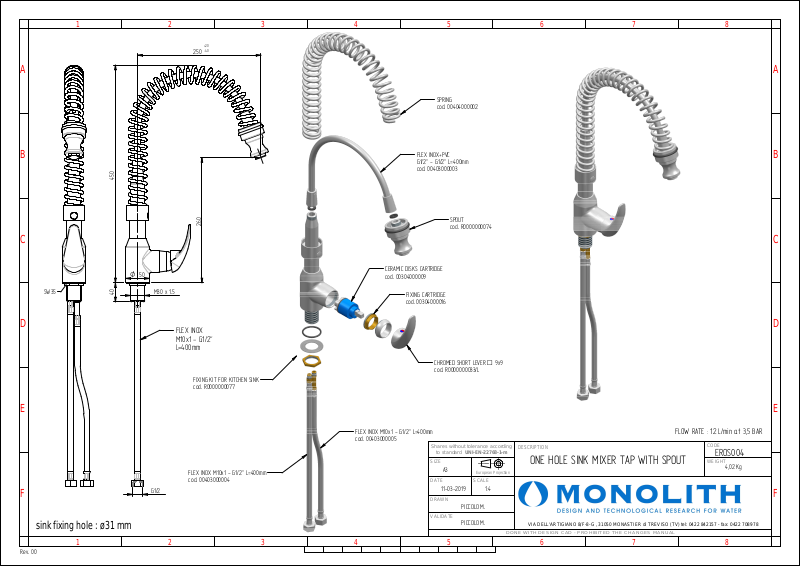

Monolith EROS004 Drawing

12345678

+20

-40

250

A

B

C

450

A

SPRING
cod. 00404000002

FLEX INOX+PVC
G1/2" - G1/2" L=400mm
cod. 00403000003

260

SPOUT
cod. R0000000074

B

C

SW35

D

E

F

sink fixing hole : ø31 mm

12345678

Rev. 00

40

50

O

M30 x 1.5

CERAMIC DISKS CARTRIDGE
cod. 00304000009

FIXING CARTRIDGE
cod. 00304000016

D

FLEX INOX
M10x1 - G1/2"
L=400mm

CHROMED SHORT LEVER q 9x9
cod. R0000000033/L

FIXING KIT FOR KITCHEN SINK
cod. R0000000077

E

G1/2

FLEX INOX M10x1 - G1/2" L=400mm
cod. 00403000004

FLEX INOX M10x1 - G1/2" L=400mm
cod. 00403000005

Shares without tolerance according

to standard

SIZE

A3

DATE

11-03-2019

DRAWN

VALIDATE

UNI-EN-22768-1-m

European Projection

SCALE

1:4

PICCOLO M.

PICCOLO M.

DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL

DESCRIPTION

ONE HOLE SINK MIXER TAP WITH SPOUT

VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: [phone] - fax: [phone]

FLOW RATE : 12 L/min at 3,5 BAR

CODE

EROS004

WEIGHT

4,02 Kg

F
