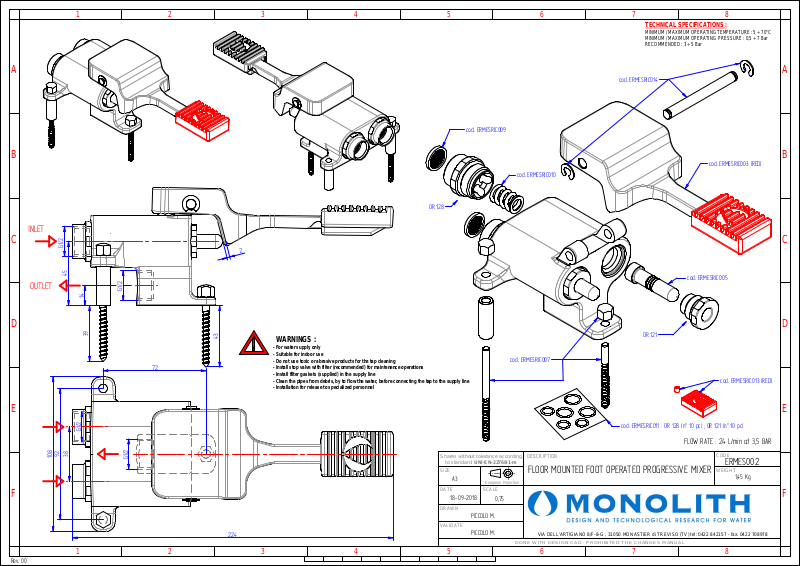

Monolith ERMES002 Drawing

12345678

TECHNICAL SPECIFICATIONS :

MINIMUM / MAXIMUM OPERATING TEMPERATURE : 5 ÷ 70°C
MINIMUM / MAXIMUM OPERATING PRESSURE : 0,5 ÷ 7 Bar
RECOMMENDED : 3 ÷ 5 Bar

A

B

C

INLET

A

cod. ERMESRIC014

cod. ERMESRIC009

B

cod. ERMESRIC003 (RED)

cod. ERMESRIC010

OR 128

G1/2

2

C

D

E

F

Rev. 00

OUTLET

108

45

cod. ERMESRIC005

G1/2

14

39

72

G1/2

43

WARNINGS :

- For water supply only

- Suitable for indoor use

- Do not use toxic or abrasive products for the tap cleaning

- Install stop valve with filter (recommended) for maintenence operations

- Install filter gaskets (supplied) in the supply line

- Clean the pipes from debris, by to flow the water, before connecting the tap to the supply line

- Installation for release to specialized personnel

cod. ERMESRIC007

cod. ERMESRIC011 : OR 128 (n° 10 pc) ; OR 121 (n° 10 pc)

OR 121

cod. ERMESRIC013 (RED)

FLOW RATE : 24 L/min at 3,5 BAR

38

92

G1/2

Shares without tolerance according

to standard

SIZE

A3

DATE

18-09-2018

DRAWN

UNI-EN-22768-1-m

European Projection

SCALE

0,75

DESCRIPTION

FLOOR MOUNTED FOOT OPERATED PROGRESSIVE MIXER

PICCOLO M.

VALIDATE

224

PICCOLO M.

DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL

VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: [phone] - fax: [phone]

12345678

CODE

ERMES002

WEIGHT

1,45 Kg
