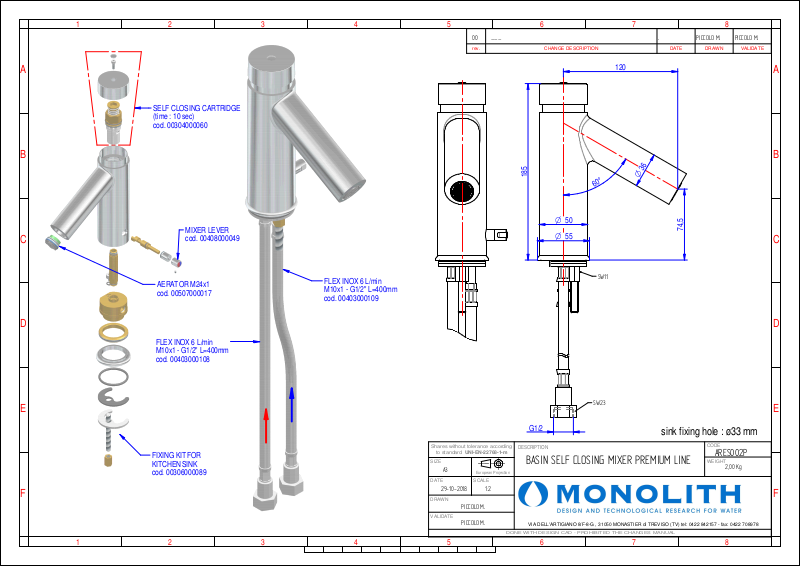

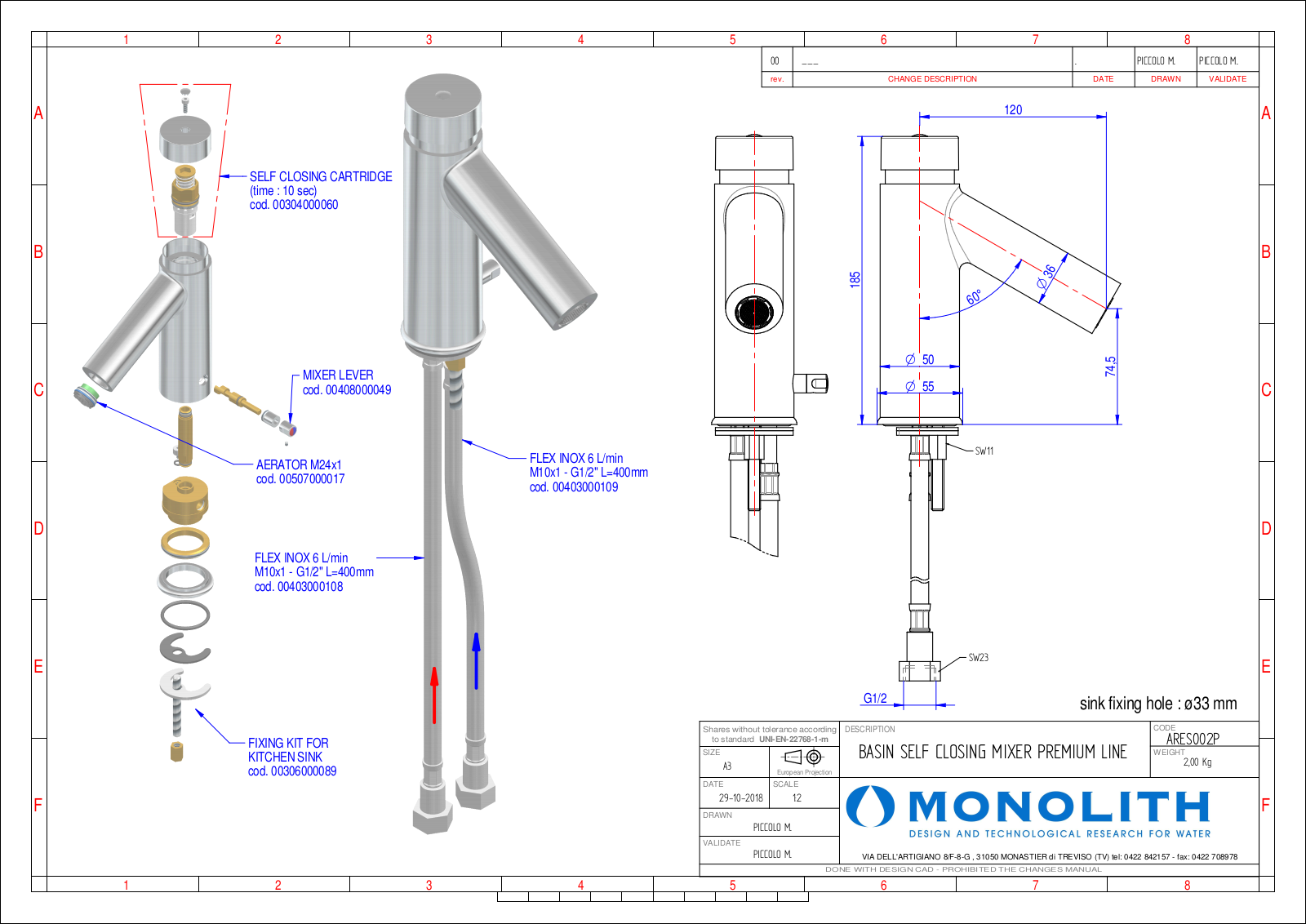

Monolith ARES002P Drawing
1 2 3 4 5 6 7 8
00 ___ . PICCOLO M. PICCOLO M.
rev.
VALIDATECHANGE DESCRIPTION DATE DRAWN
A
B
C
SELF CLOSING CARTRIDGE
(time : 10 sec)
cod. 00304000060
MIXER LEVER
cod. 00408000049
120
A
B
6
3
185
°
0
6
50
O
55
O
O
74,5
C
D
E
F
SW11
AERATOR M24x1
cod. 00507000017
FLEX INOX 6 L/min
M10x1 - G1/2" L=400mm
cod. 00403000109
FLEX INOX 6 L/min
M10x1 - G1/2" L=400mm
cod. 00403000108
SW23
FIXING KIT FOR
KITCHEN SINK
cod. 00306000089
Shares without tolerance according
to standard
SIZE
A3
DATE
29-10-2018
DRAWN
VALIDATE
UNI-EN-22768-1-m
European Projection
SCALE
1:2
PICCOLO M.
PICCOLO M.
DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL
G1/2
DESCRIPTION
BASIN SELF CLOSING MIXER PREMIUM LINE
VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: 0422 842157 - fax: 0422 708978
sink fixing hole : ø33 mm
CODE
ARES002P
WEIGHT
1 2 3 4 5 6 7 8
D
E
2,00 Kg
F
