ZISB36DC - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter
Advanced Planning for a Flush Installation
Monogram built-in refrigerators are designed to be
installed with typical 24-3/4” deep cabinetry.
In a flush installation, the refrigerator doors will align
evenly with the front face of adjacent cabinets.
Side Panels Requirements:
• Side panels are not required whenever the refrigerator
is installed into an enclosure or between pantry and
oven cabinets.
• Side panels are required whenever the sides of the
refrigerator are exposed.
• Side panel sizes vary depending on type of installation
being made.
For a flush installation, you must:
1. Determine the need for side panels.
2. Determine side panel thickness.
3. Order matching side panels from the cabinet
manufacturer. Be sure to provide the exact dimensions.
The following cutout dimensions examples will provide a flush fit. If
you have a unique installation situation (other than those illustrated
here), see Product Dimensions to calculate the rough-in dimensions.
Installation Between Wall Oven and Pantry Cabinet
36"
Finished Dimension
Side panels are not required
whenever the refrigerator
is installed into an enclosure or
between pantry and oven
cabinets.
The minimum cutout for a
custom enclosure should be:
84”Hx36”Wx24-3/4”D
Design Information
Monogram.
™
Specification Created 12/99
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
1/4" Thick
Side Panels
35-1/2"
Finished Dim.
36"
Roughed-In Dim.
Note: 1/4” thick side panels can be
inserted into the case trim, making
the rough-in the same as the outside
trim width, 36”.
ZISB36DC - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter
Design Information
Installation Between Base & Wall Cabinets
Cabinet
Refrigerator door
Refrigerator
Cabinet
1/4” Side Panels. Insert end of side panel
into trim.
37"
1/2" Thick
Side Panels
36"
Finished Dim.
Roughed-In Dim.
Note: 1/2” thick side panels shown.
Side panels can be any thickness.
Add side panel thickness to outside
trim width (36”)to calculate the roughin dimension
Refrigerator
Cabinet
Refrigerator door
Cabinet
1/2” To 3/4” Side Panels. Leading Edge Flush
With Cabinet.
Installation at End of Run
Side panels, 1/2” minimum thickness are
required when using frameless cabinets. The
side panel acts as a spacer between the
cabinet and the case trim and prevents
interference with cabinet door swing.
Frameless Cabinets
36"
Finished Dimension
Refrigerator
Cabinet
Refrigerator door
Cabinet
1/2” To 3/4” Side Panels. Leading Edge Flush
With Cabinet.
Monogram.
™
Advantage
• The flush appearance allows the refrigerator to blend into the
surrounding cabinetry or wall.
• The flush fit uses less floor space.
• A custom continuous toekick may be used to form an unbroken line
at the base of cabinetry.
Disadvantage
• The enclosure must be constructed accurately and perfectly
square, otherwise, gaps between case trim and surrounding
cabinetry will show.
True Flush Installation
Semi-Flush Installation
In a flush installation, the
refrigerator doors will align
evenly with the front-face
of adjacent cabinet doors.
These refrigerators
can also be installed
semi-flush into an enclosure
using the minimum cutout
width. The case trim provides
a frame around the refrigerator.
Advantage
• If cabinetry or enclosure is not perfectly square, the case
trim will cover the surrounding cabinetry edges.
Disadvantage
• The refrigerator will project forward, approximately
3/4” beyond the front face of surrounding cabinetry. The
top grille panel will project forward of upper cabinetry
or soffit.
ZISW48D ZISW42D ZISW36D
ZISB48D ZISB42D ZISB36D
ZIS48N ZIS42N ZIS36N
PRODUCT A* 83” 83” 83”
DIMENSIONS B 48” 42” 36”
C 24-3/4” 24-3/4” 24-3/4”
FINISHED D* 84” 84” 84”
FLUSH E
†
48” Min. 42” Min. 36” Min.
ENCLOSURE F 24-3/4” Min. 24-3/4” Min. 24-3/4” Min.
FINISHED D* 84” 84” 84”
SEMI-FLUSH E
†
47-1/2” Min. 41-1/2” Min. 35-1/2” Min.
ENCLOSURE F 24” Min. 24” Min. 24” Min.
*Factory set installation height is 84”. Height adjustments are
accomplished with optional grille panel frame kits.
Order ZG2 grille panel kit for all ZIS models.
†
Side panels are not required when installing into an enclosure.
Side panels are required whenever the sides of the refrigerator are
exposed. If side panels are used, add side panel thickness to
calculate finished cutout width.
Specification Created 12/99
ZISB36DC - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
0"
3/4"
See Installation Instructions for Details, Order Pub. No. 49-6964-2
for ZIS36 models, Pub. No. 49-6963-2 for ZIS42 models and Pub.
No. 49-6962-2 for ZIS48 models.
7"
Electrical
Area
74" From Floor
to
Bottom
of Electrical
5"
5"
3 1/2"
5"
3 1/2"
Water Supply
36" Models 12-3/8"
42" Models 18-3/8"
48" Models 20-3/8"
D
F
B
A
C
E
Monogram.
™
Specification Created 12/99
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
ZISB36DC - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter
Dimensions and Specifications (in inches)
Design Information: Designed to be installed flush with surrounding
cabinetry. Cutout dimensions, clearances and side panel sizes are
determined by the many installation options available. Side panels must
be used whenever the sides of the refrigerator will be exposed. Side panels
are not required when refrigerator is installed into an enclosure or between
pantry and oven cabinets. Important-Side panels, 1/2” min. thickness are
required for frameless cabinets.
Field installed custom panels, Lexan®or stainless steel panels are required.
Custom door panels and grille panel sizes vary to accommodate the kit
being used.
A custom toekick can be installed to match or complement the surrounding
cabinetry. A standard toekick is supplied. For a custom toekick, use supplied
toekick as a template to cut notches for hinges and water lines.
Optional Kits:
• ZWBP36: Black Lexan®Panel Kit (no trim kit required).
• ZWWP36: White Lexan®Panel Kit (no trim kit required).
• ZWSP36: Stainless Steel Panel Kit (no trim kit required).
• ZKH1: Provides for the installation of a custom handle on 1/4” custom
panels.
• ZG2: Provides 1/4” grille panel frame side pieces for 83”, 83-1/2” and 841/2” installation heights. Factory set height is 84”.
• ZKT36: Provides for the installation of 3/4” custom door and grille panels.
• ZKHT1: Provides for the installation of a custom handle using 3/4”
custom panels. (This kit must be used in combination with ZKT36.)
• ZKHSS1: Tubular stainless steel handles on 1/4” panels.
• ZKHTSS1: Tubular stainless steel handles on 3/4” panels. This kit must
be used in combination with ZKT48.
• ZWCD1: Provides for the installation of a custom collar trim on the
dispenser for one continuous custom panel on the freezer door. This kit
can be used alone, or with one or more kits.
Additional Specifications: A 115 volt 60 Hz., 15 or 20 amp power supply
is required. An individual properly grounded branch circuit or circuit breaker
is recommended. Install a properly grounded 3-prong electrical receptacle
recessed into the back wall. Electrical must be located on rear wall.
Water line can enter opening through the floor or back wall. The water line
should be 1/4” O.D. copper tubing between the cold water line and water
connection location, long enough to extend to the front of the refrigerator.
Installation of an easily accessible shut off valve in the water line is
recommended.
Clearances: If the refrigerator is to be installed in a corner, a 4” min.
clearance between the case trim and adjacent wall on both sides of the
refrigerator will assure a 90° door opening and access to all drawers. A 10”
clearance is required on both sides for removal of pans.

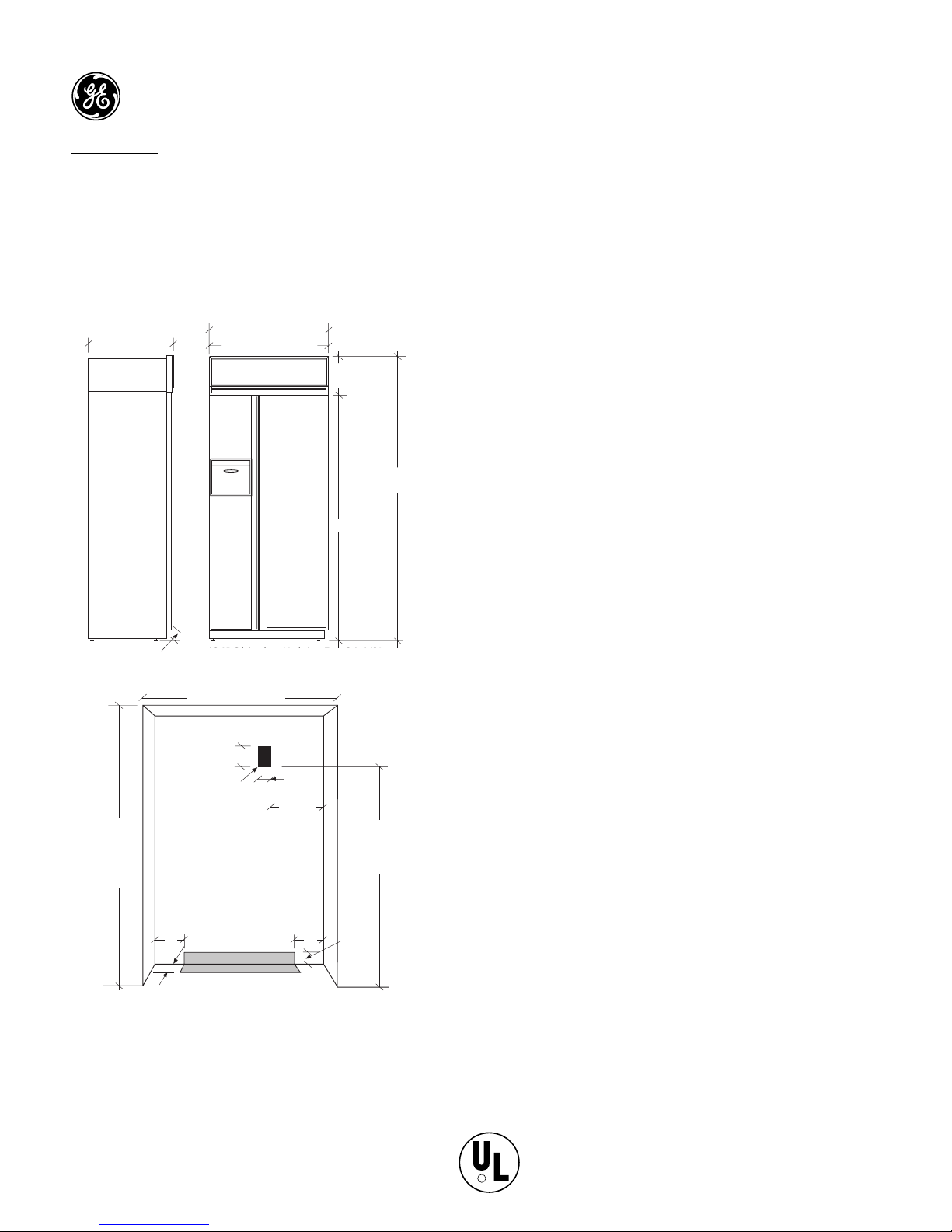

Side View
(not to scale)
24 3/4"
4"
Front View
(not to scale)
36" Overall Width
35" Case Width
84 1/2" max*
83" min
72 1/4"
12 1/4" max
10 3/4" min
*84" Shipping Height. For 84-1/2"
Height Installation order ZG2.
*The finished and rough-in dimensions are determined by the
type of installation being made. The rough-in cutout width
includes side panel thicknesses. See “Advanced Planning For
A Flush Installation.”
*35 1/2" - 37 1/2"
7"
Wall View
(not to Scale)
Locate Grounded
Electrical outlet
Within Solid
Area Above
84 1/2" max
83" min
Finished
Rough
Opening
74"
From Floor to
Bottom of
Electrical Area
5"
12 3/8"
5"
3 1/2"
5"
3 1/2"
Locate Water
Supply Within
the Shaded
Area Below
*84” Shipping Height. For Other
Installation Heights order ZG2.
Monogram.
™
Specification Created 12/99
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
ZISB36DC - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter
Dimensions and Specifications (in inches)
The ZKT36 trim kit provides for the installation of 3/4” custom door and
grille panels, using the standard full-length handle. Cut panels to size and
install.
For standard dispenser trim: Cut panels to size, rout the bottom of the upper
freezer panel and the top of the lower freezer panel to allow placement of
support brackets and install (see detail A).
For custom dispenser trim ZWCD1 kit must be used: Cut panels to size,
refer to detail B for dispenser cutout routing instructions and install. When
a raised panel design is used, custom width stiles and custom middle rail
is required. A 13-1/2” wide middle rail must be used because the custom
collar trim must be located within the raised portion of the panel. This area
must be 3/4” thick. See Detail C for raised panel.
35 1/2"
A
Over 1/4" Thick (3/4" max) Panel
Custom Grille Panel
(not to scale)
Grille Panel height can vary to fill installation height.
Important: Maintain 1-1/2" minimum gap between
top of doors and bottom of grille panel.
Custom Door Panel Dimensions When Using Trim Kit
ZKT36, 3/4” thick panel with standard handle and/or ZWCD1
custom collar trim (not to scale)
37"
2-5/16"
67-15/16"
15-1/16"
19-1/16"
17-11/16"
Fresh Food
Panel
Freezer Panel
Standard
Dispenser
Freezer Panel
Custom
Dispenser
15-1/16"
3/32"
1"
1"
Upper
Freezer
Panel
Lower
Freezer
Panel
Panel
Face
Detail A
Detail C
Raised Panel Design
*3"
Stile
Left
Side
Hole is
Cut After
Door
Fabrication
*2 3/16" Stile
Right Side
Section AA
A
A
Handle
Side
13 1/2"
Wide
Middle
Rail
The Cutout is 9 7/16" wide
by 12 5/16" high. 3/4" panels
must be routed on all four
sides of the cutout. Rout
the back side of the panel
1/4" deep 7/8" wide.
(shaded area)
12 5/16"
9 7/16"
7/8" wide rout
Detail B
Custom Dispenser Cutout
XInstallation Height Dimension A
83" 8-1/4"
83-1/2" 8-3/4"
84" 9-1/4"
84-1/2" 9-3/4"
Monogram.
™
Specification Created 12/99
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
XInstallation Height Dimension A
83" 8"
83-1/2" 8-1/2"
84-1/2" 9-1/2"
ZISB36DC - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter
Dimensions and Specifications (in inches)
35"
9"
1/4" Thick Panel
Custom Grille Panel
(not to scale)
Panel frame is factory assembled for 84"
installation height. If installation height
varies, order ZG2 trim kit which provides
optional side trim panels. Cut Lexan
®
or
stainless panels to sizes shown below.
9 7/16"
12 5/16"
Custom Dispenser
Cutout
The Cutout is 9 7/16"
wide by 12 5/16" high.
Custom Door Panel Dimensions Using Standard Trim
1/4" thick panels or Panels secured to 1/4" thick backing
1 1/4"
Clearance
hinge side
2" Clearance
handle side
Appearance
Panel
1/4"
Thick
Backing
Raised Panel on 1/4" Thick Backing
Door
Handle
Case Trim
16-5/8"
36-7/8"
2-9/16"
67-7/8"
15-1/4" 15-1/4"
19-1/4"
17-11/16"
Fresh Food Panel
Freezer Panel
Standard
Dispenser
Freezer Panel
Custom
Dispenser
Standard Trim with 1/4” Panels: 1/4” Panels: Cut panels to size.
Custom handles with 1/4” door panels require Trim Kit ZKH1. When using
ZKH1 with the standard dispenser trim, the length of the custom handle,
top to bottom cannot exceed 11-3/4”.
Tubular stainless steel handle kit ZKHSS1.
Custom collar dispenser trim with 1/4” door panels require trim kit ZWCD1.
Standard Trim with Panels secured to 1/4” thick backing: Applying a
raised panel design to a 1/4” thick backing (screwed or glued): Cut 1/4”
panels to size, fabricate the raised panel to permit clearances of at least 2”
from the handle side for fingertip clearance, 1-1/4” from the hinge side to
avoid striking adjacent cabinetry and 5/16” from the top and bottom edges
to allow for the trim flange, then install.
Countertops adjacent to refrigerator installation should be mitered 45°
degrees.
Note: ZWCD1 custom collar dispenser trim and ZKHT1 custom handle kits
cannot be used in this configuration.
Important: Maintain 1-1/2” min. gap
between top of doors and bottom of panel
frame.
Monogram.
™
Specification Created 12/99
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
ZISB36DC - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter
Dimensions and Specifications (in inches)
Custom Door Panel Dimensions When Using Trim Kit
ZKT36 3/4" thick panel with custom handle and/or
ZWCD1 custom collar trim.
3/32"
1"
1"
Upper
Freezer
Panel
Lower
Freezer
Panel
Panel
Face
16-11/16"
37"
2-9/16"
67-15/16"
15-5/16"
19-5/16"
17-11/16"
Fresh Food
Panel
Freezer Panel
Standard
Dispenser
Freezer Panel
Custom
Dispenser
15-5/16"
1-13/16"
1-13/16"
1/4"
max
Freezer Door Face
Fresh Food Door Face
The Cutout is 9 7/16" wide
by 12 5/16" high. 3/4" panels
must be routed on all four
sides of the cutout. Rout
the back side of the panel
1/4" deep 7/8" wide.
(shaded area)
12 5/16"
9 7/16"
7/8" wide rout
Detail C
Custom Dispenser Cutout
Detail B
Rout panels to specification below on
the handle side of each panel
*3"
Stile
Left
Side
Hole is
Cut After
Door
Fabrication
*2 3/16" Stile
Right Side
Section AA
A
A
Handle
Side
13 1/2"
Wide
Middle
Rail
Detail D
Raised Panel Design
Detail A
35 1/2"
A
Over 1/4" Thick (3/4" max) Panel
Custom Grille Panel
(not to scale)
Grille Panel height can vary to fill installation height.
Important: Maintian 1-1/2" minimum gap between
top of doors and bottom of grille panel.
ZKT36 and ZKHT1 installed together provides for the installation of 3/4”
custom door and grille panels, using a custom handle of your choice. Cut
panels to size, rout the handle side of the panels as shown below and
install (see detail B). For ZKHTSS1, tubular stainless steel handle kit, cut
panels to size and rout the handle side of the panels as shown in detail B.
For standard dispenser trim: Cut panels to size, rout the handle side of the
panels as shown in detail B, rout the bottom of the upper freezer panel and
the top of the lower freezer panel to allow placement of support brackets
(see detail A) and install.
For custom dispenser trim ZWCD1 kit must be used: Cut panels to size,
refer to detail C for dispenser cutout routing instructions and install. When
a raised panel design is used, custom width stiles and custom middle rail is
required. A 13-1/2” wide middle rail must be used because the custom
collar trim must be located within the raised portion of the panel. This area
must be 3/4” thick. See Detail D for raised panel.
When using the standard full-width dispenser trim, the length of the custom
handle, top to bottom cannot exceed 11-3/4”. Locate the handle a minimum
of 3/4” and a maximum of 1-1/2” from the edge of the panel. There are no
length restrictions on handles for models using a custom collar dispenser
trim (ZWCD1).
XInstallation Height Dimension A
83" 8-1/4"
83-1/2" 8-3/4"
84" 9-1/4"
84-1/2" 9-3/4"
Monogram.
™
Specification Created 12/99
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
ZISB36DC - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter
Dimensions and Specifications (in inches)
1/2" to 3/4" Side Panels
Leading Edge
Flush with Cabinet
Front.
Side panels must be used whenever the sides of the refrigerator will be exposed.
23 9/16"
84"
2 9/16"
Trim
1/4" Side Panels
Insert end of
side panel into trim.
Standard 4" high toekick or trim to fit.
Height may vary depending on application.
24 3/4"
84"
3 3/4"
Standard 4" high toekick or trim to fit.
Height may vary depending on application.
Standard 4" high toekick or trim to fit.
Height may vary depending on application.
Standard 4" high toekick or trim to fit.
Height may vary depending on application.
23 5/16"
84"
2 5/16"
24 3/4"
84"
3 3/4"
1 1/2"
1/2" to 3/4" Side Panels
Leading edge routed
1/4" deep, 1-1/2" top to
bottom.
1/2" to 3/4" Side Panels
Recessed front edge.
*Not to scale.
Monogram.
™
Specification Created 12/99
ZISB36DC - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter
Features and Benefits
•21.2 cu. ft. Capacity (Fresh Food 12.0 cu.
ft., Freezer 9.2 cu. ft.)
• GE SmartWater
™
Filtration System
• Exterior Dispenser with Cubes, Crushed
Ice and Chilled Water
• 2 Adjustable Humidity Vegetable/
Fruit Pans
• Sealed Snack Pan
• 4 Adjustable Spill-Proof Glass Fresh
Food Shelves
• Slide-Back Shelf
• 5 Adjustable Fresh Food Door Bins
• Dairy Compartment
• Wine Holder
• Glass-Covered Butter Dish
• 4 Adjsutable Wire Freezer Shelves
• 2 Utility Baskets
• 3 Adjustable Freezer Door Bins
• Full-Length Aluminum Door Handles
• Model ZISW36DC—White Dispenser
• Model ZISB36DC—Black Dispenser
Loading...
