48" Built-In Refrigerators

Custom

Options Guide

and

Installation

Instructions

With Custom Panel Dimensions and Trim Kit

These Monogram built-in refrigerators are designed to be customized with decorator door and grille panels. Field installed panels are required.

Factory installed trim will accommodate 1/4" thick custom panels or optional Lexan

range of custom appearance options.

Read this booklet carefully to accomplish the desired appearance and to insure a trouble free installation.

illustrations to demonstrate custom possibilities. Custom door and grille panel sizes vary to accommodate the kit being used. Dimensions for each application are included and can be faxed or sent to the cabinet manufacturer so that the panels can be constructed accurately.

and Stainless Steel panel kits.

Optional trim kits allow an even broader

This booklet contains information and

Installation Instructions

Models: ZIS48N ZISW48D ZISB48D

Before you begin - Read these instructions completely and carefully.

CAUTION

IMPORTANT - Save these instructions for local inspector’s use. IMPORTANT - OBSERVE ALL GOVERNING CODES AND ORDINANCES. Note to Installer - Be sure to leave these instructions with the Consumer. Note to Consumer - Keep these instructions with your Use and Care Book for future reference.

WARNING

ATTENTION

This appliance must be properly grounded. See “Grounding the Refrigerator,” page 15.

Cet appareil doit être correctement mis à la terre. Consulter « Mise à terre du réfrigérateur », page 15.

Contents

If you have a question concerning the installation of this product, call the GE Answer Center Information Service at 800.626.2000, 24 hours a day, 7 days a week.

If you received a damaged refrigerator, you should immediately contact your dealer or builder.

Proper installation is the responsibility of the installer. Product failure due to improper installation is not covered under the GE Appliance Warranty. See the Use & Care Guide for warranty information.

For Monogram local service in your area, 1-800-444-1845. For Monogram service in Canada, 1-888-880-3030. For Monogram Parts and Accessories, call 1-800-626-2002.

Design Information

Advance Planning for a Flush Installation ................................................................................................................................... 3

Cutout and Product Dimensions .................................................................................................................................................. 3

Installation Between Base & Wall Cabinets ............................................................................................................................. 4

Installation At End-of-Run ............................................................................................................................................................. 4

Frameless Cabinets ........................................................................................................................................................................ 4

Accessory Panel Kits ..................................................................................................................................................................... 4

Advance Planning, Exterior Appearance Options...................................................................................................................... 5

Appearance Examples, Trim Kit Descriptions .......................................................................................................................... 5

Custom Panel Dimensions

ZIS48N ............................................................................................................................................................................................6-9

ZISW48D, ZISB48D ..................................................................................................................................................................10-13

Side Panel or Filler Options ........................................................................................................................................................ 14

Installation Instructions...........................................................................................................................................................15-20

Trim Kits

ZKH1 Trim Kit Installation Instructions

Custom Handles with 1/4" Thick Panels .............................................................................................................................21-25

ZG2 Trim Kit Installation Instructions

Grille Panel Frame Adjustment .................................................................................................................................................. 26

ZKT48 Trim Kit Installation Instructions

3/4" Thick Custom Panels .......................................................................................................................................................27-32

ZKHT1 Trim kit Installation Instructions

Custom Handles with 3/4" Thick Panels ..............................................................................................................................33-37

ZKHSS1 Trim Kit Installation Instructions

Tubular Stainless Steel Handles for 1/4" Panel Installation ............................................................................................38-41

ZKHTSS1 Trim Kit Installation Instructions

Tubular Stainless Steel Handles for 3/4" Panel Installation ............................................................................................42-45

ZWCD2 Trim Kit Installation Instructions

Custom Dispenser Collar ........................................................................................................................................................46-47

Consumer

WARNING

• Use this appliance only for its intended purpose.

• Immediately repair or replace electric service cords that have become frayed or damaged.

• Unplug the refrigerator before cleaning or making repairs.

• Repairs should be made by a qualified service technician.

ATTENTION

• Il ne faut utiliser cet appareil que pour l’usage pour lequel il a été construit.

• Il faut réparer ou remplacer immédiatement tout cordon d’alimentation électrique effiloché ou endommagé.

• Débrancher le réfrigérateur avant le nettoyage ou toute intervention.

• Les réparations doivent être faites par un technicien qualifié.

Flush or

3/4"

*Finished Width

Wall View

Electrical

Area

84 1/2" max 83-1/4" min

Finished Opening

74" From Floor

Bottom

of Electrical

20 3/8"

3 1/2"

Water Supply

24 3/4" Total

Depth

Semi-Flush Enclosure Installations

Advance Planning

Design Information

48" Built-In Refrigerator

INFORMATION

DESIGN

Enclosure Cutout and Product Dimensions

True Flush Installation

In a flush installation, the refrigerator doors

will align evenly with the

front face of adjacent cabinet

doors. The refrigerator blends

into the surrounding cabinetry.

Monogram built-in refrigerators can be installed flush with typical 24-3/4" deep cabinetry.

When installed semi-flush, the case trim will conceal slight gaps around the enclosure. The refrigerator will project forward approximately 3/4" beyond the front face of surrounding cabinetry.

In any installation situation, a wide range of appearance options can be accomplished through the use of one or more trim kits. See trim kit descriptions and appearance options on page 5.

• To achieve a flush fit the finished cutout width must be at least 48" wide.

• A semi-flush installation requires 47-1/2" min. finished cutout width.

• The electrical and water locations must be located as shown for either type of installation.

Semi-Flush Installation

These refrigerators

can also be installed

semi-flush into an enclosure

using the minimum cutout

width. The case trim creates a

frame around the opening.

Side Panels Requirements:

• Side panels are not required whenever the refrigerator is installed into an enclosure or between pantry and oven cabinets.

• Side panels are required whenever the sides of the refrigerator are exposed.

• Side panel sizes vary depending on the type of installation being made.

To accomplish an attractive installation, you must:

1. Determine the need for side panels.

2. Determine side panel thickness.

3. Order matching side panels from the cabinet

manufacturer. Be sure to provide the exact dimensions.

24-3/4"

48"

83" Min 84-1/2" Max

*48" Min. for a flush installation 47-1/2" Min. for a semi-flush installation Note: Additional cutout width may be required when side panels are used. Add side panel thickness to the finished cutout to calculate rough-in width. See installation examples on the following page.

DESIGN

Cabinet

Refrigerator door

Refrigerator

Cabinet

Refrigerator

Cabinet

Refrigerator door

Cabinet

INFORMATION

Installation Examples

Side panels are required whenever the sides of the refrigerator will be exposed.

1/2" to 3/4" side panels are normally set into place and fastened to adjacent cabinetry or to the back wall before rolling the refrigerator into the opening.

Design Information

48" Built-In Refrigerators

Therefore, the rough-in dimensions must allow for side panel thickness. In both a flush and semi-flush installation, the finished dimension, (the width of the opening after side panels are installed), must accommodate the full width of the refrigerator.

See page 14 for side panel sizes.

Installation Between Base & Wall Cabinets

Installation At End-of-Run

Flush and Semi-Flush

Finished Dim.

Roughed-In Dim.

Note: 1/4" thick side panels can be inserted into the case trim, making the rough-in the same as the outside trim width, 48".

Flush and Semi-Flush

Installations

Finished Dim.

Roughed-In Dim.

Note: 1/2" thick side panels shown. Side panels can be any thickness. Add side panel thickness to outside trim width (48") to calculate the rough-in dimension. The leading (front) edge must be finished to match surrounding cabinetry.

Installations

1/4" Thick

Side Panels

47-1/2"

48"

1/4" Side Panels. Insert end of

side panel into trim

1/2" Thick

Side Panels

48" 49"

1/2" To 3/4" Side Panels. Leading

Edge Flush With Cabinet

Frameless Cabinets

Accessory Panel Kits

Side panels, 1/2" minimum thickness are required when using frameless cabinets. The side panel acts as a spacer between the cabinet and the case trim and prevents interference with cabinet door swing. The leading (front) edge must be finished to match surrounding cabinetry.

Field installed door and grille panels are required. The factory installed trim will accept accessory panel kits. White or black Lexan® and stainless steel kits are available. Panels are cut to size and ready to install. These panel kits must be ordered separately.

Model Black White Stainless ZIS48N ZWBP48 ZWWP48 ZWSP48 ZISW48D ZWWP48D ZWSP48D ZISB48D ZWBP48D ZWSP48D

1/2" To 3/4" Side Panels. Leading

Edge Flush With Cabinet

A wide range of custom appearance options can be created with optional custom trim kits. See the opposite page for examples and trim kit descriptions.

Refrigerator

Cabinet

Refrigerator door

Design Information

48" Built-In Refrigerator

INFORMATION

DESIGN

Advance planning exterior appearance options

Appearance Examples Trim kit Descriptions

These refrigerators are designed to be customized with decorator door and grille panels. Field installed custom door and grille panels are required.

Factory installed trim accommodates 1/4" thick custom panels, Lexan

or stainless steel panel kits.

Appearance options are accomplished through the use of one or more trim kits. Kits must be ordered separately.

Door and grille panel sizes vary to accommodate the kit being used. Sizes are provided in this booklet.

Important: Maximum weight for fresh food panels is 50 pounds and 30 pounds for freezer door panels.

You should:

1. Select the appearance option.

2. Order the trim kit(s) for that option.

3. Order the custom door and grille panels from the cabinet manufacturer. The exact dimension for each trim kit application is provided in this booklet. Find and pull out the page for your application and fax or send it to the cabinet manufacturer. The cabinet manufacturer must have this information to construct the panels accurately.

4. Determine the final installation situation and order matching side panels.

3/4" thick custom panels–Without trim kits

A raised panel design, screwed or glued to a 1/4" thick backing can be used. See pages 7 and 11 for panel sizes and clearances.

1/4" and 3/4" panels with standard handles.

kits required.

No trim

1/4" Custom panels with custom handles.

ZKH1.

Trim Kit

1/4" Custom panels with Tubular Stainless Steel handles.

Door Handle Options

ZKH1 – Provides the necessary framework to install

custom handles,

of your choice,

onto 1/4" thick panels.

(Handles not included.) ZKHSS1 – Tubular stainless steel handles for 1/4" thick

panel installations. ZKHT1 – Provides the necessary framework to install

custom handles,

of your choice,

onto 3/4" thick panels. (Handles not included.) This kit must be used in combination with ZKT48.

ZKHTSS1 – Tubular stainless steel handles for 3/4" thick panel installations. This kit must be used in combination with ZKT48.

3/4" Custom panels with Tubular Stainless Steel handles.

Trim Kits ZKHTSS1, ZKT48 & ZWCD2.

Trim Kit ZKHSS1.

3/4" Custom panels with custom handles.

ZKT48 & ZKHT1.

Trim kits

Custom Panel Options

ZKT48 – Provides for the installation of 3/4" thick

trimless custom door and grille panels with the standard (supplied) full length handle.

Dispenser Options

ZWCD2 – Provides for the installation of a custom

collar trim on the dispenser and for one continuous custom panel on the freezer door. This kit can be used alone, or with all other kits.

Grille Panel Options

ZG2 – Provides 1/4" grille panel frame side pieces for

83", 83-1/2" and 84-1/2" installation heights. The supplied grille panel frame is factory set for 84".

Note: ZG1 Grille Panel Kit is available for models produced before January 1997. Panel sizes for ZG1 and ZG2 are the same. The ZG1 kit can be ordered from your Monogram dealer.

Custom Panel Dimensions

48" Built-In Refrigerator

DIMENSIONS

CUSTOM PANEL

84 1/2" max

83-1/4" min

*48" Min. for a flush installation into an enclosure. *47-1/2" Min. for a semi-flush installation into an enclosure.

Note: Additional cutout width may be required when side panels are used. Add side panel thickness to the finished cutout to calculate rough-in width. See installation examples on page 4.

Side View

(not to scale)

24 3/4"

Finished Opening

*Finished Width

Locate Grounded

Electrical outlet

Within Solid

Area Above

Locate Water

Supply Within

the Shaded

Area Below

3 1/2"

Front View

(not to scale)

47" Case Width

48" Overall Width

20 3/8"

12 1/4" max

10-3/4" min

84 1/2" max

83" min

72 1/4"

Wall View

(not to Scale)

74" From

Floor to

Bottom of

Electrical Area

3 1/2"

ZIS48N (Non-dispenser)

Design Information

Cutout dimensions, clearances and side panel sizes are determined by the many installation options available. Side panels must be used whenever the sides of the refrigerator will be exposed. Side panels are not required when refrigerator is installed into an enclosure or between pantry and oven cabinets. IMPORTANT–Side panels, 1/2" minimum thickness, are required when using FRAMELESS CABINETS.

• Field installed custom panels, Lexan panels are required. The door panels and grille panel sizes vary to accommodate the kit being used.

• A custom toekick can be installed to match or complement the surrounding cabinetry. Use the supplied toekick as a template to cut out notches around hinges and water lines.

Optional Kits:

• ZWBP48: Black Lexan Panel Kit (no trim kit required).

• ZWWP48: White Lexan



Panel Kit (no trim kit required).

• ZWSP48: Stainless Steel Panel Kit (no trim kit required).

• ZKH1: For installation of a custom handle on 1/4" panels.

• ZKT48: For installation of 3/4" custom panels.

• ZKHT1: For installation of a custom handle on 3/4" panels. (This kit must be used in combination with ZKT48.)

• ZKHSS1: Tubular Stainless Steel handles on 1/4" panels.

• ZKHTSS1: Tubular Stainless Steel handles on 3/4" panels. (This kit must be used in combination with ZKT48.)

• ZG2: 1/4" grille panel frame side pieces for 83", 83-1/2" and 84-1/2" installation heights. Factory set height is 84".

Additional Specifications

• A 115 volt 60 Hz., 15 or 20 amp power supply is required. An individual properly grounded branch circuit or circuit breaker is recommended. Install a properly grounded 3-prong electrical receptacle recessed into the back wall. Electrical must be located on rear wall.

• Water line can enter opening through the floor or back wall. The water line should be 1/4" O.D. copper tubing between the cold water line and water connection location, long enough to extend to the front of the refrigerator. Installation of an easily accessible shut off valve in the water line is recommended.

Clearances

If the refrigerator is to be installed in a corner:

• A 4" min. clearance between the case trim and adjacent wall on both sides of the refrigerator will assure a 90° door opening and access to all drawers. A 10" clearance is required on both sides for removal of pans.



or stainless steel

Custom Panel Dimensions

48" Built-In Refrigerator

Custom Door Panel Dimensions Using Standard Trim

1/4" thick panels

Panels secured to 1/4" thick backing

Freezer Panel Fresh Food Panel

67 7/8"

19 1/4" 27 1/4"

ZIS48N (non-dispenser)

Standard Trim with 1/4" Panels

• 1/4" Panels: Cut panels to size.

• Custom handles with 1/4" door panels require Trim Kit ZKH1 (or ZKHSS1 for tubular-stainless steel handles).

Standard Trim with Panels secured to 1/4" thick backing

• Applying a raised panel design to a 1/4" thick backing (screwed or glued): Cut 1/4" panels to size, fabricate the raised panel to permit clearances of at least 2" from the handle side for fingertip clearance of the standard handle, 1-1/4" from the hinge side to avoid striking adjacent cabinetry and 5/16" from the top and bottom edges to allow for the trim flange then install.

• Countertops adjacent to refrigerator installation should be mitered 45° degrees.

Note:

ZKHT1 custom handle kit cannot be used in this

configuration.

Custom Grille Panel

47"

CUSTOM PANEL

DIMENSIONS

1/4"

Thick

Backing

Important: Maximum weight for fresh food panels is 50 pounds and 30 pounds for freezer door panels.

Raised Panel on 1/4" Thick Backing

Using Standard Handles

Appearance Panel

1 1/4" Clearance hinge side

Case Trim

Door Handle

2" Clearance handle side

9" 1/4" Thick Panel

The grille panel frame is factory assembled for 84" installation height. If installation height varies, order ZG2 trim kit which provides optional side trim pieces. Cut grille panel to sizes shown below.

Installation Height Panel Height

83" 8" 83-1/2" 8-1/2" 84-1/2" 9-1/2"

Important:

top of doors and bottom of panel frame.

Maintain 1-1/2" min. gap between

Custom Panel Dimensions

48" Built-In Refrigerator

DIMENSIONS

CUSTOM PANEL

Custom Door Panel Dimensions

Using Trim Kit ZKT48

3/4" thick panel with standard handle

Freezer Panel Fresh Food Panel

67 15/16"

19 1/16" 27 1/16"

ZIS48N (non-dispenser)

• The ZKT48 trim kit provides for the installation of 3/4" custom door and grille panels, using the standard fulllength handle. Cut panels to size and install.

Important: Maximum weight for fresh food panels is 50 pounds and 30 pounds for freezer door panels.

Custom Grille Panel

47 1/2"

Over 1/4" Thick (3/4" max) Panel

Grille Panel height can vary to fill installation height.

Installation Height Dimension A

83" 8-1/4"

83-1/2" 8-3/4"

84" 9-1/4"

84-1/2" 9-3/4"

Important:

top of doors and bottom of grille panel.

Maintain 1-1/2" min. gap between

Custom Panel Dimensions

48" Built-In Refrigerator

Custom Door Panel Dimensions

Using Trim Kits ZKT48

3/4" thick panel

with custom handle

Freezer Panel

67 15/16"

19 5/16"

Fresh Food Panel

27 5/16"

ZIS48N (non-dispenser)

• ZKT48 and ZKHT1 installed together provides for the installation of 3/4" custom door and grille panels, using a custom handle, of your choice. Order ZKHTSS1 for tubular stainless-steel handles. Cut panels to size, rout the handle side of the panels as shown below and install.

Important: Maximum weight for fresh food panels is 50 pounds and 30 pounds for freezer door panels.

CUSTOM PANEL

DIMENSIONS

Rout panels to specification below on

the handle side of each panel

1 13/16"

Freezer Door FaceFreezer Door Face

Over 1/4" Thick (3/4" max) Panel

Grille Panel height can vary to fill installation height.

Installation Height Dimension A

83" 8-1/4"

83-1/2" 8-3/4"

84" 9-1/4"

84-1/2" 9-3/4"

Important:

top of doors and bottom of grille panel.

Maintain 1-1/2" min. gap between

1/4"

max

Custom Grille Panel

47 1/2"

Fresh Food Door Face

1 13/16"

DIMENSIONS

CUSTOM PANEL

84 1/2" max

83-1/4" min

*48" Min. for a flush installation into an enclosure. *47-1/2" Min. for a semi-flush installation into an enclosure.

Note: Additional cutout width may be required when side panels are used. Add side panel thickness to the finished cutout to calculate rough-in width. See installation examples on page 4.

Side View

(not to scale)

24 3/4"

Finished

Opening

*Finished Width

Locate Grounded

Electrical outlet

Within Solid

Area Above

Locate Water

Supply Within

the Shaded

Area Below

3 1/2"

Front View

(not to scale)

47" Case Width

48" Overall Width

20 3/8"

12 1/4" max

10-3/4" min

84 1/2" max

83" min

72 1/4"

Wall View

(not to Scale)

74" From

Floor to

Bottom of

Electrical Area

3 1/2"

Custom Panel Dimensions

48" Built-In Refrigerator

ZISW48D (white dispenser) ZISB48D (black dispenser)

Design Information

• Field installed custom panels, Lexan panels are required. Custom door panels and grille panel sizes vary to accommodate the kit being used.

• A custom toekick can be installed to match or complement the surrounding cabinetry. Use supplied toekick as a template to cut notches for hinges and water lines.

Optional Kits:

• ZWBP48D: Black Lexan Panel Kit (no trim kit required).

• ZWWP48D: White Lexan



Panel Kit (no trim kit required).

• ZWSP48D: Stainless Steel Panel Kit (no trim kit required).

• ZKH1: For installation of custom handles on 1/4" panels.

• ZKT48: For installation of 3/4" custom panels.

• ZKHT1: For installation of custom handles on 3/4" panels. (This kit must be used in combination with ZKT48.)

• ZWCD2: For installation of a custom collar trim on the dispenser for one continuous custom panel on the freezer door.

• ZKHSS1: Tubular Stainless Steel handles on 1/4" panels.

• ZKHTSS1: Tubular Stainless Steel handles on 3/4" panels. (This kit must be used in combination with ZKT48.)

• ZG2: 1/4" grille panel frame side pieces for 83", 83-1/2" and 84-1/2" installation heights. Factory set height is 84".

Additional Specifications

Clearances

If the refrigerator is to be installed in a corner:



or stainless steel

Custom Panel Dimensions

48" Built-In Refrigerator

Freezer Panel

16 5/8"

36 7/8"

Custom Door Panel Dimensions Using Standard Trim

1/4" thick panels

Panels secured to 1/4" thick backing

Standard

Dispenser

19 1/4"

Important: Maximum weight for fresh food panels is 50 pounds and 30 pounds for freezer door panels.

Freezer Panel

Custom

Dispenser

19 1/4

Fresh Food

Panel

17 11/16"

67 7/8"

3 9/16"

27 1/4"

ZISW48D (white dispenser) ZISB48D (black dispenser)

CUSTOM PANEL

Standard Trim with 1/4" Panels

• 1/4" Panels: Cut panels to size.

• Custom handles with 1/4" door panels require Trim Kit ZKH1. When using ZKH1 with the standard dispenser trim, the length of the custom handle, top to bottom cannot exceed 11-3/4".

• Tubular stainless steel handle kit, ZKHSS1.

• Custom collar dispenser trim with 1/4" door panels require trim kit ZWCD2.

Standard Trim with Panels secured to 1/4" thick backing

• Countertops adjacent to refrigerator installation should be mitered 45° degrees.

Note:

ZWCD2 custom collar dispenser trim and ZKHT1 custom handle kits cannot be used in this configuration.

Custom Grille Panel

47"

DIMENSIONS

1/4"

Thick

Backing

Raised Panel on 1/4" Thick Backing

Using Standard Handles

Appearance Panel

1 1/4" Clearance hinge side

Case Trim

Door Handle

2" Clearance handle side

9" 1/4" Thick Panel

The grille panel frame is factory assembled for 84" installation height. If installation height varies, order ZG2 trim kit for optional side trim pieces. Cut grille panel to sizes shown below.

Installation Height Panel Height

83" 8" 83-1/2" 8-1/2" 84-1/2" 9-1/2"

Important:

top of doors and bottom of panel frame.

Maintain 1-1/2" min. gap between

Custom Dispenser Cutout

12 1/16"

12 5/16"

The Cutout is 12 1/16" wide

by 12 5/16" high.

Custom Panel Dimensions

Custom Grille Panel

47 1/2"

Over 1/4" Thick (3/4" max) Panel

48" Built-In Refrigerator

DIMENSIONS

CUSTOM PANEL

16 11/16"

Custom Door Panel Dimensions

Using Trim Kit ZKT48

3/4" thick panel with standard handle

and/or ZWCD2 custom collar trim

Freezer Panel

Standard

Dispenser

37"

Freezer Panel

Custom

Dispenser

17 11/16"

3 5/16"

67 15/16"

Fresh Food

Panel

ZISW48D (white dispenser) ZISB48D (black dispenser)

• The ZKT48 trim kit provides for the installation of 3/4" custom door and grille panels, using the standard fulllength handle. Cut panels to size and install.

• For standard dispenser trim: Cut panels to size, rout the bottom of the upper freezer panel and the top of the lower freezer panel to allow placement of support brackets and install (see detail A).

• For custom dispenser trim ZWCD2 kit must be used: Cut panels to size, refer to detail B for dispenser cutout routing instructions and install. When a raised panel design is used, a custom middle rail is required. A 14-1/2" wide middle rail must be used because the custom collar trim must be located within the raised portion of the panel. This area must be 3/4" thick. See detail C for raised panel design requirements.

Panel

Face

19 1/16"

Detail A

Upper

Freezer

Panel

Lower

Freezer

Panel

3/32"

19-1/16"

Important: Maximum weight for fresh food panels is 50 pounds and 30 pounds for freezer door panels.

Detail B Custom

Dispenser Cutout

12 1/16"

12 5/16"

The Cutout is 12 1/16" wide by 12 5/16" high. 3/4" panels must be routed on all four sides of the cutout. Rout the back side of the panel 1/4" deep. 7/8" wide (shaded area).

27 1/16"

7/8" Wide Rout

Grille Panel height can vary to fill installation height.

Installation Height Dimension A

83" 8-1/4"

83-1/2" 8-3/4"

84" 9-1/4"

84-1/2" 9-3/4"

Important:

top of doors and bottom of grille panel.

Maintain 1-1/2" min. gap between

Detail C

Raised Panel Design

Hole is Cut After Door Fabrication

Handle Side

14 1/2"

Wide

Middle

Rail

Custom Panel Dimensions

48" Built-In Refrigerator

16 11/16"

37"

Detail A

Freezer

Panel

Face

Freezer

Custom Door Panel Dimensions

Using Trim Kit ZKT48

3/4" thick panel with custom handle

and/or ZWCD2 custom collar trim

Freezer Panel

Standard

Dispenser

19 5/16"

Upper

Panel

3/32"

Lower

Panel

Freezer Panel

Custom

Dispenser

17 11/16"

3 9/16"

19 5/16"

Important: Maximum weight for fresh food panels is 50 pounds and 30 pounds for freezer door panels.

Rout panels to specification below on

the handle side of each panel

1 13/16"

Freezer Door FaceFreezer Door Face

Dispenser Cutout

Fresh Food

Panel

67 15/16"

27 5/16"

Detail B

1/4"

max

Detail C Custom

12 1/16"

ZISW48D (white dispenser) ZISB48D (black dispenser)

• ZKT48 and ZKHT1 installed together provides for the installation of 3/4" custom door and grille panels, using a custom handle of your choice. Cut panels to size, rout the handle side of the panels as shown below and install (see detail B).

1 13/16"

Fresh Food Door Face

• For ZKHTSS1 tubular stainless steel handle kit, cut panels to size and rout the handle side of the panels as shown in detail B.

• For standard dispenser trim: Cut panels to size, rout the handle side of the panels as shown in detail B, rout the bottom of the upper freezer panel and the top of the lower freezer panel to allow placement of support brackets (see detail A) and install.

• For custom dispenser trim ZWCD2 kit must be used: Cut panels to size, refer to detail C for dispenser cutout routing instructions. When a raised panel design is used, a custom middle rail is required. A 14-1/2" wide middle rail must be used because the custom collar trim must be located within the raised portion of the panel. This area must be 3/4" thick. See detail D for raised panel design requirements.

• When using the standard full-width dispenser trim, the length of the custom handle, top to bottom cannot exceed 11-3/4". Locate the handle a minimum of 3/4" and a maximum of 1-1/2" from the edge of the panel. There are no length restrictions on handles for models using a custom collar dispenser trim (ZWCD2).

Custom Grille Panel

47 1/2"

Over 1/4" Thick (3/4" max) Panel

Grille Panel height can vary to fill installation height.

Installation Height Dimension A

83" 8-1/4"

83-1/2" 8-3/4"

84" 9-1/4"

84-1/2" 9-3/4"

Important:

top of doors and bottom of grille panel.

Maintain 1-1/2" min. gap between

Detail D

Raised Panel Design

CUSTOM PANEL

DIMENSIONS

The Cutout is 12 1/16" wide by 12 5/16" high. 3/4" panels must be routed on all four sides of the cutout. Rout the back side of the panel 1/4" deep. 7/8" wide (shaded area).

12 5/16"

7/8" Wide Rout

Hole is Cut After Door Fabrication

Handle Side

14 1/2"

Wide

Middle

Rail

Custom Panel Dimensions

24 3/4"

84"

3 3/4"

48" Built-In Refrigerator

Side Panel or Filler Options

Side panels must be used whenever the sides of the refrigerator

1/4" Side Panels

DIMENSIONS

CUSTOM PANEL

Insert end of side panel into trim.

Trim

Standard 4" high toekick or trim to fit. Height may vary depending on application.

(not to scale)

will be exposed.

23 9/16"

84"

2 9/16"

For All Monogram Built-In Refrigerators

1/2" to 3/4" Side Panels Leading Edge Flush with Cabinet Front. The front or leading edge, must be finished to match cabinetry.

Standard 4" high toekick or trim to fit. Height may vary depending on application.

1/2" to 3/4" Side Panels Recessed front edge.

84"

Standard 4" high toekick or trim to fit. Height may vary depending on application.

23 5/16"

2 5/16"

Installation

48" Built-In Refrigerator

Tools Required

Hardware Supplied

Materials Required

Flooring

Grounding the Refrigerator

• Tinsnips to cut banding

• Stepladder

• 1-1/2" stamped open-end wrench

• Water shut-off valve (optional but recommended)

• Water filter WR97X0214 (optional but recommended)

• Custom panels for fresh food, freezer compartments, grille panel

For proper installation, this refrigerator must be placed on a level surface of hard material that is at the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator.

IMPORTANT - (Please read carefully)

FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED.

The power cord of this appliance is equipped with a three-prong (grounding) plug which mates with a standard three-prong (grounding) wall receptacle to minimize the possibility of electric shock hazard from this appliance.

• Bucket

• Level

• Appliance Hand Truck

• Tubing cutter

• Special velcro adhesive strips for 1/4" side panels

• 7/16" open-end wrench

• #2 Phillips screwdriver

• Stubby Phillips screwdriver

• 1/4-1/4 union with nuts

• 1/4" panel foam spacers

• Side panels

• Hardware for side panel installation.

• 48" long 2x4 for Anti-Tip support

NOTE: Protect the finish of the flooring. Cut a large section of the cardboard carton and place under the refrigerator where you are working.

• Drill and appropriate bits

• 7/16" socket with 3" extension for ratchet

• Safety glasses

CAUTION

Attaching the adapter ground terminal to a wall outlet cover screw does not ground the appliance unless the cover screw is metal, and not insulated, and the wall outlet is grounded through the house wiring. You should have the circuit checked by a qualified electrician to make sure the outlet is properly grounded.

INSTALLATION

PRODUCT

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD (GROUND) PRONG FROM THE POWER CORD.

Use of Adapter plug

Because of potential hazards under certain conditions, we strongly recommend against use of an adapter plug. However, if you still elect to use an adapter, where local codes permit, a TEMPORARY CONNECTION, may be made to a properly grounded 2-prong wall outlet by use of a UL listed adapter available at most hardware stores.

The larger slot in the adapter must be aligned with the larger slot in the wall outlet to provide proper polarity in the connection of the power cord.

When disconnecting the power cord from the adapter, always hold the adapter in place with one hand and pulling the power cord with the other hand. If this is not done, the adapter ground terminal is very likely to break with repeated use.

Should the adapter ground terminal break, DO NOT USE the appliance until a proper ground has again been established.

Use of Extension Cords

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord. However, if you still elect to use an extension cord, it is absolutely necessary that it be a UL listed 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

PRUDENCE

FICHE D’ADAPTATION (Fiches d’adaptation non permises au Canada)

Step 1

Saddle Type Shutoff Valve

Compression Nut

Ferrule (Sleeve)

Outlet Valve

Packing Nut

Inlet End

Pipe Clamp

Washer

7/16" Bolt

Remove Packaging

PRODUCT

INSTALLATION

CAUTION

Refrigerator is much heavier at the top than at the bottom – be careful when moving. When using a hand truck, handle from side only.

PRUDENCE

Le réfrigérateur est beaucoup plus lourd en haut qu'en bas. Il faut être prudent lors des déplacements. Si un diable est utilisé, il faut soulever le réfrigérateur sur le côté seulement.

• Remove outer carton. – Carefully cut banding at the top and bottom.

• Slide out back corner posts (2).

• Slide carton off top of cabinet.

• Remove grille panel assembly from front of refrigerator, set aside for later installation.

NOTE: IT IS NOT NECESSARY TO LAY CABINET DOWN IN ORDER TO REMOVE SKID!

• To remove skid, remove the four 7/16" bolts and their brackets.

CAUTION

DO NOT ATTEMPT TO ROLL UNIT OFF SKID.

PRUDENCE

IL NE FAUT PAS ESSAYER DE FAIRE ROULER LE RÉFRIGÉRATEUR POUR L'ENLEVER DE LAY PALETTE.

Installation

48" Built-In Refrigerator

• There are support blocks on the bottom of the cabinet and door. They must be removed before sliding unit off the skid or damage will occur.

• Carefully, tilt cabinet and slide blocks out from beneath cabinet, slide unit off skid.

• Remove toekick from fresh food compartment and set aside for later installation.

Step 2 Install Water Line

• A cold water supply is required for automatic icemaker operation. The water pressure must be between 20 and 120 p.s.i.

• Route 1/4" OD copper tubing between house cold water line and the water connection location.

• Copper tubing should be long enough to extend to the front of the refrigerator. Allow enough to accommodate bend leading into the water valve.

Shut off the main water supply.

Turn on the nearest faucet long enough to clear the line of water.

• Install a shut-off valve between the icemaker water valve and cold water pipe in a basement or cabinet. The shut-off valve should be located where it will be easily accessible.

NOTE: It is best to install the valve into a vertical water pipe. If you install the valve into a horizontal water pipe, make the connection at the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

• Drill a 1/4" hole in the water pipe.

• Fasten the shut-off valve to the pipe with pipe clamp.

• Tighten the clamp screws until the sealing washer begins to swell. Do not over tighten.

• Place a compression nut and ferrule (sleeve) onto the end of the tubing and connect it to the shut-off valve. Make sure the tubing is fully inserted into the valve and ferrule is tightened.

• Turn on the main water supply and flush debris from the line. Run about a quart of water through the tubing into a bucket. Shut off water supply at the shut-off valve.

Floor

Copper Tubing

NOTE: Saddle type shut-off valves are included in many water supply kits. Before purchasing, make sure a saddle type valve complies with your local plumbing codes.

• Install optional water filter in the water line near the refrigerator. A water filter is recommended in areas where water supply contains sand or particles. Installation instructions are packed with the filter.

Installation

48" Built-In Refrigerator

Step 3 Install Side Panels

• Side panels are not required when the refrigerator is installed into an enclosure. Skip this step if you are installing in an enclosure.

• Side panels are required whenever the sides of the refrigerator will be exposed and when installed between frameless cabinets. See pages 3 and 4.

• Side panel installation will be determined by the design of the side panel you have previously chosen.

• Side panels must be installed plumb.

Illustration A

Side

Panel

Refrigerator

Cabinet

Refrigerator door

1/4" Side Panels – Insert End Of Side Panel Into Case Trim. Fasten WIth Velcro Strips provided.

Illustration C

• If you choose to use 1/4" side panels, they should be inserted into the case trim as illustrated. Fasten the panels to the refrigerator with Velcro strips (provided) before setting refrigerator in place. See illustration A.

• 1/2" to 3/4" side panels are normally set into place and fastened to adjacent cabinetry or the back wall before rolling the refrigerator into the opening. See illustrations B and C.

Illustration B

Refrigerator

Cabinet

Refrigerator door

1/2" to 3/4" Side Panels – Leading Edge Of Side Panel Is Flush With Cabinet front. Fasten To The Back Wall Using A Cleat.

INSTALLATION

PRODUCT

Step 4 Roll Refrigerator Into Opening

Step 5 Level Refrigerator

Refrigerator

Cabinet

Refrigerator door

Cabinet

1/2" to 3/4" Side Panels – Recessed Front Edge of Side Panel. Fasten To Adjacent Cabinet.

• Gently push refrigerator into opening with hands against front corners. The cardboard protective pad should be beneath the refrigerator.

• Roll refrigerator into the opening until it is flush with adjacent cabinets.

All models have 4-point leveling. The front is supported by leveling legs, the rear is supported by wheels.

• To level the back of the refrigerator, turn the 7/16" hex nut located above the front wheels. Turn to raise or lower the refrigerator.

• For front leveling, use the 1-1/2" open-end wrench (provided).

• Adjust carefully, the refrigerator should be level and plumb with cabinetry, and should align with toekick height.

Hex Nut Adjusts

Rear Wheels

Leveling Leg

Installation

48" Built-In Refrigerator

Step 6 Install 1/4" door panels

PRODUCT

INSTALLATION

If you are using 3/4" thick custom panels, SKIP THIS STEP. See

Custom Panel Dimensions

pages for panel sizes with ZKT48 trim kit and other kits. Refer to trim kit installation instructions in this booklet.

If you are using the custom collar dispenser trim, order ZWCD2 trim kit.

To install 1/4" door panels:

• Carefully remove the Phillips head screws from the

door handle top endcaps, if present.

• Open door to 90° stop. Remove the Phillips head

screws from the aluminum trim door handles. Retain all screws.

• Attach 2" x 2" adhesive

backed foam pads to the door. These fillers are shipped with literature package in snack pan.

• Slide panel into the door

trim.

• Replace door handles

and secure with original screws.

• Again, check to be sure

unit is level and that panels align with cabinetry. Doors will not close properly if unit is not level.

• Check for noises caused

by incomplete alignment (rubbing of panels, trim or screws).

Installation

48" Built-In Refrigerator

Step 7 OPTION 1 Secure refrigerator at the top

OPTION 2 Secure refrigerator at the sides

WARNING

ANTI-TIP PRECAUTIONS The refrigerator is heavy at the top and must be secured to prevent the possibility of tipping forward.

ATTENTION

PRECAUTIONS CONTRE LES BASCULEMENTS Le réfrigérateur est beaucoup plus lourd en haut et il faut le maintenir en place pour éviter la possibilité de son basculement vers l'avant.

To prevent the refrigerator from tipping over, you must:

• Install a wood block, the full width of the refrigerator. Secure the block with wood screws penetrating at least 3/4" into wall studs.

When using 1/2" to 3/4" side panels, the front flange of the case trim is attached to the side panel.

• Open freezer door to access case trim.

• Drill hole in case trim slightly below top hinge. Drive screw through the trim and into the side panel.

• Follow the same procedure on the fresh food side.

Side

Panel

Block

Side View

Refrigerator Cabinet

Refrigerator

Door

Soffit

INSTALLATION

PRODUCT

Side View

Top View

Step 8 Connect Water Supply

If refrigerator is installed between cabinets with no side panels or in a custom enclosure, install a spacer block as shown.

• Open freezer door to access case trim.

• Drill hole in case trim slightly below top hinge. Drive screw through the trim and into the spacer block.

• Follow the same procedure for fresh food side.

Check to be sure that refrigerator power cord is not plugged into the wall outlet.

• Locate and bring copper tubing to the front of the cabinet.

• Turn the water on to flush debris from line, run about a quart of water through tubing into a bucket, then shut-off water.

• Slip a 1/4-1/4 union nut (provided) over both ends of the copper tubing at the right front leg of then refrigerator and couple the lines.

• Turn on the water to check for leaks.

Spacer

Block

Refrigerator Cabinet

Refrigerator Door

Spacer Block

Top View

Installation

Screws

Top

Case

Trim

Raise To Installation Height

1-1/2" min. gap

48" Built-In Refrigerator

Step 9 Connect power

Step 10 Mount Top Grille

PRODUCT

Panel

INSTALLATION

• Connect refrigerator power cord plug to properly grounded receptacle, accessible through the top right side of the grille opening.

• Check to make sure power to refrigerator is on by opening refrigerator door to see if interior lights are on.

If you are using 3/4" thick custom panels, SKIP THIS STEP. See

Custom Panel Dimensions

for grille panel sizes. Order ZKT48 kit and follow the installation instructions packed with the kit.

The grille panel frame is factory assembled for an 84" installation height. If installation height varies, order ZG2 trim kit which provides optional side trim pieces.

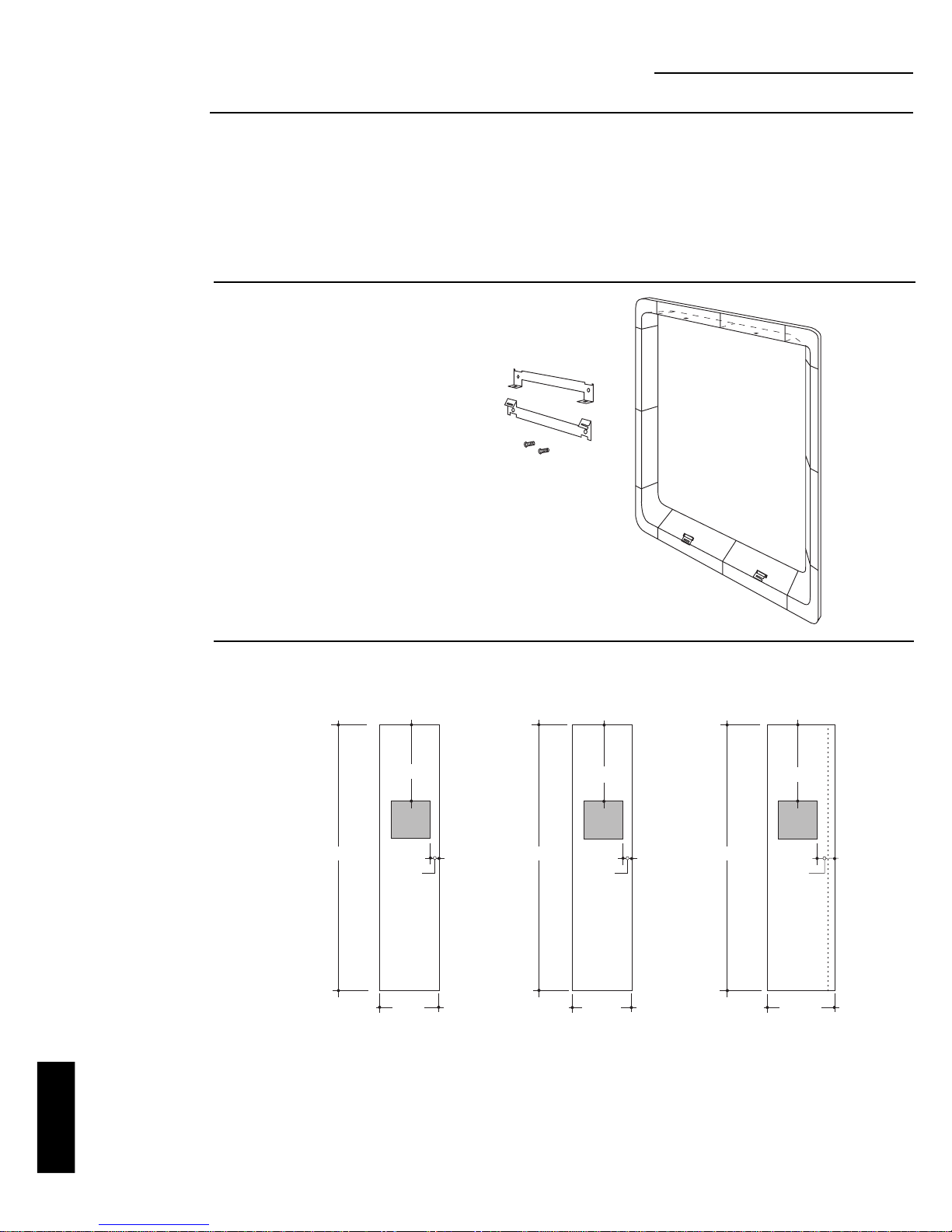

Cut 1/4" thick custom panel to fit the frame, 47" wide, 9" deep.

To insert decorative grille panel into the frame:

• Remove screws (2 on each top corner) and “L”

brackets on each side.

• Slide panel into the frame and reassemble.

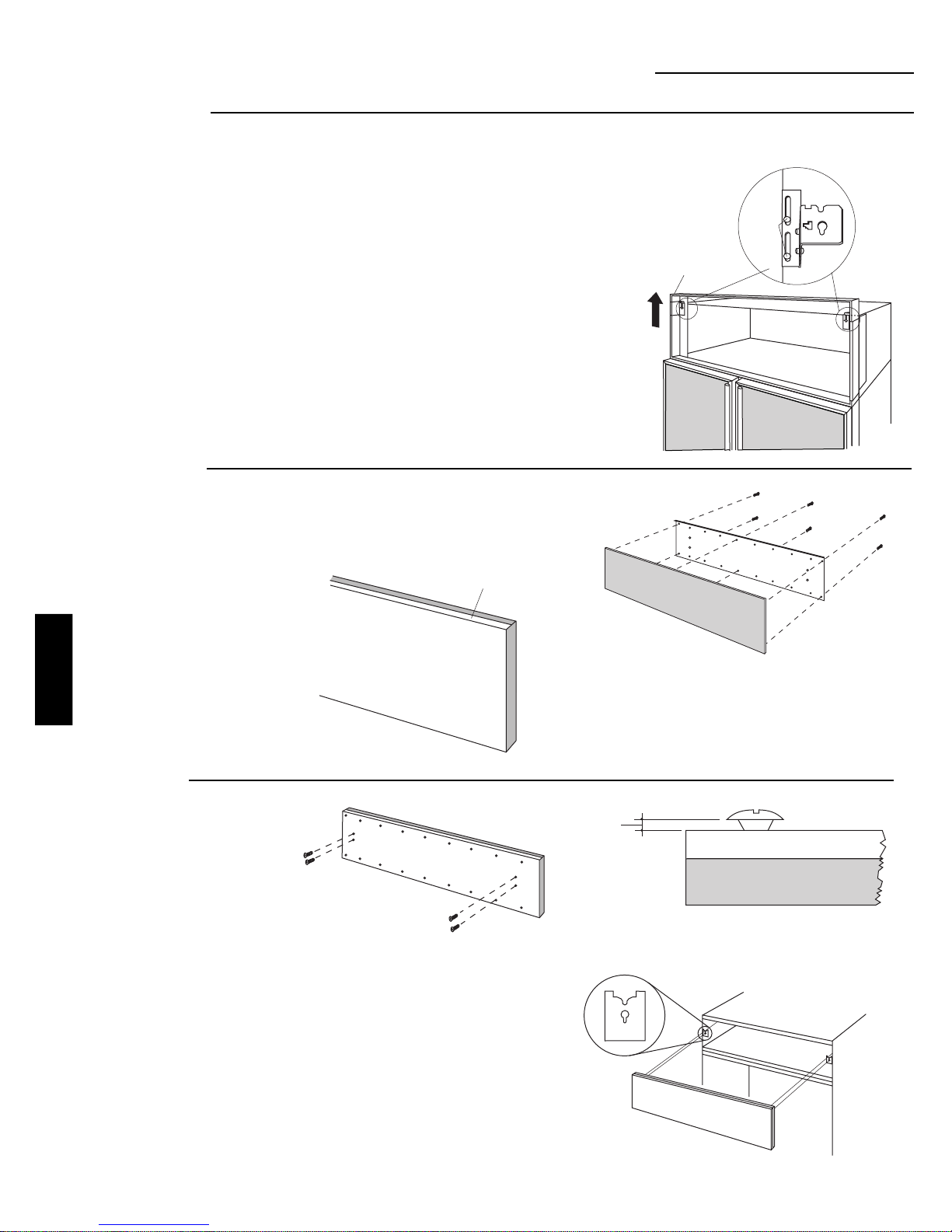

• Mount the grille panel by dropping into slots on the

case trim.

Step 11 Install Toekick

For shipping purposes, the top case trim is secured at 84" installation height and must be adjusted.

To raise or lower case trim to other installation heights:

• Loosen 2 screws on both sides and raise the top case

trim to meet soffit height or to the top of adjacent cabinets.

• Tighten all 4 screws. If installation height is more or less than 84”, order ZG2

optional grille panel kit which accommodates 83", 83-1/2" and 84-1/2" heights. See installation instructions page 26.

• A standard toekick is supplied. Install with 2 screws provided, adjust to desired height and tighten screws.

• A custom toekick can be installed to match or complement the surrounding cabinetry.

– If a custom toekick is to be installed, use the

supplied toekick as a template to cut out notches around hinges and waterline tubing.

• For 1/2" to 3/4" thick custom toekicks, additional material should be removed and cut away. This will allow the water and electrical umbilical tube to rotate smoothly when the door is fully opened.

Important

bottom of panel frame.

: Maintain 1-1/2" min. gap between top of doors and

Standard Toekick (Packed with Product)

3-1/4"

1/4" Thick Custom Toekick

1/2" to 3/4" Thick Custom Toekick Remove Additional Material

4-1/16"

ZKH1 Trim Kit (For 1/4" Panels)

Support for Custom Handles

Kit contents

Tools and materials required:

•#2 Phillips screwdriver

•Drill and appropriate bits

•Custom door panels

•Custom handles

•Safety glasses

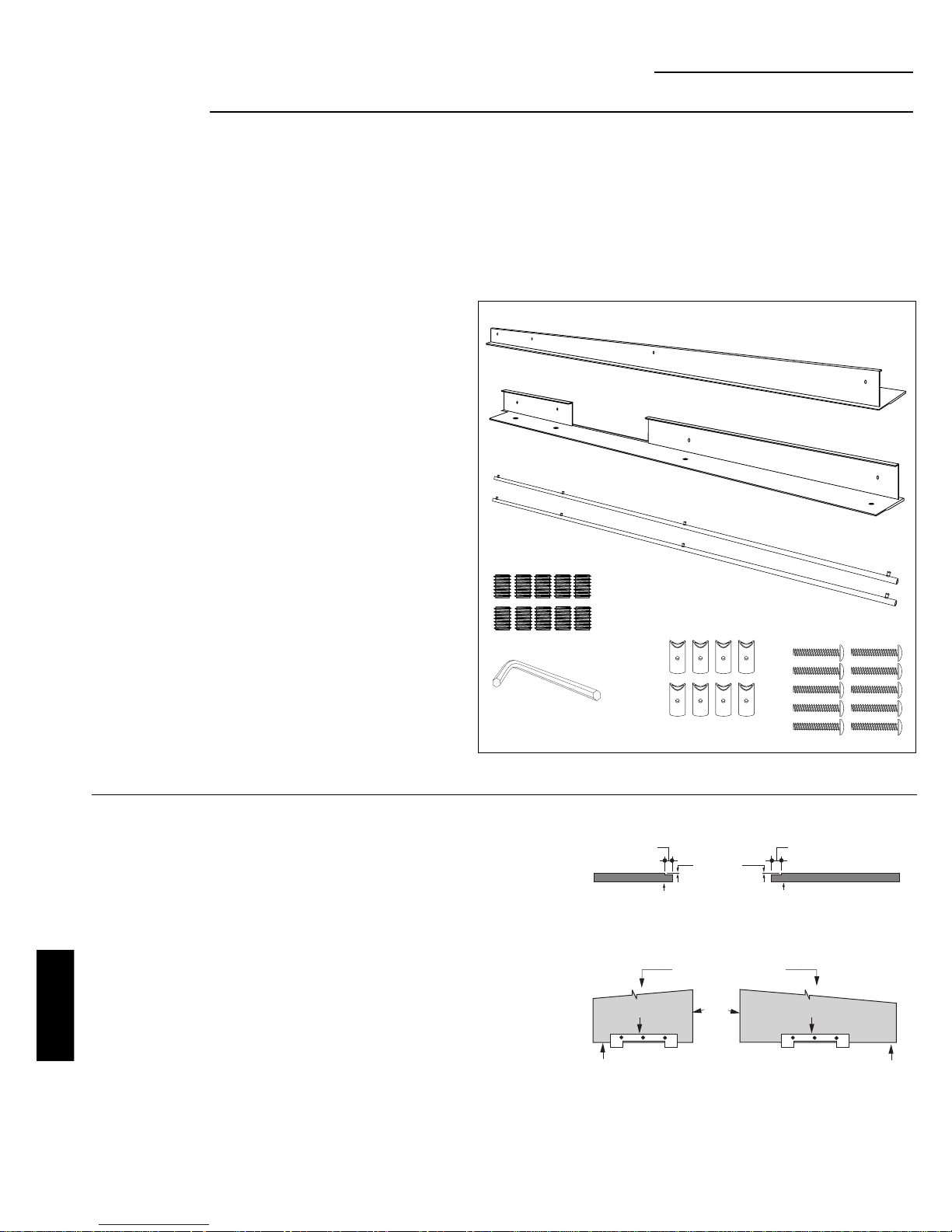

Parts List:

A. Fresh food door

extrusion

B. Freezer door

extrusion for nondispenser model and dispenser model using custom collar.

(Option 1)

C. Freezer door

extrusion for dispenser model using full-width trim.

(Option 2)

D. Handle bracket for

dispenser model using full-width trim. (Option 2)

These instructions are divided into 2 options: Option 1—For non-dispenser and dispenser models

using custom collar trim.

Option 2—For dispenser model using the standard

full-width trim.

INSTALLATION

ZKH1

OPTION 1 For non-dispenser model or dispenser model using custom collar trim

Step 1 Remove handles

This kit provides the necessary framework to install custom handles, of your choice, onto 1/4" thick decorator door panels. (Handles not included.) The door extrusions and bracket allow custom handles to be secured to the door structure, rather than the door panels. This kit contains all the necessary parts for

• Carefully remove the Phillips head screws from the door handle top endcaps, if present .

• Open doors to 90°. Remove the screws from the full-length aluminum handles of both doors.

• Retain screws, discard handles and endcaps.

Note:

If a custom collar is to

be used, order ZWCD2 Trim Kit.

dispenser and non-dispenser models. Follow the instructions for Option 1 when applying custom handles to a non-dispenser model or dispenser model using custom collar trim. Follow instructions in Option 2 for a dispenser model using the standard full-width dispenser trim.

ZKH1 Trim Kit (For 1/4" Panels)

3/4" Min. 1-1/2" Max.

Door Extrusion

Option 1 Installation

Step 2 Locate position of handles

ZKH1

INSTALLATION

Support for Custom Handles

Note:

Handle must be located

3/4" to 1-1/2" from edge of extrusion.

• Slide custom panels into fresh food and freezer door frames.

• Temporarily secure the new door extrusions to the doors. Use at least 2 screws on each door.

• The handles must be located 3/4" to 1-1/2" from the edge of the extrusion.

• Determine the desired location of the custom handles and carefully mark centerlines of the screw holes.

• Again, with both doors closed, check the location of the centerlines to be sure they are parallel to the edge of the door, and level with opposite door.

• Drill 1/16" pilot hole through the panel until it starts into the aluminum extrusion. This will mark the matching location for drilling the clearance hole when assembling the handle, panel and extrusion.

ZKH1 Trim Kit (For 1/4" Panels)

Option 1 Installation

Step 3 Assemble panel, extrusion and handle

Decorator Door Panel

Handle

Extrusion

3/4" Min. 1-1/2" Max.

Support for Custom Handles

Screw

Decorator Door Panel

INSTALLATION

ZKH1

Door Handle

• Remove the door extrusions and door panels.

• Drill 1/16" pilot hole through extrusion.

• Drill clearance holes through the panel and extrusion.

• Assemble the door panel, extrusion and custom handle.

• Install screw(s) long enough to pass through the extrusion, door panel and into the handle.

• Slide the assembly into the door frame until the new extrusion fits firmly against the steel door.

• Re-install original screws into the door extrusion.

ZKH1 Trim Kit (For 1/4" Panels)

Temporarily Secure Handle Bracket With Screws

Temporarily Secure Dispenser Trim With Screws

Support for Custom Handles

OPTION 2 For dispenser model using full-width trim

Step 1 Remove handles

ZKH1

Step 2 Remove trim

INSTALLATION

• Carefully remove the Phillips head screws from the door handle endcaps, top and bottom.

• Open door to 90°. Remove the screws from the full-length aluminum handle of the freezer door.

• Retain screws, discard handle and endcaps.

Remove door panel trim above and below dispenser. Lift off dispenser trim. Retain screws and trim.

Remove

Trim

Step 3 Locate position of handle

Remove

Dispenser Trim

• Position the handle bracket onto the steel door by matching existing screw holes on the door and bracket. Temporary secure with screws.

• Re-install dispenser trim, temporarily.

• Determine the desired location of the custom handle and carefully mark centerlines of the screw holes.

• Drill 1/16" pilot hole through the trim until it starts into the handle bracket. This will mark the matching location for drilling a clearance hole when assembling the handle, bracket and dispenser trim.

• Remove dispenser trim and bracket.

ZKH1 Trim Kit (For 1/4" Panels)

Handle Bracket

Custom Handle

Dispenser Trim

Freezer Handle Side Extrusion

Option 2 Installation

Step 4 Install custom handle

• Drill clearance holes through the handle bracket and the dispenser trim.

• Install screw(s) long enough to pass through the handle bracket, dispenser trim and into the custom handle.

Note:

The custom handle must

be installed against the handle bracket. The custom handle cannot exceed 11-3/4" length.

Support for Custom Handles

INSTALLATION

ZKH1

Step 5 Mount assembled dispenser trim

Step 6 Install custom handle extrusion

• Mount assembled dispenser trim with handle onto the door.

• Drive 2 screws through the top and bottom of the handle bracket into the steel door.

• Re-install 3 screws at top and bottom of dispenser trim.

• Slide decorator panels into the trim, top and bottom.

• Slide freezer door extrusion in between panels and steel door. Secure with screws.

• To install fresh food handle follow the same procedure as shown in Option 1.

Important:

bracket must be secured to the steel door. If it is not secured properly, the dispenser trim will pull away from the door.

The handle

Secure Assembled Dispenser Trim With Screws

Secure Handle Bracket With Screws

ZG2 Trim Kit

1-1/2" min. gap

Grille Panel Frame Adjustment

ZG2

INSTALLATION

FOR 83", 83-1/2"

AND 84-1/2"

INSTALLATION

HEIGHTS

• This kit provides optional side trim pieces for the original grille frame to fit 83", 83-1/2" or 84-1/2" installation heights.

To change grille panel size:

• Determine the installation height by measuring the enclosure from the floor to the underside of soffit. When there is no soffit, measure to the top of adjacent cabinets.

• Adjust refrigerator case trim to desired height. See Product Installation.

• Select the side trim pieces for your installation height.

Installation Panel Side Trim Panel

Height Width Lengths Height 83" 47" 8-1/4" 8" 83-1/2" 47" 8-3/4" 8-1/2" 84-1/2” 47" 9-3/4" 9-1/2"

Barrel

Nuts

A. Locate original grille panel frame supplied with the

refrigerator.

• Remove 8 screws (two on each corner) as illustrated. Discard original side trim pieces.

B. Select correct size of side trim pieces (3 sets

provided).

• Secure new side trim pieces to original bottom trim.

Discard Side Trim Pieces

E. Mount the assembled panel by dropping into slots

on the case trim.

Important:

bottom of grille panel.

Maintain 1-1/2" min. gap between top of doors and

Note: ZG1 Grille Panel Kit is available for models produced before January 1997. Panel sizes for ZG1 and ZG2 are the same. The ZG1 kit can be ordered from your Monogram dealer.

C. Remove barrel nuts from original side trim pieces (2

each side).

• Re-install the barrel nuts on the new side trim pieces you have selected.

D. Slide custom panel into front slots.

• Secure the top trim piece to the frame with “L” brackets and screws.

ZKT48 Trim Kit

3/4" Custom Panels

Kit contents

Tools and materials required:

•#2 Phillips screwdriver

•Stubby Phillips screwdriver

•Drill and appropriate bits

•Safety glasses

•Custom panels

Parts List:

Freezer Door A. Top trim B. Side trim C. Bottom trim

Fresh Food Door D. Top trim E. Side trim F. Bottom trim G. Panel support

brackets (4)

H. 4-3/8" screws for

support brackets (20)

I. Grille support panel

and screws ZKT48–8 screws

J. Wood screws #6 1/2"

flat-head screws ZKT48–30 screws

These instructions are divided into 2 options: Option 1—For non-dispenser and dispenser models

using custom collar trim.

Option 2—For dispenser model using the standard

full-width trim.

INSTALLATION

ZKT48

This kit provides for the installation of 3/4" custom door and grille panels, using the standard full length handle. This kit contains all the necessary parts to apply 3/4" panels on dispenser and non-dispenser models. Follow the instructions for Option 1 when applying custom panels to a non-dispenser model or dispenser model using custom collar trim. Follow instructions in Option 2 for a dispenser model using the standard full-width dispenser trim.

Note:

If you are using custom

handles, see ZKHT1 Installation Instructions. For tubular stainless steel handles, see ZKHTSS1 Installation Instructions.

ZKT48 Trim Kit

3/4" Custom Panels

OPTION 1 For non-dispenser model or dispenser model using custom collar trim

Step 1 Remove handles & trim

Step 2 Install 3/4" trim

• Carefully remove the Phillips head screws from the door handle top endcaps.

• Open door to 90°.

• Remove the Phillips head screws from the full-length handles.

• Open the doors fully to stop.

• Remove the screws from the aluminum trim, top, bottom and hinge side.

• Retain screws and endcaps. Discard original trim.

Note:

If a custom collar is to

be used, order ZWCD2 trim kit. If a custom handle is to be used, order ZKHT1 trim kit.

Important:

trim piece is removed, an aluminum shim secured to the bottom of the door can be seen. Do not attempt to remove this piece.

When the bottom

• Attach the new 3/4" trim pieces on the top, hinge side and bottom using original screws.

ZKT48

INSTALLATION

48" Models

ZKT48 Trim Kit

Option 1 Installation

Step 3 Apply panel support brackets

Step 4 Install panels

Dimension A

ZKT48–8-3/4"

Support Bracket

Dimension B

ZKT48–11-7/8"

Freezer Panels Fresh Food Panel

• Position support bracket on freezer panel, dimension A, from the hinge side edge.

• Position support bracket on fresh food panel, dimension B, from the hinge side edge.

3/4" Custom Panels

Back Side Door Panel

Hinge

Sde

• Secure support brackets to the bottom of the panels with #4 screws provided. Align the brackets flush with the bottom of the panels, with tabs protruding below.

• Bracket location measured from the hinge side, is the same for panels with custom handles or standard handles.

Support Bracket

Bottom EdgeBottom Edge

• Place the 3/4" panel on the bottom trim with support bracket tabs inserted into slots. Push the panel back against the steel door, making sure panel is flush to hinge side trim.

• Carefully drill starter holes in panel using a small drill bit.

• Attach the panel to the top and hinge side by installing screws from the back of the trim through the wood panel.

• Follow the same procedure to install fresh food door panel.

• Re-install door handles with original screws.

• Re-install endcaps, top and bottom.

INSTALLATION

ZKT48

ZKT48 – Install 19 screws

ZKT48 Trim Kit

1/16"

Option 1 Installation

Step 5 Adjust grille panel height

Step 6 Secure 3/4" panel to grille panel support

The refrigerator is shipped with the top case trim secured at the 83" refrigerator height.

• Loosen 2 screws on both sides and raise the top case trim to meet soffit height, from 83" to 84-1/2".

• Tighten all 4 screws.

Important:

bottom of grille panel.

Maintain 1-1/2" min. gap between top of doors and

• Secure the new grille panel support to the back side of the 3/4" panel with #6 screws.

• Be sure the lip on the support panel is over the top of

the wood panel.

Panel Support Overlaps Top

3/4" Custom Panels

Screws

Top

Case

Trim

Raise To Installation Height

ZKT48

INSTALLATION

Step 7 Install grille panel

Back View Grille Panel Support

• Install four of the six larger under cut screws such that the top of the screws are 1/16" from the surface of the support.

• Attach the assembled panel to the grille frame by inserting the four protruding screws into brackets located on each side of the grille frame.

ZKT48 Trim Kit

3/4" Custom Panels

OPTION 2 For dispenser model using full-width trim

Step 1 Remove handles & trim

Step 2 Install 3/4" trim

• Carefully remove the Phillips head screws from the freezer door handle endcap, if present.

• Open freezer door to 90°.

• Remove the Phillips head screws from the full-length handles.

• Open door fully to stop.

• Remove screws from the aluminum trim, top, bottom and hinge side.

• Remove the trim above and below the dispenser.

• Retain screws and full-length handles. Discard original trim.

• Attach the new 3/4" trim pieces at the top and hinge side using original screws.

Step 3 Install panel support brackets

• Position and mark the location for the support brackets on the back side of the panels. Align all brackets flush with the end of the panels, with tabs protruding over the edge.

• On the bottom of the upper panel, measure dimension A from the hinge side.

• On the bottom of the lower panel, measure dimension B from the hinge side.

• On the top of the lower panel, measure dimension C from the hinge side.

• Secure all brackets with #4 screws provided.

Dimension A

ZKT48–6"

Dimension B

ZKT48–8-3/4"

Dimension C

ZKT48–6"

Back Side of Freezer Panels

INSTALLATION

ZKT48

Hinge Side

Upper Panel

Lower Panel

Step 4 Install panels

ZKT48 Trim Kit

3/4" Custom Panels

ZKT48

INSTALLATION

Step 5 Install handles

• Install the lower panel by slipping tabs into the slots on the underside of the dispenser trim.

• Hold in position while fitting new bottom trim against the bottom of the door. Tabs should protrude through the bottom trim.

• Install screws up through the bottom trim using stubby Phillips screwdriver.

• Open door and install screws through the back side of the trim and into the panel at the hinge side.

• Install door handle using original screws.

• Re-install top endcaps, if present.

• Install panel on fresh food door using the same procedure as in Option 1.

• Install grille panel using the same procedure as in Option 1.

• Place the upper panel onto the top of the dispenser with tabs inserted into the slots.

• Push the panel back against the steel door.

• Open door and install screws through the back of the trim and into the panel, at the top and hinge side.

ZKHT1 Trim Kit (For 3/4" Panels)

Support for Custom Handles

Kit contents

Tools and materials required:

•#2 Phillips screwdriver

•Stubby Phillips screwdriver

•Drill and appropriate bits

•Custom panels

•Custom handles

•Safety glasses

Note:

This kit must be used in conjunction with ZKT48 trim kit for

3/4" panel trim.

Parts List:

A. Fresh food door

extrusion

B. Freezer door extrusion

for non-dispenser model and dispenser model using custom collar. (Option 1)

C. Freezer door extrusion

for dispenser model using full-width trim. (Option 2)

D. Freezer door handle

bracket for dispenser model using full-width trim. (Option 2)

These instructions are divided into 2 options: Option 1—For non-dispenser and dispenser models

using custom collar trim.

Option 2—For dispenser model using the standard

full-width trim.

OPTION 1 For non-dispenser model or dispenser model using custom collar trim

Before you begin

This kit provides the necessary framework to install custom handles of your choice, on 3/4" thick decorator door panels. (Handles not included.) The door extrusions and bracket allow custom handles to be secured to the door structure, rather than the door panels. This kit contains all the necessary parts for dispenser and non-dispenser models. Follow the

Note:

Optimal final appearance

depends on careful routing depth. Do not exceed 1⁄4" routing depth.

3/4" custom door panels must be routed to accommodate these door extrusions. Rout the panels as illustrated, a maximum of 1/4" deep, and 1-13⁄16" wide, top to bottom on the handle side.

instructions in Option 1 when applying custom handles to a non-dispenser model or dispenser model using custom collar trim. Follow the instructions in Option 2 for a dispenser model using the standard full-width dispenser trim.

1-13/16"

Back Side

Freezer Panel Fresh Food Panel

1/4" Max.

Handle Side

1-13/16"

Back Side

Handle Side

Refer to installation instructions for ZKT48 trim kit for 3/4" custom panels Option 1.

• Follow Step No. 1 to remove the standard aluminum trim.

• Follow Step No. 2 and 3 to attach new 3/4" trim pieces and install panel support brackets.

INSTALLATION

ZKHT1

Step 1 Temporarily mount door panels

ZKHT1 Trim Kit (For 3/4" Panels)

Support for Custom Handles

Step 2 Locate position of handles

ZKHT1

INSTALLATION

• Place the prepared 3/4"custom door panels on the bottom trim with support bracket tabs inserted into slots.

• Push the panel back against the steel door, making sure panel is flush with hinge side trim.

• Determine the desired location of the custom handles and carefully mark centerlines of the screw holes. The handles must be located 3/4" to 1-1⁄2" from the end of the extrusion.

• Again, with both doors closed, check centerlines of the screw holes to be sure they are parallel to the edge of the door, and level with opposite door.

• Secure the panel to the trim temporarily by driving 2 screws through the back side of the trim at the top.

• Slide door extrusion in between panel and steel door. Temporarily secure with 2 screws.

3/4" Min. 1-1/2" Max.

• Drill 1⁄16" pilot hole through the panel until it starts into the aluminum extrusion. This will mark the matching location for drilling a clearance hole when assembling the extrusion, panel and handle.

ZKHT1 Trim Kit (For 3/4" Panels)

Option 1 Installation

Step 3 Assemble panel, extrusion and handle

Step 4 Mount assembled panels

• Remove the door extrusions and door panels.

• Drill 1/16" pilot hole through extrusion.

• Drill clearance holes through the panel and extrusion.

• Assemble the door panel, extrusions and custom handle.

• Install screw(s) long enough to pass through the extrusion, door panel and into the handle.

Support for Custom Handles

3/4" Min. 1-1/2" Max.

Screw

• Place assembled panel onto bottom trim with support bracket tabs inserted into slots.

• Push the panel back against the steel door with door extrusion flush to the handle side of the door.

• Open door fully to stop.

• Install screws at the top, hinge side and end of door extrusion.

INSTALLATION

ZKHT1

Door Handle

ZKHT1 Trim Kit (For 3/4" Panels)

Option 1 Installation

OPTION 2 For dispenser model using full-width trim

Before you begin

Step 1 Locate position of handle

Note:

Optimal final

appearance depends on careful routing depth. Do not exceed 1⁄4" routing depth.

All 3 custom door panels must be routed to accommodate the door extrusions. Route the panels as illustrated, max. 1/4" deep, 1-13/16" wide, top to bottom on the handle side.

Support for Custom Handles

1-13/16"

Back Side

1/4" Max.

Handle Side

Freezer Panel Fresh Food Panel

Refer to installation instructions for ZKT48 trim kit, Option 2.

• Follow Step No. 1 to remove standard aluminum trim.

• Follow Step No. 2 and 3 to attach new 3/4" trim pieces and install panel support brackets.

Temporarily Secure Handle Bracket With Screws

Temporarily Secure Dispenser Trim With Screws

1-13/16"

Back Side

Handle Side

ZKHT1

INSTALLATION

Note:

The custom handle must

be installed against the handle bracket. The custom handle cannot exceed 11-3/4" length.

• Position the handle bracket onto the steel door by matching existing screw holes on the door and bracket.

• Re-install dispenser trim, temporarily.

• Determine the desired location of the custom handle and carefully mark centerlines of the screw holes.

• Drill 1⁄16" pilot hole through the trim until it starts into the handle bracket. This marks the same location onto the bracket.

• Remove dispenser trim and bracket.

ZKHT1 Trim Kit (For 3/4" Panels)

Handle Bracket

Custom Handle

Dispenser Trim

Option 2 Installation

Step 2 Install custom handle

Support for Custom Handles

• Drill clearance holes through the handle bracket and the dispenser trim.

• Install screw(s) long enough to pass through the handle bracket, dispenser trim and into the custom handle.

Step 3 Mount assembled dispenser trim

• Mount assembled dispenser trim with handle onto the door.

• Drive 2 screws through the top and bottom of the handle bracket into the steel door.

• Re-install 3 screws at top and bottom of dispenser trim.

Important:

bracket must be secured to the steel door. If it is not secured properly, the dispenser trim will pull away from the door.

The handle

Again, refer to ZKT48 trim kit, Option 2.

• Follow Step 4 to install freezer door panels and bottom trim.

• Slide freezer handle side extrusion in between panels and steel door. Secure with screws.

• To install fresh food handle, follow the same procedure as in Option 1.

Secure Assembled Dispenser Trim With Screws

Secure Handle Bracket With Screws

Freezer Handle Side Extrusion

INSTALLATION

ZKHT1

ZKHSS1 for 1/4" Panels

Tubular Stainless Steel Handles

This kit provides for the installation of Stainless Steel custom handles on 1/4" thick decorator door panels. The door extrusions allow these custom handles to be secured to the door structure, rather than to the custom panels. This kit contains all the necessary parts for dispenser and non-dispenser models.

Tools and materials required:

• #2 Phillips screwdriver

• Drill and 1/8", 9/32" bits

• Custom door panels

• Safety glasses

• Center punch

• Masking tape

• Hammer

• Pencil

• 1/2" thick 12" x 12" min. piece of plywood to protect floor when drilling

• For stainless steel panels wear gloves to protect against sharp edges.

Parts List:

A. Fresh food door extrusion B. Freezer door extrusion C. 2 Stainless tubular handles D. 10 Spacer rings (for Stainless panels ONLY)

(8 required, 2 extra) E. 8 Handle standoffs F. 10 Screws for mounting handle standoffs (8 required, 2 extra) G. 10 Set screws (8 required, 2 extra) H. 3/32" Allen wrench for set screws

Note:

It is best that 2 people install this kit.

Step 1: Remove Handles

ZKHSS1

INSTALLATION

• Carefully remove the phillips head screws from the door handle top endcaps, if present.

• Open doors to 90°. Remove the screws from the fulllength handles of both doors.

• Retain screws, discard handles and endcaps.

• Locate the 2" x 2" adhesive foam pads packed with the refrigerator. Apply pads to the doors as shown. Corner pads should be as close to inside corners as possible.

Note:

If a custom collar is to be used, order ZWCD1 Trim Kit for 36" and 42" wide models. Order ZWCD2 for 48" wide models.

ZKHSS1 for 1/4" Panels

Back

Side

Freezer

Panel

Back Side

Freezer

Lower

Panel

Freezer

Upper

Panel

Models

With Full Width

Dispenser Trim

Align Extrusion 1/4" Below Top

of Panel

Back

Side

Fresh

Food

Panel

Freezer

Extrusion

Fresh Food

Extrusion

Tubular Stainless Steel Handles

Step 2: Match Handle Extrusions to Handle

FOR CUSTOM

WOOD

PANELS

See Step 2A for Stainless Steel panels

• Cut a piece of corrugated to use as a pad to protect the panel finish. Use 1/2" thick section of plywood to protect flooring when drilling.

• Place custom panels on the pad, appearance side down.

Note: If panels are wood, be sure to note which end is the top so that wood grain is in the correct direction on both (or all 3) panels.

• On the back side of the panel – at the handle side, measure and mark 1/4" below the top edge of the panel with a pencil.

• Slip panels into new extrusion on the handle side of the panels.

• Align the extrusion at the pencil mark, 1/4" below the top of the panel.

• Follow the same procedure on the opposite panel.

• Tape the extrusions to the panels to prevent movement.

• Center punch and drill 1/8" pilot holes through the holes in the extrusion and into the panel.

• Turn panel over. On the appearance side, use 9/32" bit to enlarge clearance hole.

IMPORTANT:

standoff and handle assembly.

Hole locations must be exact to accept handle

Top End

Note:

Be sure to orient extrusions and handles correctly. The top ends of the extrusions are cutout to fit the shape of the top of the door.

For models with full width dispenser trim and 2 piece freezer panels:

• Measure 1/4" from the top of the upper panel and 1/4" from the bottom of the lower panel. Mark with pencil on the back handle side.

• Align the extrusion on the pencil mark as shown, top and bottom.

INSTALLATION

ZKHSS1

Extrusion

Decorator Door Panel

ZKHSS1 for 1/4" Panels

Screw Allen Wrench

Door Handle

Screw

Handle

Decorator Door Panel

Tubular Stainless Steel Handles

Step 2A:

FOR

STAINLESS

STEEL

PANELS

Step 3: Install Standoffs onto Handles

If you are installing these handles onto Stainless Steel panels:

Use extreme caution if you are drilling through stainless steel panels. Stainless panels must be handled gently. Do not kneel on stainless steel panels. It will leave a permanent dent. Do not remove protective plastic covering until final installation.

• Place supplied filler panel (corrugated) on floor to use as a pad.

• On the back side of the panel–at the handle side, measure and mark 1/4" below the top edge of the panel.

For models with full width dispenser trim and 2-piece freezer panels:

– Measure and mark 1/4" below the top edge of the

upper panel.

– Measure and mark 1/4" above bottom edge of lower

panel.

• Slip panels into the new extrusion, flush against inner edge, on the handle side.

• Place a handle standoff on each attachment post along the handle. Position the set screw hole on each standoff to point to the floor.

• Install set screws into the bottom of each standoff, using the Allen wrench provided. The standoff should be tight against the handle.

• Align extrusion to pencil mark(s) as shown in Step 2. Mark each screw hole location with pencil.

• Tape extrusions to panels to prevent movement.

• Place panel on plywood section, appearance side down. Be sure plywood is clean without nicks and burrs. Center punch at each screw hole location.

• Drill 1/8" pilot hole. Use 9/32" bit to enlarge clearance hole.

• Measure and cut a 2" wide strip, top to bottom off the corrugated panels. This will allow room for spacer rings between the stainless panel and extrusion.

Step 4: Install Handles and Panels

FOR CUSTOM

WOOD

ZKHSS1

PANELS

INSTALLATION

See Step 4A for Stainless Steel panels

• Press foam pads against steel doors to temporarily reduce thickness.

• Slide panels into the door trim. Leave about 4" of the panel exposed to allow room to install the handle extrusion.

• Place extrusion onto back side of panel, install mounting screws through the extrusion and the custom panel.

• Screw handle to panel, starting at the top. Moving down the handle, drive each screw partially into the standoff, alternating back to the top until the handle is tight against the panel.

• Slide the assembly into the door frame until the extrusion fits firmly against the steel door.

• Reinstall original screws into the door extrusion.

Step 4A:

Door Handle

Screw

Handle

Extrusion

Spacer

Ring

Stainless

Panel

Stainless Panel Corrugated

1/4"

Install Handles and Panels

FOR

STAINLESS

STEEL

PANELS

For Stainless Panels:

• Press foam pads against steel doors to temporarily reduce thickness.

• Crimp top and bottom edges of corrugated.

• Slide corrugated onto doors, leave about 1/4" gap between edge of corrugated and hinge side.

Note:

Panels have a protective plastic covering. Peel away just enough to allow panel to slide into trim and to clear handle mounting screws. The plastic covering will keep the panels clean during the installation process.

• Slide panels into the door trim. Leave about 4" of the

panel exposed to allow room to install the handle extrusion.

Be sure to maintain 1/4" gap between corrugated and hinge side trim.

ZKHSS1 for 1/4" Panels

Tubular Stainless Steel Handles

• Place a spacer ring over each of the 4 screw holes on the extrusion. Use tape to hold in place.

• Place extrusion onto back side of panel. Use a pencil to punch hole in tape over spacer rings and align with screw holes.

• Install 4 mounting screws through the extrusion and panel.

• Screw handle to panel, starting at the top. Moving down the handle, drive each screw partially into the standoff, alternating back to the top until the handle is tight against the panel.

• Slide the assembly into the door frame until the extrusion fits firmly against the steel door.

• Reinstall original screws into the door extrusion.

Raised Panel on 1/4" Thick Backing:

A raised panel design secured to a 1/4" thick backing (screwed or glued) can be used with this handle kit.

• Cut the 1/4" thick panels to size.

• Fabricate the raised panel to allow 1-1/4" clearance from the hinge side to avoid striking adjacent cabinetry.

• Allow 5/16" clearance at the top, bottom and handle side edges to allow for the trim flange.

• Total thickness should not exceed 3/4”.

• Countertops adjacent to the refrigerator installation should be mitered 45°.

Note:

Longer screws, obtained locally, will be required to accommodate panel thickness. Use stainless steel #10-32x1-1/4" truss Phillips head screws.

1/4"

Thick

Backing

Appearance Panel

1-1/4" Clearance Hinge Side

5/16"

Case Trim

Adhesive Backed Foam

Extrusion

Screw

5/16"

5/16" Clearance Handle Side

INSTALLATION

ZKHSS1

ZKHTSS1 for 3/4" Panels

Tubulor Stainless Steel Handles

This kit provides for the installation of Stainless Steel custom handles on 3/4" thick decorator door panels. The door extrusions allow these custom handles to be secured to the door structure, rather than to the custom panels. This kit contains all the necessary parts for dispenser and non-dispenser models.

Tools and materials required:

• #2 Phillips screwdriver

• Drill and 1/8", 9/32" bits

• Custom door panels

• Safety glasses

• Center punch

• Masking tape

• Hammer

• Pencil

• 1/2" thick 12" x 12" min. piece of

plywood to protect floor when drilling

• For stainless steel panels wear gloves to protect against sharp edges.

Parts List:

A. Fresh food door extrusion B. Freezer door extrusion C. 2 Stainless tubular handles D. 8 Handle standoffs E. 10 Screws for mounting handle

standoffs (8 required, 2 extra) F. 10 Set screws (8 required,

2 extra) G. 3/32" Allen wrench for set

screws

This kit must be used in combination with ZKT36, ZKT42 or ZKT48 trim kit.

The ZKT trim kits provide the framework to support 3/4" thick panels. This kit provides handle side extrusions and handles to match that ZKT framework.

Note:

It is best that 2 people install this kit.

Before You Begin

• 3/4" custom panels must be routed to accommodate these handle extrusions. Rout the panels as illustrated, 1/4" deep, and 1-13/16" wide, top to bottom on the handle side.

• Follow the instructions in the ZKT trim kit to install support brackets to the bottom of the fresh food and freezer panels. For models with full width dispenser trim, install the support bracket to the bottom of the lower panel only. Do not install a bracket to the top of the lower panel or the bottom of the upper panel as shown in the ZKT trim kit instructions. These

ZKHTSS1

brackets are not required for this kit.

INSTALLATION

1-13/16"

Back Side

1/4" Max.

Handle Side

1-13/16"

Back Side

Handle Side

Freezer Panel Fresh Food Panel

Back Side Door Panel

Hinge

Support Bracket

Bottom Edge

Freezer Panel

Side

Install bottom support brackets only.

Support Bracket

Bottom Edge

Fresh Food Panel

ZKHTSS1 for 3/4" Panels

Top End

Back Side

Freezer

Panel

Freezer

Extrusion

Back

Side

Freezer

Lower Panel

Freezer

Upper Panel

Models

With Full Width

Dispenser Trim

Fresh Food

Extrusion

Align Extrusion

Even With

Panel

Back

Side Fresh Food Panel

Tubulor Stainless Steel Handles

Step 1: Remove Handles

Step 2: Match Handle Extrusions to Panels

• Carefully remove the phillips head screws from the door handle top endcaps, if present.

• Open doors to 90°. Remove the screws from the fulllength handles of both doors.

• Retain screws, discard handles and endcaps.

Note:

If a custom collar is to be used, order ZWCD1 Trim Kit for 36" and 42" wide models. Order ZWCD2 for 48" wide models.

• Cut a piece of corrugated to use as a pad to protect the panel finish. Use 1/2" thick section of plywood to protect flooring when drilling.

• Place custom panels on the pad, appearance side down.

Note:

If panels are wood, be sure to note which end is the top so that wood grain is in the correct direction on both (or all 3) panels.

Note:

Be sure to orient extrusions and handles correctly. The top ends of the extrusions are cutout to fit the shape of the top of the door.

• Place new extrusion against the handle side of the panels.

• Align the extrusion evenly with the top and bottom of the panel.

• Follow the same procedure on the opposite panel.

• Tape the extrusions to the panels to prevent movement.

• Center punch and drill 1/8" pilot holes through the holes in the extrusion and into the panel.

• Turn panel over. On the appearance side, use 9/32" bit to enlarge clearance hole.

IMPORTANT:

standoff and handle assembly.

Hole locations must be exact to accept handle

For models with full width dispenser trim and 2 piece freezer panels:

• Carefully, align the top of the upper panel and the bottom of the lower panel with extrusion ends.

INSTALLATION

ZKHTSS1

ZKHTSS1 for 3/4" panels

Screw

Tubular Stainless Steel Handles

Step 3: Install Standoffs onto Handles

Step 4: Install Handles

• Place a handle standoff on each attachment post along the handle. Position the screw hole on the standoff to point to the floor.

• Install set screws into the bottom of each standoff, using the Allen wrench provided. The standoff should be tight against the handle.

• Start mounting screws through the extrusion and just through the custom panel.

• Stand panels up on the hinge side and hold to access the appearance side. Place handle against mounting screws on the appearance side, drive top screw from the back of the extrusion partially into the standoff.

• Going down the handle, drive each screw partially into the standoff, alternating back to the top until the handle is tight against the door.

• Remove tape.

Screw Allen Wrench

Step 5: Install Assembled Panels

ZKHTSS1

INSTALLATION

It is best that 2 people perform this step.

• Place panel/handle assembly onto the bottom trim with support bracket tabs inserted into slots.

• Push and hold the panel back against the steel door with door handle extrusion flush to the handle side of the door.

• Reinstall original screws into the door extrusion.

• Open the door fully to stop.

• Install screws at the top, and hinge side.

• Follow the same procedure on the opposite door.

ZKHTSS1 for 3/4" Panels

Tubular Stainless Steel Handles

Step 5 Install Assembled Panels (continued)

For models with full width dispenser trim and 2 piece freezer panels:

It is best that 2 people perform this step.

• Carefully, lift the assembled panel to the case trim. Hold both panels so they do not twist the extrustion.

• Insert the support bracket tabs into the bottom trim.

• Push and hold the panel back against the steel door.

• Reinstall original screws into the door extrustion.

• Open the door fully to stop.

• Install screws at the top, and hinge side.

INSTALLATION

ZKHTSS1

Tools and materials required:

•#2 Phillips screwdriver

•Drill and appropriate bits

•Custom door panels

•Safety glasses

ZWCD2 Trim Kit

Custom Dispenser Collar

Kit contents

Select panel size

Parts List:

A. Collar trim

(Both black and white

trim included) B. Top bracket C. Bottom bracket D. Screws (2)

This kit provides for the use of a custom dispenser collar trim, replacing the standard full-width trim. This kit can be used alone, or combined with one or all other trim kits.

1/4" Thick Custom Panels

3/4" Thick Custom Panels

with Standard Handles

3/4" Thick Custom Panels

with Custom Handles

67 7/8"

The overall size of the panel is determined by the application being used.

• 1/4" thick panels using the standard handles or optional custom handles.

ZWCD2

• 3/4" thick panels using standard handles, or

INSTALLATION

17 11/16"

19 1/4"

67 15/16"

17 11/16"

67 15/16"

3 5/16"

19 1/16"

3 9/16"3 9/16"

19 5/16"

• 3/4" thick panels using optional custom handles. Select the panel size accordingly.

ZWCD2 Trim Kit

Custom Dispenser Collar

Cut dispenser hole and rout door panel

Install collar brackets and trim

The use of this custom collar trim requires that the hole for dispenser be located and cut

very accurately

. 3/4" door panels must be routed on all 4 sides of the dispenser cutout.

Rout the back side of the panel 1/4" deep and 7/8" wide, flush with the edge of the cutout.

Note:

1/4" door panels do not

require routing.

12 1/16"

7/8"

12 5/16"

Wide Rout

The Cutout is 12 1/16" wide by 12 5/16" high. 3/4" panels must be routed on all four sides of the cutout. Rout the back side of the panel 1/4" deep. 7/8" wide.

Select the door panel size for your application.

• If using the standard 1⁄4" trim, follow the installation

instructions packed with the product.

• When using another optional trim kit, use the

instructions provided with that kit to install the panel trim and/or custom handles.

• Remove the aluminum trim above and below the

dispenser. Discard trim.

• Remove and discard the standard full-width

dispenser trim.

• Remove 2 screws above and below the dispenser

recess. Retain screws.

• Secure top and bottom brackets to the dispenser, using the screws previously removed.

• Install the custom panels according to the appropriate installation instructions.

• Select the black or white collar trim according to appearance desired.

• Match the indentations on the collar trim to the tabs on the lower bracket. Push the collar flush against the door.

• Drive 2 screws (provided) upwards through the collar and into the brackets.

INSTALLATION

ZWCD2

Note: While performing installations described in this book, safety glasses or goggles should be worn.

To obtain specific information concerning any Monogram product or service, call GE Answer Center

consumer information service at 800.626.2000–any time, day or night.

For Monogram

local service in your area, call

1-800-444-1845.

Note: Product improvement is a continuing endeavor at General Electric. Therefore, materials, appearance and specifications are subject to change without notice.

Monogram.

General Electric Company Louisville, KY 40225

Monogram ZISW48D, ZISB48D, Monogram ZIS42N, Monogram ZISW42D, Monogram ZISB42D Custom Options Manual And Installation Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
