ZGP304NRSS (Natural Gas)
ZGP304LRSS (Liquid Propane)
GE Monogram® 30" All-Gas Professional Range with 4 Burners

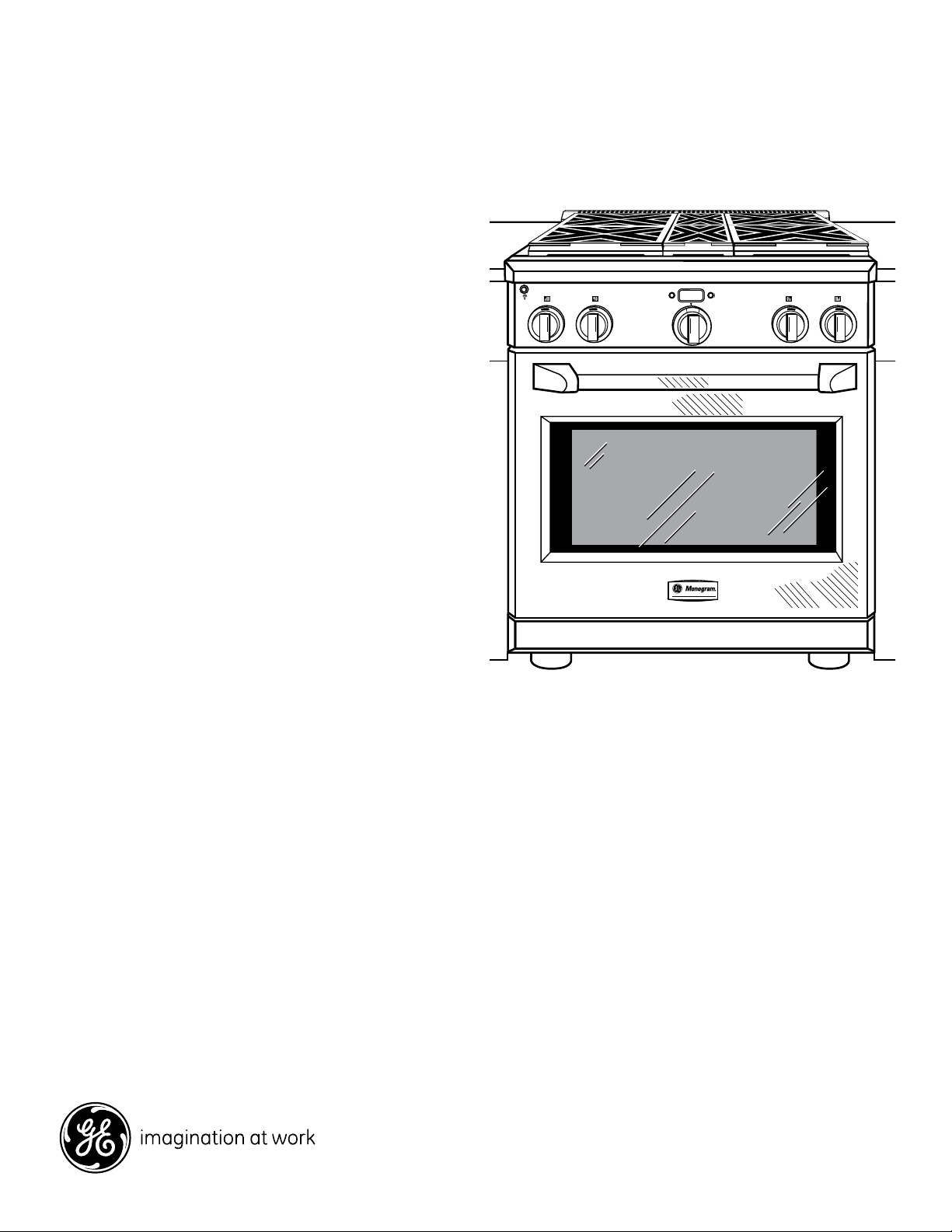

Dimensions and Installation Information (in inches)
All Professional Ranges are factory set for natural or liquid
propane gas. The correct model should be ordered for the
installation situation.
Note: Conversion kits are included with the range if the wrong
gas type was ordered. High Altitude kit, WB28K10553 for
operation above 6,000 feet, is also available. The kits must be
installed by a qualified service technician at additional cost.
29-7/8” Width
1-1/2”
Countertop
to Cooking
Surface
Installation Information
Before installing, consult installation instructions packed with
product or online at Monogram.com for current dimensional
data.
A suitable 30" or wider vent hood is recommended for
installation over this range.
Advance Planning
Refer to dimensional drawings
for appropriate placement and
necessary clearances when
planning the installation.
• Working areas adjacent to the
range should have 18" minimum
clearance between countertop
and cabinet bottom.
• Clearance between range and
side wall or combustible material
must be at least 12" on each side.
• Installation must conform with
local codes. In the absence of local
codes, the range must comply
with the National Fuel Gas Code,
ANSI Z223.1-990.
35-1/4”
to
36-3/4”
Height
28-1/4”
Depth
to Front
of Door
3-1/4”
to 4-3/4”
Toekick/
Leg Height
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 12/10
130560
ZGP304NRSS (Natural Gas)
Universal Utility Locations
ZGP304LRSS (Liquid Propane)
GE Monogram® 30" All-Gas Professional Range with 4 Burners
Dimensions and Installation Information (in inches)
Electrical Requirements
Ranges must be hooked up to a 120V, 60Hz properly grounded
dedicated circuit protected by a 15-amp circuit breaker or
time-delay fuse.
Universal Utility Locations
4-5/8”
6-1/2”
11-3/8”
Gas/
Electric
7-3/8”
Gas/
Electric
2”
2”
30”
Locate gas and
electric as shown
Gas Supply
• The natural gas models are designed to
operate at 5" water column pressure.
For proper operation, the pressure of
the natural gas supplied to the regulator
must be between 7" and 13" water
column.
• The LP models are designed to operate
at 10" water column pressure. For
proper operation, the pressure of the LP
gas supplied to the regulator must be
between 11" and 13" water column.
Optional Backsplash Accessories
The range requires a 12" minimum clearance to a vertical
combustible surface at the rear. A backsplash is required
for installations with less than 12" clearance. The following
backsplash accessories are available, or a custom, noncombustible backsplash can be used.
Order one with a 30"-wide range backsplash
ZX12B30PSS–12" backsplash
ZXADJB30PSS– 30"-36" adjustable-height backsplash with
warming shelf
Side View with a Backsplash
28-7/8”
to Front
Edge
Control Panel
28-1/4” to
Beveled
Edge of Control
Panel Bullnose
27-1/2” to
Beveled Edge
- Maximum
Adjacent
Cabinet Depth
for
Flush
Installation
28-1/4”
to Front of
Door
3-3/16”
Depth
31-1/16”
to Front of
Handle
48-1/4”
with Oven Door
Open
7” Control
Panel Height
Optional
Backsplash
Accessories
13/16”
30-36”
35-1/4”
to
36-3/4”
10-1/2”
12”
1-1/2”
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 12/10
130560
ZGP304NRSS (Natural Gas)
ZGP304LRSS (Liquid Propane)
GE Monogram® 30" All-Gas Professional Range with 4 Burners
Features and Benefits
• Authentic Professional appearance - With
premium-grade, 304 stainless steel with smoothly
finished edges, large electronic control knobs and
heavy duty handles
• Sealed, dual-flame stacked burners - Deliver a full
spectrum of heat settings, from an ultra-low
140° F simmer to an intense 18,000 BTU
• Largest all-gas professional oven capacity
• Monogram Professional dual-burner bake system
- Combines Reverse-Air convection technology
with an infrared broil and gas burner to provide
superb baking results, with fast preheating
• Infrared broil burner - Produces intense heat
needed to sear meats to lock in juices and
is thermostatically controlled to provide top
browning when baking or convection baking
BACK FRONT BACK FRONT
TIMER
PUSH TO
SELECT
F
F
O
.
B
V
A
N
E
K
O
K
A
C
E
B
B
.
R
L
V
I
O
N
O
O
R
I
L
C
B
P
R
T
.
S
O
V
A
O
N
O
O
F
R
C
• Heavy-duty oven racks - Glide smoothly in and
out on stainless steel ball bearings for easy
access, and are designed to remain in the oven
during the self-clean cycle
• LED task lights - Below the bullnose, provide a
functional and theatrical touch
• Electronic ignition with automatic reignition
- Ensures a continuous flame and reignites
automatically if accidentally extinguished
• Reversible burner grates - Flat on one side and
uniquely contoured on the other to accommodate
round-bottom woks
• True hidden bake - Is achieved with a u-shaped
burner below the oven floor providing even
cooking performance with a clean appearance
• Model ZGP304NRSS – Natural Gas*
• Model ZGP304LRSS – Liquid Propane
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Specification Created 12/10
130560
