MONOGRAM 24" FULLY
INTEGRATED DISHWASHER
ZDT925SSNSS
THE MONOGRAM MINIMALIST COLLECTION
Streamlined design a nd precisely machined metals create a
contemporary yet functional aesthetic
ADVANCED WASH SYSTEM
Designed to achieve the ultimate clea n, this advanced wash system
with over 90 powerful jets delivers complete washing coverage to
every corner of the dishwasher
THIRD RACK
Convenient and adjusta ble, this expansive third rack easily
accommodates a n entire flatware collection, plus carving knives,
soup ladles and other cooking/serving tools for the ultima te clean
42 DBA WITH LED STATUS INDICATOR ON DOOR
A dishwasher this quiet has a status indica tor to tell you if the
dishwasher is Washing, Drying or Clean
HARD FOOD DISPOSER
Designed to mainta in a kitchen’s cleanliness and efficiency, the
hard food disposer with sta inless steel blades grinds food into tiny
particles tha t wash away with ease
DEEP CLEAN SILVERWARE JETS
Powerful jets blast away stuck-on food for silverware tha t’s
always spotless
BOTTLE JETS
Hard-to-reach a reas inside tall items get completely clea n with four
dedicated jets integra ted into the upper rack tha t shower water
deep inside for the ultimate clea n
LED LIGHTING
Illuminates the entire interior, leaving no question as to whether or
not dishes have been cleaned
MAX DRY SYSTEM
is precise and efficient drying system delivers bea utifully dry
dishes every time and is perfect for ha rd-to-dry items like your
favorite champagne flutes
FLUSH INSTALLATION CAPABILITY
Enables the dishwasher to be installed flush, even with inset
cabinetry, without a ny additional pa rts
For questions about your
appliance, please call 1-800-626-2000.
PAGE 1 OF 3
Product Specication Revised 9/19
ZDT870SSFSS
OVERALL DIMENSIONS
SPECIFICATIONS
Overall Width 23 3/4" (60.3 cm)
Overall Height
Overall Depth 24" (61 cm)
Door Clearance 25 1/2" (64.8 cm)
Overall Dishwasher Capacity 16 Place Settings
Minimum Cabinet Width 24" (61 cm)
Minimum Cabinet Depth 24" (61 cm)
Cutout Width 24" (61 cm)
Cutout Height
Electrical Requirements 10.2 A
Hose Length No more than 12' (3.7 m)
Voltz/Hertz/Amps 115 V, 60 Hz, 15 or 20 amp circuit
Shipping Weight 139 lb (63 kg)
33 3/8" (84.8 cm) Min
34 5/8" (88.0 cm) Max
33 1/2" (85.1 cm) Min
34 3/4" (88.3 cm) Max
33 3/8" min
34 5/8" max
(84.8 - 88.0)
2" (5.1)
1 11/16" (4.3)
30"
(76.2)
3 1/2"
(8.9)
23 3/4" (60.3) 2" (5.1)
3 3/8" min
4 5/8" max
(8.6 - 11.8)
Toe kick
height
FRONT VIEW
24" (61.0)
33 3/8" min
34 5/8" max
(84.8 - 88.0)
Height at rear
SIDE VIEW
23 3/4" (60.3)
For questions about your
appliance, please call 1-800-626-2000.
PAGE 2 OF 3
TOP VIEW
25 1/2"
(64.8)
2" (5.1)
min
clearance
to wall
2" (5.1)
min
clearance
to wall
OPEN DISHWASHER DOOR
SHOWING DOOR CLEARANCE
Dimensions in parentheses a re in centimeters unless otherwise noted.
Actual product dimensions may vary due to ma nufacturing tolerances.
Product Specication Revised 9/19
FLUSH CUTOUT INSTALLATION
24" (60.1)
min cutout depth
6"
(15.2)
4"(10.2)
FLUSH CUTOUT INSTALLATION
33 1/2"
(85.1) min
underside of
counter to floor
34 3/4"
max
(88.3)
ZDT870SSFSS & ZDT800SSFSS
ELECTRIC/
WATER
ZDT870SSFSS & ZDT800SSFSS
24" (60.1)
min cutout depth
33 1/2"
(85.1) min
underside of
counter to floor
34 3/4"
max
(88.3)
6"
(15.2)
4"(10.2)

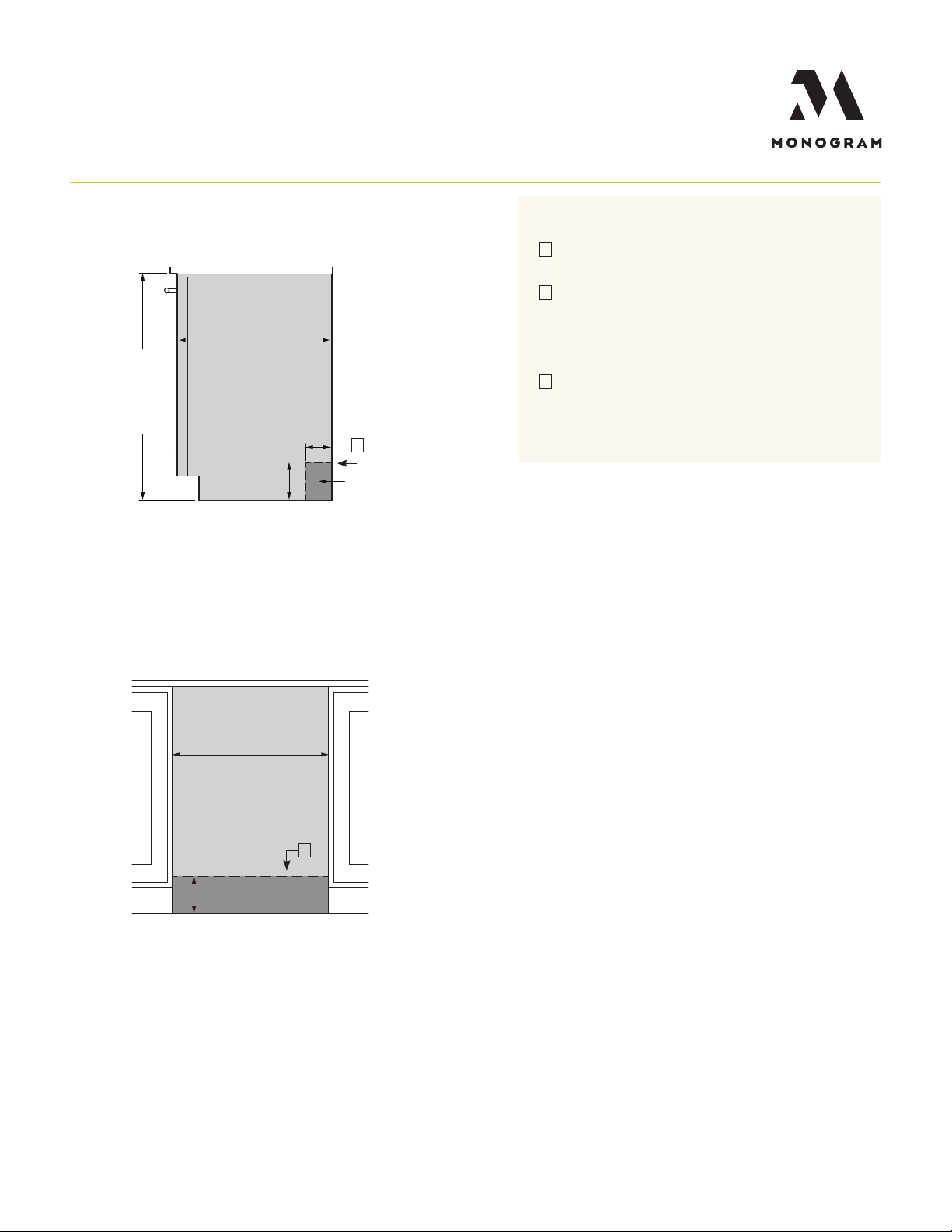

INSTALLATION CUTOUT FRONT VIEW
B
ELECTRIC/
WATER
SPECIAL NOTES
A
e dishwasher drain hose must be no more than 12 feet in
length for proper drainage.
B
Electrical connections are at the right front of the
dishwasher and wa ter connections are on the left. e hot
water line should extend forwa rd 30" to 40" from the rear
wall. e electrical must extend forward a t least 24" to reach
the junction box.
C
To prevent siphoning, an air gap or high drain loop must
be used.
For more details, refer to the installa tion instructions
for this product on Monogram.com. Dimensions in
parentheses a re in centimeters unless otherwise noted.
24" (60.1) Min
6" (15.2)
cutout width
ELECTRIC/
WATER
B
For questions about your
For questions about your
appliance, please call 1-800-626-2000.
appliance, please call 1-800-626-2000.
PAGE 3 OF 3
Product Specication Revised 9/19
