OVERALL DIMENSIONS
ZHU36RSJSSGE Monogram® 36" Induction Cooktop
SPECIFICATIONS
Overall Width 36" (91.4 cm)
Overall Depth 20 3/8" (51.8 cm)
Overall Height 4 5/8" (11.8 cm)
Cut-out Width 33 7/8" (86.0 cm)
Cut-out Depth 19 1/8" (48.6 cm)
Conduit Length 48" (122 cm)
Electrical Rating
Recommended Circuit
Breaker Size
Net Weight 48 lbs. (21.8 kg)
Approx. Shipping Weight 58 lbs. (27.6 kg)
11,600W at 240V/60Hz
10,100W at 208V/60Hz
50 Amps
1 1/16"
(2.7)
Cutout
overlap
20 3/8"
(51.8)
36" (91.4)
33 7/8" (86.0)
Cutout width
TOP VIEW (SHOWING CUTOUT OVERLAP)
5/8"
(1.6)
Cutout
overlap
19 1/8"
(48.6)
Cutout
depth
OPTIONAL ACCESSORIES
Precision Cooking Kit JXSOUSV1
Flush-Mount Kit JXFLUSH1
ATTENTION ELECTRICIAN:
This cooktop is provided with a 48" flexible
conduit and must be hard wired (direct wired)
into an approved junction box and be properly
grounded. It is not permitted to use a “plug and
receptacle” type installation on this cooktop.
Use a two-wire, three conductor 208/240 VAC,
60 Hertz electrical system. A white (neutral) wire
is not needed for this cooktop
For more details refer to the installation
instructions for this product.
3 1/16"
(7.8)
1 1/8"
(2.9)
3/4"
(1.9)
FRONT VIEW
Front of Cooktop
18 15/16" (48.1)
Baffle
33 3/4" (85.7)
SIDE VIEW
3/16"
(0.5)
4 7/16"
(11.3)
Dimensions in parentheses are in centimeters unless otherwise noted.
Actual product dimensions may vary due to manufacturing tolerances.
Product Specification Created 2/15
ZHU36RSJSSGE Monogram® 36" Induction Cooktop
INSTALLATION
B
E
Locate electrical junction box
at least
A
16" (40.6) min
To electrical junction box
16" below the countertop
C
15"
D
(38.1)
min
8"
(20.3) min
5"
(12.7) min
DRAWER
(5.1) min
Air gap
F
36 " (91.4)
Cabinet base
COUNTERTOP CUT-OUT DIMENSIONS ADA INSTALLATION
1 3/4" (4.5) min
33 7/8" (86.0) min
34" (86.3) max
Cutout width
FRONT
TOP VIEW OF CUTOUT SIDE VIEW
Clearance between the
rear edge of the cutout
and the nearest wall
behind the cooktop
19 1/8" (48.6) min
19 1/4" (48.9) max
Cutout depth
2 1/2" (6.4) min
Clearance between the
front edge of the cutout
and the front edge of the
countertop
(12.7) min
I
5"
NOTES
A
Wall coverings, countertop
NOTES
and cabinets surrounding
cooktop must be able to
withstand temperatures of up
to 200ºF.
B
Minimum 30” clearance from
countertop to unprotected
overhead surfaces, when no
ventilation hood or microwave
oven is installed.
C
13"
(33.0) max
G
H
2"
SIDE VIEWFRONT VIEW
When using a ventilation
hood or microwave oven
above the cooktop, see hood
or microwave installation
instructions for minimum
overhead clearance
dimensions.
D
Minimum 15” of clearance
from countertop to nearest
overhead surface on both
sides of cooktop. Make sure to
include any lighting rail covers
in calculation.
E
Minimum 2” distance from
edge of cutout to nearest
adjacent side wall below upper
cabinets.
F
Install an approved junction
box where it can be easily
reached through the front of
the cabinet where the cooktop
is located. IMPORTANT: For
serviceability, the junction box
must be located where it will
allow considerable slack in the
48” long conduit.
G
Maximum 13” depth of
unprotected overhead
surfaces, when no ventilation
hood or microwave oven is
installed.
H
When installing the cooktop
above a cabinet drawer, a
solid barrier must be installed
at least 5” from the bottom
of the cooktop. Use any solid
material such as 1/4” thick
plywood. Allow at least 1/4” air
gap between the barrier and
the top of the cabinet drawer.
I
For Americans with Disabilities
Act (ADA) forward approach
installation: Minimum 5”
clearance between the top
of the countertop and the
enclosure. The enclosure must
be made of at least 1/4” thick
wood material, and must have
an access panel installed in
order to provide access to the
junction box and hold-down
brackets, and to allow for
service of the cooktop.
Dimensions in parentheses are in centimeters unless otherwise noted.
For more details refer to the
installation instructions for this
product.
Product Specification Created 2/15
ZHU36RSJSSGE Monogram® 36" Induction Cooktop
SIDE VIEW FRONT VIEW
INSTALLATION ABOVE WALL OVEN
D
4 3/4"
(12.1) max
E
A
C
D
SIDE VIEW FRONT VIEW
INSTALLATION ABOVE WARMING DRAWER
H
5"
(12.7) min
ELECTRIC
Wall oven
B
NOTES
A
Note this cooktop is only
NOTES
approved for installation
above specific wall
ovens as labeled on
this unit.
B
ELECTRIC
Wall oven
F
ELEC.
cooktop
G
ELEC.
cooktop
G
Warming drawers are
approved for installation
below only certain
specified cooktop
models. See the label
attached to the top of
the warming drawer
or underside of the
cooktop for approved
combinations.
C
When installing this
cooktop above a single
wall oven, do not install
the baffle.
D
When this cooktop is
installed above a flushmounted wall oven, the
clearance from the front
edge of the countertop
to the front edge of
the cooktop cutout is
minimum 2-1/2” plus
the wall oven cleat
setback.
E
Maximum toe kick
height of 4” when
installed above a
certified wall oven (43/4” including thickness
of support platform).
F
Junction box location
for wall oven (may also
be located in adjacent
cabinet).
G
Electrical connection
for cooktop must be
located in an accessible
adjacent location to
the right (may also be
located in adjacent
cabinet).
H
When installing the
cooktop above a
warming drawer, a solid
barrier must be installed
at least 5” from the top
of the countertop. Use
any solid material such
as 1/4” thick plywood.
Allow at least a 2” air
gap between the front
of the barrier and the
inside of the cabinet
and at least 1/4” air gap
between the barrier and
the top of the warming
drawer.
For more details, refer to the installation instructions for this product on Monogram.com.
Dimensions in parentheses are in centimeters unless otherwise noted.
For more details refer to the
installation instructions for
this product
Product Specification Created 2/15
ZHU36RSJSSGE Monogram® 36" Built-In Induction Cooktop
Countertop
ELEC.
Wall Oven
4 3/4"
(12.1) max
R 5/8" (1.6)
All Four Corners
Front & Back = 3/4" (1.9)
Right & Left = 1 3/16" (3.0)
Width of rabbet
in countertop
1/4" (0.6) max
Depth of rabbet
in countertop
20 5/8"
(52.4)
36 1/4" (92.1)
5 1/2"
(14.0) min
FRONT VIEW
X X
SIDE VIEW SIDE VIEW
Countertop
R 5/8" (1.6)
All Four Corners
Front & Back = 3/4" (1.9)
Right & Left = 1 3/16" (3.0)
Width of rabbet
in countertop
1/4" (0.6) max
Depth of rabbet
in countertop
20 5/8"
(52.4)
5 1/2"
(14.0) min
FLUSH-MOUNT INSTALLATION
FLUSH-MOUNT INSTALLATION
ABOVE WALL OVEN
F
G
A
TOP VIEW OF CUTOUT
D
E
C
SECTION X–X
Through countertop showing
depth of rebate for flush-mount
FLUSH-MOUNT INSTALLATION
ABOVE WARMING DRAWER
I
NOTES
A
Use optional JXFLUSH1 kit
NOTES
to flush-mount the cooktop
into the countertop. Read
B
H
all installation instructions
supplied with cooktop
and kit before beginning
installation.
B
To avoid hot cookware from
contacting the countertop
surface, the cooktop should
be installed at least 1/32”
higher than the countertop.
C
Use strips of wood or
solid-surface countertop
material to reinforce the
countertop below the flushmount rebate. For an island
or peninsular installation
secure strips to all four
sides, otherwise just secure
strips to the front and back
under the cutout.
D
Note this cooktop is only
approved for installation
above specific wall ovens
as labeled on this unit.
E
When installing this
cooktop above a single
wall oven, do not install
the baffle.
F
When this cooktop is
installed above a flushmounted wall oven, the
clearance from the front
edge of the countertop
to the front edge of the
cooktop cutout is minimum
2-1/2” plus the wall oven
cleat setback.
G
Maximum toe kick height of
4” when installed above a
certified wall oven (4-3/4”
including thickness of
support platform).
H
Warming drawers are
approved for installation
below only certain specified
cooktop models. See the
label attached to the top
of the warming drawer or
underside of the cooktop
for approved combinations.
I
When installing the
cooktop above a warming
drawer, a solid barrier
must be installed at least
5-1/2” from the top of the
countertop. Use any solid
material such as 1/4” thick
plywood. Allow at least 1/4”
air gap between the barrier
and the top of the warming
drawer.
For more details, refer to the installation instructions for this product on Monogram.com.
Dimensions in parentheses are in centimeters unless otherwise noted.
For more details refer to the
installation instructions for this
product
Product Specification Created 2/15

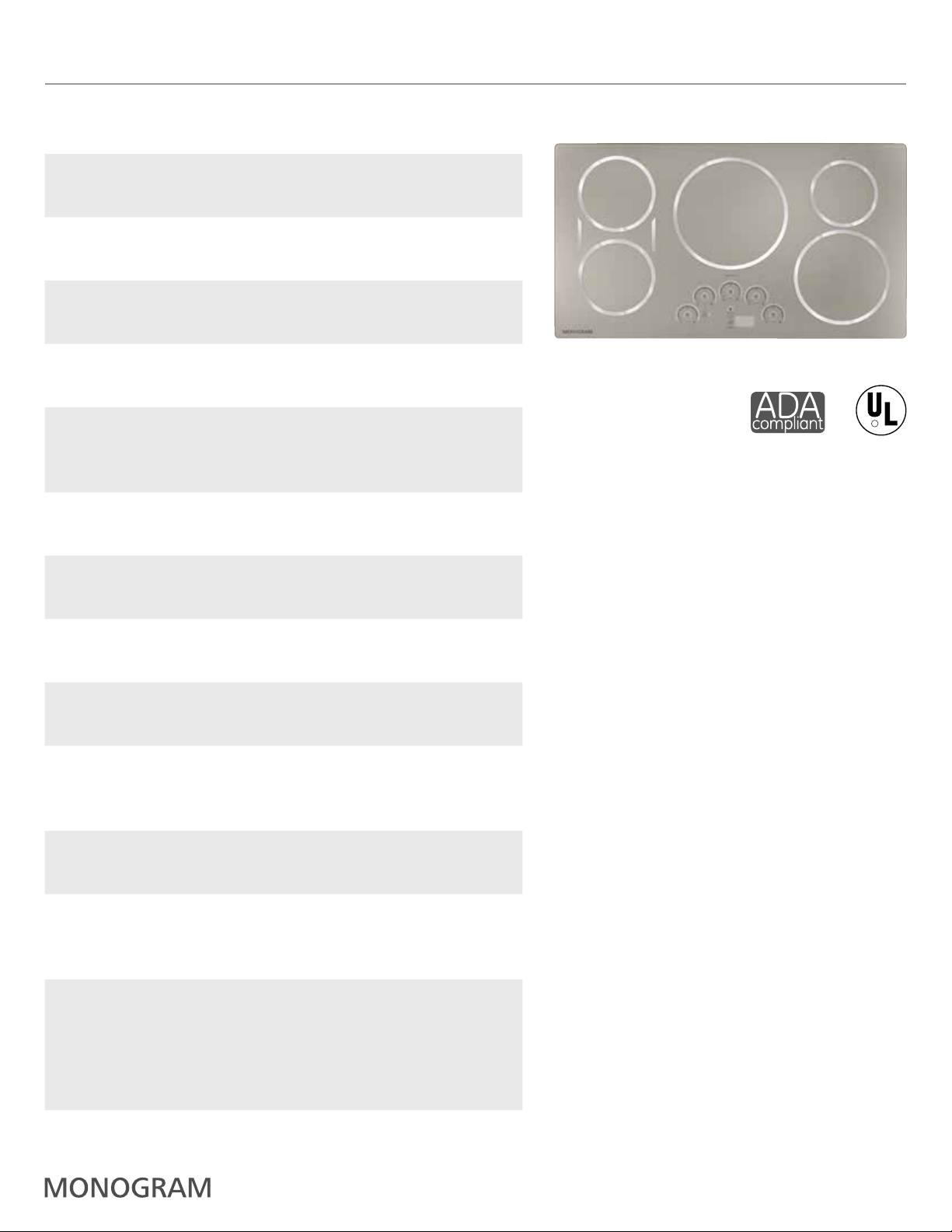

FEATURES AND BENEFITS
Glide Touch Controls – Easy to use electronic controls allow you
to precisely raise or lower heat in an instant with one easy swipe
Five Induction Cooking Elements – Enjoy a new level of rapid,
precise heating with a cool-to-the-touch surface that's easy to clean
11" 3700W Induction Element – Rapidly boil water with our
most powerful induction element
Sync Burners – Control two 7" elements simultaneously to
evenly heat large cookware or the included griddle
ZHU36RSJSSGE Monogram® 36" Induction Cooktop
Stainless Steel Clad Aluminum Griddle – Achieve even results
with this lightweight griddle, tailored to fit Monogram Sync
Burners
Melt Setting – Gently melt delicate foods without burning or
scorching
Multi-Element Timer – Manage up to five pans at once with
individual timers for each element
Control Lock Capability – Protects against unintended
activation
Custom Settings – Personalize your cooktop settings to fit
your cooking style
Pan Presence & Size Sensors – Cook efficiently with elements
that heat to the size of your pan and shut off when no pan is
present
White LED Display with Patterned Silver Glass Surface – Enjoy
a premium look that blends in with modern kitchen finishes
R
Flush-Mount Capable – Optional accessory kit enables the
cooktop to be flush inset into the countertop for a sleek,
modern look
Precision Cooking – Achieve restaurant quality results with
an optional probe that wirelessly controls the temperature of
your food. Ideal for Sous Vide, Slow Cooking, making candy,
etc., or for any other cooking that requires precise control of
temperature over time
Product Specification Created 2/15
