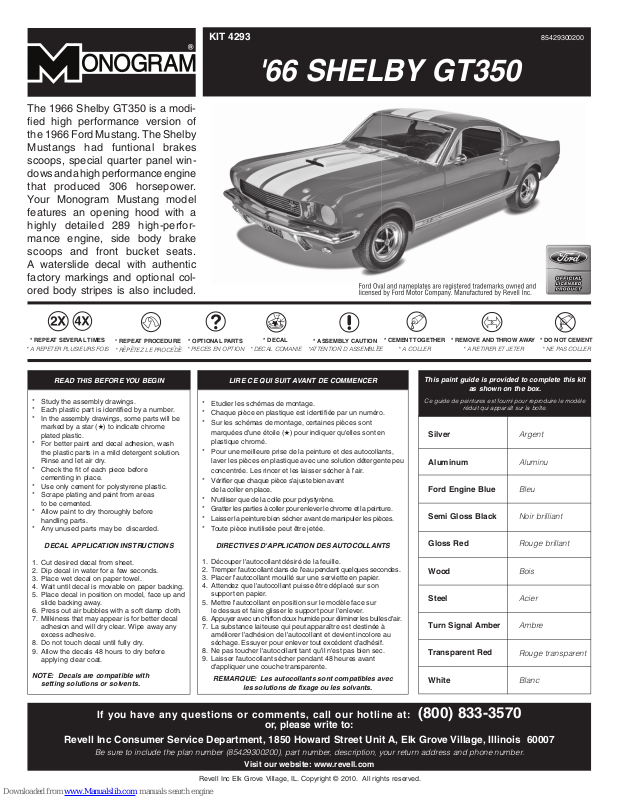

monogr 4293 Assembly Instructions Manual

The 1966 Shelby GT350 is a modi­fied high performance version of
the 1966 Ford Mustang. The Shelby
Mustangs had funtional brakes
scoops, special quarter panel win­dows and a high performance engine
that produced 306 horsepower.
Your Monogram Mustang model
features an opening hood with a
highly detailed 289 high-perfor­mance engine, side body brake
scoops and front bucket seats.
A waterslide decal with authentic
factory markings and optional col­ored body stripes is also included.

KIT 4293 85429300200

'66 SHELBY GT350

* REPEAT SEVERAL TIMES

* A REPETER PLUSIEURS FOIS

READ THIS BEFORE YOU BEGIN LIRE CE QUI SUIT AVANT DE COMMENCER

* Study the assembly drawings.
* Each plastic part is identified by a number.
* In the assembly drawings, some parts will be

marked by a star (★) to indicate chrome
plated plastic.

* For better paint and decal adhesion, wash

the plastic parts in a mild detergent solution.
Rinse and let air dry.

* Check the fit of each piece before

cementing in place.
* Use only cement for polystyrene plastic.
* Scrape plating and paint from areas

to be cemented.
* Allow paint to dry thoroughly before

handling parts.
* Any unused parts may be discarded.

DECAL APPLIC ATION INSTRUCTIONS

1. Cut desired decal from sheet.

2. Dip decal in water for a few seconds.

3. Place wet decal on paper towel.

4. Wait until decal is movable on paper backing.

5. Place decal in position on model, face up and

slide backing away.

6. Press out air bubbles with a soft damp cloth.

7. Milkiness that may appear is for better decal

adhesion and will dry clear. Wipe away any

excess adhesive.

8. Do not touch decal until fully dry.

9. Allow the decals 48 hours to dry before

applying clear coat.

NOTE: Decals are compatible with

setting solutions or solvents.

* REPEAT PROCEDURE

* R E P E T E Z L E P R O C E D E

* OPTIONAL PARTS

``` ` ``

* PIECES EN OPTION

* Etudier les schémas de montage.
* Chaque pièce en plastique est identifiée par un numéro.
* Sur les schémas de montage, certaines pièces sont

marquées d'une étoile (★) pour indiquer qu'elles sont en
plastique chromé.

* Pour une meilleure prise de la peinture et des autocollants,

laver les pièces en plastique avec une solution détergente peu
concentrée. Les rincer et les laisser sécher à l'air.

* Vérifier que chaque pièce s'ajuste bien avant

de la coller en place.
* N'utiliser que de la colle pour polystyrène.
* Gratter les parties à coller pour enlever le chrome et la peinture.
* Laisser la peinture bien sécher avant de manipuler les pièces.
* Toute pièce inutilisée peut être jetée.

DIRECTIVES D'APPLICAT ION DES AUTOCOLLANTS

1. Découper l'autocollant désiré de la feuille.

2. Tremper l'autocollant dans de l'eau pendant quelques secondes.

3. Placer l'autocollant mouillé sur une serviette en papier.

4. Attendez que l'autocollant puisse être déplacé sur son

support en papier.

5. Mettre l'autocollant en position sur le modèle face sur

le dessus et faire glisser le support pour l'enlever.

6. Appuyer avec un chiffon doux humide pour éliminer les bulles d'air.

7. La substance laiteuse qui peut apparaître est destinée à

améliorer l'adhésion de l'autocollant et devient incolore au

séchage. Essuyer pour enlever tout excédent d'adhésif.

8. Ne pas toucher l'autocollant tant qu'il n'est pas bien sec.

9. Laisser l'autocollant sécher pendant 48 heures avant

d'appliquer une couche transparente.

REMARQUE: Les autocollants sont compatibles avec

* DECAL

* DECAL COMANIE

les solutions de fixage ou les solvants.

*ATTENTION D ASSEMBLEE

* ASSEMBLY CAUTION

* CEMENT TOGETHER

* A COLLER

This paint guide is provided to complete this kit

Ce guide de peintures est fourni pour reproduire le modèle

Silver

Aluminum

Ford Engine Blue

Semi Gloss Black

Gloss Red

Wood

Steel

Turn Signal Amber

Transparent Red

White

* REMOVE AND THROW AWAY

* A RETIRER ET JETER

as shown on the box.

réduit qui apparaît sur la boîte.

Argent

Aluminu

Bleu

Noir brilliant

Rouge brillant

Bois

Acier

Ambre

Rouge transparent

Blanc

* DO NOT CEMENT

* NE PAS COLLER

If you have any questions or comments, call our hotline at: [phone]

Revell Inc Consumer Service Department, 1850 Howard Street Unit A, Elk Grove Village, Illinois 60007

Be sure to include the plan number (85429300200), part number, description, your return address and phone number.

Revell Inc Elk Grove Village, IL. Copyright © 2010. All rights reserved.

or, please write to:

Visit our website: www.revell.com

1

A

★82

ROCKER COVER

CHROME

ENGINE ASSEMBLY

29

CYLINDER HEAD

FORD ENGINE BLUE

26

RT. ENGINE HALF

FORD ENGINE BLUE

(PAINT SHADED AREA ALUMINUM)

(PAINT SHADED AREA ALUMINUM)

33

DISTRIBUTOR

SEMI GLOSS BLACK

★31

CARBURETOR

CHROME

★81

ROCKER COVER

CHROME

B

23

STARTER

SEMI GLOSS BLACK

★84

OIL PAN BOTTOM

CHROME

30

INTAKE MANIFOLD

ALUMINUM

★83

OIL PAN

CHROME

DECAL

32

WATER PUMP

FORD ENGINE BLUE

WHITE

36

CYLINDER HEAD

FORD ENGINE BLUE

25

LT. ENGINE HALF

FORD ENGINE BLUE

(PAINT SHADED AREA ALUMINUM)

29

35

FAN

SEMI GLOSS

BLACK

34

FAN BELT

SEMI GLOSS BLACK

★37

ALTERNATOR

CHROME

C

43

EXHAUST HEADER

STEEL

Kit 4293 - Page 2

42

EXHAUST HEADER

STEEL

2

A

*

BODY ASSEMBLY

*

★40

REAR VIEW

MIRROR

CHROME

B

*

60

WINDSHIELD

CLEAR

1

BODY

BODY COLOR

*

*

*

NOTE: SEE DECAL PLACEMENT GUIDE FOR

DECAL LOCATION BEFORE ASSEMBLY

66

SIDE WINDOW

CLEAR

67

SIDE WINDOW

CLEAR

*

61

REAR WINDOW

CLEAR

*

*

★91

GAS CAP

CHROME

(PAINT DETAILS WHITE)

★52

TAILLIGHT BEzEL

CHROME

TRANSPARENT

RED

Kit 4293 - Page 3

3

INTERIOR ASSEMBLY

A

3

INTERIOR

SEMI GLOSS BLACK

18

ARM REST

SEMI GLOSS BLACK

★8

SHIFTER

CHROME

(PAINT SHADED AREA

SEMI GLOSS BLACK)

94

TACHOMETER

SEMI GLOSS BLACK

4

DASH

SEMI GLOSS BLACK
(PAINT TRIM SILVER)

18

ARM REST

SEMI GLOSS BLACK

STEERING COLUMN

12

SEMI GLOSS BLACK

DECAL 26

STEERING WHEEL

PAINT SHADED ALUMINUM)

DECAL

28

7

WOOD

SEMI GLOSS BLACK

★93

INSTRUMENT POD

CHROME

(PAINT SHADED SEMI

GLOSS BLACK)

9

REAR SEAT

FRONT

SEMI GLOSS BLACK

DECAL

27

10

REAR SEAT

BACK

6

SEAT FRONT

SEMI GLOSS BLACK

65

LT. SEAT BACK

SEMI GLOSS BLACK

6

SEAT FRONT

SEMI GLOSS BLACK

RT. SEAT BACK

SEMI GLOSS BLACK

(SHOWN IN PLACE)

CB

11

Kit 4293 - Page 4

4

A

SUSPENSION ASSEMBLY

B

41

EXHAUST

ALUMINUM

FRONT SUSPENSION

17

SEMI GLOSS BLACK

13

CHASSIS

SEMI GLOSS BLACK

C

16

RT. SHOCK

ABSORBER

SEMI GLOSS BLACK

15

LT. SHOCK

ABSORBER

SEMI GLOSS BLACK

14

REAR AXLE

SEMI GLOSS BLACK

D

DRIVESHAFT INTO

ENGINE ASSEMBLY

E

20

FRONT

SPRING

SEMI GLOSS

BLACK

Kit 4293 - Page 5

5

WHEEL / TIRE ASSEMBLY

200

TIRE

★92

OUTER WHEEL

CHROME

6

FINAL ASSEMBLY

A B

87

RT. SCOOP

BODY COLOR

58

INNER WHEEL

FLAT BLACK

BRACE

SEMI GLOSS BLACK

56

SEMI GLOSS BLACK

29

DECAL

★24

MASTER CYLINDER

CHROME

(PAINT BODY SEMI

GLOSS BLACK)

86

LT. SCOOP

BODY COLOR

Kit 4293 - Page 6

49

REAR PAN

BODY COLOR

*

★51

BACKUP LIGHT

CHROME

(PAINT SHADED AREA WHITE)

NOTE: SEE DECAL PLACEMENT GUIDE FOR

DECAL LOCATION BEFORE ASSEMBLY

★51

BACKUP LIGHT

CHROME

(PAINT SHADED AREA

WHITE)

*

★50

REAR BUMPER

CHROME

21

RADIATOR WALL

SEMI GLOSS BLACK

FLUID BAG

SEMI GLOSS BLACK

(PAINT CAP

ALUMINUM)

22

RADIATOR

SEMI GLOSS BLACK

DECAL

64

WASHER

21

7

FINAL ASSEMBLY CONTINUED

C

★48

HEADLIGHT

BEzEL

CHROME

62

HEADLIGHT

LENS

CLEAR

FRONT PAN

BODY COLOR

62

HEADLIGHT LENS

★48

HEADLIGHT

BEzEL

CHROME

★47

TURN SIGNAL

CHROME

44

NOTE: SEE DECAL PLACEMENT GUIDE FOR

DECAL LOCATION BEFORE ASSEMBLY

★90

GRILLE

CHROME

CLEAR

FRONT BUMPER

★47

TURN SIGNAL

CHROME

*

★46

CHROME

D

59

RADIATOR HOSE

SEMI GLOSS BLACK

20

DECAL

DECAL

(PAINT SHADED AREA WHITE)

31

DECAL

34

★80

AIR CLEANER

CHROME

30

DECAL

*

E F

(PAINT SHADED AREA ALUMINUM)

76

HOOD

BODY COLOR

*

★57

MONTE CARLO

BAR

CHROME

*

33

DECAL

35

DECAL

39

SIDE VIEW

MIRROR

CHROME

Kit 4293 - Page 7

3

(See step 8

for details)

5

(See step 8 for details)

16

(See step 7A for details)

14

(See step 7A for details)

13

(See step 7A for details)

15

(See step 7A for details)

6

(See step 8 for details)

4

(See step 8

for details)

1

(Other side decal 2)

17,18 or 22

(Do not dip in water, carefully cut decal out

and use white glue to attach)

8

13

7

12 9

10

11

17,19 or 22

(Do not dip in water, carefully cut decal out

and use white glue to attach)

23

23

25

8

DECAL PLACEMENT

Kit 4293 - Page 8
