ELECTRONIC FILLER UN
IT
www.monoequip.com
Fax. 01792 561016
MONO
EQUIPMENT
Swansea. SA5 4EB UK
(JAMMER)
SPARES MANUAL
MACHINE NO.FG053
When ordering spares please quote the machine serial number which can be found
on the silver information plate of the machine and on the front cover of your manual.
Queensway
Swansea West Industrial Estate
FG053 JAMMER SPARES REV A17 5-09-17
Tel. +44(0)1792 561234
email:[email protected]
Spares Tel.+44(0)1792 564039
1
Page 2
SECTION 1 EXTERNAL PARTS
Page 3 Hopper etc
SECTION 2 INTERNAL PARTS
Page 7 Motor etc
SECTION 3 REAR PARTS
Page 10
On/off switch etc
WARNING
- Isolate the FG053 and disconnect from the mains
supply before attempting any maintenance or fault
investigation
(US ONLY)
FG053 JAMMER SPARES REV A17 5-09-17
2
Page 3

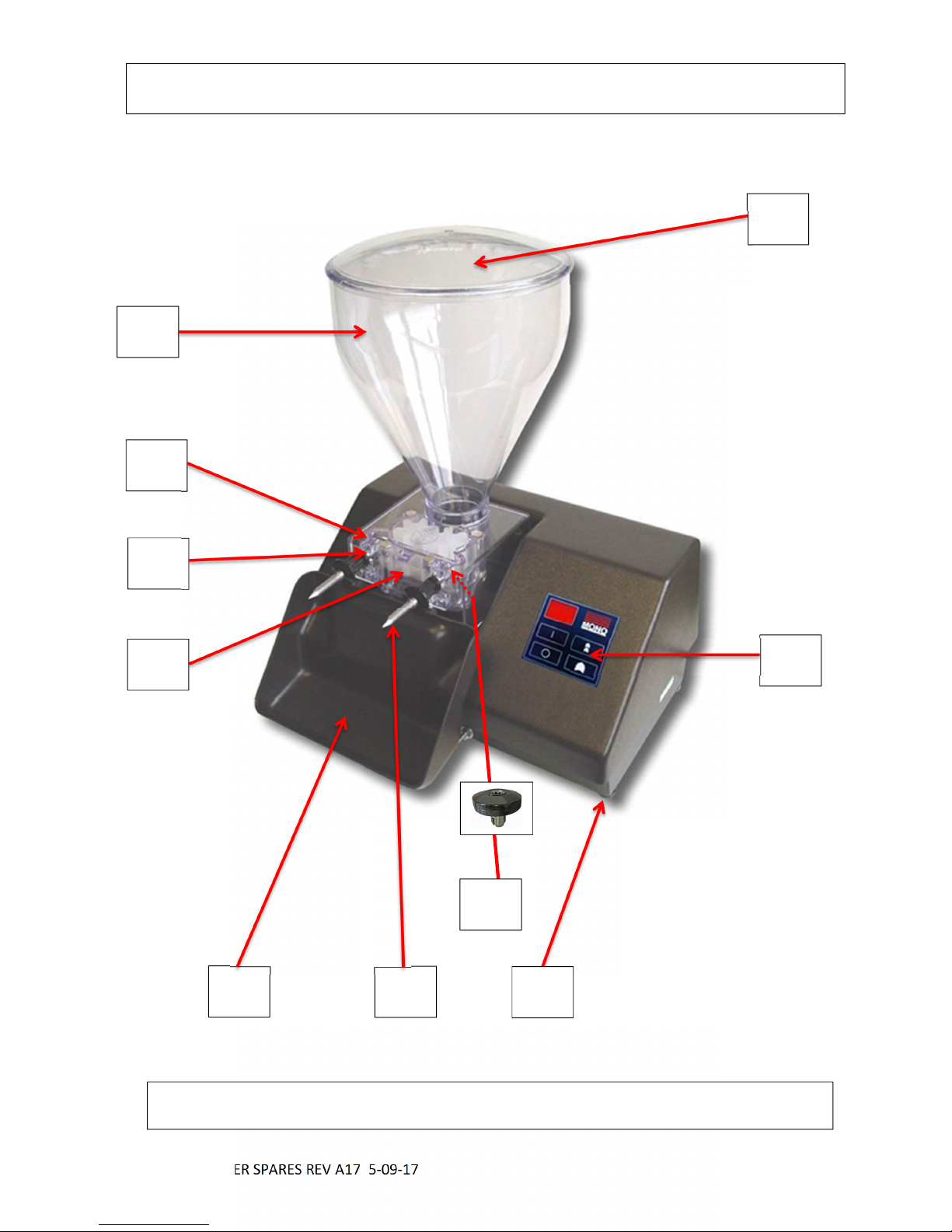

SECTION 1
EX
TERNAL PARTS
1
2
3
4
5
6
9
7
10
8
Part numbers and descriptions are on the following pages
FG053 JAMMER SPARES REV A17 5-09-17
3
Page 4
DRIVEN GEAR
- 053
-02-
00100
HOPPER, COMPLETE ASSEMBLY
1
PART NUMBER 053-02-02000
Consisting of parts below:
HOPPER LID - 053-02-02100
HOPPER CHAMBER – 053-02-20000
DRIVE GEAR - 053-02-00200
HOPPER SEAL A900-12-126
PUMP COVER ASSEMBLY WITH
DRIVE PINS - M053-KSX002
FG053 JAMMER SPARES REV A17 5-09-17
KNURLED BOLT - 053-02-00800
4
Page 5

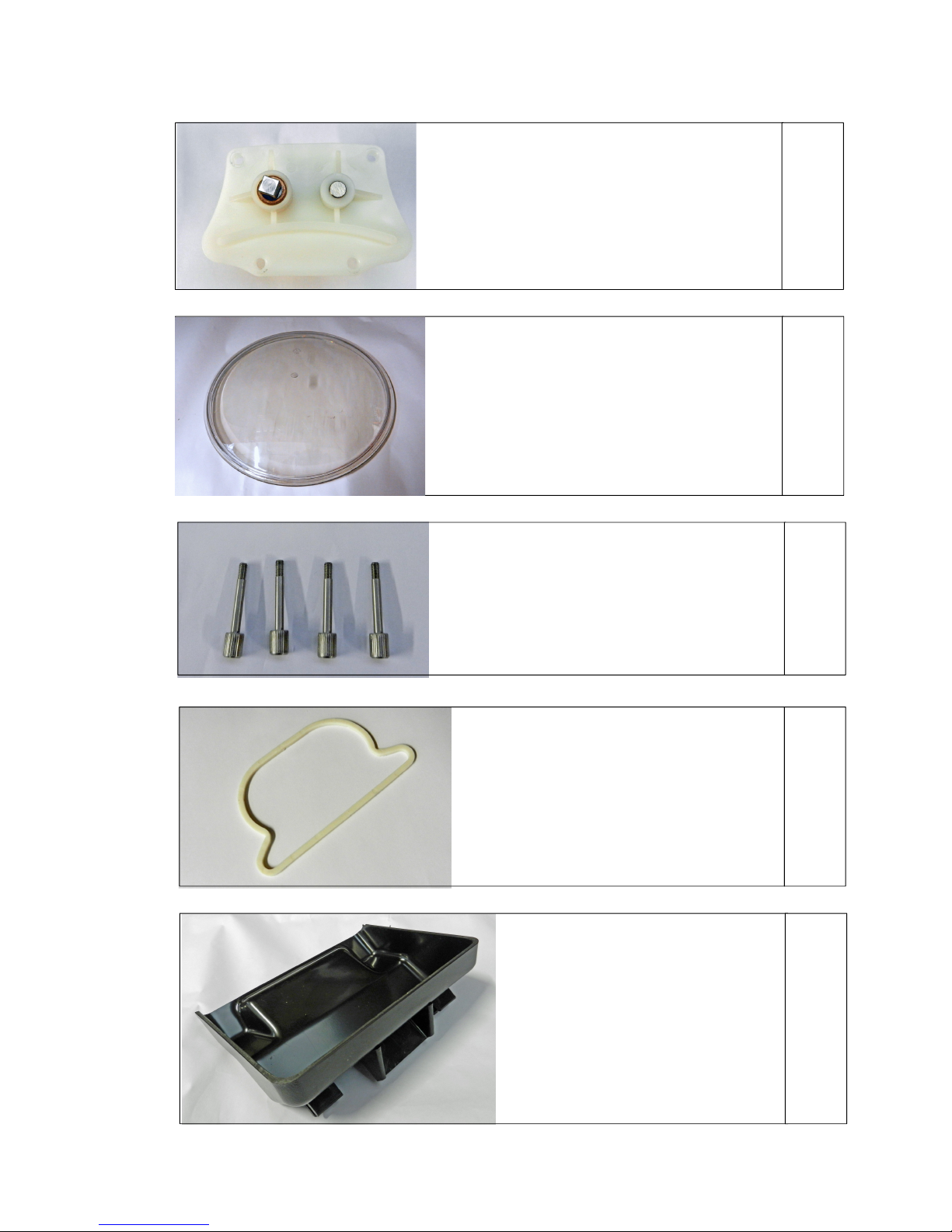

OTHER FILLER UNIT PARTS AVAILABLE:
HOPPER LID
HOPPER PUMP COVER
KNURLED BOLT
HOPPER SEAL
ACTUATING TRAY
Complete with pins
M053-KSX002
053-02-02100
2
3
4
053-02-00800
5
A900-12-126
6
053-01-30100
FG053 JAMMER SPARES REV A17 5-09-17
5
Page 6

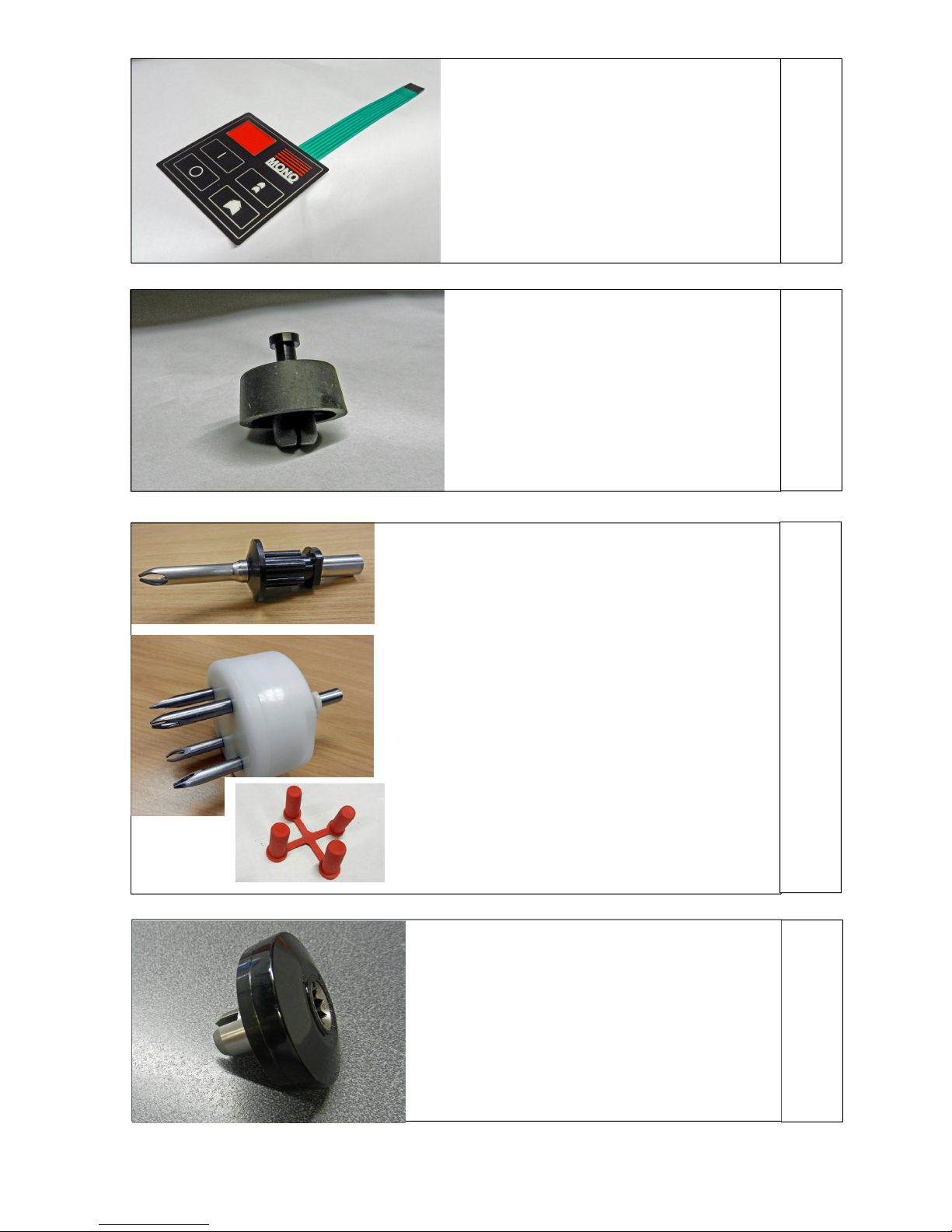

MEMBRANE PANEL
RUBBER FOOT
NOZZLE
MOTOR DRIVE SHAFT
7
B902-89-004
8
B900-18-098
9
M053-03-03900 8.0mm diameter -- SHORT
M053-03-03904 10.0mm diameter -- LONG
M053-03-04700 11.0mm diameter -- SHORT
M053-03-04600 4 prong nozzle
M053-03-05000 4 prong nozzle protection cap
10
M053-01D05300
FG053 JAMMER SPARES REV A17 5-09-17
6
Page 7

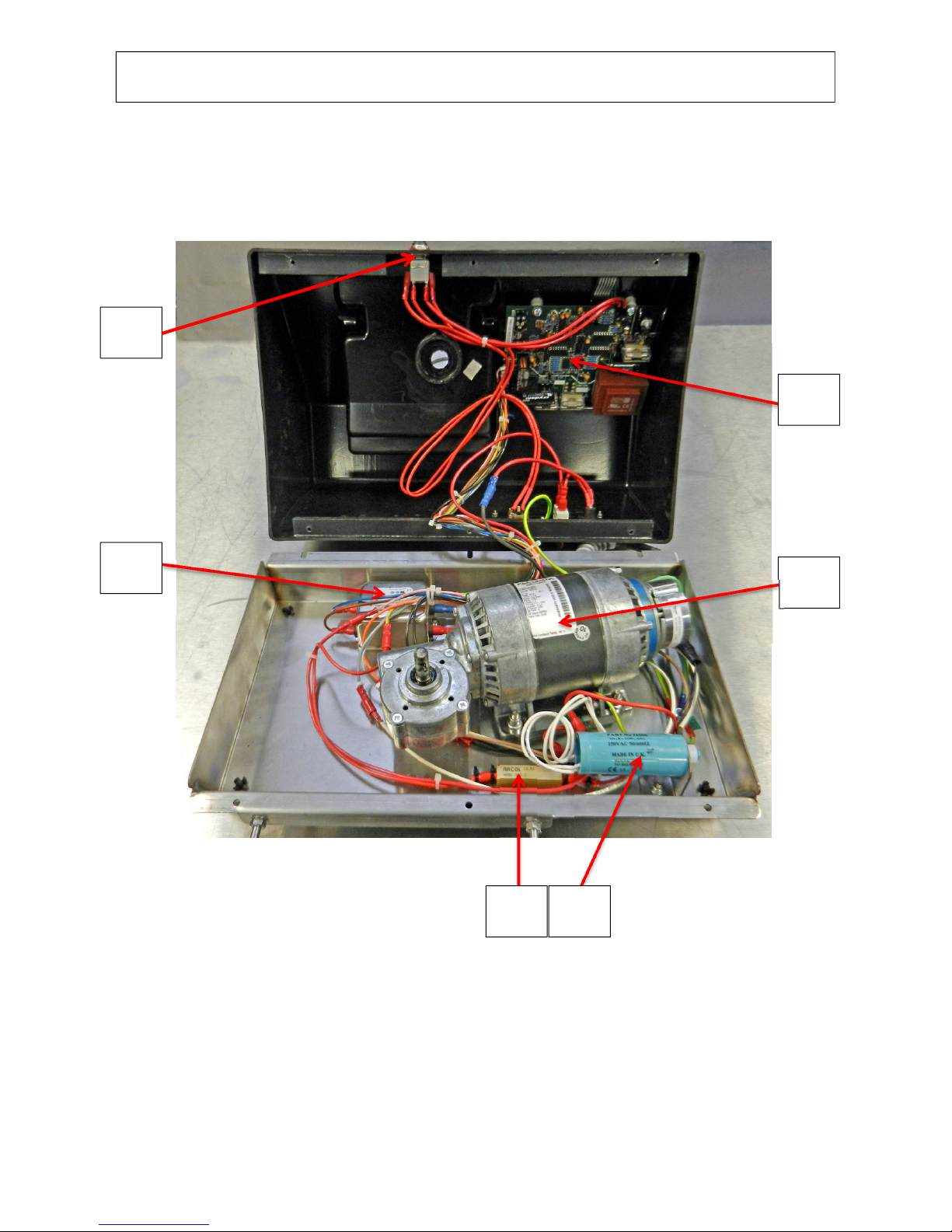

SECTION 2
INTERNAL PARTS
10
12
11
13
FG053 JAMMER SPARES REV A17 5-09-17
15
14
7
Page 8

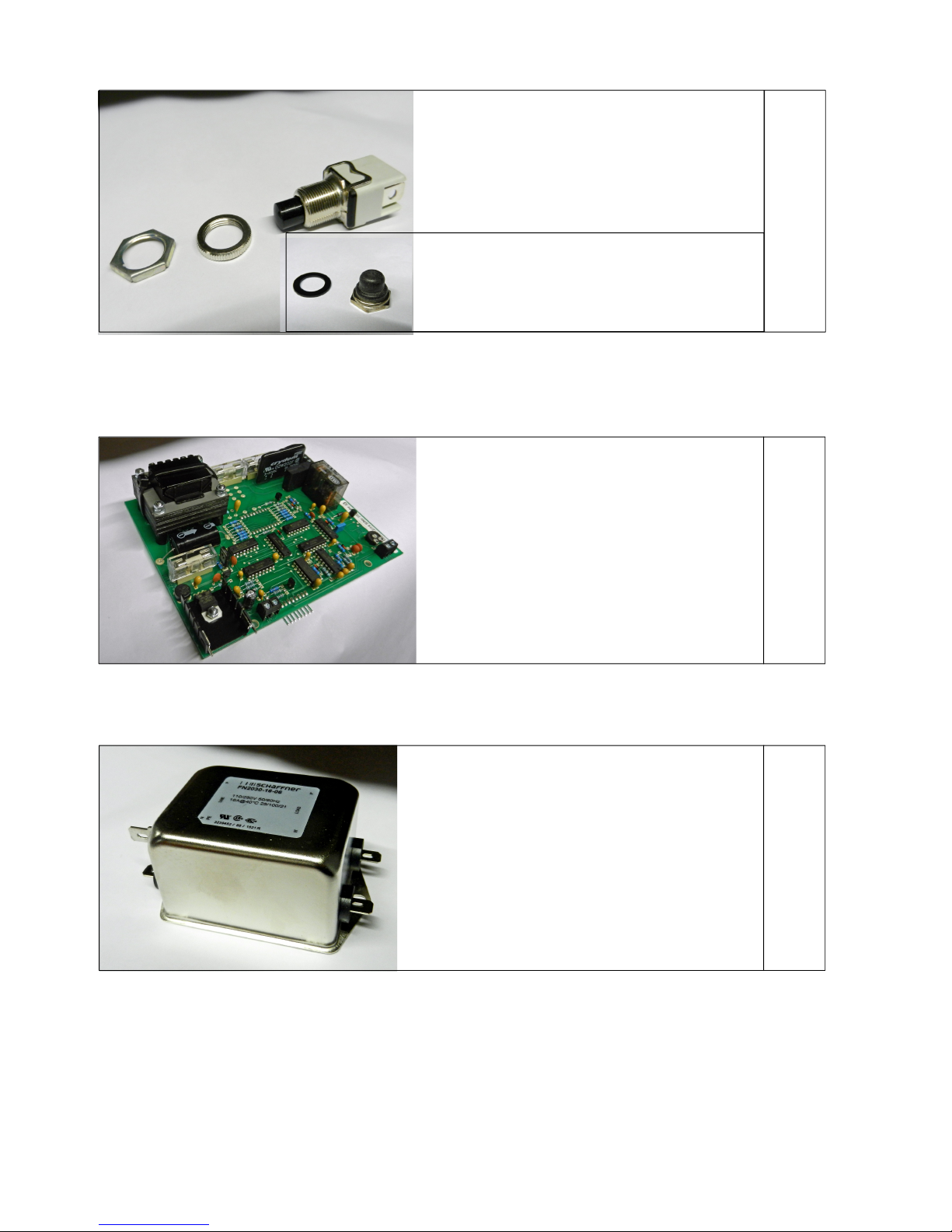

PCB
EMI FILTER
ACTUATING SWITCH
B917-93-001 UK version
B765-07-001
ACTUATING SWITCH
RUBBER COVER
B765-07-001
B917-93-011 US version
10
11
FG053 JAMMER SPARES REV A17 5-09-17
12
B773-48-002
8
Page 9
US
only

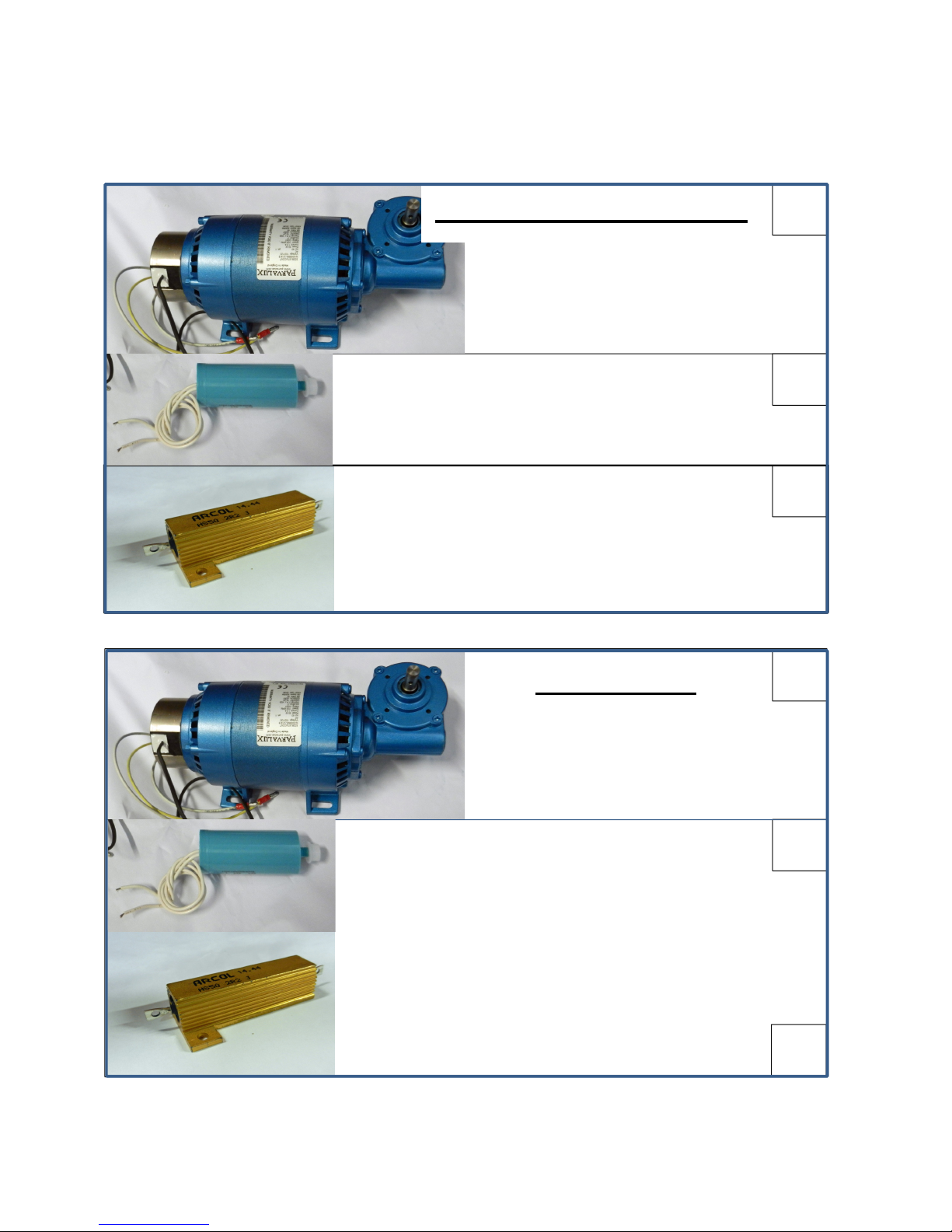

GEAR MOTOR
-- GEAR MOTOR
B892-74-015 (18:1) FG053-Z01
B892-74-014 (12:1) FG053-Z02
13
14
Capacitor B842-23-012
Resistor supplied with cable as
assembly 053-25-10300
15
B892-74-006
FG053 JAMMER SPARES REV A17 5-09-17
For NON-US version:
Capacitor 14 and resistor 15
Supplied as:
Loom assembly 053-25-10800
13
B892-74-006
14
15
9
Page 10
SECTION 3
REAR
PARTS
TOGGLE
SWITCH
FUSE
FOOT SWITCH
053
-25-
10200
NOTE: THE
NON
-US
VERSION HAS A BLANKING PLATE AT THE REAR
(US ONLY)
16
17
18
16
B765-07-002
17
A900-85-009
18
B842-07-032
FG053 JAMMER SPARES REV A17 5-09-17
FOOT SWITCH
SOCKET AND LOOM
10
