dFSoun rame
one
dFSoun rame
two
dFSoun rame
series
¨
Installation Information
Page 2
Page 3

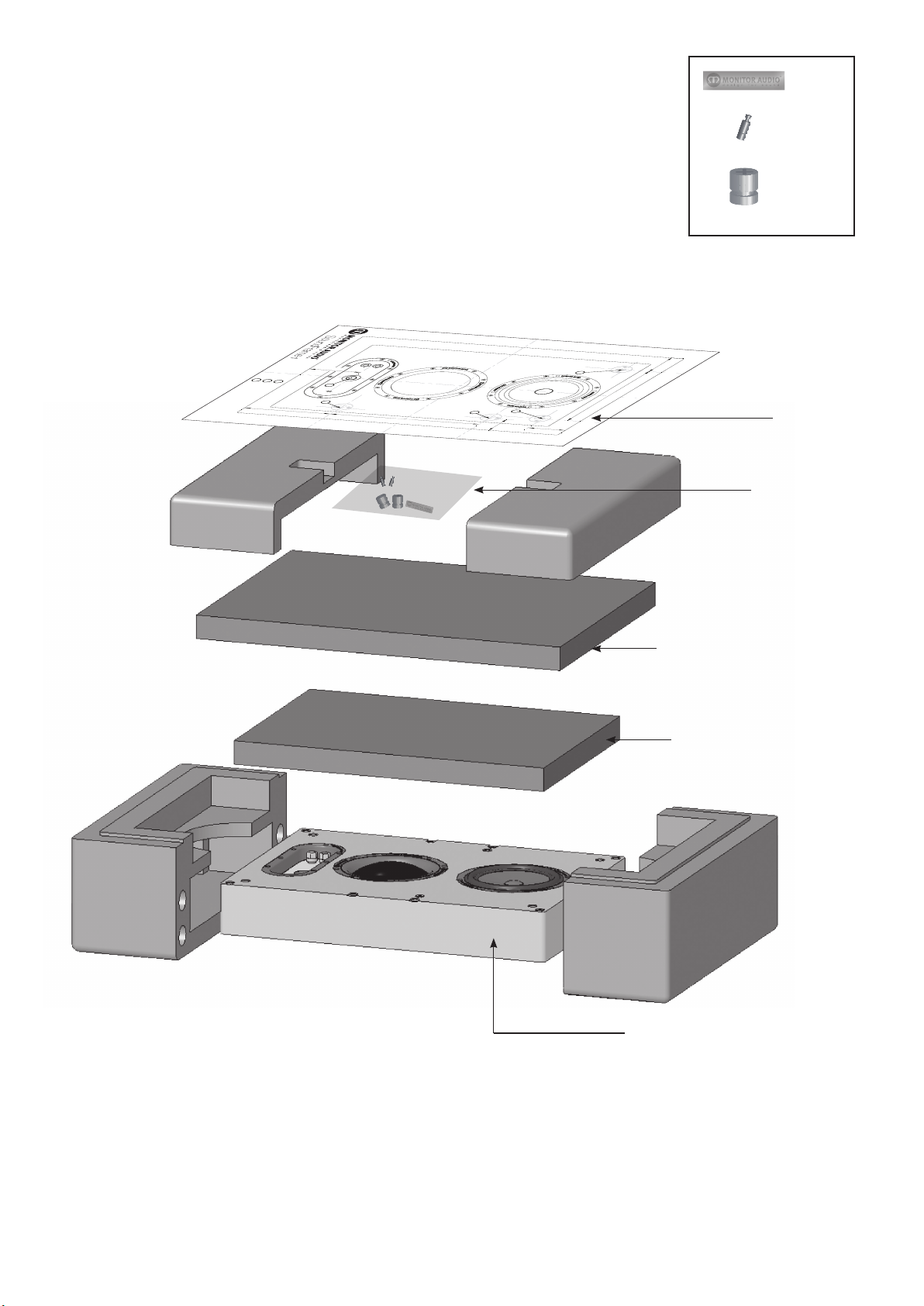

In the box.
70
145
63
55
86
250
250
Landscape fixing points
Portrait fixing points
Cable through hole. 15mm Diameter max
NOTE: Dimensions are to the edge of the frame, not cabinet.
1
1
3
2
2
t e m p l a t e
C
M
Y
CM
MY
CY
CMY
K
Soundframe 1 Template.pdf 1 20/05/2010 12:16:51
Grille Badge
x1
Frame Peg
Frame Cam
Accessories
x2
x2
Template
Frame in Separate Carton
Grille in Separate Carton
SoundFrame Cabinet 1, 2 or 3
Page 4
1

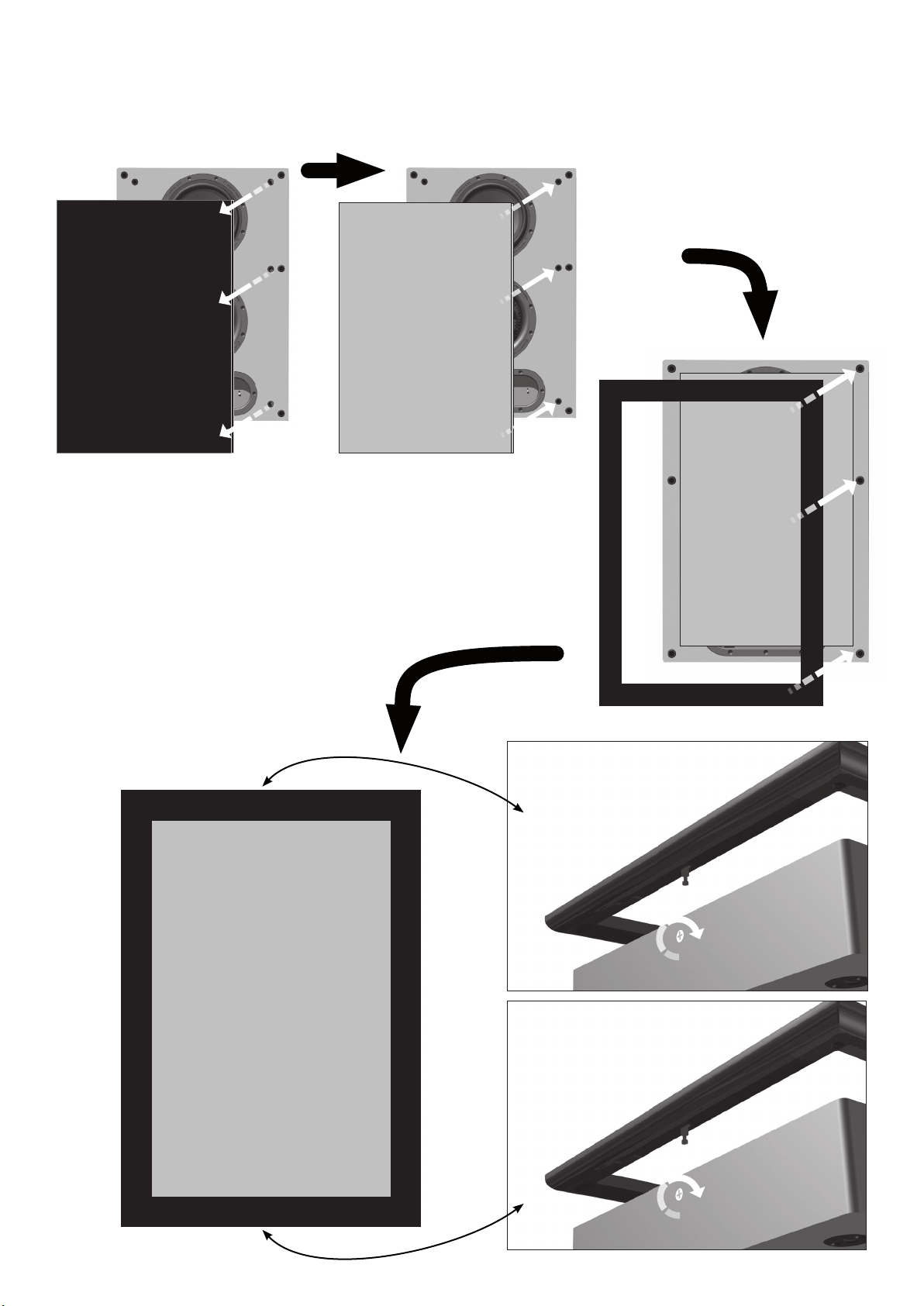

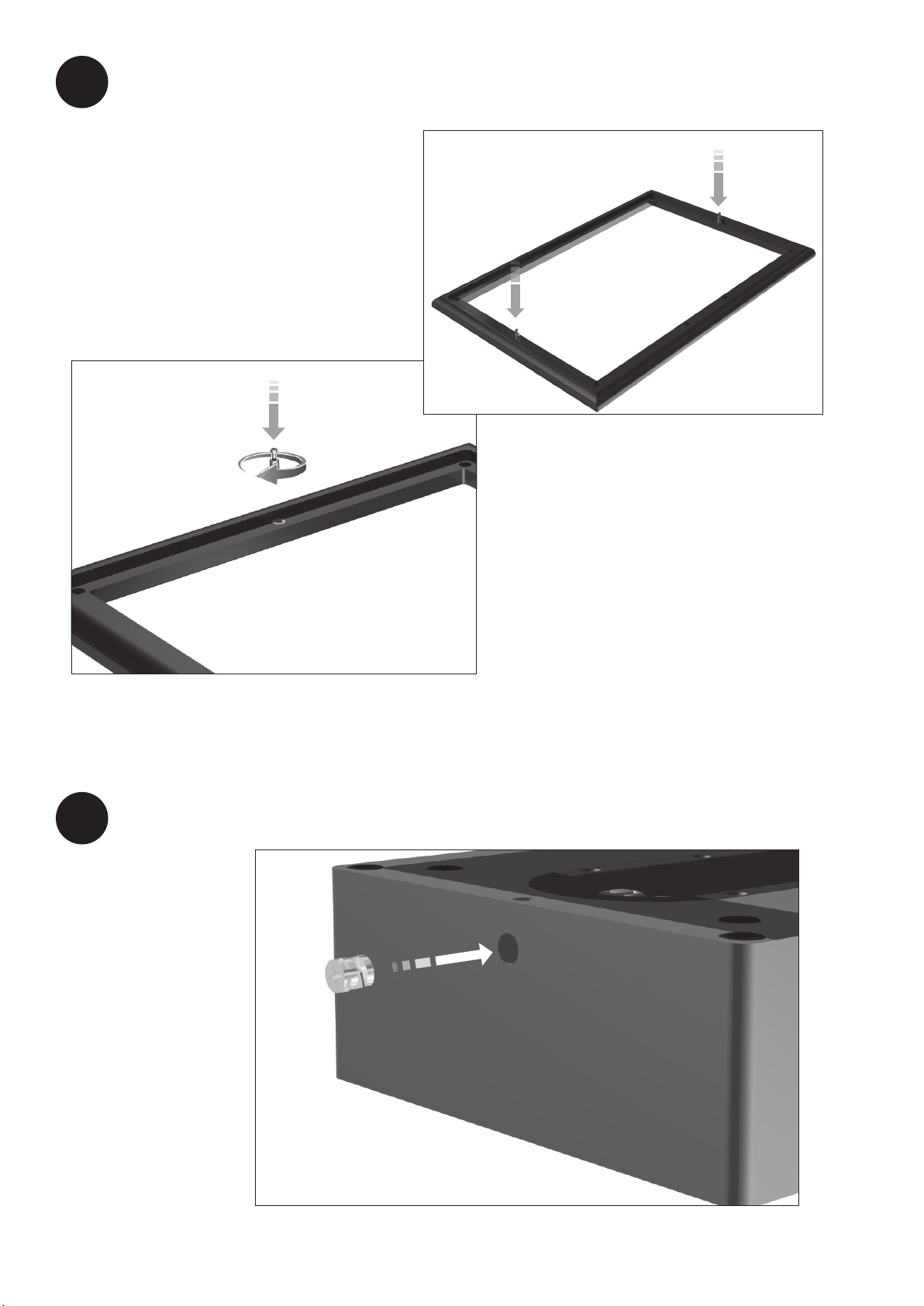

Fix the pegs to the frame.
2
Cam Lock.
Page 5
3
1
1
2
3
3
1
2
Landscape fixing points
Portrait fixing points
Cable through hole. 15mm Diameter max
t e m p l a t e
NOTE: Dimensions are to the edge of the frame, not cabinet.
141
500
145
130
55
50
Soundframe 2 Template Rev2.pdf 1 20/05/2010 12:18:31
1
1
2
3
3
1
2
Landscape fixing points
Portrait fixing points
Cable through hole. 15mm Diameter max
t e m p l a t e
NOTE: Dimensions are to the edge of the frame, not cabinet.
141
500
145
130
55
50

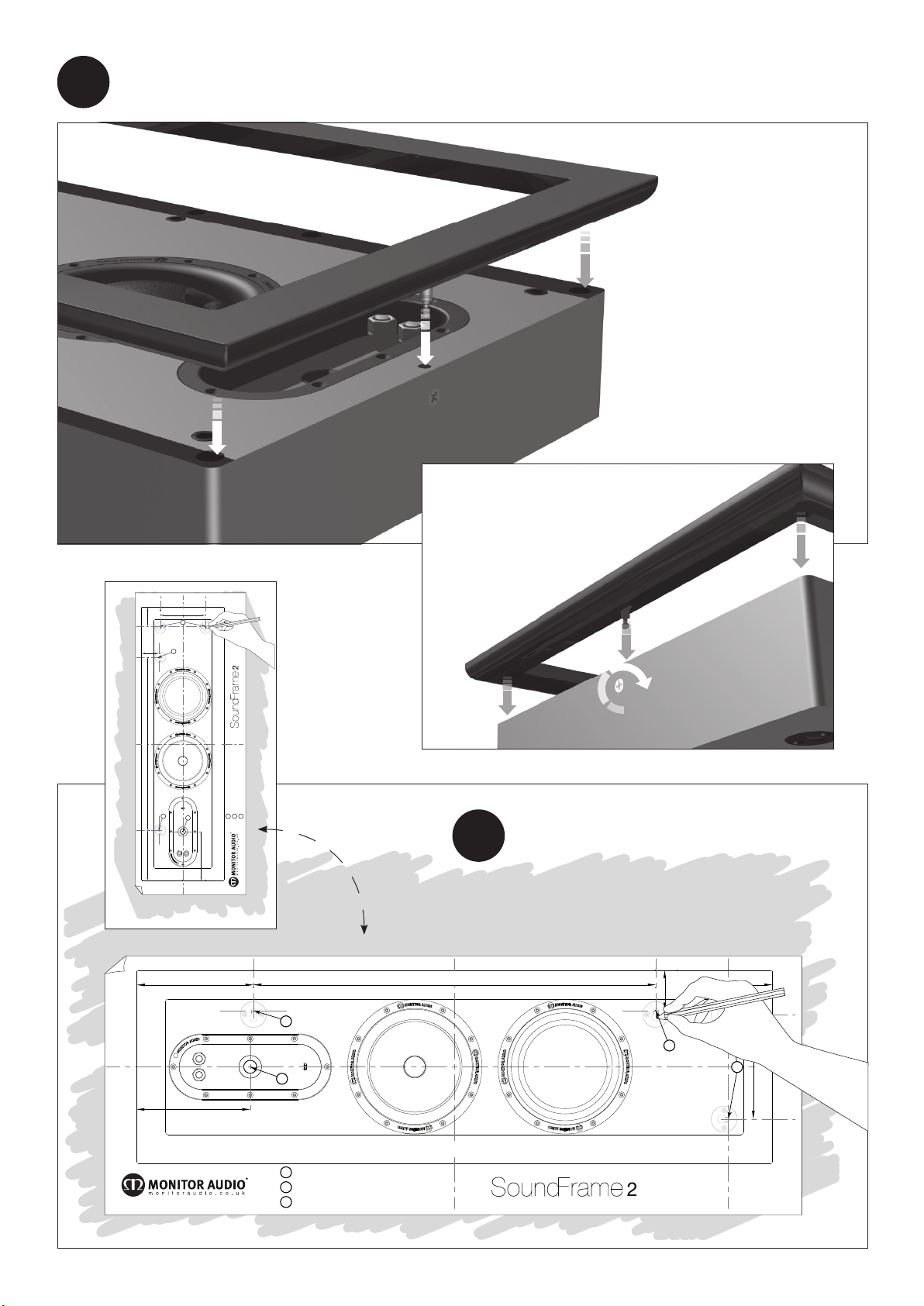

Attach frame to cabinet.
?
4
Mark wall using template
before drilling & attaching fixings.
Page 6
5

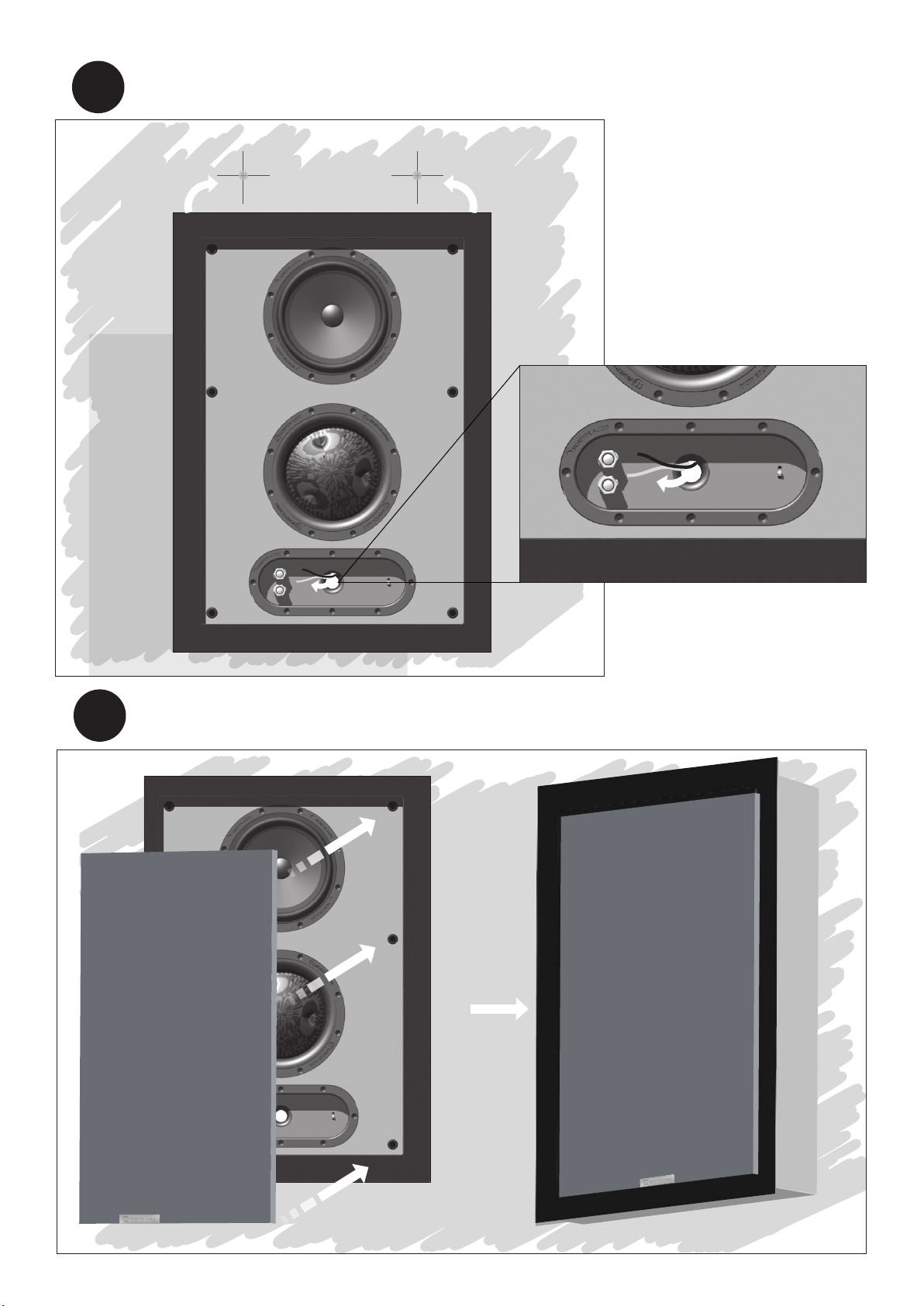

Feed wires through back and hang cabinet.
6

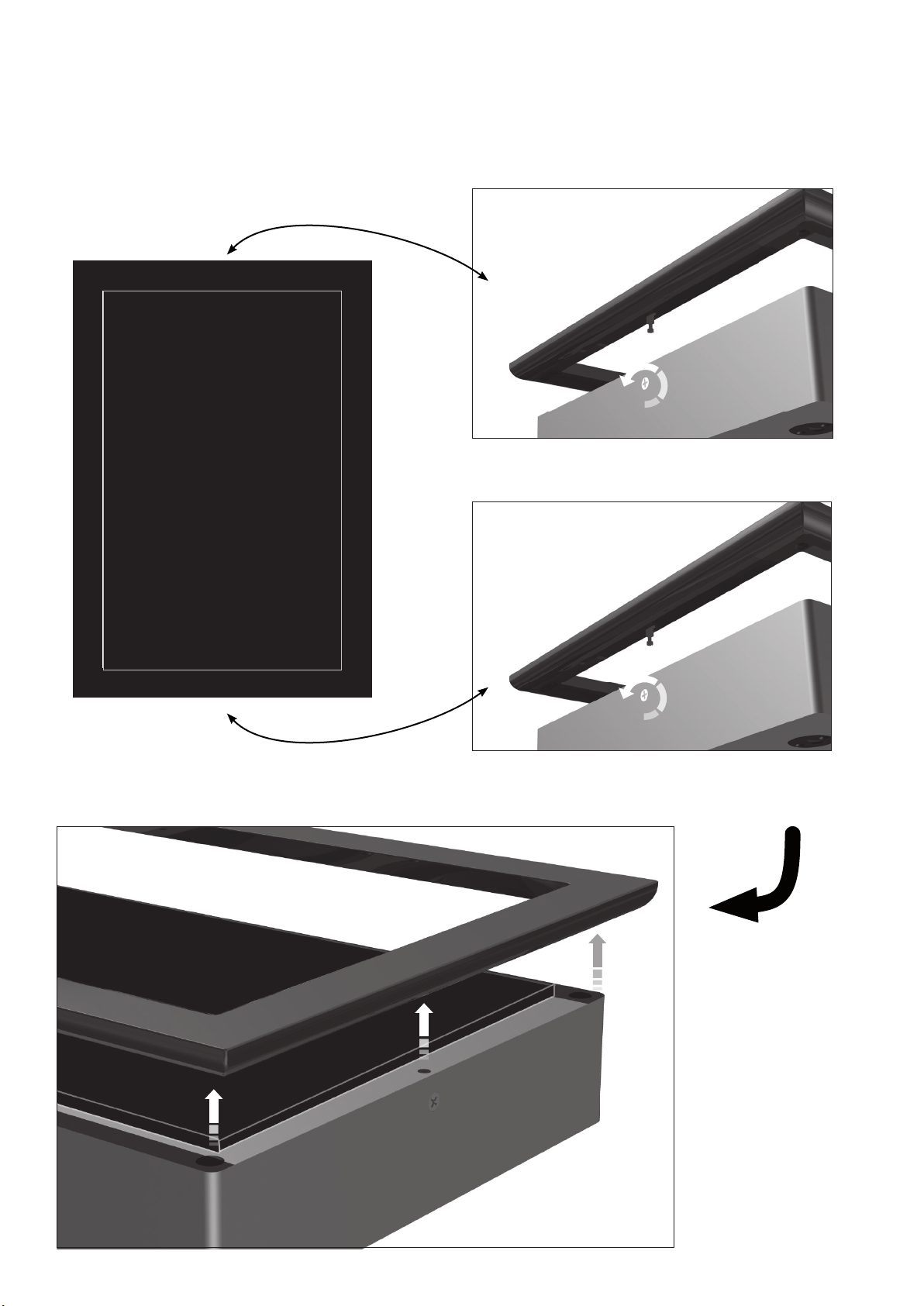

Fit badge to grille and then fit grille.
Page 7
Grille removal and Installation guide
Grille détachable et guide d’installation
Installationshandbuch
Guía de reemplazo e instalación de rejillas
Page 8
Page 9
Specifications:

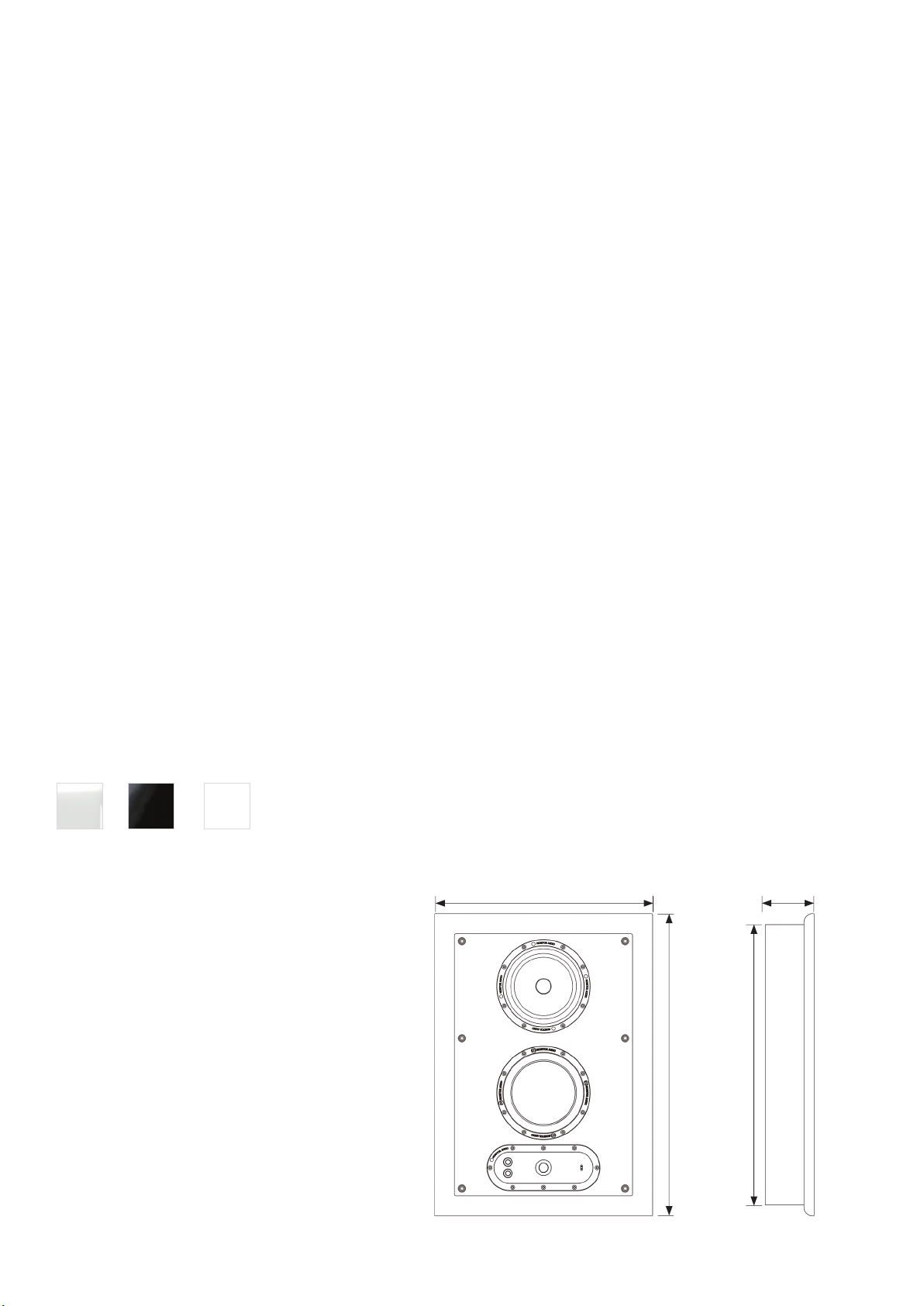

Specifications Sound Frame 1
Frequency Response 55Hz – 35kHz
Sensitivity 86dB
System Configuration 3 way
®
Driver Compliment: 1 x 6.5” C-CAM
RST®II technology.
1 x 4” IDC
concentric 25mm C-CAM® gold dome
tweeter.
Nominal Impedance 8 Ohms
Maximum SPL (each @1m) 106 dBA
Recommended Amplifier
Requirements (RMS). Watts
25-100
Bass Alignment Sealed Box
Power Handling (RMS). Watts 100
Crossover Frequency 550Hz & 3.3KHz
Overall Dimensions (including frame)
(H x W x D)
539 x 389 x 87.5mm
1/4
x 15
(21
Weight. Kg (lb) 7.44 (16.37)
Finishes *Matt white cabinet with white high gloss
piano lacquer frame.
*Matt black cabinet with black high gloss
piano lacquer frame.
*Matt white cabinet with white primed frame
(paint-able).
mid/bass driver with
®
mid-range driver with dual
1/4
7/16
x 3
”)
White Lacquer
Black Lacquer Primer
389mm
539mm
87.5mm
500mm
FRONT SIDE
Page 10

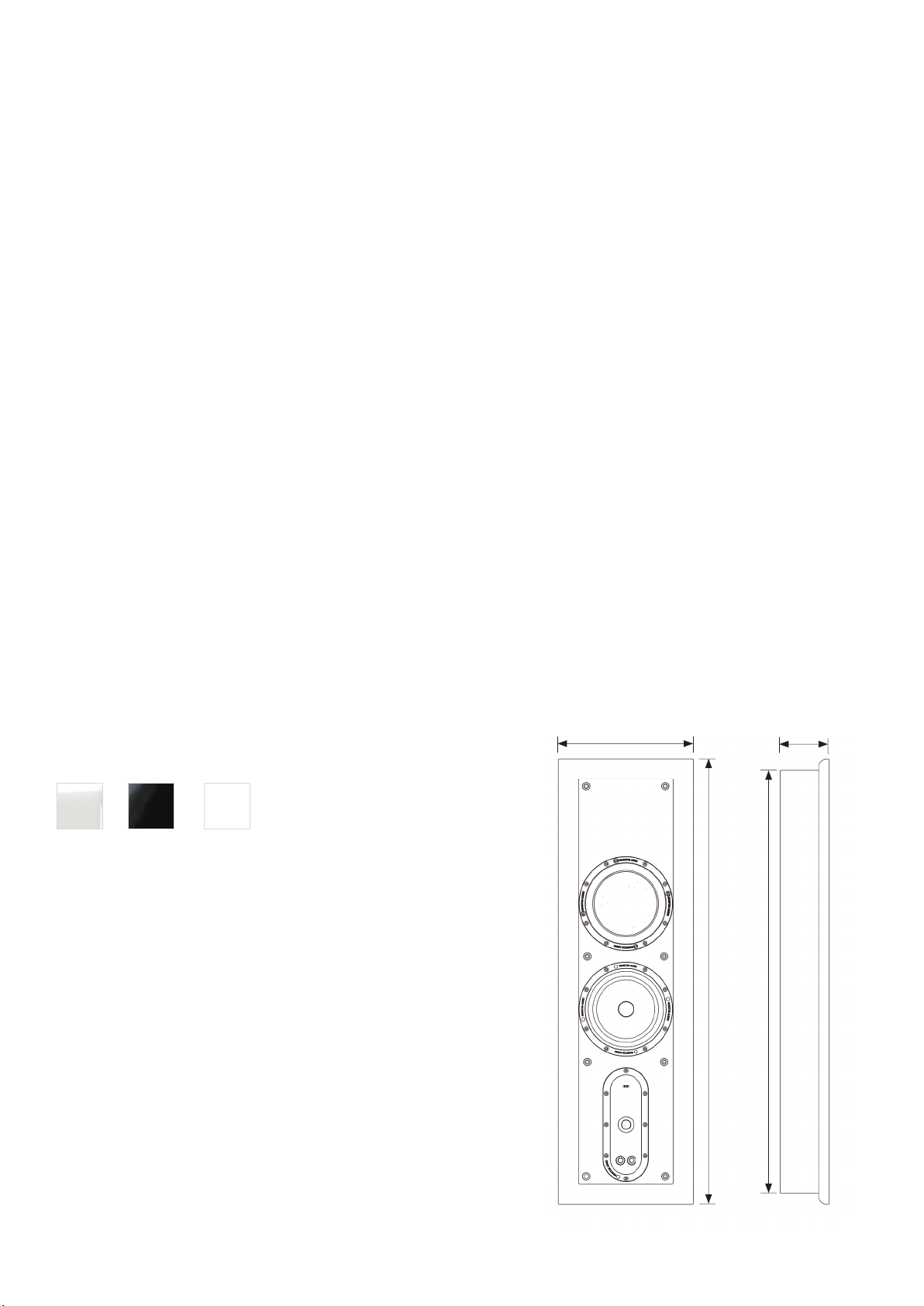

Specifications Sound Frame 2
Frequency Response 55Hz – 35kHz
Sensitivity 86dB
System Configuration 3 way
®
Driver Compliment: 1 x 6.5” C-CAM
RST®II technology.
1 x 4” IDC
concentric 25mm C-CAM
tweeter.
Nominal Impedance 8 Ohms
Maximum SPL (each @1m) 106 dBA
Recommended Amplifier
Requirements (RMS). Watts
25-100
Bass Alignment Sealed Box
Power Handling (RMS). Watts 100
Crossover Frequency 550Hz & 3.3KHz
Overall Dimensions (including frame)
(H x W x D)
790 x 240 x 87 mm
7/16
(31 x 9
Weight. Kg (lb) 7.06 (15.53)
Finishes *Matt white cabinet with white high gloss
piano lacquer frame.
*Matt black cabinet with black high gloss
piano lacquer frame.
*Matt white cabinet with white primed frame
(paint-able).
mid/bass driver with
®
mid-range driver with dual
7/16
x 3
”)
®
gold dome
White Lacquer
Black Lacquer Primer
240mm
790mm
87.5mm
750mm
FRONT SIDE
Page 11

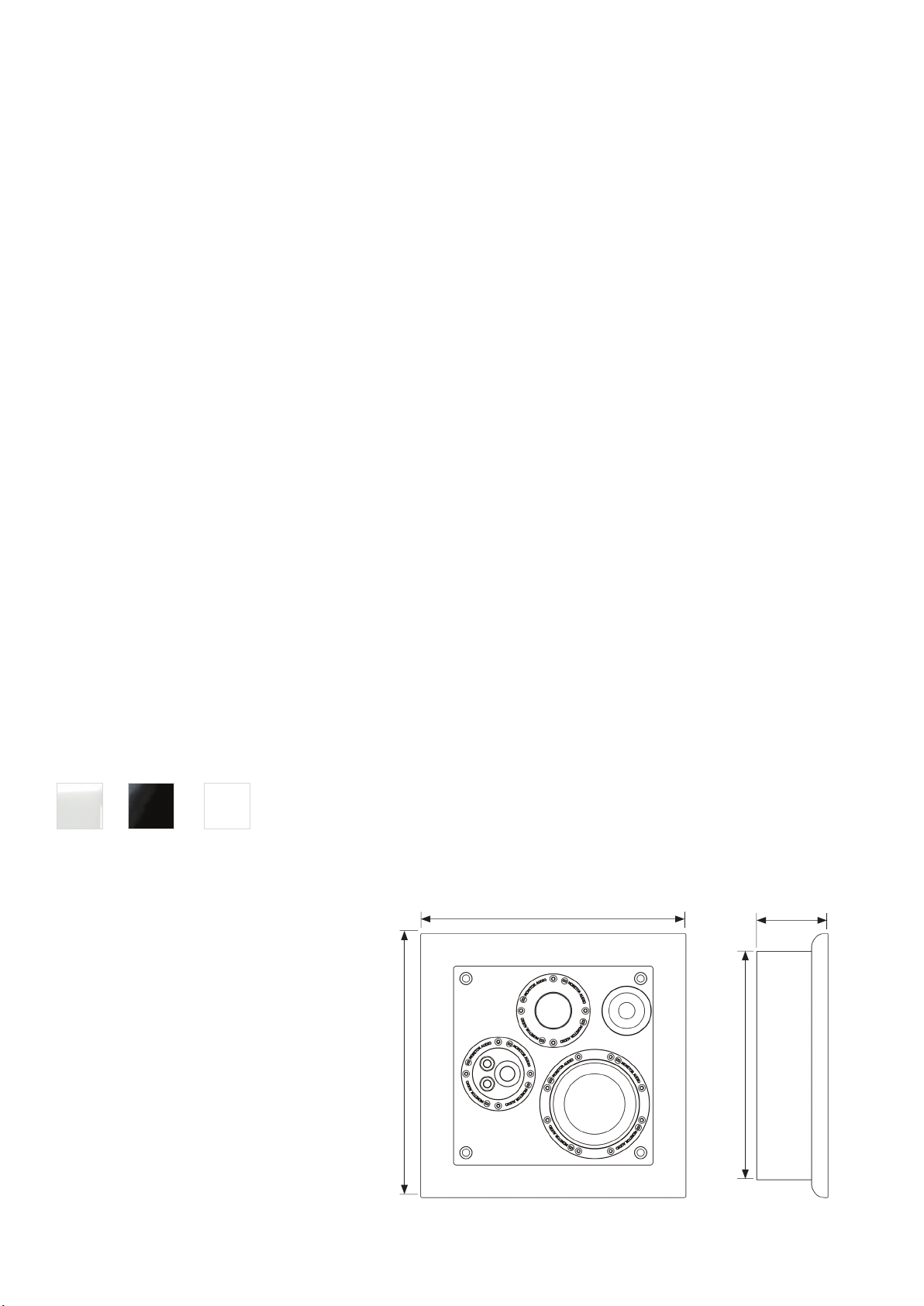

Specifications Sound Frame 3
Frequency Response 75Hz – 35kHz
Sensitivity 85dB
System Configuration 2 way
®
Driver Compliment: 1 x 4” MMP
1 x 25mm C-CAM
tweeter.
Nominal Impedance 8 Ohms
Maximum SPL (each @1m) 102.5 dBA
Recommended Amplifier
Requirements (RMS). Watts
25-50
Bass Alignment Bass Reflex
Power Handling (RMS). Watts 50
Crossover Frequency 3.2kHz
Overall Dimensions (including frame)
(H x W x D)
289 x 289 x 77.5mm
3/8
(11
Weight. Kg (lb) 2.75 (6.05)
Finishes *Matt white cabinet with white high gloss
piano lacquer frame.
*Matt black cabinet with black high gloss
piano lacquer frame.
*Matt white cabinet with white primed frame
(paint-able).
II mid/bass driver with.
®
3/8
x 3
1/16
x 11
gold dome, pivoting
”)
White Lacquer
Black Lacquer Primer
289mm
289mm
77.5mm
250mm
FRONT SIDE
Page 12
Monitor Audio Ltd
24 Brook Road, Rayleigh
Essex, SS6 7XJ
England
Tel: + 44 (0)1268 740580
Fax: + 44 (0)1268 740589
Email: [email protected]
monitoraudio.com
Designed in the United Kingdom
Version 2.
