Page 1
dFSoun rame
one
dFSoun rame
two
dFSoun rame
series
¨
1 & 2
Installation Information
Page 2
In the box.
70
145
63
55
86
250
250
Landscape fixing points
Portrait fixing points
Cable through hole. 15mm Diameter max
NOTE: Dimensions are to the edge of the frame, not cabinet.
1
1
3
2
2
t e m p l a t e
C
M
Y
CM
MY
CY
CMY
K
Soundframe 1 Template.pdf 1 20/05/2010 12:16:51
1
Fix the pegs to the frame
Grille Badge
Frame Peg
Frame Cam
x1
x2
x2
Template
Accessories
Frame in Separate Carton
Grille in Separate Carton
SoundFrame Cabinet 1 or 2
2
Cam Lock
Page 3
3
1
1
2
3
3
1
2
Landscape fixing points
Portrait fixing points
Cable through hole. 15mm Diameter max
t e m p l a t e
NOTE: Dimensions are to the edge of the frame, not cabinet.
141
500
145
130
55
50
Soundframe 2 Template Rev2.pdf 1 20/05/2010 12:18:31
1
1
2
3
3
1
2
Landscape fixing points
Portrait fixing points
Cable through hole. 15mm Diameter max
t e m p l a t e
NOTE: Dimensions are to the edge of the frame, not cabinet.
141
500
145
130
55
50
Attach frame to cabinet
5
Feed wires through back and hang cabinet
?
4
Mark wall using template
6
Fit Grille
before drilling & attaching fixings
Page 4
SoundFrame Series Specifications:
Specifications Sound Frame 1
Frequency Response 55Hz – 35KHz
Sensitivity 86dB
System Configuration 3 way
®
Driver Compliment: 1 x 6.5” C-CAM
RST®II technology.
1 x 4” IDC
concentric 25mm C-CAM® gold dome
tweeter.
Nominal Impedance 8 Ohms
Maximum SPL (each @1M) 106 dBA
Recommended Amplifier
Requirements (R.M.S). Watts
25-100
Bass Alignment Sealed Box
Power Handling (RMS) 100
Crossover Frequency 550Hz & 3.3KHz
Overall Dimensions (including frame)
(H x W x D)
539 x 389 x 87.5mm
(21 ¼” x ” 15 ¼” x 3
Weight (kg) 7.44kg
Finishes *Matt white cabinet with white high gloss
piano lacquer frame.
*Matt black cabinet with black high gloss
piano lacquer frame.
*Matt white cabinet with white primed frame
(paint-able).
mid/bass driver with
®
mid-range driver with dual
7
/16”)
Specifications Sound Frame 2
Frequency Response 55Hz – 35KHz
Sensitivity 86dB
System Configuration 3 way
®
Driver Compliment: 1 x 6.5” C-CAM
RST®II technology.
1 x 4” IDC
concentric 25mm C-CAM
tweeter.
Nominal Impedance 8 Ohms
Maximum SPL (each @1M) 106 dBA
Recommended Amplifier
Requirements (R.M.S). Watts
25-100
Bass Alignment Sealed Box
Power Handling (RMS) 100
Crossover Frequency 550Hz & 3.3KHz
Overall Dimensions (including frame)
(H x W x D)
790 x 240 x 87 mm
7
(31” x 9
/16” x 3 7/16”)
Weight (kg) 7.06kg
Finishes *Matt white cabinet with white high gloss
piano lacquer frame.
*Matt black cabinet with black high gloss
piano lacquer frame.
*Matt white cabinet with white primed frame
(paint-able).
mid/bass driver with
®
mid-range driver with dual
®
gold dome
White Lacquer
Black Lacquer

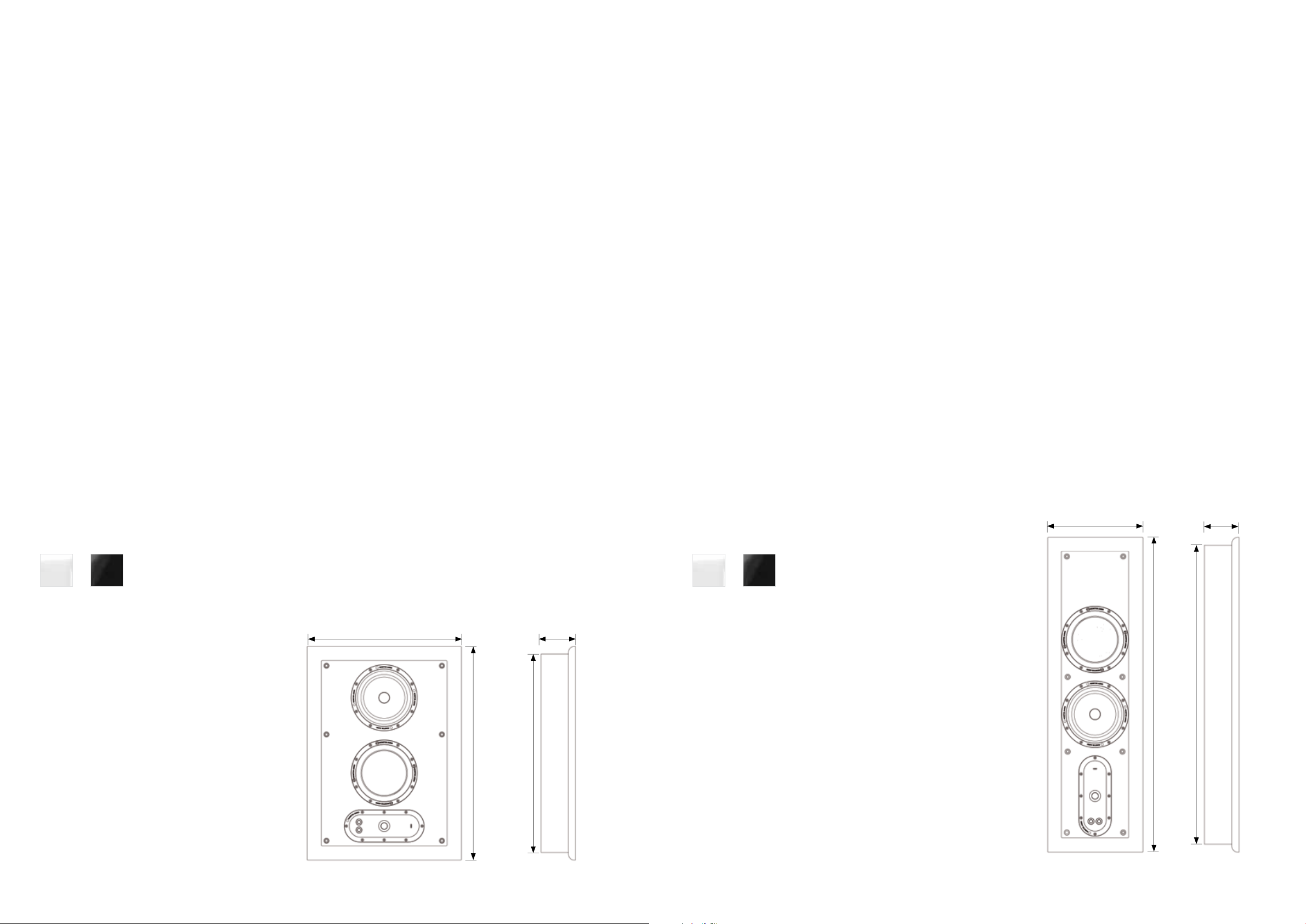

389mm
539mm
87.5mm
500mm
White Lacquer
Black Lacquer
240mm
790mm
87.5mm
750mm
FRONT SIDE
FRONT SIDE
Page 5
Monitor Audio Ltd
24 Brook Road, Rayleigh
Essex, SS6 7XJ
England
Tel: + 44 (0)1268 740580
Fax: + 44 (0)1268 740589
Email: info@monitoraudio.co.uk
monitoraudio.co.uk
Designed in the United Kingdom
