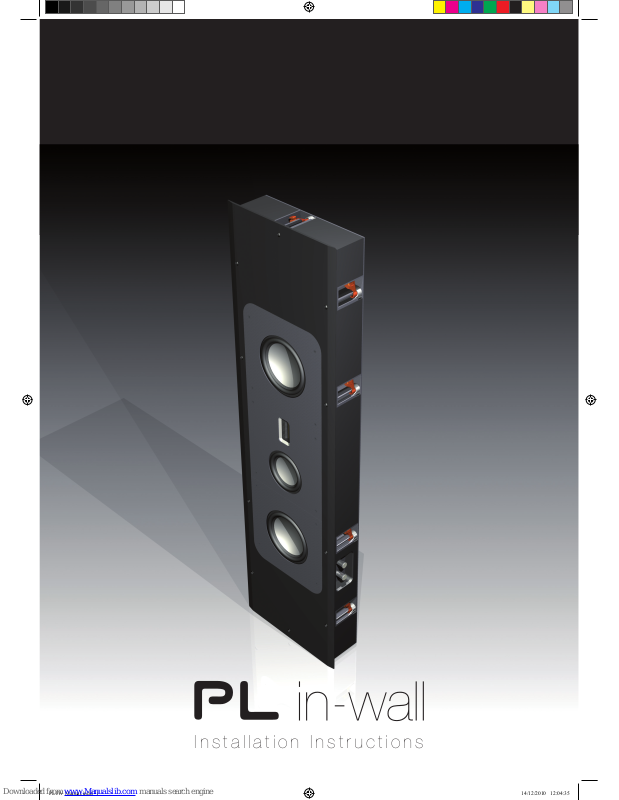

I n s t a l l a t i o n I n s t r u c t i o n s
PL IW Manual.indd 1 14/12/2010 12:04:35
Page 2
In the Box
302
How to use this Template (Vertical orientation)
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16”)
1. Place this template at the proposed top edge of the PL IW.
2. Measure and mark 680mm from the bottom edge of this template.
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
4. Join the vertical lines to complete the cut out area.
How to use this Template (Horizontal orientation)
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16”)
1. Place this template at the proposed left edge of the PL IW.
2. Measure and mark 680mm from the bottom edge of this template.
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
4. Join the vertical lines to complete the cut out area.
BOTTOM
Template
Grille
Platinum In Wall
PL IW Manual.indd 2 14/12/2010 12:04:36
Page 3
1 2
3
Depending on orientation, using
template, mark wall around the
template with the top or left edge of
the cut-out.
Measure & mark 680mm from the
bottom of the template. Remove,
rotate and re-use this template to draw
around the template to mark the bottom
of the speaker cut out.
Cut around markings and remove section of wall.
302
How to use this Template (Vertical orientation)
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16”)
1. Place this template at the proposed top edge of the PL IW.
2. Measure and mark 680mm from the bottom edge of this template.
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
4. Join the vertical lines to complete the cut out area.
How to use this Template (Horizontal orientation)
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16”)
1. Place this template at the proposed left edge of the PL IW.
2. Measure and mark 680mm from the bottom edge of this template.
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
4. Join the vertical lines to complete the cut out area.
BOTTOM
302
How to use this Template (Vertical orientation)
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16”)
1. Place this template at the proposed top edge of the PL IW.
2. Measure and mark 680mm from the bottom edge of this template.
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
4. Join the vertical lines to complete the cut out area.
How to use this Template (Horizontal orientation)
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16”)
1. Place this template at the proposed left edge of the PL IW.
2. Measure and mark 680mm from the bottom edge of this template.
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
4. Join the vertical lines to complete the cut out area.
BOTTOM
302
How to use this Template (Vertical orientation)
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16”)
1. Place this template at the proposed top edge of the PL IW.
2. Measure and mark 680mm from the bottom edge of this template.
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
4. Join the vertical lines to complete the cut out area.
How to use this Template (Horizontal orientation)
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16”)
1. Place this template at the proposed left edge of the PL IW.
2. Measure and mark 680mm from the bottom edge of this template.
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
4. Join the vertical lines to complete the cut out area.
BOTTOM
302
How to use this Template (Vertical orientation)
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16”)
1. Place this template at the proposed top edge of the PL IW.
2. Measure and mark 680mm from the bottom edge of this template.
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
4. Join the vertical lines to complete the cut out area.
How to use this Template
(Horizontal orientation)
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16”)
1. Place this template at the proposed left edge of the PL IW.
2. Measure and mark 680mm from the bottom edge of this template.
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
4. Join the vertical lines to complete the cut out area.
BOTTOM
302
How to use this Template (Vertical orientation)
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16”)
1. Place this template at the proposed top edge of the PL IW.
2. Measure and mark 680mm from the bottom edge of this template.
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
4. Join the vertical lines to complete the cut out area.
How to use this Template (Horizontal orientation)
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16”)
1. Place this template at the proposed left edge of the PL IW.
2. Measure and mark 680mm from the bottom edge of this template.
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
4. Join the vertical lines to complete the cut out area.
BOTTOM
680mm (26 3/4”)
Platinum In Wall
302
How to use this Template (Vertical orientation)
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16”)
1. Place this template at the proposed top edge of the PL IW.
2. Measure and mark 680mm from the bottom edge of this template.
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
4. Join the vertical lines to complete the cut out area.
How to use this Template
(Horizontal orientation)
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16”)
1. Place this template at the proposed left edge of the PL IW.
2. Measure and mark 680mm from the bottom edge of this template.
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
4. Join the vertical lines to complete the cut out area.
BOTTOM
PL IW Manual.indd 3 14/12/2010 12:04:37
Page 4
monitoraudio.com
4
1
1
2
2
3
3
Optional, rotate tweeter and mid range housing.
The Platinum In Wall can be used
for the left/ right channels or a
centre channel. When being used
as a centre channel, the mid range
and tweeter housing needs to be
rotated.
i) Remove the four trim screws
(arrowed), then carefully remove
the metal trim.
ii) Remove the eight screws that
fix the mid/ tweeter housing in
place. Lift the assembly out and
disconnect the mid and tweeter
cables from the units.
Standard foam locations.
iii) Reposition the 3 pieces of
acoustic foam in accordance with
the illustrations.
Foam locations for when the PL IW
is being used as a centre channel.
iv) When the foam has been
repositioned, refit the mid/tweeter
cables. Place the mid/ tweeter
housing in it’s location and screw
down. Refit the trim.
PL IW Manual.indd 4 14/12/2010 12:04:42
Page 5
Platinum In Wall
5
6
Connect the speaker cables and place the PL In Wall into
the wall cut-out.
Tighten all of the dog leg fixing screws.
There are 10 fixing screws to tighten. The images below illustrate the position of the dog leg
fixings once deployed, viewed from behind the wall.
PL IW Manual.indd 5 14/12/2010 12:04:45
Page 6
7
8
Remove the self adhesive protection disks from around the
fixing points.
Align the grille on the front baffle. The magnets will pull it into
place.
monitoraudio.com
PL IW Manual.indd 6 14/12/2010 12:04:49
Page 7
Specifications.
Frequency Response 52Hz - 100kHz
Sensitivity (1W@1m). dB 90
Nominal Impedance. ohms 4
Maximum SPL dBA (each) 117.8
Power Handling (RMS) watts 200
Recommended Amplifier Requirements 100 - 200
(RMS) watts
Bass Alignment Sealed Cabinet
System Design 3 - way
Mid - H.F Crossover Frequency (Hz) 2400
Bass Low Pass Crossover Frequency (Hz) 380
Drive Unit Complement 2 x 6.5” long-throw RDT
®
bass drivers
1 x 4” RDT® mid-range driver
1 x C-CAM
®
high frequency ribbon
transducer
Fixings 10 x Tri-grip dog leg type fixing system
Dimensions With Grille (H x W x D) 1205 x 330 x 116 mm
(47
7/16
x 13 x 4
9/16
Inches)
Dimensions Without Grille (H x W x D) 1205 x 330 x 102 mm
(47
7/16
x 13 x 4 Inches)
Cut out Depth 97.5 mm (3
13/16
inches)
Cut out Dimensions (H x W) 1179 x 302 mm (46
7/16
x 11
7/8
inches)
Weight 25 kg (55 lbs)
Owner Information
Product Details
Product Serial No ................................................
Date of Purchase ................................................
Dealer Details
Dealer Name .....................................................................................................................
Address .............................................................................................................................
...........................................................................................................................................
e-mail address ...................................................................................................................
Telephone Number ............................................................................................................
Monitor Audio reserves the right to alter specifications without notice.
For the 5 years manufacturer’s warranty and to be entered into our monthly prize draw, please visit the online
registration form at: www.monitoraudio.com
PL IW Manual.indd 7 14/12/2010 12:04:49
Page 8
Monitor Audio Ltd
24 Brook Road, Rayleigh
Essex, SS6 7XJ
England
Tel: + 44 (0)1268 740580
Fax: + 44 (0)1268 740589
Email: info@monitoraudio.co.uk
monitoraudio.com
Designed in the United Kingdom
Version 1
