Trimless

seriesseries

series

Blending precision engineering with excellent

technological and design innovation, the

five-strong Trimless series of architectural

speakers has been created to raise the level

of audio and installation performance in the

luxury custom hi-fi and home theatre market.

Featuring versatile installation options for

both in-ceiling and in-wall applications, the

new Trimless range offers exceptional audio

performance in a near invisible easy-to-

install format. Behind super-discreet trimless

grilles, acoustic systems of Monitor Audio’s

trademark bass drivers and pivoting C-CAM

gold dome tweeters have been optimised

by FEA analysis to deliver high efficiency

combined with a broad frequency response

for a wide range of demanding residential and

commercial installations.

Having a physical depth of less than 10cm

(4”), the five Trimless models are perfect for

easy installation in many more locations,

being ideal for standard stud walls and

where depth is restricted. What’s more, by

integrating the bass driver basket with the

frame, our engineers have reduced overall

speaker size by 25% over conventional

speakers without any performance penalty. All

Trimless models incorporate Monitor Audio’s

innovative, robust and reliable Tri-Grip

xing

design: a secure ‘dog’ style xing with three

contact points.

Wherever Monitor Audio’s Trimless speakers

are installed, their innate versatility, ‘stealthy’

trimless appearance and high performance

will deliver great sound and easy, discreet,

décor-friendly installation.

Trimless In-Ceiling & In-Wall

The two-way in-ceiling/wall models in 4, 6 and 8-inch driver sizes feature

Monitor Audio’s proprietary MMP

of our acclaimed C-CAM

design renements and with 15 degrees of play in all directions, the

tweeter’s higher resolution output can be directed for ideal imaging and

reduced in-room reections. Between the drivers, a simple crossover

design of high grade audiophile components ensures a smooth transition

from dynamic rhythmic lows to nely detailed highs, completing a

naturally clean and wide response. A choice of round or square trimless

grilles offers the nest blend with décor; please specify the grille option

when ordering.

II cones coupled with a pivoting version

gold dome tweeter. Benetting from recent

Trimless LCR

By virtue of their rectangular shape, the LCR in-wall models can be

used vertically in portrait style or horizontally: the ideal aspect for

centre-channel applications in ultra-discreet Trimless home theatre

systems. Two LCR models are offered at different specification

levels. WT150-LCR uses 5” MMP

C-CAM

for exceptional mid-range accuracy. This model also provides high

frequency level adjustment for super-fine audio tuning in acoustically

bright or damped rooms.

tweeter; the WT250-LCR uses advanced C-CAM metal cones

II bass drivers on either side of the

monitoraudio.com

Finishing Touch

Trimless grilles are held in place magnetically by high power

Neodymium magnets. A choice of interchangeable round or square

grilles is offered by the in-ceiling/wall models, and for the perfect

blend with any environment, all grilles are paintable: additional scrim

material is provided.

Trimless models use fire retardant materials specified to U.L rating, are

splash and humidity proof, and feature dust protection covers that are

designed to prevent the ingress of loose building materials or dust into

the driver and crossover network.

When ordering, please specify a round or square grille option.

monitoraudio.com

Featured Technologies

C-CAM

C-CAM (Ceramic-Coated Aluminium

Magnesium) is an innovative alloy originally

created by the aerospace industry for low

mass and extreme rigidity in the development

of jet engine blades. Monitor Audio’s C-CAM

drivers are shaped in a two stage high pressure

forming process. Once the C-CAM cone is

formed, a layer of pure ceramic (alumina) is

deposited on its surface to give a completely

rigid construction. C-CAM delivers a lightning-

fast response for incredible clarity and offers

extreme rigidity for low distortion.

MMP®II

MMPII (Metal Matrix Polymer) driver cones have

a polypropylene base, loaded with metallic

particles for a rigid and responsive radiating

surface. A high pressure, injection-moulded

process achieves a different cone thickness at

critical points in the cone’s geometry to optimise

stiffness and consistency, resulting in a superior

audio performance.

Tri-Grip

All models feature a unique Tri-Grip xing

design. This ‘dog’ style xing provides a greater

contact surface area than other types. The Tri-

Grip xings are made from a tough re-enforced

polymer, giving a secure xing without the risk

of over-tightening.

Magnetic Grille Fixing

Ultra-powerful Neodymium magnets hold the

speaker grilles in place, allowing for easier

installation and access. In-ceiling models offer

the opportunity to use square and circular

grilles for the ideal aesthetic result.

monitoraudio.com

Features Overview

ALL MODELS

• Trimless design – unobtrusive frame and low

profile grille for discreet installation

• Super-slim – all models have a mounting depth of less than 10cm (4”) for easy installation in many more locations

• Tri-Grip fixing

• MMP

mid driver cone technology

• C-CAM® – Monitor Audio’s distinctive and renowned gold dome tweeter with up to 15 degrees of pivot in all directions

• Magnetic grille fixing – grilles are held in place by ultra-powerful Neodymium magnets for easy installation and servicing

• Paintable grilles allow for seamless

integration with décor. Additional scrim material is provided to facilitate trouble-free painting

• All models use fire retardant materials

specified to UL94-V0 rating

– for easy, secure installation

II – Monitor Audio’s advanced bass/

LCR MODELS

• Versatile – designed to fit horizontally or vertically between standard wall studs for consistent performance when used around the room in multi-channel surround applications

• Ultra-compact – small speaker, big performance

• Dual 5” drivers in a D’Appolito array provide

high power handling and high efficiency

• High frequency level adjustment for localised

fine-tuning (WT250-LCR).

IN-CEILING & IN-WALL MODELS

• Three driver sizes – 4”, 6” and 8”

• Versatile – 10cm (4”) depth. Round or square

grille options

• Compact – typically 25% smaller than other similarly specified designs.

• All models are splash and humidity proof

• All models feature dust protection covers

• Dedicated pre-construction (rough-in kits)

brackets available.

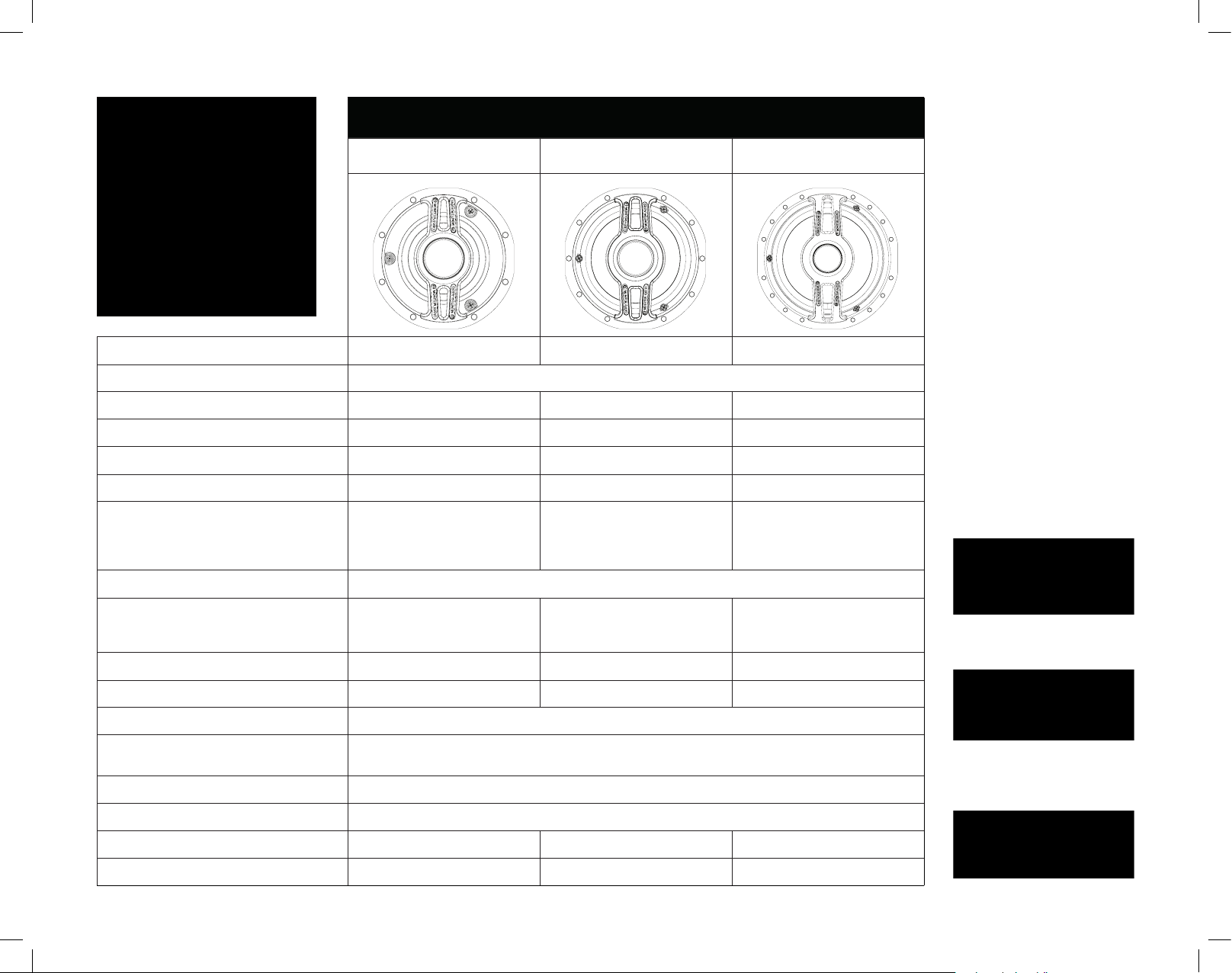

Trimless In-Ceiling & In-Wall Specications

CWT140 CWT160 CWT180

Frequency Response

Impedance (nominal)

Sensitivity (1W@1m)

Maximum SPL (single unit in free space)

Power Handling (R.M.S)

Recommended Amp Requirements

Drive Unit Complement

Acoustic Conguration

Overall Size

Mounting Depth

Cut-out Hole Diameter

Fixing Type

Cable Connection

75Hz - 30kHz 60Hz - 30kHz 48Hz - 30kHz

6 ohms

85dB 88dB 90dB

102.8 dBA 107.2 dBA 110.6 dBA

50 W 70 W 120 W

10 - 50 W 15 - 70 W 30 - 120 W

1 x 4” MMP

cone bass driver.

1 x 1” (25mm) C-CAM

pivoting gold dome tweeter

1 x 6” MMPII

cone bass driver.

1 x 1” (25mm) C-CAM

pivoting gold dome tweeter

1 x 1” (25mm) C-CAM

pivoting gold dome tweeter

2 Way

Round: 180.2mm (7

Square: 176.7 x 176.7mm

15/16

x 6

98.6mm (3

149mm (5

1/8

”)

15/16

”)

7/8

”) 99mm (3

7/8

”) 170mm (6

Round: 204.2mm (8

Square: 199.2 x 199.2mm

13/16

x 7

3 position Tri-Grip

1/16

”)

13/16

”)

7/8

”) 99.4mm (3

11/16

”) 213mm (8

dog xings

Round: 251.7mm (9

Square: 246.7 x 246.7mm

Gold plated ‘push’ type

terminals

1 x 8” MMPII

cone bass driver.

11/16

x 9

11/16

15/16

3/8

”)

* Please specify between a

Round or a Square grille option

when ordering

CB4 pre-construction bracket

for CWT140.

15/16

”)

CB5 pre-construction bracket

for CWT160.

Grille Attachment

Construction Material

Weight

Pre-Construction Bracket

Magnetic

Mineral lled ABS (UL94-V0 rated, RoHS compliant)

1.18kg (2.6lb) 2.10kg (4.6lb) 2.72kg (6lb)

CB4 (Pink) CB5 (Blue) CB6 (Purple)

CB6 pre-construction bracket

for CWT180.

Trimless LCR Speci cations

WT150-LCR WT250-LCR

Frequency Response

Impedance (nominal)

Sensitivity (1W@1M)

Maximum SPL (single unit in free space)

Power Handling (R.M.S)

Recommended Amp Requirements

Drive Unit Complement

Acoustic Con guration

Controls

Overall Frame Dimensions

Mounting Depth

Cut-out Hole Dimensions

Fixing Type

Cable Connection

60Hz - 30kHz

8 ohms

88dB

108 dBA

100 W

30 - 100 W

2 x 5” MMP

II cone bass driver.

1 x 1” (25mm) C-CAM

pivoting gold dome tweeter

2 x 5” C-CAM cone bass driver.

1 x 1” (25mm) C-CAM

pivoting gold dome tweeter

2 Way

N/A +3dB / 0dB / -3dB High frequency level

switch

1/2

165.8 x 373.6mm (6

177.4 x 385.2mm (7 x 15

x 14

3/4

3/16

”) - without grille

”) - with grille

100.2mm (4”)

3/4

Minimum 145 x 353mm (5

x 13

7/8

”)

Required Clearance for Doglegs in Centre Con guration: 400 x 197mm (15

6 position Tri-Grip

dog  xings

Gold plated ‘push’ type terminals

3/4

x 7

WB5 LCR pre-construction

3/4

”)

bracket for both Trimless

LCR models.

Grille Attachment

Construction Material

Weight

Pre-Construction Bracket

Magnetic

Mineral  lled ABS (UL94-V0 rated, RoHS compliant)

3.76kg (8.3lb) 3.80kg (8.4lb)

WB5 LCR

monitoraudio.com

Monitor Audio Ltd

24 Brook Road, Rayleigh

Essex, SS6 7XJ

England

Tel: + 44 (0)1268 740580

Fax: + 44 (0)1268 740589

Email: info@monitoraudio.co.uk

monitoraudio.com

Designed in the United Kingdom
