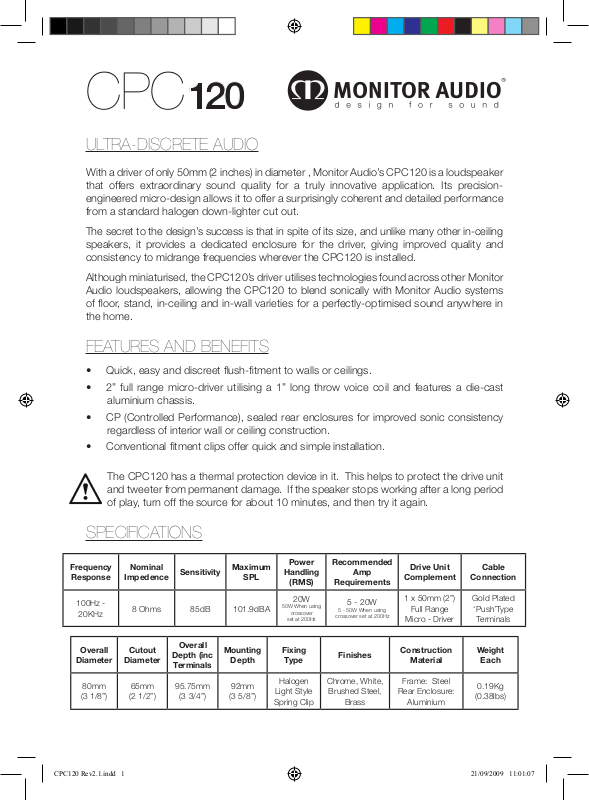

Monitor Audio CPC 120 User Manual
Ultra-discrete aUdio
CPC
120
With a driver of only 50mm (2 inches) in diameter , Monitor Audio’s CPC120 is a loudspeaker
that offers extraordinary sound quality for a truly innovative application. Its precisionengineered micro-design allows it to offer a surprisingly coherent and detailed performance
from a standard halogen down-lighter cut out.
The secret to the design’s success is that in spite of its size, and unlike many other in-ceiling
speakers, it provides a dedicated enclosure for the driver, giving improved quality and
consistency to midrange frequencies wherever the CPC120 is installed.
Although miniaturised, the CPC120’s driver utilises technologies found across other Monitor
Audio loudspeakers, allowing the CPC120 to blend sonically with Monitor Audio systems
of floor, stand, in-ceiling and in-wall varieties for a perfectly-optimised sound anywhere in
the home.
FeatUres and BeneFits
• Quick, easy and discreet flush-fitment to walls or ceilings.
• 2” full range micro-driver utilising a 1” long throw voice coil and features a die-cast
aluminium chassis.
• CP (Controlled Performance), sealed rear enclosures for improved sonic consistency
regardless of interior wall or ceiling construction.
• Conventional fitment clips offer quick and simple installation.
The CPC120 has a thermal protection device in it. This helps to protect the drive unit
and tweeter from permanent damage. If the speaker stops working after a long period
of play, turn off the source for about 10 minutes, and then try it again.
speciFications
Frequency
Response
100Hz -
20KHz
Overall
Diameter
80mm
(3 1/8”)
CPC120 Rev2.1.indd 1 21/09/2009 11:01:07
Nominal
Impedence
8 Ohms 85dB 101.9dBA
Cutout
Diameter
65mm
(2 1/2”)
Sensitivity
Overall
Depth (inc
Terminals
95.75mm
(3 3/4”)
Maximum
SPL
Mounting
Depth
92mm
(3 5/8”)
Power
Handling
(RMS)
20W
50W When using
crossover
set at 200Hz
Fixing
Type
Halogen
Light Style
Spring Clip
Recommended
Amp
Requirements
5 - 20W
5 - 50W When using
crossover set at 200Hz
Finishes
Chrome, White,
Brushed Steel,
Brass
Drive Unit
Complement
1 x 50mm (2”)
Full Range
Micro - Driver
Construction
Material
Frame: Steel
Rear Enclosure:
Aluminium
Cable
Connection
Gold Plated
‘Push’Type
Terminals
Weight
Each
0.19Kg
(0.38lbs)
CAUTION: The CPC120 can only be fixed into plasterboard (dry-lined) or suspended
ceilings/ walls upto 45mm (1 3/4”) thick. For safety reasons, if you are unsure of your
ability to provide a secure and safe fixing, do not attempt to fix these speakers, please
obtain the services of a competent and qualified trades person.
CAUTION: Ensure that there are no water pipes or electricity cables running behind
where the hole will be cut and where the loudspeaker will be placed. Work from secure
steps and avoid trailing wires.
1
Template
65mm
4
+
-
-
+
2
5
3
1
2
6
Monitor Audio Ltd.
Unit 2, 24 Brook Road
Rayleigh, Essex
SS6 7XJ
Tel: +44 (0)1268 740580
Fax: +44 (0)1268 740589
Email: info@monitoraudio.co.uk
Web: www.monitoraudio.co.uk
© Monitor Audio 2009
CPC120 Rev2.1.indd 2 21/09/2009 11:01:09
