Custom Install Product Guide

SPEAKERS & ELECTRONICS

Interactive PDF

Click on product images and text to learn more about products and services

Worldwide distribution

ABOUT MONITOR AUDIO

For over 45 years, Monitor Audio has been designing and building award-winning

loudspeakers. Since our launch in 1972, we have successfully introduced hundreds

of models – from bookshelf speakers to 5.1 home cinema systems to acoustically

matched architectural speakers and beyond – and we’re constantly developing

and innovating new products to meet our customers’ ever-changing requirements.

A British company from birth, we continue to design and engineer products in

our UK-based headquarters, exporting to over 80 countries worldwide.

By choosing Monitor Audio Custom Install products, you’re securing the utterly

desirable combination of seamless integration and superior sound quality,

backed by decades of design innovation and award success.

Stereo / Surround sound systems

Custom Install / Architectural speakers

Please refer to our website monitoraudio.com

WHY CHOOSE MONITOR AUDIO

CUSTOM INSTALL SOLUTIONS

Monitor Audio’s Custom Install products are engineered for high performance,

reliability and ease-of-use. They’ve been developed using the advanced driver

technologies of our award-winning hi- speaker ranges to deliver world-famous

sound quality without compromising room design.

Available across varying performance levels, Monitor Audio’s architectural speakers

bring innovation to every application – wherever you decide to experience dynamic

music and lm sound, there’s an In-Ceiling or In-Wall speaker that’s perfect for

the role. The speakers are expertly optimised for rhythmic wideband audio,

seamless room integration and easy, secure installation.

If you love your décor and appreciate great audio, you needn’t compromise:

Monitor Audio’s architectural speakers will create harmony all around your home.

Every product is designed and built with you rmly in mind.

Monitor Audio oers a Lifetime Warranty on most products in the

Custom Installation range. For warranty periods of cover, please

refer to each product’s page on our website: monitoraudio.com

Main features

Developed using the advanced driver technologies

of our award-winning hi- speaker ranges

Audio solutions for diverse spaces and applications

High quality sound performance

Solid and reliable build quality

Patented Tri-Grip mounting clamps

Quick, easy and secure installations

Minimum cut outs

Minimum mounting depths

Magnetic round and square grilles

Vertical or horizontal orientation

Lifetime Warranty

Range features

Super Slim and Slim In-Ceiling/In-Wall designs

Back Box solutions

Flush Fit design

Invisible In-Wall speaker

Weather Resistant solutions

CI Ranges

Page

CONTENTS

8 Core (C/W)

12 Slim (CS)

13 Super Slim (CSS/WSS)

15 Controlled Performance (CP)

20 Platinum II (PL)

24 Flush Fit (CF)

116 mm / 4

98.6 mm / 3

50 mm / 2”

151 mm / 5

Flagship

185 mm / 7

83.5 mm / 3

26 Invisible (IV) Super discreet

28 Pro (PRO)

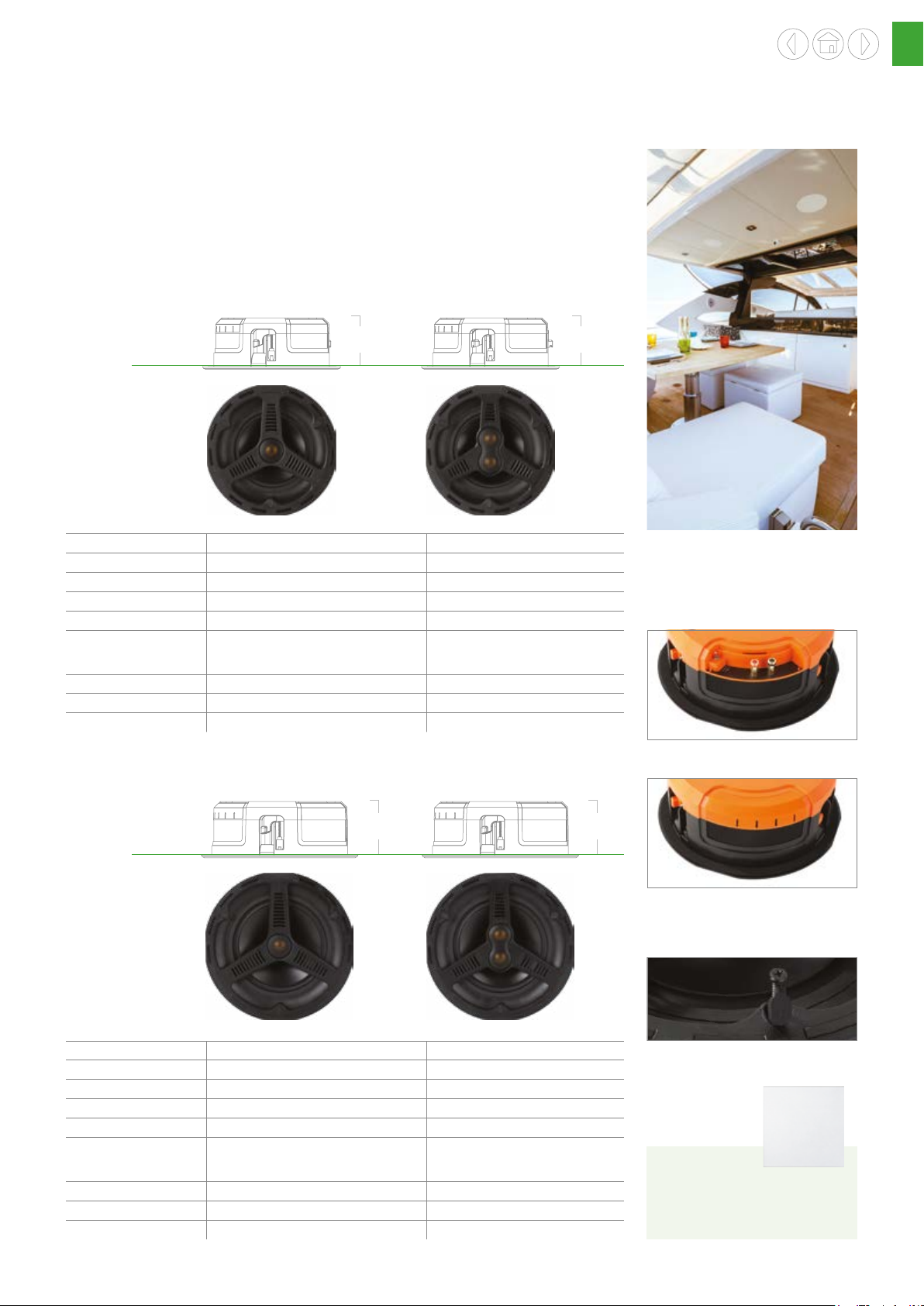

30 All Weather (AWC)

Commercial

87.7 mm / 3

Weather Resistant

88.5 mm / 3

9/16

”

7/8

”

15/16

”

5/16

”

7/16

”

1/2

”

31 Climate Weather Resistant

32 Vecta (V) Weather Resistant

36 Climate Garden System (CLG) Weather Resistant garden speakers

38 Custom Subwoofers

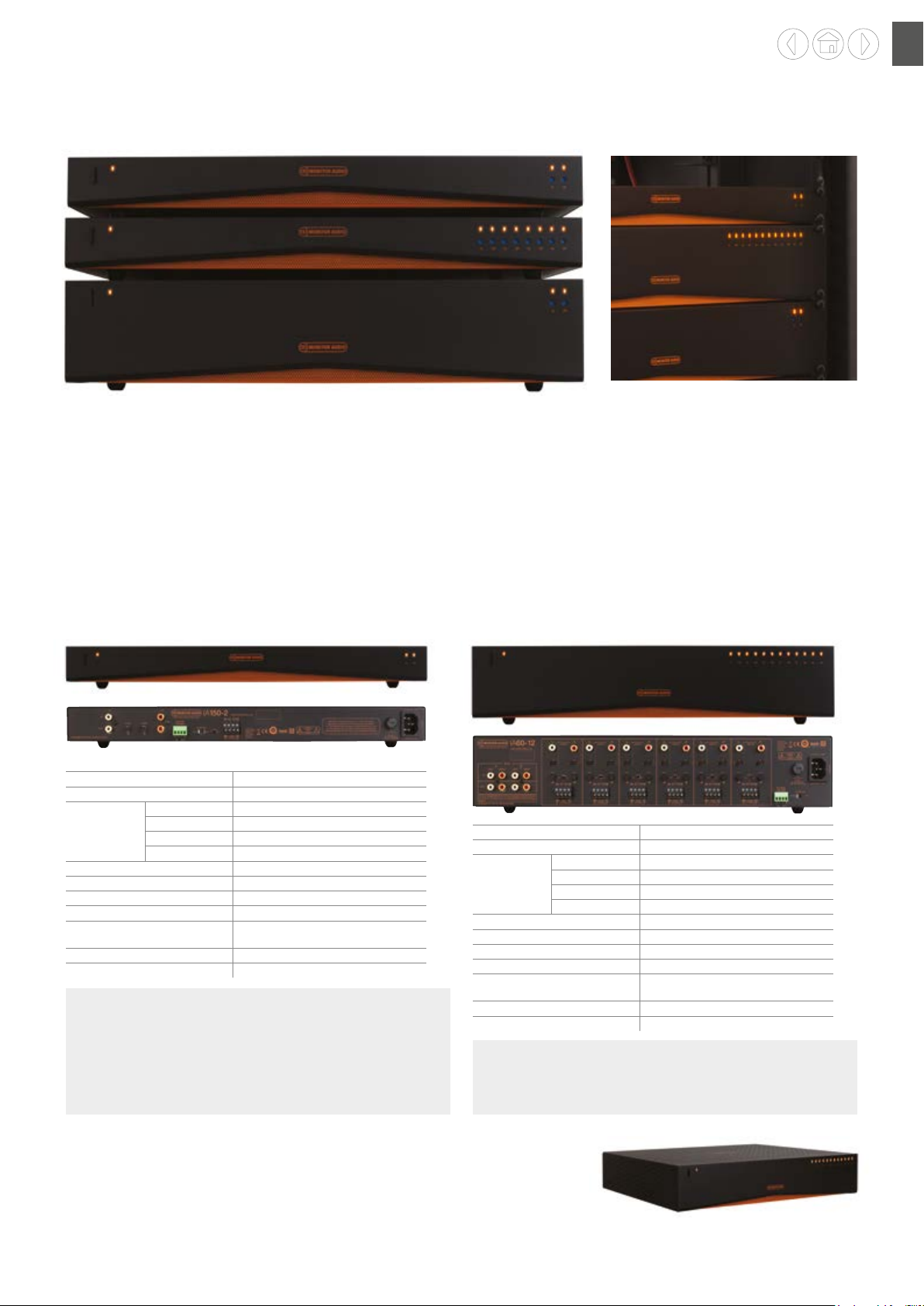

41 Streamers and Ampliers (IA)

45 Soundbars (SB)

46 SoundFrame (SF)

49 Accessories

53 Specication tables

CUSTOM INSTALL NAMING SYSTEM

Monitor Audio’s Custom Install products are named based on

their application, technologies, driver sizes and special features.

Example

Applications

CS:

CSS/

WSS:

CP:

PL:

PRO:

CF:

IV:

AWC:

In-Ceiling

In-Wall

Slim

Super Slim

Controlled Performance

Platinum

Pro

Flush Fit

Invisible

All Weather

Technology

MMP II driver

C-CAM Gold Dome tweeter

C-CAM driver

C-CAM Gold Dome tweeter

3-Way IDC models available

C-CAM RST driver

C-CAM Gold Dome tweeter

C-CAM RST driver

High frequency ribbon transducer

MPD high frequency transducer

RDT II driver

PL II:

MPD high frequency transducer

Mid / Bass Driver Size

20:

30:

40:

50:

60:

65:

80:

-IDC

Special Features

2”

3”

4”

5”

6”

”

8”

Inverted Dual Concentric

IDC:

Tweeter / Mid-bass Module

Dual tweeter /

T2:

Dual Wound Voice Coil

Bass drivers / Stereo

Dual tweeter / Surround /

FX:

Dipole modes

Horizontal or vertical use for

LCR:

Left, Centre or Right Channels

Subwoofer

Full Size

There is explanation of our technology mentioned above on the next page.

TECHNOLOGY

Below is a brief description of each advanced technology used in our award-winning speakers. To achieve a harmony

of space and sound for every possible application, we’ve created a wide range of options across varying performance levels.

DRIVERS

MMP II Driver: Metal Matrix Polymer driver

cones have a polypropylene base loaded

with metallic particles to oer a rigid and

responsive structure.

C-CAM Driver: Ceramic-Coated Aluminium

Magnesium cones have a much higher resistance

to distortion and therefore exhibit much greater

delity over their entire operating range.

C-CAM RST Driver: Rigid Surface

Technology cone developed and perfected

using sophisticated computer modelling (Finite

Element Analysis). The strengthening eect of

RST means that we can use thinner, lighter

and more responsive C-CAM cones, providing

speed and accuracy with reduced distortion.

TWEETERS

C-CAM Gold Dome Tweeter:

The Gold Dome tweeter is formed

from a Ceramic-Coated Aluminium

Magnesium alloy, Gold anodised to a

specic thickness for ideal stiness and

damping characteristics. Thinner, lighter,

more rigid and more ecient than domes

made from other materials which are

prone to distortion in the audio band.

Ribbon Transducer: An ultra-thin

sandwich of C-CAM alloy suspended

in a powerful transverse magnetic eld

of high energy NeFeB rare earth magnets.

The ribbon serves as both voice coil and

radiating diaphragm, with every part of the

ribbon driven directly and simultaneously

without energy storage. The diaphragm is

specied to reach ultra-high frequencies

up to an elusive 100 kHz.

SPECIAL FEATURES

IDC Driver Module: Inverted Dual

Concentric pivoting mid-range/tweeter

module with up to 18 degrees of adjustment

in all directions. Sound can be directed

toward the desired listening area.

T2 Dual Tweeter Conguration (Stereo):

Dual, independent, pivoting 1” C-CAM

tweeters and dual wound voice coil bass

drivers for high performance stereo sound.

FX Dual Tweeter Conguration

(Surround):

surround or rear channel use in home cinema

applications for a fully immersive experience.

FX speakers are ideal for

RDT II Driver: Rigid Diaphragm Technology

2nd Generation is a composite ‘sandwich’

structure made from ultra-thin low mass

skins, bonded to a honeycomb Nomex® core

material. Very light and very strong, responds

with great speed without bending. RDT II uses

C-CAM for the front skin, while the rear skin

is made from a woven carbon bre material.

This structure reduces distortion by over

8 dB above 300 Hz.

MPD High Frequency Transducer:

Micro Pleated Diaphragm high frequency

transducer uses a proprietary low-mass

pleated diaphragm with a surface area

eight times larger than that of a traditional

dome tweeter. MPD transducers work

like a super-fast accordion by rapidly

squeezing the pleats to produce a

smooth, wide, naturally fast response

up to 100 kHz.

Adjustable Response Controls:

Optimum imaging and set-up are established

via pivoting tweeters, pivoting IDC driver

modules, high-frequency, mid-range-frequency,

and/or boundary compensation controls.

Patented Tri-Grip Mounting Clamps:

The Tri-Grip mounting clamps have three

clamping points per dogleg. Providing a better

seal between the speaker and the ceiling.

Custom Install Speakers

Core

The sonic building block of any custom installation project, our Core line provides

a comprehensive selection of models, meticulously developed for specic uses.

In-Ceiling

Premium and Square Grilles

All models are supplied with a standard round grille. For an extra

stylish nish replace this with either the beautifully designed PG6-R

Premium Grille (Sold in packs of 4) or an additional Square Grille. See Page 51 for more details and a list of compatible models.

C165

116 mm

9/16

”

Sensitivity (1W@1m) 88.5 dB 88.5 dB

1/4

Cut Out Diameter 211 mm / 8

Mounting Depth 116 mm / 4

Power Handling (RMS) 65 W 65 W

Impedance 6 Ohms 6 + 6 Ohms

1/2

Driver Size & Technology 6

Pre-Construction Bracket CB6 (Purple) CB6 (Purple)

Back Box CCBOX-R / CMBOX-R CCBOX-R / CMBOX-R

” MMP II driver 1” C-CAM pivoting Gold Dome tweeter HF level switch

” 211 mm / 8

9/16

” 116 mm / 4

C165-T2

1/4

”

9/16

”

1/2

” MMP II driver

2 x 1” C-CAM pivoting Gold Dome tweeters

116 mm

9/16

”

C265

116 mm

9/16

”

Sensitivity (1W@1m) 88.5 dB 88.5 dB 88.5 dB

1/4

Cut Out Diameter 211 mm / 8

Mounting Depth 116 mm / 4

Power Handling (RMS) 75 W 85 W 85 W

Impedance 6 Ohms 6 Ohms 6 Ohms

1/2

Driver Size & Technology 6

Pre-Construction Bracket CB6 (Purple) CB6 (Purple) CB6 (Purple)

Back Box CCBOX-R / CMBOX-R CCBOX-L / CMBOX-R CCBOX-L / CMBOX-R

” C-CAM driver 1” C-CAM pivoting Gold Dome tweeter HF level switch Boundary compensation switch

” 211 mm / 8

9/16

” 150 mm / 5

C265-IDC C265-FX

150 mm

7/8

”

1/4

” 211 mm / 8

7/8

” 150 mm / 5

1/2

” C-CAM driver Pivoting IDC module (4” C-CAM RST inverted mid-range driver, 1” C-CAM Gold Dome tweeter) HF level switch Boundary compensation switch

1/2

” C-CAM driver

6 2 x 1” C-CAM Gold Dome tweeters HF level switch Bipole / Dipole switch

1/4

”

7/8

”

150 mm

7/8

”

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

Core

C180-T2C180 C280

122 mm

13/16

”

122 mm

13/16

”

Sensitivity (1W@1m) 90 dB 90 dB 90 dB

Cut Out Diameter 247 mm / 9

Mounting Depth 122 mm / 4

3/4

” 247 mm / 9

13/16

” 122 mm / 4

3/4

” 247 mm / 9

13/16

” 122 mm / 4

3/4

13/16

”

Power Handling (RMS) 120 W 120 W 120 W

Impedance 6 Ohms 6 + 6 Ohms 6 Ohms

Driver Size & Technology 8” MMP II driver

1” C-CAM pivoting Gold Dome tweeter HF level switch

8” MMP II driver 2 x 1” C-CAM pivoting Gold Dome tweeters HF level switch

8” C-CAM driver 1” C-CAM pivoting Gold Dome tweeter HF level switch Boundary compensation switch

Pre-Construction Bracket CB8 (Green) CB8 (Green) CB8 (Green)

Back Box CCBOX-L / CMBOX-R CCBOX-L / CMBOX-R CCBOX-L / CMBOX-R

122 mm

13/16

”

C280-IDC C380-IDC C380-FX

157 mm

3/16

”

Sensitivity (1W@1m) 90 dB 90 dB 90 dB

Cut Out Diameter 247 mm / 9

Mounting Depth 157 mm / 6

3/4

” 247 mm / 9

3/16

” 157 mm / 6

3/4

” 247 mm / 9

3/16

” 157 mm / 6

Power Handling (RMS) 120 W 150 W 120 W

Impedance 6 Ohms 6 Ohms 6 Ohms

Driver Size & Technology 8” C-CAM driver

Pivoting IDC module (4” C-CAM RST inverted mid-range driver, 1” C-CAM Gold Dome tweeter) HF level switch Boundary compensation switch

8” C-CAM RST driver

Pivoting IDC module (4” C-CAM RST inverted mid-range driver, 1” C-CAM Gold Dome tweeter) HF level switch Boundary compensation switch

Pre-Construction Bracket CB8 (Green) CB8 (Green) CB8 (Green)

Back Box CMBOX-R* CMBOX-R* CMBOX-R*

157 mm

3/16

”

8” C-CAM RST driver

2 x 1” C-CAM Gold Dome tweeters HF level switch Bipole / Dipole switch with additional 12 V trigger switching

3/4

3/16

157 mm

3/16

”

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

* Indicates product requires minimum 12 mm (1/2”) plasterboard/Sheetrock

Core

The sonic building block of any custom installation project, our Core line provides

a comprehensive selection of models, meticulously developed for specic uses.

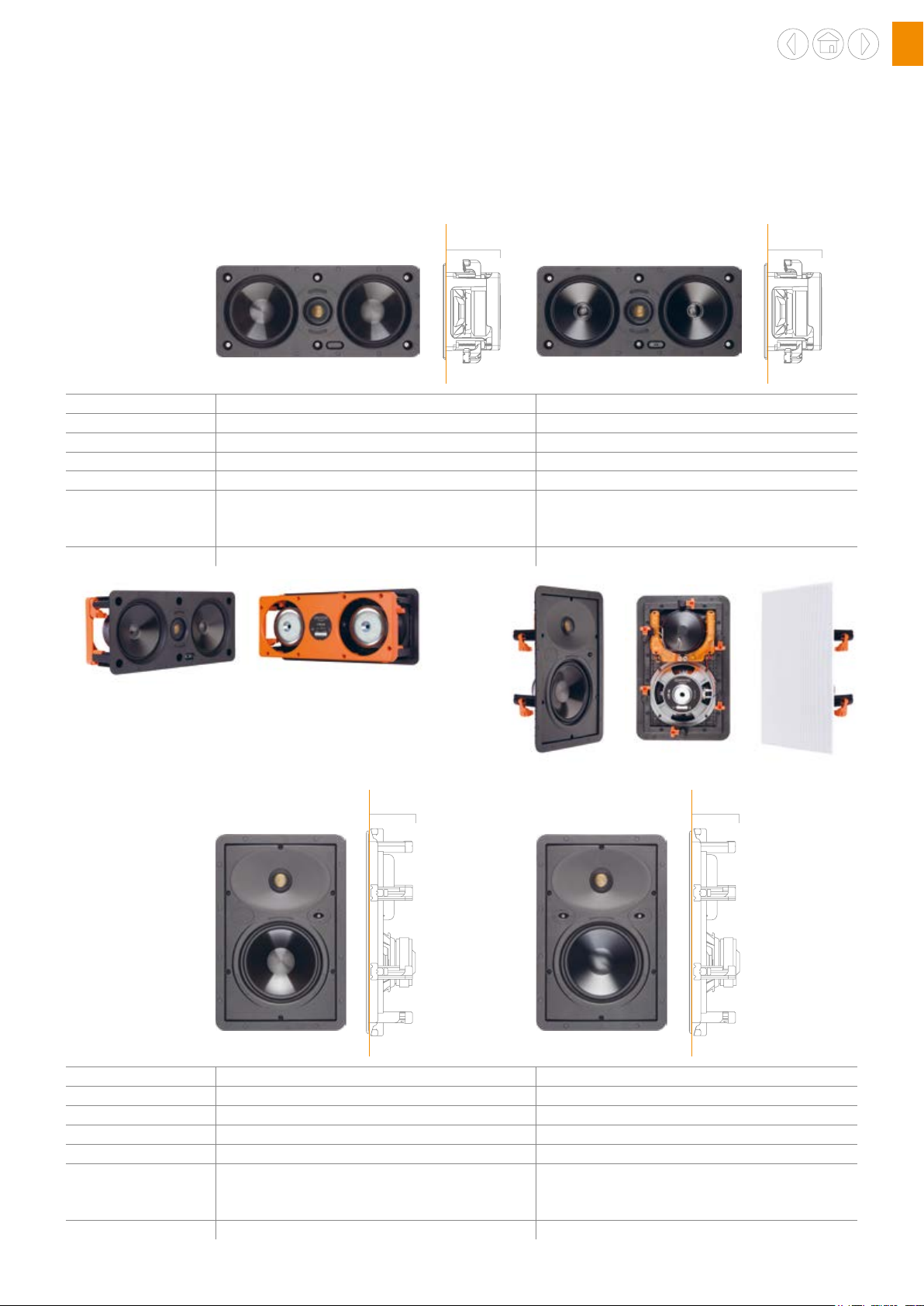

In-Wall

W150-LCR W250-LCR

100.2 mm 4”

Centres

Sensitivity (1W@1m) 88 dB 88 dB

3/4

7/8

” x 13

Cut Out Dimensions (H x W) 145 x 353 mm / 5

15/16

Mounting Depth 100 mm / 3

Power Handling (RMS) 100 W 100 W

Impedance 8 Ohms 8 Ohms

Driver Size & Technology 2 x 5” MMP II drivers

1” C-CAM pivoting Gold Dome tweeter Fits within standard 400 mm / 16” centre studs

Pre-Construction Bracket WB5LCR (Yellow) WB5LCR (Yellow)

” 100 mm / 3

” 145 x 353 mm / 5

15/16

2 x 5” C-CAM drivers 1” C-CAM pivoting Gold Dome tweeter HF level switch Fits within standard 400 mm / 16” centre studs

100.2 mm 4”

3/4

7/8

” x 13

”

92 mm

In-Wall

Sensitivity (1W@1m) 88.5 dB 88.5 dB

Cut Out Dimensions (H x W) 332 x 213 mm / 13

Mounting Depth 92 mm / 3

Power Handling (RMS) 65 W 65 W

Impedance 6 Ohms 6 Ohms

Driver Size & Technology 6

Pre-Construction Bracket WB6 (Purple) WB6 (Purple)

W165 W265

1/16

” x 8

5/8

” 92 mm / 3

1/2

” MMP II driver 1” C-CAM pivoting Gold Dome tweeter HF level switch

5/8

”

3/8

” 332 x 213 mm / 13

1/2

” C-CAM driver 1” C-CAM pivoting Gold Dome tweeter HF level switch Boundary compensation switch

92 mm

5/8

”

1/16

3/8

” x 8

”

5/8

”

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

Core

W180

100 mm

15/16

”

W280

Sensitivity (1W@1m) 90 dB 90 dB

1/4

3/16

” x 9

Cut Out Dimensions (H x W) 387 x 234 mm / 15

15/16

Mounting Depth 100 mm / 3

” 100 mm / 3

” 387 x 234 mm / 15

Power Handling (RMS) 120 W 120 W

Impedance 6 Ohms 6 Ohms

Driver Size & Technology 8” MMP II driver

1” C-CAM pivoting Gold Dome tweeter HF level switch

8” C-CAM driver 1” C-CAM pivoting Gold Dome tweeter HF level switch Boundary compensation switch

Pre-Construction Bracket WB8 (Green) WB8 (Green)

Back Box WCBOX-L WCBOX-L

15/16

100 mm

15/16

”

1/4

3/16

” x 9

”

100 mm

W280-IDC

15/16

”

W380-IDC

Sensitivity (1W@1m) 90 dB 90 dB

1/4

3/16

” x 9

Cut Out Dimensions (H x W) 387 x 234 mm / 15

15/16

Mounting Depth 100 mm / 3

” 100 mm / 3

” 387 x 234 mm / 15

Power Handling (RMS) 150 W 150 W

Impedance 6 Ohms 6 Ohms

Driver Size & Technology 8” C-CAM driver

Pivoting IDC module (4” C-CAM RST inverted mid-range driver, 1” C-CAM Gold Dome tweeter) HF level switch Boundary compensation switch

8” C-CAM RST driver

Pivoting IDC module (4” C-CAM RST inverted mid-range driver, 1” C-CAM Gold Dome tweeter) HF & MF level switches Boundary compensation switch

Pre-Construction Bracket WB8 (Green) WB8 (Green)

Back Box WCBOX-L WCBOX-L

15/16

100 mm

15/16

”

1/4

3/16

” x 9

”

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

Slim

All of our Slim range speakers – whether used In-Ceiling or In-Wall – have a physical depth of less than

100 mm / 4”, making installation in restricted depth, as well as standard stud walls, a trouble-free process.

In-Ceiling / In-Wall

CS160 Round / Square

99 mm

7/8

”

Sensitivity (1W@1m) 85 dB 88 dB 90 dB

7/8

Cut Out Diameter 149 mm / 5

Mounting Depth 99 mm / 3

Power Handling (RMS) 50 W 70 W 120 W

Impedance 6 Ohms 6 Ohms 6 Ohms

Driver Size & Technology 4” MMP II driver

1” C-CAM pivoting Gold Dome tweeter

Pre-Construction Bracket CB4 (Pink) CB5 (Blue) CB6 (Purple)

Back Box CCBOX-R CCBOX-R / CMBOX-R CCBOX-R / CMBOX-R

” 170 mm / 6

7/8

” 99 mm / 3

6” MMP II driver 1” C-CAM pivoting Gold Dome tweeter

11/16

” 213 mm / 8

7/8

” 99.4 mm / 3

99 mm

7/8

”

CS180 Round / SquareCS140 Round / Square

3/8

”

15/16

”

8” MMP II driver 1” C-CAM pivoting Gold Dome tweeter

99.4 mm

15/16

”

CS140

The CS140 is the entry-point to our In-Ceiling or In-Wall Slim family.

All the Slim speakers have a physical depth of less than 100 mm / 4” and we complete them with round or square details – just specify when ordering. The CS140 features a proprietary 4” MMP II cone, plus a pivoting version of our acclaimed C-CAM Gold Dome tweeter.

CS160

Coupling a 6” MMP II driver with a pivoting 25 mm C-CAM Gold Dome tweeter, the CS160 is the mid-model

in our Slim In-Ceiling or In-Wall line.

NOTE : All Slim models can be ordered as a round or square grille option.

CS180

The CS180 tops our admired Slim

In-Ceiling or In-Wall range, marrying the

line’s pivoting C-CAM Gold Dome tweeter with our 8” MMP II driver.

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

Super Slim

Requiring a mounting depth of a mere 50 mm / 2”, our Super Slim In-Ceiling speakers are ideal for ceilings with restricted depth settings,

creating endless installation opportunities. The range’s back box design delivers full frequency performance with a wide installation versatility.

In-Ceiling

CSS230

50 mm 2”

Sensitivity (1W@1m) 86 dB

1/4

Cut Out Diameter 211 mm / 8

Mounting Depth 50 mm / 2”

Power Handling (RMS) 40 W – Full range

60 W – With crossover set to 100 Hz @ 12 dB/Octave

Impedance 8 Ohms

Driver Size & Technology 3 x 3” C-CAM drivers, enabling slim prole with the

performance of a single 6” driver 3/4” C-CAM Gold Dome tweeter Sealed rear enclosure for acoustic isolation back box Rubber plug can be removed for open back design and increased low frequency performance

Pre-Construction Bracket CB6 (Purple)

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

”

CSS230

The CSS230 delivers Monitor Audio’s signature sound quality from a mounting depth of just 50 mm / 2”. Ideal between 2” stud frames, or where pipework or cabling reduces mounting depth, the CSS230 provides the best of both worlds for installer and customer, with the three proprietary 3” mid-bass units combining to achieve the bass output of a 6 series, the CSS230 is a shining example of what many years of speaker

design experience produces, enabling hi- levels of performance in spaces

where no high-quality speaker has gone before.

Closed back Open back

1/2

” driver. Part of our Super Slim

Premium and Square Grilles

The CSS230 is supplied with a standard

round grille. For an extra stylish nish

replace this with either the beautifully

designed PG6-R Premium Grille (Sold

in packs of 4) or an additional Square Grille. See Page 51 for more details.

Super Slim

Requiring a mounting depth of a mere 50 mm / 2”, all Super Slim In-Wall speakers are ideal for standard stud walls and

restricted depth settings, creating endless installation opportunities. The range’s back box design excels in both horizontal

and vertical installations, delivering full frequency performance.

In-Wall

Sensitivity (1W@1m) 87 dB 87 dB 87 dB

Cut Out Dimensions (H x W) 346 x 101 mm / 13

Mounting Depth 50 mm / 2” 50 mm / 2” 50 mm / 2”

Power Handling (RMS) 60 W – Full range

Impedance 8 Ohms 8 Ohms 8 Ohms

Driver Size & Technology 3 x 3” MMP II drivers, enabling slim prole

Pre-Construction Bracket WB3 (Dark blue) WB3 (Dark blue) WB3 (Dark blue)

WSS130

100 W – With crossover set to 100 Hz @ 12 dB/Octave

with the performance of a single 6” driver 1” C-CAM Gold Dome tweeter

50 mm 2”

1/2

x 4” 346 x 101 mm / 13

WSS230 WSS430

60 W – Full range 100 W – With crossover set to 100 Hz @ 12 dB/Octave)

3 x 3” C-CAM drivers, enabling slim prole

with the performance of a single 6” driver 1” C-CAM Gold Dome tweeter

50 mm 2”

1/2

x 4” 346 x 101 mm / 13

75 W – Full range 120 W – With crossover set to 100 Hz @ 12 dB/Octave

3 x 3” dished C-CAM drivers, enabling

slim prole with the performance of a single

6” driver MPD high frequency transducer – rotatable for vertical or horizontal installation

1/2

x 4”

50 mm 2”

WSS130

Our Super Slim design enables wide installation versatility. The

WSS130 features three 3” MMP II

drivers plus a 1” C-CAM Gold Dome tweeter to give the performance of a single 6” driver from a speaker just 140.5 mm wide.

WSS230

This is the middle model in our Super

Slim In-Wall range. The WSS230

includes our famed C-CAM metal drivers, making this model ideal for set-ups where critical music reproduction is required.

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

WSS430

The WSS430 draws on technologies from our high-end Platinum II speakers,

including dished C-CAM cones, high-strength Neo magnets and large voice

coils to present supreme audio performance. It’s exible, too, with the threedriver layout helping keep the frontal prole slim. Smart touches, such as the

ability to rotate the low distortion MPD high frequency transducer to enable optimum dispersion when using the speaker in horizontal orientation, take

discreet In-Wall speaker performance to a new level.

WSS230

Controlled Performance

Regardless of interior ceiling or wall construction, the Controlled Performance range guarantees sonic consistency.

We t all models with fully-sealed back boxes, providing an ideal air load for the drivers and optimising audio performance.

These rigid, mineral lled enclosures reduce the sound from the back of the cabinet by around 15 to 22 dB. This range

guarantees excellent audio quality and versatility, for superior levels of sound isolation between rooms and oors.

CP-CT150 CP-CT260

In-Ceiling

151 mm

15/16

”

151 mm

15/16

”

Premium and Square Grilles

All models are supplied with a standard round grille, for

an extra stylish nish, replace

this with either the beautifully

designed PG6-R Premium

Grille (Sold in packs of 4) or an additional Square Grille. See Page 51 for more details and a list of compatible models.

Sensitivity (1W@1m) 85 dB 88 dB

3/8

Cut Out Diameter 212 mm / 8

Mounting Depth 151 mm / 5

Power Handling (RMS) 50 W 65 W

Impedance 6 Ohms 6 Ohms

Driver Size & Technology 5” MMP II driver

1” C-CAM pivoting Gold Dome tweeter HF level switch

Pre-Construction Bracket CB6 (Purple) CB8 (Green)

Back Box CCBOX-L CCBOX-L

” 244 mm / 9

15/16

” 151 mm / 5

6” C-CAM driver 1” C-CAM pivoting Gold Dome tweeter HF level switch Boundary compensation switch

CP-CT380 CP-CT380IDC

181 mm

1/8

”

5/8

15/16

”

181 mm

1/8

”

Sensitivity (1W@1m) 89 dB 89 dB

13/16

Cut Out Diameter 274 mm / 10

Mounting Depth 181 mm / 7

Power Handling (RMS) 120 W 120 W

Impedance 6 Ohms 6 Ohms

Driver Size & Technology 8” C-CAM RST driver

1” C-CAM pivoting Gold Dome tweeter HF level switch Boundary compensation switch

Pre-Construction Bracket CB10 (Light brown) CB10 (Light brown)

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

” 274 mm / 10

1/8

” 181 mm / 7

8” C-CAM RST driver

Pivoting IDC module (4” C-CAM RST inverted mid-range driver, 1” C-CAM Gold Dome tweeter) HF & MF level switches Boundary compensation switch

13/16

”

1/8

”

Controlled Performance

In-Wall

Sensitivity (1W@1m) 85 dB 88 dB

Cut Out Dimensions (H x W) 326 x 207 mm / 12

Mounting Depth 96 mm / 3

Power Handling (RMS) 50 W 65 W

Impedance 6 Ohms 6 Ohms

Driver Size & Technology 5” MMP II driver

Pre-Construction Bracket WB6 (Purple) WB8 (Green)

Back Box WCBOX-L

CP-WT150 CP-WT260

13/16

” x 8

3/4

” 96 mm / 3

1” C-CAM pivoting Gold Dome tweeter HF level switch

96 mm

3/4

”

1/8

” 381 x 228 mm / 15” x 9”

6” C-CAM driver 1” C-CAM pivoting Gold Dome tweeter HF level switch Boundary compensation switch

96 mm

3/4

”

3/4

”

99 mm

7/8

”

CP-WT380 CP-WT380IDC

Sensitivity (1W@1m) 89 dB 89 dB

1/4

9/16

” x 10

Cut Out Dimensions (H x W) 438 x 269 mm / 17

7/8

Mounting Depth 99 mm / 3

Power Handling (RMS) 120 W 120 W

Impedance 6 Ohms 6 Ohms

Driver Size & Technology 8” C-CAM RST driver

1” C-CAM pivoting Gold Dome tweeter HF level switch Boundary compensation switch

Pre-Construction Bracket WB10 (Light brown) WB10 (Light brown)

” 99 mm / 3

” 438 x 269 mm / 17

7/8

”

8” C-CAM RST driver

Pivoting IDC module (4” C-CAM RST inverted mid-range driver, 1” C-CAM gold dome tweeter) HF & MF level switches Boundary compensation switch

1/4

” x 10

9/16

99 mm

7/8

”

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

Controlled Performance

In-Wall Centres

CP-WT140LCR

Sensitivity (1W@1m) 88 dB 88 dB

3/16

3/4

” x 11

Cut Out Dimensions (H x W) 183 x 299 mm / 7

13/16

Mounting Depth 97 mm / 3

Power Handling (RMS) 100 W 100 W

Impedance 6 Ohms 6 Ohms

Driver Size & Technology 2 x 4” MMP II drivers

1” C-CAM pivoting Gold Dome tweeter HF level switch

Pre-Construction Bracket WB4LCR (Dark brown) WB4LCR (Dark brown)

” 97 mm / 3

” 183 x 299 mm / 7

97 mm

13/16

”

CP-WT240LCR

3/16

13/16

”

2 x 4” C-CAM drivers 1” C-CAM pivoting Gold Dome tweeter HF level switch Boundary compensation switch

” x 11

97 mm

13/16

”

3/4

”

In-Ceiling GU10 Size

CPC120

91.5 mm

5/8

”

Sensitivity (1W@1m) 85 dB

1/2

Cut Out Diameter 65 mm / 2

Mounting Depth 91.5 mm / 3

Power Handling (RMS) 20 W / 50 W using a crossover @ 200 Hz

Impedance 8 Ohms

Driver Size & Technology 2” Full range micro-driver

Sealed back box

Conventional tment clips Quick and easy discreet ush tment to ceilings or walls Satin white nish

”

5/8

”

CPC120

A precision engineered micro design; the CPC120 loudspeaker

oers extraordinary sound quality from a standard GU10-sized halogen down-lighter hole. It ts on to ceilings with conventional tment clips meaning quick and simple installation.

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

Controlled Performance

Performance Full Size

The CP-IW260X and CP-IW460X In-Wall designs

have overcome the challenges of scale to deliver the natural, full range audio energy you would expect from a free-standing high-end box. In a leap of engineering ingenuity, we’ve distilled

the know-how driving our hi- speakers into a super-compact In-Wall format. Dedicated music

lovers and home theatre fans can enjoy the rich, detailed, high-impact dynamics they crave, from a speaker that physically disappears in the room. Both Full Size models can be installed in vertical or horizontal orientations, with the high frequency ribbon transducer of the CP-IW460X designed to rotate 90° to suit the chosen speaker placement.

Controlled Performance

Performance Full Size

CP-IW260X

96 mm

3/4

”

CP-IW460X

96 mm

3/4

”

Sensitivity (1W@1m) 89 dB 89 dB

21/32

Cut Out Dimensions (H x W) 880 x 230 mm / 34

3/4

Mounting Depth 96 mm / 3

Power Handling (RMS) 150 W 150 W

Impedance 6 Ohms 6 Ohms

Driver Size & Technology 2 x 6

Pre-Construction Bracket WB12 (Green) WB12 (Green)

2 x 4” C-CAM mid-range drivers 1” C-CAM Gold Dome tweeter HF & MF level switches Boundary compensation switch Vertical or horizontal orientation

” 96 mm / 3

1/2

” C-CAM bass drivers

” x 9” 880 x 230 mm / 34

3/4

1/2

” C-CAM RST bass drivers

2 x 6

2 x 4” C-CAM RST mid-range drivers

High frequency ribbon transducer Die-cast alloy bass driver chassis provides rigidity; results in punch bass and clean mid-range performance due to reduced transfer of vibrations HF & MF level switches Boundary compensation switch Innovative HF tweeter rotating system to facilitate vertical or horizontal orientation

21/32

” x 9”

”

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

Perfection Elevated

Platinum II Technology

PLATINUM II In-Ceiling Speaker

RDT II (Rigid Diaphragm Technology 2nd Generation) Driver: A composite ‘sandwich’ structure made from ultra-thin low mass skins, bonded to a honeycomb Nomex

respond with great speed without bending – just like a perfect piston. RDT II uses C-CAM for the front skin, while the rear skin is made from a woven carbon bre material. The new structure reduces distortion by over 8 dB above 300 Hz, which makes RDT II the lowest distortion cone technology in Monitor Audio’s history.

MPD (Micro Pleated Diaphragm) High Frequency Transducer: Developed over many months of intensive testing and listening, the MPD High Frequency Transducer is a landmark achievement by the engineering team for Platinum II. It represents an imaginative re-working of an existing technology, transforming a successful idea into an audiophile

super-driver, having greater accuracy and eciency than ever before. The proprietary low-mass pleated diaphragm has

a surface area eight times larger than that of a traditional dome tweeter. The MPD transducer works like a super-fast accordion by rapidly squeezing the pleats to produce a smooth, wide, naturally fast response up to 100 kHz. As a result

it sounds more lifelike, releasing the high harmonic spectrum of every note without the distortion that blurs denition.

core material. It is very light and very strong, meaning that it can

PLATINUM II

Platinum II is our agship range of speakers – the pinnacle of our design skills. With our most advanced driver, crossover and acoustics

systems, we’ve tuned the virtues that have won Monitor Audio worldwide acclaim to deliver sublime audio accuracy. Close your eyes to

the agship custom install speakers and you‘ll convince yourself that you must be listening to high-end, oorstanders. Open your eyes

and guess what? No cabinets on view, just superbly designed In-Ceiling and In-Wall speakers.

In-Ceiling

PLIC II

185 mm

5/16

”

Designed for installation in both new build and retrot projects, the In-Ceiling option features an 8” long throw bass driver with Rigid Diaphragm Technology (RDT II) cone technology to provide

immensely powerful bass lines. To satisfy the interior designer and end user, the circular grille can appear almost invisible, by being painted to match the room décor. This beautiful speaker presents a

stunning example of how to successfully marry high-end audio performance with installation exibility.

Sensitivity (1W@1m) 90 dB

3/4

5/16

”

Cut Out Diameter 273 mm / 10

Mounting Depth 185 mm / 7

Power Handling (RMS) 150 W

Impedance 4 ohms Nominal (3.1 ohms minimum @ 1.1 kHz)

Driver Size & Technology 8” long-throw RDT II bass driver

2 x 2” C-CAM mid-range drivers – full three-way design MPD high frequency transducer Angled mid-range and high frequency drivers – directed towards listening area to provide uniform mid and high frequency dispersion High-

performance ‘no compromise’ agship speaker product Rigid aluminium bae construction

Highest quality ‘push’ style termination Mid-range and HF level adjustment switches (+1/0/-1 dB) Paintable, trim less/low prole circular magnetic grille design Square grille option available Highest quality crossover design – including metallised polypropylene capacitors and low loss inductors Patented Tri-Grip mounting clamps

Pre-Construction Bracket CB10 (Light brown)

Back Box PLIC-BOX II – specially designed pre-construction enclosure provides

ideal controlled performance or a bespoke sealed enclosure of 24 Litres

Platinum II In-Ceiling Back Box

Overall Dimensions (Including Brackets):

191.2 x 628.6 x 350 mm

1/2

3/4

x 13

3/4

”

x 24

7 Internal volume 24 L

PLIC-BOX II

To ensure controlled audio performance for the PLIC II, Monitor Audio has designed an optional pre-construction MDF back box with predetermined air volume of 24 L. The rigid box is available with pre-loaded internal damping material to provide the best possible sound absorption and reduce standing waves.

Square Grille

The PLIC II is supplied with a standard round grille, this can be replaced with an additional Square Grille design. See Page 51 for more details.

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

Perfection

Integrated

PLATINUM II In-Wall Speaker

PLATINUM II

In-Wall

Platinum In-Wall II

97.5 mm

13/16

”

Platinum In-Wall II

The Platinum In-Wall II is a three-way reference architectural speaker

system, perfect for custom home theatre projects where lifelike scale and dynamics are demanded. Equipped with an adjustable mid/high frequency driver array, this unit is able to deliver pin-point audio imaging and consistency from both vertical or horizontal orientations. By rotating the

array though 90 degrees at the centre of a LCR conguration for instance, a soundstage of three Platinum In-Wall II’s will generate the seamless tonal integrity of the nest boxed systems from a stealthy In-Wall location.

Sensitivity (1W@1m) 90 dB

7/16

7/8

x 11

Cut Out Dimensions (H x W) 1179 x 302 mm / 46

13/16

Mounting Depth 97.5 mm / 3

Power Handling (RMS) 200 W

Impedance 4 Ohms (3.7 Ohms min. @ 2.8 kHz)

Driver Size & Technology 2 x 6

1/2

4” RDT II mid-range driver

MPD high frequency transducer Mid-range/tweeter module rotates for vertical or horizontal orientations HF & MF level switches (+1/0/-1 dB)

Flagship In-Wall luxury speaker

Less than 4” mounting depth

”

” RDT II bass drivers

”

Platinum In-Wall II can be installed in vertical or horizontal orientations

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

Flush Fit

180 mm

7.09 in

180 mm

7.09 in

180 mm

7.09 in

For an architectural Flush Fit nish we have created the beautifully discreet CF230 speaker, designed to blend seamlessly with

high-end lighting solutions. Skim over the mudbank with plaster and CF230 aligns with its surrounding area, with a choice of

round or square grilles to nish. Use it on its own or in multiples, set up a pair with the matched ICS-8 subwoofer and the 2.1

system will outperform most traditional Custom Install speakers. For existing ceilings use the easy to install Retrot solution.

In-Ceiling

CF230

83.62 mm

5/16

”

Sensitivity (1W@1m) 82.5 dB

3/4

5/16

”

9/16

”

CF230

The CF230 is one of Monitor Audio’s most visually discreet speaker systems,

creating a high-end t and nish. Choose from Pre-Construction Flush Fit (new build) or Retrot (existing) installation. Round and square options are on oer, while the option of ceiling mounting or tting into a standard stud

wall construction provide further options.

Used on its own, or in multiples, the CF230 presents beautiful sounding audio from its specially designed coincident driver. Designed and built by people who intimately understand the world of home technology, the CF230 is a given for any custom speaker project.

Cut Out Diameter Flush Fit 120 mm / 4

Retrot 90 mm / 3

Overall Depth (With Grille) 83.62 mm / 3

Power Handling (RMS) 30 W – Full range – IEC268-5 rating

Impedance 8 Ohms

Driver Size & Technology 3

Brackets and Grilles (All sold separately)

Grille Finish

100 W – Music program (Using High Pass crossover lter @120 Hz)

1/2

” Bass/mid-range driver, featuring C-CAM cone

3/4

” C-CAM Gold Dome tweeter (Coincident)

1. Flush Fit – CFB3-R (round grille) or CFB3-SQ (square grille) Pre-construction bracket included in above kits

2. Retrot – CFB3-KIT (round and square grilles)

Signal White, RAL 9003. Also Paintable

Pre-Construction Installation

Pre-construction bracket and wings

Grille ush to ceiling

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

CF230

Mud-bank

Plasterboard

Layer of plaster over ceiling

112 mm

4.41 in

112 mm

Square grille Round grille

112 mm

4.41 in

Flush Fit

180 mm

7.09 in

180 mm

7.09 in

180 mm

7.09 in

112 mm

4.41 in

112 mm

4.41 in

112 mm

4.41 in

Brackets and Grilles

1. Pre-Construction Flush Fit

Once skimmed with plaster the pre-construction set-up CF230 package enables a seamless,

ush t appearance. You get clean lines, with no

shadow-creating edges, and paint the grille to match the ceiling and the speaker disappears even further into the background. Order either round or square option.

2. Retrot

Pre-Construction Flush Fit Installation Kits

CFB3-R (Round)

CFB3-KIT

Retrot Bracket and Grilles

CFB3-SQ (Square)

The CFB3-KIT retrot installation kit cleverly provides a rm xing behind plasterboard/Sheetrock and requires just three bolts to complete the t. NOTE: The retrot option is not ush tting, but requires no plastering.

The grille will sit slightly proud of the ceiling surface by 3.55 mm, less than a standard In-Ceiling grille.

ICS-8

Installation Guide video available, scan the QR code or visit:

vimeo.com/monitoraudio/cf230

Compatible product for this range: In-Ceiling Subwoofer ICS-8. See Page 38 for details.

Retrot: Grille sits proud by 3.55 mm

130 mm

5.12 in

Invisible

Bringing Monitor Audio’s legendary expansive audio performance to any room, the IV140 couldn’t be more

discreet. Once installed and skimmed with plaster, the two-way speaker disappears completely out of view.

Choose to nish the illusion with wallpaper or paint.

In-Wall

Installation

Cover with a thin layer of plaster

Plasterboard

Space product away from studs so that it is level with the plasterboard

Studs

406.4 mm / 16” Centres

Invisible

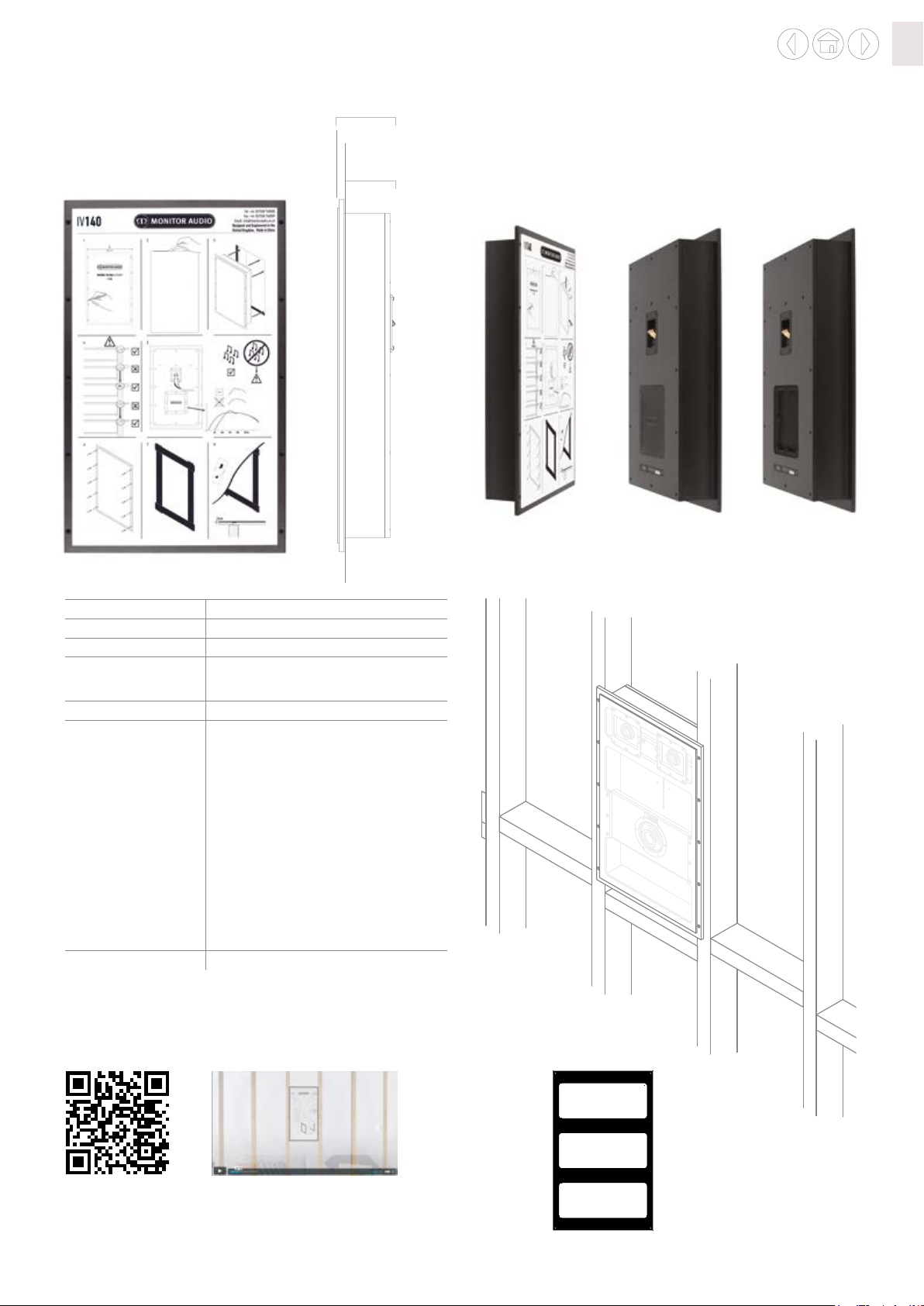

IV140

106mm

3/16

”

94 mm

11/16

”

Opened backClosed back

Rear acoustic cover can be removed

Sensitivity (1W@1m) 82 dB (when installed as directed)

1/4

13/16

” x 13

Cut Out Dimensions (H x W) 591 x 350.5 mm / 23

11/16

Mounting Depth 94 mm / 3

Power Handling (RMS) 50 W – Full range – IEC268-5 rating

100 W – Music program (Using Minimum 80 Hz High Pass lter)

Impedance 8 Ohms

Technology Low frequency transducer – Featuring high power

ceramic magnetics and 40 mm voice coil Dual high frequency transducers – Incorporating high power Neo magnets and 30 mm voice coils 2-way system with integrated crossover Pre-construction speaker designed to be plastered in to create ‘invisible’ appearance

Rigid MDF back box construction

Integrated ‘hybrid’ controlled performance back box system – Fully sealed or opened back

High Quality crossover – Including metallised lm

capacitors and low loss steel core inductors Protected against overload by PTC’s (automatically re-setting breakers) Ideal for home cinema, distributed audio, hospitality, retail and commercial background music applications where aesthetics and discretion are key factors

Pre-Construction Bracket WBIV140

”

Installation Guide video available, scan the QR code or visit:

vimeo.com/monitoraudio/iv140

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

WBIV140 Pre-Construction Bracket available

Pro Speakers

In-Ceiling

Combining brilliant sonic performance with a highly exible architectural design, PRO models work perfectly

in larger spaces, including hotel lobbies, oce complexes, restaurants, as well as general domestic set-ups.

We designed the PRO Speakers range for projects requiring a large number of compact discreet speakers.

87.7 mm

7/16

”

Sensitivity (1W@1m) 86 dB 87 dB 87 dB

1/16

Cut Out Diameter 205 mm / 8

Mounting Depth 87.7 mm / 3

Power Handling (RMS) 30 W 40 W 40 W

Impedance 8 Ohms 8 Ohms 16 Ohms

1/2

Driver Size & Technology

Additional Square Grille

Pre-Construction Bracket

” MMP II driver

6 1” pivoting tweeter

Only available in packs of 5

–

PRO-IC65 Construction Bracket CB8 (Green) CB8-LV

” 248 mm / 9

7/16

” 98.1 mm / 3

8” MMP II driver 1” pivoting tweeter

Only available in packs of 5

Supplied with round grille, can be replaced with an additional Square Grille design. See page 51 for details.

3/4

” 266 mm / 10

7/8

” 101.4 mm / 4”

98.1 mm

7/8

”

70 V (4, 8, 16, 32, 64 W) / 100 V (8, 16, 32, 64 W) power selection

8” MMP II driver 1” C-CAM Gold Dome tweeter Ideal for projects with a large quantity of speakers over large distances

Transformer with 70/100 V input for installation on one amplier channel Fireproof steel rear can – Fire Rating: UL1480 & UL2043 ‘Easy-t’ connection block – Provides link out for ‘daisy chain’ connection Anchor point xings

Only available in packs of 4

CB8-LVK

PRO-80LVPRO-65 PRO-80

101.4 mm 4”

CB8-LV Bracket

CB8-LVK Bracket

1/2

”

PRO-65

Available in packs of ve, and part of our PRO range, the PRO-65 is ideal

for projects with large numbers of compact speakers. It twins our 6.5” MMP II cone bass-mid driver with the pivoting 25 mm fabric dome tweeter.

PRO-80

Available in packs of ve, and part of our PRO range, the PRO-80 is an essential part of any project

requiring large numbers of compact In-Ceiling speakers. It twins our 8” MMP II driver – this is tried and thoroughly trusted Monitor Audio technology – with our pivoting 25 mm fabric dome tweeter.

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

PRO-80LV

A commercial speaker with 70/100 V line power taps, the

Monitor Audio PRO-80LV is ideal for projects with a large quantity of speakers extending over large distances. With its ‘Easy-t’ connection box providing link out for ‘daisy chain’

connection, and equipped with our C-CAM Gold Tweeter and 8” MMP II driver, it is as sonically capable as it is useful.

Weather Resistant Speakers

All Weather

Our All Weather In-Ceiling series means Monitor Audio performance in extreme environments,

such as bathrooms, beach houses, boats, and saunas. Equipped to resist heightened levels of

corrosion, dust, and water, the All Weather line also oers UV protection. Even the non-ferrous

Samarium Cobalt magnets and the Stainless Steel grilles are certied against salt spray.

Operating temperature range: -34° to 79° C / -29° to 174° F.

In-Ceiling

Sensitivity (1W@1m) 88 dB 88 dB (both channels driven)

Cut Out Diameter 211 mm / 8

Mounting Depth 88.5 mm / 3

Power Handling (RMS) 60 W 60 W

Impedance 8 Ohms / 4.4 Ohms @ 190 Hz 8 + 8 Ohms / 4.5 Ohms @ 185 Hz

Driver Size & Technology 6

IP Rating Front: IP55 Rear: IP4X Front: IP55 Rear: IP4X

Pre-Construction Bracket CB6 (Purple) CB6 (Purple)

Back Box CCBOX-R / CMBOX-R CCBOX-R / CMBOX-R

AWC265 AWC265-T2

88.5 mm

1/2

”

1/4

” 211 mm / 8

1/2

” 88.5 mm / 3

1/2

” C-CAM driver 1” C-CAM Gold Dome tweeter HF level switch

1/2

6 2 x 1” C-CAM Gold Dome tweeters HF level switch

1/4

”

1/2

”

” C-CAM driver

88.5 mm 3

1/2

”

AWC280 AWC280-T2

97.6 mm

7/8

”

Sensitivity (1W@1m) 89 dB 89 dB (both channels driven)

3/4

Cut Out Diameter 247 mm / 9

Mounting Depth 97.6 mm / 3

Power Handling (RMS) 100 W 100 W

Impedance 8 Ohms / 4.5 Ohms @ 185 Hz 8 + 8 Ohms / 4.5 Ohms @ 185 Hz

Driver & Technology 8” C-CAM driver

1” C-CAM Gold Dome tweeter HF level switch

IP Rating Front: IP55 Rear: IP4X Front: IP55 Rear: IP4X

Pre-Construction Bracket CB8 (Green) CB8 (Green)

Back Box CCBOX-L / CMBOX-R CCBOX-L / CMBOX-R

” 247 mm / 9

7/8

” 97.6 mm / 3

8” C-CAM driver 2 x 1” C-CAM Gold Dome tweeters HF level switch

3/4

”

7/8

”

97.6 mm 3

Gold plated push terminals with silicone cover

7/8

”

Dust protection covers on driver and crossover splash and humidity proof for installation in shower and pool areas

Stainless steel xing screws with

Neoprene covers

Square Grilles

All AWC models are supplied with

a standard round grille, this can be replaced with an additional Square Grille design. See Page 51 for more details.

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

Climate

Certied resistant to corrosion, UV, and water our

Climate range lets you experience Monitor Audio

speaker performance outdoors, whatever the

weather. Wall mountable, the robust cabinet

presents a smart look and disperses quality audio

over large areas. Paintable textured black or

white nishes with weatherproof aluminium grilles.

Operating temperature range:

-25º to 65º C / -13º to 149º F.

Wall Mounted

175°

Bracket allows for 175° rotation on horizontal axis

Sensitivity (1W@1m) 87 dB 88 dB

15°

Speaker position can

be ne tuned by using

optional 15° angle block

Overall Dimensions With Grille (H x W x D)

Power Handling (RMS) 80 W 100 W

Impedance 8 Ohms 8 Ohms

Driver Size & Technology 5

IP Ratings IP55 IP55

Climate 80

Climate 50

285 x 172.5 x 160 mm / 11

(Overall Depth With Bracket: 210.4 mm / 8

1/2

” C-CAM driver

1” C-CAM Gold Dome tweeter

Rear mounted ABR (Auxiliary bass radiator)

210.4 mm / 8

273 mm / 10

13/16

x 7

235.4 mm / 9

5/16

x 7

235.4 mm / 9

5/16

”

1/4

13/16

x 6

5/16

x 6

3/4

”

5/16

”

”)

Climate 60

325 x 185 x 180 mm / 12

(Overall Depth With Bracket: 235.4 mm / 9

1/2

” C-CAM driver

1” C-CAM Gold Dome tweeter

Rear mounted ABR (Auxiliary bass radiator)

Climate 60-T2

2/16

5/16

”

5/16

”)

5/16

”

Vertical or horizontal

orientation. Rotational

‘M’ logo

Sensitivity (1W@1m) 89.5 dB 88 dB

Overall Dimensions With Grille (H x W x D)

Power Handling (RMS) 120 W 2 x 50 W

Impedance 8 Ohms 8 + 8 Ohms

Driver Size & Technology 8” C-CAM driver

Finishes

White and

Black

IP Ratings IP55 IP55

15/16

1/16

x 9

405 x 230 x 221.5 mm / 15 (Overall Depth With Bracket: 273 mm / 10

1” C-CAM gold dome tweeter

Rear mounted ABR (Auxiliary bass radiator)

x 8

12/16

13/16

5/16

”

3/4

”)

325 x 185 x 180 mm / 12 (Overall Depth With Bracket: 235.4 mm / 9

1/2

” C-CAM driver

6 2 x 1” C-CAM Gold Dome tweeters T2: Stereo with double tweeter

Rear mounted ABR (Auxiliary bass radiator)

x 7

2/16

”

5/16

”)

Vecta

The stylish, compact Vecta indoor or outdoor speakers cleverly combine architectural aesthetics

and innovation with the high quality professional audio performance that Monitor Audio is

renowned for. The Vecta V240 oers incredible versatility and simple tting, ensuring integrators

can install these systems quickly and eectively. Developed with an angled bae and curved

tapered back cabinet, Vecta is designed to provide a wider eld of coverage for an optimal

acoustic performance. Available in both standard and LV models. The V240 blends seamlessly

under eaves and in vertical corners. Four V240-LV speakers can be placed together to create

a 360° of sphere sound hanging from the V-CLUSTER bracket.

UV resistant nishes in black or white.

Operating temperature range: -25º to 65º C / -13º to 149º F

4 x V240-LVs on V-CLUSTER bracket

Vecta Brackets

There are three mounting brackets available for Vecta. Please view Page 35 for full details.

Vecta Features:

Stylish, compact and versatile architectural design

Sealed enclosure impervious to ‘All weather’ environments – Rated to IP55

Intelligent automatic connection system – easier to install with no visible wires

V240-LV – 70/100 Volt line operation

V240-LV – power level selection switch for system optimisation (hidden behind the badge)

V-CLUSTER – a pole mount bracket for 360 degree coverage with 4 speakers (V240-LV model only)

Straight wall V-MOUNT bracket – providing 25 degrees of tilt (optional wedge adds extra 32.5 degrees)

V-CORNER bracket for corner, under eave or back to back installation

Dual 4” Drivers featuring C-CAM metal cone technology

25 mm (1”) C-CAM Dome tweeter

High-density ABS enclosure with rust proof stainless steel grille

Available in black or white (Signal White – RAL 9003)

Paintable to match a custom installation

Finishes: V240, V240-LV and V-MOUNT: UV resistant

Black or White (Signal White – RAL 9003)

V-CORNER and V-CLUSTER: UV resistant Black

V240 and V-MOUNT

Cross section

V240 back

Vecta

Wall / Corner /

Wall / Corner Mounted

V240

Sensitivity (1W@1m) 88 dB

Overall Dimensions

With Grille (H x W x D)

Power Handling (RMS) 100 W

Impedance 4 Ohms

Driver Size 2 x 4” C-CAM drivers

Mounts V-MOUNT, V-CORNER (All sold separately)

IP Ratings IP55

335.9 x 243.2 x 150 mm / 13 (Overall Depth with Bracket: V-MOUNT 175.4 mm / 6

1” C-CAM Dome tweeter

150 mm / 5

7/8

”

1/4

9/16

x 9

x 5

Cluster Mounted

V240-LV

LV control switch accessible once front badge removed.

Sensitivity (1W@1m) 88 dB

7/8

”

Overall Dimensions

7/8

”)

With Grille (H x W x D)

Power Handling (RMS) 100 W

Impedance 70/100 Volt line level

Switch 70 V (2, 4, 8, 16, 32) power level

Driver Size & Technology

Mounts V-MOUNT, V-CORNER, V-CLUSTER (All sold separately)

IP Ratings IP55

335.9 x 243.2 x 150 mm / 13 (Overall Depth with Bracket: V-MOUNT 175.4 mm / 6

2 x 4” C-CAM drivers 1” C-CAM Dome tweeter

1/4

9/16

x 5

7/8

”

7/8

”)

x 9

Vecta

Using cleverly designed brackets and a single point automatic connection system, Vecta can be quickly and easily mounted horizontally or vertically.

Installers x the bracket to the wall, and then simply drop the speaker in place

and secure with a single screw. An automatic connection system means that the install is extremely sleek, with no wires visible.

V240-LV

The V240-LV speaker adds further versatility in commercial applications with a 70/100V line level. The integrated transformer allows multiple speakers in a system without worrying about impedance matching or losses when long cable runs are required.

Intelligent automatic connection system

Vecta

Brackets for V240 and V240-LV

There is a choice of three intelligently designed brackets. V-MOUNT can be used to mount speakers at on a wall with the option of using

the supplied Wedge. For installation under eaves or in vertical corners, there is the V-CORNER bracket. Two speakers can be mounted

back to back using a pair of V-CORNERs. The V-CLUSTER bracket can be suspended from above and supports four V240-LV speakers

giving 360° sound. All three brackets’ automatic connection system means that the install is extremely sleek, with no wires visible.

V-MOUNT V-CORNER V-CLUSTER

12.5°

90°

175.4 mm

7/8

”

Mounting

congurations

V-CORNERV-MOUNT V-MOUNT with Wedge

32.5°

90°

168.9 mm

5/8

”

12.5°

Mounted at on a wall – horizontal Mounted with optional WedgeMounted at on a wall – vertical

V-CLUSTER (4 x V240-LV)

360°

Mounted in a corner Mounted under eaves 2 x Mounted back to back

21 – 27 mm

Vecta

V-MOUNT Bracket (V240 and V240-LV)

V-MOUNT Cover removed

V-CORNER Bracket (V240 and V240-LV)

Cover removed

V-MOUNT

Vecta V-MOUNT brackets enable wide audio dispersion, allowing the speaker to be angled by 25° or tilted a further 32.5° with the optional wedge.

V-MOUNT with optional wedge

V-CORNER

By using a Vecta V-CORNER

bracket, speakers can be installed under eaves or in the corner of the wall, providing high quality audio from a discreet location.

Using two V-CORNERS speakers

can be mounted back to back.

Covers removed

V-CORNER x 2V-CORNER

V-CLUSTER Bracket (V240-LV only)

V-CLUSTER Attach 4 x V240-LVs to the V-CLUSTER bracket

V-CLUSTER

Once slotted onto the V-CLUSTER bracket to form a sphere, the V240-LV speakers will provide near-perfect 360-degree sonic coverage in the horizontal plane. Enhanced vertical dispersion is provided by the natural curvature of the Vecta’s design and its wide dispersion driver array. Fitting is completed

with a single point screw securing each speaker in place. The tting gives a

precise electrical connection automatically, with no visible wires evident after

the install is complete. The V-CLUSTER’s intelligent design saves time when

working in elevated or tricky locations.

Base cover supplied in Black and White nishes.

For use with poles with an outer diameter of 21 – 27 mm. (Pole not included).

Disclaimer

The V-CLUSTER bracket facilitates installation of the Vecta V240-LV speakers with a variety of general-purpose ceiling-fan-pole assemblies available

from many manufacturers. Since dierent fan-pole assemblies have dierent

weight capacities, pole diameters and mounting systems, it is the customer’s responsibility to check with the fan-pole-assembly manufacturer or dealer to

determine whether that specic pole-mount assembly is capable of correctly and securely attaching to the V-CLUSTER bracket and handling the weight

and proportions of these speakers in a safe and stable manner. Monitor Audio disclaims any liability for the selection of fan-pole assemblies and/or correct

compatibility between the selected fan-pole assembly and the V-CLUSTER

bracket. The installer is responsible for proper selection and use of mounting hardware, to properly and safely pole-mount the speakers.

4 x V240-LV Mounted in a cluster

Vecta Installation Guide video available, scan the QR code or visit:

vimeo.com/monitoraudio/vecta

Climate Garden System

Ingeniously designed for concealment in any garden landscape, the Climate Garden System takes our award-winning hi-

audio outside, providing music lovers with the lifestyle experience of big, wide, detailed sound in the great outdoors.

The system’s super-discreet all-weather satellite/subwoofer design has been expertly created by our designers for ground

level installation amongst shrubs and trees. The speaker system delivers a luxurious blend of unobtrusive aesthetics and

natural full-range audio in gardens of any size.

Comprising the CLG140 and CLG160 satellite speakers and CLG-W10 and CLG-W12 subwoofers ‘daisy-chained’ together

in 70/100 V line arrays of up to sixteen satellites and three subwoofers, the set-up is expandable by adding additional satellite,

subwoofer and amplier sets according to garden size. Operating temperature range: -20° to 70° C / -4° to 158° F.

180°

CLG-W10

Secured on patio or deck

conguration

310 mm

3/16

”

CLG140 and Mount

CLG-W12

In-Ground / Mounted

CLG140 CLG160

175 mm / 6

7/8

”

130 mm

1/8

”

220 mm / 8

CLG-W10

Buried in ground

conguration

11/16

”

190 mm

1/2

”

CLG160 and Spike

CLG-MOUNT

NOTE : Mount and Spike

sold separately. Speakers not included. Tree or pole mounting possible with

additional xings.

CLG-SPIKE R

Sensitivity (1W@1m) 88 dB 89 dB

Overall Dimensions Excluding Mount/Spike

(H x W )

Power Handling (RMS) 40 W (Crossover set to minimum

Impedance 70/100 V line level 70/100 V line level

Driver Size & Technology

IP Ratings IP55 IP55

130 x 175 mm

1/8

7/8”

x 6

100 Hz @ 12 dB/Octave)

4” MMP II cone bass-mid driver 1” C-CAM Gold Dome tweeter – Coaxially oriented

190 x 220 mm

1/2

11/16

x 8

”

60 W (Crossover set to minimum 80 Hz @12 dB/Octave)

6” MMP II cone bass-mid driver 1” C-CAM Gold Dome tweeter – Coaxially oriented

CLG140

The CLG140 satellite speaker is a robust high sensitivity design built to deliver richly detailed

hi- quality mid/high frequencies.

CLG160

Suitable for ground level installation within the garden and around decking areas or mounted onto a tree, pole or garden fence, the CLG160 speaker features a rigid polymer shell which ensures it is resilient to extreme weather conditions.

Climate Garden System

Subwoofers

CLG-W10

The CLG-W10 passive subwoofer’s compact design is extremely

versatile and optimised to provide the system designer with a choice of installation options. It is designed to be partially buried in a border or sit on the surface of a deck or patio area and with an IP54 rating is resistant to extreme outdoor conditions.

Sensitivity (1W@1m) 85 dB

Overall Dimensions Diameter 340 mm x High 434.5 mm

Power Handling (RMS) 150 W (IEC268-5)

Impedance 4 Ohms or 70/100 V line level (cable select)

Driver Size & Technology

IP Ratings IP54

3/8

1/8

” x 17

10” long throw ‘ICD’ subwoofer, featuring C-CAM cone technology

”

CLG-W12

CLG-W10 can be partially buried in a border.

CLG-W10 can sit on the surface of a deck or patio area.

340 mm / 13

11/16

576 mm / 22

”

3/8

”

434.5 mm

1/8

” /

CLG-W12 below ground garden installation. On patios or decks install within a suitably sized planter.

CLG-W12

The CLG-W12 passive subwoofer is optimised

for discreet sub-surface installation with only the domed output port visible above ground. Below the surface, the powerful 12” C-CAM driver sits in a waterproof rotationally- moulded polymer enclosure and it brings deep bass into the garden.

Climate Garden System Installation Guide video available, scan the QR code or visit:

vimeo.com/monitoraudio/clg

750 mm

1/2

”

Sensitivity (1W@1m) 87 dB

1/2

15/16

x 22

11/16

Overall Dimensions (H x W x D) 750 x 380 x 576 mm / 19

Power Handling (RMS) 250 W

Impedance 4 Ohms or 70/100 V line level (cable select)

Driver Size & Technology 12” C-CAM cone, long throw sub-bass driver

IP Ratings IP54

x 14

”

Custom Subwoofers

Designed to perfectly complement our In-Ceiling and In-Wall speakers, the Custom Subwoofer range brings added bass reach,

yet demands little in the way of footprint. Choose from our ultra-compact free-standing, In-Ceiling or In-Wall models.

In-Ceiling

ICS-8

A high-performance passive subwoofer able to t into discreet spaces, such

as ceiling and wall cavities, we primarily developed the ICS-8 to complement the CF230 Flush Fit In-Ceiling speaker. The 8” driver has been angled internally in the rigid MDF enclosure, to reduce the overall box height and ensure compatibility with a wide range of standard construction cavities. This smartly

specied subwoofer delivers powerful bass down to 40 Hz and the sealed

bandpass enclosure design stops ingress of dirt and building materials.

Sensitivity (1W@1m) 85 dB

Overall Cabinet Dimensions

(H x W x L):

Power handling 150 W – Full range – IEC268-5 rating

Impedance (nominal) 8 Ohms

Driver Size & Technology 8” long throw bass driver,

Brackets and Grilles (All sold separately)

235 x 280 x 396 mm

1/4

x 11 x 15

featuring C-CAM cone technology

1. Flush Fit – CFB3-R (round grille) or CFB3-SQ (square grille) Pre-construction bracket included in above kits

2. Retrot – CFB3-KIT (round and square grilles)

9/16

”

ICS-8

CF230

Complements the CF230 Flush Fit In-Ceiling speaker. Please view Page 24.

Brackets and Grilles

The ICS-8 is installed using one of these kits. Order round or square option for Flush Fit or

Kit for Retrot (All sold separately). Please view Pages 24 and 25 for installation information.

1. Pre-Construction Flush Fit Installation Kits 2. Retrot Installation Kit

CFB3-R (Round) CFB3-KIT

CFB3-SQ (Square)

Retrot Bracket and Grilles

Retrot: Grille sits proud by 3.55 mm

Installation Guide video available, scan the QR code or visit:

vimeo.com/monitoraudio/ics8

CLG-W10 and CLG-W12

Please view Page 37 for full details of the Climate Garden System subwoofers.

Custom Subwoofers

Designed to perfectly complement our In-Ceiling and In-Wall speakers, the Custom Subwoofer range brings added bass reach,

yet demands little in the way of footprint. Choose from our ultra-compact free-standing, In-Ceiling or In-Wall models.

In-Wall

Our In-Wall Subwoofer design marries the IWS-10 subwoofer driver, IWA-250 amplier, and IWB-10 black box. Use the IWS-10 model in a range of ceiling, oor, and In-Wall locations, ideally – but not exclusively – with its IWB-10 back box.

IWS-10

90 mm

1/2

”

IWB-10 (In-Wall Back Box)

85 mm

11/32

”

Sensitivity (1W@1m) 86 dB

Cut Out Dimensions (H x W) 280 x 280 mm / 11 x 11”

1/2

Mounting Depth 90 mm / 3

Power Handling (RMS) 150 W

Impedance 8 Ohms

Driver Size & Technology 10” C-CAM RDT driver

Less than 4” mounting depth

Ideally but not exclusively pairs with its IWB-10 back box

Patented Tri-Grip mounting clamps

Back Box IWB-10 (In-Wall Back Box)

”

IWA-250

Amplier

Input Impedance > 20 K Ohms

Overall Dimensions

(H x W x D)

Technology Heavy-duty 1U rack mount case

Amplier Power Output 250 W @ < 1% THD+N

Amplier Classication Class D amplier with Switch mode power supply (SMPSU)

43.7 x 432 x 263 mm

3/4

Will power single or dual IWS-10s

Switch mode power supply DSP controlled with advanced limiters

<0.5 W standby power consumption (ErP certied)

DC short circuit protection, over-current and thermal protection Supplied with rack mounting brackets for installation

x 17 x 10

3/8

”

IWB-10 shown with installed IWS-10 and grille

Overall Dimensions (H x W x D) :

850 x 351 x 85 mm / 33 Internal volume 16.5 L

Designed to provide optimum performance for IWS-10

Fits into standard 14” stud bays (16” centres)

Reduces the radiation of sound to adjacent rooms

Heavy duty MDF construction

Rugged laminated vinyl nish

Pre-wired with external high quality push type terminals Supplied with mounting brackets for installation

1/2

x 13

13/16

x 3

11/32

”

IWA-250 Amplier

Designed to work with the IWS-10 subwoofer, the IWA-250 switch mode amplier is a slim, powerful design in a robust 1U rack mount case. Delivering up to 250 W into 4 ohms, the IWA-250 has input signal sensing, or is triggered from an AVR or other system source.

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

Custom Subwoofers

Designed to perfectly complement our In-Ceiling and In-Wall speakers, the Custom Subwoofer range brings added bass reach,

yet demands little in the way of footprint. Choose from our ultra-compact free-standing, In-Ceiling or In-Wall models.

Free Standing

CW8 and CW10

The ultra-compact CW8 and CW10 subwoofers generate

amazingly distinct bass from remarkably inconspicuous enclosures.

Input Impedance > 20 K Ohms > 20 K Ohms

Cabinet Dimensions

(H x W x D)

Driver Size 8” C-CAM long throw driver

Technology Two, side mounted ABRs (Auxiliary bass radiators) to increase output and reduce distortion

Amplier Power Output 350 W RMS @ < 1% THD+N 400 W RMS @ < 1% THD+N

Amplier Classication Class D amplier with switch mode power

CW10

CW8

270 x 260 x 276 mm

5/8

1/4

x 10

7/8

”

x 10

2 x 8” ABRs

Tuned for High SPL and impact

IR sensor for remote control (Published feature codes) RS-232 for integration with system controllers (Published feature code)

USB P.C. application for full feature adjustment and installer set-up

LFE Balanced XLR Input and unbalanced RCA Stereo RCA line level inputs

Phase and power mode switches Auto standby (signal sensing) and 12 V trigger 4 pre-set EQ’s optimised for: Flat, Music, Movie and Impact with customisation using application

Robust metal mesh grille Rigid MDF cabinet construction with durable vinyl nish

supply (SMPSU)

315 x 305 x 320 mm

3/8

10” C-CAM long throw driver

2 x 10” ABRs

Class D amplier with switch mode power

supply (SMPSU)

x 12 x 12

5/8

”

Streamers and Ampliers

Monitor Audio’s custom Installation Ampliers and Music Streamers

have slimline dimensions and use class-leading audio technology to

create a superior musical performance.

They are quick and easy to install, and their discreet form ensures

they use the minimum amount of space. With a choice of sizes,

inputs, outputs and power options, there is a Monitor Audio amplier

for every situation. The IMS-4 Music Streamer is the perfect partner

for our ampliers. Using BluOS™ technology, it can play digital music

in up to four separate zones.

All of the models in our Installation Amplier and Streamer family deliver

the great sound and reliability you would expect from Monitor Audio.

Rack Mounted / Free Standing

IMS-4

Rooms 4

Rated Distortion <0.005%

Signal-to-Noise Ratio 110 dBA

Sample Rate 32 – 192 kHz

Bit Depth 16 – 24

Inputs Analogue, S/PDIF, USB, +12V Trigger IN, IR

Outputs Analogue, S/PDIF, +12V Trigger Out

Rack Height 1U

Dimensions (With feet) (H x W x D)

Width (Including rack brackets) 482 mm / 19”

The IMS-4 music streamer is the latest addition to our range of superior custom install solutions. Its discreet design and slimline form ensure that it occupies just 1U of rack space.

Its BluOS™ technology and controller app allow easy access to music libraries, streaming services and it can be voice controlled using Alexa, Google Assistant or Siri. BluOS also allows the IMS-4 to stream lossless music at a quality of up to 24-bit/192 khz to four zones in a home network. Accessed through the app, or one of the many supported integrated control systems, multiple IMS-4 streamers can be combined to provide up to 64 zones, with each zone able to play together in perfect sync. The IMS-4 can also simultaneously play dierent streams to separate zones – it truly is a versatile music streamer.

Input, System Interrupt

45 x 438 x 236 mm

13/16

1/4

x 9

5/16

”

x 17

IMS-4 Features:

– Featuring BluOS™ multi-room streaming technology – With four separate zones, dierent music can be streamed to four dierent rooms

or areas

– Allows streaming of lossless music with MQA authentication up to 24-bit/192 kHz

to every room in a home network – Compatible with other BluOS – Can be integrated with other BluOS devices to provide up to 64 zones of music,

with each zone able to play together in perfect sync or to simultaneously play

dierent streams to separate zones – Easy access to music libraries and streaming from music services – Access oine local media such as hard drives or CD players and connect to media

servers using the analogue RCA, digital optical, USB and ethernet inputs to play

across zones – Its BluOS technology and controller app allow easy access to music libraries,

streaming services and voice control using Alexa, Google Assistant or Siri – Can be partnered with Monitor Audio’s range of Installation Ampliers – Integration with home automation services such as Crestron, Control4, RTI and

other BluOS devices – Controllable using the BluOS Controller app for iOS, Android, MacOS and Windows – Includes a system interrupt feature to let doorbells and re alarms be heard – Occupies just 1U rack space – Compatible with Apple AirPlay 2

enabled devices

This IMS-4 supports AirPlay 2 and requires iOS 11.4 or later.

BluOS Controller App

Instructional videos available, scan the QR code or visit:

vimeo.com/monitoraudio/ims-4

Streamers and Amplifiers

Amplier Features:

Power Switch – Front panel mounted Status LED – Indicating standby, power on or protect modes Signal LED’s – Indicating a signal is present at each channel independently. It will also indicate clipping Power Options – Trigger input – 3 – 30 V AC or DC. A trigger output provides signal for additional ampliers or other equipment.

Audio – Auto signal sensing or permanently on

Speaker Connections – Industry standard removable block connectors accepts up to 12 gauge (3.5 mm

) cable

Rack Mounted / Free Standing

IA150-2

‘Connect' IP control No Channel Number 2 (1 Stereo Pair) Power

(W / Channel)

Input Impedance 20 K Ohms Output Impedance (Loop RCA) 600 Ohms Input Sensitivity 100 mV / 1 W – 1000 mV – Full power

Rack Height 1U Dimensions (Without feet)

(H x W x D) Height (With feet) 52.8 mm / 2 Width (Including rack brackets) 482 mm / 19”

Monitor Audio ampliers are built to do more and use less space. Our ampliers oer full connectivity with simple wired voltage trigger or signal

sense. The IA150-2 powers a stereo pair, with rear panel-located volume adjustment for each channel. Just 42 mm high, 438 mm wide, and 427 mm

deep, the handsome case houses world renowned Hypex ampliers, selected

by us to guarantee reliability and the great sound quality the world has come to expect from Monitor Audio.

4 Ohms 150 W 8 Ohms 100 W Bridge (8 Ohms) 320 W (1CH) 70V N/A

42.4 x 438 x 427 mm

11/16

1/4

x 17

x 16

1/16

13/16

”

IA60-12

‘Connect' IP control No Channel Number 12 (6 Stereo Pairs) Power

(W / Channel)

Input Impedance 20 K Ohms Output Impedance (Loop RCA) 600 Ohms Input Sensitivity 100 mV / 1 W – 700 mV – Full power

Rack Height 2U Dimensions (Without feet)

(H x W x D) Height (With feet) 97.2 mm / 3 Width (Including rack brackets) 482 mm / 19”

The IA60-12 powers up to 12 channels (six stereo pairs) and is congurable between 6 – 12 channels. Employing Hypex amplier technology, this model

assimilates our unrivalled experience of the custom installation sector to serve an audio engine ready to excel in your project.

4 Ohms 60 W 8 Ohms 45 W Bridge (8 Ohms) 100 W (6CH) 70V N/A

86.8 x 438 x 427 mm

7/16

1/4

x 17

x 16

13/16

”

IA150-2 / IA60-12 Additional Features

Volume Level Controls – Each channel on the amplier has a volume adjustment on the rear panel IA150-2 – Both Line Inputs and Loop Outputs – To connect other ampliers/equipment IA60-12 – Bus Inputs A/B and Loop Outputs –

Loop outputs are non buered (maximum number of ampliers that can be looped together will depend on the output capability of your source component)

‘Connect’ Ampliers

‘Connect’ IP interface

IA800-2C / IA200-2C / IA150-8C

Our ‘Connect’ IP interface is a web application, which can be accessed by any device with a web browser connected to the same network as the

‘Connect’ amplier. This will allow the installer to set features and ne tune audio performance remotely from the amplier location. The installer can

therefore be in the same room as the speakers when performing these tasks.

IA800-2C

Instructional videos available, scan the QR code or visit:

vimeo.com/monitoraudio/ci-amps

IA200-2C

Works with:

‘Connect' IP control Yes Channel Number 2 (1 Stereo Pair) Power

(W / Channel)

4 Ohms 800 W 8 Ohms 500 W Bridge (8 Ohms) 2000 W (1CH)

70V 800 W (2CH) Input Impedance 20 K Ohms Output Impedance (Loop RCA) 600 Ohms Input Sensitivity 100 mV / 1 W – 2200 mV – Full power

Rack Height 2U Dimensions (Without feet)

(H x W x D) Height (With feet) 97.2 mm / 3

86.8 x 438 x 427 mm

7/16

1/4

x 16

13/16

”

x 17

Width (Including rack brackets) 482 mm / 19”

The IA800-2C is part of our ‘Connect’ Ampliers division, bringing our

Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

Fluently delivering up to 800 W per channel, this two-channel engine can

directly drive 70 V line speakers without a line matching transformer.

IA150-8C

‘Connect' IP control Yes Channel Number 2 (1 Stereo Pair) Power

(W / Channel)

4 Ohms 200 W 8 Ohms 150 W Bridge (8 Ohms) 470 W (1CH)

70V N/A Input Impedance 20 K Ohms Output Impedance (Loop RCA) 600 Ohms Input Sensitivity 100 mV / 1 W – 1230 mV – Full power

Rack Height 1U Dimensions (Without feet)

(H x W x D) Height (With feet) 52.8 mm / 2

42.4 x 438 x 427 mm

11/16

1/4

x 16

1/16

13/16

”

x 17

”

Width (Including rack brackets) 482 mm / 19”

The IA200-2C Installation Amplier oers high power levels, supplying up to 200 W per channel at four Ohms. A member of our ‘Connect’ Ampliers

family, it employs our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

‘Connect' IP control Yes Channel Number 8 (4 Stereo Pairs) Power

(W / Channel)

4 Ohms 150 W 8 Ohms 140 W Bridge (8 Ohms) 300 W (4CH)

70V N/A Input Impedance 20 K Ohms Output Impedance (Loop RCA) 600 Ohms Input Sensitivity 100 mV / 1 W – 1140 mV – Full power

Rack Height 1U Dimensions (Without feet)

(H x W x D) Height (With feet) 52.8 mm / 2

42.4 x 438 x 427 mm

11/16

1/4

x 16

1/16

13/16

”

x 17

”

Width (Including rack brackets) 482 mm / 19”

The IA150-8C enables up to eight (four stereo pairs) channels of 150 W of power at four Ohms. It’ll t 1U rack height and, as a member of the

Monitor Audio ‘Connect’ division, it employs our ‘Connect’ IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

‘Connect’ Ampliers Additional Features

Higher power levels Volume Level Controls – Each channel on the amplier has a volume adjustment on the front panel ‘Connect’ – IP control is via the RJ-45 input. IP controls power On/O, volume, muting and input source selections for either global control or group control IR Control – In/Out jacks. IR controls global On/O, group volume, muting and input source selections. Connectivity can be seen with IR status light IA800-2C – Can drive 70 V line speakers directly without a line matching transformer

Streamers and Amplifiers

Compact – Mounted / Free Standing

IA40-3

‘Connect' IP control RS232 EQ dip switches apply a 3 dB boost 120 Hz, 1500 Hz, and 8 kHz Channel Number 3 Power

(W / Channel)

Input Impedance 10 K Ohms Unbalanced Output Impedance (Loop RCA) 1.47 K Ohms Input Sensitivity ~300 mV – Full Power Dimensions (Excluding Mounting

Brackets and Antenna (H x W x D))

Dimensions (Including Mounting

Brackets (H x W x D))

Bluetooth

The IA40-3 discreet amplier is a highly versatile unit and features digital,

analogue and Bluetooth

exibility. Designed for modern living, the IA40-3 is a versatile solution, ideal

for smaller environments. Pairing perfectly with two In-Ceiling speakers and an optional subwoofer, it also works beautifully with Monitor Audio’s smaller bookshelf speakers and passive soundbars.

4 Ohms @ 1 kHz 60 W @ 1% THD+N for 2 Channel

8 Ohms @ 1 kHz 50 W @ 1% THD+N for 2 Channel

70V N/A

/ Dolby Audio Yes

inputs with Dolby Audio (Dolby Digital) for maximum

40 W @ 1% THD+N for 3 Channel

30 W @ 1% THD+N for 3 Channel

31.4 x 180 x 110.5 mm

1/4

1/16

x 7

5/16 x 711/16

x 4

x 7

32.6 x 196 x 182.5 mm 1

3/8

”

3/16

”

110.5 mm

3/8

”

Amplier Features:

• Amplier solution ideal for localised audio applications when paired with Monitor Audio speakers

• Switchable between 3 channels at 40 W or 2 channels at 60 W with or without an active subwoofer, allowing for a wide range of applications

• Ideally paired with Monitor Audio passive soundbars or, for a more discreet solution, to Monitor Audio’s extensive range of in-wall and in-ceiling speakers

• Optical input with Dolby Audio (Dolby Digital) allowing for a true 3.1 system and easy connection to a television

• Bluetooth for the highest quality connection to mobile devices

• 3.5 mm analogue input

• Switchable line output, or ltered active subwoofer output to create a 3.1 system

• RS232 connection for automation conguring opportunities

• External IR sensor, which can learn volume controls from the TV’s remote control

to allow for a discreet or hidden mounting location and simple operation

• Bespoke aluminium enclosure with integrated heat sink

• Mounting brackets included with exible break o sections for maximum installation

versatility. Ideal for mounting to a TV, stand, wall or cabinet, should it be required.

wireless technology powered by Qualcomm® aptX™ –

Instructional videos available, scan the QR code or visit:

monitoraudio.com/ en/ia40-3-videos/

1/4

”

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Monitor Audio Ltd. is under license. Other trademarks and trade names are those of their respective owners.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries.

180 mm /

1/16

”31.4 mm /

Soundbars

Free Standing / On-Wall

Add powerful audio to your TV experience. Our high-performance range of passive soundbars

ts a range of screen sizes, complete with contemporary lifestyle design and rst-class nish.

SB-2

Engineered for seamless integration with 50 – 60” TVs, the SB-2 passive soundbar houses three separate driver arrays – one each for left, centre, and right channels – in a single cabinet. Just add

an AV amplier and, to further

enhance audio performance in larger rooms, partner with one of our muscular subwoofers.

SB-3

Monitor Audio engineered the SB-3 passive soundbar for seamless integration with 60 – 70” TVs. At just 1310 mm wide, we’ve applied our speaker design know-how to create three separate driver arrays within the elegant cabinet. In larger rooms, you can add a partnering

Monitor Audio subwoofer. With

or without a subwoofer, the

SB-3 eortlessly transforms your

entertainment experience, working its wonders with gaming as well as movies and TV shows.

SB-4

The largest model in our passive soundbar range, we’ve designed the SB-4 to provide a visually balanced audio solution for 70” TVs and beyond. Compatible with SANUS TV mounting systems, when looking for the ideal passive soundbar for installers, we’ve got the answer.

SB-2

suitable with 50” – 60” Screens

SB-3

suitable with 60” – 70” Screens

SB-4

suitable with 70”+ Screens

SB-2 SB-3 SB-4

Sensitivity (1W@1m) 84 dB Left and Right Channels: 84 dB

Power Handling (RMS) 40 W Left and Right Channels: 40 W

Driver Size & Technology 3 x 4” C-CAM cone bass/

Dimensions (H x W x D) (With feet)

Suitable for display sizes 50” – 60” 60” – 70” 70”+

On-Wall Bracket (optional) BSB BSB BSB

mid drivers 3 x 1” C-CAM Gold Dome tweeters 3 x ABRs (Auxiliary bass radiator) Loading

147 x 1107 x 93 mm

13/16

9/16

x 3

11/16

x 43

SB-3 shown without outer cloth (For visual purposes only)

BSB

Wall bracket available

Centre Channel: 87 dB

Centre Channel: 80 W

4 x 4” C-CAM cone bass/mid drivers 3 x 1” C-CAM Gold Dome tweeters 4 x ABRs (Auxiliary bass radiator) Loading

147 x 1307 x 93 mm

13/16

7/16

”

x 51

x 3

11/16

”

87 dB

80 W

6 x 4” C-CAM cone bass/ mid drivers 3 x 1” C-CAM Gold Dome tweeters 4 x ABRs (Auxiliary bass radiator) Loading

147 x 1562 x 92 mm

13/16

1/2

x 61

x 3

5/8

”

SoundFrames

In-Wall / On-Wall

SoundFrame speakers can co-ordinate beautifully with any room design,

incorporating audio into your interior designs. Our high performance

speakers have been disguised to look like stylish picture frames that

would grace any home’s decor. Once you have decided upon your

speaker set-up requirements and chosen the unit’s base colour

(black or white), complete the process with your choice of grille.

A specialised cloth has been stretched over a wooden frame template

to create a grille, this grille replaces the canvas area of a standard

picture frame. Standard black or white grilles come with your product

but the specialised cloth can be customised to any taste. Choose an

additional image grille or colour from our Grille Gallery, or for the ultimate

custom eect why not have your own design printed onto your grilles

all without eecting the performance of the sound quality.

If the outer picture frames don’t match your decor why not choose our

additional Frameless option where the supplied outer frame and grille

of your SoundFrame are replaced by an edgeless larger grille?

See pages 44 and 45 for further information.

When ordering your SoundFrame state if you require the In-Wall or On-Wall options. Order Black Gloss or White Gloss nish.

SoundFrame 1 SoundFrame 2 SoundFrame 3

Sensitivity (1W@1m) 86 dB 86 dB 85 dB

In-Wall Cut Out Dimensions (H x W)

501 x 351 mm

11/16

x 13

In-Wall Mounting Depth 75 mm / 2

In-Wall Overall Dimensions (H x W x D)

On-Wall Overall Dimensions (H x W x D)

552 x 402 x 88.25 mm

3/4

x 15

540 x 390 x 87.5 mm

1/4

x 15

3/4

”

15/16

” 75 mm / 2

13/16

1/2

” x 3

”

3/8

7/16

x 3

”

751 x 201 mm

1/2

7/8

x 7

”

15/16

” 59.5 mm / 2

802.5 x 252.5 x 87.5 mm

5/8

15/16

7/16

” x 3

x 3

7/16

”

x 9

790 x 240 x 87.5 mm

1/8

x 9

Power Handling (RMS) 100 W 100 W 50 W

Impedance 8 Ohms 8 Ohms 8 Ohms

1/2

Driver Size & Technology 6

” C-CAM RST driver

Pivoting IDC module (4” C-CAM RST inverted mid-range driver, 1” C-CAM Gold Dome tweeter) HF Control

SoundFrame 1

With its wonderful sound and eortlessly stylish

design, the SoundFrame 1 speaker is a solution for all. Adopting the aspect of a typical portrait picture frame, the Monitor Audio SoundFrame 1

is available in both In-Wall and On-Wall formats.

SoundFrame 2

The SoundFrame 2 is the longer, centre channel of the range. As pretty as a picture, you can place it horizontally or vertically, depending on the system layout. Incredibly, it is just 87 mm deep, yet houses our pivoting IDC module –

1/2

” C-CAM RST driver

6 Pivoting IDC module (4” C-CAM RST inverted mid-range driver, 1” C-CAM Gold Dome tweeter) HF Control

25 mm C-CAM Gold Dome tweeter, and 4” C-CAM RST inverted mid-range driver –

Finishes :

with a 6.5” C-CAM bass driver with RST cone.

Black Gloss and

White Gloss

251 x 251 mm

7/8

x 9

301.5 x 301.5 x 77.5 mm

7/8

x 11

289 x 289 x 77.5 mm

3/8

x 11

4” C-CAM driver 1” C-CAM pivoting Gold Dome tweeter

SoundFrame 3

The most compact of our super-stylish SoundFrame series, the SoundFrame 3 comes

in both In-Wall and On-Wall structures. Use it

on its own, or assign to it rear speaker duties as part of a SoundFrame room system. A two-way

conguration, equipped with a pivoting 25 mm

Gold Dome tweeter and 4” C-CAM mid-range driver, this little ported box packs a sonic and design punch.

7/8

”

5/16

”

7/8

1/16

” x 3

”

3/8

x 3”

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

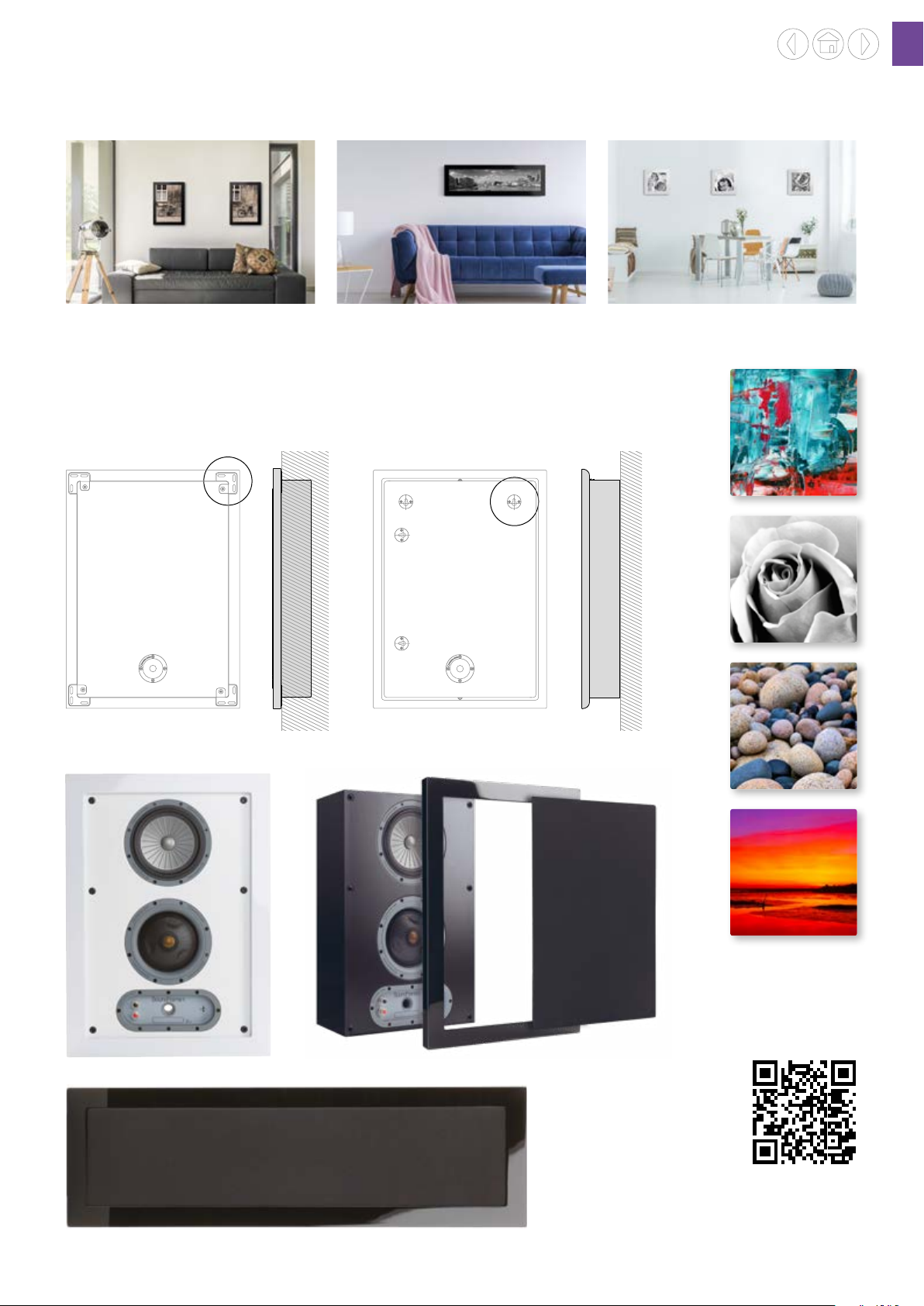

SoundFrames

GSFL3ART1A

GSFL3FLOWER4A

GSFL3PEBBLES1A

GSFL3SUNSET1A

SoundFrame 1 SoundFrame 3SoundFrame 2

Images above show additional customised grilles

In-Wall On-Wall

In-Wall xings

Product xed into wall using corner brackets

On-Wall xings

Product hangs on wall via keyhole xings

Grille removed Exploded view

Frame and grille attached using pegs and sockets

Cabinet Frame

Images above show examples of additional customised SoundFrame 3 Frameless grilles

Grille

Vertical or horizontal orientation

Explanation video available,

scan the QR code or visit:

vimeo.com/monitoraudio/soundframe

Customise your SoundFrame Grille design, see next page for details.

GSF1ART1B

GSF1FLOWER1A

GSF1FLOWER3B

GSF1VEHICLES1A

GSF1CITY4B

GSF1ART3B

GSF1VEHICLES2B

GSF1 Port

SoundFrames

Customise your SoundFrame Grilles

Ordering from the additional Grille Gallery

We have chosen a gallery of grille images and

colours to choose from which can be used

on all three models of SoundFrame, they are

shown in the Gallery overviews displayed by

product size. Simply jot down the reference

number shown below your chosen grille(s)

in the gallery and order them from your local

Monitor Audio dealer. Though some grilles are

shown in pairs, they’re individually numbered,

so you can order the combination of images or

colours that’s right for you. State if you require

Framed or Frameless when ordering.

Commissioning an additrional Bespoke Grille

If you would like to use your own design for

your SoundFrame grille; a favourite photo

or your own artwork, (provided you have

the rights to use it) please supply your local

Monitor Audio dealer with a print-ready

image, which will then be printed onto your

SoundFrame grille and supplied by your

dealer. Please note that any design will need

to t the shape and size of the selected

SoundFrame with enough additional image

around its sides to be able to wrap around

the wooden frame template.

Additional Frameless Grille

If the outer picture frames don’t match

your decor why not choose our additional

Frameless option where the supplied outer

frame and grille of your SoundFrame are

replaced by an edgeless larger grille?

Frameless GrillesBespoke GrilleLibrary Grille

This shows a small selection of our gallery of

grilles, there is a dierent selection for the three

sizes of SoundfFrame. For an overview please

scan the QR code or visit: bit.ly/soundframe-grilles

Please contact your local dealer to place an order

for a bespoke grille. There are le specications in

place to achieve best results please only use high resolution images.

The larger Frameless grilles replace both the grille and frame to give the impression of an

edgeless image. Plain Black or White options

also available.

When ordering your customised SoundFrame grille, state

which image you require, which size of SoundFrame and

if you prefer the Framed or Frameless option.

As any installer knows, the devil is in the detail.

Our extensive Accessories oering leaves no detail untouched, covering

Accessories

pre-construction brackets for In-Ceiling and In-Wall applications, as well

as a selection of back boxes – In-Ceiling Concrete, In-Ceiling MDF, and

In-Wall Concrete. We also oer product specic back boxes, premium

and square grilles for our numerous In-Ceiling speaker models.

Pre-Construction Brackets

Pre-Construction brackets are available for speakers as an accessory to help mark speaker placement during framing and prior to sheetrock application. The brackets will span up to

24” stud spacing. Pre-Construction brackets are not required for retrot applications.

In-Ceiling Pre-Construction Brackets

CB4

CB4 Page

CS140 12

CB5

CB5 Page

CS160 12

CB6

CB6 Page

C165 8 C165-T2 8 C265 8 C265-IDC 8 C265-FX 8 CS180 12 CSS230 13 CP-CT150 15

AWC265 30 AWC265-T2 30

CB8

CB8 Page

C180 9 C180-T2 9 C280 9 C280-IDC 9 C380-IDC 9 C380-FX 9 CP-CT260 15

PRO-80 28 AWC280 30 AWC280-T2 30

CB10

CB10 Page

CP-CT380 15 CP-CT380IDC 15 PLIC II 21

In-Wall Pre-Construction Brackets

WB3

WB3 Page

WSS130 14 WSS230 14 WSS430 14

WB6

WB6 Page

W165 10 W265 10 CP-WT150 16

WB8

WB8 Page

W180 11 W280 11 W280-IDC 11 W380-IDC 11 CP-WT260 16

WB10

WB12

WB12: Page

CP-IW260X 19 CP-IW460X 19

WB4LCR

WB4LCR Page

CP-WT140LCR 17 CP-WT240LCR 17

WB5LCR

WB5LCR Page

W150-LCR 10 W250-LCR 10

WBIV140

PRO-IC65 Bracket

CB8-LV

CB8-LVK

PRO-IC65 Page

PRO-65 28

CB8-LV Page

PRO-80LV 28

CB8-LVK Page

PRO-80LV 28

WB10 Page

CP-WT380 16 CP-WT380IDC 16

On-Wall Bracket

BSB

BSB (Soundbars) Page

SB-2 45 SB-3 45 SB-4 45

WBIV140 Page

IV140 26

Accessories Images Not To Scale

Back Boxes

In-Ceiling Concrete

CCBOX-R

Overall dimensions: 330 × 330 × 125 mm / 13 x 13 x 4 Internal depth (max.): 115 mm / 4

Internal volume 6.31 L

Prior to pouring a concrete ceiling the CCBOX-R (regular) or CCBOX-L (large)

allow you to create a placeholder ready for In-Ceiling speakers to be installed.

They are lightweight and at the same time oer a robust stability with excellent shock absorption features. Three cut out sizes oer unlimited possibilities,

with two side cut outs allow for best possible handling of electronic ductwork (20 mm + 25 mm). Better insulation with airborne and structure-borne noise compared to conventional In-Ceiling systems. Installation components provided

so that all conventional speaker systems will t perfectly.

1/2

CCBOX-L

Overall dimensions:

15/16

”

330 × 330 × 165 mm / 13 x 13 x 6

”

Internal depth (max.): 155 mm / 6 Internal volume 8.9 L

In-Ceiling MDF

CMBOX-R

No Ring 250 mm

1/2

”

1/8

”

Overall dimensions: 300 × 350 × 160 mm / 11

Internal volume 12.2 L

The CMBOX-R (regular) is a Back Box

made of MDF, which allows you to install speakers from our Core, Slim

and All Weather ranges into the ceiling. Comes with Small and Large Ring (tted)

adapters, which can also be removed.

13/16

3/4

x 13

x 6

In-Ceiling Concrete

5/16

”

Large Ring (Fitted) 218 mm

Small Ring 173 mm

In-Ceiling MDF

Installation Guide video available, scan the QR code or visit:

vimeo.com/monitoraudio/ccbox

In-Wall Concrete

WCBOX-L

The WCBOX-L (large) allows you to install In-Wall speakers into concrete or brick walls. With the front and rear Fermacell boards, the WCBOX-L will seamlessly integrate into your installation workow,

enabling a quick and easy processing of the walls surface. The body material is framed by EPS to achieve low resonances and improved sound insulation features.

The WCBOX-L is lightweight and at the same time oers a robust stability with

excellent shock absorption features.

Overall dimensions: 590 × 435 × 120 mm / 23 Internal depth (max.): 105 mm / 4 Cut out dimensions: 387 × 234 mm / 15

Internal volume 14.8 L

1/8

”

1/4

x 9

1/4

3/16

x 17

”

CCBOX-R

Models Page

C165 8 C165-T2 8 C265 8 CS140 12 CS160 12 CS180 12

AWC265 30 AWC265-T2 30

CCBOX-L

Models Page

C265-IDC 8 C265-FX 8 C180 9 C180-T2 9 C280 9 CP-CT150 15 CP-CT260 15

AWC280 30 AWC280-T2 30

In-Wall Concrete

WCBOX-L

Models Page

W180 11 W280 11 W280-IDC 11 W380-IDC 11 CP-WT260 16

* Indicates product requires minimum 12 mm (1/2”) plasterboard/Sheetrock

CMBOX-R

No Ring Page

C180 9 C180-T2 9 C280 9 C280-IDC 9* C380-IDC 9* C380-FX 9*

AWC280 30 AWC280-T2 30

Large Ring (Fitted)

C165 8 C165-T2 8 C265 8 C265-IDC 8 C265-FX 8 CS180 12

AWC265 30 AWC265-T2 30

Small Ring Page

CS160 12

Page

Product Specic Back Boxes

1/8

3/4

x 4

”

PLIC-BOX II

Please view Page 21 for full details of the Platinum In-Ceiling II speaker Back Box.

Installation Guide video available, scan the QR code or visit:

vimeo.com/monitoraudio/wcbox

IWB-10 (In-Wall Back Box)

Please view Page 39 for full details of the IIWS-10 In-Wall Subwoofer Back Box.

IWB-10 shown with installed IWS-10 and grille.

Grilles

Square and Circular Replacement Grille Order Codes

Square Grilles

All-round performance in a square.

Designed to suit the latest interior design trends, we oer optional

square grilles for some of our In-Ceiling speakers. Please view the table opposite for a list of models and the square grille order codes.

Outer Dimensions (Square): A: 249 mm / 9 B: 285 mm / 11 C: 309 mm / 12

13/16

1/4

3/16

” ”

”

Premium Grille

PG6-R Premium Grille

The Premium Grille has been designed and developed to add a stylish aesthetic to Monitor Audio Custom Install speakers. The hexagonal pattern dissipates towards the edge of the grille to

create a subtle design eect, whilst allowing maximum audio

performance from the speaker. Crafted from magnetised stainless

steel, the PG6-R Premium Grille oers an instant retro-t solution.

Each Premium Grille has been chemically etched to create a

hexagonal pattern and logo and then nely brushed. A durable

high quality PVD coating (Physical Vapour Deposition) is then

applied to produce a luxurious satin metal nish. Lastly, the logo has been paint-lled in black for a nishing signature touch.

The Premium Grille has been designed and developed to add a stylish aesthetic to Monitor Audio speaker custom installations.

In-Ceiling Models

Square Grille Size

Single* Square Grille Part Code

20 Pack* Square Grille Part Code

Replacement Circular Grille Part Code

Page

Core

C165 C165-T2 C265 C265-IDC C265-FX C180 C180-T2 C280 C280-IDC C380-IDC C380-FX

GCPCT6SQ G20PKCPCT6SQ GCI65T 8

GCPCT8SQ G20PKCPCT8SQ GCI8T 9

Slim

CS140**

CS180** GCWT8SQ GCWT8R

–

GCWT4SQ

–

GCWT4R

12CS160** GCWT6SQ GCWT6R

Super Slim

CSS230

GCPCT6SQ G20PKCT6SQ GCI65T 13

Controlled Performance

CP-CT150

CP-CT260

CP-CT380 CP-CT380IDC

CPC120 – – –

GCPCT6SQ G20PKCPCT6SQ GCPCT150

GCPCT8SQ G20PKCPCT8SQ GCPCT260

GCP8SQ G20PKCP8SQ GCPCT380

GCPC120 (Silver)

GCPC120 (White)

Platinum II

PLIC II

GCP8SQ G20PKCP8SQ GCPCT380 21

Flush Fit

CF230*** – CFB3SQ – CFB3R 24

Pro

PRO-65 – – – GPRO65

GCPCT8SQ G20PKCPCT8SQ GPRO80

PRO-80LV – – – GPRO80LV

All Weather

AWC265 AWC265-T2 AWC280 AWC280-T2

GAWC6SQ G20PKAWC6SQ GAWC6

GAWC8SQ G20PKAWC8SQ GAWC8

Custom Subwoofers

ICS-8*** – CFB3SQ – CFB3R 38

28PRO-80

Key Features:

• Stylish hexagonal pattern – shares a design heritage with Monitor Audio’s award-winning Silver Series

• Premium PVD (Physical Vapor Deposition) nish – as used in timepiece manufacture

• Magnetised stainless steel allows rapid installation

• Classic Monitor Audio logo detail

• Ideal for architectural installations or interiors where

an exceptional nish is desired

Finish: Silver Mist: brushed silver with a hint of blue to deliver a stylish appearance.

3/8

Dimensions: Diameter: 238.6 mm / 9

Models PGR-6 Page

”. Height: 7.65 mm /

Core

C165 C165-T2 C265 C265-IDC C265-FX

• 8

Super Slim

CSS230 • 13

Controlled Performance

CP-CT150 • 15

PG6-R Premium Grille

(Sold in packs of 4)

5/16

NOTES :

* Order quantities are subject to

individual account agreements

** All Slim models can be ordered

as round or square grille options

*** CF230 and ICS-8 models

require an install kit, round or square grille options

In-Wall Models

Core

W150-LCR W250-LCR W165 W265 W180 W280 W280-IDC W380-IDC

Replacement Grille Part Number

GWTLCRSQ 10

GCI65WTSQ 10

GCI8WTSQ 11

Page

Super Slim

”

WSS130 WSS230 WSS430

GSIW 14

Controlled Performance

CP-WT150 GCPWT150

CP-WT260 GCPWT260

CP-WT380 CP-CW380IDC CP-WT140LCR CP-WT240LCR CP-IW260X CP-IW460X

GCPWT380

GCPWTLCR 17

GCPIWX 18

Platinum II

PL IN-WALL II GPIW 23

Custom Subwoofers

IWS-10 GIWS10 39

Add bookshelf speakers to your installs

A-A

79.3 mm

3.12 in

, 0

0°

0 ,0

0 °

29.3 mm

Add bookshelf speakers to your project.

Enhance your custom install project with loudspeakers from Monitor Audio and choose

one of our complementary specialist mounts, designed for easy and secure installation.

Visit monitoraudio.com/bookshelf for more information on our speaker ranges.

Speaker Mounts

MASM

MASM is the ideal xing solution for users looking to free up oor or desk space. It allows our speakers

to be placed on the wall and features a rotating ball joint connection to give varied directional positioning.

Finishes: Black / White / Silver

Monitor Audio’s FIX-M speaker mount is designed for our middleweight speakers. FIX-M provides a strong wall mount solution, which enables speakers to be placed in a wide range of set positions and at matching angles, to ensure perfect sound dispersion. Three angles are set at 0, 15 and 30 degrees from centre, short and long insert arms are included, further increasing mounting options. The front section of the speaker mount can also be rotated,

Overall dimensions with short arm: Dia. 90.9 x 68.1 mm / Dia. 3

Overall dimensions with long arm: Dia. 90.9 x 136.1 mm / Dia. 3

9/16

x 2

x 5

11/16

3/8

”

multiplying the conguration options o axis to

give up to 14 typical positions. Installation is neatly achieved via a hexagonal plate behind the front of the speaker mount, which slots positively into set positions, displayed externally via indicator marks to its perimeter. Once you’re happy with the installation, the Snap Fit Clip should be inserted in the top of the speaker mount to completely secure the install.

Finishes: Black / White

Compatible with

MASM

Models

Radius 90 Radius 45

MASS Satellite Other manufacturers’

smaller speakers with an insert which is able to accept 1/4” 20 TPI UNC thread

Compatible withFIX-M

FIX-M

Models

Monitor 50 Bronze 50

Radius 90 Radius 45

MASS Satellite Other manufacturers’

medium speakers with an insert which is able to accept 1/4” 20 TPI UNC thread

Overall dimensions with short arm: Dia. 96.2 x 79.3 mm

13/16

1/8

x 3

13/16

x 5

1/16

”

Dia. 3

Overall dimensions with long arm: Dia. 96.2 x 128.8 mm Dia. 3



Installation Guide video available, scan the QR code or visit:

vimeo.com/monitoraudio/x-m

SPECIFICATIONS

These specications are supplied to aid installers to select which product is the best t for their project.

All Monitor Audio Custom Install products have CAD les available, ideal for architectural drawings.

These can be found along with individual product or range information on our website. Click on a product to nd out more.

Category

Core In-Ceiling

Application In-Ceiling

Model Name

C165 C165-T2 C265 C265-IDC C265-FX C180 C180-T2 C280 C280-IDC* C380-IDC* C380-FX*

Page 8 8 8 8 8 9 9 9 9 9 9

Sensitivity (1W@1m)

Cut Out Diameter

Mounting Depth

Overall Depth (With Grille)

Overall Diameter (With Grille)

Power Handling (RMS)

Impedance

Driver Size & Technology

Frequency Response

Maximum SPL

Recommended Amp Requirements

Additional Premium Grilles Dimensions

Additional Square Grille Dimensions

Feature

HF Level Switch (+3 dB/0 dB/-3 dB)

Boundary Compensation Switch

Bipole/ Dipole Switch

Construction Material

Weight

Pre-Construction Bracket

Back Box

88.5 dB 88.5 dB 88.5 dB 88.5 dB 88.5 dB 90 dB 90 dB 90 dB 90 dB 90 dB 90 dB

211 mm / 8

116 mm / 4

120 mm / 4

250 mm / 9

1/4

” 211 mm / 8

9/16

” 116 mm / 4

3/4

” 120 mm / 4

13/16

” 250 mm / 9

1/4

” 211 mm / 8

9/16

” 116 mm / 4

3/4

” 120 mm / 4

13/16

” 250 mm / 9

1/4

” 211 mm / 8

9/16

” 150 mm / 5

3/4

” 154 mm / 6

13/16

” 250 mm / 9

1/4

” 211 mm / 8

7/8

” 150 mm / 5

1/16

” 154 mm / 6

13/16

” 250 mm / 9

1/4

” 247 mm / 9

7/8

” 122 mm / 4

1/16

” 126 mm / 4

13/16

” 285 mm / 11

3/4

” 247 mm / 9

13/16

” 122 mm / 4

15/16

” 126 mm / 4

1/4

” 285 mm / 11

3/4

” 247 mm / 9

13/16

” 122 mm / 4

15/16

” 126 mm / 4

1/4

” 285 mm / 11

3/4

” 247 mm / 9

13/16

” 157 mm / 6

15/16

” 161 mm / 6

1/4

” 285 mm / 11

3/4

” 247 mm / 9

3/16

” 157 mm / 6

5/16

” 161 mm / 6

1/4

” 285 mm / 11

3/4

” 247 mm / 9

3/16

” 157 mm / 6

5/16

” 161 mm / 6

1/4

” 285mm / 11

65 W 65 W 75 W 85 W 85 W 120 W 120 W 120 W 120 W 150 W 120 W

6 Ohms 6 + 6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 + 6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms

1/2

”

6 MMP II driver 1” C-CAM tweeter

1/2

” MMP II driver 2 x 1” C-CAM tweeters

1/2

” C-CAM driver 1” C-CAM tweeter

1/2

”

C-CAM driver

4” C-CAM RST

driver 1” C-CAM tweeter

1/2

” C-CAM driver 2 x 1” C-CAM tweeters

8” MMP II driver 1” C-CAM tweeter

8” MMP II driver 2 x 1” C-CAM tweeters

8” C-CAM driver 1” C-CAM tweeter

8” C-CAM driver

4” C-CAM RST

driver 1” C-CAM tweeter

8”

C-CAM RST driver 4” C-CAM RST

driver 1” C-CAM tweeter

60 Hz – 25 kHz 60 Hz – 25 kHz 60 Hz – 30 kHz 60 Hz – 30 kHz 60 Hz – 30 kHz 50 Hz – 25 kHz 50 Hz – 25 kHz 50 Hz – 30 kHz 50 Hz – 30 kHz 45 Hz – 30 kHz 45 Hz – 30 kHz

107.4 dBA 107.9 dBA 108 dBA 108 dBA 108 dBA 111.6 dBA 111.6 dBA 111.6 dBA 111.6 dBA 112 dBA 111.6 dBA

20 – 65 W 20 – 65 W 20 – 75 W 20 – 85 W 20 – 85 W 30 – 120 W 30 – 120 W 30 – 120 W 30 – 120 W 40 – 150 W 30 – 120 W

238.6 mm / 9

249 mm / 9

3/8

” 238.6 mm / 9

13/16

” 249 mm / 9

3/8

” 238.6 mm / 9

13/16

” 249 mm / 9

3/8

” 238.6 mm / 9

13/16

” 249 mm / 9

3/8

” 238.6 mm / 9

13/16

” 249 mm / 9

3/8

” - - - - - -

13/16

” 285 mm / 11

1/4

” 285 mm / 11

1/4

” 285 mm / 11

1/4

” 285 mm / 11

1/4

” 285 mm / 11

1/4

” 285 mm / 11

- T2 - IDC FX - T2 - IDC IDC FX

Yes - Yes Yes Ye s Ye s Ye s Yes Ye s Yes Ye s

- Yes Yes - - - Yes Ye s Yes -

- - - - Yes - - - - - Yes Additional 12 V

Mineral lled

ABS plastic,

RoHS2

Compliant

1.92 kg 4 lb 4 oz

Mineral lled

ABS plastic,

RoHS2

Compliant

2.08 kg 4 lb 10 oz

Mineral lled

ABS plastic,

RoHS2

Compliant

2.04 kg 4 lb 8 oz

Mineral lled ABS plastic,

RoHS2 Compliant

2.54 kg 6 lb 10 oz

Mineral lled

ABS plastic,

RoHS2

Compliant

2.08 kg 4 lb 10 oz

Mineral lled

ABS plastic,

RoHS2

Compliant

2.72 kg 6 lb

Mineral lled

ABS plastic,

RoHS2

Compliant

3 kg 6 lb 10 oz

Mineral lled

ABS plastic,

RoHS2

Compliant

2.8 kg 6 lb 2 oz

Mineral lled ABS plastic,

RoHS2 Compliant

3.42 kg 7 lb 8 oz

Mineral lled ABS plastic,

RoHS2 Compliant

3.64 kg 8 lb

CB6 (Purple) CB6 (Purple) CB6 (Purple) CB6 (Purple) CB6 (Purple) CB8 (Green) CB8 (Green) CB8 (Green) CB8 (Green) CB8 (Green) CB8 (Green)

CCBOX-R / CMBOX-R

CCBOX-L /

CMBOX-R

CCBOX-L /

CMBOX-R

CCBOX-L /

CMBOX-R

CCBOX-L /

CMBOX-R

CCBOX-L /

CMBOX-R

CMBOX-R CMBOX-R CMBOX-R

3/4

”

3/16

”

5/16

”

1/4

”

8” C-CAM RST driver 2 x 1” C-CAM tweeters

1/4

”

Trigger Switching

Mineral lled ABS plastic,

RoHS2 Compliant

3.2 kg 7 lb

Category

Core In-Wall

Application In-Wall

Model Name

W150-LCR W250-LCR W165 W265 W180 W280 W280-IDC W380-IDC

Page 10 10 10 10 11 11 11 11

Sensitivity (1W@1m)

Cut Out Dimensions (H x W)

Mounting Depth

Overall Depth (With Grille)

Overall Dimensions (With Grille) (H x W)

Power Handling (RMS)

Impedance

Driver Size & Technology

Frequency Response

Maximum SPL

Recommended Amp Requirements

Feature

HF Level Switch (+3 dB/0 dB/-3 dB)

MF Level Switch (+3 dB/0 dB/-3 dB)

Boundary Compensation Switch

Construction Material

Weight

Pre-Construction Bracket

Back Box

88 dB 88 dB 88.5 dB 88.5 dB 90 dB 90 dB 90 dB 90 dB

145 x 353 mm

3/4

7/8

x 13

”

100.2 mm / 4” 100.2 mm / 4” 92 mm / 3

1/8

105 mm / 4

177.4 x 385.2 mm

3/16

”

7 x 15

145 x 353 mm

3/4

x 13

” 105 mm / 4

177.4 x 385.2 mm

3/16

7 x 15

7/8

”

1/8

”

332 x 213 mm

1/16

x 8

” 96 mm / 3

370 x 250 mm

9/16

x 9

3/8

”

5/8

” 92 mm / 3

3/4

” 96 mm / 3

13/16

332 x 213 mm 13

370 x 250 mm

”

1/16

3/8

x 8

”

5/8

” 100 mm / 3

3/4

” 104 mm / 4

9/16

13/16

x 9

”

387 x 234 mm

1/4

3/16

x 9

”

441 x 288 mm

3/8

5/16

x 11

387 x 234 mm

1/4

15/16

1/8

”

” 100 mm / 3

” 104 mm / 4

441 x 288 mm

3/8

3/16

x 9

”

15/16

” 100 mm / 3

1/8

” 104 mm / 4

5/16

x 11

”

387 x 234 mm

1/4

3/16

x 9

”

441 x 288 mm

3/8

5/16

x 11

15/16

” 100 mm / 3

1/8

” 104 mm / 4

”

100 W 100 W 65 W 65 W 120 W 120 W 150 W 150 W

8 Ohms 8 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms

2 x 5” MMP II drivers 1” C-CAM tweeter

2 x 5” C-CAM drivers 1” C-CAM tweeter

1/2

” MMP II driver

6 1” C-CAM tweeter

1/2

” C-CAM driver

1” C-CAM tweeter

8” MMP II driver 1” C-CAM tweeter

8” C-CAM driver 1” C-CAM tweeter

8” C-CAM driver 4” C-CAM RST driver 1” C-CAM tweeter

60 Hz – 30 kHz 60 Hz – 30 kHz 60 Hz – 25 kHz 55 Hz – 30 kHz 50 Hz – 25 kHz 45 Hz – 30 kHz 45 Hz – 30 kHz 45 Hz – 30 kHz

108 dBA 108 dBA 107.4 dBA 107.4 dBA 111.6 dBA 111.6 dBA 111.6 dBA 112 dBA

30 – 100 W 30 – 100 W 20 – 65 W 20 – 65 W 30 – 120 W 30 – 120 W 40 – 150 W 40 – 150 W

LCR LCR - - - - IDC IDC

- Yes Ye s Ye s Yes Ye s Yes Ye s

- - - - - - - Ye s

- - - Yes - Yes Yes Ye s

Mineral lled ABS plastic, RoHS2 Compliant

3.76 kg / 8 lb 3oz 3.80 kg / 8 lb 4 oz 2.21 kg / 4 lb 14 oz 2.26 kg / 5 lb 3.08 kg / 6 lb 12 oz 3.1 kg / 6 lb 14 oz 3.6 kg / 7 lb 14 oz 4.1 kg / 9 lb

WB5LCR (Yellow) WB5LCR (Yellow) WB6 (Purple) WB6 (Purple) WB8 (Green) WB8 (Green) WB8 (Green) WB8 (Green)

- - - - WCBOX-L WCBOX-L WCBOX-L WCBOX-L

387 x 234 mm

1/4

3/16

x 9

”

15/16

”

1/8

”

441 x 288 mm

3/8

5/16

x 11

”

8” C-CAM RST driver 4” C-CAM RST driver

1” C-CAM tweeter

Mineral lled ABS plastic, RoHS2 Compliant

Plasterboard/Sheetrock maximum mounting thickness

This table shows the minimum and maximum mounting thickness of the plasterboard/Sheetrock required for Monitor Audio Custom Install products.

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

Most products unless stated below 9 mm – 30 mm /

In-Ceiling IDC* 12 mm – 50 mm /

Super Slim** 9 mm – 15 mm /

3/8

” – 1

1/2

” –

” – 1

9/16

3/16

15/16

”

SPECIFICATIONS

These specications are supplied to aid installers to select which product is the best t for their project.

All Monitor Audio Custom Install products have CAD les available, ideal for architectural drawings.

These can be found along with individual product or range information on our website. Click on a product to nd out more.

Category

Application In-Ceiling / In-Wall In-Ceiling In-Wall

Model Name

Page 12 12 12 13 14 14 14

Sensitivity (1W@1m)

Cut Out Diameter or Dimensions (H x W)

Mounting Depth

Overall Depth (With Grille)

Overall Diameter or Dimensions (With Grille) (H x W)

Power Handling (RMS)

Impedance

Driver Size & Technology

Frequency Response

Maximum SPL

Recommended Amp Requirements

Optional/Additional Grilles (Dimensions)

Construction Material

Weight

Pre-Construction Bracket

Back Box

Slim Super Slim

CS140 Round/Square

85 dB 88 dB 90 dB 86 dB 87 dB 87 dB 87 dB

149 mm

7/8

”

7/8

” 99 mm / 3

99 mm / 3

103.4 mm

1/16

”

Round: 180.2 mm / 7

Square: 176.7 x 176.7 mm

15/16

x 6

”

50 W 70 W 120 W 40 W – Full range

6 Ohms 6 Ohms 6 Ohms 8 Ohms 8 Ohms 8 Ohms 8 Ohms

4“ MMP II driver 1” C-CAM tweeter

75 Hz – 30 kHz 60 Hz – 30 kHz 48 Hz – 30 kHz 100 Hz – 30 kHz (Sealed CP)

102.8 dBA 107.2 dBA 110.6 dBA 103.8 dBA 105.6 dBA 105.6 dBA 106.5 dBA

10 – 50 W 15 – 70 W 30 – 120 W 10 – 60 W 10 – 100 W 10 – 100 W 10 – 120 W

Order Round or Square Order Round or Square Order Round or Square Premium: 238.6 mm / 9

Mineral lled ABS plastic, RoHS2 Compliant

1.18 kg / 2 lb 10 oz 2.10 kg / 4 lb 6 oz 2.72 kg / 6 lb 2.88 kg / 6 lb 5 oz 1.4 kg / 3 lb 2 oz 1.4 kg / 3 lb 2 oz 1.1 kg / 2 lb 6 oz

CB4 (Pink) CB5 (Blue) CB6 (Purple) CB6 (Purple) WB3 (Dark blue) WB3 (Dark blue) WB3 (Dark blue)

CCBOX-R CCBOX-R / CMBOX-R CCBOX-R / CMBOX-R - - - -

CS160 Round/Square

170 mm

11/16

”

102.8 mm

1/16

”

1/8

”

Round: 204.2 mm / 8

Square: 199.2 x 199.2 mm

13/16

x 7

6” MMP II driver 1” C-CAM tweeter

Mineral lled ABS plastic, RoHS2 Compliant

CS180 Round/Square

213 mm

3/8

7/8

” 99.4 mm / 3

”

103.3 mm

1/16

”

1/16

”

Round: 251.7 mm / 9

Square: 246.7 x 246.7 mm

11/16

x 9

8” MMP II driver 1” C-CAM tweeter

Mineral lled ABS plastic, RoHS2 Compliant

CSS230** WSS130** WSS230** WSS430**

211 mm

1/4

15/16

” 50 mm / 2” 50 mm / 2” 50 mm / 2” 50 mm / 2”

11/16

”

54 mm

1/8

”

15/16

”

250 mm

13/16

60 W – Crossover set to 100 Hz @ 12 dB/Octave

3 x 3” C-CAM drivers

3/4

” C-CAM tweeter

”

85 Hz – 30 kHz (Open back)

Square: 249 mm / 9

Mineral lled ABS plastic, RoHS2 Compliant

346 x 101 mm

1/2

x 4”

54.25 mm

1/8

”

385 x 140.5 mm

1/2

15 x 5

”

60 W – Full range 100 W – Crossover set to 100 Hz @ 12 dB/Octave

3 x 3” MMP II drivers 1” C-CAM tweeter

346 x 101 mm

1/2

x 4”

54.25 mm

1/8

”

385 x 140.5 mm

1/2

15 x 5

”

60 W – Full range 100 W – Crossover set to 100 Hz @ 12 dB/Octave

3 x 3” C-CAM drivers 1” C-CAM tweeter

75 Hz – 30 kHz 75 Hz – 30 kHz 70 Hz – 50 kHz

3/8

”

- - -

13/16

”

Mineral lled ABS Plastic, RoHS2 Compliant

346 x 101 mm

1/2

x 4”

54.25 mm

1/8

”

385 x 140.5 mm

1/2

15 x 5

”

75 W – Full range 120 W – Crossover set to 100 Hz @ 12dB/Octave

3 x 3” C-CAM drivers MPD HF transducer

Mineral lled ABS Plastic, RoHS2 Compliant

Category

Controlled Performance

Application In-Ceiling In-Wall In-Ceiling

Model Name

CP-CT150 CP-CT260 CP-CT380 CP-CT380

IDC

CP-WT150 CP-WT260 CP-WT380 CP-WT380

IDC

CP-WT140 LCR

CP-WT240 LCR

CP-IW260X CP-IW460X CPC120

Page 15 15 15 15 16 16 16 16 17 17 18 – 19 18 – 19 17

Sensitivity (1W@1m)

Cut Out Diameter or Dimensions (H x W)

Mounting Depth

Overall Depth (With Grille)

Overall Diameter or Dimensions (With Grille) (H x W)

Power Handling (RMS)

Impedance

Driver Size & Technology

Frequency Response

Maximum SPL

Recommended Amp Requirements

Additional Premium Grilles Dimensions

Additional Square Grilles Dimensions

Feature

HF Level Switch (+3 dB/0 dB/-3 dB)

MF Level Switch (+3 dB/0 dB/-3 dB)

Boundary Compensation Switch

Construction Material

Weight

Pre-Construction Bracket

Back Box

85 dB 88 dB 89 dB 89 dB 85 dB 88 dB 89 dB 89 dB 88 dB 88 dB 89 dB 89 dB 85 dB

212 mm

3/8

151 mm

15/16

155 mm

1/8

250 mm

13/16

244 mm

”

5/8

151 mm

15/16

”

155 mm

1/8

285 mm

”

50 W 65W 120 W 120 W 50 W 65 W 120 W 120 W 100 W 100 W 150 W 150 W 20 W

6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms 8 Ohms

5” MMP II driver 1” C-CAM tweeter

75 Hz – 25 kHz

6” C-CAM driver 1” C-CAM tweeter

66 Hz – 25 kHz

274 mm

”

181 mm

1/8

”

187 mm

”

1/4

3/8

309 mm

”

8” C-CAM RST driver 1” C-CAM tweeter

50 Hz – 25 kHz

274 mm

13/16

”

181 mm

”

3/16

1/8

187 mm

3/8

309 mm

”

8” C-CAM RST driver 4” C-CAM IDC driver 1” C-CAM tweeter

50 Hz – 30 kHz

326 x

13/16

”

207 mm

13/16

1/8

x 8

96 mm

3/4

”

102 mm 4”102 mm 4”106 mm

”

360.5 x

3/16

”

242 mm

3/16

1/2

x 9

5” MMP II driver 1” C-CAM tweeter

75 Hz – 25 kHz

”

381 x 228 mm 15 x 9”

96 mm

3/4

”

415 x

262.5 mm

5/16

x 10

6” C-CAM driver 1” C-CAM tweeter

65 Hz – 25 kHz

5/16

438 x 269 mm 17

99 mm

7/8

3/16

472.5 x

303.5 mm

”

8” C-CAM RST driver 1” C-CAM tweeter

50 Hz – 25 kHz

438 x 269 mm

1/4

9/16

x 10

”

99 mm

7/8

”

106 mm

3/16

”

472.5 x

303.5 mm

5/8

15/16

x 11

”

8” C-CAM RST driver 4” C-CAM IDC driver 1” C-CAM tweeter

50 Hz – 30 kHz

183 x 299 mm

1/4

9/16

3/16

x 10

”

97 mm

13/16

”

103 mm

1/16

”

217 x 333 mm

5/8

15/16

9/16

x 11

”

2 x 4” MMP II drivers 1” C-CAM tweeter

60 Hz – 25 kHz

x 11

”

x 13

3/4

”

1/16

”

183 x 299 mm

3/16

3/4

x 11

97 mm

13/16

”

103 mm

1/16

”

217 x 333 mm

9/16

1/16

x 13

2 x 4” C-CAM drivers 1” C-CAM tweeter

60 Hz – 25 kHz

”

880 x 230 mm

21/32

96 mm

3/4

”

x 9”

880 x 230 mm

21/32

x 9”

96 mm

3/4

”

102 mm 4”102 mm 4”96 mm

907 x 257 mm

”

2 x 6 drivers 2 x 4” C-CAM drivers 1” C-CAM tweeter

50 Hz – 30 kHz

3/4

” x 10

1/2

” C-CAM

1/8

”

907 x 257 mm

3/4

1/8

” x 10

1/2

2 x 6

” C-CAM RST drivers 2 x 4” C-CAM RST drivers HF ribbon transducer

50 Hz – 60 kHz

”

65 mm

1/2

”

91.5 mm

5/8

”

3/4

”

80 mm

1/8

”

50 W using crossover @

200 Hz

2” micro driver

100 Hz – 20 kHz

102.8 dBA 106.9 dBA 109.6 dBA 109.6dBA 102.8 dBA 106.9 dBA 109.6 dBA 109.6 dBA 108.8 dBA 108.8 dBA 113.8 dBA 113.8 dBA 101.9 dBA

20 – 50 W 20 – 65 W 30 – 120 W 30 – 120W 20 – 50 W 20 – 65 W 30 – 120 W 30 – 120 W 20 – 100 W 20 – 100 W 60 – 150 W 60 – 150 W 5 – 20 W

238.6 mm

3/8

249 mm

13/16

- - - - - - - - - - - -

”

285 mm

”

309 mm

1/4

”

309 mm

3/16

”

- - - - - - - - -

3/16

”

5 – 50 W using

a crossover

- - - IDC - - - IDC LCR LCR Full Size Full Size Micro

Yes Ye s Yes Ye s Ye s Yes Ye s Ye s Yes Ye s Yes

- - - Yes - - - Ye s - - Yes

(+1/0/-1 dB)

Yes (+1/0/-1 dB)

- Ye s Yes Ye s - Ye s Ye s Yes - Yes Ye s Ye s -

Mineral lled

ABS plastic,

RoHS2

Compliant

2.14 kg 4 lb 12 oz

CB6 (Purple) CB8 (Green) CB10

Mineral lled

ABS plastic,

RoHS2

Compliant

2 kg 6 lb 2 oz

Mineral lled

ABS plastic,

RoHS2

Compliant

3.74 kg 8 lb 4 oz

(Light brown)

Mineral lled

ABS plastic,

RoHS2

Compliant

4.3 kg 9 lb 8 oz

CB10 (Light brown)

Mineral lled

ABS plastic,

RoHS2

Compliant

2.65 kg 5 lb 14 oz

WB6 (Purple) WB8 (Green) WB10

Mineral lled

ABS plastic,

RoHS2

Compliant

3.31 kg 7 lb 4 oz

Mineral Filled ABS plastic / Die-Cast Aluminium

Bae, RoHS2

Compliant

4.95 kg 10 lb 14 oz

(Light brown)

Mineral Filled ABS plastic / Die-Cast Aluminium

Bae, RoHS2

Compliant

5.62 kg 12 lb 6 oz

WB10 (Light brown)

Mineral lled

ABS plastic,

RoHS2

Compliant

2.5 kg 5 lb 8 oz

WB4LCR

(Dark brown)

Mineral lled

ABS plastic,

RoHS2

Compliant

2.5 kg 5 lb 8 oz

WB4LCR

(Dark brown)

Mineral lled

ABS plastic,

RoHS2

Compliant

11.98 kg 26 lb 6 oz

Cast Polymer / Die-Cast Aluminium

Bae, RoHS2

Compliant

12.98 kg 28 lb 6 oz

WB12 (Green) WB12 (Green) -

Steel Bezel / Aluminium Enclosure

0.19 kg 7 oz

CCBOX-L CCBOX-L - - - WCBOX-L - - - - - - -

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

SPECIFICATIONS

These specications are supplied to aid installers to select which product is the best t for their project.

All Monitor Audio Custom Install products have CAD les available, ideal for architectural drawings.

These can be found along with individual product or range information on our website. Click on a product to nd out more.

Category

PLATINUM II

Flush Fit Invisible Pro

Application In-Ceiling In-Wall In-Ceiling In-Wall In-Ceiling

Model Name

PLIC II Platinum In-Wall II CF230 IV140 PRO-65 PRO-80 PRO-80LV

Page 20 – 21 22 – 23 24 – 25 26 – 27 28 28 28

Sensitivity (1W@1m)

Cut Out Diameter or Dimensions (H x W)

Mounting Depth

Overall Depth (With Grille)

Overall Diameter or Dimensions (With Grille) (H x W)

Power Handling (RMS)

Impedance

Driver Size & Technology

Frequency Response

Maximum SPL

Recommended Amp Requirements

Additional Square Grilles Dimensions

Feature

HF Level Switch (+1dB/0dB/-1dB)

MF Level Switch (+1dB/0dB/-1dB)

Construction Material

Weight

Pre-Construction Bracket

90 dB 90 dB 82.5 dB 82 dB (when installed as directed) 86 dB 87 dB 87 dB

273 mm

3/4

”

5/16

185 mm / 7

191.5 mm / 7

309 mm 12

” 97.5 mm / 3

1/2

” 106.5 mm / 4

3/16

”

150 W 200 W 30 W – Full range – IEC268-5 rating

4 Ohms Nominal

(3.1 Ohms minimum @ 1.1 kHz)

8” RDT II bass driver

2 x 2” C-CAM mid-range drivers MPD HF transducer

1179 x 302 mm

7/16

7/8

x 11

”

14/16

” 81.5 mm / 3

4/16

1207 x 332 mm

9/16

1/16

x 13

”

4 Ohms (3.7 Ohms min.

@ 2.8 kHz)

1/2

2 x 6

” RDT II drivers

4” RDT II driver

MPD HF transducer

Flush Fit 120 mm / 4

Retrot 90 mm / 3

” 83.62 mm / 3

112 mm

7/16

”

100 W – Music program (Using High Pass crossover lter @120 Hz)

8 Ohms 8 Ohms 8 Ohms 8 Ohms 16 Ohms

1/2

” Bass/mid-range C-CAM driver

3/4

” C-CAM Gold Dome tweeter

45 Hz – 60 kHz 52 Hz – 100 kHz 100 Hz – 25 kHz 75 Hz – 18 kHz (CP sealed)

112 dBA 117 dBA (pair) 98 dBA (Each – Full range)

50 – 150 W 100 – 200 W 10 – 30 W (Full range)

3/16

309 mm / 12

” - - - - 285 mm / 11

103.3 dBA (Each – Using crossover)

10 – 100 W (Using High Pass crossover lter @120 Hz)

3/4

”

9/16

”

3/16

” 94 mm / 3

5/16

” 106 mm / 4

591 x 350.5 mm 23

642 x 401.5 mm 25

50 W – Full range – IEC268-5 rating 100 W – Music program (Using Minimum 80 Hz High Pass lter)

1 x LF transducer 2 x HF transducers

55 Hz – 18 kHz (Open back)

102.8 dBA 101.5 dBA 103.8 dBA 103.8 dBA

20 – 50 W (Full range) 20 – 100 W (Using Minimum 80 Hz High Pass lter)

1/4

13/16

” x 13

”

11/16

” 87.7 mm / 3

3/16

” 92.7 mm / 3

1/4

13/16

” x 15

”

205 mm

1/16

”

232.5 mm

6/16

”

248 mm

3/4

”

7/16

” 98.1 mm / 3

11/16

” 103 mm / 4

273 mm

3/4

1/16

”

7/8

” 101.4 mm / 4”

” 114 mm / 4

30 W 40 W 40 W

1/2

” MMP II driver 1” fabric soft dome tweeter

8” MMP II driver 1” fabric soft dome tweeter

75 Hz – 20 kHz 60 Hz – 20 kHz 65 Hz – 25 kHz

10 – 30 W 10 – 40 W 10 – 40 W

1/4

” -

- - - - - - LINE VOLTAGE

Yes Ye s - - - - -

Mineral lled ABS plastic, RoHS2

Compliant, Die cast Aluminium

25 mm MDF with steel back

Mineral lled ABS plastic, RoHS2 Compliant

MDF Mineral lled ABS

plastic, RoHS2

Compliant

Mineral lled ABS plastic, RoHS2

Compliant

5.3 kg / 11 lb 10 oz 27 kg / 59 lb 8 oz 0.44 kg / 1 lb 9 kg / 20 lb 1.86 kg / 4 lb 2 oz 2.42 kg / 5 lb 5 oz 4.85 kg / 10 lb 11 oz

CB10 (Light brown) - Flush Fit – CFB3-R (round) /

CFB3-SQ (square). Pre-construction bracket included in above kits

WBIV140 PRO-IC65

Construction Bracket

CB8 (Green) CB8-LV

Retrot – CFB3-KIT

Back Box

PLIC-BOX II or a bespoke sealed enclosure of 24 L

- - - - - -

266 mm

1/2

”

8/16

294 mm 11

70 V (4,8, 16,32,64 W) / 100 V (8,16,32,64 W)

power selection

8” MMP II driver 1” C-CAM tweeter

Mineral lled ABS plastic, RoHS2 Compliant /

Steel rear enclosure

”

9/16

”

CB8-LVK

Category

All Weather

Application In-Ceiling

Model Name

AWC265 AWC265-T2 AWC280 AWC280-T2

Page 30 30 30 30

Sensitivity (1W@1m)

Cut Out Diameter or Dimensions (H x W)

Mounting Depth

Overall Depth (With Grille)

Overall Diameter or Dimensions (With Grille) (H x W)

Power Handling (RMS)

Impedance

Driver Size & Technology

Frequency Response

Maximum SPL

Recommended Amp Requirements

Additional Square Grilles Dimensions

Feature

HF Level Switch (+3 dB/0 dB/-3 dB)

Construction Material

Weight

Operating Temperature Range

IP Ratings

Pre-Construction Bracket

Back Box

88 dB 88 dB (both channels driven) 89 dB 89 dB (both channels driven)

211 mm

1/4

”

88.5 mm

1/2

”

93.5 mm

1/2

”

251.7 mm

13/16

”

211 mm

1/4

”

88.5 mm

1/2

”

93.5 mm

1/2

”

251.7 mm

13/16

”

247 mm

3/4

”

97.6 mm

7/8

”

102.5 mm

1/32

”

285 mm

1/4

”

60 W 60 W 100 W 100 W

8 Ohms

4.4 Ohms @ 190 Hz

1/2

” C-CAM driver

1” C-CAM tweeter

8 + 8 Ohms

4.5 Ohms @ 185 Hz

1/2

” C-CAM driver

2 x 1” C-CAM tweeters

8 Ohms

4.5 Ohms @ 185 Hz

8” C-CAM driver 1” C-CAM tweeter

60 Hz – 30 kHz 60 Hz – 30 kHz 50 Hz – 30 kHz 50 Hz – 30 kHz

105.8 dBA 105.8 dBA 109 dBA 109 dBA

20 – 60 W 20 – 60 W 20 – 100 W 20 – 100 W

249 mm

13/16

”

249 mm

13/16

285 mm

”

1/4

”

- T2 - T2

Yes Yes Yes Yes

Mineral Filled PC-ABS Polymer (UL V0 Fire

Retardant, RoHS2 Compliant) SS430 Stainless

Steel / Samarium Cobalt

Mineral Filled PC-ABS Polymer (UL V0 Fire

Retardant, RoHS2 Compliant) SS430 Stainless

Steel / Samarium Cobalt

Mineral Filled PC-ABS Polymer (UL V0 Fire

Retardant, RoHS2 Compliant) SS430 Stainless

Steel / Samarium Cobalt

2.14 kg / 4 lb 12 oz 2.14 kg / 4 lb 12 oz 2.8 kg / 6 lb 2 oz 2.8 kg / 6 lb 2 oz

-34° to 79° C

-29° to 174° F

-34° to 79° C

-29° to 174° F

-34° to 79° C

-29° to 174° F

IP55 IP55 IP55 IP55

CB6 (Purple) CB6 (Purple) CB8 (Green) CB8 (Green)

CCBOX-R / CMBOX-R CCBOX-R / CMBOX-R CCBOX-L / CMBOX-R CCBOX-L / CMBOX-R

247 mm

3/4

”

97.6 mm

7/8

”

102.5 mm

1/32

”

285 mm

1/4

”

8 + 8 Ohms

4.5 Ohms @ 185 Hz

8” C-CAM driver 2 x 1” C-CAM tweeters

285 mm

1/4

”

Mineral Filled PC-ABS Polymer (UL V0 Fire

Retardant, RoHS2 Compliant) SS430 Stainless

Steel / Samarium Cobalt

-34° to 79° C

-29° to 174° F

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

SPECIFICATIONS

These specications are supplied to aid installers to select which product is the best t for their project.

All Monitor Audio Custom Install products have CAD les available, ideal for architectural drawings.

These can be found along with individual product or range information on our website. Click on a product to nd out more.

Category

Climate Vecta

Application Wall Mounted Wall / Corner / Cluster Mounted

Model Name

Climate 50 Climate 60 Climate 60-T2 Climate 80 V240 V240-LV

Page 31 31 31 31 32 – 35 32 – 35

Sensitivity (1W@1m)

Overall Depth (With Grille)

Overall Depth (With Bracket)

Overall Diameter or Dimensions (With Grille) (H x W)

Power Handling (RMS)

Impedance

Switch

Driver Size & Technology

Frequency Response

Maximum SPL

Recommended Amp Requirements

Feature

Construction Material

Weight

Operating Temperature Range

IP Ratings

Brackets

Category

87 dB 88 dB 88 dB 89.5 dB 88 dB 88 dB

5/16

160 mm / 6

210.4 mm / 8

285 x 172.5 mm

1/4

13/16

x 6

”

” 180 mm / 7

5/16

” 235.4 mm / 9

325 x 185 mm

13/16

5/16

x 7

2/16

” 180 mm / 7

5/16

” 235.4 mm / 9

”

325 x 185 mm

13/16

2/16

” 221.5 mm / 8

5/16

” 273 mm / 10

5/16

x 7

”

405 x 230 mm

15/16

1/16

x 9

12/16

” 150 mm / 5

3/4

” 175.4 mm / 6

”

Excluding Mounts

335.9 x 243.2 mm / 13

7/8

” 150 mm / 5

7/8

” 175.4 mm / 6

1/4

9/16

x 9

”

Excluding Mounts

335.9 x 243.2 mm / 13

80 W 100 W 2 x 50 W 120 W 100 W 100 W

8 Ohms 8 Ohms 8 + 8 Ohms 8 Ohms 4 Ohms 70/100 V line level

- - - - - 70 V (2, 4, 8, 16, 32) power level

1/2

” C-CAM driver

1” C-CAM tweeter

ABR

1/2

” C-CAM driver

1” C-CAM tweeter

ABR

1/2

” C-CAM driver

2 x 1” C-CAM tweeters

ABR

8” C-CAM driver 1” C-CAM tweeter

ABR

2 x 4” C-CAM drivers 1” C-CAM tweeter

75 Hz – 30 kHz 63 Hz – 30 kHz 63 Hz – 30 kHz 50 Hz – 30 kHz 70 Hz – 25 kHz 70 Hz – 25 kHz

106.8 dBA 108.8 dBA 108.8 dBA 111.1 dBA 108 dBA (each) 108 dBA (each)

10 – 80 W 15 – 100 W 15 – 100 W 20 – 120 W 25 – 100 W 25 – 100 W

- - T2 - - -

High-density polypropylene enclosure / Aluminium grille

Mineral lled ABS plastic, RoHS2 Compliant

3.66 kg / 8 lb 1 oz 4.62 kg / 10 lb 3 oz 5.02 kg / 11 lb 1 oz 6.53 kg / 14 lb 6 oz 2.55 kg / 5 lb 10 oz 3.56 kg / 7 lb 14 oz

-25º to 65º C

-13º to 149º F

-25º to 65º C

-13º to 149º F

-25º to 65º C

-13º to 149º F

-25º to 65º C

-13º to 149º F

-25º to 65º C

-13º to 149º F

-25º to 65º C

-13º to 149º F

IP55 IP55 IP55 IP55 IP55 IP55

- - - - V-Mount / V-Corner V-Mount / V-Corner / V-Cluster

Climate Garden System

Application In-Ground / Mounted Subwoofers

Model Name

CLG140 CLG160 CLG-W10 CLG-W12

Page 36 36 37 37

Sensitivity (1W@1m)

Overall Diameter or Dimensions (With Grille) (H x W)

Power Handling (RMS)

Impedance

Driver Size & Technology

Frequency Response

Maximum SPL

Recommended Amp Requirements

Construction Material

Weight

Operating Temperature Range

IP Ratings

Mount

88 dB 89 dB 85 dB 87 dB

Excluding Mount/Spike 130 x 175 mm / 5

40 W (Crossover set to minimum 100 Hz @ 12 dB/Octave)

1/8

7/8”

x 6

Excluding Mount/Spike 190 x 220 mm / 7

60 W (Crossover set to minimum 80 Hz @12 dB/Octave)

1/2

11/16

x 8

”

340 mm x 434.5 mm

3/8

1/8

x 17

”

750 x 380 x 576 mm

1/2

150 W (IEC268-5) 250 W

x 14

15/16

x 22

70/100 V line level 70/100 V line level 4 Ohms or 70/100 V line level (cable select) 4 Ohms or 70/100 V line level (cable select)

4” MMP II driver 1” C-CAM tweeter

6” MMP II driver 1” C-CAM tweeter

10” ‘ICD’ subwoofer C-CAM cone

12” C-CAM bass driver

100 Hz – 30 kHz 80 Hz – 30 kHz 35 Hz – 150 Hz 30 Hz – 100 Hz

104 dBA 107 dBA 105 dB @100 Hz 110 dBA

10 – 40 W per speaker 10 – 60 W per speaker 80 – 150 W R.M.S 100 – 250 W

Rigid, high impact cast polymer cabinet for long life

and durability

Rigid, high impact cast polymer cabinet for long

life and durability

Rotational moulded LDPE – Sealed cabinet High impact moulded cabinet –

robust and waterproof

2.08 kg / 4 lb 10 oz 2.76 kg / 6 lb 2 oz 11.9 kg / 26 lb 2 oz 19.5 kg / 42 lb 14 oz

-20º to 70° C

-4º to 158° F

-20º to 70° C

-4º to 158° F

- -

IP55 IP55 IP54 IP54

CLG-Mount / CLG-Spike R CLG-Mount / CLG-Spike R - -

7/8

”

7/8

”

1/4

9/16

x 9

”

11/16

”

Category

Custom Subwoofers

Application In-Ceiling In-Wall Rack Mounted / Free Standing Free Standing

Model Name

ICS-8 IWS-10 IWA-250 Amplier CW8 CW10

Page 38 39 39 40 40

Sensitivity (1W@1m)

Cut Out Diameter or Dimensions (H x W)

Mounting Depth

Overall Dimensions (With Grille) (H x W x D)

Power Handling (RMS)

Impedance

Driver Size & Technology

Frequency Response

Maximum SPL

Amplier Power Output

Amplier Classication

Construction Material

Weight

Brackets

85 dB 86 dB - - -

120 mm

3/4

”

280 x 280 mm 11 x 11”

- 90 mm / 3

235 x 280 x 396 mm

1/4

9/16

x 11 x 15

150 W – Full range – IEC268-5 rating

”

314.21 x 314.21 x 100.78 mm

3/8

x 12

150 W - - -

1/2

” - - -

3/8

15/16

x 3

”

- - -

43.7 x 432 x 263 mm

3/4

3/8

x 17 x 10

”

270 x 260 x 276 mm

5/8

1/4

x 10

7/8

”

8 Ohms 8 Ohms - - -

8” C-CAM driver 10” C-CAM RDT driver - 8” C-CAM driver

2 x 8” ABRs

40 Hz – 120 Hz 28 Hz – 120 Hz 25Hz – 120 Hz - -

107 dB Single unit 109.8 dB / Pair 115.8 dB - 105.8 dBA 105.8 dBA

- - 250 W @ <1% THD+N 350 W RMS @ < 1% THD+N 400 W RMS @ < 1% THD+N

- - Class D amplier with switch mode

15 mm MDF construction, vinyl laminate surface

Mineral Filled ABS Plastic

(RoHS Compliant)

power supply (SMPSU)

3 mm thick fabricated steel case, moulded ABS front trim panel

Class D amplier with switch mode

power supply (SMPSU)

18 mm MDF cabinet 18 mm MDF cabinet

10.2 kg / 22 lb 8 oz 3.8 kg / 8 lb 6 oz 4 kg / 8 lb 12 oz 9.52 kg / 21 lb 12.64 kg / 27 lb 12 oz

Flush Fit – CFB3-R (round) / CFB3-SQ

(square). Pre-construction bracket included in above kits

- - - -

Retrot – CFB3-KIT

Back Box

- IWB-10 (In-Wall Back Box) - - -

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

315 x 305 x 320 mm

3/8

x 12 x 12

5/8

”

10” C-CAM driver

2 x 10” ABRs

Class D amplier with switch mode

power supply (SMPSU)

SPECIFICATIONS

These specications are supplied to aid installers to select which product is the best t for their project.

All Monitor Audio Custom Install products have CAD les available, ideal for architectural drawings.

These can be found along with individual product or range information on our website. Click on a product to nd out more.

Category

Streamers and Ampliers

Application Rack Mounted / Free Standing

Model Name

IMS-4 IA150-2 IA60-12 IA800-2C IA200-2C IA150-8C IA40-3

Page 41 42 42 43 43 43 44

IP Control

EQ dip switches apply a 3 dB boost

Channel Number/Rooms

Power (W / Channel)

4 Ohms

8 Ohms

Bridge (8 Ohms)

70V

Input Impedance

Output Impedance (Loop RCA)

Input Sensitivity

Maximum Input Voltage (RMS)

Signal to noise (S:N Ratio)

Frequency Response (-3 dB)

Total Harmonic Distortion THD + N@1 kHz (@1W)

Rack Height

Dimensions (Without feet) (H x W x D) (IA40-3 Excluding Mounting Brackets & Antenna )

Height (With feet)

Width (Including rack/mounting brackets)

Weight

IP Communication

Mains Operating Voltage

Fuse Rating

Standby power consumption

Networked standby power consumption

BluOS™ - - Connect Connect Connect -

- - - - - - 120 Hz, 1500 Hz, 8 kHz

4 Rooms 2 (1 Stereo Pair) 12 (6 Stereo Pairs) 2 (1 Stereo Pair) 2 (1 Stereo Pair) 8 (4 Stereo Pairs)

- 150 W 60 W 800 W 200 W 150 W

- 100 W 45W 500 W 150 W 140 W

- 320 W (1CH) 100 W (6CH) 2000 W (1CH) 470 W (1CH) 300 W (4CH) -

- - - 800 W (2CH) - - -

- 20 K Ohms 20 K Ohms 20 K Ohms 20 K Ohms 20 K Ohms 10 K Ohms Unbalanced

- 600 Ohms 600 Ohms 600 Ohms 600 Ohms 600 Ohms 1.47 K Ohms

- 100 mV / 1 W – 1000 mV – Full power

100 mV / 1 W – 700 mV – Full power

100 mV / 1 W – 2200 mV – Full power

100 mV / 1 W – 1230 mV – Full power

100 mV / 1 W – 1140 mV – Full power

2.2 V 2.9 V 2.9 V 2.9 V 2.9 V 2.9 V 2.3 V

110 dBA -100 dB (20 Hz – 20 kHz) -100 dB (20 Hz – 20 kHz) -100 dB (20 Hz – 20 kHz) -100 dB (20 Hz – 20 kHz) -100 dB (20 Hz – 20 kHz) > 84 dB Unweighted

- 5 Hz – 50 kHz 5 Hz – 50 kHz 5 Hz – 50 kHz 5 Hz – 50 kHz 5 Hz – 50 kHz 10 Hz - 20 kHz

- 0.03% @ 1 W 0.03% @ 1 W 0.03% @ 1 W 0.03% @ 1 W 0.03% @ 1 W

1U 1U 2U 2U 1U 1U -

43 x 438 x 236 mm

11/16

1/4

5/16

x 17

x 9

13/16

” 52.8 mm / 2

45 mm / 1

42.4 x 438 x 427 mm

11/16

”

x 17

1/4

x 16

1/16

86.8 x 438 x 427 mm

13/16

7/16

”

x 17

” 97.2 mm / 3

1/4

13/16

x 16

”

13/16

” 97.2 mm / 3

86.8 x 438 x 427 mm

7/16

1/4

13/16

x 17

x 16

13/16

” 52.8 mm / 2

”

42.4 x 438 x 427 mm

11/16

1/4

x 17

x 16

1/16

” 52.8 mm / 2

13/16

42.4 x 438 x 427 mm

11/16

”

x 17

1/4

13/16

x 16

”

1/16

”

482 mm / 19” 482 mm / 19” 482 mm / 19” 482 mm / 19” 482 mm / 19” 482 mm / 19”

2.8 kg / 6 lb 3 oz 5.29 kg / 11 lb 10 oz 7.34 kg / 16 lb 5 oz 9.2 kg / 20 lb 4 oz 5.3 kg / 11 lb 10 oz 7.45 kg / 16 lb 6 oz

TCP/IP (RJ-45 10/1000 Base T)

100 – 240 V 50/60 Hz 100 – 120 V @ 60 Hz,

- 5 A (T5AL ~ 250VAC) 10 A (T10AL ~ 250VAC) 100-120VAC: T15AL/250V AC

- - TCP/IP (RJ-45 10/100 Base T) TCP/IP

220 – 240 V @ 50 Hz

100 –120 V @ 60 Hz, 220 – 240 V @ 50 Hz

220-240VAC: T10AL/250V AC

(RJ-45 10/100 Base T)

100 –120 V @ 60 Hz, 220 – 240 V @ 50 Hz

5 A (T5AL ~ 250VAC) 10 A (T10AL ~ 250VAC)

TCP/IP (RJ-45 10/100 Base T)

100 –120 V @ 60 Hz, 220 – 240 V @ 50 Hz

<1 W <0.5 W (green mode) <0.5 W (green mode) <0.5 W (green mode) <0.5 W (green mode) <0.5 W (green mode) < 0.5 W

<6 W - - <2 W <2 W <2 W -

2 or 3

60 W @ 1% THD+N for 2 Channel 40 W @ 1% THD+N for 3 Channel

50 W @ 1% THD+N for 2 Channel 30 W @ 1% THD+N for 3 Channel

~300 mV – Full Power

< 0.05 %

31.4 x 180 x 110.5 mm

1/4

1/16

3/8

x 7

x 4

”

11/16

196 mm / 7

0.484 kg / 1 lb 2 oz

100 –120 V @ 60 Hz, 220 – 240 V @ 50 Hz

”

3 A

Category

Soundbars SoundFrames

Application Passive / Free Standing In-Wall On-Wall

Model Name

SB-2 SB-3 SB-4 SoundFrame 1 SoundFrame 2 SoundFrame 3 SoundFrame 1 SoundFrame 2 SoundFrame 3

Page 45 45 45 46 46 46 46 46 46

Sensitivity (1W@1m)

Cut Out Dimensions (H x W)

Mounting Depth

Overall Depth (With Grille)

Overall Dimensions (With Grille) (H x W)

Power Handling (RMS)

Impedance

Driver Size & Technology

Frequency Response

Maximum SPL

Recommended Amp Requirements

Construction Material

Weight

Suitable for display sizes

On-Wall Bracket

Category

Model Name

84 dB Left and Right Channels: 84 dB

Centre Channel: 87 dB

- - - 501 x 351mm

- - - 75 mm / 2

9/16

”

93 mm

11/16

”

147 x 1307 mm

13/16

7/16

x 51

”

Centre Channel: 80 W

93 mm

11/16

”

147 x 1107 mm

13/16

x 43

40 W Left and Right Channels: 40 W

8 Ohms 8 Ohms 8 Ohms 8 Ohms 8 Ohms 8 Ohms 8 Ohms 8 Ohms 8 Ohms

3 x 4” C-CAM bass/ mid drivers 3 x 1” C-CAM tweeters 3 x ABRs

4 x 4” C-CAM bass/mid drivers 3 x 1” C-CAM tweeters 4 x ABRs

87 dB 86 dB 86 dB 85dB 86 dB 86 dB 85 dB

3/4

”

15/16

” 75 mm / 2

13/16

”

751 x 201 mm

1/2

x 7

87.5 mm

7/16

”

802.5 x 252.5 mm

5/8

x 9

1/2

” C-CAM RST driver 4” C-CAM IDC driver 1” C-CAM tweeter

11/16

x 13

92 mm

5/8

”

147 x 1562 mm

3/4

1/2

x 61

80 W 100 W 100 W 50 W 100 W 100 W 50 W

6 x 4” C-CAM bass/ mid drivers 3 x 1” C-CAM tweeters 4 x ABRs

88.25 mm

1/2

”

552 x 402 mm

3/4

x 15

1/2

” C-CAM

6 RST driver 4” C-CAM IDC driver 1” C-CAM tweeter

7/8

”

15/16

” 59.5 mm / 2

15/16

”

251 x 251 mm

7/8

x 9

”

5/16

77.5 mm

3”

301.5 x 301.5 mm

4” MMP II driver 1” C-CAM tweeter

” - - -

7/8

x 11

”

- - -

87.5mm

7/16”

540 x 390 mm

1/4

x 15

1/2

” C-CAM RST driver 4” C-CAM IDC driver 1” C-CAM tweeter

3/8

”

87.5mm

7/16

”

790 x 240 mm

1/8

7/16

x 9

”

1/2

” C-CAM RST driver 4” C-CAM IDC driver 1” C-CAM tweeter

90 Hz – 30 kHz 80 Hz – 30 kHz 70 Hz – 30 kHz 55 Hz – 35 kHz 55 Hz – 35 kHz 75 Hz – 35 kHz 55 Hz – 35 kHz 55 Hz – 35 kHz 75 Hz – 35 kHz

104 dBA (108.8 dBA all channels driven)

106 dBA 106 dBA 102.5 dBA 106 dBA 106 dBA 102.5 dBA

30 – 100 W 30 – 100 W 30 – 100 W 20 – 100 W 20 – 100 W 20 – 50 W 20 – 100 W 20 – 100 W 20 – 50 W

MDF MDF MDF MDF MDF MDF MDF MDF MDF

16 lb 12 oz

7.64 kg

20 lb

9.1 kg

26 lb 7 oz 12 kg

16 lb 10 oz

7.53 kg

16 lb

7.26 kg

6 lb 10 oz 3 kg

16 lb 6 oz

7.44 kg

15 lb 9 oz

7.06 kg

50” – 60” 60”+ 70”+ - - - - - -

BSB BSB BSB - - - - -

Accessories (Back Boxes)

CCBOX-R CCBOX-L WCBOX-L CMBOX-R PLIC-BOX II IWB-10

Page 50 50 50 50 21 39

Overall Dimensions (H x W x D)

Internal Volume

330 × 330 × 125 mm

15/16

13 x 13 x 4

”

6.31 L 8.9 L 14.8 L 12.2 L 24 L 16.5 L

330 × 330 × 165 mm

1/2

13 x 13 x 6

”

590 × 435 × 120 mm

1/4

1/8

x 17

3/4

x 4

”

300 × 350 × 160 mm

13/16

3/4

x 13

5/16

x 6

191.2 x 628.6 x 350 mm

1/2

3/4

”

x 24

x 13

3/4

” (Inc. Brackets)

850 x 351 x 85 mm

1/2

13/16

x 13

77.5 mm

3”

289 x 289 mm

3/8

x 11

”

4” MMP II driver 1” C-CAM tweeter

6 lb

2.76 kg

11/32

x 3

”

Allow a tolerance of +/- 1 mm or 1/16” on all mounting depths.

HOME THEATRE SYSTEMS

Use our Custom Install speakers in a Home Theatre and you can create amazing systems, including

5.1, 7.1 and Dolby Atmos set-ups. Use either In-Ceiling or In-Wall, or a combination of both, and

model your chosen Monitor Audio speakers in The CEDIA Designer (TCD), the double Award-winning

home theatre design software. We’ve partnered with TCD, so you’ll swiftly spot our products in the

design tool’s database, enabling you to create a 3D CAD drawing for any room in under 30 seconds.

In-Wall 7.1 Home Theatre Example

Front Left-Centre-Right main loudspeakers

Rear Left-Right surround loudspeakers

Add your choice of one or two Monitor Audio subwoofers to complete the theatre

Add In-Ceiling speakers for height channels we recommend IDC equipped models for 2 or 4 height channels if desired

All our Custom Install products can be used in

conjunction with our traditional speaker ranges.

To nd out more about our award-winning

speaker ranges please visit monitoraudio.com

Find out more about Monitor Audio Custom Install

www.

Visit

monitoraudio.com for product

information, to nd your local dealer

and to sign up for our newsletter.

Download

our Custom Install INSIDER

magazine from our website or pick

one up at your local dealer.

INSIDER

CUSTOM INSTALL MAGAZINE - ISSUE 4

your custom installation with us on

Facebook, Twitter and Instagram

for a chance to be in our next issue

@monitoraudio #monitoraudio

of INSIDER magazine

2020.V6

Monitor Audio Ltd

24 Brook Road, Rayleigh,

Essex, SS6 7XJ England

T. + 44 (0)1268 740580

F. + 44 (0)1268 740589

E. info@monitoraudio.com

monitoraudio.com

MONITOR AUDIO C165 (Core), CF230, W280IDC, CPC120 Satin White (пара) Custom_Install_Product_Guide_V6 (1).pdf

Specifications and Main Features

Frequently Asked Questions

User Manual
