MONITOR AUDIO C265-IDC (Core) ci_product_guide.pdf

Custom Install
Product Guide

SPEAKERS & ELECTRONICS

Interactive PDF

Click on product images and text to learn
more about products and services

ABOUT MONITOR AUDIO

Monitor Audio Ltd is a British company and global specialist in hi-

loudspeaker design. For over 40 years we’ve been incorporating stereo

and surround sound systems and a range of sonically matched architectural

speakers for ultra discreet high quality sound around the home and outside.

Stereo / Surround sound systems

Custom Install / Architectural speakers

Monitor Audio Custom Install

By choosing Monitor Audio Custom Install products, you’re securing the utterly

desirable combination of seamless integration and superior sound quality, backed

by decades of design innovation and award success. We distribute to over

80 countries worldwide. Please refer to our website monitoraudio.com

2

WHY CHOOSE MONITOR AUDIO

CUSTOM INSTALL SOLUTIONS

Monitor Audio’s Custom Install products are engineered for high performance,

reliability and ease-of-use. They’ve been developed using the advanced driver

technologies of our award-winning hi- speaker ranges to deliver world-famous

sound quality without compromising room design.

Available across varying performance levels, Monitor Audio’s architectural speakers

bring innovation to every application – wherever you decide to experience dynamic

music and lm sound, there’s an In-Ceiling or In-Wall speaker that’s perfect for

the role. The speakers are expertly optimised for rhythmic wideband audio,

seamless room integration and easy, secure installation.

If you love your décor and appreciate great audio, you needn’t compromise:

Monitor Audio’s architectural speakers will create harmony all around your home.

Main features

Audio solution for diverse spaces and applications

Solid and reliable build quality

Quick, easy and more secure install

High quality sound performance

Minimum cut outs

Minimum mounting depths

Magnetic attachment round and square grilles

Vertical or horizontal orientation

Patented Tri-Grip mounting clamps

Range features

Super Slim and Slim

Back Box solution

Flush Fit

Invisible

Weather Resistant solution

3

CONTENTS

CI Ranges – Click on sections below, to return click on the home button

Page

8 Core (C/W)

12 Slim (CS)

13 Super Slim (CSS/WSS)

14 Controlled Performance (CP)

19 Flush Fit (CF)

4

3

2” / 50 mm

5

3

7/8

5/16

” / 83.62 mm

20 Invisible (IV) Ultimate discretion

22 Platinum II (PL) Flagship

25 Pro (PRO)

Commercial

3

1/2

” / 114 mm

” / 98.6 mm

15/16

” / 151mm

7/16

” / 87.7 mm

27 All Weather (AWC)

Weather Resistant
3

1/2

” / 88.5 mm

28 Climate Weather Resistant

29 Climate Garden System (CLG) Weather Resistant garden speakers

30 Custom Subwoofers

32 Ampliers

34 Soundbars (SB)

36 SoundFrame (SF)

39 Accessories

42 Specication tables

4

CUSTOM INSTALL NAMING SYSTEM

Monitor Audio’s Custom Install products are named based on

their application, technologies, driver sizes and special features.

Example

Applications

C:

W:

CS:

CSS/

WSS:

CP:

CF:

IV:

PL:

PRO:

AWC:

C

In-Ceiling

In-Wall

Slim

Super Slim

Controlled
Performance

Flush Fit

Invisible

Platinum

Pro

All Weather

2

Technology

MMP II driver

1:

C-CAM Gold Dome tweeter

C-CAM driver

2:

C-CAM Gold Dome tweeter

3-Way IDC models available

C-CAM RST driver

3:

C-CAM Gold Dome tweeter

C-CAM RST driver

High frequency ribbon transducer

4:

or

MPD high frequency transducer

RDT II driver

PL II:

MPD high frequency transducer

65

Mid / Bass
Driver Size

20:

30:

40:

50:

60:

65:

80:

-IDC

Special Features

2”

3”

4”

5”

6”

½

”

6

8”

Inverted Dual Concentric

IDC:

Tweeter / Mid-bass Module

Dual tweeter /

T2:

Dual Wound Voice Coil

Bass drivers / Stereo

Dual tweeter / Surround

FX:

Dipole/Modes

Horizontal or vertical use for

LCR:

Left, Centre or Right Channels

W:

Subwoofer

X:

Full Size

There is explanation of our technology mentioned above on the next page.

5

TECHNOLOGY

Below is a brief description of each advanced technology used in our award-winning speakers. To achieve a harmony

of space and sound for every possible application, we’ve created a wide range of options across varying performance levels.

DRIVERS

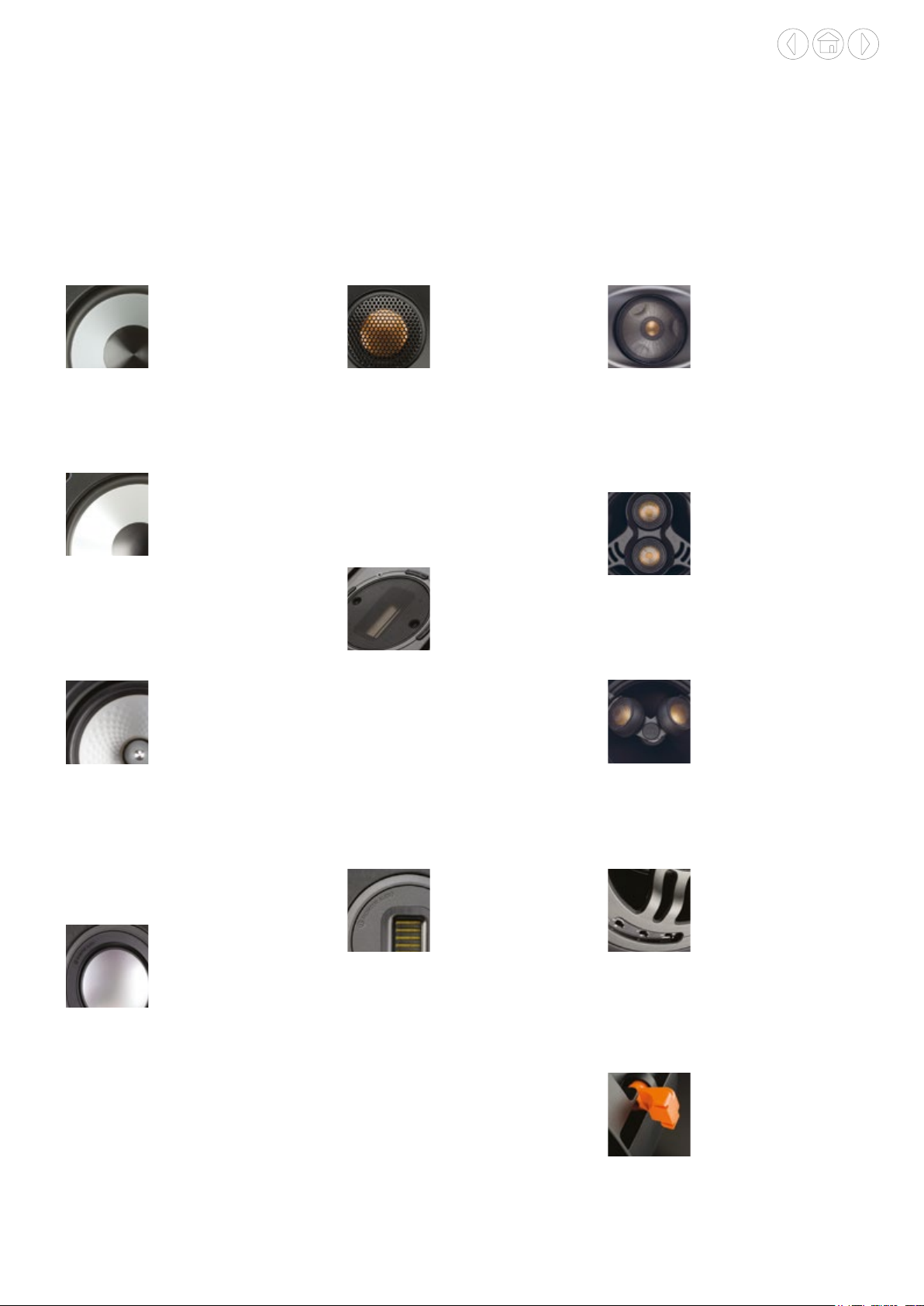

MMP II Driver: Metal Matrix Polymer driver

cones have a polypropylene base loaded

with metallic particles to oer a rigid and

responsive structure.

C-CAM Driver: Ceramic-Coated Aluminium

Magnesium cones have a much higher

resistance to bending stress and therefore

exhibit much greater delity over their entire

operating range.

C-CAM RST Driver: Rigid Surface

Technology cone developed and perfected

using sophisticated computer modelling (Finite

Element Analysis). The strengthening eect of

RST means that we can use thinner, lighter

and more responsive C-CAM cones, providing

speed and accuracy with reduced distortion.

TWEETERS

C-CAM Gold Dome Tweeter:

The Gold Dome tweeter is formed

from a Ceramic-Coated Aluminium

Magnesium alloy, Gold anodised to a

specic thickness for ideal stiness and

damping characteristics. Thinner, lighter,

more rigid and more ecient than domes

made from other materials which are

prone to distortion in the audio band.

Ribbon Transducer: An ultra-thin

sandwich of C-CAM alloy suspended

in a powerful transverse magnetic eld

of high energy NeFeB rare earth magnets.

The ribbon serves as both voice coil and

radiating diaphragm, with every part of the

ribbon driven directly and simultaneously

without energy storage. The diaphragm is

specied to reach ultra-high frequencies

up to an elusive 100 kHz.

SPECIAL FEATURES

IDC Driver Module: Inverted Dual

Concentric pivoting mid-range/tweeter

module with up to 18 degrees of adjustment

in all directions. Sound can be directed

toward the desired listening area.

T2 Dual Tweeter Conguration (Stereo):

Dual, independent, pivoting 1” C-CAM

tweeters and dual wound voice coil bass

drivers for high performance stereo sound.

FX Dual Tweeter Conguration

(Surround):

surround or rear channel use in home cinema

applications for a fully immersive experience.

FX speakers are ideal for

RDT II Driver: Rigid Diaphragm Technology

2nd Generation is a composite ‘sandwich’

structure made from ultra-thin low mass

skins, bonded to a honeycomb Nomex® core

material. Very light and very strong, responds

with great speed without bending. RDT II uses

C-CAM for the front skin, while the rear skin

is made from a woven carbon bre material.

This structure reduces distortion by over

8 dB above 300 Hz.

MPD High Frequency Transducer:

Micro Pleated Diaphragm high frequency

transducer uses a proprietary low-mass

pleated diaphragm with a surface area

eight times larger than that of a traditional

dome tweeter. MPD transducers work

like a super-fast accordion by rapidly

squeezing the pleats to produce a

smooth, wide, naturally fast response

up to 100 kHz.

Adjustable Response Controls:

Optimum imaging and set-up are established

via pivoting tweeters, pivoting IDC driver

modules, high-frequency, mid-range-frequency,

and/or boundary compensation controls.

Patented Tri-Grip Mounting Clamps:

The Tri-Grip mounting clamps have three

clamping points per dogleg. Providing a better

seal between the speaker and the ceiling.

6

Custom Install Speakers

7

Core

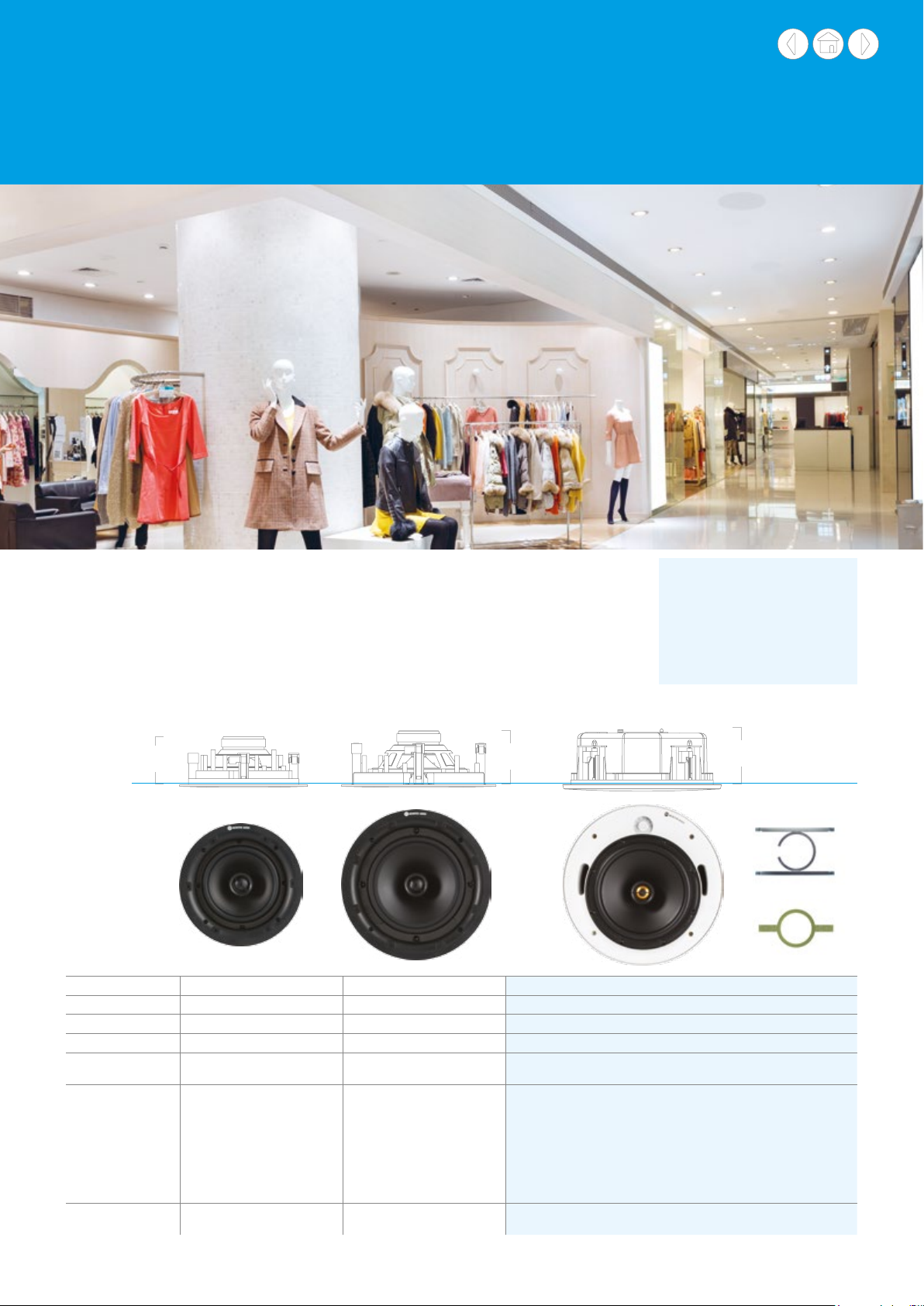

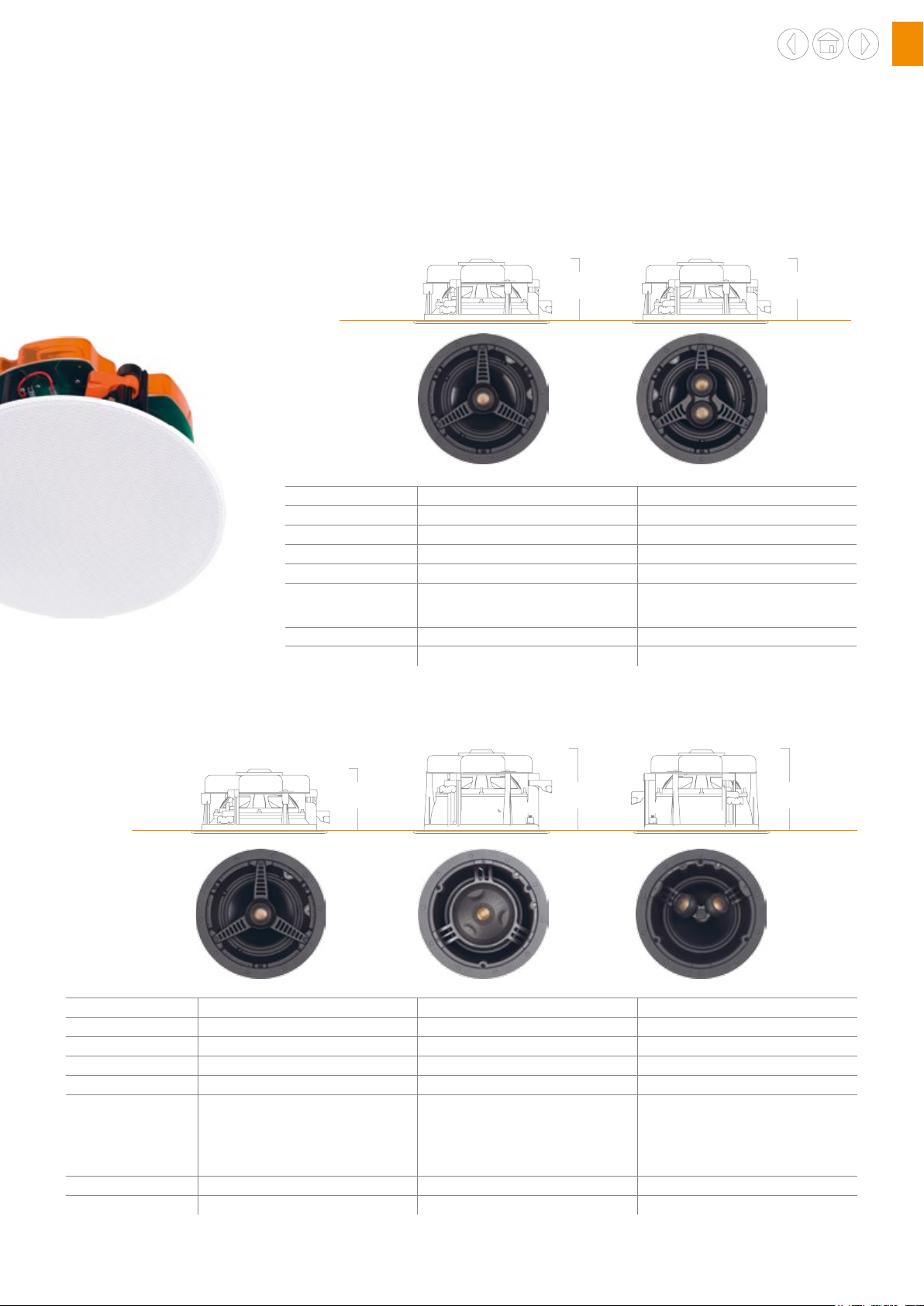

Our most versatile Custom Install In-Ceiling speaker range, with a broad selection of models tailored for specic uses.

In-Ceiling

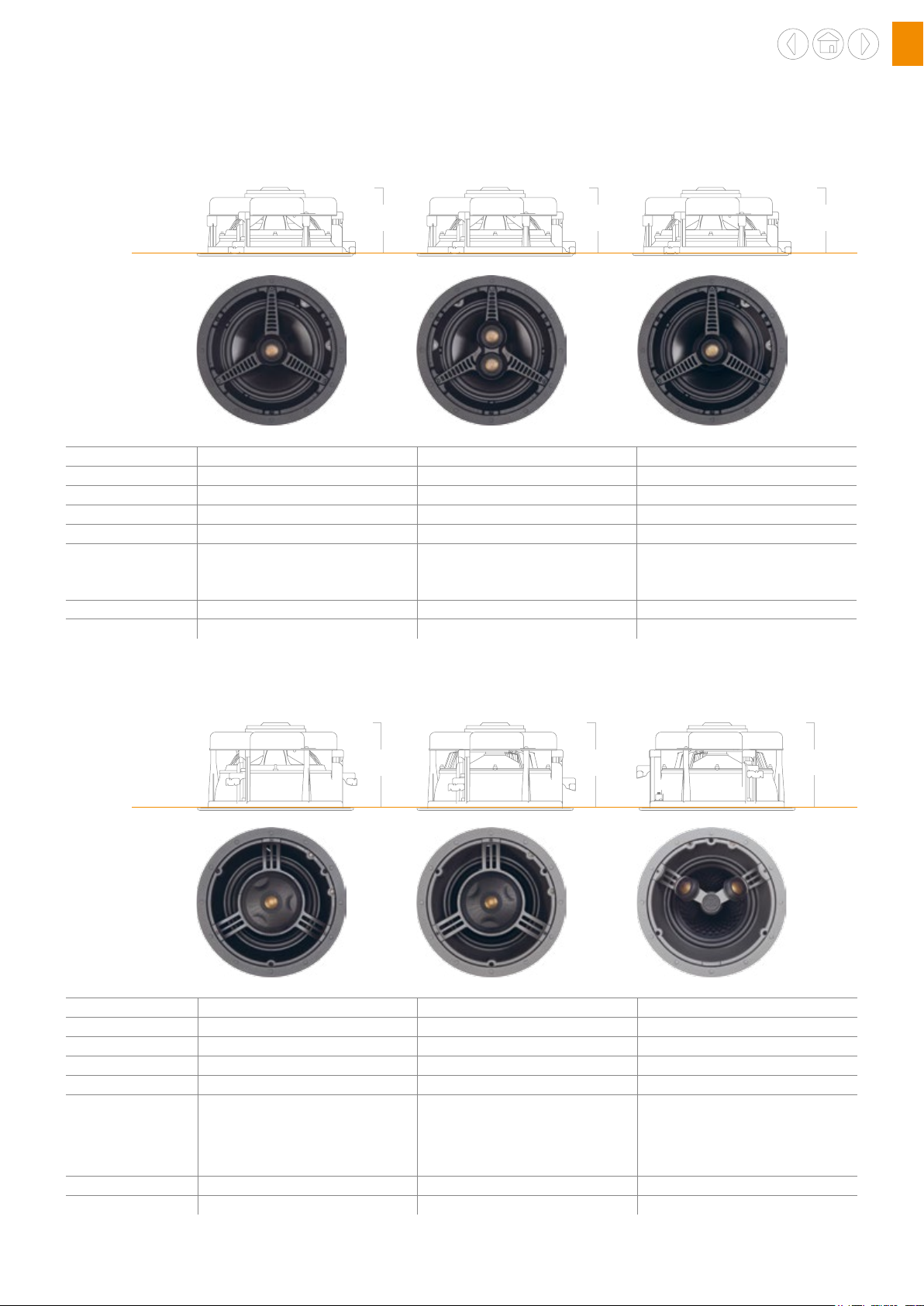

C165

1/2

4

”

114 mm

Sensitivity (1W@1m) 88.5 dB 88.5 dB

1/4

Cut Out Diameter 8

Mounting Depth 4

Power Handling (RMS) 65 W 65 W

Impedance 6 ohms 6 + 6 ohms

Driver Size & Technology 6

Pre-Construction Bracket CB6 (Purple) CB6 (Purple)

Back Box CCBOX-R / CMBOX-R CCBOX-R / CMBOX-R

” / 211 mm 8

1/2

” / 114 mm 4

1/2

” MMP II driver
1” C-CAM pivoting Gold Dome tweeter
HF level switch

C165-T2

1/4

” / 211 mm

1/2

” / 114 mm

1/2

6

” MMP II driver

2 x 1” C-CAM pivoting Gold Dome tweeters

1/2

4

”

114 mm

C265

1/2

4

”

114 mm

Sensitivity (1W@1m) 88.5 dB 88.5 dB 88.5 dB

1/4

Cut Out Diameter 8

Mounting Depth 4

Power Handling (RMS) 75 W 85 W 85 W

Impedance 6 ohms 6 ohms 6 ohms

Driver Size & Technology 6

Pre-Construction Bracket CB6 (Purple) CB6 (Purple) CB6 (Purple)

Back Box CCBOX-R / CMBOX-R CCBOX-L / CMBOX-R CCBOX-L / CMBOX-R

” / 211 mm 8

1/2

” / 114 mm 5

1/2

” C-CAM driver
1” C-CAM pivoting Gold Dome tweeter
HF level switch
Boundary compensation switch

C265-IDC C265-FX

7/8

5

”

149 mm

1/4

” / 211 mm 8

7/8

” / 149 mm 5

1/2

6

” C-CAM driver
Pivoting IDC module
(4” C-CAM RST inverted mid-range driver,
1” C-CAM Gold Dome tweeter)
HF level switch
Boundary compensation switch

1/4

” / 211 mm

7/8

” / 149 mm

1/2

” C-CAM driver

6
2 x 1” C-CAM Gold Dome tweeters
HF level switch
Bipole / Dipole switch

7/8

5

”

149 mm

8

Core

C180-T2C180 C280

3/4

4

”

121 mm

3/4

4

”

121 mm

Sensitivity (1W@1m) 90 dB 90 dB 90 dB

Cut Out Diameter 9

Mounting Depth 4

3/4

” / 247 mm 9

3/4

” / 121 mm 4

3/4

” / 247 mm 9

3/4

” / 121 mm 4

3/4

” / 247 mm

3/4

” / 121 mm

Power Handling (RMS) 120 W 120 W 120 W

Impedance 6 ohms 6 + 6 ohms 6 ohms

Driver Size & Technology 8” MMP II driver

1” C-CAM pivoting Gold Dome tweeter
HF level switch

8” MMP II driver
2 x 1” C-CAM pivoting Gold Dome tweeters
HF level switch

8” C-CAM driver
1” C-CAM pivoting Gold Dome tweeter
HF level switch
Boundary compensation switch

Pre-Construction Bracket CB8 (Green) CB8 (Green) CB8 (Green)

Back Box CCBOX-R / CMBOX-R CCBOX-R / CMBOX-R CCBOX-R / CMBOX-R

3/4

4

”

121 mm

C280-IDC C380-IDC C380-FX

1/8

6

”

156 mm

Sensitivity (1W@1m) 90 dB 90 dB 90 dB

Cut Out Diameter 9

Mounting Depth 6

3/4

” / 247 mm 9

1/8

” / 156 mm 6

3/4

” / 247 mm 9

1/8

” / 156 mm 6

Power Handling (RMS) 120 W 150 W 120 W

Impedance 6 ohms 6 ohms 6 ohms

Driver Size & Technology 8” C-CAM driver

Pivoting IDC module
(4” C-CAM RST inverted mid-range driver,
1” C-CAM Gold Dome tweeter)
HF level switch
Boundary compensation switch

8” C-CAM RST driver
Pivoting IDC module
(4” C-CAM RST inverted mid-range driver,
1” C-CAM Gold Dome tweeter)
HF level switch
Boundary compensation switch

Pre-Construction Bracket CB8 (Green) CB8 (Green) CB8 (Green)

Back Box CMBOX-R CMBOX-R CMBOX-R

1/8

6

”

156 mm

3/4

” / 247 mm

1/8

” / 156 mm

8” C-CAM RST driver
2 x 1” C-CAM Gold Dome tweeters
HF level switch
Bipole / Dipole switch with additional
12 V trigger switching

1/8

6

”

156 mm

9

Core

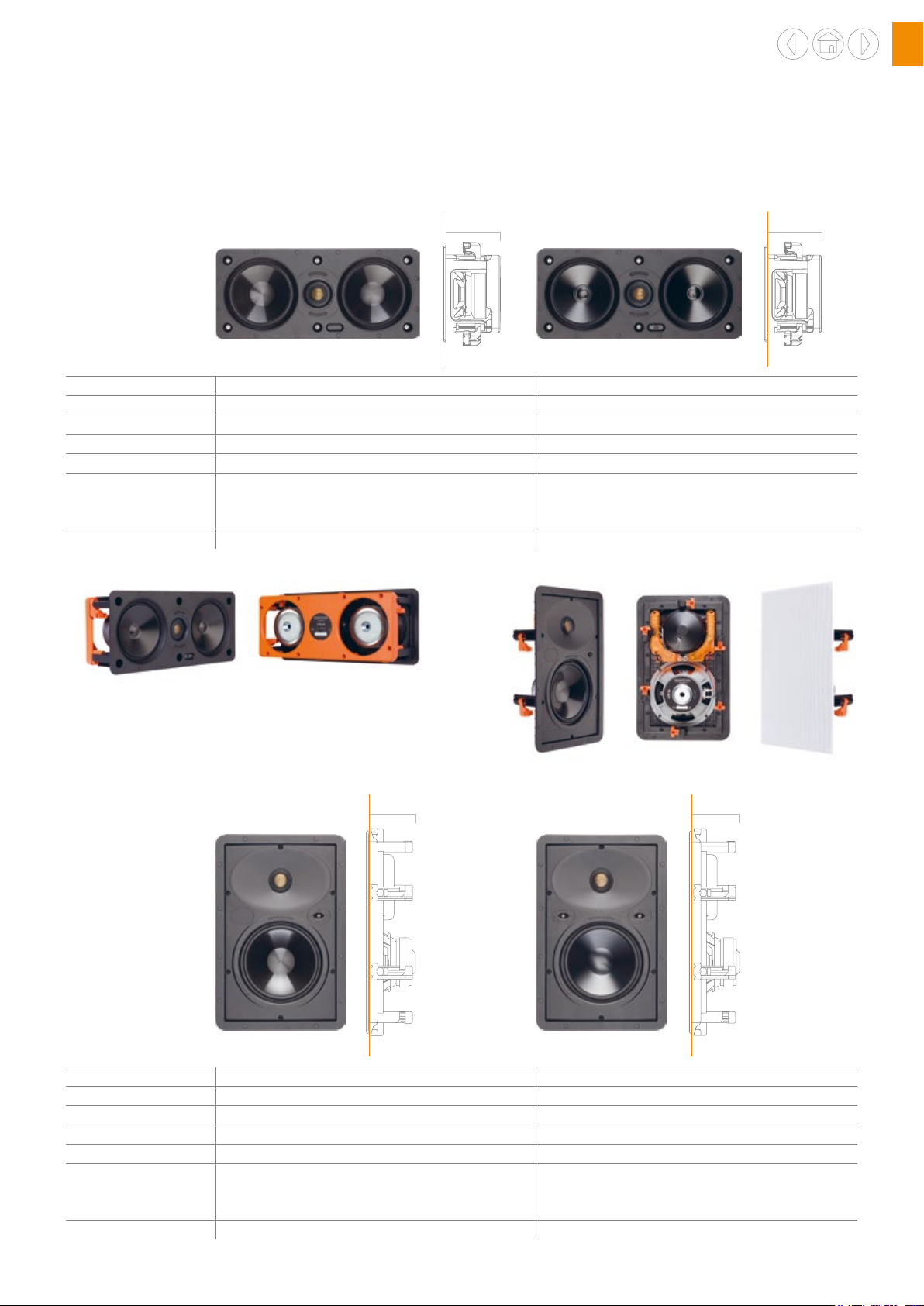

Our most versatile Custom Install In-Wall speaker range, with a broad selection of models tailored for specic uses.

In-Wall

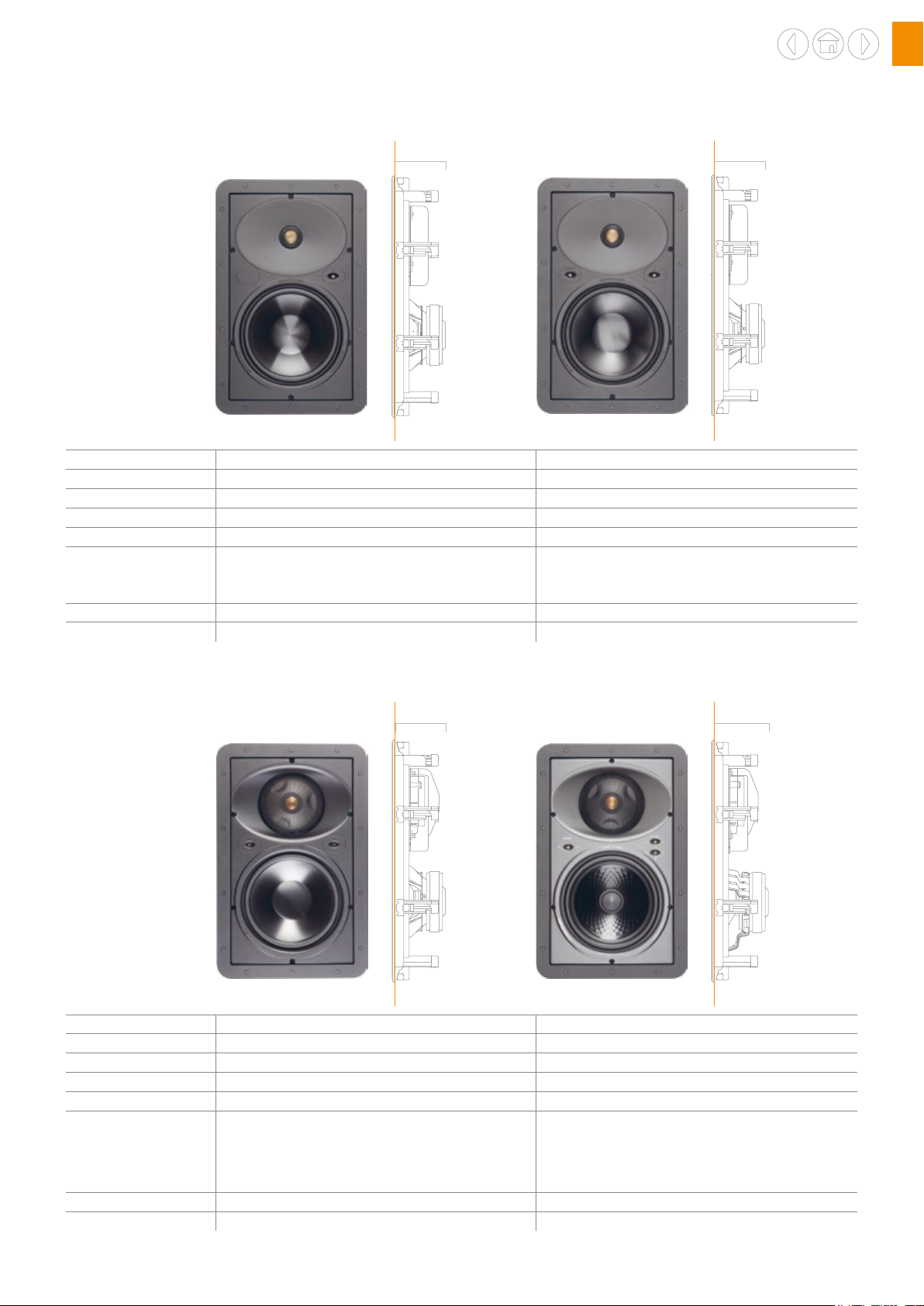

W150-LCR

4”

100.2 mm

W250-LCR

Centres

Sensitivity (1W@1m) 88 dB 88 dB

3/4

7/8

” x 13

Cut Out Dimensions (H x W) 5

Mounting Depth 4” / 100.2 mm 4” / 100.2 mm

Power Handling (RMS) 100 W 100 W

Impedance 8 ohms 8 ohms

Driver Size & Technology 2 x 5” MMP II drivers

1” C-CAM pivoting Gold Dome tweeter
Fits within standard 16” / 400 mm centre studs

Pre-Construction Bracket WB5LCR (Yellow) WB5LCR (Yellow)

” / 145 x 353 mm 5

3/4

7/8

” x 13

” / 145 x 353 mm

2 x 5” C-CAM drivers
1” C-CAM pivoting Gold Dome tweeter
HF level switch
Fits within standard 16” / 400 mm centre studs

4”

100.2 mm

3/8

3

In-Wall

Sensitivity (1W@1m) 88.5 dB 88.5 dB

Cut Out Dimensions (H x W) 13

Mounting Depth 3

Power Handling (RMS) 65 W 65 W

Impedance 6 ohms 6 ohms

Driver Size & Technology 6

Pre-Construction Bracket WB6 (Purple) WB6 (Purple)

W165 W265

1/16

3/8

” x 8

” / 332 x 213 mm 13

3/8

” / 85.5 mm 3

1/2

” MMP II driver
1” C-CAM pivoting Gold Dome tweeter
HF level switch

”

85.5 mm

1/16

” x 8

3/8

” / 85.5 mm

1/2

6

” C-CAM driver
1” C-CAM pivoting Gold Dome tweeter
HF level switch
Boundary compensation switch

3/8

” / 332 x 213 mm

3/8

3

”

85.5 mm

10

Core

11/16

3

W180

93 mm

”

W280

Sensitivity (1W@1m) 90 dB 90 dB

Cut Out Dimensions (H x W) 15

Mounting Depth 3

3/16

” x 9

” / 387 x 234 mm 15

11/16

” / 93 mm 3

1/4

” x 9

11/16

” / 93 mm

3/16

1/4

Power Handling (RMS) 120 W 120 W

Impedance 6 ohms 6 ohms

Driver Size & Technology 8” MMP II driver

1” C-CAM pivoting Gold Dome tweeter
HF level switch

8” C-CAM driver
1” C-CAM pivoting Gold Dome tweeter
HF level switch
Boundary compensation switch

Pre-Construction Bracket WB8 (Green) WB8 (Green)

Back Box WCBOX-L WCBOX-L

” / 387 x 234 mm

11/16

3
93 mm

”

11/16

”

W280-IDC

3
93 mm

W380-IDC

Sensitivity (1W@1m) 90 dB 90 dB

Cut Out Dimensions (H x W) 15

Mounting Depth 3

3/16

” x 9

” / 387 x 234 mm 15

11/16

” / 93 mm 3

1/4

” x 9

13/16

” / 97.5 mm

3/16

1/4

Power Handling (RMS) 150 W 150 W

Impedance 6 ohms 6 ohms

Driver Size & Technology 8” C-CAM driver

Pivoting IDC module
(4” C-CAM RST inverted mid-range driver,
1” C-CAM Gold Dome tweeter)
HF level switch
Boundary compensation switch

8” C-CAM RST driver
Pivoting IDC module
(4” C-CAM RST inverted mid-range driver,
1” C-CAM Gold Dome tweeter)
HF & MF level switches
Boundary compensation switch

Pre-Construction Bracket WB8 (Green) WB8 (Green)

Back Box WCBOX-L WCBOX-L

” / 387 x 234 mm

13/16

3

”

97.5 mm

11

Slim

Having a physical depth of less than 4” / 100 mm, the Slim models are perfect for easy installation in many more locations,

being ideal for standard stud walls and where depth is restricted. Integrating the bass driver basket with the frame, our

engineers have reduced overall speaker size by 25% over conventional speakers without any performance penalty.

In-Ceiling / In-Wall

CS160 Round / Square

7/8

3

”

99 mm

Sensitivity (1W@1m) 85 dB 88 dB 90 dB

7/8

Cut Out Diameter 5

Mounting Depth 3

Power Handling (RMS) 50 W 70 W 120 W

Impedance 6 ohms 6 ohms 6 ohms

Driver Size & Technology 4” MMP II driver

Pre-Construction Bracket CB4 (Pink) CB5 (Blue) CB6 (Purple)

Back Box CCBOX-R CCBOX-R / CMBOX-R CCBOX-R / CMBOX-R

” / 149 mm 6

7/8

” / 99 mm 3

1” C-CAM pivoting Gold Dome tweeter

11/16

” / 170 mm 8

7/8

” / 99 mm 3

6” MMP II driver
1” C-CAM pivoting Gold Dome tweeter

7/8

3

”

99 mm

CS180 Round / SquareCS140 Round / Square

3/8

” / 213 mm

15/16

” / 99.4 mm

8” MMP II driver
1” C-CAM pivoting Gold Dome tweeter

15/16

3

”

99.4 mm

NOTE : All Slim models can be ordered as a round or square grille option.

12

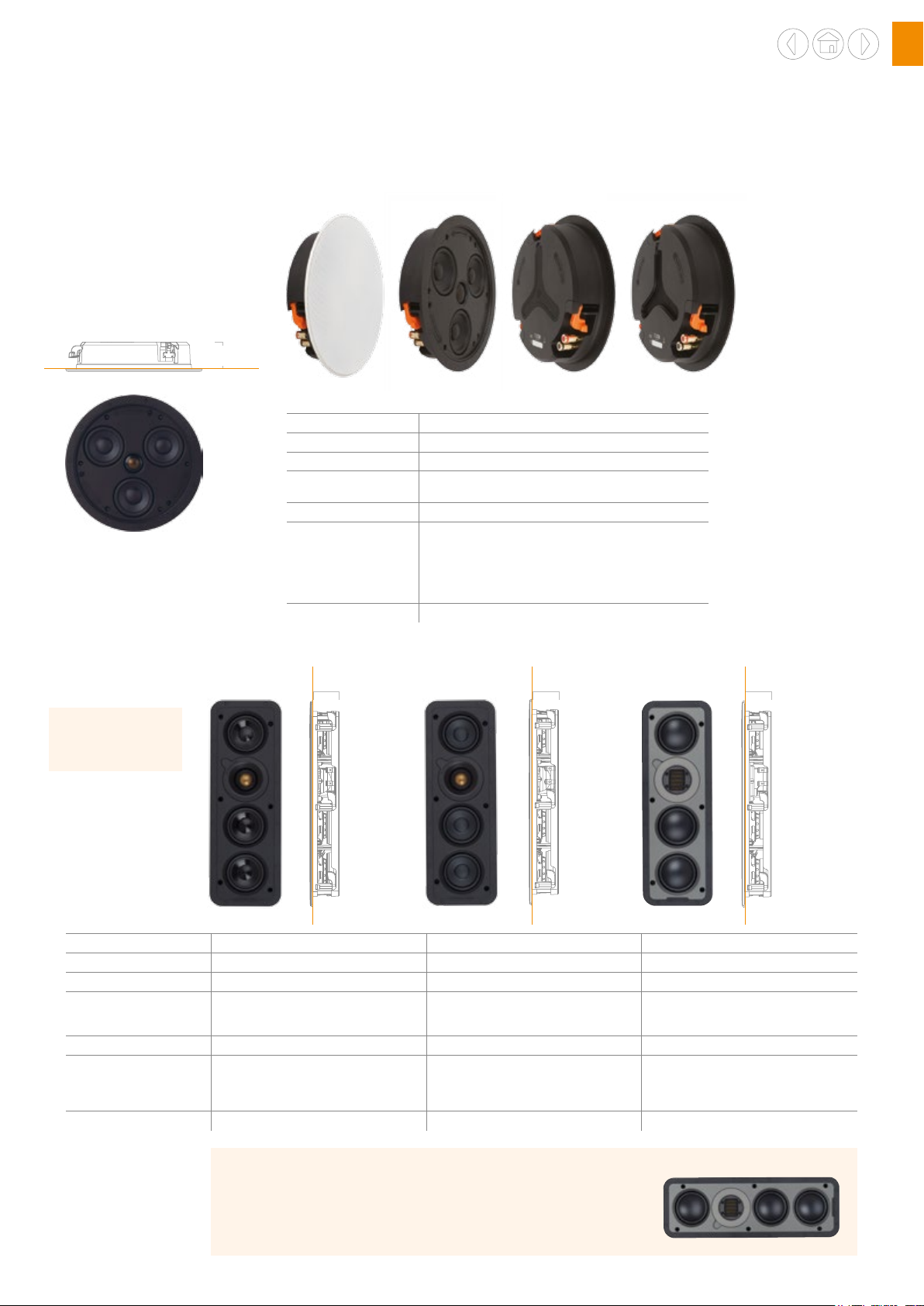

Super Slim

Our innovative Super Slim speakers back box design delivers full frequency performance with wide installation versatility. Ideal for standard

stud walls and where depth is very restricted. The Super Slim In-Wall products are designed for both vertical or horizontal installation.

In-Ceiling

CSS230

2”
50 mm

Opened backClosed back

Sensitivity (1W@1m) 86 dB

1/4

Cut Out Diameter 8

Mounting Depth 2” / 50 mm

Power Handling (RMS) 40 W – Full range

Impedance 8 ohms

Driver Size & Technology 3 x 3” C-CAM drivers, enabling slim prole with the

Pre-Construction Bracket CB6 (Purple)

” / 211 mm

60 W – With crossover set to 100 Hz @ 12 dB/Octave

performance of a single 6” driver

3/4

” C-CAM pivoting Gold Dome tweeter
Sealed rear enclosure for acoustic isolation back box
Rubber plug can be removed for open back design and
increased low frequency performance

In-Wall

WSS130

2”
50 mm

WSS230 WSS430

2”
50 mm

AVAILABLE
December 2017

Sensitivity (1W@1m) 87 dB 87 dB 87 dB

1/2

Cut Out Dimensions (H x W) 13

Mounting Depth 2” / 50 mm 2” / 50 mm 2” / 50 mm

Power Handling (RMS) 60 W – Full range

Impedance 8 ohms 8 ohms 8 ohms

Driver Size & Technology 3 x 3” MMP II drivers, enabling slim prole

Pre-Construction Bracket WB3 (Dark blue) WB3 (Dark blue) WB3 (Dark blue)

x 4” / 346 x 101 mm 13

100 W – With crossover set to
100Hz@12dB/Octave

with the performance of a single 6” driver
1” C-CAM pivoting Gold Dome tweeter

1/2

x 4” / 346 x 101 mm 13

60 W – Full range
100 W – With crossover set to
100Hz@12dB/Octave)

3 x 3” C-CAM drivers, enabling slim prole

with the performance of a single 6” driver
1” C-CAM pivoting Gold Dome tweeter

1/2

x 4” / 346 x 101 mm

75 W – Full range
120 W – With crossover set to
100Hz@12dB/Octave

3 x 3” C-CAM drivers, enabling slim prole

with the performance of a single 6” driver
MPD high frequency transducer – rotatable
for vertical or horizontal installation

2”
50 mm

WSS430

The WSS430 uses concepts and materials taken directly from our agship Platinum II
speakers. Almost every component is unique to this model, created to deliver the most
critical of audiophile and cinema experiences with superlative ease. The WSS430 MPD
high frequency transducer is designed to rotate 90° to suit the chosen speaker installation.

13

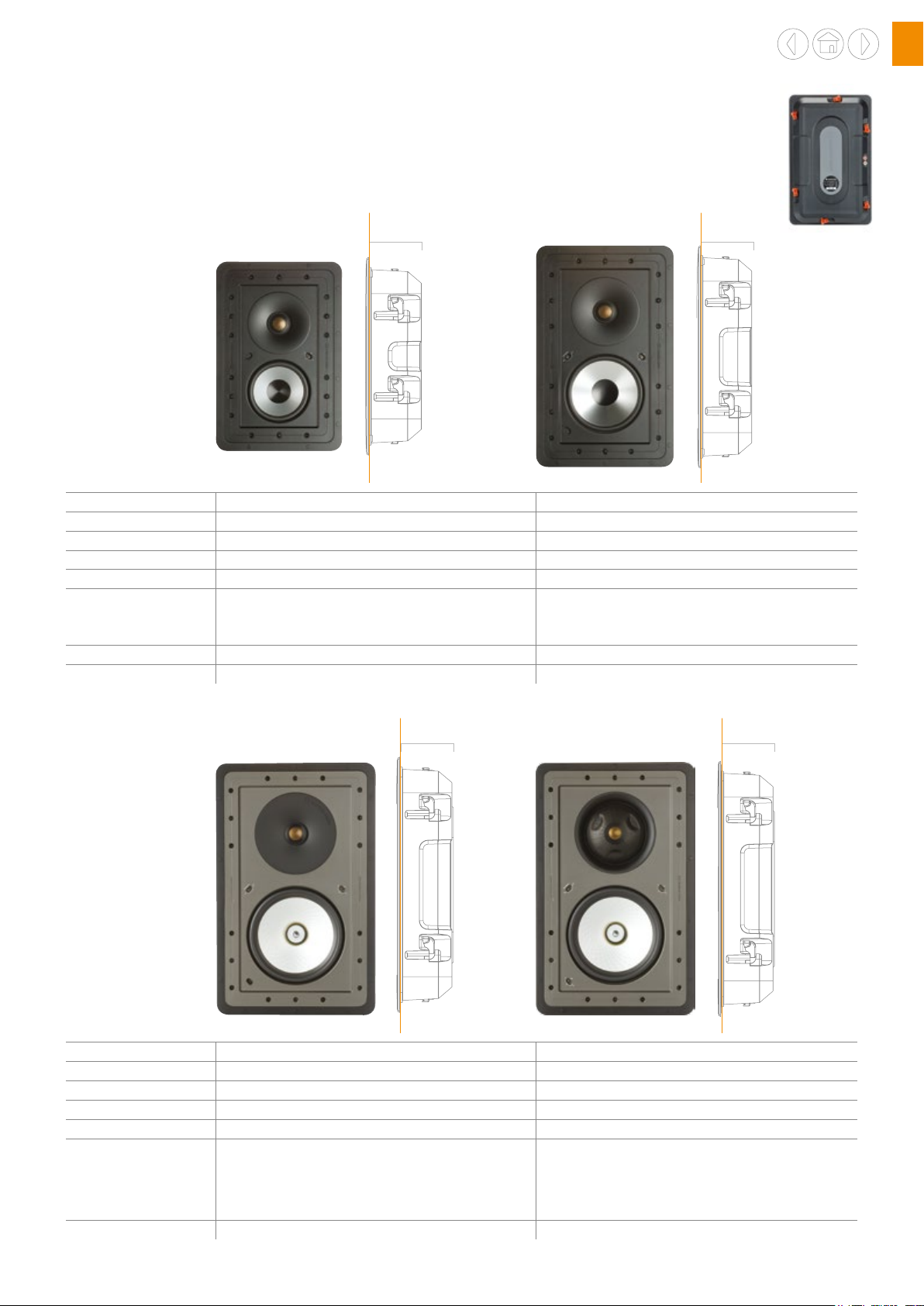

Controlled Performance

The Controlled Performance (CP) range is tted with fully-sealed back boxes that provide an ideal air load for the drivers,

optimising mid-range and bass performance while maintaining sonic consistency regardless of interior wall construction.

These rigid, mineral lled enclosures reduce the sound from the back of the cabinet by around 30 dB. This range

guarantees excellent audio quality and versatility, for superior level of sound isolation between rooms and oors.

In-Ceiling

Sensitivity (1W@1m) 85 dB 88 dB

Cut Out Diameter 8

Mounting Depth 5

Power Handling (RMS) 50 W 65 W

Impedance 6 ohms 6 ohms

Driver Size & Technology 5” MMP II driver

Pre-Construction Bracket CB6 (Purple) CB8 (Green)

Back Box CCBOX-L CCBOX-L

CP-CT150 CP-CT260

15/16

5

”

151 mm

3/8

” / 212 mm 9

15/16

” / 151 mm 5

1” C-CAM pivoting Gold Dome tweeter
HF level switch

5/8

” / 244 mm

15/16

” / 151 mm

6” C-CAM driver
1” C-CAM pivoting Gold Dome tweeter
HF level switch
Boundary compensation switch

15/16

5

”

151 mm

CP-CT380 CP-CT380IDC

1/8

7

”

181 mm

Sensitivity (1W@1m) 89 dB 89 dB

13/16

Cut Out Diameter 10

Mounting Depth 7

Power Handling (RMS) 120 W 120 W

Impedance 6 ohms 6 ohms

Driver Size & Technology 8” C-CAM RST driver

Pre-Construction Bracket CB10 (Light brown) CB10 (Light brown)

” / 274 mm 10

1/8

” / 181 mm 7

1” C-CAM pivoting Gold Dome tweeter
HF level switch
Boundary compensation switch

13/16

” / 274 mm

1/8

” / 181 mm

8” C-CAM RST driver
Pivoting IDC module
(4” C-CAM RST inverted mid-range driver,
1” C-CAM Gold Dome tweeter)
HF & MF level switches
Boundary compensation switch

1/8

7

”

181 mm

14

Controlled Performance

3/4

3

In-Wall

Sensitivity (1W@1m) 85 dB 88 dB

Cut Out Dimensions (H x W) 12

Mounting Depth 3

Power Handling (RMS) 50 W 65 W

Impedance 6 ohms 6 ohms

Driver Size & Technology 5” MMP II driver

Pre-Construction Bracket WB6 (Purple) WB8 (Green)

Back Box WCBOX-L

CP-WT150 CP-WT260

13/16

1/8

” x 8

” / 326 x 207 mm 15” x 9” / 381 x 228 mm

3/4

” / 96 mm 3

1” C-CAM pivoting Gold Dome tweeter
HF level switch

”

96 mm

3/4

” / 96 mm

6” C-CAM driver
1” C-CAM pivoting Gold Dome tweeter
HF level switch
Boundary compensation switch

3/4

3

”

96 mm

7/8

3

”

CP-WT380 CP-WT380IDC

Sensitivity (1W@1m) 89 dB 89 dB

1/4

9/16

” x 10

Cut Out Dimensions (H x W) 17

Mounting Depth 3

Power Handling (RMS) 120 W 120 W

Impedance 6 ohms 6 ohms

Driver Size & Technology 8” C-CAM RST driver

Pre-Construction Bracket WB10 (Light brown) WB10 (Light brown)

7/8

1” C-CAM pivoting Gold Dome tweeter
HF level switch
Boundary compensation switch

” / 438 x 269 mm 17

” / 99 mm 3

99 mm

1/4

9/16

” x 10

” / 438 x 269 mm

7/8

” / 99 mm

8” C-CAM RST driver
Pivoting IDC module
(4” C-CAM RST inverted mid-range driver,
1” C-CAM gold dome tweeter)
HF & MF level switches
Boundary compensation switch

7/8

3

”

99 mm

15

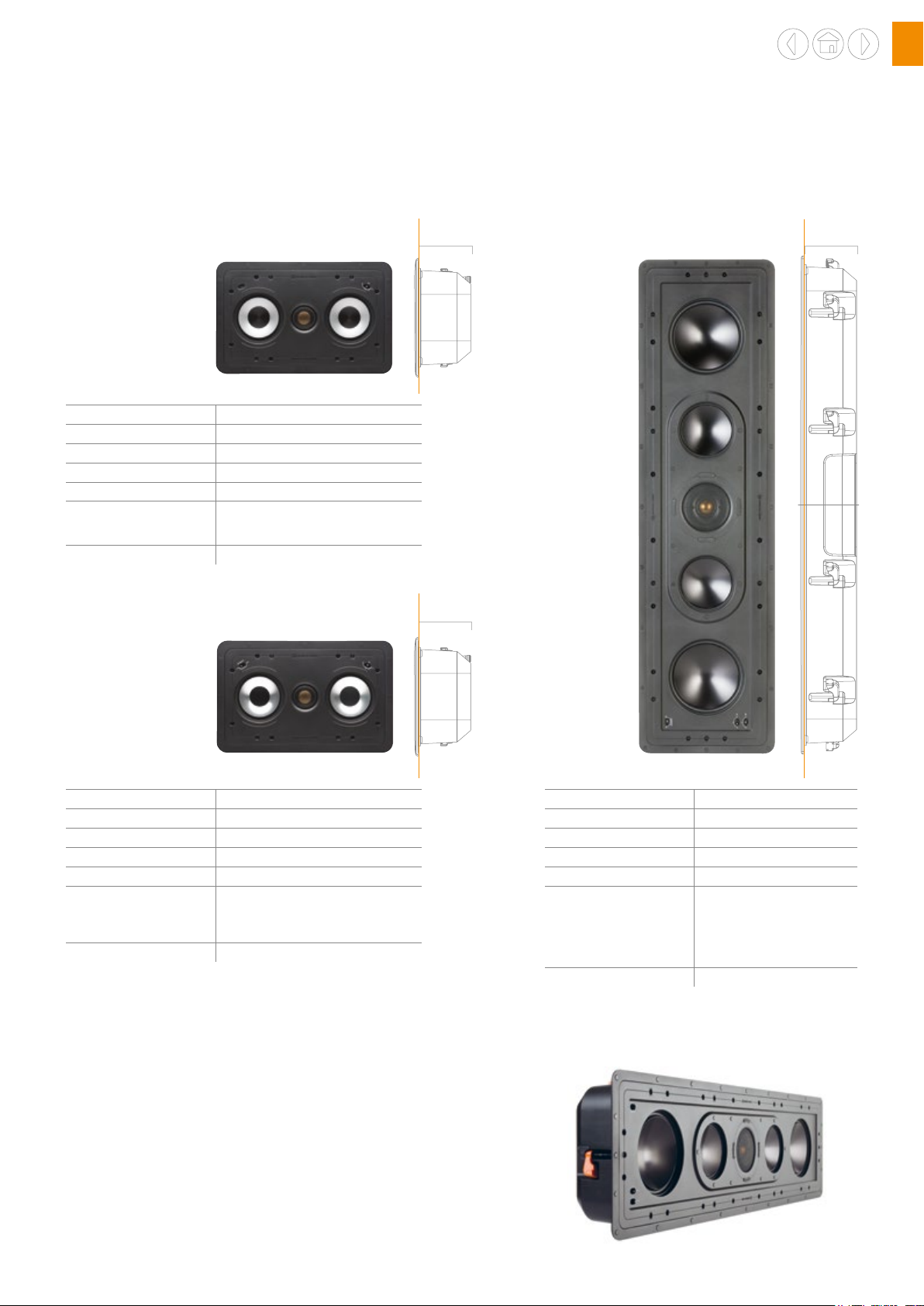

Controlled Performance

In-Wall Centres Performance Full Size

CP-WT140LCR

Sensitivity (1W@1m) 88 dB

3/16

3/4

” x 11

Cut Out Dimensions (H x W) 7

Mounting Depth 3

Power Handling (RMS) 100 W

Impedance 6 ohms

Driver Size & Technology 2 x 4” MMP II drivers

Pre-Construction Bracket WB4LCR (Dark brown)

13/16

1” C-CAM pivoting Gold Dome tweeter
HF level switch

” / 183 x 299 mm

” / 97 mm

CP-WT240LCR

13/16

3
97 mm

13/16

3
97 mm

”

”

CP-IW260X

3/4

3

”

96 mm

Sensitivity (1W@1m) 88 dB

3/16

3/4

” x 11

Cut Out Dimensions (H x W) 7

Mounting Depth 3

Power Handling (RMS) 100 W

Impedance 6 ohms

Driver Size & Technology 2 x 4” C-CAM drivers

Pre-Construction Bracket WB4LCR (Dark brown)

13/16

1” C-CAM pivoting Gold Dome tweeter
HF level switch
Boundary compensation switch

” / 183 x 299 mm

” / 97 mm

Sensitivity (1W@1m) 89 dB

21/32

Cut Out Dimensions (H x W) 34

Mounting Depth 3

Power Handling (RMS) 150 W

Impedance 6 ohms

Driver Size & Technology 2 x 6

Pre-Construction Bracket WB12 (Green)

” x 9” / 880 x 230 mm

3/4

” / 96 mm

1/2

” C-CAM bass drivers
2 x 4” C-CAM mid-range drivers
1” C-CAM Gold Dome tweeter
HF & MF level switches
Boundary compensation switch
Vertical or horizontal orientation

16

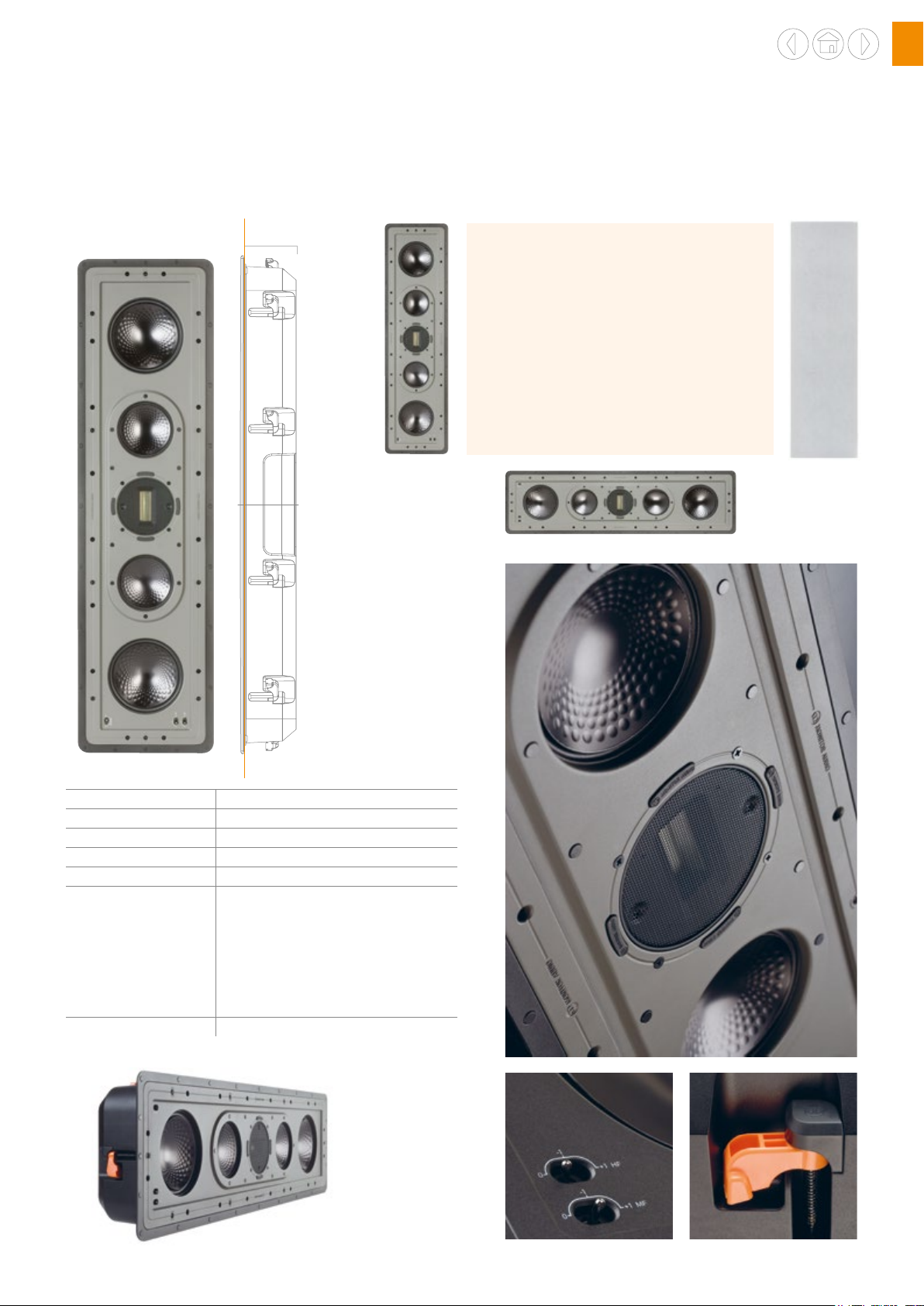

Controlled Performance

Performance Full Size

3/4

3

CP-IW460X

”

96 mm

Performance Full Size

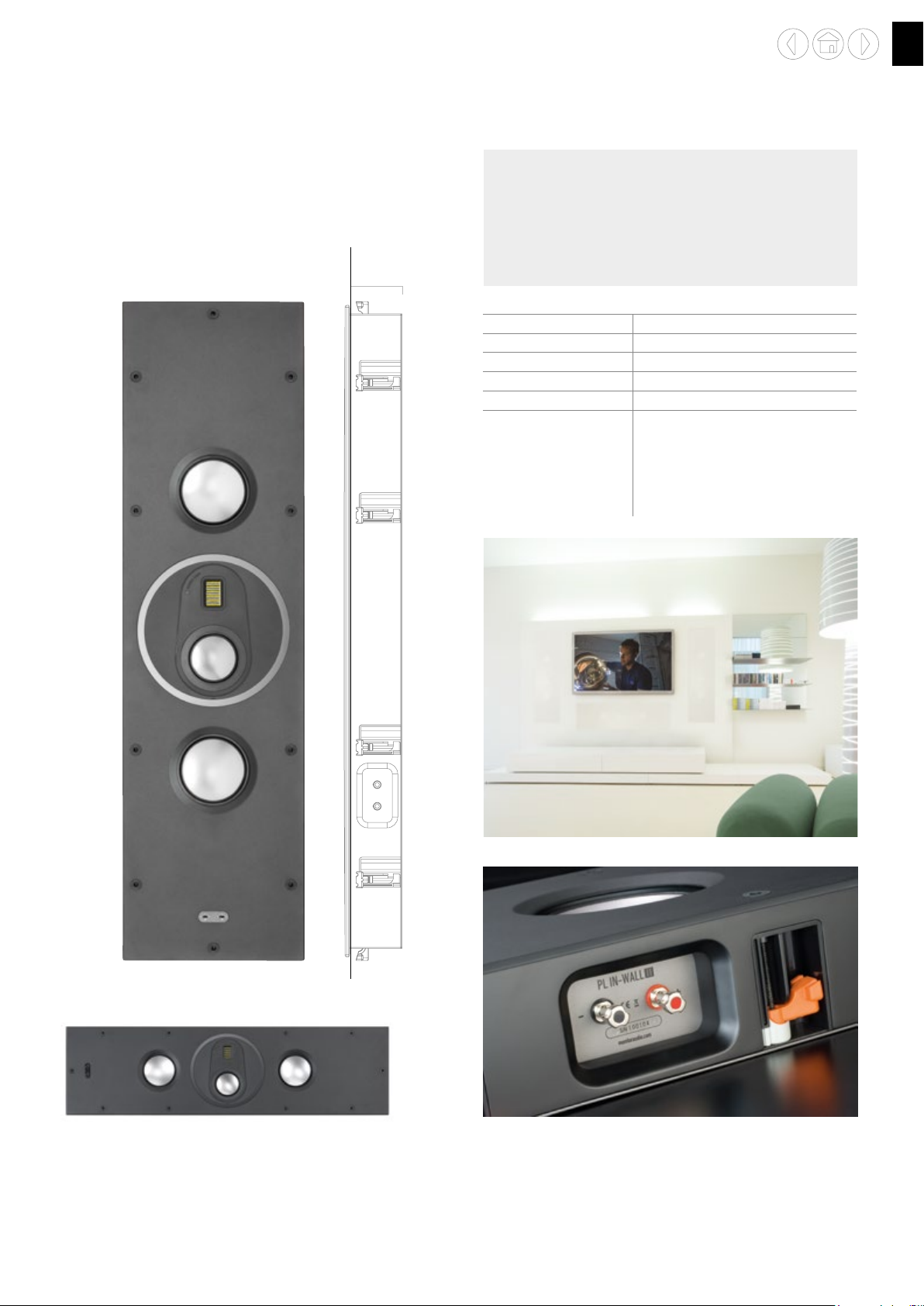

The CP-IW260X and CP-IW460X In-Wall designs have
overcome the challenges of scale to deliver the natural,
full range audio energy you’d expect from a free-standing
high-end box. In a leap of engineering ingenuity, we’ve

distilled the know-how driving our hi- speakers into a

super-compact In-Wall format. Dedicated music lovers and
home theatre fans can enjoy the rich, detailed, high-impact
dynamics they crave, from a speaker that physically
disappears in the room. Both Full Size models can be
installed in vertical or horizontal orientations, with the high
frequency ribbon transducer of the CP-IW460X designed
to rotate 90° to suit the chosen speaker placement.

Sensitivity (1W@1m) 89 dB

21/32

Cut Out Dimensions (H x W) 34

Mounting Depth 3

Power Handling (RMS) 150 W

Impedance 6 ohms

Driver Size & Technology 2 x 6

Pre-Construction Bracket WB12 (Green)

” x 9” / 880 x 230 mm

3/4

” / 96 mm

1/2

” C-CAM RST bass drivers
2 x 4” C-CAM RST mid-range drivers
High frequency ribbon transducer
Die-cast alloy bass driver chassis provides rigidity;
results in punch bass and clean mid-range
performance due to reduced transfer of vibrations
HF & MF level switches
Boundary compensation switch
Innovative HF tweeter rotating system to facilitate
vertical or horizontal orientation

17

Controlled Performance

At only 3

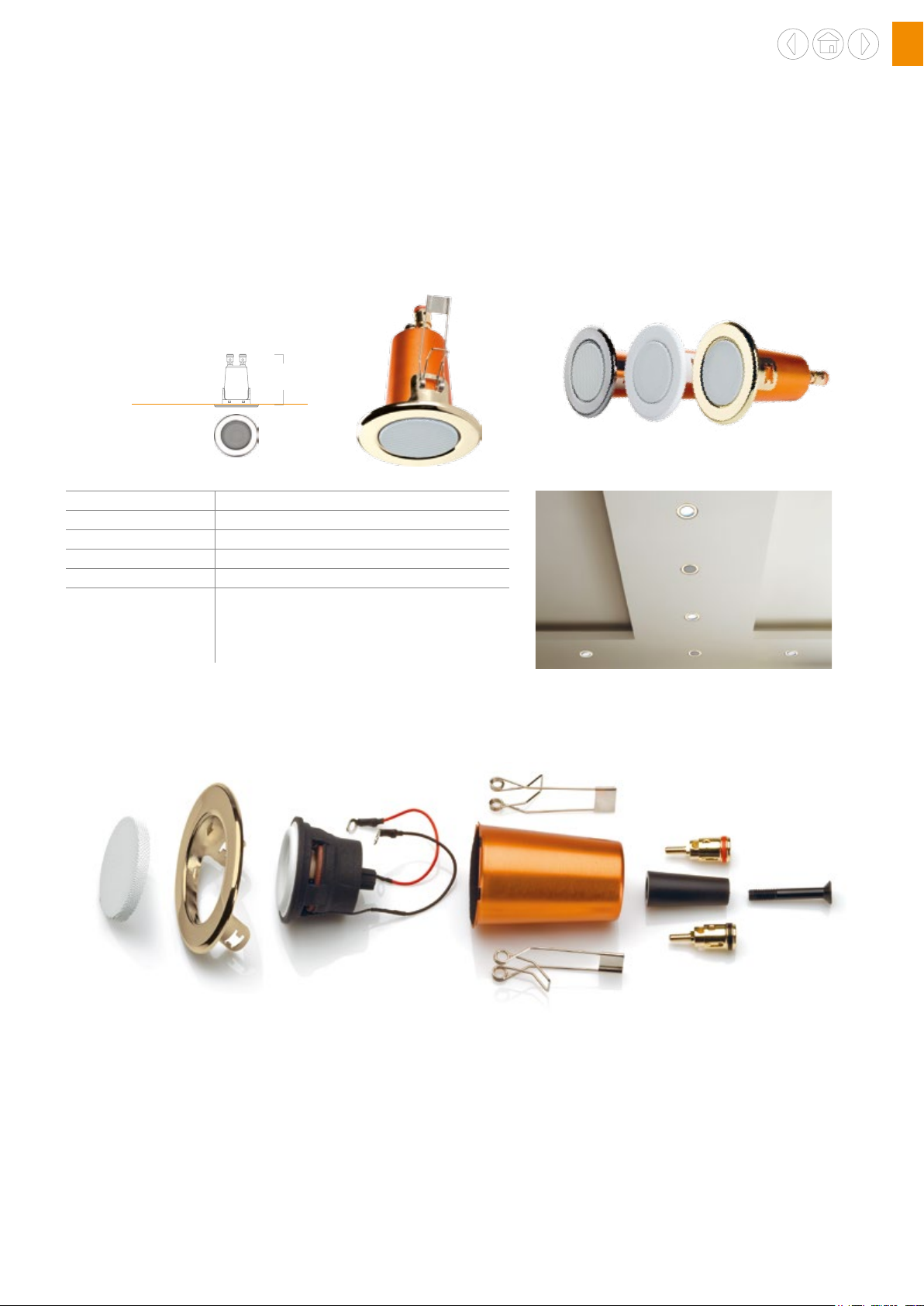

innovative application. Its precision engineered micro design allows it to oer a surprisingly coherent and detailed performance

from a standard GU10 sized halogen down-lighter hole. The CPC120 can be specied with three dierent grille bezel options.

1/8

” / 80 mm diameter, Monitor Audio’s CPC120 is a loudspeaker that oers extraordinary sound quality for a truly

In-Ceiling GU10 Size

CPC120

5/8

3

”

91.5 mm

Sensitivity (1W@1m) 85 dB

1/2

Cut Out Diameter 2

Mounting Depth 3

Power Handling (RMS) 20 W / 50 W using a crossover @ 200 Hz

Impedance 8 ohms

Driver Size & Technology 2” Full range micro-driver

” / 65 mm

5/8

” / 91.5 mm

Sealed back box

Quick and easy discreet ush tment to ceilings or walls
Conventional tment clips oer quick and simple installation
Available in three nishes (brushed steel, white and brass)

18

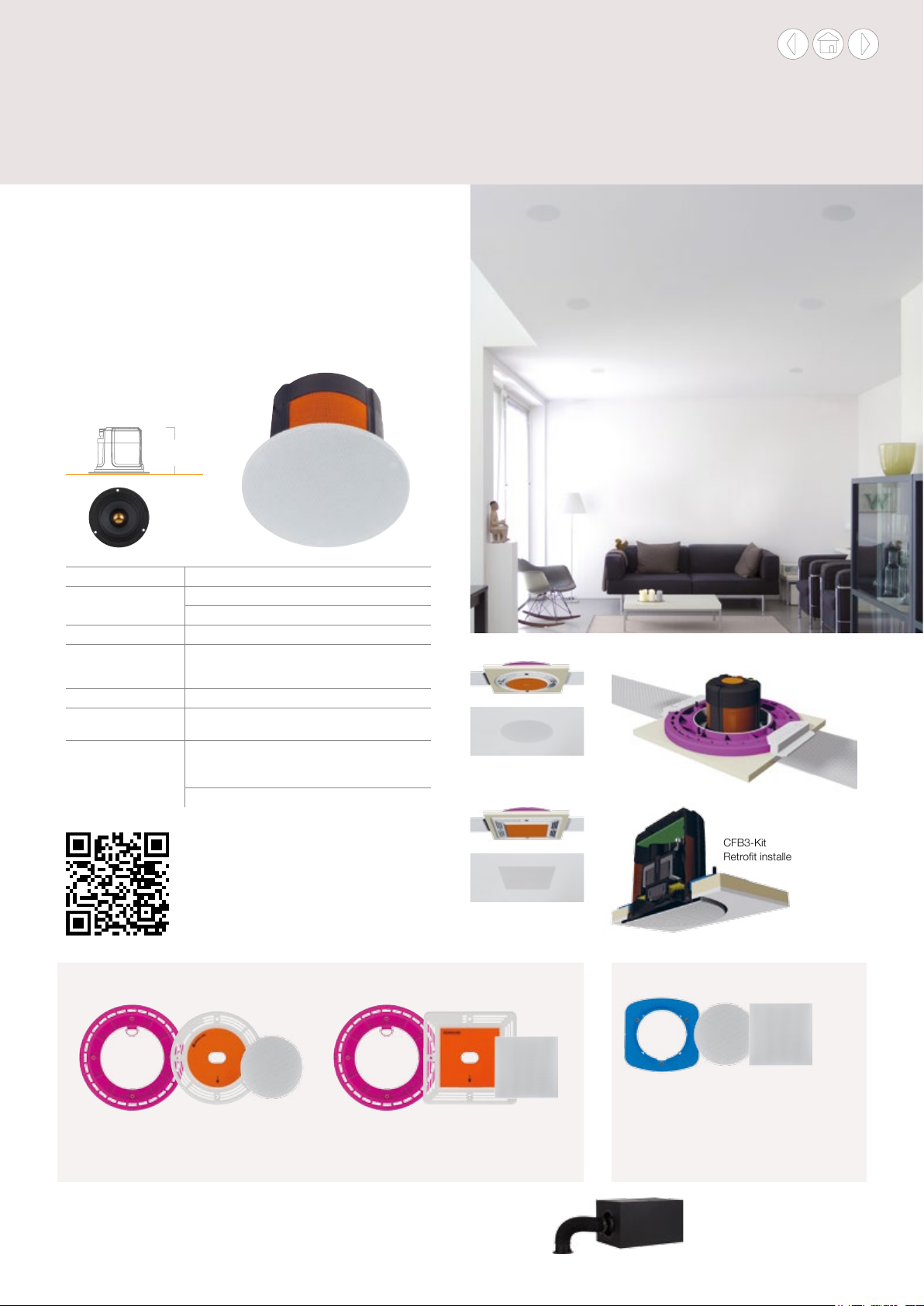

Flush Fit

For ultimate visual appearance use the aesthetically attractive

Flush Fit CF230 speaker. It’s exible and can be used on its own

or in multiples. Set up as a 2.1 system with complementary ICS-8

subwoofer it will out perform traditional Custom Install speakers.

It comes in a choice of install options: 1. Flush Fit or 2. Retrot

with round and square grilles.

In-Ceiling

CF230

5/16

3

”

83.5 mm

Sensitivity (1W@1m) 82.5 dB

3/4

Cut Out Diameter Flush Fit 4

Retrot 3

Mounting Depth 3

Power Handling (RMS) 30 W – Full range – IEC268-5 rating

Impedance 8 ohms

Driver Size &
Technology

Brackets 1. Flush Fit –

5/16

100 W – Music program

(Using High Pass crossover lter @120 Hz)

1/2

3

3/4

” C-CAM Gold Dome tweeter

CFB3-R (round grille) or CFB3-SQ (square grille)
Pre-construction bracket included in above kits

2. Retrot – CFB3-KIT (round and square grilles)

” / 120 mm

9/16

” / 90 mm

” / 83.5 mm

” Bass/mid-range driver, featuring C-CAM cone

CFB3-R Flush Fit
round grille

Installation Guide video available,
scan the QR code or visit:

vimeo.com/monitoraudio/cf230

CFB3-SQ Flush Fit
square grille

CFB3-R (Round) and CFB3-SQ (Square) – Pre-Construction Flush Fit Brackets

CFB3-R or
CFB3-SQ
Flush Fit installed

CFB3-Kit

Retrot installed

CFB3-KIT – Retrot Bracket

In a pre-construction set-up, the CF230 package enables a seamless, ush t appearance. You get clean

lines, with no shadow-creating edges, and paint the grille to match the ceiling and the speaker disappears
even further into the background. Order either round or square option.

The CF230 is installed using one of the brackets featured above. The Pre-Construction Flush Fit

(new build) and Retrot (existing) options are key to upholding it’s exibility claims. Its ability to t

into any set-up means that the speaker is easier to install and more economical than other models.

The CFB3-KIT retrot installation kit cleverly
provides a rm xing behind plasterboard/

Sheetrock and requires just three screws to
complete the t.

NOTE: The retrot option is not ush tting and the

grille will sit slightly proud of the ceiling surface.

Compatible product for this range:
In-Ceiling Subwoofer ICS-8.

See page 30 for details.

19

Invisible

An invisible audio soundstage is a powerful attraction for homeowners, architects and designers. When so much is invested in creating

a beautiful interior space, then it can be dicult to compromise that aesthetic with unsightly speaker grilles. The IV140 invisible speaker

delivers ‘best in class’ audio performance in concealed In-Wall and In-Ceiling applications. It meets the demands of designers, installers

and end users by providing ultimate discretion with easy to t installation and high performance. The IV140 ts into all conventional 4”

stud bays, leaving enough room for cabling. Once installed and skimmed with plaster, the speaker is completely out of sight, with paint,

light wallpaper or fabric hiding it from view. Large low frequency transducer and two high frequency transducers provide punchy, high

power bass and sound vibration. Integrated back box design isolates sound and ensures consistent controlled performance with

an optional removable acoustic cover for more bass if required.

In-Wall

Installation

Plaster

Plasterboard

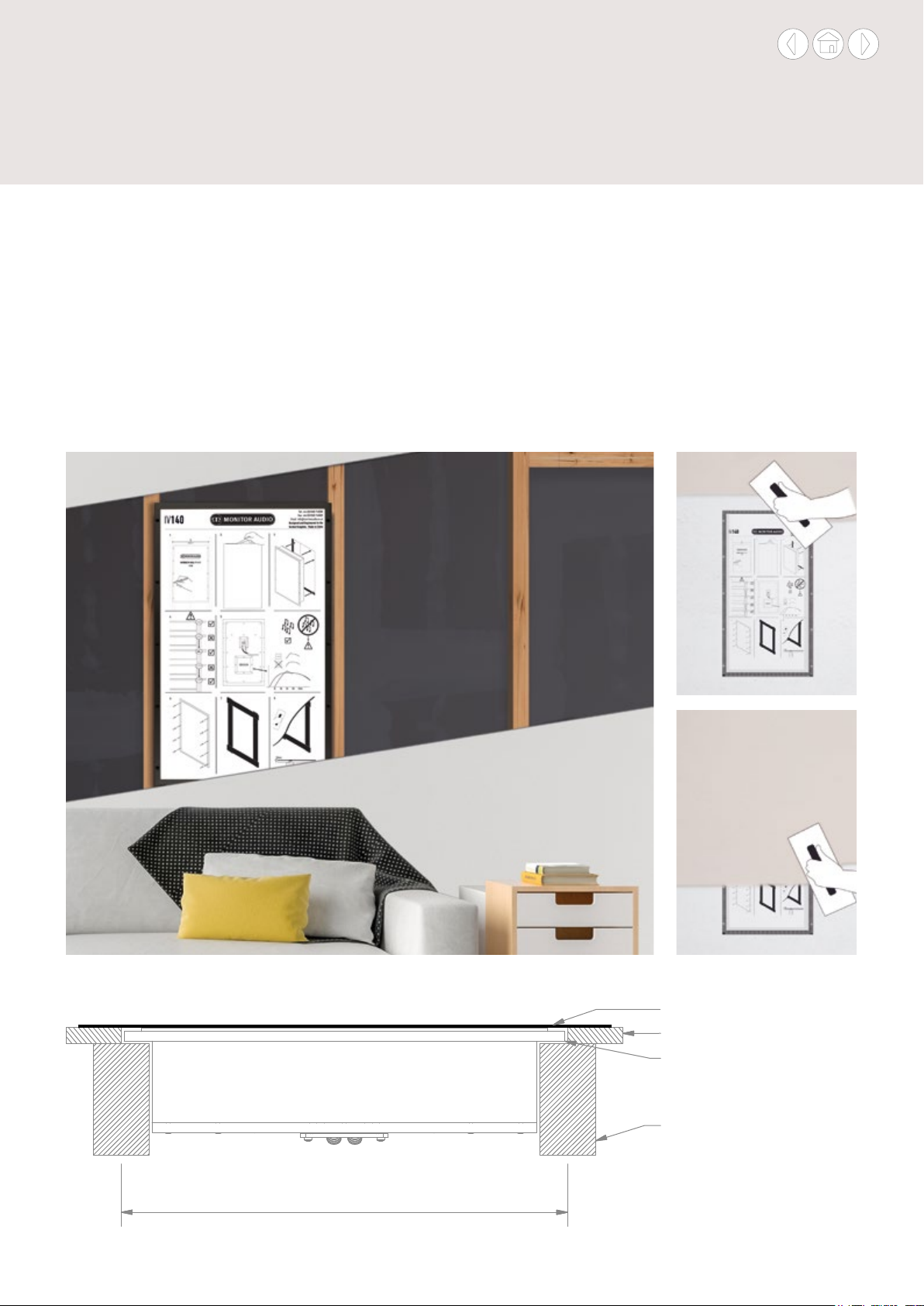

Space product away from studs
so that the front face will only be
covered by a thin layer of plaster

Studs

16” / 406.4 mm

Centres

20

Invisible

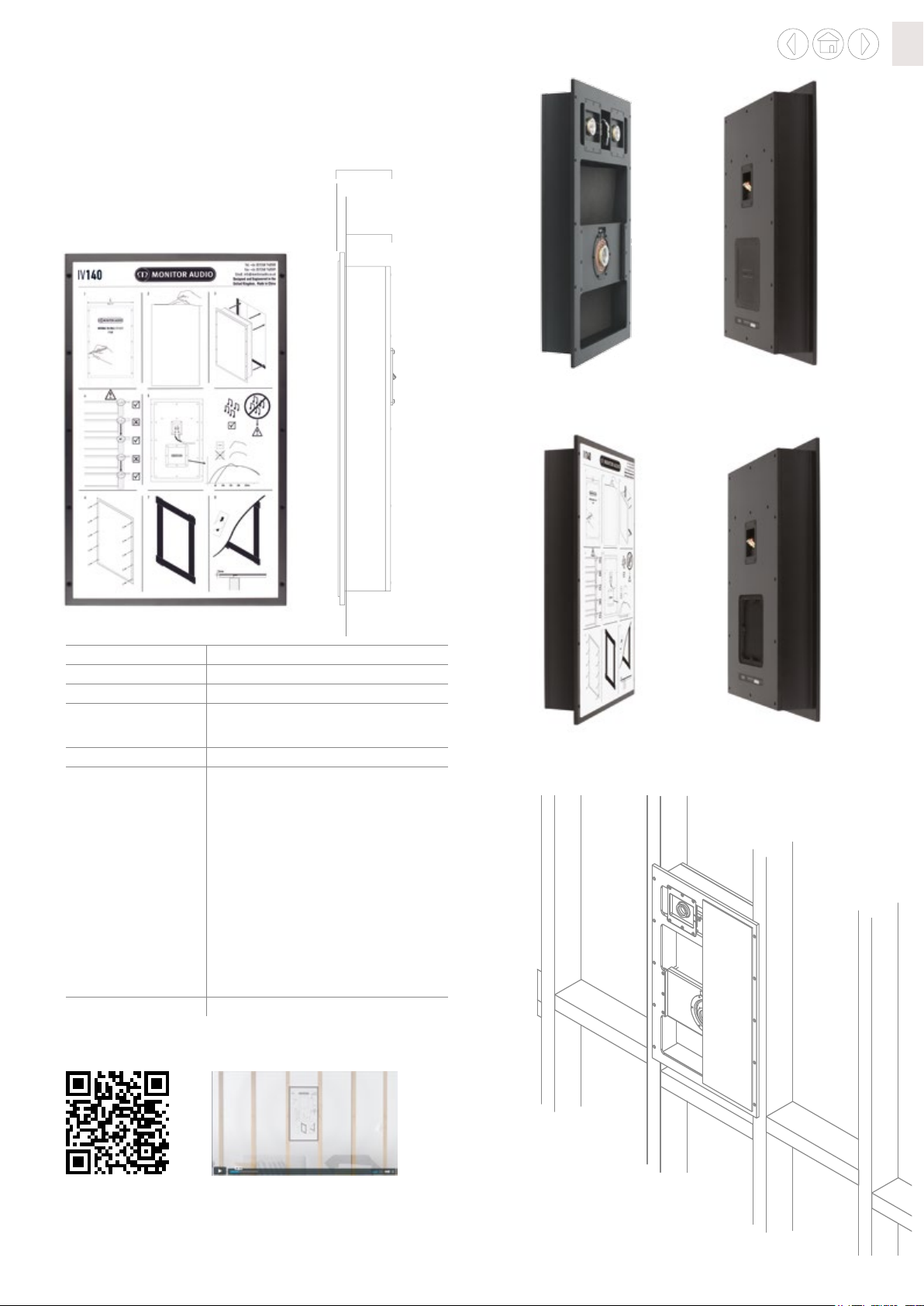

IV140

3/4

”

3

95.5mm

5/16

3

”

83.5 mm

Closed back

IV140 shown above without membrane for highlighting driver
arrangement purposes only and acoustic cover in place (CP)

Sensitivity (1W@1m) 82 dB (when installed as directed)

1/4

13/16

” x 13

Cut Out Dimensions (H x W) 23

Mounting Depth 3

Power Handling (RMS) 50 W – Full range – IEC268-5 rating

Impedance 8 ohms

Technology Low frequency transducer – Featuring high power

Pre-Construction Bracket WBIV140

13/16

100 W – Music program

(Using Minimum 80 Hz High Pass lter)

ceramic magnetics and 40 mm voice coil
Dual high frequency transducers – Incorporating
high power Neo magnets and 30 mm voice coils
2-way system with integrated crossover
Pre-construction speaker designed to be
plastered in to create ‘invisible’ appearance
Rigid MDF back box construction
Integrated ‘hybrid’ controlled performance back
box system – Fully sealed or opened back

High Quality crossover – Including metallised lm

capacitors and low loss steel core inductors
Protected against overload by PTC’s
(automatically re-setting breakers)
Ideal for home cinema, distributed audio,
hospitality, retail and commercial background
music applications where aesthetics and
discretion are key factors

” / 591 x 350.5 mm

” / 83.5 mm

Opened back

With membrane in place and rear acoustic cover removed

Installation Guide video available, scan the QR code or visit:

vimeo.com/monitoraudio/iv140

21

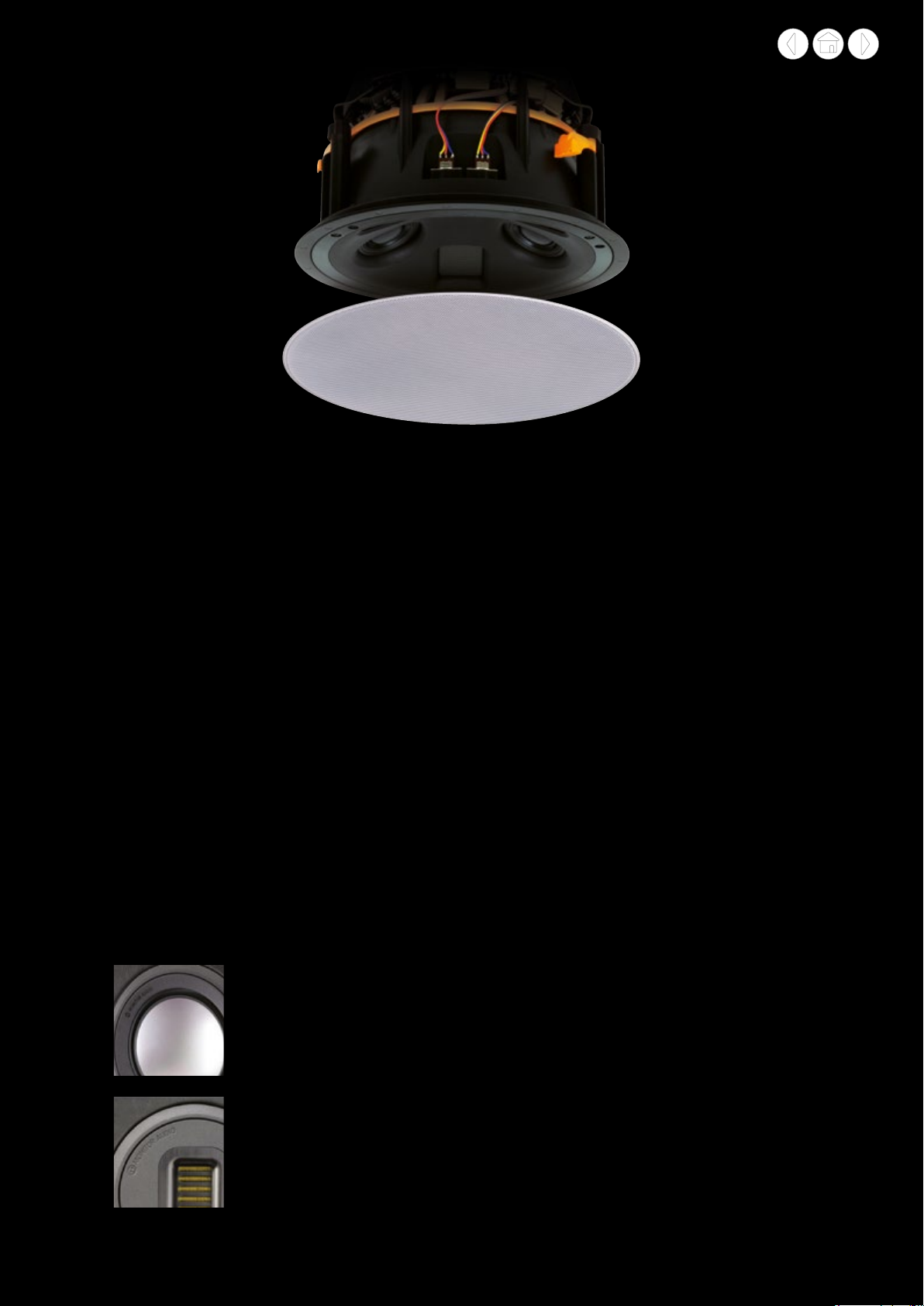

Perfection Elevated

Platinum II Technology

PLATINUM II In-Ceiling Speaker

RDT II (Rigid Diaphragm Technology 2nd Generation) Driver: A composite ‘sandwich’ structure made from ultra-thin
low mass skins, bonded to a honeycomb Nomex
respond with great speed without bending – just like a perfect piston. RDT II uses C-CAM for the front skin, while the
rear skin is made from a woven carbon bre material. We discovered that the new structure reduces distortion by
over 8 dB above 300 Hz, which makes RDT II the lowest distortion cone technology in Monitor Audio’s history.

MPD (Micro Pleated Diaphragm) High Frequency Transducer: Developed over many months of intensive testing
and listening, the MPD High Frequency Transducer is a landmark achievement by the engineering team for Platinum II.
It represents an imaginative re-working of an existing technology, transforming a successful idea into an audiophile

super-driver, having greater accuracy and eciency than ever before. Using, proprietary low-mass pleated diaphragm

with a surface area eight times larger than that of a traditional dome tweeter. The MPD transducer works like a super-fast
accordion by rapidly squeezing the pleats to produce a smooth, wide, naturally fast response up to 100 kHz. As a result

it sounds more lifelike, releasing the high harmonic spectrum of every note without the distortion that blurs denition.

®

core material. It is very light and very strong, meaning that it can

22

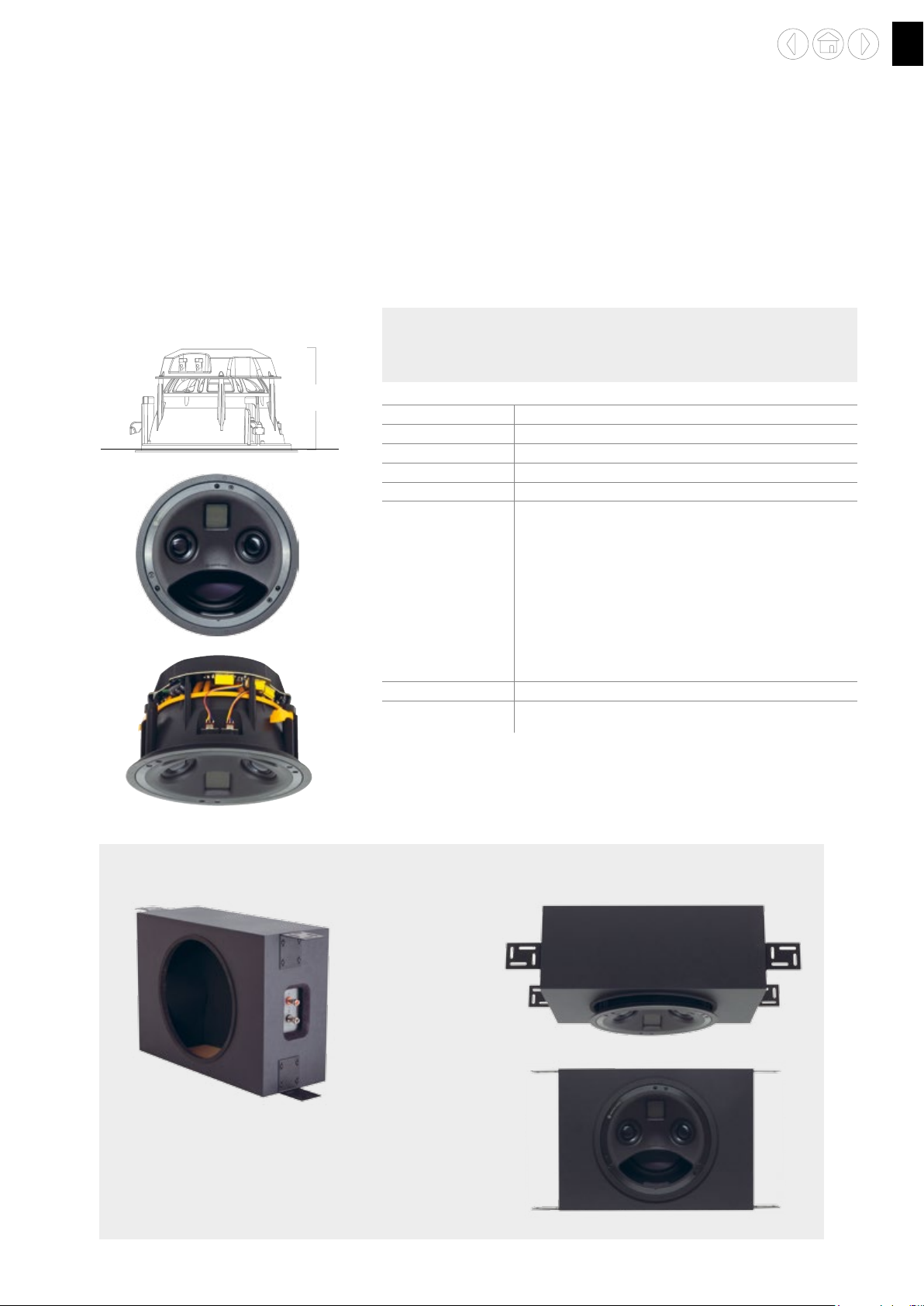

PLATINUM II

For over 7 years, Monitor Audio engineers have been working towards the unveiling of the Platinum II agship range.

With our most advanced driver, crossover and acoustics systems set within luxurious cabinets, we’ve tuned the virtues

that have won Monitor Audio worldwide acclaim to a new intensity, allowing rareed audio transparency to be revealed

and enjoyed. Platinum II is our magnum opus, as inspirational and satisfying to us as we hope it will be to you.

In-Ceiling

PLIC II

5/16

7

”

185 mm

The PLIC II In-Ceiling speaker oers unsurpassed levels of performance, delivering sublime audio

accuracy. Providing a winning combination of high quality sound, ease of installation and discreet

design, this speaker will be a rm favourite with home technology installers, architects, interior

designers and end users.

Sensitivity (1W@1m) 90 dB

3/4

Cut Out Diameter 10

Mounting Depth 7

Power Handling (RMS) 150 W

Impedance 4 ohms Nominal (3.1 ohms minimum @ 1.1 kHz)

Driver Size & Technology 8” long-throw RDT II bass driver

Pre-Construction Bracket CB10 (Light brown)

Back Box PLIC-BOX II – specially designed pre-construction enclosure provides

” / 273 mm

5/16

” / 185 mm

2 x 2” C-CAM mid-range drivers – full three-way design
MPD high frequency transducer
Angled mid-range and high frequency drivers – directed towards
listening area to provide uniform mid and high frequency dispersion

High-performance ‘no compromise’ agship speaker product
Rigid aluminium bae construction

Highest quality ‘push’ style termination
Mid-range and HF level adjustment switches (+1/0/-1 dB)
Paintable, trim less/low prole circular magnetic grille design –
square option available
Highest quality crossover design – including metallised polypropylene
capacitors and low loss inductors
Patented Tri-Grip mounting clamps

ideal controlled performance or a bespoke sealed enclosure of 24 Litres

Platinum II In-Ceiling Back Box

Overall Dimensions
(Including Brackets):

1/2

3/4

x 13

3/4

”

x 24

7

191.2 x 628.6 x 350 mm
Internal volume 24 L

PLIC-BOX II

To ensure controlled audio performance for the PLIC II, Monitor Audio
has designed an optional pre-construction MDF back box with pre­determined air volume of 24 L. The rigid box is available with pre-loaded
internal damping material to provide the best possible sound absorption
and reduce standing waves.

23

PLATINUM II

In-Wall

Platinum In-Wall II

13/16

3

”

97.5mm

The Platinum In-Wall II is a three-way reference architectural speaker
system, perfect for custom home theatre projects where lifelike scale
and dynamics are demanded. Equipped with an adjustable mid/high
frequency driver array, this unit is able to deliver pin-point audio imaging
and consistency from both vertical or horizontal orientations. By rotating the

array though 90 degrees at the centre of a LCR conguration for instance,

a soundstage of three Platinum In-Wall II’s will generate the seamless tonal

integrity of the nest boxed systems from a stealthy In-Wall location.

Sensitivity (1W@1m) 90 dB

1/4

13/16

x 11

Cut Out Dimensions (H x W) 46

Mounting Depth 3

Power Handling (RMS) 200 W

Impedance 4 ohms (3.7 ohms min. @ 2.8 kHz)

Driver Size & Technology 2 x 6

13/16

4” RDT II mid-range driver
MPD high frequency transducer
Mid-range/tweeter module rotates for
vertical or horizontal orientations
HF & MF level switches (+1/0/-1 dB)
Flagship In-Wall luxury speaker
Less than 4” mounting depth

” / 1175 x 300 mm

” / 97.5 mm

1/2

” RDT II bass drivers

Platinum In-Wall II can be installed in vertical or horizontal orientations

24

Pro Speakers

The PRO range is ideal for projects with large quantity of compact speakers for example in spaces like

shopping malls, hotel lobbies, restaurants, oce complex and general domestic use. It brings to custom

installers highly exible ultimate compact architectural speakers, with driver technology rened to deliver

unparalleled sonic performance and increased exibility in discrete installations.

In-Ceiling

PRO-80LVPRO-65 PRO-80

7/16

3

”

87.7 mm

Sensitivity (1W@1m) 86 dB 87 dB 87 dB

1/16

Cut Out Diameter 8

Mounting Depth 3

Power Handling (RMS) 30 W 40 W 40 W

Impedance 8 ohms 8 ohms 16 ohms

Driver Size &
Technology

Pre-Construction
Bracket

” / 205 mm 9

7/16

” / 87.7 mm 3

1/2

” MMP II driver

6
1” pivoting tweeter

Only available in packs of 5

PRO-IC65 Construction Bracket CB8 (Green) CB8-LV

3/4

” / 248 mm 10

7/8

” / 98.1 mm 4” / 101.4 mm

8” MMP II driver
1” pivoting tweeter

Only available in packs of 5

7/8

3

”

98.1 mm

1/2

” / 266 mm

70 V (4,8,16,32,64 W) / 100 V (8,16,32,64 W) power selection

8” MMP II driver
1” C-CAM Gold Dome tweeter
Ideal for projects with a large quantity of speakers over large distances

Transformer with 70/100 V input for installation on one amplier channel

16 ohms, power level taps at 4,8,16,32 W
Fireproof steel rear can – Fire Rating: UL1480 & UL2043

‘Easy-t’ connection block – Provides link out for ‘daisy chain’ connection
Anchor point xings

Only available in packs of 4

CB8-LVK

PRO-80LV
commercial speaker with
70/100 V line power taps

Ideal for projects with a large quantity
of speakers over large distances. It

also provides exible design options
congured in line level.

4”

101.4 mm

CB8-LV Bracket

CB8-LVK Bracket

25

Weather Resistant Speakers

26

All Weather

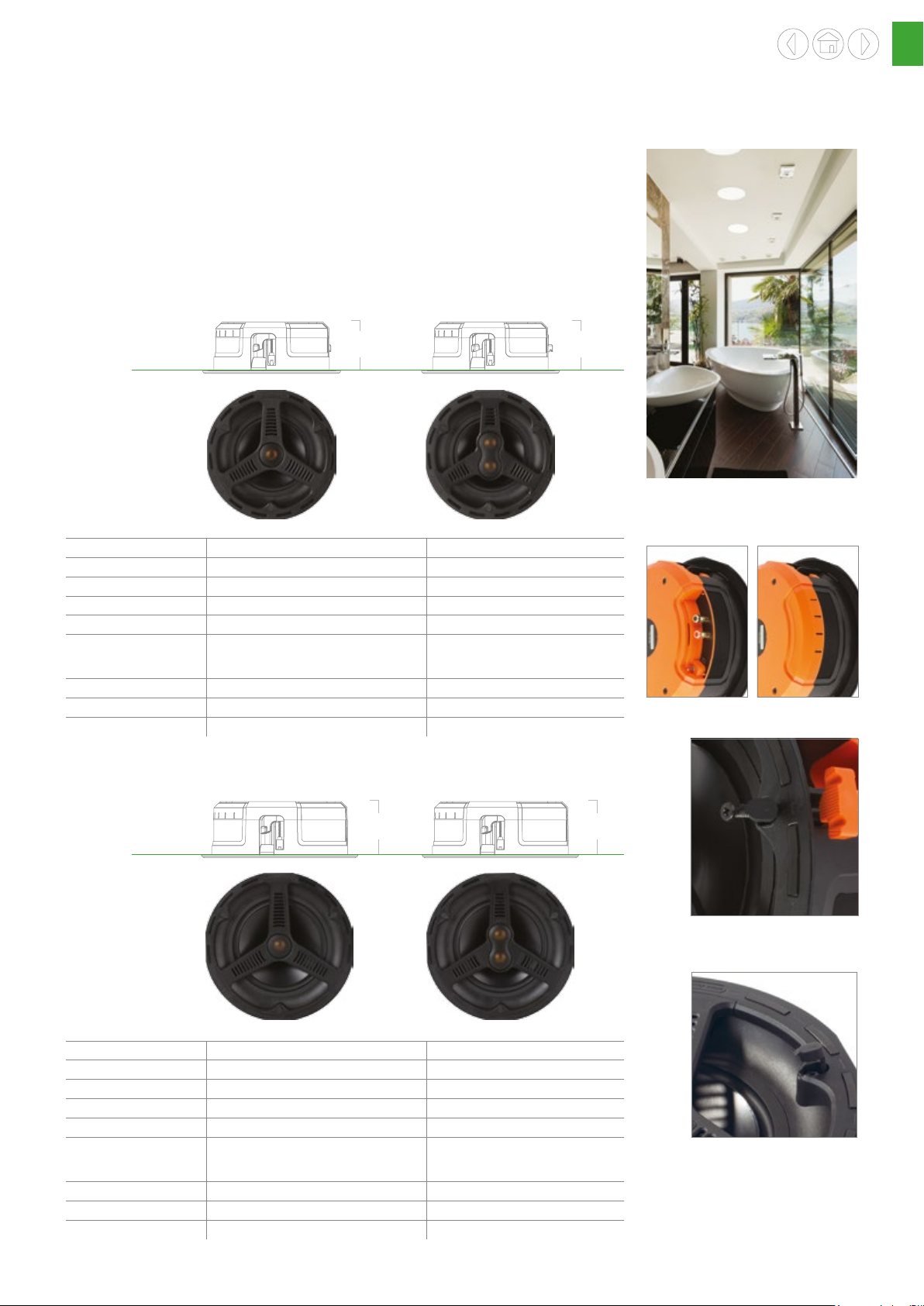

The All Weather In-Ceiling series has a weatherproof construction for installation in more

extreme environments such as bathrooms, beach houses, saunas or even boats. It oers

long-term high performance reliability being built with heightened levels of water, dust,

corrosion, UV and temperature protection. These speakers feature super-discreet Stainless

Steel grilles and are certied against salt spray, UV stability, water, vibration and anti-corrosion.

Operating temperature range: -29° to 174° F / -34° to 79° C.

In-Ceiling

Sensitivity (1W@1m) 88 dB 88 dB (both channels driven)

Cut Out Diameter 8

Mounting Depth 3

Power Handling (RMS) 60 W 2 x 50 W

Impedance 8 ohms / 4.4 ohms @ 190 Hz 8 + 8 ohms / 4.5 ohms @ 185 Hz

Driver Size & Technology 6

IP Rating Front: IP55 Rear: IP4X Front: IP55 Rear: IP4X

Pre-Construction Bracket CB6 (Purple) CB6 (Purple)

Back Box CCBOX-R / CMBOX-R CCBOX-R / CMBOX-R

AWC265 AWC265-T2

1/2

3

”

88.5 mm

1/4

” / 211 mm 8

1/2

” / 88.5 mm 3

1/2

” C-CAM driver
1” C-CAM Gold Dome tweeter
HF level switch

1/4

” / 211 mm

1/2

” / 88.5 mm

1/2

6

” C-CAM driver
2 x 1” C-CAM Gold Dome tweeters
HF level switch

3

88.5 mm

1/2

”

Gold plated push terminals with silicone cover

AWC280 AWC280-T2

7/8

3

”

97.6 mm

Sensitivity (1W@1m) 89 dB 89 dB (both channels driven)

3/4

Cut Out Diameter 9

Mounting Depth 3

Power Handling (RMS) 100 W 2 x 50 W

Impedance 8 ohms / 4.5 ohms @ 185 Hz 8 + 8 ohms / 4.5 ohms @ 185 Hz

Driver & Technology 8” C-CAM driver

IP Rating Front: IP55 Rear: IP4X Front: IP55 Rear: IP4X

Pre-Construction Bracket CB8 (Green) CB8 (Green)

Back Box CCBOX-R / CMBOX-R CCBOX-R / CMBOX-R

” / 247 mm 9

7/8

” / 97.6 mm 3

1” C-CAM Gold Dome tweeter
HF level switch

3/4

” / 247 mm

7/8

” / 97.6 mm

8” C-CAM driver
2 x 1” C-CAM Gold Dome tweeters
HF level switch

7/8

3

”

97.6 mm

Stainless steel xing screws with
Neoprene covers

Dust protection covers on driver
and crossover splash and humidity
proof for installation in shower and
pool areas

27

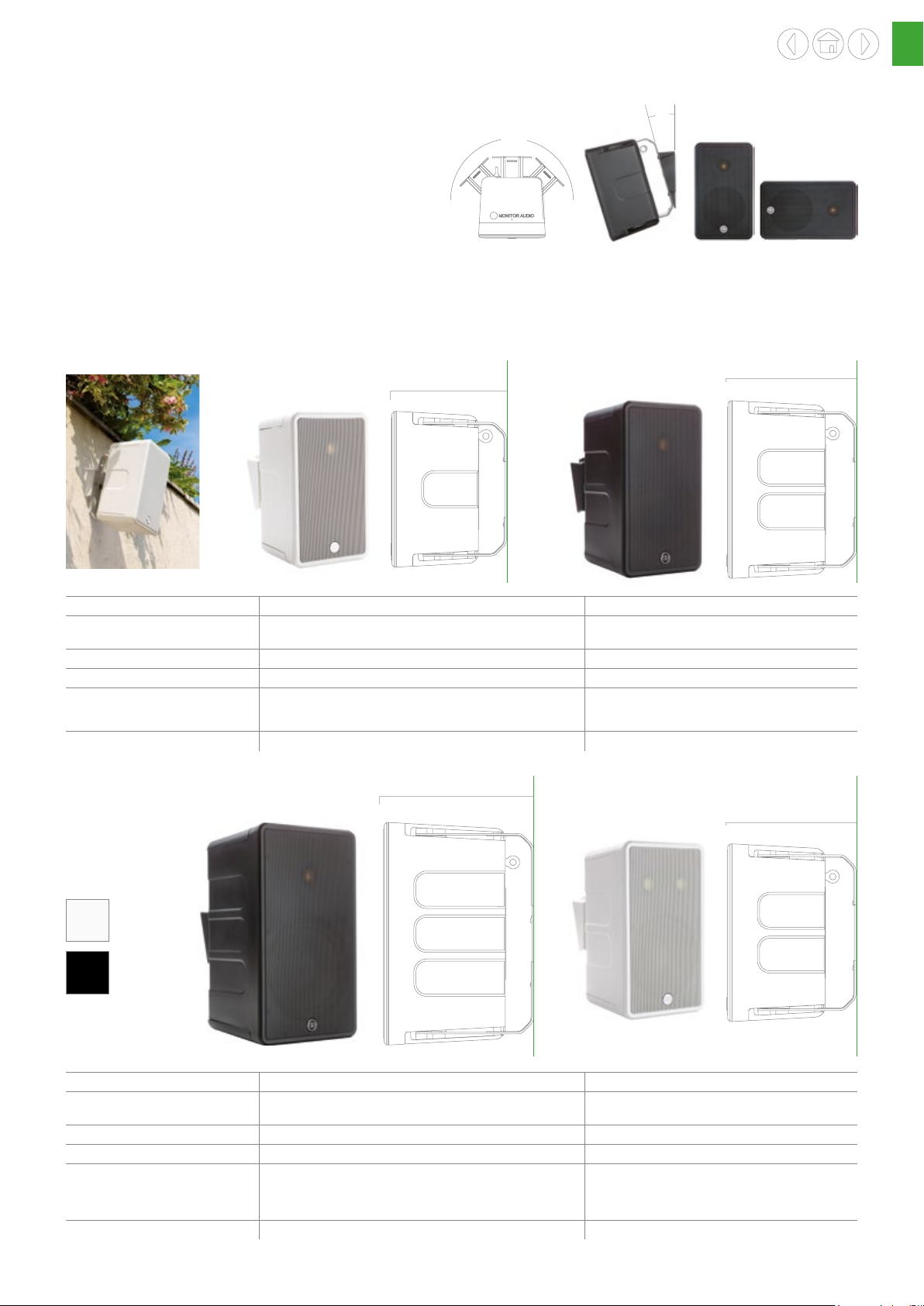

Climate

With the advent of the versatile Climate range, no environment is

beyond the reach of great sound, whatever the weather! This range

is certied to be resistant to UV, corrosion and water. Wall mounted

in any combination, it provides a wide and even dispersion of full

range sound over large areas. Low frequencies are augmented

from an Auxiliary Bass Radiator (ABR) in each cabinet. Paintable

textured white or black nishes with weatherproof aluminium grilles.

Operating temperature range: -13º to 149º F / -25º to 65º C.

Wall Mounted

Climate 50 Climate 60

8

5/16

” / 210.4 mm

175°

Bracket allows
for 175° rotation
on horizontal axis

15°

Speaker position can

be ne tuned by using

optional 15° angle block

Vertical or horizontal orientation.
Rotational ‘M’ logo

5/16

” / 235.4 mm

9

Sensitivity (1W@1m) 87 dB 88 dB

Overall Dimensions With Grille
(H x W x D)

x 6

11

5/16

x 6

” / 285 x 172.5 x 160 mm

(Overall Depth With Bracket: 8

5/16

” / 210.4 mm)

13/16

12
(Overall Depth With Bracket: 9

1/4

13/16

Power Handling (RMS) 80 W 100 W

Impedance 8 ohms 8 ohms

Driver Size & Technology 5

1/2

” C-CAM driver
1” C-CAM Gold Dome tweeter
Rear mounted ABR (Auxiliary bass radiator)

1/2

6
1” C-CAM Gold Dome tweeter
Rear mounted ABR (Auxiliary bass radiator)

IP Ratings IP55 IP55

3/4

10

” / 273 mm

Climate 60-T2Climate 80

Finishes

Textured White
and Black

5/16

x 7

x 7

” C-CAM driver

2/16

” / 325 x 185 x 180 mm

5/16

” / 235.4 mm)

5/16

9

” / 235.4 mm

Sensitivity (1W@1m) 89.5 dB 88 dB

Overall Dimensions With Grille
(H x W x D)

x 9

15

12/16

x 8

” / 405 x 230 x 221.5 mm

(Overall Depth With Bracket: 10

3/4

” / 273 mm)

13/16

12

x 7

(Overall Depth With Bracket: 9

15/16

1/16

Power Handling (RMS) 120 W 2 x 50 W

Impedance 8 ohms 8 + 8 ohms

1/2

Driver Size & Technology 8” C-CAM driver

1” C-CAM gold dome tweeter
Rear mounted ABR (Auxiliary bass radiator)

” C-CAM driver

6
2 x 1” C-CAM Gold Dome tweeters
T2: Stereo with double tweeter
Rear mounted ABR (Auxiliary bass radiator)

IP Ratings IP55 IP55

5/16

2/16

x 7

” / 325 x 185 x 180 mm

5/16

” / 235.4 mm)

28

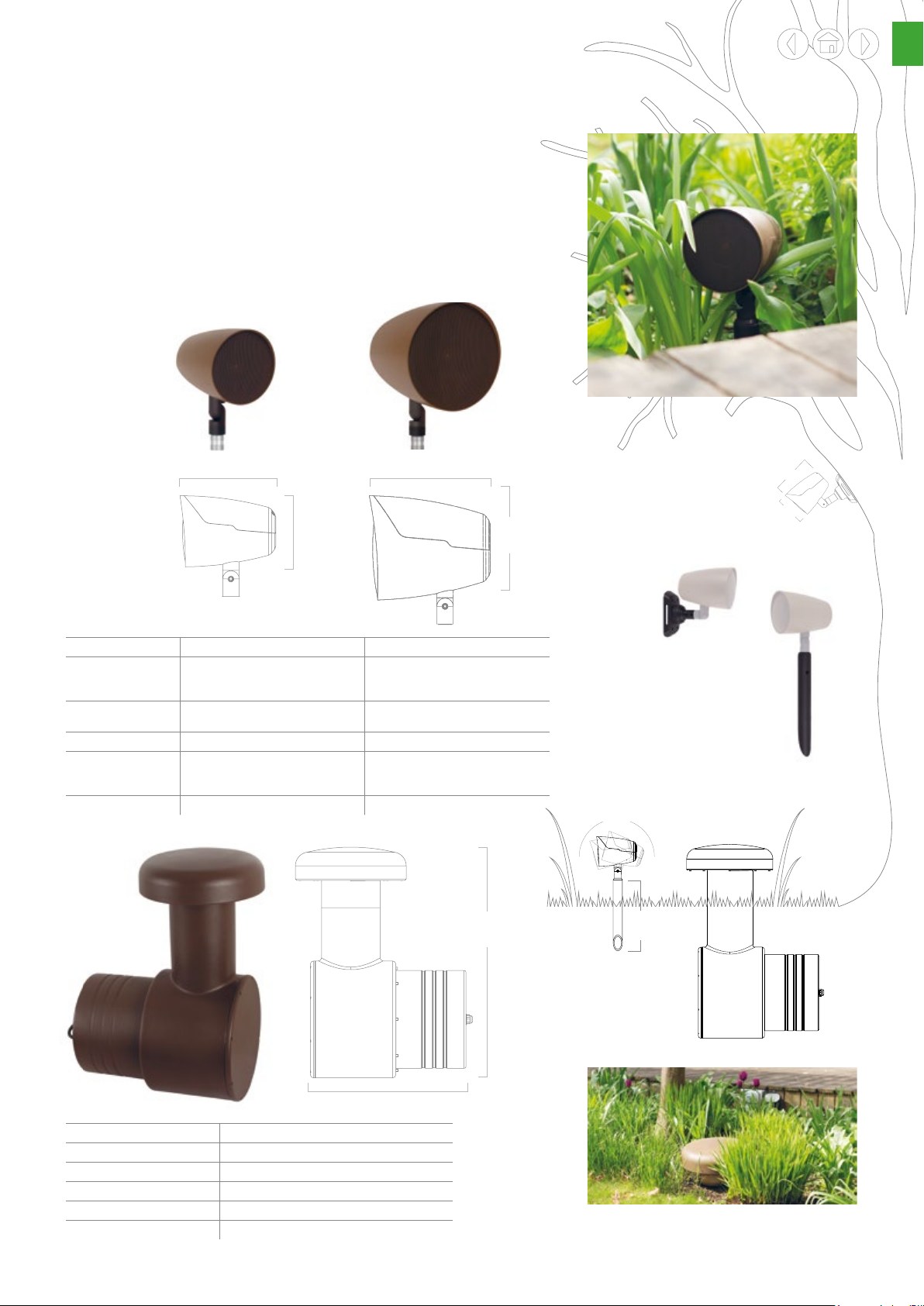

Climate Garden System

The Climate Garden System comprises of super discreet all weather satellite speakers

and a subwoofer. It’s ground level installation amongst shrubs and trees delivers a luxury

blend of unobtrusive aesthetics and natural full range audio in gardens of any size.

70/100 V line arrays of up to twelve satellites per subwoofer makes the Climate Garden

System expandable with additional satellite and subwoofer sets according to garden area.

Operating temperature range: -4° to 158° F / -20° to 70° C.

In-Ground / Mounted

CLG140 CLG160

7/8

6

” / 175 mm

1/8

5

” /

130 mm

Sensitivity (1W@1m) 88 dB 89 dB

1/8

7/8”

x 6

Overall Dimensions
Excluding Mount/
Spike (H x W )

Power Handling (RMS) 40 W (Crossover set to minimum

Impedance 70/100 V line level 70/100 V line level

Driver Size &
Technology

IP Ratings IP55 IP55

/

5
130 x 175 mm

100 Hz @ 12 dB/Octave)

4” MMPII cone bass-mid driver
1” C-CAM Gold Dome tweeter –
Coaxially oriented

CLG-W12
Subwoofer

11/16

8

” / 220 mm

1/2

11/16

7

x 8

190 x 220 mm

60 W (Crossover set to minimum
80 Hz @12 dB/Octave)

6” MMPII cone bass-mid driver
1” C-CAM Gold Dome tweeter –
Coaxially oriented

” /

CLG-W12
NOT TO
SCALE

1/2

19

” /

750 mm

1/2

7

” /

190 mm

CLG-MOUNT

NOTE : Mount and

Spike sold separately.
Speakers not included.
Tree or pole mounting
possible with additional

xings.

180 °

3/16

12

” /

310 mm

175 mm

130 mm

CLG-SPIKE R

7/8

19

” / 505.5 mm

Sensitivity (1W@1m) 87 dB

1/2

15/16

Overall Dimensions (H x W x D) 19

Power Handling (RMS) 250 W

Impedance 4 ohms or 70/100 V line level (cable select)

Driver Size & Technology 12” C-CAM cone, long throw sub-bass driver

IP Ratings IP54

x 14

7/8

x 19

” / 750 x 380 x 505.5 mm

CLG-W12 below ground garden installation. On patios or
decks install within a suitably sized planter

29

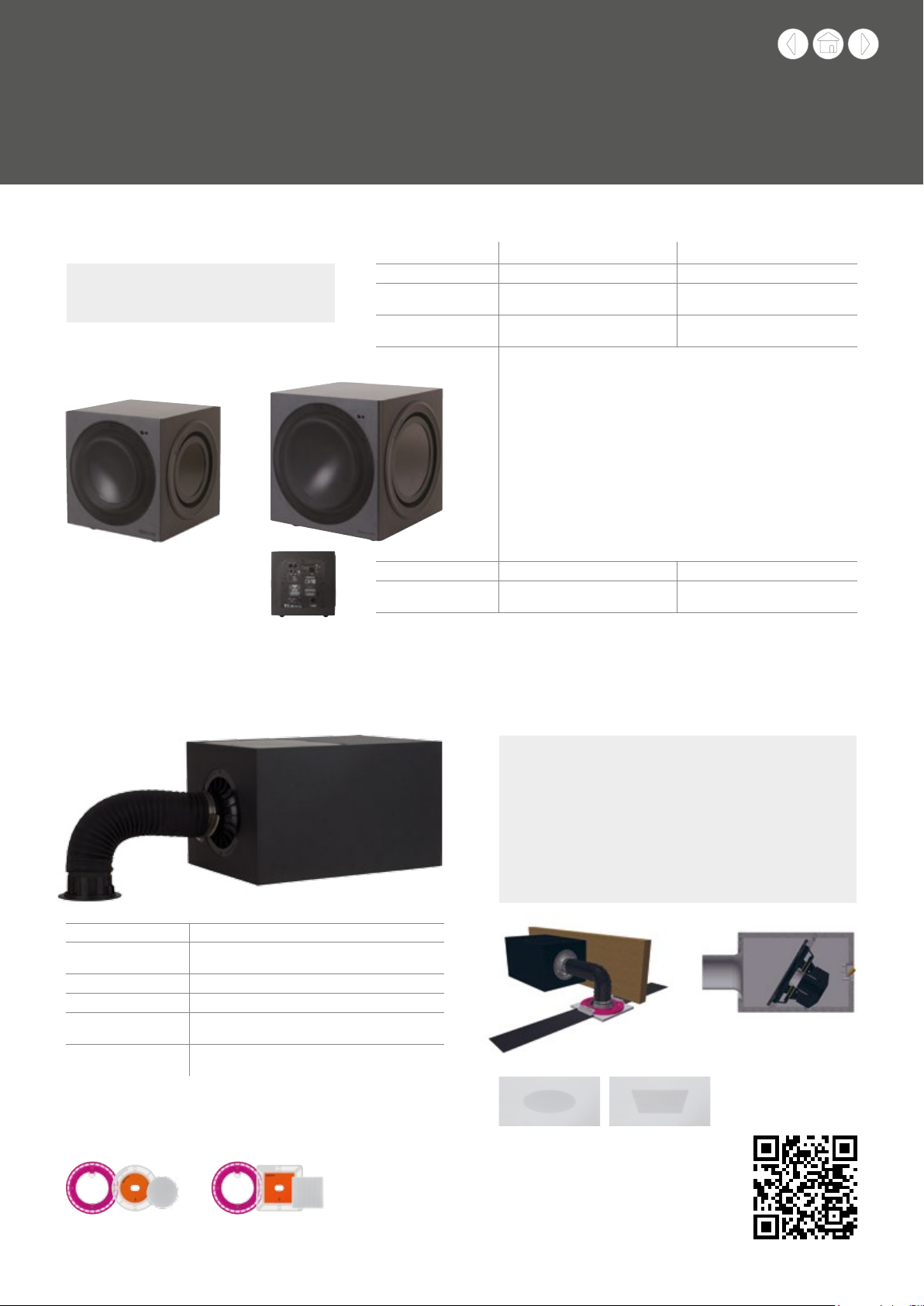

Custom Subwoofers

Free Standing

CW8 CW10

The ultra-compact CW8 and CW10 are designed to
generate deep bass impact with high output from
easy-to-hide enclosures.

CW8 CW10

Input Impedance > 20 K ohms > 20 K ohms

5/8

1/4

x 10

7/8

”

Cabinet Dimensions
(H x W x D)

Driver Size 8” C-CAM long throw driver

Technology Two, side mounted ABRs (Auxiliary bass radiators) to increase output and

Amplier Power Output 350 W RMS @ < 1% THD+N 400 W RMS @ < 1% THD+N

Amplier Classication Class D amplier with switch mode

x 10

10
270 x 260 x 276 mm

2 x 8” ABRs

reduce distortion
Tuned for High SPL and impact

High power digital Class-D amplier delivering over 400 W RMS

IR sensor for remote control (Published feature codes)
RS-232 for integration with system controllers (Published feature code)
USB P.C. application for full feature adjustment and installer set-up
LFE Balanced XLR Input and unbalanced RCA
Stereo RCA line level inputs
Phase and power mode switches
Auto standby (signal sensing) and 12 V trigger
4 pre-set EQ’s optimised for:
Flat, Music, Movie and Impact with customisation using application
Robust metal mesh grille

Rigid MDF cabinet construction with durable vinyl nish

power supply (SMPSU)

3/8

12

x 12 x 12

315 x 305 x 320 mm

10” C-CAM long throw driver
2 x 10” ABRs

Class D amplier with switch mode

power supply (SMPSU)

5/8

”

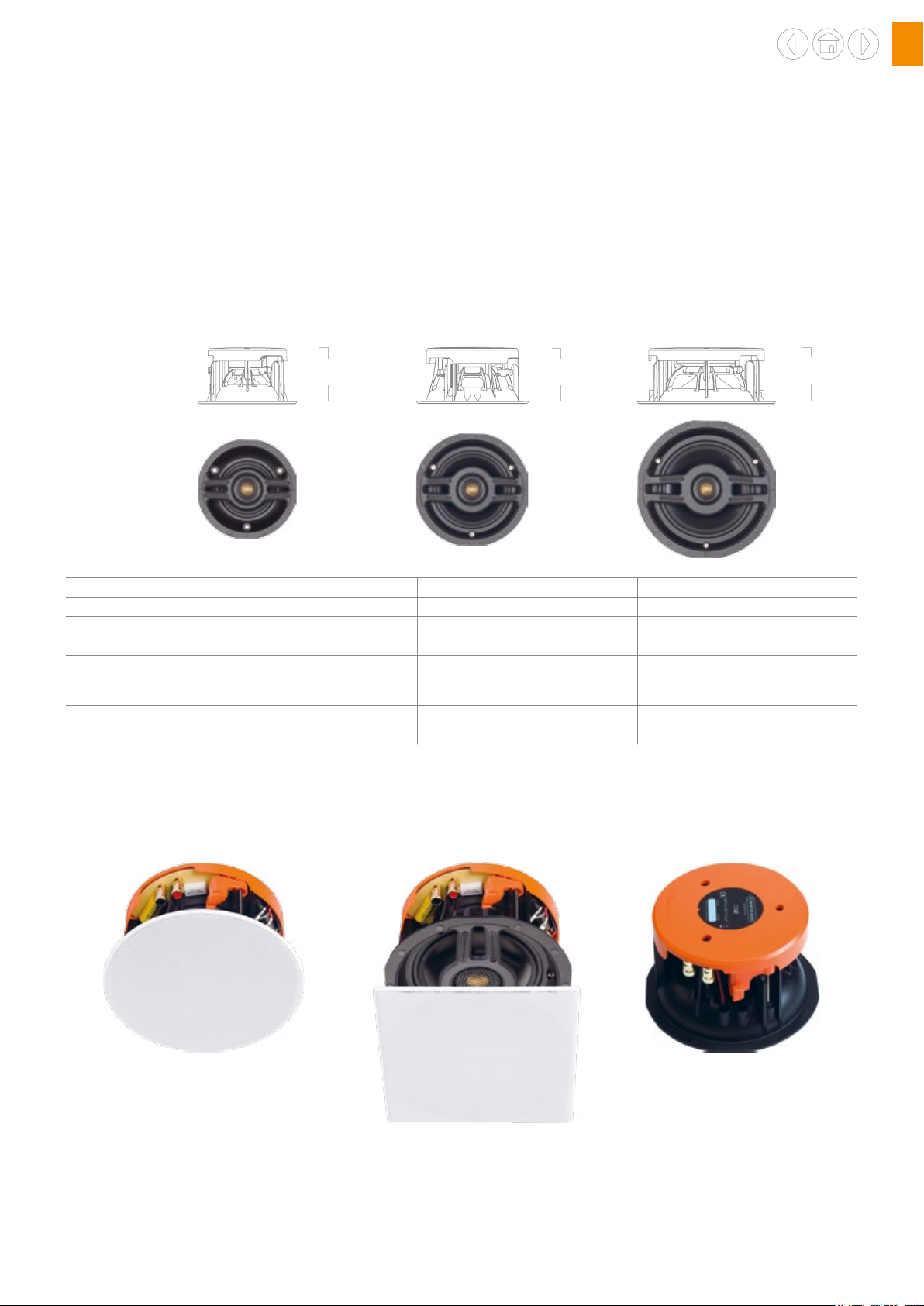

In-Ceiling

ICS-8

Sensitivity (1W@1m) 85 dB

Overall Cabinet
Dimensions (H x W x L):

Power handling 150 W – Full range – IEC268-5 rating

Impedance (nominal) 8 ohms

Driver Size &
Technology

Pre-Construction
Bracket

1/4

9
235 x 280 x 396 mm

8” long throw bass driver,
featuring C-CAM cone technology

CFB3-R (round grille) or CFB3-SQ (square grille)
Pre-construction bracket included in above kits

Pre-Construction Flush Fit Brackets

The ICS-8 is installed using one of the brackets featured below.

x 11 x 15

9/16

”

ICS-8 is a high performance subwoofer, designed to t into discreet

spaces, such as ceiling and wall cavities. It’s been developed primarily
to complement the CF230 Flush Fit (Page 19) to delivering powerful
bass where a full range system is required. The 8” driver has been
angled internally in the rigid MDF enclosure, to reduce the overall
box height and ensure compatibility with a wide range of standard

construction cavities. It can be installed in ceiling, underoor or suitable
cavities and is designed to complement ush t downlighting systems.

Sealed bandpass enclosure design stops ingress of dirt and building
materials. Delivering powerful bass down to 40Hz.

CFB3-R Flush Fit
round grille

CFB3-SQ Flush Fit
square grille

CFB3-R (round) CFB3-SQ (square)

Installation Guide video available,
scan the QR code or visit:

vimeo.com/monitoraudio/ics8

30

Custom Subwoofers

In-Wall

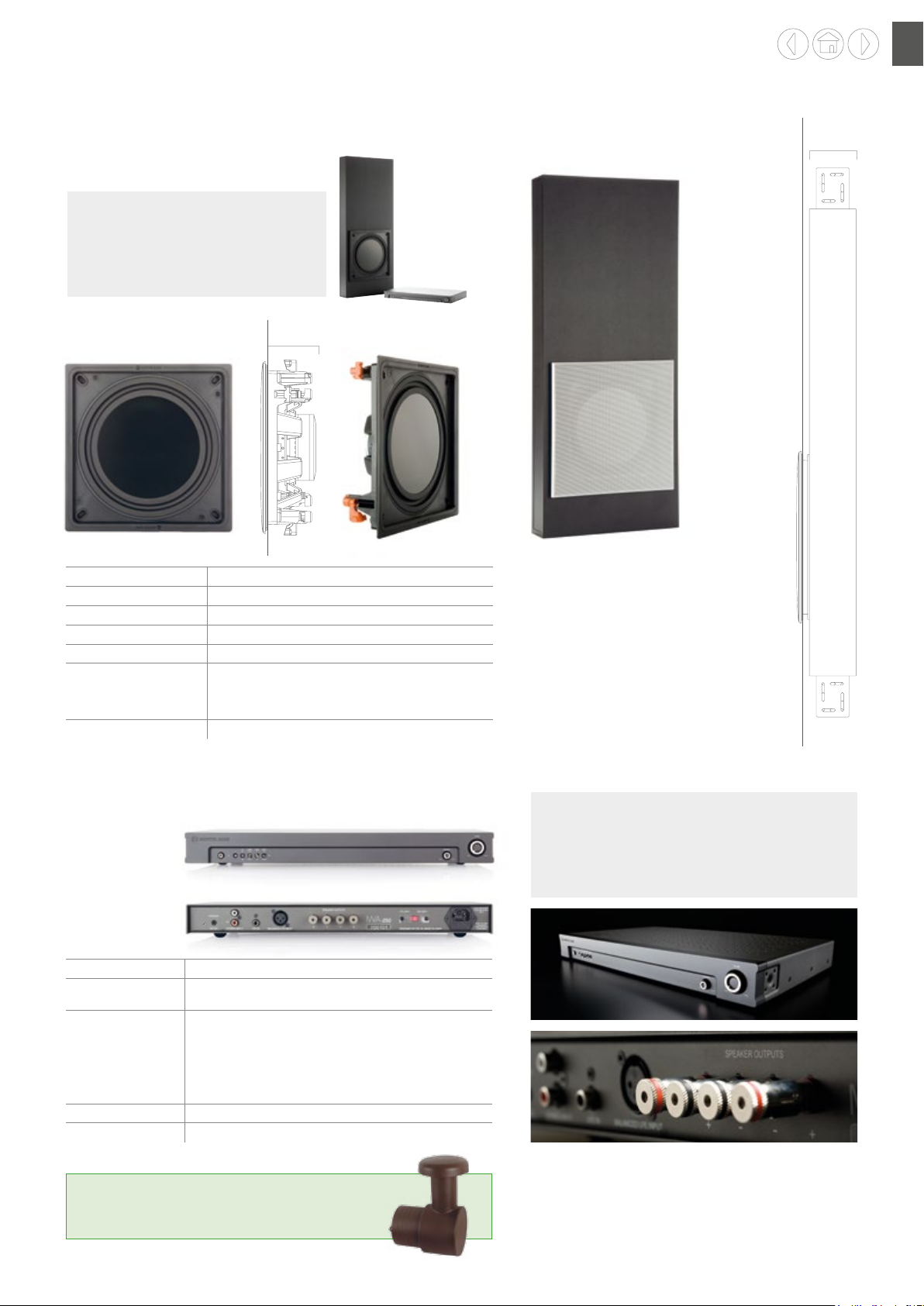

The In-Wall Subwoofer design is an amalgam of
sophisticated IWS-10 subwoofer driver, IWA-250

amplier and IWB-10 back box. The IWS-10 is
specied to produce excellent bass quality in a
range of wall, ceiling, even oor locations, ideally

but not exclusively with its IWB-10 back box.

IWS-10

1/2

3

”

90 mm

IWB-10 (In-Wall Back Box)

11/32

3
85 mm

”

Sensitivity (1W@1m) 86 dB

Cut Out Dimensions (H x W) 11 x 11” / 280 x 280 mm

1/2

Mounting Depth 3

Power Handling (RMS) 150 W

Impedance 8 ohms

Driver Size & Technology 10” C-CAM RDT driver

Back Box IWB-10 (In-Wall Back Box)

” / 90 mm

Less than 4” mounting depth
Ideally but not exclusively pairs with its IWB-10 back box
Patented Tri-Grip mounting clamps

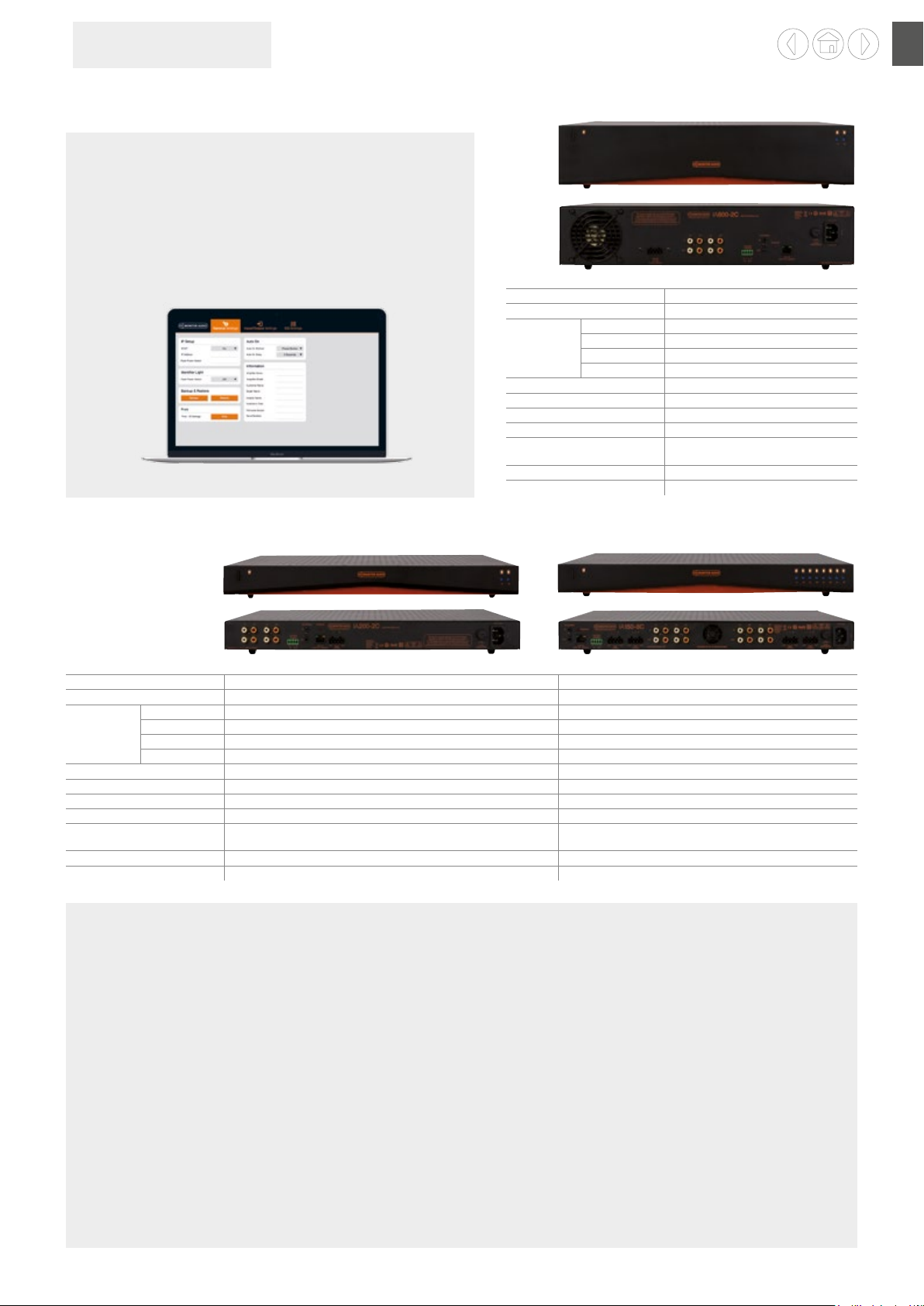

IWA-250 Amplier

IWA-250

Input Impedance > 20 K ohms

3/4

Overall Dimensions
(H x W x D):

Technology Heavy-duty 1U rack mount case

Amplier Power Output 250 W @ < 1% THD+N

Amplier Classication Class D amplier with Switch mode power supply (SMPSU)

x 17 x 10

1

43.7 x 432 x 263 mm

Will power single or dual IWS-10s
Switch mode power supply
DSP controlled with advanced limiters

<0.5 W standby power consumption (ErP certied)

DC short circuit protection, over-current and thermal protection
Supplied with rack mounting brackets for installation

3/8

”

IWB-10 shown with installed IWS-10 and grille

Overall Dimensions (H x W x D) :

1/2

13/16

x 13

33
Internal volume 16.5 L

Designed to provide optimum performance for IWS-10
Fits into standard 14” stud bays (16” centres)
Reduces the radiation of sound to adjacent rooms
Heavy duty MDF construction

Rugged laminated vinyl nish

Pre-wired with external high quality push type terminals
Supplied with mounting brackets for installation

The IWA-250 switch mode amplier – a slim, powerful design in

a heavy-duty 1U rack mount case. Delivering up to 250 W into
4 ohms, a single IWA-250 will power single or dual IWS-10s to
provide higher power levels for larger rooms or to meet customer
demands. The IWA-250 has input signal sensing, or is triggered
from an AVR or other system source.

11/32

x 3

” / 850 x 351 x 85 mm

CLG-W12

There is a subwoofer available for the Climate Garden System.

Please view Page 29 for full details.

31

AVAILABLE
February 2018

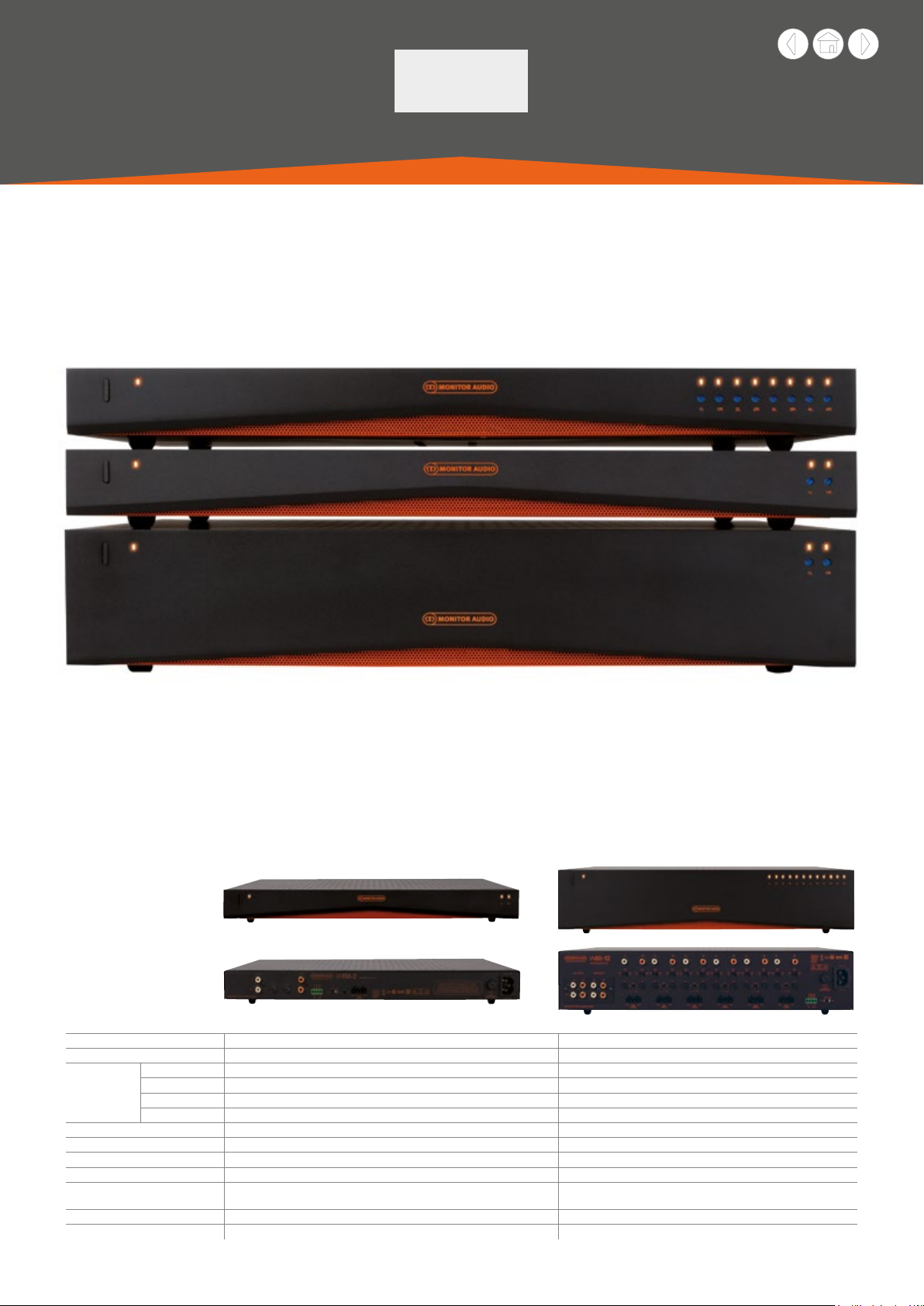

Ampliers

Introducing the Monitor Audio Installation Ampliers, built to do more and use less space, featuring cutting-edge technology for the best sound

performance in any installation project. The multi-channel ampliers can be used in a wide range of applications in residential and commercial

properties with power up to 2000 watts. Audio channels can be grouped or bridged for exible installations, congurable to 1,2,3,6,8 or 12 channels.

We have selected the world renowned Hypex ampliers to guarantee reliability and the great sound quality you’d expect from Monitor Audio, reduced

into slim 1U and 2U high cases that universally t into most racks whilst delivering 93% energy eciency. Auto ranging allows for use in any territory

without the need for a separate power supply. The amplier names all begin with ‘IA’ for Installation Amplier, followed by their power in watts per

channel at 4 ohms, the number of channels and a ‘C’ if it’s IP connected. Installation ampliers to suit any project.

There are two types on ampliers in the range;

Distribution ampliers – Full connectivity with simple wired voltage trigger or signal sense

Connected ‘Connect’ ampliers with more complex DSP and IP control included – Oering wider exibility and integration

Distribution Ampliers

IA150-2

‘Connect' IP control No No
Channel Number 2 (1 Stereo Pair) 12 (6 Stereo Pairs)
Power

(W / Channel)

Input Impedance 20 K ohms 20 K ohms
Output Impedance (Loop RCA) 600 ohms 600 ohms
Input Sensitivity 100 mV / 1 W, 990 mV – Full power 100 mV / 1 W, 650 mV – Full power
Rack Height 1U 2U
Dimensions (Without feet)

(H x W x D)
Height (With feet) 2
Width (Including rack brackets) 19

4 ohms 150 60
8 ohms 100 60
Bridge (8 ohms) 320 (1CH) 100 (6CH)
70V N/A N/A

11/16

1/4

x 16

13/16

”

x 17

1

42.4 x 438 x 427 mm

1/16

” / 52.8 mm 3

3/16

” / 488 mm 19

IA60-12

7/16

1/4

3

x 17

86.8 x 438 x 427 mm

13/16

” / 97.2 mm

3/16

” / 488 mm

x 16

13/16

”

32

AVAILABLE February 2018

‘Connect’ Ampliers

‘Connect’ IP interface

IA800-2C / IA200-2C / IA150-8C

Our ‘Connect’ IP interface is a web application, which can be accessed by
any device connected to the internet with a web browser on the same network.

This will allow the installer to set features and ne tune audio performance
remotely from the amplier location. The installer can therefore be in the

same room as the speakers when performing these tasks.

IA200-2C

IA800-2C

‘Connect' IP control Yes
Channel Number 2 (1 Stereo Pair)
Power

(W / Channel)

4 ohms 800
8 ohms 500
Bridge (8 ohms) 2000 (1CH)

70V 750 W/PC
Input Impedance 20 K ohms
Output Impedance (Loop RCA) 600 ohms
Input Sensitivity 100 mV / 1 W, 2200 mV – Full power
Rack Height 2U
Dimensions (Without feet)

(H x W x D)
Height (With feet) 3
Width (Including rack brackets) 19

7/16

1/4

x 16

13/16

x 17

3

86.8 x 438 x 427 mm

13/16

/ 97.2 mm

3/16

” / 488 mm

”

IA150-8C

‘Connect' IP control Yes Yes
Channel Number 2 (1 Stereo Pair) 8 (4 Stereo Pairs)
Power

(W / Channel)

4 ohms 225 150
8 ohms 150 130
Bridge (8 ohms) 470 (1CH) 300 (4CH)

70V N/A N/A
Input Impedance 20 K ohms 20 K ohms
Output Impedance (Loop RCA) 600 ohms 600 ohms
Input Sensitivity 100 mV / 1 W, 1230 mV – Full power 100 mV / 1 W, 1140 mV – Full power
Rack Height 1U 1U
Dimensions (Without feet)

(H x W x D)
Height (With feet) 2
Width (Including rack brackets) 19

11/16

1/4

x 16

13/16

”

x 17

1

42.4 x 438 x 427 mm

1/16

” / 52.8 mm 2

3/16

” / 488 mm 19

11/16

1/4

1

x 17

42.4 x 438 x 427 mm

1/16

” / 52.8 mm

3/16

” / 488 mm

x 16

13/16

”

Features – All Ampliers

Power Switch – Front panel mounted
Status LED – Indicating standby, power on or protect modes
Signal LED’s – Indicating a signal is present at each channel independently. It will also indicate clipping
Power Options – Trigger input – 3 – 30 V AC or DC. A trigger output supplies provides signal for additional ampliers or other equipment.

Audio – Auto signal sensing or permanently on

Speaker Connections – Industry standard removable block connectors accepts up to 12 gauge (3.5 mm2) cable

Additional Features – Distribution Ampliers

Volume Level Controls – Each channel on the amplier has a volume adjustment on the rear panel
IA150-2 – Both Line Inputs and Loop Outputs – To connect other ampliers/equipment
IA60-12 – Buss Inputs A/B and loop Outputs – Loop outputs are non buered (maximum number of ampliers that can be looped together will depend

on the output capability of your source component)

Additional Features – ‘Connect’ Ampliers

Higher power levels
Volume Level Controls – Each channel on the amplier has a volume adjustment on the front panel
‘Connect’ – IP control is via the RJ-45 input. IP controls power On/O, volume, muting and input source selections for either global control or group control
IR Control – In/Out jacks. IR controls global On/O, group volume, muting and input source selections. Connectivity can be seen with IR status light
IA800-2C – Can drive 70 V line speakers directly without a line matching transformer

33

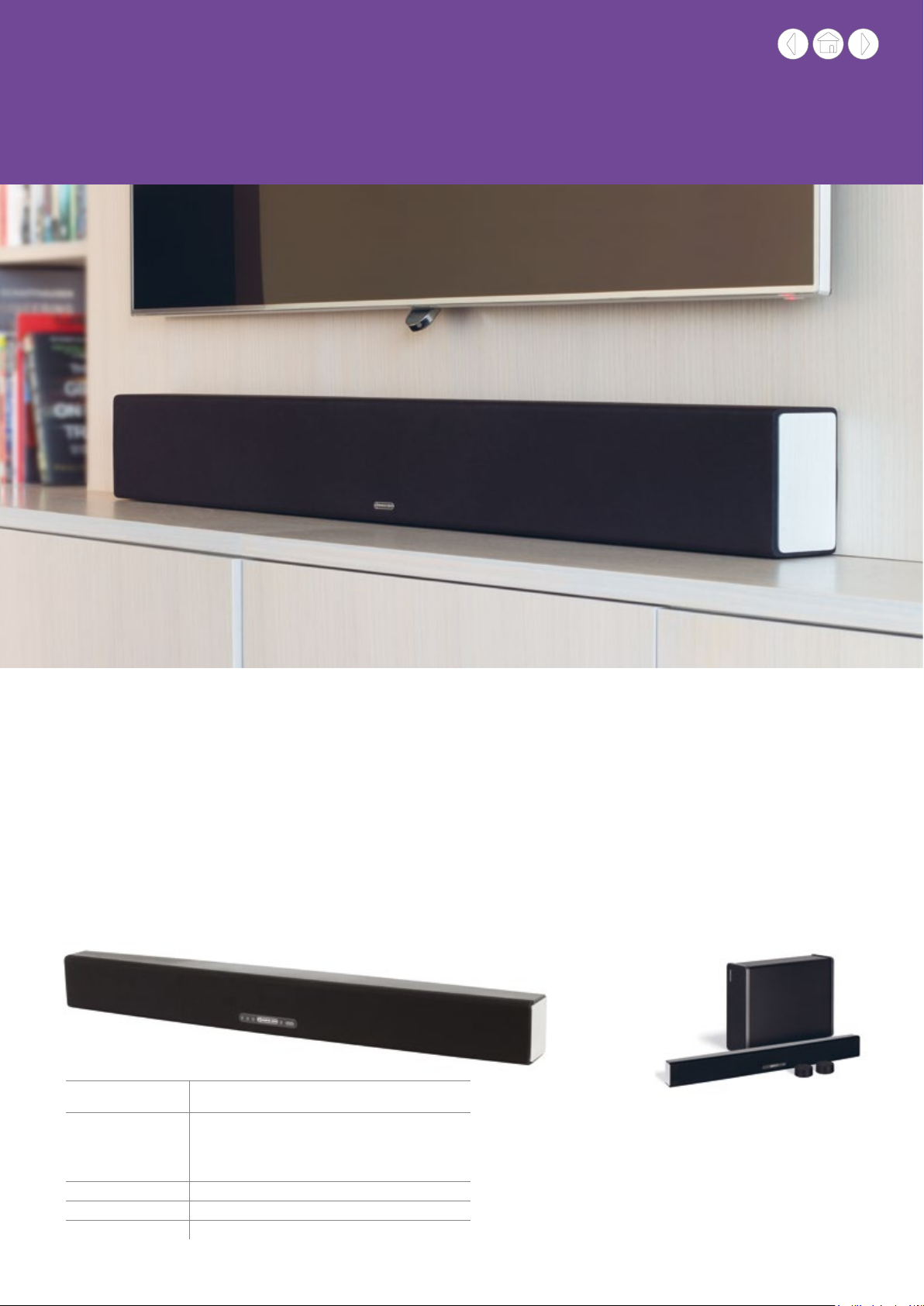

Soundbars

Active Soundbar

Free Standing / On-Wall

Expertly engineered to re-energise HD and UHD pictures with the rich, detailed, immersive sound you’ve
been missing. Your experience of TV is about to be transformed with this 2.0 Active Soundbar. Four Class D

ampliers, Digital wireless 2.4 GHz transmitter, Dolby Digital, Dolby Pro-Logic II and Dolby Virtual speaker.

ASB-10

Power Handling (RMS) Bass/Mid-range: 2 x 30 W

Driver Size &
Technology

Dimensions (H x W x D) 7

Amplier Category Class D

Suitable for display sizes All

Tweeter: 2 x 20 W

4 x 3” C-CAM metal cone bass mid-range drivers
2 x 1 C-CAM Gold Dome tweeters
2 x ABRs (Auxiliary bass radiator)
Compact dimensions for easy positioning beneath the TV,
on-wall or cabinet location

1/16

9/16”

x 39

9/16

x 6

” / 180 x 1005 mm x 167 mm

ASB-10 shown above with optional
WS-10 active subwoofer and the
WT-1 transmitter and WR-1 receiver
wireless links. Find out more at

monitoraudio.com

34

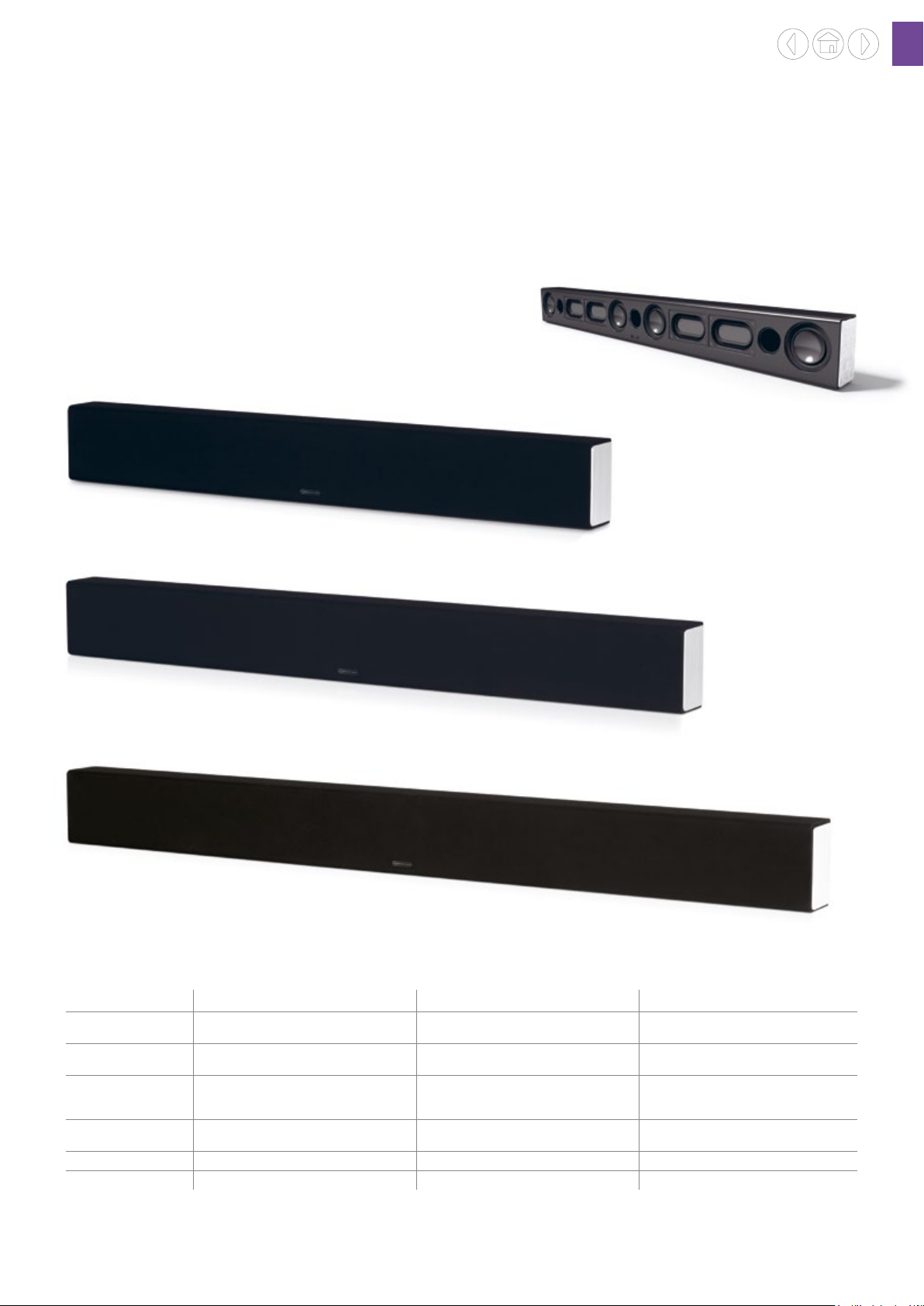

Passive Soundbars

Free Standing / On-Wall

Add big sound to your big TV display without lling the room with speakers. Monitor Audio’s Soundbars will
complete your HD picture entertainment with the high denition sound, and match the look of your TV with

contemporary lifestyle design. Can be wall mounted (Bracket sold separately).

SB-2 – 50” – 60” Screens

SB-3 shown without outer cloth

SB-3 – 60”+ Screens

SB-4 – 70”+ Screens

SB-2 SB-3 SB-4

Sensitivity (1W@1m) 84 dB Left and Right Channels: 84 dB

Power Handling (RMS) 40 W Left and Right Channels: 40 W

Driver Size & Technology 3 x 4” C-CAM cone bass/mid drivers

Dimensions (H x W x D) 5

Suitable for display sizes 50” – 60” 60”+ 70”+

On-Wall Bracket (optional) BSB BSB BSB

3 x 1” C-CAM Gold Dome tweeters
3 x ABRs (Auxiliary bass radiator) Loading

11/16

11/16

x 3

1/2

”

x 43

145 x 1110 x 89 mm

Centre Channel: 87 dB

Centre Channel: 80 W

4 x 4” C-CAM cone bass/mid drivers
3 x 1” C-CAM Gold Dome tweeters
4 x ABRs (Auxiliary bass radiator) Loading

11/16

9/16

5

x 51

145 x 1310 x 89 mm

x 3

1/2

”

87 dB

80 W

6 x 4” C-CAM cone bass/mid drivers
3 x 1” C-CAM Gold Dome tweeters
4 x ABRs (Auxiliary bass radiator) Loading

3/4

5
145 x 1562 x 88 mm

x 61

1/2

1/2

x 3

”

35

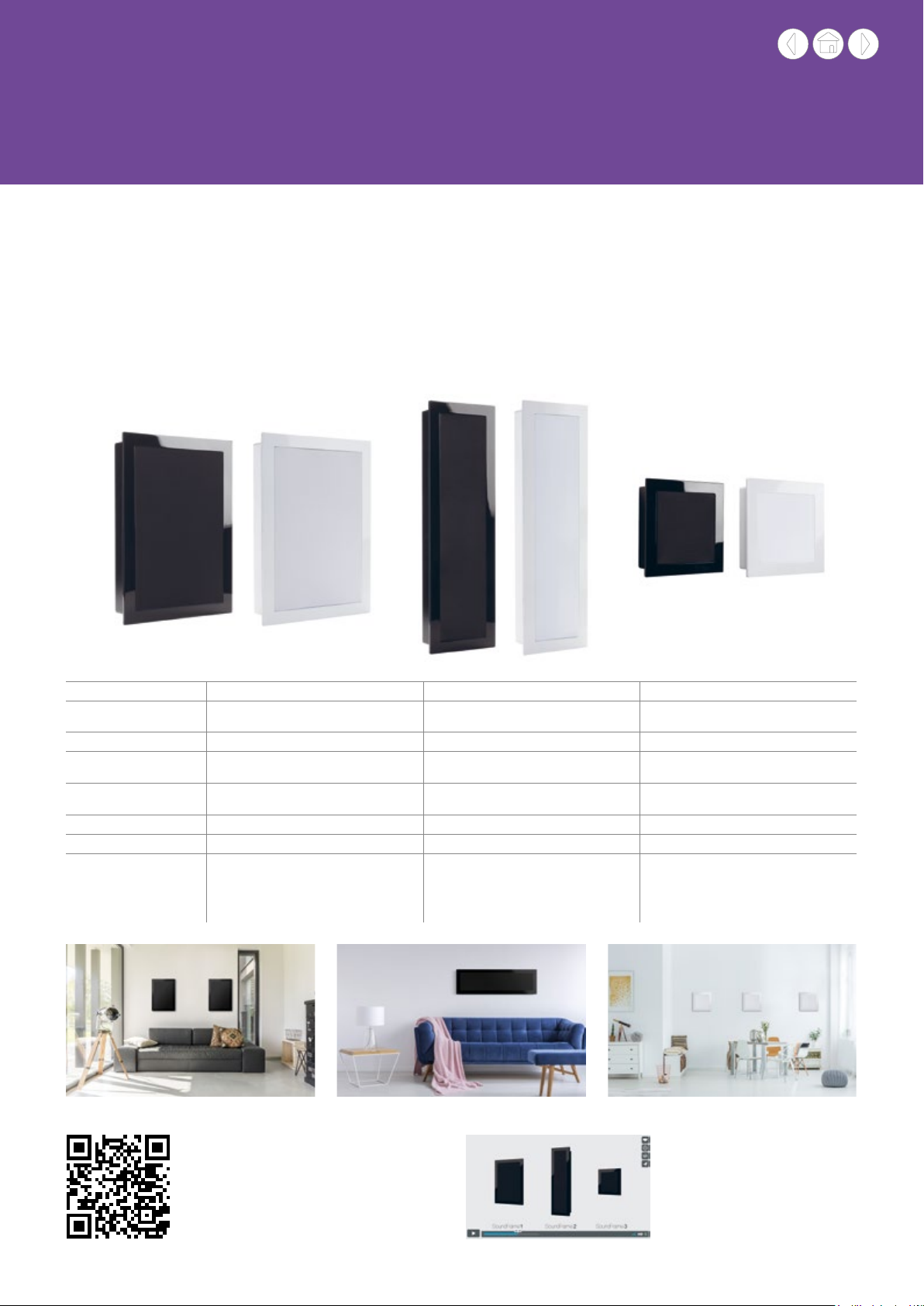

SoundFrames

In-Wall / On-Wall

The SoundFrame range provides the elusive blend of superior sound and décor that all style-conscious home entertainment lovers seek.

They are easy to install with On-Wall and In-Wall options, pivoting drivers for the ideal audio balance, and a wide range of grille colours,

images and custom grille designs. Keyhole xings for On-Wall and pre-x corner brackets for the In-Wall models make the process

routine, and for a brilliant wire-free look, the connecting cable runs in the wall cavity, enters from the back and is connected at the front.

SoundFrame 1 SoundFrame 3SoundFrame 2

Sensitivity (1W@1m) 86 dB 86 dB 85 dB

In-Wall Cut Out Dimensions
(H x W)

In-Wall Mounting Depth 2

In-Wall Overall Dimensions
(H x W x D)

On-Wall Overall Dimensions
(H x W x D)

3/4

x 13

19

”

501 x 351 mm

15/16

” / 75 mm 2

3/4

13/16

” x 3

1/2

” /

x 15

21
552 x 402 x 88.25 mm

1/4

3/8

x 3

7/16

”

x 15

21
540 x 390 x 87.5 mm

1/2

7/8

29

x 7

”

751 x 201 mm

15/16

” / 75 mm 2

5/8

15/16

31

x 9

” x 3

7/16

” /

802.5 x 252.5 x 87.5 mm

1/8

7/16

31

x 9

x 3

7/16

”

790 x 240 x 87.5 mm

7/8

9

x 9

251 x 251 mm

5/16

” / 59.5 mm

7/8

11

x 11

301.5 x 301.5 x 77.5 mm

3/8

11

x 11

289 x 289 x 77.5 mm

11/16

Power Handling (RMS) 100 W 100 W 50 W

Impedance 8 ohms 8 ohms 8 ohms

Driver Size & Technology 6

1/2

” C-CAM RST driver
Pivoting IDC module
(4” C-CAM RST inverted mid-range driver,
1” C-CAM Gold Dome tweeter)
HF Control

1/2

” C-CAM RST driver

6
Pivoting IDC module
(4” C-CAM RST inverted mid-range driver,
1” C-CAM Gold Dome tweeter)
HF Control

4” C-CAM driver
1” C-CAM pivoting Gold Dome tweeter

7/8

”

7/8

1/16

” x 3

”/

3/8

x 3”

Explanation video available,
scan the QR code or visit:

vimeo.com/monitoraudio/soundframe

36

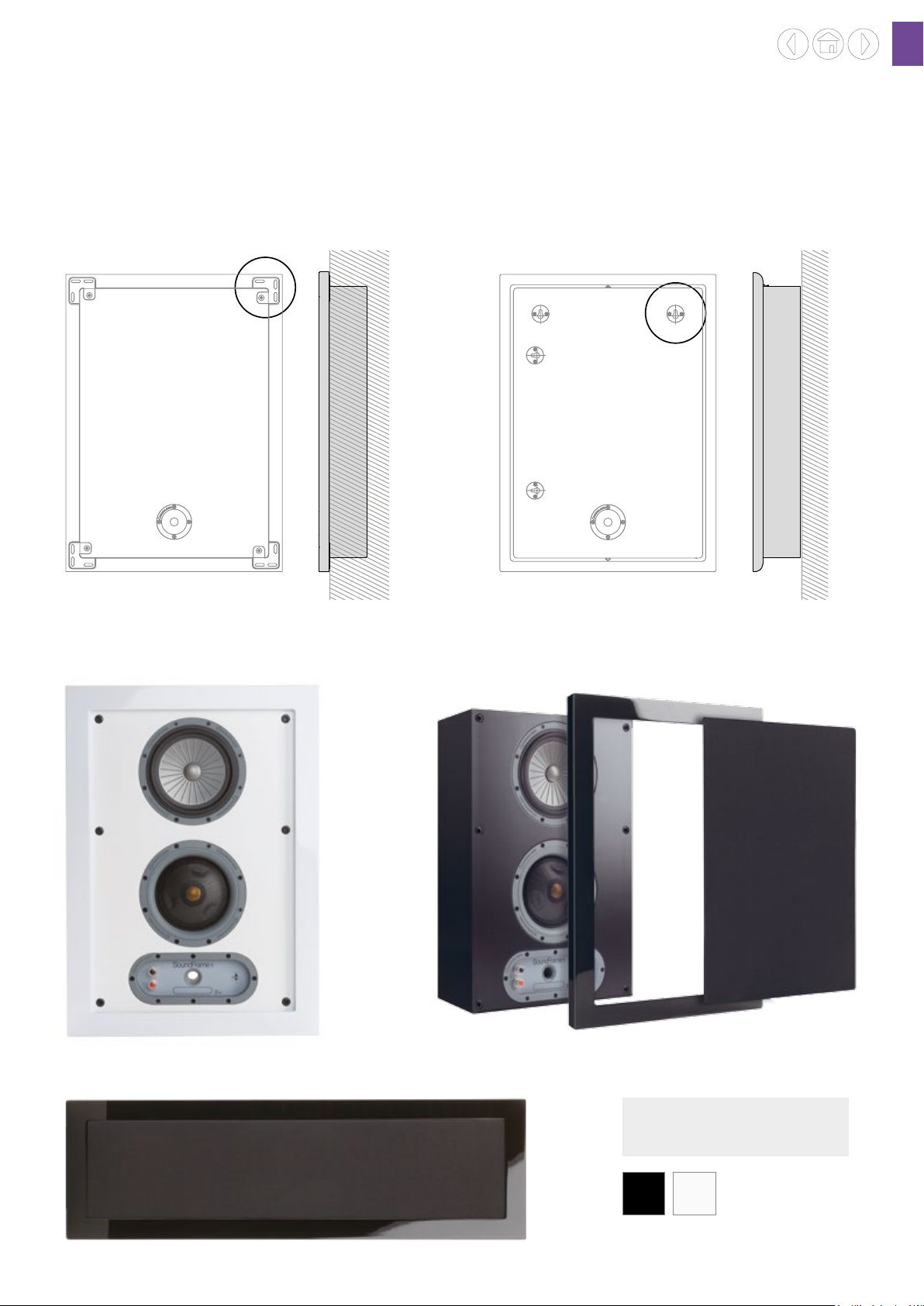

SoundFrames

In-Wall

In-Wall xings

Product xed into wall using corner brackets

Grille removed

On-Wall

On-Wall xings

Product hangs on wall via keyhole xings

Exploded view

Frame and grille attached using pegs and sockets

Vertical or horizontal orientation

Cabinet Frame

When ordering your SoundFrame state if
you require the In-Wall or On-Wall options.

Order Black Gloss or White Gloss nish.

Grille

Finishes

Black Gloss and
White Gloss

37

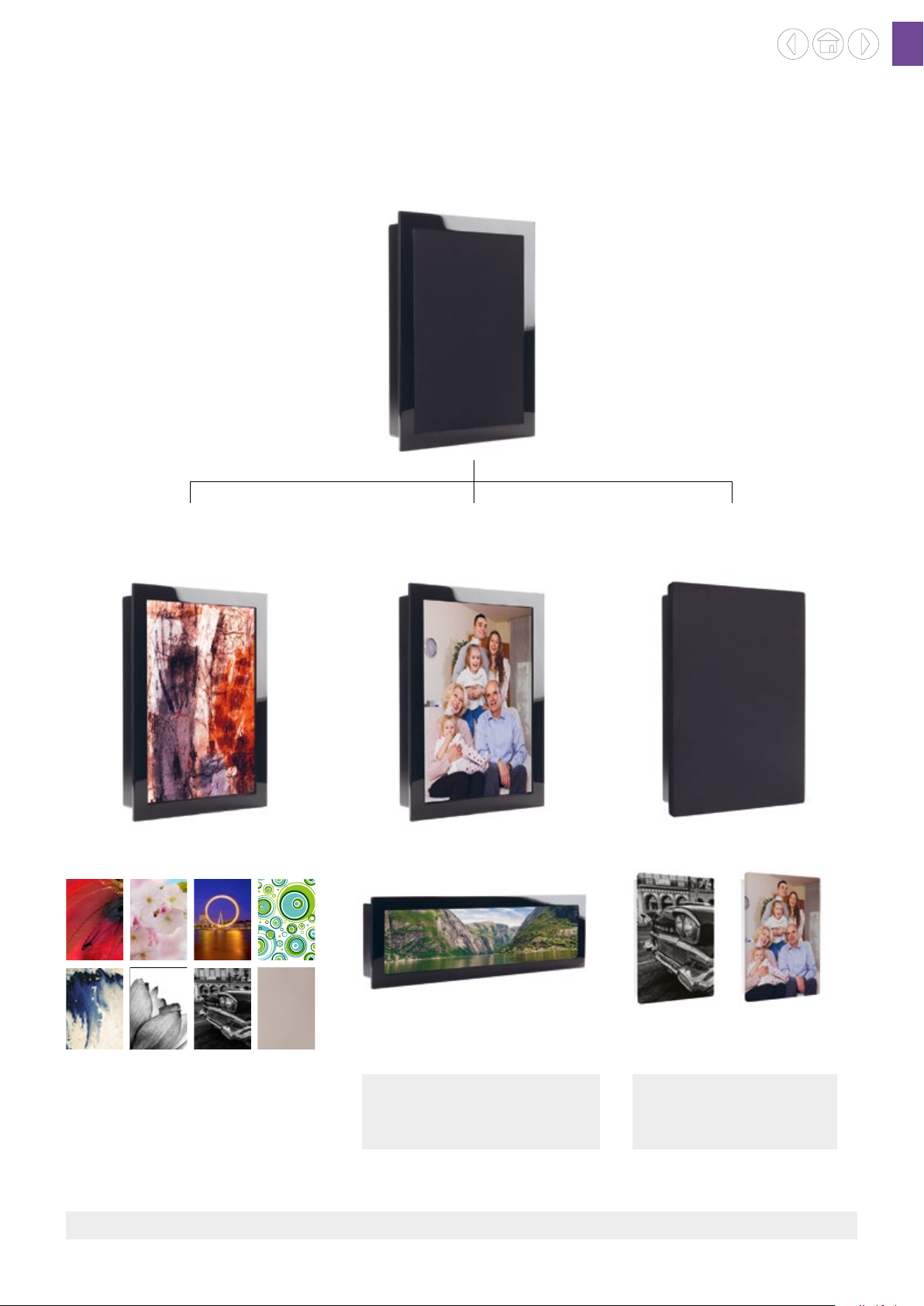

Customise your SoundFrame Grilles

Standard grilles can be customised by purchasing replacement artwork from our extensive library of images or at colours to match any décor.

Or if the customer prefers they can provide a bespoke image of their choosing which can be printed and mounted onto a grille to t any of the

three sizes of SoundFrame. Both these options can also be created using our larger Frameless grilles where the outer frame is also removed.

Option 1:

Library Grille

Fine art artwork example

Option 2:

Bespoke Grille

Bespoke image on SoundFrame 1

Options 1 & 2:

Frameless Grilles

Black Frameless grille

Bespoke image on SoundFrame 2

Small selection of our library grilles available,
for the full selection please visit our website.

When ordering your customised SoundFrame grille, state which image you require, which size of SoundFrame and if you prefer the framed or frameless option.

Please contact your local dealer to place

an order for a bespoke grille. There are le
specications in place to achieve best results

please only use high resolution images.

Library image
Frameless grille

The larger frameless grilles replace
both the grille and frame to give the
impression of an edgeless image.
Plain Black or White options available.

Bespoke image
Frameless grille

38

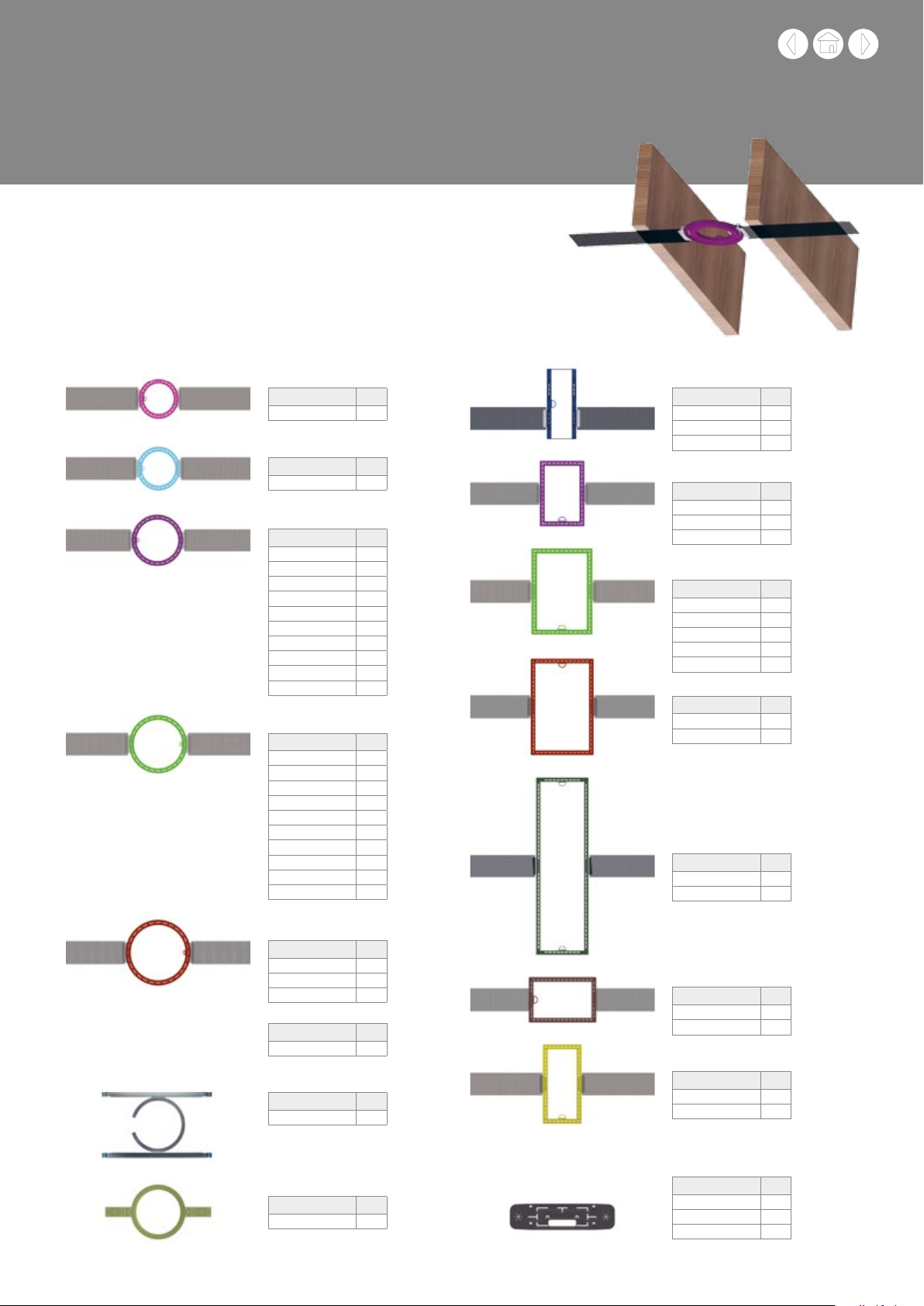

Accessories

Pre-Construction Brackets

Pre-Construction brackets are available for speakers as an accessory to help mark speaker
placement during framing and prior to sheetrock application. The brackets will span up to

24” stud spacing. Pre-Construction brackets are not required for retrot applications.

In-Ceiling Pre-Construction Brackets

CB4

CB4 Page

CS140 12

CB5

CB5 Page

CS160 12

CB6

CB6 Page

C165 8
C165-T2 8
C265 8
C265-IDC 8
C265-FX 8
CS180 12
CSS230 13
CP-CT150 14
AWC265 27
AWC265-T2 27

CB8

CB8 Page

C180 9
C180-T2 9
C280 9
C280-IDC 9
C380-IDC 9
C380-FX 9
CP-CT260 14
PRO-80 25
AWC280 27
AWC280-T2 27

In-Wall Pre-Construction Brackets

WB3

WB6

WB8

WB10

WB12

WB3 Page

WSS130 13
WSS230 13
WSS430 13

WB6 Page

W165 10
W265 10
CP-WT150 15

WB8 Page

W180 11
W280 11
W280-IDC 11
W380-IDC 11
CP-WT260 15

WB10 Page

CP-WT380 15
CP-WT380IDC 15

WB12: Page

CP-IW260X 16
CP-IW460X 17

CB10

PRO-IC65

CB8-LV

CB8-LVK

CB10 Page

CP-CT380 14
CP-CT380IDC 14
PLIC II 23

PRO-IC65 Page

PRO-65 25

CB8-LV Page

PRO-80LV 25

CB8-LVK Page

PRO-80LV 25

WB4LCR

WB5LCR

On-Wall Bracket

BSB

WB4LCR Page

CP-WT140LCR 16
CP-WT240LCR 16

WB5LCR Page

W150-LCR 10
W250-LCR 10

BSB (Soundbars) Page

SB-2 35
SB-3 35
SB-4 35

39

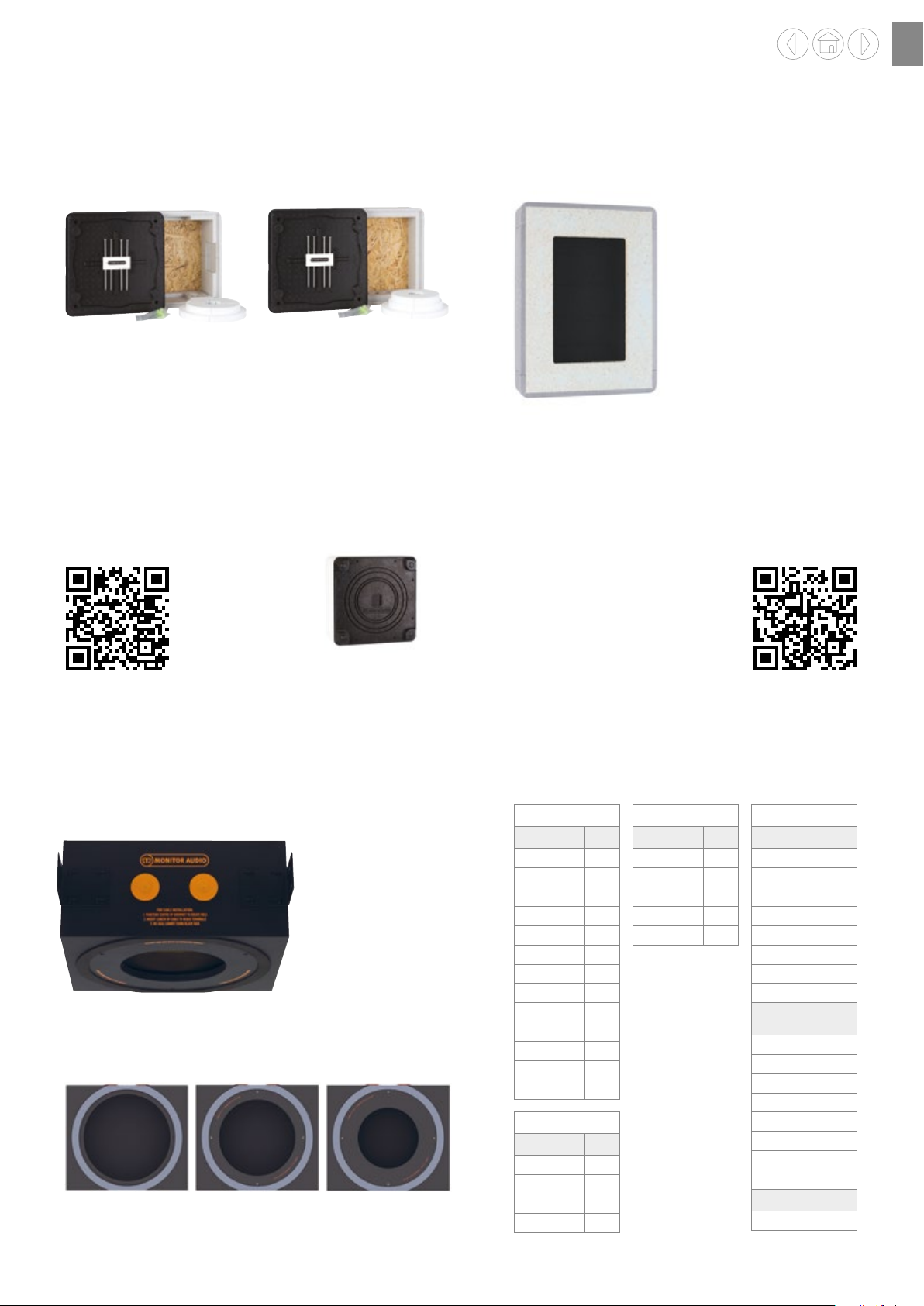

Back Boxes

In-Ceiling Concrete In-Wall Concrete

CCBOX-R

Overall dimensions:
13 x 13 x 4
Internal depth (max.): 4

Internal volume 6.31 L

Prior to pouring a concrete ceiling the CCBOX-R (regular) or CCBOX-L (large)
allows you to create a placeholder ready for In-Ceiling speakers to be installed.

They are lightweight and at the same time oers a robust stability with excellent
shock absorption features. Three cut out sizes oer unlimited possibilities,

with two side cut outs allow for best possible handling of electronic ductwork
(20 mm + 25 mm). Better insulation with airborne and structure-borne noise
compared to conventional In-Ceiling systems. Concrete rings and installation

components provided so that all conventional speaker systems will t perfectly.

15/16

” / 330 × 330 × 125 mm

1/2

” / 115 mm

CCBOX-L

Overall dimensions:
13 x 13 x 6
Internal depth (max.): 6

Internal volume 8.9 L

1/2

” / 330 × 330 × 165 mm

1/8

” / 155 mm

Installation Guide
video available,
scan the QR code
or visit:

vimeo.com/monitoraudio/ccbox

WCBOX-L

Overall dimensions:

1/4

1/8

x 17

23
590 × 435 × 120 mm
Internal depth (max.):

1/8

” / 105 mm

4
Cut out dimensions:

1/4

x 9

15
Internal volume 14.8 L

The WCBOX-L (large) allows you to install In-Wall speakers into concrete
or brick walls. With the front and rear Fermacell boards, the WCBOX-L

will seamlessly integrate into your installation workow, enabling a quick

and easy processing of the walls surface. The body material is framed by
EPS to achieve low resonances and improved sound insulation features.

The WCBOX-L is lightweight and at the same time oers a robust stability

with excellent shock absorption features.

Installation Guide video available,
scan the QR code or visit:

vimeo.com/monitoraudio/wcbox

3/4

x 4

” /

3/16

” / 387 × 234 mm

In-Ceiling MDF

CMBOX-R

Overall dimensions:

13/16

3/4

x 6

5/16

” /

x 13

11
300 × 350 × 160 mm

Internal volume 12.2 L

The CMBOX-R (regular) is a Back Box made of MDF, which allows you to
install speakers from our Core, Slim and All Weather ranges into the ceiling.

Comes with Small and Large Ring (tted) adapters, which can also be removed.

No Ring 250 mm

Accessories Images Not To Scale

Large Ring (Fitted) 218 mm Small Ring 173 mm

In-Ceiling
Concrete

CCBOX-R

Models Page

C165 8

C165-T2 8

C180 9

C180-T2 9

C265 8

C280 9

CS140 12

CS160 12

CS180 12

AWC265 27

AWC265-T2 27

AWC280 27

AWC280-T2 27

CCBOX-L

Models Page

C265-IDC 8

C265-FX 8

CP-CT150 14

CP-CT260 14

In-Wall
Concrete

WCBOX-L

Models Page

W180 11

W280 11

W280-IDC 11

W380-IDC 11

CP-WT260 15

In-Ceiling
MDF

CMBOX-R

No Ring Page

C180 9

C180-T2 9

C280 9

C280-IDC 9

C380-IDC 9

C380-FX 9

AWC280 27

AWC280-T2 27

Large Ring
(Fitted)

C165 8

C165-T2 8

C265 8

C265-IDC 8

C265-FX 8

CS180 12

AWC265 27

AWC265-T2 27

Small Ring Page

CS160 12

Page

40

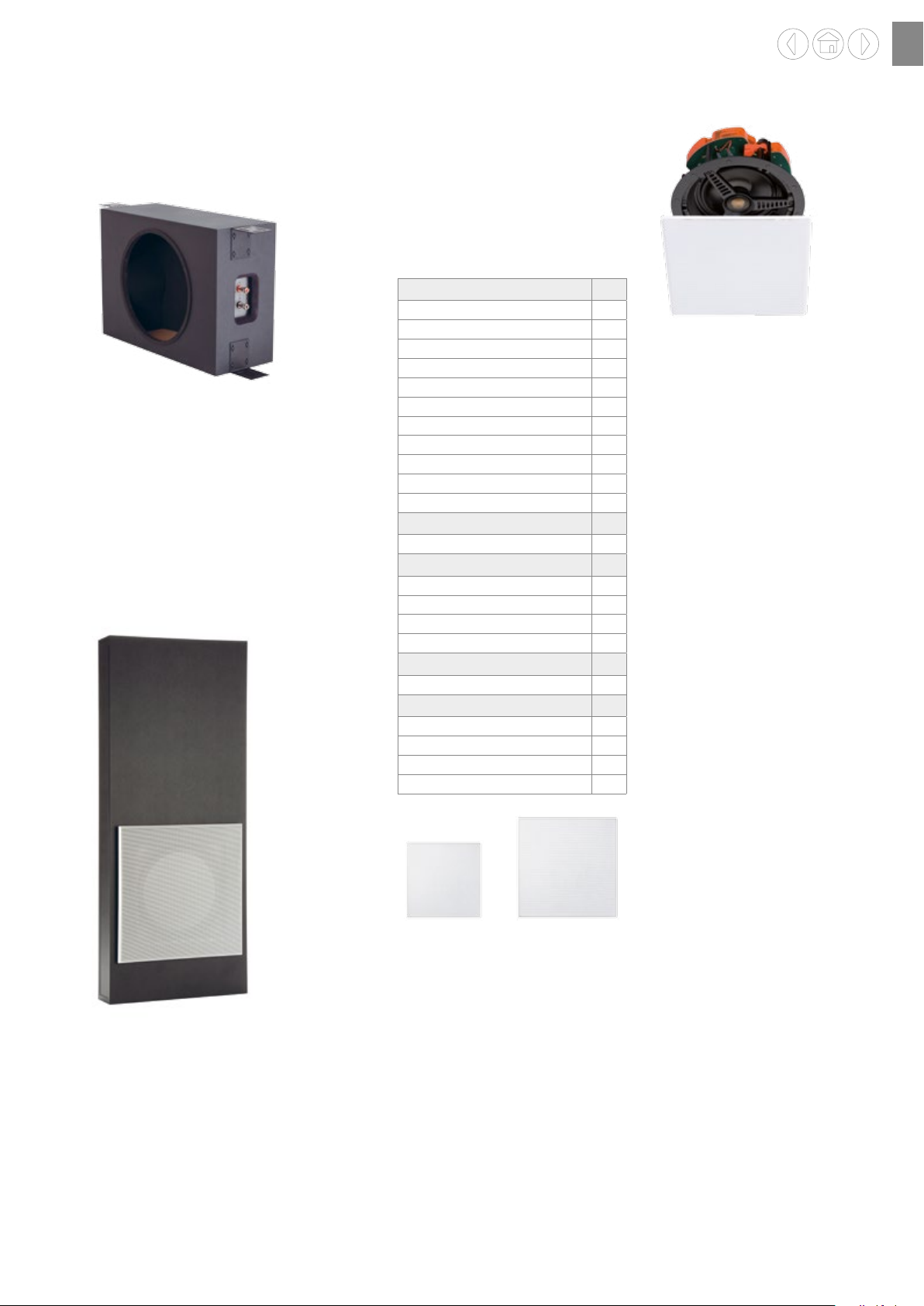

Back Boxes

Product Back Boxes

Platinum In-Ceiling II Back Box

Overall Dimensions (Including Brackets):

1/2

3/4

x 24

7
Internal volume 24 L

PLIC-BOX II

To ensure controlled audio performance for
the PLIC II, Monitor Audio has designed an
optional pre-construction MDF back box with
pre-determined air volume of 24 L. The rigid
box is available with pre-loaded internal
damping material to provide the best possible
sound absorption and reduce standing waves.

See Page 23 for more details.

In-Wall Subwoofer Back Box

3/4

x 13

” / 191.2 x 628.6 x 350 mm

Square Grilles

All-round performance in a square.

Designed to suit contemporary interior styling,
our alternative square grilles are available for
numerous In-Ceiling speakers shown below.

Square grilles

Core

C165 8

C165-T2 8

C265 8

C265-IDC 8

C265-FX 8

C180 9

C180-T2 9

C280 9

C280-IDC 9

C380-IDC 9

C380-FX 9

Super Slim

CSS230 13

Controlled Performance

CP-CT150 14

CP-CT260 14

CP-CT380 14

CP-CT380IDC 14

Platinum II

PLIC II 23

All Weather

AWC265 27

AWC265-T2 27

AWC280 27

AWC280-T2 27

Page

IWB-10 shown with installed IWS-10 and grille

Overall Dimensions (H x W x D) :

1/2

13/16

x 13

33
Internal volume 16.5 L

11/32

x 3

” / 850 x 351 x 85 mm

IWB-10 (In-Wall Box)

Designed to provide optimum performance for IWS-10
Fits into standard 14” stud bays (16” centres)
Reduces the radiation of sound to adjacent rooms
Heavy duty MDF construction

Rugged laminated vinyl nish

Pre-wired with external high quality push type terminals
Supplied with mounting brackets for installation

See Page 31 for more details.

NOTE : All Slim models can be ordered as
round or square grille options. See Page 12.

41

SPECIFICATIONS

These specications are supplied to aid installers to select which product is the best t for their project.

All Monitor Audio Custom Install products have CAD les available, ideal for architectural drawings.

These can be found along with individual product or range information on our website. Click on a product to nd out more.

Category

Application In-Ceiling

Model Name

Page 8 8 8 8 8 9 9 9 9 9 9

Sensitivity (1W@1m)

Cut Out Diameter

Mounting Depth

Overall Depth
(With Grille)

Overall Diameter
(With Grille)

Power Handling (RMS)

Impedance

Driver Size &
Technology

Frequency Response

Maximum SPL

Recommended Amp
Requirements

Optional Square Grilles

Feature

HF Level Switch
(+3 dB/0 dB/-3 dB)

Boundary
Compensation Switch

Bipole/ Dipole Switch

Construction Material

Weight

Pre-Construction
Bracket

Back Box

Core In-Ceiling

C165 C165-T2 C265 C265-IDC C265-FX C180 C180-T2 C280 C280-IDC* C380-IDC* C380-FX

88.5 dB 88.5 dB 88.5 dB 88.5 dB 88.5 dB 90 dB 90 dB 90 dB 90 dB 90 dB 90 dB

1/4

” / 211 mm 8

8

1/2

” / 114 mm 4

4

5/8

” / 118 mm 4

4

13/16

” / 250 mm 9

9

65 W 65 W 75 W 85 W 85 W 120 W 120 W 120 W 120 W 150 W 120 W

6 ohms 6 + 6 ohms 6 ohms 6 ohms 6 ohms 6 ohms 6 + 6 ohms 6 ohms 6 ohms 6 ohms 6 ohms

1/2

”

6
MMP II driver
1” C-CAM
tweeter

60 Hz – 25 kHz 60 Hz – 25 kHz 60 Hz – 30 kHz 60 Hz – 30 kHz 60 Hz – 30 kHz 50 Hz – 25 kHz 50 Hz – 25 kHz 50 Hz – 30 kHz 50 Hz – 30 kHz 45 Hz – 30 kHz 45 Hz – 30 kHz

107.4 dBA 107.9 dBA 108 dBA 108 dBA 108 dBA 111.6 dBA 111.6 dBA 111.6 dBA 111.6 dBA 112 dBA 111.6 dBA

20 – 65 W 20 – 65 W 20 – 75 W 20 – 85 W 20 – 85 W 30 – 120 W 30 – 120 W 30 – 120 W 30 – 120 W 40 – 150 W 30 – 120 W

Yes Yes Yes Ye s Yes Ye s Ye s Ye s Yes Ye s Yes

- T2 - IDC FX - T2 - IDC IDC FX

Yes - Yes Yes Ye s Yes Ye s Ye s Ye s Ye s Ye s

- - Ye s Yes - - - Ye s Ye s Ye s -

- - - - Yes - - - - - Yes Additional 12 V

Mineral lled

ABS plastic,
RoHS2
Compliant

4 lb 4 oz

1.92 kg

CB6 (Purple) CB6 (Purple) CB6 (Purple) CB6 (Purple) CB6 (Purple) CB8 (Green) CB8 (Green) CB8 (Green) CB8 (Green) CB8 (Green) CB8 (Green)

CCBOX-R /
CMBOX-R

1/4

” / 211 mm 8

1/2

” / 114 mm 4

5/8

” / 118 mm 4

13/16

” / 250 mm 9

1/2

6

”

MMP II driver
2 x 1” C-CAM
tweeters

Mineral lled

ABS plastic,
RoHS2
Compliant

4 lb 10 oz

2.08 kg

CCBOX-R /
CMBOX-R

1/4

” / 211 mm 8

1/2

” / 114 mm 5

5/8

” / 118 mm 6” / 153 mm 6” / 153 mm 4

13/16

” / 250 mm 9

1/2

6

”
C-CAM driver
1” C-CAM
tweeter

Mineral lled

ABS plastic,
RoHS2
Compliant

4 lb 8 oz

2.04 kg

CCBOX-R /
CMBOX-R

1/4

” / 211 mm 8

7/8

” / 149 mm 5

13/16

” / 250 mm 9

1/2

6

”
C-CAM driver
4” C-CAM RST
driver
1” C-CAM tweeter

Mineral lled
ABS plastic,
RoHS2 Compliant

6 lb 10 oz

2.54 kg

CCBOX-L /
CMBOX-R

1/4

” / 211 mm 9

7/8

” / 149 mm 4

13/16

” / 250 mm 11

1/2

6

”
C-CAM driver
2 x 1” C-CAM
tweeters

Mineral lled

ABS plastic,
RoHS2
Compliant

4 lb 10 oz

2.08 kg

CCBOX-L /
CMBOX-R

3/4

” / 247 mm 9

3/4

” / 121 mm 4

15/16

” / 125 mm 4

1/4

” / 285 mm 11

8”
MMP II driver
1” C-CAM
tweeter

Mineral lled

ABS plastic,
RoHS2
Compliant

6 lb

2.72 kg

CCBOX-R /
CMBOX-R

3/4

” / 247 mm 9

3/4

” / 121 mm 4

15/16

” / 125 mm 4

1/4

” / 285 mm 11

8”
MMP II driver
2 x 1” C-CAM
tweeters

Mineral lled

ABS plastic,
RoHS2
Compliant

6 lb 10 oz
3 kg

CCBOX-L /
CMBOX-R

3/4

” / 247 mm 9

3/4

” / 121 mm 6

15/16

” / 125 mm 6

1/4

” / 285 mm 11

8”
C-CAM driver
1” C-CAM
tweeter

Mineral lled

ABS plastic,
RoHS2
Compliant

6 lb 2 oz

2.8 kg

CCBOX-L /
CMBOX-R

3/4

” / 247 mm 9

1/8

” / 156 mm 6

5/16

” / 160 mm 6

1/4

” / 285 mm 11

8”
C-CAM driver
4” C-CAM RST
driver
1” C-CAM tweeter

Mineral lled
ABS plastic,
RoHS2 Compliant

7 lb 8 oz

3.42 kg

3/4

” / 247 mm 9

1/8

” / 156 mm 6

5/16

” / 160 mm 6

1/4

” / 285 mm 11

8”
C-CAM RST driver
4” C-CAM RST
driver
1” C-CAM tweeter

Mineral lled
ABS plastic,
RoHS2 Compliant

8 lb

3.64 kg

CMBOX-R CMBOX-R CMBOX-R

3/4

” / 247 mm

1/8

” / 156 mm

5/16

” / 160 mm

1/4

” / 285mm

8”
C-CAM RST driver
2 x 1” C-CAM
tweeters

Trigger Switching

Mineral lled
ABS plastic,
RoHS2 Compliant

7 lb

3.2 kg

Category

Core In-Wall

Application In-Wall

Model Name

Page 10 10 10 10 11 11 11 11

Sensitivity (1W@1m)

Cut Out Dimensions
(H x W)

Mounting Depth

Overall Depth
(With Grille)

Overall Dimensions
(With Grille) (H x W)

Power Handling (RMS)

Impedance

Driver Size &
Technology

Frequency Response

Maximum SPL

Recommended Amp
Requirements

Feature

HF Level Switch
(+3 dB/0 dB/-3 dB)

MF Level Switch
(+3 dB/0 dB/-3 dB)

Boundary
Compensation Switch

Construction Material

Weight

Pre-Construction
Bracket

Back Box

W150-LCR W250-LCR W165 W265 W180 W280 W280-IDC W380-IDC

88 dB 88 dB 88.5 dB 88.5 dB 90 dB 90 dB 90 dB 90 dB

3/4

7/8

x 13

”

5
145 x 353 mm

4” / 100.2 mm 4” / 100.2 mm 3

1/8

” / 105 mm 4

4

3/16

”

7 x 15

177.4 x 385.2 mm

100 W 100 W 65 W 65 W 120 W 120 W 150 W 150 W

8 ohms 8 ohms 6 ohms 6 ohms 6 ohms 6 ohms 6 ohms 6 ohms

2 x 5” MMP II drivers
1” C-CAM tweeter

60 Hz – 30 kHz 60 Hz – 30 kHz 60 Hz – 25 kHz 55 Hz – 30 kHz 50 Hz – 25 kHz 45 Hz – 30 kHz 45 Hz – 30 kHz 45 Hz – 30 kHz

108 dBA 108 dBA 107.4 dBA 107.4 dBA 111.6 dBA 111.6 dBA 111.6 dBA 112 dBA

30 – 100 W 30 – 100 W 20 – 65 W 20 – 65 W 30 – 120 W 30 – 120 W 40 – 150 W 40 – 150 W

LCR LCR - - - - IDC IDC

- Ye s Yes Yes Yes Ye s Yes Yes

- - - - - - - Ye s

- - - Ye s - Yes Yes Ye s

Mineral lled ABS plastic,

RoHS2 Compliant

8 lb 3oz / 3.76 kg 8 lb 4 oz / 3.80 kg 4 lb 14 oz / 2.21 kg 5 lb / 2.26 kg 6 lb 12 oz / 3.08 kg 6 lb 14 oz / 3.1 kg 7 lb 14 oz / 3.6 kg 9 lb / 4.1 kg

WB5LCR (Yellow) WB5LCR (Yellow) WB6 (Purple) WB6 (Purple) WB8 (Green) WB8 (Green) WB8 (Green) WB8 (Green)

- - - - WCBOX-L WCBOX-L WCBOX-L WCBOX-L

3/4

7/8

5

x 13

”

145 x 353 mm

1/8

” / 105 mm 3

3/16

7 x 15

”

177.4 x 385.2 mm

2 x 5” C-CAM drivers
1” C-CAM tweeter

Mineral lled ABS plastic,

RoHS2 Compliant

1/16

3/8

13

x 8

”

332 x 213 mm

3/8

” / 85.5 mm 3

1/2

” / 89.5 mm 3

9/16

13/16

14

x 9

”

370 x 250 mm

1/2

” MMP II driver

6
1” C-CAM tweeter

Mineral lled ABS plastic,

RoHS2 Compliant

1/16

3/8

13

x 8

”

332 x 213 mm

3/8

” / 85.5 mm 3

1/2

” / 89.5 mm 3

9/16

13/16

14

x 9

”

370 x 250 mm

1/2

6

” C-CAM driver

1” C-CAM tweeter

Mineral lled ABS plastic,

RoHS2 Compliant

1/4

3/16

15

x 9

”

387 x 234 mm

11/16

” / 93 mm 3

13/16

” / 97.5 mm 3

3/8

5/16

17

x 11

”

441 x 288 mm

8” MMP II driver
1” C-CAM tweeter

Mineral lled ABS plastic,

RoHS2 Compliant

1/4

3/16

15

x 9

”

387 x 234 mm

11/16

” / 93 mm 3

13/16

” / 97.5 mm 3

3/8

5/16

17

x 11

”

441 x 288 mm

8” C-CAM driver
1” C-CAM tweeter

Mineral lled ABS plastic,

RoHS2 Compliant

1/4

3/16

15

x 9

”

387 x 234 mm

11/16

” / 93 mm 3

13/16

” / 97.5 mm 4” / 101.5 mm

3/8

5/16

17

x 11

”

441 x 288 mm

8” C-CAM driver
4” C-CAM RST driver
1” C-CAM tweeter

Mineral lled ABS plastic,

RoHS2 Compliant

1/4

3/16

15

x 9

”

387 x 234 mm

13/16

” / 97.5mm

3/8

5/16

17

x 11

”

441 x 288 mm

8” C-CAM RST driver
4” C-CAM RST driver
1” C-CAM tweeter

Mineral lled ABS plastic,

RoHS2 Compliant

Plasterboard/Sheetrock maximum mounting thickness

This table shows the maximum mounting thickness of the plasterboard/Sheetrock required
for Monitor Audio Custom Install products.

Most products unless stated below 1

In-Ceiling IDC* 1

Super Slim**

3/16

15/16

9/16

”/ 15 mm

” / 30 mm

”/ 50 mm

42

SPECIFICATIONS

Category

Application In-Ceiling / In-Wall In-Ceiling In-Wall

Model Name

Page 12 12 12 13 13 13 13

Sensitivity (1W@1m)

Cut Out Diameter or
Dimensions (H x W)

Mounting Depth

Overall Depth
(With Grille)

Overall Diameter or
Dimensions (With Grille)
(H x W)

Power Handling (RMS)

Impedance

Driver Size &
Technology

Frequency Response

Maximum SPL

Recommended Amp
Requirements

Optional Square Grilles

Construction Material

Weight

Pre-Construction
Bracket

Back Box

Category

Slim Super Slim

CS140
Round/Square

85 dB 88 dB 90 dB 86 dB 87 dB 87 dB 87 dB

7/8

”

5
149 mm

7/8

” / 99 mm 3

3

1/16

”

4

103.4 mm

1/8

” / 180.2 mm

Round: 7

15/16

Square: 6

x 6

176.7 x 176.7 mm

50 W 70 W 120 W 40 W – Full range

6 ohms 6 ohms 6 ohms 8 ohms 8 ohms 8 ohms 8 ohms

4“ MMP II driver
1” C-CAM tweeter

75 Hz – 30 kHz 60 Hz – 30 kHz 48 Hz – 30 kHz 100 Hz – 30kHz (Sealed CP)

102.8 dBA 107.2 dBA 110.6 dBA 103.8 dBA 105.6 dBA 105.6 dBA 106.5 dBA

10 – 50 W 15 – 70 W 30 – 120 W 10 – 60 W 10 – 100 W 10 – 100 W 10 – 120 W

Order Round or Square Order Round or Square Order Round or Square Yes - - -

Mineral lled ABS plastic,

RoHS2 Compliant

2 lb 10 oz / 1.18 kg 4 lb 6 oz / 2.10 kg 6 lb / 2.72 kg 6 lb 5 oz / 2.88 kg 3 lb 2 oz / 1.4 kg 3 lb 2 oz / 1.4 kg 2 lb 6 oz / 1.1 kg

CB4 (Pink) CB5 (Blue) CB6 (Purple) CB6 (Purple) WB3 (Dark blue) WB3 (Dark blue) WB3 (Dark blue)

CCBOX-R CCBOX-R / CMBOX-R CCBOX-R / CMBOX-R - - - -

15/16

” /

CS160
Round/Square

11/16

6

”

170 mm

7/8

” / 99 mm 3

1/16

4

”

102.8 mm

1/16

Round: 8

” / 204.2 mm

13/16

Square: 7

199.2 x 199.2 mm

6” MMP II driver
1” C-CAM tweeter

Mineral lled ABS plastic,

RoHS2 Compliant

13/16

x 7

” /

CS180
Round/Square

3/8

8

”

213 mm

15/16

” / 99.4 mm 2” / 50 mm 2” / 50 mm 2” / 50 mm 2” / 50 mm

1/16

4

”

103.3 mm

15/16

Round: 9

” / 251.7 mm

11/16

Square: 9

x 9

246.7 x 246.7 mm

8” MMP II driver
1” C-CAM tweeter

Mineral lled ABS plastic,

RoHS2 Compliant

CSS230** WSS130** WSS230** WSS430**

11/16

” /

1/4

8

”

211 mm

1/8

2

”

54 mm

13/16

9

”

250 mm

60 W – Crossover set to
100 Hz @ 12 dB/Octave

3 x 3” C-CAM drivers

3/4

” C-CAM tweeter

85 Hz – 30kHz (Open back)

Mineral lled ABS plastic,

RoHS2 Compliant

1/2

13

x 4”

346 x 101 mm

1/8

2

”

54.25 mm

1/2

15 x 5

”

385 x 140.5 mm

60 W – Full range
100 W – Crossover set to
100 Hz @ 12 dB/Octave

3 x 3” MMP II drivers
1” C-CAM tweeter

75 Hz – 30 kHz 75 Hz – 30 kHz 70 Hz – 50 kHz

Mineral lled ABS Plastic,

RoHS2 Compliant

1/2

13

x 4”

346 x 101 mm

1/8

2

”

54.25 mm

1/2

15 x 5

”

385 x 140.5 mm

60 W – Full range
100 W – Crossover set to
100 Hz @ 12 dB/Octave

3 x 3” C-CAM drivers
1” C-CAM tweeter

Mineral lled ABS Plastic,

RoHS2 Compliant

1/2

13

x 4”

346 x 101 mm

1/8

2

”

54.25 mm

1/2

15 x 5

”

385 x 140.5 mm

75 W – Full range
120 W – Crossover set to
100 Hz @ 12dB/Octave

3 x 3” C-CAM drivers
MPD HF transducer

Mineral lled ABS Plastic,

RoHS2 Compliant

Controlled Performance

Application In-Ceiling In-Wall In-Ceiling

Model Name

Page 14 14 14 14 15 15 15 15 16 16 16 17 18

Sensitivity (1W@1m)

Cut Out Diameter or
Dimensions (H x W)

Mounting Depth

Overall Depth
(With Grille)

Overall Diameter or
Dimensions (With Grille)
(H x W)

Power Handling (RMS)

Impedance

Driver Size &
Technology

Frequency Response

Maximum SPL

Recommended Amp
Requirements

Optional Square Grilles

Feature

HF Level Switch
(+3 dB/0 dB/-3 dB)

MF Level Switch
(+3 dB/0 dB/-3 dB)

Boundary
Compensation Switch

Construction Material

Weight

Pre-Construction
Bracket

Back Box

CP-CT150 CP-CT260 CP-CT380 CP-CT380

85 dB 88 dB 89 dB 89 dB 85 dB 88 dB 89 dB 89 dB 88 dB 88 dB 89 dB 89 dB 85 dB

3/8

”

8
212 mm

15/16

5
151 mm

1/8

”

6
155 mm

13/16

9
250 mm

5/8

9

”

244 mm

15/16

”

5
151 mm

1/8

6
155 mm

”

11
285 mm

10
274 mm

1/8

”

7
181 mm

3/8

”

7
187 mm

1/4

”

12
309 mm

IDC

13/16

”

10
274 mm

1/8

”

7
181 mm

3/8

”

7
187 mm

3/16

”

12
309 mm

50 W 65W 120 W 120 W 50 W 65 W 120 W 120 W 100 W 100 W 150 W 150 W 20 W

6 ohms 6 ohms 6 ohms 6 ohms 6 ohms 6 ohms 6 ohms 6 ohms 6 ohms 6 ohms 6 ohms 6 ohms 8 ohms

5” MMP II
driver
1” C-CAM
tweeter

75 Hz –
25 kHz

102.8 dBA 106.9 dBA 109.6 dBA 109.6dBA 102.8 dBA 106.9 dBA 109.6 dBA 109.6 dBA 108.8 dBA 108.8 dBA 113.8 dBA 113.8 dBA 101.9 dBA

6” C-CAM
driver
1” C-CAM
tweeter

66 Hz –
25 kHz

8” C-CAM
RST driver
1” C-CAM
tweeter

50 Hz –
25 kHz

8” C-CAM
RST driver
4” C-CAM
IDC driver
1” C-CAM
tweeter

50 Hz –
30 kHz

20 – 50 W 20 – 65 W 30 – 120 W 30 – 120W 20 – 50 W 20 – 65 W 30 – 120 W 30 – 120 W 20 – 100 W 20 – 100 W 60 – 150 W 60 – 150 W 5 – 20 W

Yes Ye s Ye s Yes - - - - - - - - -

CP-WT150 CP-WT260 CP-WT380 CP-WT380

13/16

”

”

3/16

13/16

12

x 8
326 x
207 mm

3/4

3

”

96 mm

4”
102 mm

3/16

14

x 9

360.5 x
242 mm

5” MMP II
driver
1” C-CAM
tweeter

75 Hz –
25 kHz

1/2

1/8

”

”

15 x 9”
381 x
228 mm

3/4

3

”

96 mm

4”
102 mm

5/16

16

x 10

415 x

262.5 mm

6” C-CAM
driver
1” C-CAM
tweeter

65 Hz –
25 kHz

5/16

”

”

”

1/4

17

x 10
438 x
269 mm

7/8

3

”

99 mm

3/16

4

”

106 mm

5/8

18

x 11

472.5 x

303.5 mm

8” C-CAM
RST driver
1” C-CAM
tweeter

50 Hz –
25 kHz

9/16

15/16

IDC

”

17
438 x
269 mm

3
99 mm

4
106 mm

”

18

472.5 x

303.5 mm

8” C-CAM
RST driver
4” C-CAM
IDC driver
1” C-CAM
tweeter

50 Hz –
30 kHz

CP-WT140
LCR

1/4

9/16

3/16

x 10

”

7
183 x

7/8

3/16

299 mm

13/16

”

3
97 mm

1/16

”

4
103 mm

5/8

15/16

9/16

x 11

”

8
217 x
333 mm

2 x 4” MMP II
drivers
1” C-CAM
tweeter

60 Hz –
25 kHz

x 11

”

”

x 13

3/4

”

1/16

”

CP-WT240
LCR

3/16

3/4

7

x 11

”
183 x
299 mm

13/16

3

”

97 mm

1/16

4

”

103 mm

9/16

1/16

8

x 13
217 x
333 mm

2 x 4” C-CAM
drivers
1” C-CAM
tweeter

60 Hz –
25 kHz

CP-IW260X CP-IW460X CPC120

34
880 x
230 mm

3/4

3
96 mm

4”
102 mm

”

35
907 x
257 mm

2 x 6
drivers
2 x 4” C-CAM
drivers
1” C-CAM
tweeter

50 Hz –
30 kHz

21/32

3/4

x 9”

”

” x 10

1/2

1/8

”

” C-CAM

21/32

34

x 9”

880 x 230 mm

3/4

3

”

96 mm

4”
102 mm

3/4

1/8

35

” x 10
907 x
257 mm

1/2

2 x 6

” C-CAM
RST drivers
2 x 4” C-CAM
RST drivers
HF ribbon
transducer

50 Hz –
60 kHz

”

1/2

2

”

65 mm

5/8

3

”

91.5 mm

3/4

3

”

96 mm

1/8

3

”

80mm

50 W using
crossover @
200 Hz

2” micro driver

100 Hz –
20 kHz

5 – 50 W using
a crossover

- - - IDC - - - IDC LCR LCR Full Size Full Size Micro

Yes Ye s Ye s Yes Yes Ye s Ye s Ye s Yes Yes Yes

- - - Yes - - - Yes - - Yes

- Ye s Yes Yes - Yes Ye s Ye s - Ye s Ye s Yes -

Mineral lled

ABS plastic,
RoHS2
Compliant

4 lb 12 oz /

2.14 kg)

CB6 (Purple) CB8 (Green) CB10 (Light

CCBOX-L CCBOX-L - - - WCBOX-L - - - - - - -

Mineral lled

ABS plastic,
RoHS2
Compliant

6 lb 2 oz /
2 kg

Mineral lled

ABS plastic,
RoHS2
Compliant

8 lb 4 oz /

3.74 kg

brown)

Mineral lled

ABS plastic,
RoHS2
Compliant

9 lb 8 oz /

4.3 kg

CB10 (Light
brown)

Mineral lled

ABS plastic,
RoHS2
Compliant

5 lb 14 oz /

2.65 kg

WB6 (Purple) WB8 (Green) WB10 (Light

Mineral lled

ABS plastic,
RoHS2
Compliant

7 lb 4 oz /

3.31 kg

Mineral Filled
ABS plastic /
Die-Cast
Aluminium

Bae, RoHS2

Compliant

10 lb 14 oz /

4.95 kg

brown)

Mineral Filled
ABS plastic /
Die-Cast
Aluminium

Bae, RoHS2

Compliant

12 lb 6 oz /

5.62 kg

WB10 (Light
brown)

Mineral lled

ABS plastic,
RoHS2
Compliant

5 lb 8 oz /

2.5 kg

WB4LCR
(Dark brown)

Mineral lled

ABS plastic,
RoHS2
Compliant

5 lb 8 oz /

2.5 kg

WB4LCR
(Dark brown)

(+1/0/-1 dB)

(+1/0/-1 dB)

Mineral lled

ABS plastic,
RoHS2
Compliant

26 lb 6 oz /

11.98 kg

WB12 (Green) WB12 (Green) -

Yes
(+1/0/-1 dB)

Yes
(+1/0/-1 dB)

Cast Polymer /
Die-Cast
Aluminium

Bae, RoHS2

Compliant

28 lb 6 oz /

12.98 kg

-

-

Steel Bezel /
Aluminium
Enclosure

7 oz /

0.19 kg

43

SPECIFICATIONS

Category

Application In-Ceiling In-Wall In-Ceiling In-Wall In-Ceiling

Model Name

Page 19 20 – 21 23 24 25 25 25

Sensitivity (1W@1m)

Cut Out Diameter or
Dimensions (H x W)

Mounting Depth

Overall Depth
(With Grille)

Overall Diameter or
Dimensions (With Grille)
(H x W)

Power Handling (RMS)

Impedance

Driver Size &
Technology

Frequency Response

Maximum SPL

Recommended Amp
Requirements

Optional Square Grilles

Feature

HF Level Switch
(+1dB/0dB/-1dB)

MF Level Switch
(+1dB/0dB/-1dB)

Construction Material

Weight

Pre-Construction
Bracket

Back Box

Flush Fit Invisible

CF230 IV140 PLIC II Platinum In-Wall II PRO-65 PRO-80 PRO-80LV

82.5 dB 82 dB

3/4

” / 120 mm

Flush Fit 4

9/16

Retrot 3

” / 90 mm

5/16

” / 83.5 mm 3

3

5/16

”

3

83.62 mm

7/16

”

4
112 mm

30 W – Full range – IEC268-5 rating
100 W – Music program (Using High

Pass crossover lter @120 Hz)

8 ohms 8 ohms 4 ohms Nominal

1/2

” Bass/mid-range C-CAM driver

3

3/4

” C-CAM Gold Dome tweeter

100 Hz – 25 kHz 75 Hz – 18 kHz (CP sealed)

98 dBA (Each – Full range)

103.3 dBA (Each – Using crossover)

10 – 30 W (Full range)
10 – 100 W (Using High Pass

crossover lter @120 Hz)

- - Yes - - - -

- - - - - - - LINE VOLTAGE

- - Yes Yes - - -

- - Yes Yes - - -

Mineral lled ABS plastic,
RoHS2 Compliant

1 lb / 0.44 kg 20 lb / 9 kg 11 lb 10 oz / 5.3 kg 59 lb 8 oz / 27 kg 4 lb 2 oz / 1.86 kg 5 lb 5 oz / 2.42 kg) 10 lb 11 oz / 4.85 kg

Flush Fit – CFB3-R (round) /
CFB3-SQ (square). Pre-construction
bracket included in above kits

Retrot – CFB3-KIT

- - PLIC-BOX II or a bespoke sealed

(when installed as directed)

1/4

13/16

23

” x 13

591 x 350.5 mm

3

95.5 mm

25
642 x 401.5 mm

50 W – Full range – IEC268-5 rating
100 W – Music program (Using

Minimum 80 Hz High Pass lter)

1 x LF transducer
2 x HF transducers

55 Hz – 18 kHz (Open back)

102.8 dBA 112 dBA 117 dBA (pair) 101.5 dBA 103.8 dBA 103.8 dBA

20 – 50 W (Full range)
20 – 100 W (Using Minimum 80 Hz

High Pass lter)

”

13/16

” / 83.5 mm 7

3/4

”

1/4

13/16

” x 15

”

MDF Mineral lled ABS plastic, RoHS2

WBIV140 CB10 (Light brown) - PRO-IC65

PLATINUM II

Pro

90 dB 90 dB 86 dB 87 dB 87 dB

3/4

10

”

273 mm

5/16

” / 185 mm 3

1/2

7

”

191.5 mm

3/16

12

”

309 mm

7/16

7/8

46

x 11

”

1179 x 302 mm

14/16

” / 97.5 mm 3

4/16

4

”

105.5 mm

9/16

1/16

47

x 13

”

1207 x 332 mm

1/16

8

”

205 mm

7/16

” / 87.7 mm 3

11/16

3

”

92.7 mm

6/16

9

”

232.5 mm

3/4

9

”

248 mm

7/8

” / 98.1 mm 4” / 101.4 mm

1/16

4

”

103 mm

3/4

10

”

273 mm

150 W 200 W 30 W 40 W 40 W

(3.1 ohms minimum @ 1.1 kHz)

8” RDT II bass driver
2 x 2” C-CAM mid-range drivers
MPD HF transducer

45 Hz – 60 kHz 52 Hz – 100 kHz 75 Hz – 20 kHz 60 Hz – 20 kHz 65 Hz – 25 kHz

4 ohms
(3.7 ohms min. @ 2.8 kHz)

1/2

2 x 6

” RDT II drivers
4” RDT II driver
MPD HF transducer

8 ohms 8 ohms 16 ohms

1/2

6

” MMP II driver
1” fabric soft dome
tweeter

8” MMP II driver
1” fabric soft dome
tweeter

50 – 150 W 100 – 200 W 10 – 30 W 10 – 40 W 10 – 40 W

Compliant, Die cast Aluminium

enclosure of 24 L

25 mm MDF
with steel back

- - - -

Mineral lled ABS

plastic, RoHS2
Compliant

Construction
Bracket

Mineral lled ABS

plastic, RoHS2
Compliant

CB8 (Green) CB8-LV

1/2

10

”

266 mm

8/16

4

”

114 mm

9/16

11

”

294 mm

70 V (4,8, 16,32,64 W) /
100 V (8,16,32,64 W)
power selection

8” MMP II driver
1” C-CAM tweeter

Mineral lled ABS plastic,

RoHS2 Compliant /
Steel rear enclosure

CB8-LVK

Category

Application In-Ceiling In-Ceiling In-Ground / Mounted Subwoofer

Model Name

Page 27 27 27 27 28 28 28 28 29 29 29

Sensitivity (1W@1m)

Cut Out Diameter or
Dimensions (H x W)

Mounting Depth

Overall Depth
(With Grille)

Overall Depth
(With Bracket)

Overall Diameter or
Dimensions (With Grille)
(H x W)

Power Handling (RMS)

Impedance

Driver Size &
Technology

Frequency Response

Maximum SPL

Recommended Amp
Requirements

Optional Square Grilles

Feature

HF Level Switch
(+3 dB/0 dB/-3 dB)

Construction Material

Weight

Operating temperature
Range

IP Ratings

Pre-Construction
Bracket

Back Box

All Weather Climate

AWC265 AWC265-T2 AWC280 AWC280-T2 Climate 50 Climate 60 Climate 60-T2 Climate 80 CLG140 CLG160 CLG-W12

88 dB 88 dB (both

1/4

”

8
211 mm

1/2

” / 88.5 mm 3

3

1/2

”

3

93.5 mm

13/16

”

9

251.7 mm

channels driven)

1/4

8

”

211 mm

1/2

” / 88.5 mm 3

1/2

3

”

93.5 mm

13/16

9

”

251.7 mm

60 W 60 W 100 W 2 x 50 W 80 W 100 W 2 x 50 W 120 W 40 W (Crossover

8 ohms

4.4 ohms @
190 Hz

1/2

” C-CAM driver

6
1” C-CAM
tweeter

60 Hz – 30 kHz 60 Hz – 30 kHz 50 Hz – 30 kHz 50 Hz – 30 kHz 75 Hz – 30 kHz 63 Hz – 30 kHz 63 Hz – 30 kHz 50 Hz – 30 kHz 100 Hz – 30 kHz 80 Hz – 30 kHz 30 Hz – 100 Hz

105.8 dBA 105.8 dBA 109 dBA 109 dBA 106.8 dBA 108.8 dBA 108.8 dBA 111.1 dBA 104 dBA 107 dBA 110 dBA

20 – 60 W 20 – 60 W 20 – 100 W 20 – 100 W 10 – 80 W 15 – 100 W 15 – 100 W 20 – 120 W 10 – 40 W per

Yes Yes Ye s Ye s -

- T2 - T2 - - T2 - - - -

Yes Yes Ye s Ye s - - - - - - -

Mineral Filled
PC-ABS Polymer
(UL V0 Fire
Retardant, RoHS2
Compliant) SS430
Stainless Steel /
Samarium Cobalt

4 lb 12 oz /

2.14 kg

-29° to 174° F

-34° to 79° C

IP55 IP55 IP55 IP55 IP55 IP55 IP55 IP55 IP55 IP55 IP54

CB6 (Purple) CB6 (Purple) CB8 (Green) CB8 (Green) - - - - CLG-Mount /

CCBOX-R /
CMBOX-R

8 + 8 ohms

4.5 ohms @
185 Hz

1/2

6

” C-CAM driver
2 x 1” C-CAM
tweeters

Mineral Filled
PC-ABS Polymer
(UL V0 Fire
Retardant, RoHS2
Compliant) SS430
Stainless Steel /
Samarium Cobalt

4 lb 12 oz /

2.14 kg

-29° to 174° F

-34° to 79° C

CCBOX-R /
CMBOX-R

89 dB 89 dB (both

3/4

9

”

247 mm

7/8

” / 97.6 mm 3

1/32

4

”

102.5 mm

1/4

11

”

285 mm

8 ohms

4.5 ohms @
185 Hz

8” C-CAM driver
1” C-CAM tweeter

Mineral Filled
PC-ABS Polymer
(UL V0 Fire
Retardant, RoHS2
Compliant) SS430
Stainless Steel /
Samarium Cobalt

6 lb 2 oz / 2.8 kg 6 lb 2 oz / 2.8 kg 8l b 1 oz /

-29° to 174° F

-34° to 79° C

CCBOX-R /
CMBOX-R

channels driven)

3/4

9

”

247 mm

7/8

” / 97.6 mm - - - - - - -

1/32

4

”

102.5 mm

1/4

11

”

285 mm

8 + 8 ohms

4.5 ohms @
185 Hz

8” C-CAM driver
2 x 1” C-CAM
tweeters

Mineral Filled
PC-ABS Polymer
(UL V0 Fire
Retardant, RoHS2
Compliant) SS430
Stainless Steel /
Samarium Cobalt

-29° to 174° F

-34° to 79° C

CCBOX-R /
CMBOX-R

87 dB 88 dB 88 dB 89.5 dB 88 dB 89 dB 87 dB

- - - - - - -

5/16

6

”

160 mm

5/16

”

8

210.4 mm

1/4

11

x 6
285 x 172.5
mm

8 ohms 8 ohms 8 + 8 ohms 8 ohms 70/100 V

1/2

5

” C-CAM
driver
1” C-CAM
tweeter
ABR

High-density
polypropylene
enclosure /
Aluminium grille

3.66 kg

-13º to 149º F

-25º to 65º C

- - - - - - -

13/16

”

2/16

7

”

180 mm

5/16

9

”

235.4 mm

13/16

12
325 x 185 mm

1/2

6

” C-CAM
driver
1” C-CAM
tweeter
ABR

2/16

7

”

180 mm

5/16

9

”

235.4 mm

5/16

”

13/16

12

x 7

325 x 185 mm

1/2

6

” C-CAM driver
2 x 1” C-CAM
tweeters
ABR

x 7

5/16

”

12/16

8

”

221.5 mm

3/4

10

”

273 mm

15/16

15
405 x 230 mm

8” C-CAM driver
1” C-CAM
tweeter
ABR

- - - - - -

High-density
polypropylene
enclosure /
Aluminium grille

10 lb 3 oz /

4.62 kg

-13º to 149º F

-25º to 65º C

High-density
polypropylene
enclosure /
Aluminium grille

11 lb 1 oz /

5.02 kg

-13º to 149º F

-25º to 65º C

High-density
polypropylene
enclosure /
Aluminium grille

14 lb 6 oz /

6.53 kg

-13º to 149º F

-25º to 65º C

Climate Garden System

- - -

- - -

1/16

x 9

”

Excluding
Mount/Spike

1/8

7/8”

5

x 6

130 x 175 mm

set to minimum
100 Hz @ 12
dB/Octave)

line level

4” MMP II driver
1” C-CAM
tweeter

speaker

Rigid, high
impact cast
polymer cabinet
for long life and
durability

4 lb 10 oz /

2.08 kg

-4º to 158° F /

-20º to 70° C

CLG-Spike R

Excluding
Mount/Spike

1/2

11/16

7

x 8

”

190 x 220 mm

60 W (Crossover
set to minimum
80 Hz @12 dB/
Octave)

70/100 V
line level

6” MMPII driver
1” C-CAM
tweeter

10 – 60 W per
speaker

Rigid, high
impact cast
polymer cabinet
for long life and
durability

6 lb 2 oz /

2.76 kg

-4º to 158° F /

-20º to 70° C

CLG-Mount /
CLG-Spike R

1/2

29

x 14

7/8

19

”

750 x 380 x

505.5 mm

250 W

4 ohms or
70/100 V
line level
(cable select)

12” C-CAM bass
driver

100 – 250 W

High impact
moulded cabinet
– robust and
waterproof

42 lb 14 oz /

19.5 kg

-

-

15/16

x

44

Category

Application Free Standing In-Ceiling In-Wall In-Rack

Model Name

Page 30 30 30 31 31

Sensitivity (1W@1m)

Cut Out Diameter or
Dimensions (H x W)

Mounting Depth

Overall Dimensions
(With Grille) (H x W x D)

Power Handling (RMS)

Impedance

Driver Size &
Technology

Frequency Response

Maximum SPL

Amplier Power Output

Amplier Classication

Construction Material

Weight

Pre-Construction
Bracket

Back Box

Custom Subwoofers

CW8 CW10 ICS-8 IWS-10 IWA-250 Amplier

- - 85 dB 86 dB -

- - 4

- - - 3

5/8

1/4

7/8

x 10

x 10

10
270 x 260 x 276 mm

- - 150 W – Full range – IEC268-5 rating 150 W -

- - 8 ohms 8 ohms -

8” C-CAM driver
2 x 8” ABRs

- - 40 Hz – 120 Hz 28 Hz – 120 Hz 25Hz – 120 Hz

105.8 dBA 105.8 dBA 107 dB Single unit 109.8 dB / Pair 115.8 dB -

350 W RMS @ < 1% THD+N 400 W RMS @ < 1% THD+N - - 250 W @ <1% THD+N

Class D amplier with switch mode

power supply (SMPSU)

18 mm MDF cabinet 18 mm MDF cabinet 15 mm MDF construction,

21 lb / 9.52 kg 27 lb 12 oz / 12.64 kg 22 lb 8 oz /10.2 kg 8 lb 6 oz / 3.8 kg 8 lb 12 oz / 4 kg

- - CFB3-R (round) / CFB3-SQ (square).

”

3/8

x 12 x 12

5/8

”

12
315 x 305 x 320 mm

10” C-CAM driver
2 x 10” ABRs

Class D amplier with switch mode

power supply (SMPSU)

- - - IWB-10 (In-Wall Back Box) -

3/4

”

120 mm

1/4

9/16

9

x 11 x 15

235 x 280 x 396 mm

”

11 x 11”
280 x 280 mm

1/2

” / 90 mm -

3/8

3/8

x 12

15/16

x 3

”

12

314.21 x 314.21 x 100.78 mm

-

3/4

1

x 17 x 10

43.7 x 432 x 263 mm

8” C-CAM driver 10” C-CAM RDT driver -

- - Class D amplier with switch mode

vinyl laminate surface

Pre-construction bracket included in above kits

Mineral Filled ABS Plastic
(RoHS Compliant)

- -

power supply (SMPSU)

3 mm thick fabricated steel case,
moulded ABS front trim panel

3/8

”

Category

Application In-Rack

Model Name

Page 32 32 33 33 33

‘Connect' IP control

Channel Number

Power
(W / Channel)

Input Impedance

Output Impedance (Loop RCA)

Input Sensitivity

Maximum Input Voltage

Signal to noise (SN:R)

Frequency Response

Total Harmonic Distortion THD + N@1 KHz

Rack Height

Dimensions (Without feet) (H x W x D)

Height (With feet)

Width (Including rack brackets)

Weight

IP Communication

Mains Operating Voltage

Fuse Rating

Standby power consumption

Category

Application Active Passive In-Wall On-Wall

Model Name

Page 34 35 35 35 36 36 36 36 36 36

Sensitivity (1W@1m)

Cut Out Dimensions
(H x W)

Mounting Depth

Overall Depth
(With Grille)

Overall Dimensions
(With Grille) (H x W)

Power Handling (RMS)

Impedance

Driver Size & Technology

Frequency Response

Maximum SPL

Recommended Amp
Requirements

Construction Material

Weight

Suitable for display sizes

On-Wall Bracket

4 ohms
8 ohms

Bridge (8 ohms)

70V

Soundbars SoundFrames

ASB-10 SB-2 SB-3 SB-4 SoundFrame1 SoundFrame2 SoundFrame3 SoundFrame1 SoundFrame2 SoundFrame3

- 84 dB Left and Right Channels: 84 dB

- - - - 19

- - - - 2

9/16

”

6
167 mm

1/16

x 39

7
180 x 1005 mm

Bass/Mid-range:
2 x 30 W
Tweeter: 2 x 20 W

- 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms

4 x 3” C-CAM
bass/mid drivers
2 x 1 C-CAM
tweeters
2 x ABRs

65 Hz – 20 kHz 90 Hz – 30 kHz 80 Hz – 30 kHz 70 Hz – 30 kHz 55 Hz – 35 kHz 55 Hz – 35 kHz 75 Hz – 35 kHz 55 Hz – 35 kHz 55 Hz – 35 kHz 75 Hz – 35 kHz

105 dBA (@1 m) 104 dBA (108.8

Class D 30 – 100 W 30 – 100 W 30 – 100 W 20 – 100 W 20 – 100 W 20 – 50 W 20 – 100 W 20 – 100 W 20 – 50 W

Moulded polymer
cabinet

11 lb
5 kg

All 50” – 60” 60”+ 70”+ - - - - - -

- BSB BSB BSB -

Ampliers

IA150-2 IA60-12 IA800-2C IA200-2C IA150-8C

- - Ye s Yes Ye s

2 (1 Stereo Pair) 12 (6 Stereo Pairs) 2 (1 Stereo Pair) 2 (1 Stereo Pair) 8 (4 Stereo Pairs)

150 60 800 225 150

100 60 500 150 130

320 (1CH) 100 (6CH) 2000 (1CH) 470 (1CH) 300 (4CH)

N/A N/A 750 W/PC N/A N/A

20 K ohms 20 K ohms 20 K ohms 20 K ohms 20 K ohms

600 ohms 600 ohms 600 ohms 600 ohms 600 ohms

100 mV / 1 W, 990 mV – Full power 100 mV / 1 W, 650 mV – Full power 100 mV / 1 W, 2200 mV – Full power 100 mV / 1 W, 1230 mV – Full power 100 mV / 1 W, 1140 mV – Full power

2.9 V 2.9 V 2.9 V 2.9 V 2.9 V

-100 dB (20 Hz – 20 kHz) -100 dB (20 Hz – 20 kHz) -100 dB (20 Hz – 20 kHz) -100 dB (20 Hz – 20 kHz) -100 dB (20 Hz – 20 kHz)

5 Hz – 50 kHz 5 Hz – 50 kHz 5 Hz – 50 kHz 5 Hz – 50 kHz 5 Hz – 50 kHz

0.1% 0.1% 0.30% 0.06% 0.10%

1U 2U 2U 1U 1U

11/16

1/4

13/16

x 17

x 16

1

42.4 x 438 x 427 mm

1/16

” / 52.8 mm 3

2

3/16

” / 488 mm 19

19

11 lb 10 oz / 5.29 kg 16 lb 5 oz / 7.34 kg 20 lb 4 oz / 9.2 kg 11 lb 10 oz / 5.3 kg 16 lb 6 oz / 7.45 kg

N/A N/A TCP/IP (RJ-45 10/100 Base T) TCP/IP (RJ-45 10/100 Base T) TCP/IP (RJ-45 10/100 Base T)

100 –120 V @ 60 Hz,
220 – 240 V @ 50 Hz

5 A (T5AL ~ 250VAC) 10 A (T10AL ~ 250VAC) 15 A (T15AL ~ 250VAC) 5 A (T5AL ~ 250VAC) 10 A (T10AL ~ 250VAC)

<0.5 W (green mode) <0.5 W (green mode) <0.5 W (green mode) <0.5 W (green mode) <0.5 W (green mode)

”

Centre Channel: 87 dB

1/2

3

”

89 mm

9/16

11/16

”

5

x 43

145 x 1110 mm

40 W Left and Right Channels: 40 W

3 x 4” C-CAM
bass/mid drivers
3 x 1” C-CAM
tweeters
3 x ABRs

dBA all channels
driven)

1/2

3

”

89 mm

11/16

11/16

”

5
145 x 1310 mm

Centre Channel: 80 W

4 x 4” C-CAM bass/mid drivers
3 x 1” C-CAM tweeters
4 x ABRs

104 dBA (108.8 dBA all
channels driven)

MDF MDF MDF MDF MDF MDF MDF MDF MDF

16 lb 12 oz

7.64 kg

20 lb

9.1 kg

x 51

9/16

7/16

1/4

3

86.8 x 438 x 427 mm

13/16

100 –120 V @ 60 Hz,
220 – 240 V @ 50 Hz

13/16

x 17

x 16

” / 97.2 mm 3

3/16

” / 488 mm 19

87 dB 86 dB 86 dB 85dB 86 dB 86 dB 85 dB

3

”

88 mm

5
145 x 1562 mm

80 W 100 W 100 W 50 W 100 W 100 W 50 W

6 x 4” C-CAM
bass/mid drivers
3 x 1” C-CAM
tweeters
4 x ABRs

104 dBA (108.8
dBA all channels
driven)

26 lb 7 oz
12 kg

7/16

1/4

”

1/2

”

3/4

x 61

1/2

3

86.8 x 438 x 427 mm

13/16

100 –120 V @ 60 Hz,
220 – 240 V @ 50 Hz

11/16

501 x 351mm

15/16

1/2

3

”

88.25 mm

3/4

21
552 x
402 mm

1/2

” C-CAM RST

6
driver
4” C-CAM IDC
driver
1” C-CAM tweeter

13/16

x 17

x 16

”

” / 97.2 mm 2

3/16

” / 488 mm 19

3/4

1/2

x 13

”

” / 75 mm 2

13/16

x 15

”

7/8

29

x 7

751 x 201 mm

15/16

” / 75 mm 2

7/16

3

”

87.5 mm

5/8

15/16

31

x 9

802.5 x

252.5 mm

1/2

6

” C-CAM RST
driver
4” C-CAM IDC
driver
1” C-CAM tweeter

11/16

1/4

13/16

x 17

x 16

”

” / 52.8 mm 2

” / 488 mm 19

7/8

”

- - -

” / 59.5 mm - - -

x 11

7/8

”

7/16”

3

87.5mm

1/4

3/8

21

x 15
540 x
390 mm

1/2

6

” C-CAM RST
driver
4” C-CAM IDC
driver
1” C-CAM tweeter

”

”

1

42.4 x 438 x 427 mm

1/16

3/16

100 –120 V @ 60 Hz,
220 – 240 V @ 50 Hz

7/8

9

x 9

251 x 251 mm

5/16

3”

77.5 mm

7/8

11

301.5 x

301.5 mm

4” MMP II driver
1” C-CAM tweeter

1

42.4 x 438 x 427 mm

100 –120 V @ 60 Hz,
220 – 240 V @ 50 Hz

7/16

3

87.5mm

”

31
790 x
240 mm

1/2

6
driver
4” C-CAM IDC
driver
1” C-CAM tweeter

11/16

1/4

x 17

1/16

” / 52.8 mm

3/16

” / 488 mm

”

1/8

7/16

x 9

”

” C-CAM RST

x 16

106 dBA 106 dBA 102.5 dBA 106 dBA 106 dBA 102.5 dBA

16 lb 10 oz

7.53 kg

16 lb

7.26 kg

6 lb 10 oz
3 kg

16 lb 6 oz

7.44 kg

15 lb 9 oz

7.06 kg

- - - -

13/16

”

3”

77.5 mm

3/8

3/8

11

x 11

”
289 x
289 mm

4” MMP II driver
1” C-CAM tweeter

6 lb

2.76 kg

Category

Model Name

Page 40 40 40 40 41 (23) 41 (31)

Overall Dimensions
(H x W x D)

Internal Volume

Accessories (Back Boxes)

CCBOX-R CCBOX-L WCBOX-L CMBOX-R PLIC-BOX II IWB-10

15/16

13 x 13 x 4
330 × 330 × 125 mm

6.31 L 8.9 L 14.8 L 12.2 L 24 L 16.5 L

”

1/2

13 x 13 x 6

”

330 × 330 × 165 mm

1/4

1/8

x 17

3/4

x 4

”

23
590 × 435 × 120 mm

13/16

3/4

x 13

5/16

x 6

11
300 × 350 × 160 mm

1/2

3/4

”

7

191.2 x 628.6 x 350 mm

x 24

x 13

3/4

” (Inc. Brackets)

1/2

33
850 x 351 x 85 mm

x 13

13/16

11/32

x 3

”

45

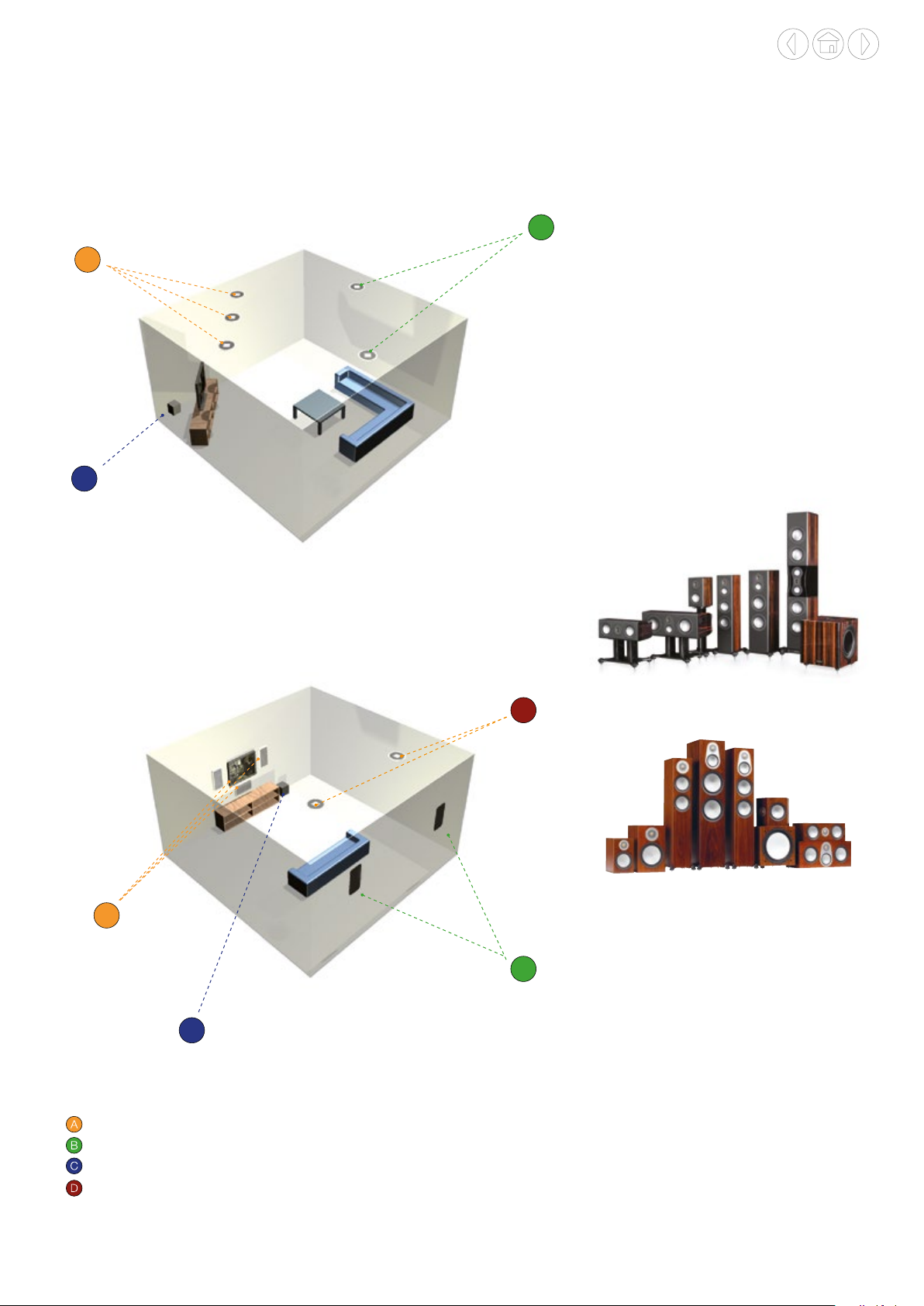

HOME THEATRE SYSTEMS

In-Ceiling 5.1 Home Theatre

A

C

B

Our Custom Install speakers and accessories

can be used to create an amazing Home Theatre

system using either In-Ceiling or In-Wall or a

combination of both. There are a number of

optimum layouts and positions that will enhance

your sound and listening pleasure.

All our Custom Install products can be used in

conjunction with our traditional speaker ranges.

To nd out more about our speaker ranges

please visit monitoraudio.com

In-Wall 7.1 Home Theatre

A

C

Platinum II

D

Silver 6G

B

Front Left-Centre-Right main loudspeakers

Rear Left-Right surround loudspeakers

Add your choice of Monitor Audio subwoofer to complete the theatre

You can use In-Wall front IDC loudspeakers with In-Ceiling Left-Right surrounds if desired

46

INSIDER

Find out more about Monitor Audio Custom Install

www.

Visit

monitoraudio.com for product

information, to nd your local dealer

and to sign up for our newsletter.

Download

our Custom Install INSIDER

magazine from our website or pick

one up at your local dealer.

Custom Install Magazine

Issue 1 | Autumn 2017

Acoustic living

Music built in Eat to the beat

Easy t audio brought to

Audio hidden in every

a luxury Quebec home

Dining out has never

corner of the house

sounded this good

1

@

Share

your custom installation with us on

Facebook, Twitter and Instagram

for a chance to be in our next issue

of INSIDER magazine

@monitoraudio #monitoraudio

Monitor Audio Ltd

24 Brook Road, Rayleigh,

Essex, SS6 7XJ England

T. + 44 (0)1268 740580

F. + 44 (0)1268 740589

E. [e-mail]

monitoraudio.com

48
