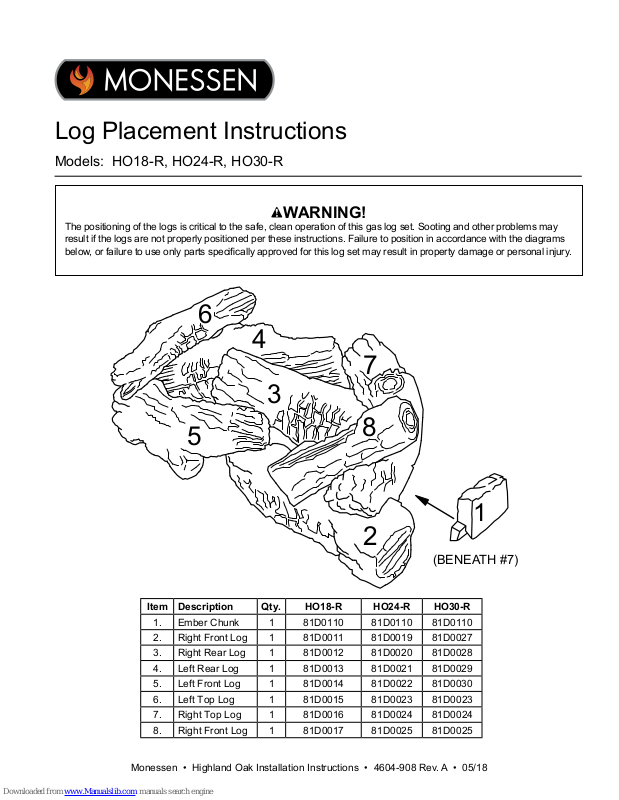

Monessen Hearth HO24-R, HO18-R, HO30-R Log Placement Instructions

Log Placement Instructions
Models: HO18-R, HO24-R, HO30-R
WARNING!
The positioning of the logs is critical to the safe, clean operation of this gas log set. Sooting and other problems may result if the logs are not properly positioned per these instructions. Failure to position in accordance with the diagrams
below, or failure to use only parts specically approved for this log set may result in property damage or personal injury.
6
4
7
3
5
8
2
(BENEATH #7)
Item Description Qty. HO18-R HO24-R HO30-R
1
Monessen • Highland Oak Installation Instructions • 4604-908 Rev. A • 05/18
INSTALL 18", 24" AND 30" (F,R) HIGHLAND OAK LOGS ON NATURAL BLAZE BURNER
NOTE: Installation instructions are the same for 18”, 24”, and 30” log sets. Pictures used in this manual illustrate the 24” set. Some variation may exist between the images and the set.
1. Place the #1 log (the “chunk”) on the grate bar right side
of the burner adjacent to the controls. Figure 1
Ember Chunk Log #1
Figure 1
2. Place front right log (#2) on right pin located on burner and right grate bar. Figure 2. After placing front right log, ensure log is fully upright and tilting towards the back of the burner.
Right Front Log #2
Right Rear Log #3
Figure 3
4. Place left rear log (#4) on pin located on rear support bracket on left side and left grate bar. Figure 4
Left Rear Log #4
Figure 4
5. Place left front log (#5) on left pin located on burner and left grate bar. Rest top right portion of log on right front
Figure 2
log. Figure 5
3. Place right rear log (#3) on pin located on rear support bracket and rest left side of log on front right log. Figure
Left Front Log #5
3. After placing right rear log, ensure log is fully upright and does not tilt forward. Slide #1 log ember chunk back to contact right rear log.
Figure 5
2 Monessen • Highland Oak Installation Instructions • 4604-908 Rev. A • 05/18

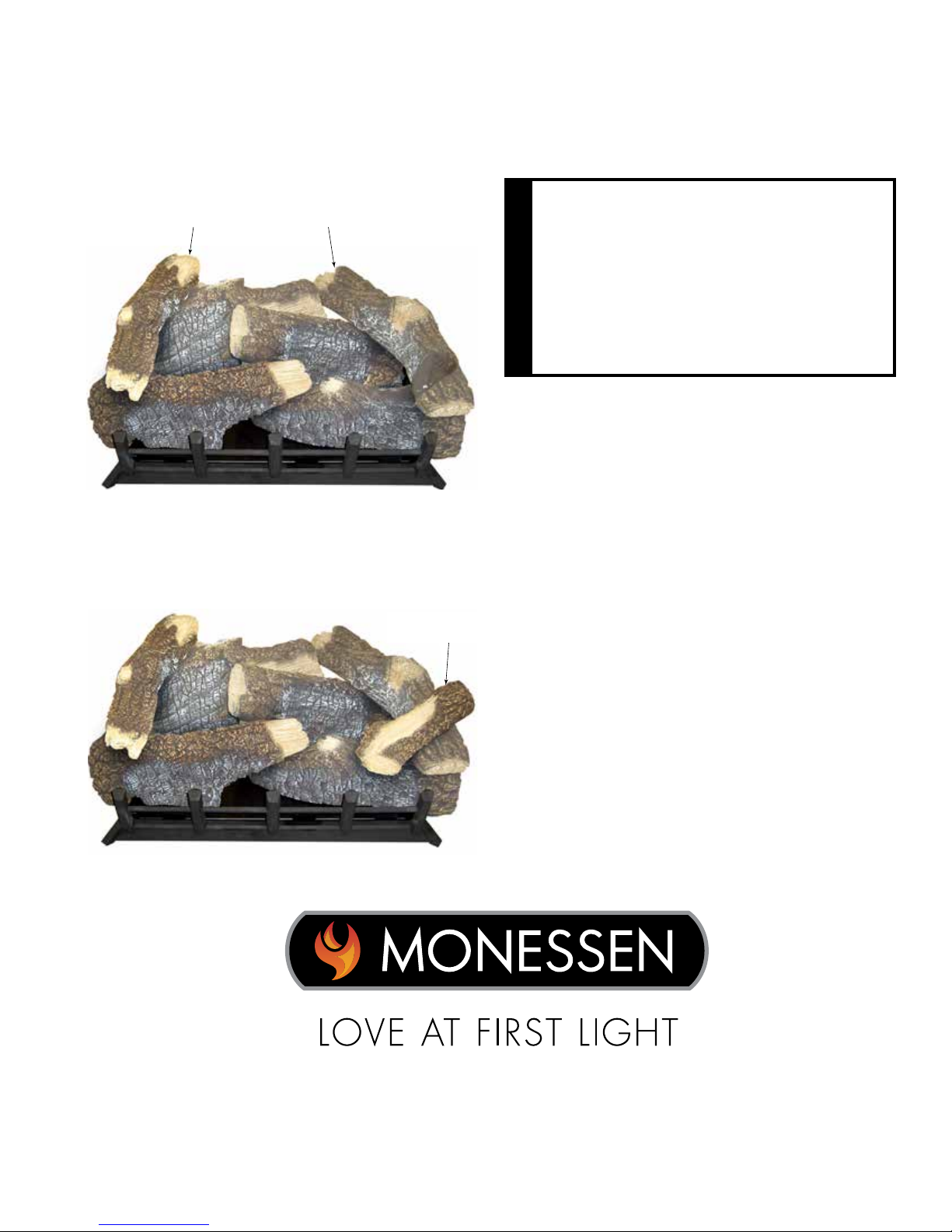

6. Place top left log (#6) on left rear log (#4) and left front
log (#5) using locating grooves on bottom of #6 and
locating blocks on logs #4 and #5. Figure 6
7. Place right top log (#7) on right rear log (#3) and right front log (#2) using locators on the bottom of log #7 and locators on logs #2 and #3. Figure 6
Left Top Log #6
Figure 6
8. Place small right front top log (#8) on log #7 and log
#2 using locating grooves on the bottom of log #8 and
locating blocks on log #7 and log #2. Figure 7
Right Top Log #7
PLACE THE DECORATIVE ROCK
Optional volanic rock may be placed around the unit on the oor of the rebox. Be sure to avoid any areas on the
burner itself.
DO NOT sprinkle volcanic rock on the logs, around the pilot, or on or near burners. This may cause sooting. Place volcanic rock only
on the oor of the replace.
During initial operation of the new heater, new burning logs and/or rock wool will give
CAUTION
off a paper burning smell and orange ames
will be present. Simply open the windows for a few hours to vent the odor.
Figure 7
Right Front
Top Log #8
Monessen, a brand of Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 50044
Monessen • Highland Oak Installation Instructions • 4604-908 Rev. A • 05/18
www.monessenhearth.com
