Monessen Hearth EYF24, EYF18 User Manual 2

MODELS EYF18 AND EYF24
Control Type: Manual or Millivolt
UNVENTED GAS LOG
HEATER OR
VENTED DECORATIVE
APPLIANCE
INST ALLATION AND OPERA TING
INSTRUCTIONS
LO
O
N
H
I
I
G
O
N
F
F
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. See page 7.
WARNINGS
WARNINGS
If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
– Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by
a qualified installer, service agency or the gas supplier.
READ BEFORE INSTALLING. SAVE THESE INSTRUCTIONS
CONTENTS
Important Safety Information .......................... 3
Getting Started .................................................. 5
Product Features and Specifications ............. 6
General Installation Information ..................... 7
Codes ............................................................ 7
Adequate Combustion and
Ventilation Air ................................................ 7
Fireplace and Hearth Dimensions................... 9
Placement in a Fireplace with a Restrictive
Barrier ........................................................ 10
Clearances and Height Requirements .......... 11

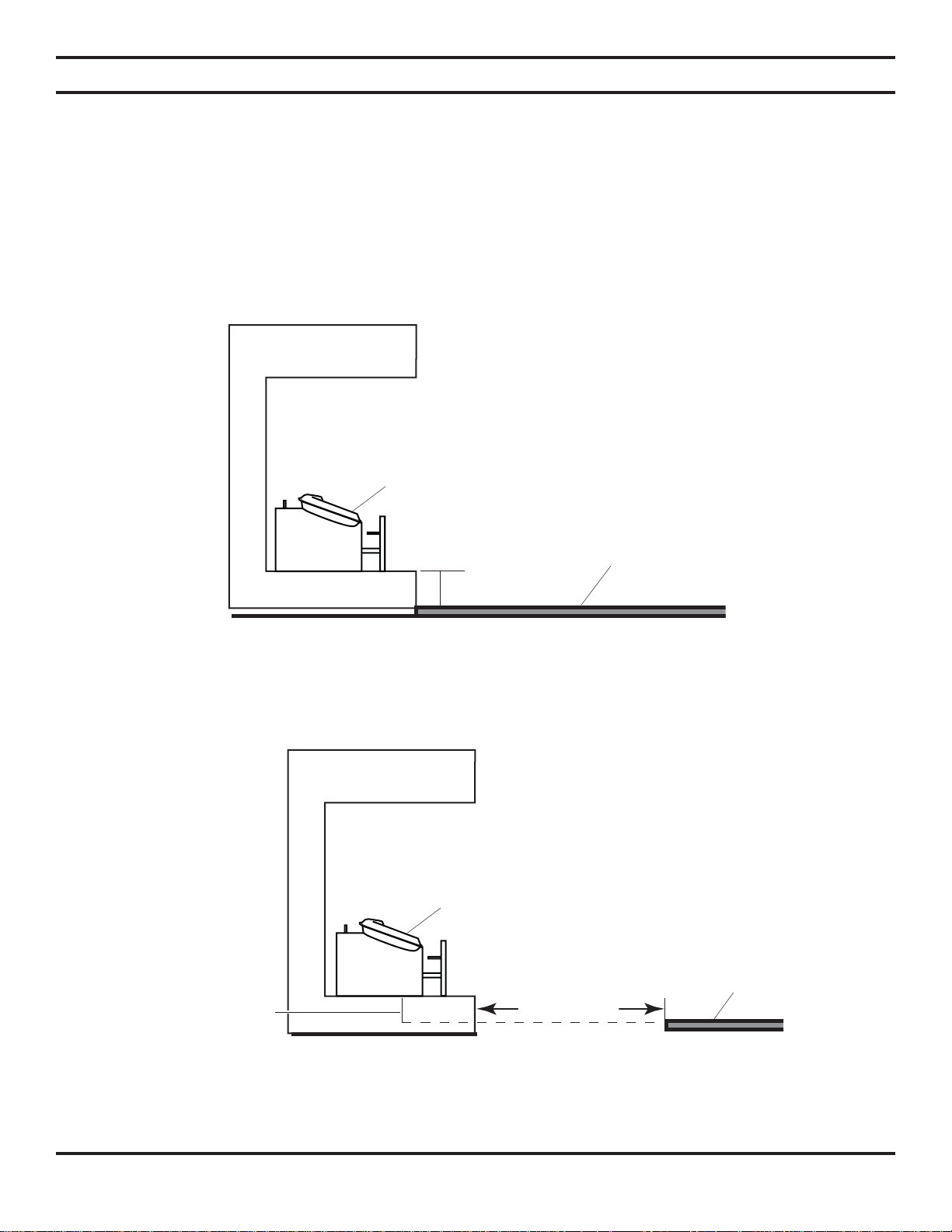

Floor Clearance .............................................. 14
Fireplace Preparation ..................................... 15
Installing Vented Appliance ........................... 16

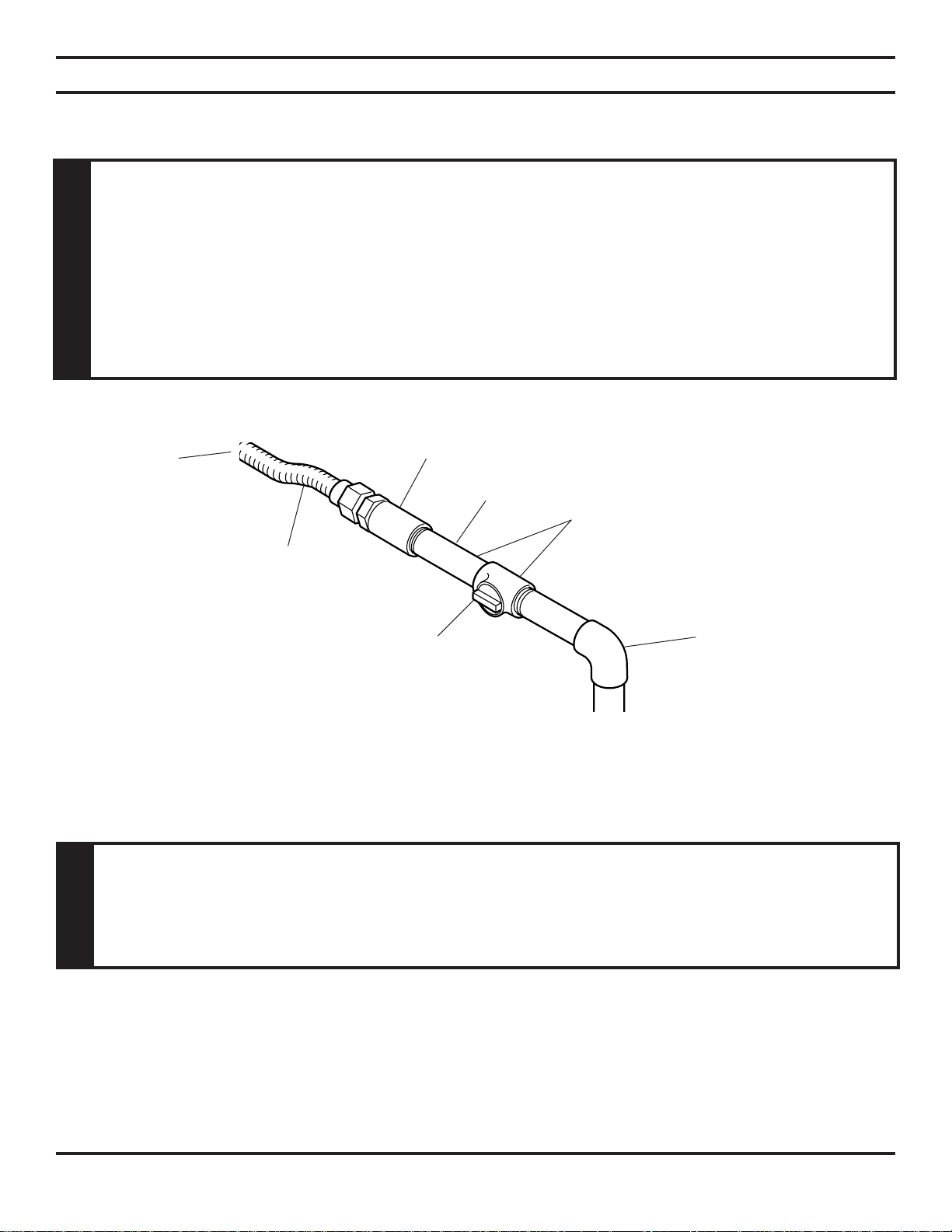

Connecting the Gas ........................................ 17
Log Placement ................................................ 21
EYF24-F ...................................................... 21
EYF18-R ..................................................... 22
EYF24-R ..................................................... 23
Flame Appearance.......................................... 24
Checking Burner Flame ................................. 25
Operating Instructions ................................... 25
For Your Safety Read Before Lighting ........ 26
Manual Control Lighting Instructions ........... 27
Millivolt Control Lighting Instructions ........... 28
Match Lighting Instructions ......................... 29
Cleaning and Servicing .................................. 29
Troubleshooting ............................................. 30
Illustrated Parts Breakdown .......................... 32
Replacement Parts List .................................. 33
Massachusetts Requirements ....................... 35
Checking Gas Pressure ................................. 18
Electrical Wiring (Millivolt) ............................. 19
Warranty ...........................................Back Cover
2 65D1009
IMPORTANT SAFETY INFORMATION
INSTALLER
Please leave these instructions with the appliance.
IMPORTANT
Read these instructions carefully before installing or trying to operate this vent-free gas heater.
• Any change to this heater or its controls can be dangerous.
• Improper installation or use of the heater can cause serious injury or death from fire, burns, explosion or carbon monoxide poisoning.
• Do not allow fans to blow directly into the stove. Avoid any drafts that alter burner flame patterns.
WARNING
• Do not use a blower insert, heat exchanger insert or other accessory, not approved for use with this heater where applicable.
1. Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
2. Children and adults should be alerted to the hazard of high surface temperature and should stay away to avoid burns or clothing ignition.
3. Young children should be carefully supervised when they are in the same room with the appliance.
4. Do not place clothing or other flammable material on or near the appliance.
5. Any safety screen or guard removed for servicing an appliance, must be replaced prior to operating the heater.
6. Installation and repair should be done by a qualified service person.
7. To prevent malfunction and/or sooting, an unvented gas heater should be cleaned before use and at least annually by a professional service person. More frequent cleaning may be required due to exces­sive lint from carpeting, bedding materials, etc. It is imperative that control compartments, burners and circulating air passageways be kept clean.
OWNER
Please retain these instructions for future reference.
8. For propane/LP insert, do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors. To prevent performance problems, do not use propane/LP fuel tank of less than 100 lbs. capacity.
9. The installation must conform with local codes or, in
the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.l/NFPA54.
10. This unit complies with ANSI Z21.11 Unvented Heaters
and also complies with ANSI Z21.60 Decorative Vented Appliances for Solid Fuel Burning Fireplaces. State and local codes may only allow operation of this appliance in a vented configuration. Check your state or local codes. For vented operation, see Vented Instructions in this manual.
11. Do not install the heaters in a bathroom or bedroom.
12. Correct installation of the ceramic fiber logs, proper
location of the heater, and annual cleaning are neces­sary to avoid potential problems with sooting. Sooting, resulting from improper installation or operation, can settle on surfaces outside the fireplace. See log placement instructions for proper installation.
Continued on page 4
CARBON MONOXIDE POISONING: Early signs of carbon monoxide poisoning are similar to the flu with head- aches, dizziness and/or nausea. If you have these signs, the insert may not have been installed properly. Get fresh air at once! Have the insert inspected and serviced by a qualified service person. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.
Propane/LP gas and natural gas are both odorless. An odor-making agent is added to each of these gases. The odor helps you detect a gas leak. However, the odor added to these gases can fade. Gas may be present even though no odor exists.
65D1009 3
IMPORTANT SAFETY INFORMATION
Continued from page 3
13. Avoid any drafts that alter burner flame patterns. Do not allow fans to blow directly into fireplace. Do not place a blower inside burn area of firebox. Ceiling fans may create drafts that alter burner flame patterns. Sooting and improper burning will occur.
14. Caution: Candles, incense, oil lamps, etc. produce combustion by-products including soot. Vent-free appli­ances will not filter or clean soot produced by these types of products. In addition, the smoke and/or aromatics (scents) may be reburnt in the vent-free appliance which can produce odors. It is recommended to minimize the use of candles, incense, etc. while the vent-free appliance is in operation.
15. This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions for ad­equate combustion and ventilation air must be provided. See page 7.
16. Keep room area clear and free from combustible materi­als, gasoline and other flammable vapors and liquids.
17. Unvented gas heaters are a supplemental zone heater. They are not intended to be a primary heating appliance. Water vapor produced by an unvented heater can create moisture problems in a home when operated for extended periods of time.
18. During manufacturing, fabricating and shipping, various components of this appliance are treated with certain oils, films or bonding agents. These chemicals are not harmful but may produce annoying smoke and smells as they are burned off during the initial operation of the appliance; possibly causing headaches or eye or lung irritation. This is a normal and temporary occurrence.
21. The heater must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).
22. Do not use this room heater if any part has been under water. Immediately call a qualified service technician to inspect the room heater and to replace any part of the control system and any gas control which has been under water.
23. This appliance must not be used with glass doors in the closed position. This can lead to pilot outages and severe sooting outside the fireplace.
24. Never burn solid fuels in a fireplace where a unvented room heater is installed.
25. Always have a fireplace screen in place when the ap­pliance is in operation and , unless other provisions for combustion air are provided, the screen shall have an opening(s) for induction of combustion air.
This appliance may be installed in an aftermar­ket, permanently located, manufactured (mobile) home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.
Never connect unit to private (non-utility) gas wells. This gas is commonly known as wellhead gas.
The initial break-in operation should last two to three
WARNING
hours with the burner at the highest setting. Provide maximum ventilation by opening windows or doors to allow odors to dissipate. Any odors remaining after this initial break-in period will be slight and will disappear with continued use.
19. Input ratings are shown in BTU per hour and are for elevations up to 2,000 feet. For elevations above 2,000 feet, input ratings should be reduced 4 percent for each 1,000 feet above sea level. See the National Fuel Gas
www.nficertified.org
We suggest that our gas hearth products be installed and serviced by professionals who are certified in the U.S. by the National Fireplace Institute
®
(NFI) as Gas Specialists.
Code.
20. The heater and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).
4 65D1009
Attention Massachusetts Residents: This product must be installed by a licensed gas fitter.
GETTING STARTED
MAKE SURE YOU HAVE RECEIVED ALL PARTS:
Check your packing list to verify that all listed parts have been received. You should have the following:
• Unvented gas log burner assembly • Plastic bag containing crushed volcanic rock
• Installation/operating instructions • Two (2) anchoring screws
• Ceramic Fiber or Refractory Cement Logs • Grate
The millivolt controlled version of this heater is the only style designed to be operated with optional devices for ON/OFF functions. The following options may be used with the millivolt controlled heater. These options are not packaged with the log set.
• Hand held Remote with receiver • Wall thermostat with 15' wire
• Wall switch with 15' wire • Hand held Thermostat Remote with receiver
• Handle the gas log burner assembly by the frame only. Do not pick the unit up by the burners or grate (not attached to frame).
• Gloves are recommended when handling ceramic fiber logs to prevent skin irritation from loose fibers. Logs are fragile — handle with care.
CAUTION
Carefully inspect the contents for shipping damage. If any parts are missing or damaged, immediately inform the dealer from whom you purchased the appliance. Do not attempt to install any part of the appliance unless you have all parts
in good condition.
WHAT YOU WILL NEED FOR INSTALLATION:
You must have the following items available before proceeding with installation:
• External regulator (for propane/LPG and 1/2 lb. natural gas systems only)
• Piping which complies with local codes
• Screwdriver
• Drill with 5/32 bit
• Manual shutoff valve
• Pipe sealant approved for use with propane/LPG (Resistant to sulfur compounds)
• Pipe wrench or appropriate size crescent wrench set
• Tee joint.
• Sediment trap
65D1009 5
PRODUCT FEATURES AND SPECIFICATIONS
NATURAL GAS
Manual Pressure Millivolt Pressure
Regulator Pressure Setting: 4.0" w.c. Regulator Pressure Setting: 3.5" w.c. Gas Inlet Pressure: Max. 10 1/2" w. c. Pilot Regulator: 3.5" w.c. Min. 5" w.c. Gas Inlet Pressure: Max. 10 1/2" w. c. Min. 5" w.c.
Gas Rate
Model Number Control
EYF24NM Manual 36,000 19,000
EYF24NV Millivolt 36,000 24,000
EYF18NM Manual 30,000 18,000
EYF18NV Millivolt 30,000 26,000
Max BTU/Hr Min BTU/Hr
PROPANE/LPG
Note: An external regulator is required to reduce supply pressure to a maximum of 13" w.c.
Manual Pressure Millivolt Pressure
Regulator Pressure Setting: 10" w.c. Regulator Pressure Setting: 10" w.c. Gas Inlet Pressure: Maximum 13" w.c. Gas Inlet Pressure: Maximum 13" w.c.
Minimum 11" w.c. Minimum 11" w.c.
Gas Rate
Model Number Control
EYF24PM Manual 36,000 25,000
EYF24PV Millivolt 36,000 29,000
EYF18PM Manual 30,000 22,500
EYF18PV Millivolt 30,000 24,500
IGNITION CONTROLS
Piezo ignitor allows ignition of the pilot without the use of matches or batteries.
Max BTU/Hr Min BTU/Hr
Manual control has three (3) positions: OFF - All gas to the gas logs is shut off at the valve. IGN - Valve position to light/maintain a standing pilot. HI/LOW - Variable position corresponding to desired flame height (heat input)
Millivolt control has four (4) positions:
OFF - All gas to the gas logs is shut off at the valve. IGN - Valve position to light/maintain a standing pilot. ON - Valve position to turn ON/OFF log set with remote switch/thermostat. HI/LOW - Variable position to control flame height (heat output).
PILOT
The gas log heater is fitted with a specially designed safety pilot light (ODS assembly) which senses the amount of oxygen available in the room and shuts the gas log heater off if the oxygen level begins to drop below a satisfactory level. The pilot can only be relit when adequate fresh air is available.
THERMAL GENERATOR
The millivolt gas log pilot is fitted with a millivolt generator to provide power for remote activation.
6 65D1009
GENERAL INSTALLATION INFORMATION
CODES
Adhere to all local codes or, in their absence, the latest edition of THE NATIONAL FUEL GAS CODE ANSI Z223.1 or NFPA54 which can be obtained from…
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
or
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
ADEQUATE COMBUSTION AND VENTILATION AIR
This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for ad­equate combustion and ventilation air.
The National Fuel Gas Code, (ANSI Z223.1), defines a confined space as a space whose volume is less than 50 cubic feet per 1,000 BTU per hour (4.8 m fined space is defined as a space whose volume is not less than 50 cubic feet per 1,000 BTU per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed, through openings not furnished with doors, are considered a part of the unconfined space.
UNUSUALLY TIGHT CONSTRUCTION IS DEFINED AS CONSTRUCTION WHERE…
a) walls and ceilings exposed to the outside atmosphere have a continuous water vapor retarder with a rating of 1 perm
(6 x 10
b) weather striping has been added on openable windows and doors, and
c) caulking or sealant are applied to areas such as joints around windows and door frames; between sole plates and doors;
between wall-ceiling joints; between wall panels; at penetrations for plumbing, electrical, and gas lines; and at other openings.
11
kg per-pa-sec-m2) or less with openings gasketed or sealed, and
3
per kw) of the aggregate input rating of all appliances installed in that space. An uncon-
65D1009 7
GENERAL INSTALLATION INFORMATION
Figure 1 - Example of a Large Room with 1/2 Wall Divider
Counter
Fireplace
H
W
The following formula can be used to determine the maximum heater rating per the definition of unconfined space:
BTU/Hr = (L1 + L2) Ft x (W) Ft x (H) Ft
x 1000
50
Consider two connecting rooms with an open area between, with the following dimensions:
1
1 = 15
L
/2 Ft., L2 = 12 Ft., W = 12 Ft., H = 8 Ft.
BTU/Hr = (151/2 + 12) x (12) x (8)
x 1000 = 52800 BTU/Hr
50
If there were a door between the two rooms the calculation would be based only on the room with the heater.
BTU/Hr = (151/2) x (12) x (8)
x 1000 = 29760 BTU/Hr
50
If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the National Fuel Gas Code, ANSI Z223.1, Section 5.3 or applicable local codes.
WARNING
8 65D1009
FIREPLACE AND HEARTH DIMENSIONS
This appliance has been specifically tested and design certified for installation only in a solid-fuel burning fireplace including factory-built UL127 fireplaces and masonry fireplaces, or in a listed ventless firebox (see below).
Exception: DO NOT install this appliance in a factory-built fireplace that includes instructions stating that it has not been tested or should not be used with unvented
WARNING
gas logs.
Use manufacturer's installation and clearance requirements as defined in their manual.
The EYF Series unvented room heater is approved for installation into the following unvented fireplaces:
GCUF(32,36,42) and VFR(32,36,42) Series Fireboxes
The EYF Series unvented room heater may also be installed into a Ventless Firebox Enclosure for Gas Fired Decorative Type Unvented Room Heaters per ANSI Z21.91b.2004, as long as firebox hearth dimensions meet the minimum hearth dimensions shown below.
C
Model ABCD
EYF18 25" 13" 171/2" 17"
EYF24 w/EYF24-(R,F) 29" 13" 191/2" 17"
EYF24 w/EYF30-R 33" 13" 251/4" 17"
D
A
Figure 2 - Hearth Minimum Dimension for Solid Fuel Burning
Fireplaces and UL127 Factory Built Fireplaces
B
65D1009 9
LO
HI
OFF
ON
I G N
PLACEMENT IN A FIREPLACE WITH A RESTRICTIVE BARRIER
IMPORTANT INFORMATION FOR THE INSTALLATION OF THIS GAS LOG SET
The following are guidelines for placing a gas log set in a fireplace that has a restrictive barrier along the bottom front open­ing of the fireplace. Some examples of barriers are glass/screen door frames and sunken/recessed fireplaces.
Height of Restriction (X) Minimum Depth of Fireplace/Firebox
No restriction 13" 0 to 1.5" 16" Greater than 1 Greater than 3" Any barrier greater than three inches (3") placed in front of the gas log set is not
Glass door frames
louvers should have
the lovers fully open
while the unit is in
1
/2" to 3" 16"
with adjustable
operation.
recommended by the manufacturer.
The log set should be placed against or as near as possible to the rear wall of the fireplace/firebox.
Height of restrictive barrier
X
caused by glass door frames, recessed fireplaces, etc. from
the base or bottom surface of the
unit. (See Table).
Depth of fireplace/firebox.
(SeeTable).
Figure 3 - Reference Drawing of a Natural Flame Log Set in an Enclosure
Barriers such as the bottom of a glass door frame placed in front of a gas log set can change the air flow characteristics of the fireplace which in turn can cause the unit to overheat and malfunction.
WARNING
NOTE: Non combustible material such as refractory brick may be used to line the floor of the fireplace in order to raise the height of the gas log set in relation to a restrictive barrier. If the unit is raised, the minimum height dimension listed in the homeowner’s manual must not be exceeded.
NOTE: If the log set is equipped with a remote receiver, a restrictive barrier may reduce the battery life by increasing the ambient temperature inside the fireplace. Placement of the receiver outside of the fireplace will extend the battery life.
10 65D1009
CLEARANCES AND HEIGHT REQUIREMENTS
The dimensions shown in Figures 4 through 10 and defined in the fireplace manufacturer's instructions are minimum clearances to maintain when installing this heater. Left and right clearances are determined when facing the front of the heater.
When heater is installed into a ventless firebox, minimum clearances, as specified by the ventless firebox manufacturer, must be met.
Follow these instructions carefully to ensure safe installation. Failure to follow
WARNING
instructions exactly can create a fire hazard.
Sidewall and ceiling clearances: The sides of the fireplace opening must be at least 16" from any combustible wall. The ceiling must be at least 42" from the top of the fireplace opening.
42"
16"
Figure 4 - Sidewall and Ceiling Clearances
65D1009 11
Loading...
+ 25 hidden pages
