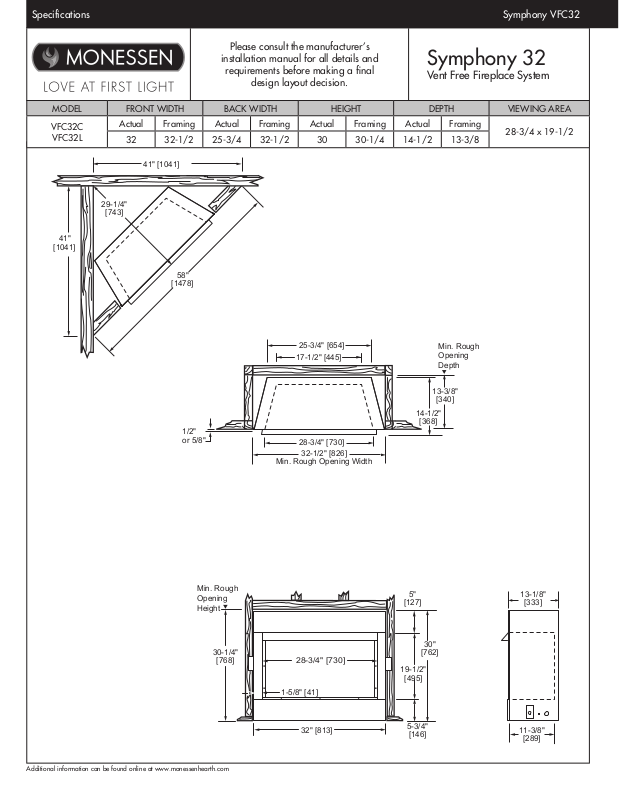

Page 1
Specifications
[289]
Symphony VFC32
Please consult the manufacturer’s
installation manual for all details and
requirements before making a final
design layout decision.
MODEL FRONT WIDTH BACK WIDTH HEIGHT DEPTH VIEWING AREA
VFC32C
VFC32L
41"
[1041]
Actual Framing Actual Framing Actual Framing Actual Framing
32 32-1/2 25-3/4 32-1/2 30 30-1/4 14-1/2 13-3/8
41" [1041]
29-1/4"
[743]
58"
[1478]
Symphony 32
Vent Free Fireplace System
28-3/4 x 19-1/2
1/2"
or 5/8"
Min. Rough
Opening
Height
25-3/4" [654]
17-1/2" [445]
28-3/4" [730]
32-1/2" [826]
Min. Rough Opening Width
5"
[127]
13-3/8"
14-1/2"
[368]
Min. Rough
Opening
Depth
[340]
13-1/8"
[333]
30-1/4"
[768]
Additional information can be found online at www.monessenhearth.com
28-3/4" [730]
1-5/8" [41]
32" [813]
19-1/2"
[495]
5-3/4"
[146]
30"
[762]
11-3/8"
Page 2
Specifications
9"
Minimum
9"
Minimum
42" Minimum
FP2508
Symphony VFC32
DETERMINE UNIT SIZE
See homowner’s manual for information on determining
the proper size unit for the space required.
APPLIANCE LOCATION
MANTEL PROJECTIONS
12"
19"
2 "
CLEARANCES TO COMBUSTIBLES
Back Wall Clearance — The appliance may be
placed against a combustible back wall.
Floor Clearance — The fireplace may be installed directly on a combustible floor or a raised platform of an
appropriate height. Do not place fireplace on carpeting,
vinyl, tile or other soft floor coverings. It may, however,
be placed on flat wood, plywood, particle board or
other hard surfaces. Be sure fireplace rests on a solid
continuous floor or platform with appropriate framing
for support and so that no cold air can enter from under
the firebox.
MANTEL LEG PROJECTIONS
1"
2-1/2"
3"
5"
6"
7-1/2"
10"
Canopy
1-1/2"
3-1/2"
9"
Finish Wall
Material Area
4-1/2"
6"
Combustible
7-1/2"
45°
PRODUCT LISTING CODES
US
Additional information can be found online at www.monessenhearth.com
Paris, KY Phone: (877) 863-4350
Web: www.monessenhearth.com
ANSI Z223.1 / NFPA54
ANSI Z21.11
CSA Design Certified
Product information provided is not
complete and is subject to change
without notice. Product installation
must adhere strictly to instructions
accompanying product to avoid risk
of fire and potential injury.
GS/MON/VFC32_0116
