Monessen LSTF36B Specifications
Specifications

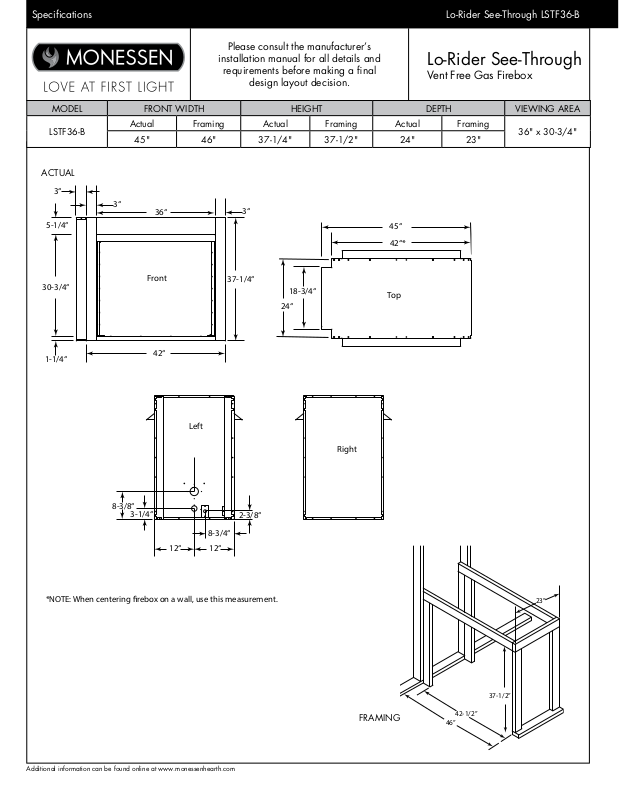

Lo-Rider See-Through LSTF36-B
Please consult the manufacturer’s
installation manual for all details and
requirements before making a final
design layout decision.
MODEL FRONT WIDTH HEIGHT DEPTH VIEWING AREA
LSTF36-B
ACTUAL
3“
5-1/4“
Actual Framing Actual Framing Actual Framing
45" 46" 37-1/4" 37-1/2" 24" 23"
3“
36“
3“
45“
42“*
Lo-Rider See-Through
Vent Free Gas Firebox
36" x 30-3/4"
30-3/4“
1-1/4“
8-3/8“
3-1/4“
Front
42“
Left
8-3/4“
12“12“
37-1/4“
2-3/8“
18-3/4“
24“
Top
Right
*NOTE: When centering rebox on a wall, use this measurement.
Additional information can be found online at www.monessenhearth.com
FRAMING
23”
37-1/2”
42-1/2”
46”
Specifications
Lo-Rider See-Through LSTF36-B
MINIMUM HEARTH DIMENSIONS
27¾"
33½"
19"
CLEARANCES AND HEIGHT REQUIREMENTS
Minimum
42"
6"
Minimum
Minimum
6"
MANTEL CLEARANCES
Combustible
Material Can
Contact Top
of Fireplace
MANTEL LEG CLEARANCES
Fireplace
Hood
Top View
1”
2½”
3”
5”
12”
10”
18”
8”
16¾”
6”
15½”
14”
12”
Noncombustible Material
Only if Needed to Cover
Radiant Top Face
Finish Wall
1½”
3½”
4½”
6”
Combustible
Material Area
45°
36”
(914 mm)
PRODUCT LISTING CODES
US
Additional information can be found online at www.monessenhearth.com
(877) 863-4350 | monessenhearth.com
ANSI Z223.1 / NFPA54
ANSI Z21.11
CSA Design Certified
Product information provided is not
complete and is subject to change
without notice. Product installation
must adhere strictly to instructions
accompanying product to avoid risk
of fire and potential injury.
MON/LSTF36-B_0518
