Monessen GCUF32CF Specifications

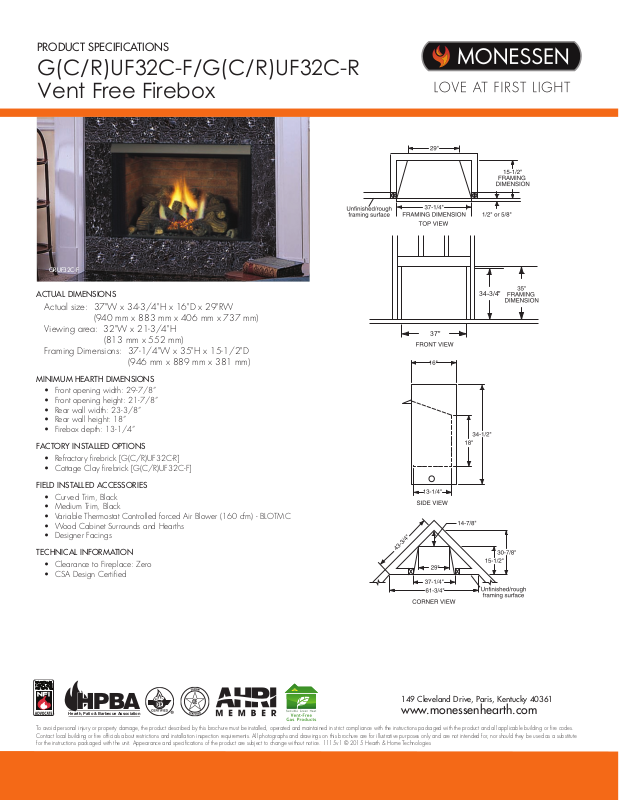

PRODUCT SPECIFICATIONS

n

G(C/R)UF32C-F/G(C/R)UF32C-R
Vent Free Firebox

GRUF32C-F

ACTUAL DIMENSIONS

Actual size: 37"W x 34-3/4"H x 16"D x 29"RW

(940 mm x 883 mm x 406 mm x 737 mm)
Viewing area: 32"W x 21-3/4"H
(813 mm x 552 mm)
Framing Dimensions: 37-1/4"W x 35"H x 15-1/2"D

(946 mm x 889 mm x 381 mm)

MINIMUM HEARTH DIMENSIONS

• Front opening width: 29-7/8”

• Front opening height: 21-7/8”

• Rear wall width: 23-3/8”

• Rear wall height: 18”

• Firebox depth: 13-1/4”

FACTORY INSTALLED OPTIONS

• Refractory firebrick [G(C/R)UF32C-R]

• Cottage Clay firebrick [G(C/R)UF32C-F]

FIELD INSTALLED ACCESSORIES

• Curved Trim, Black

• Medium Trim, Black

• Variable Thermostat Controlled forced Air Blower (160 cfm) - BLOTMC

• Wood Cabinet Surrounds and Hearths

• Designer Facings

TECHNICAL INFORMATION

• Clearance to Fireplace: Zero

• CSA Design Certified

34-3/4"

37"

HPBA

Hearth, Patio & Barbecue Associatio

To avoid personal injury or property damage, the product described by this brochure must be installed, operated and maintained in strict compliance with the instructions packaged with the product and all applicable building or fire codes.
Contact local building or fire officials about restrictions and installation inspection requirements. All photographs and drawings on this brochure are for illustrative purposes only and are not intended for, nor should they be used as a substitute
for the instructions packaged with the unit. Appearance and specifications of the product are subject to change without notice. 1115v1 © 2015 Hearth & Home Technologies

149 Cleveland Drive, Paris, Kentucky 40361

www.monessenhearth.com
