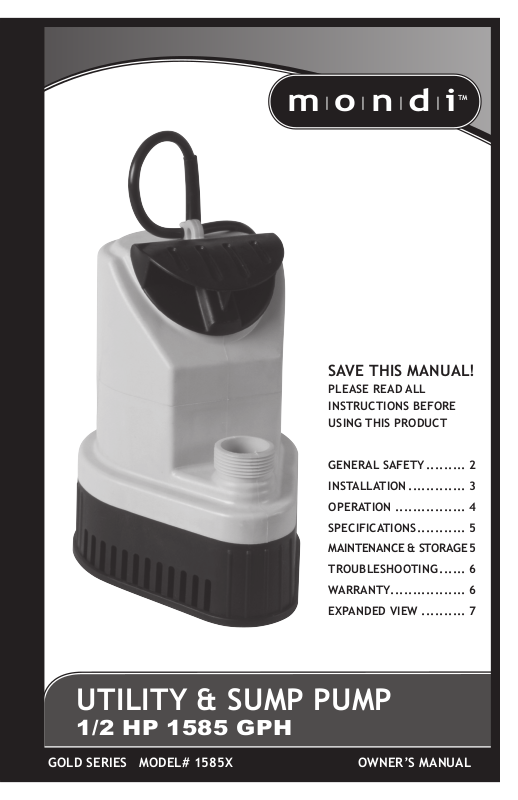

Mondi 1585X User Manual

m| o| n| d| i

TM

SAVE THIS MANUAL!

PLEASE READ ALL
INSTRUCTIONS BEFORE
USING THIS PRODUCT

GENERAL SAFETY ......... 2

INSTALLATION .............

OPERATION ................

SPECIFICATIONS ...........

MAINTENANCE & STORAGE

TROUBLESHOOTING ......

WARRANTY .................

EXPANDED VIEW ..........

UTILITY & SUMP PUMP

3
4
5

5

6
6
7

1/2 HP 1585 GPH

GOLD SERIES MODEL# 1585X OWNER’S MANUAL

m| o| n| d| i

TM

PLEASE READ AND SAVE THESE SAFETY INSTRUCTIONS!

This safety alert symbol will alert you to cautionary measures in the use and

!

operation of this pump, and give you instructions on how to avoid potentially
serious personal injury or property damage.

GENERAL & ELECTRICAL SAFETY

The following directions are included for your safety and the long-life of your MONDI
Utility & Sump Pump. Please carefully read and follow all safety instructions in this
manual and on the pump. Keep the safety labels in good condition. Replace missing
or damaged safety labels.

1. The pump is designed for use with clean, or slightly turbid fresh water. Not
intended for use in salty/briny water, oil or corrosive liquids.

2. Do not lift pump by power cord - attempting to lift or support the pump by the
power cord causes damage to the cord and cord connections, and voids your
warranty. Lift the pump by its handle only. If you need to lower the pump into
position, use a rope attached to the loop provided above the handle.

3. Follow the National Electrical Code, Canadian Electrical Code, and local codes
in regards to outlets and voltage for this pump.

4. Installation must comply with all local codes pertaining to utility pumps.

5. Know the pump application, limitations, and potential hazards. See Specifications
for more information.

6. Disconnect the power source, release all pressure within the system and drain
water from the pump before maintenance.

7. Secure the discharge line before starting pump to avoid personal injury and/or
property damage due to sudden discharge line movement.

8. Check pump and hoses for weakened or worn condition before each use, and
make certain that all connections are secure.

9. Periodically inspect the pump and system components to make sure the inlet is
free of debris or foreign objects.

2

GENERAL SAFETY

GENERAL SAFETY

GOLD SERIES MODEL#1585X

10. Wear protective eye-wear at all times when working with the pump.

11. This equipment is only for use on 115V (single phase) and is equipped with an
approved 3-conductor cord and 3-prong, grounding type plug.

!

WARNING HAZARDOUS VOLTAGE. CAN SHOCK, BURN OR CAUSE DEATH.

To reduce the risk of electrical shock, disconnect plug before servicing. Use only
with a individual branch circuit and proper 3-prong receptacle. Do not remove the
grounding pin under any circumstances - you will void your warranty.

12. Make certain the power source conforms to requirements of this pump.

13. Protect the electrical cord from sharp objects, hot surfaces, oil, and chemicals.
Avoid kinking cord.

14. Do not open the pump casing or motor housing. Warranty void if opened.

15. Disconnect power before handling or inspecting the pump to remove the risk of
electric shock

.

INSTALLATION

This submersible pump is designed for use as a utility pump – an oil-less motor system
inside does not require lubrication. Please follow the instructions below carefully for the
long-life of your pump.

1. Place the pump on a hard level surface, making sure there is no debris that may
lodge in the pump inlet. Use a board or piece of metal if needed to raise the pump
in the case of muddy/debris covered base. If you have doubts as to debris in the
water, we recommend using a pump filter/pump bag (sold separately) to extend
the life of your pump.

2. Protect the power cord from damage. Uncovered cords should be checked at
regular intervals to ensure safe operation of the pump. Do not operate the pump if
the power cord or plug is damaged. The power cord is not replaceable.

3. Choose an adapter according to your requirements. Included with your MONDI
Utility & Sump Pump is a adjustable fitting with ½”, ¾”, 1” and 1¼” sizes (see
Figure 1.1), as well as a garden hose adapter (½”)(see Figure 1.2). To choose

INSTALLATION & OPERATION

INSTALLATION

3
