Monark LT2 Product Manual

Manual for LT2

Monark Exercise AB �� 4 Product Information �� 6

Facts ��6 Serial number ��6 Initial operation ��6 Power on crank or ywheel ��6 Calories ��6

Cycle adjustments �� 8

Adjustments of the bike ��8 Cycle adjustments ��8

Validation ��8

Pulse function �� 9

Pulse standard (chest belts) ��9 Pairing display and chest belt ��9

Display Description �� 10

Sleep mode ��10 Workload adjustment ��10 Personal settings ��11 Alternative workload / force display ��11

User settings �� 12

Units ��12 Cycle constant ��12 Metronome cadence ��12 BikeID ��12 Current potentiometer value ��13

Calibration �� 13 Training �� 14 METS �� 15 Troubleshooting guide �� 16 Service �� 17

Warning ��17

Warranty ��17 Service check and Maintenance ��17

Batteries ��18 Flywheel bearing ��18 Crank bearing ��18 Transportation ��18 Replacement of brake belt ��18 Brake belt contact surface ��18

Chain 1/2“ x 1/8“ ��19 Freewheel sprocket ��20

Spare parts list �� 21

2014 MONARK EXERCISE AB, Vansbro, Sweden

Contents

Important

Read the manual carefully before using the cycle

and save it for future use.

LT2

4

Monark Exercise AB

Monark has 100 years’ experience of bicycle production. The Monark tradition has yielded know-how, experience, and a real feel for the product and quality. Since the early 1900s, Monark’s cycles have been living proof of precision, reliability, strength and service. Those are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles.

We manufacture, develop and market ergometers and exercise bikes, transport bikes and specialized bicycles. Our largest customer groups are within health care, sports medicine, public authorities, industry and postal services.

For more information: http://www.monarkexercise.se

LT2

5

Thank you for choosing a test cycle from Monark!

Ideal position is important for a performance to reach its maximum and increases the potential for a perfect performance. The new setting options, along with an upgraded workload adjustment, make Monark's renowned bike even better.

LT2 has a brand new frame that is adjustable in all directions• LT2's new frame also means the Q-factor can be reduced, which increases the opportunities for a •

better workout experience LT24 gives the conditions; the rest is up to the rider• LT2 is equipped with a newly-developed manual workload control, the workload is controlled by •

a lever located on the handlebar LT2 can be calibrated, both mechanically and electronically•

NOTE! Use of the product may involve considerable physical stress. It is therefore recommended that people who are not accustomed to cardiovascular exercise or who do not feel completely healthy, should consult a physician for advice.

LT2

6

Facts

Technical details

Length 1405 mm (55") Width 640 mm (25") Height

(max at display) 1240 mm (49)

Height

(max at saddle) 1240 mm (49")

Weight 57 kg (125 2/3 lbs) Weight ﬂywheel 20 kg (44 lbs) Max user weight 180 kg (396 3/4 lbs) Painting Industrial powder coating Rust protection Zinc-based basic powder

coatng on exposed areas

Power output

Continuous (50-100 rpm) 4-700 W Peak (at rpm) 1400 W (200 rpm) Smallest increment 1 W

Product Information

Serial number

The serial number is located on machine plate (4) according to Fig: Overview.

Initial operation

LT2 is mechanically calibrated in the factory. The user may still want to check this. For the procedure, see section ‘Calibration’.

Apply power to the test bike by ﬁrst connecting the cable from the power adaptor to the test bike at the power connector (5) at the right side of the bike, see Fig: Overview. Then plug the power adaptor into the wall outlet.

Perform the electrical calibration as speciﬁed in section ‘Calibration’. Test by pedalling the bike. If the bike is working properly, it is ready for use.

Power on crank or ywheel

Monark bikes measure the effect of the ﬂywheel, so it will be a friction of 6-8% if you measure the impact of the pedals (measure the effect of the crankshaft, the difference is 4-5 %). These percentages will be primarily due to friction in the chain, pedals and bearings.

LT2 is set to measure the workload at the ﬂywheel. The bike can be set to work with effect in the pedals / crankshaft (the cycle constant).

Fig: Polarity

Technical data power adaptor (accessory)

Output voltage: +9 V DC Current: 500 mA Polarity: Minus (-) in the middle of connector. See Fig: Polarity. (Art. No. 9384-650, USA Art. No: 9384-62)

Recommended accessories

Calibration weight, 2 and 4 kg• Chest belt • Power adaptor•

NOTE! Before you start using the bike - remember to remove any transport protection and protective tape on the ﬂywheel.

Calories

There have been different theories on how to calculate this since it depends on several factors and this means that it can only be seen as an estimate.

As a standard calculation when we display calories on our calibrated bikes we use: 1 minute with 100W gives 7 kcal. It is easy to convert watts to calories if it was on the ﬂywheel, the formula is 1 W=0,2388x10

-3

kcal/s with four decimals. But when you normally show calories you want to show the total amount of calories your body has used during your training, not only the calories "burnt" on the ﬂywheel.

We have chosen the formula given above that we think complies with the results given for a standard cycle position.

Monark Exercise AB recommends that you make a mechanical calibration once a year to ensure the cycle’s accuracy.

6

10

7

5

4

3

1

2

8

9

LT2

7

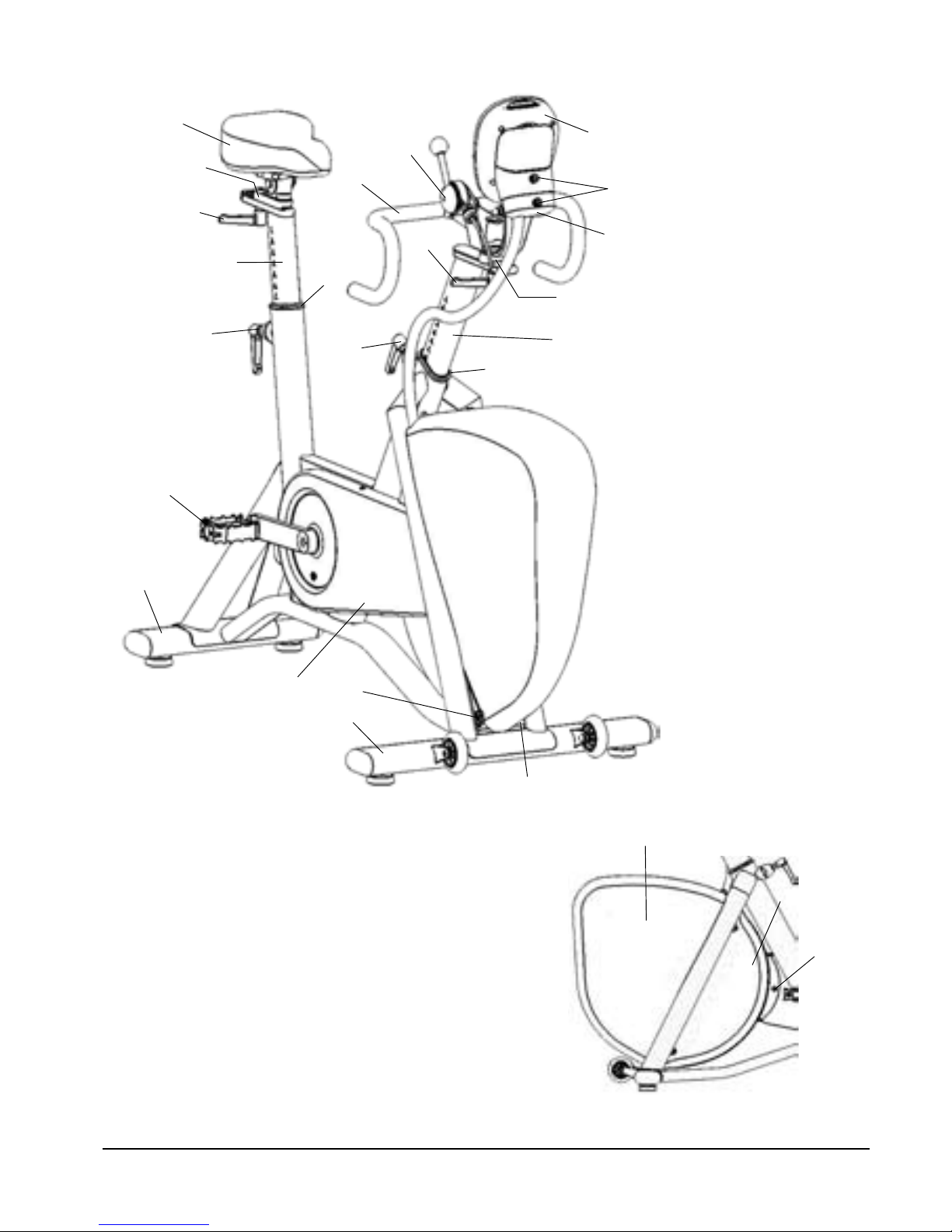

Fig: Overview

1) Knob for horizontal adjustment of saddle

2) Scale for height adjustment saddle

3) Locking handle for height adjustment saddle

4) Machine plate (serial number)

5) Power input

6) Knob for height adjustment of handlebar and display

7) Scale for height adjustment handlebar and display

8) Resistance control unit

9) Display

10) Knob for horizontal adjustment of handlebar and display

Fig: Overview

LT2

8

Cycle adjustments

Adjustments of the bike

Crank Steel, 52T, 172.5 mm standard, Q 146 mm

Pedals 9/16”, combi SPD / Clips Saddle Moody Seat post Vertically: 530-940 mm

(21"-37") Horizontally: 60 mm (2 1/3")

Handlebar Racing,

Ø31,8 mm at clamp

Handlebar stem Vertically: 500-910 mm (19.7” - 35.8”) Horizontally: 60 mm (2 1/3")

Distance saddle - handlebar 170-815 mm (6.7" - 32")

Cycle adjustments

Seat height should be adjusted to a comfortable position. The appropriate height is to have the knee slightly bent when the sole of the foot is centred over the pedal axle with the pedal in the bottom position. When adjusting the saddle height and vertical position, loosen the respectively locking handles. See Fig: Saddle adjustment.

The handlebar setting should be in a comfortable position when cycling. During longer exercise sessions it is recommended to occasionally change handlebar position. The handlebar can be adjusted both horizontally and vertically. This is done by loosening the respective locking handles. See Fig: Handlebar

adjustment.

NOTE! Be sure that the stem and seat post are inserted to at least 100 mm in the frame. This is marked with “MAX” on the stem.

Fig: Saddle adjustment

Fig: Handlebar adjustment

The following procedure ensures that the bike works for daily use.

Check the HR function if you use chest belt, see • section, on ‘Heart rate’.

Check the braking force by putting on a certain • workload and check that the load is applied.

Test pedalling and check that a reasonable rpm is • obtained - verify by a clock. Feel if the pedals move smoothly. Listen for unusual sounds. Remedy if necessary.

Adjust the handlebar and saddle and make sure • they are securely attached and that the adjustment is working properly.

Make sure the support legs are in position by • rocking the bike. Tighten if necessary.

If something unusual is found during the daily inspection that you cannot resolve, please call customer service.

Validation

”LOGO”

1

LT2

9

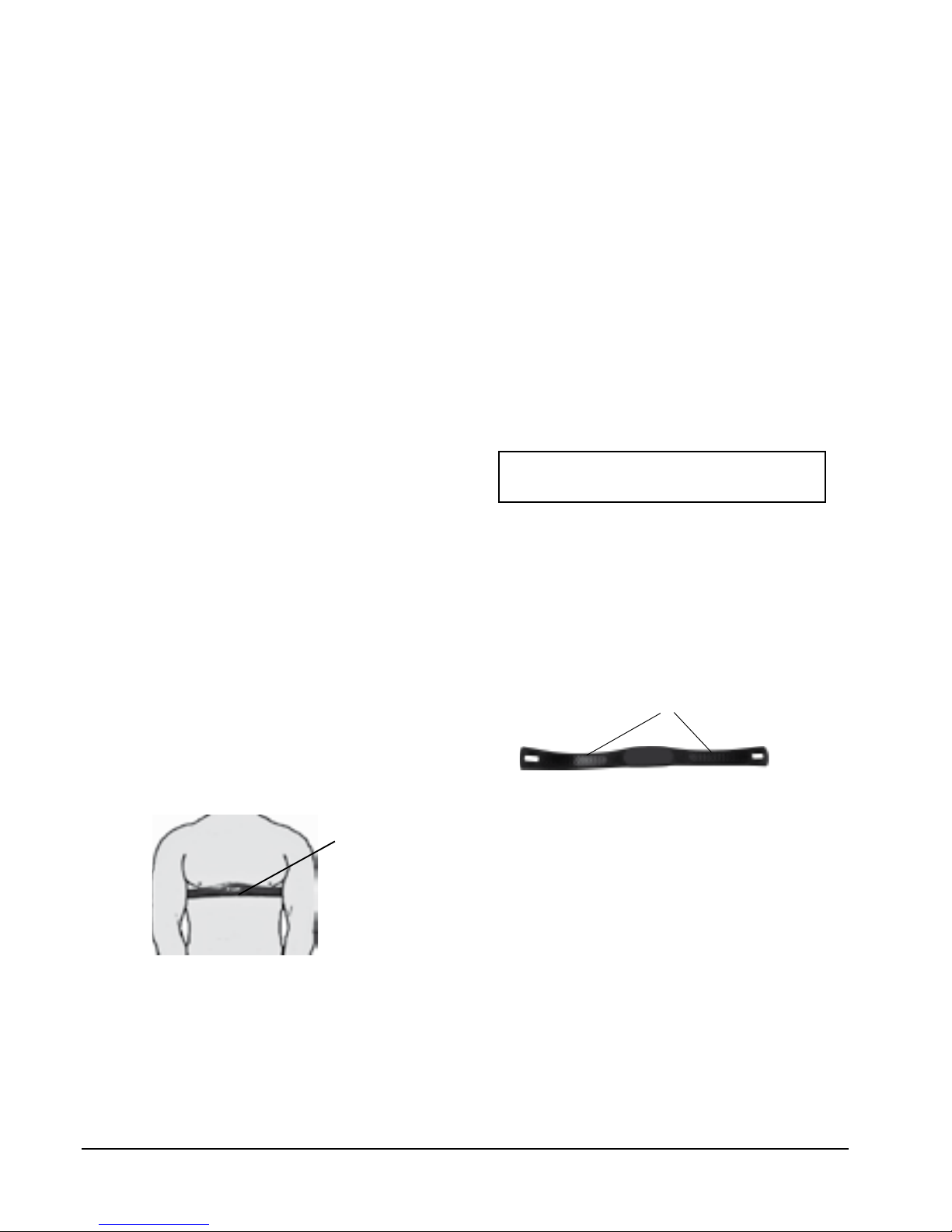

Fig: Placement of the chest belt

Fig: Electrodes on the back of the chest belt (1)

The user's heart rate can be measured with a chest belt that senses the electronic output of the heart. Chest belt ANT+ is available as an accessory.

Fuss-free HR measurement requires that the belt is correctly placed. Make sure that your skin is clean where the chest belt should be placed. When it is correctly ﬁtted the logo on the belt will be central and readable, outward and upright, by another person. The chest belt should be secured at a comfortable tension around the mid section, just below the breast muscle, see Fig: Placement of the chest belt. Moisten the electrodes before use, see Fig: Electrodes on the back of the chest belt.

NOTE! Electromagnetic waves can interfere with the telemetry system. Cellular phones are not allowed to be used near the bike during test.

Pulse standard (chest belts)

The following pulse standard / chest belts can be used:

Standard, uncoded 5K chest belts (5-5.6 kHz)• Chest belts with ANT+•

Short range ANT+: 0.6-0.8 m (24"-31 ½") Long range ANT+: 4-5 m (13-16 ft) Range 5K: 0.8 m (31 ½")

Pairing display and chest belt

Normally the display connects to the ﬁrst ANT+ chest belt in "short range" and shows the heart rate until the chest belt is outside the "long range". If there is no ANT+ chest belt but a 5K chest belt in "short range", the heart rate from the 5K chest belt is displayed until the signal is lost.

ANT+ is prioritized and the ﬁrst choice of the display. 5K is discriminated, but after 30 seconds with only 5K the display is locked to this chest belt as long as you do not lose the signal.

Pulse function

Monark Exercise AB recommend that you

use an ANT+ chest belt for best function.

1

2

3

4

5

6

7

8

9

10

11

13

14

12

1

2

LT2

10

Sleep mode

Sleep mode is activated after 10 minutes if you don't press any button or if no rpm is recorded. This is to save battery power.

All settings are saved, but the personal settings are erased (to protect your personal privacy).

The meter wakes up when you press any button or if rpm is recorded. The meter goes directly to 'Quick start' (see separate section).

Display Description

The meter has the following functions:

Settings for different units of measurement • It is possible to calibrate the meter to get the •

correct workload Personal data such as age, max pulse, weight and •

gender can be set USB port for continuous output of data to an •

external computer The meter also shows current pulse as percentage •

of max. HR The workload is rpm independent•

Display

Pedal revolution (RPM) pedal revolutions /

min

HR bpm

TIME min:sec

Workload (WATT alt. kpm/min) Watt

Speed km/h

Distance km

Calories (KCAL) kcal

% Max HR %

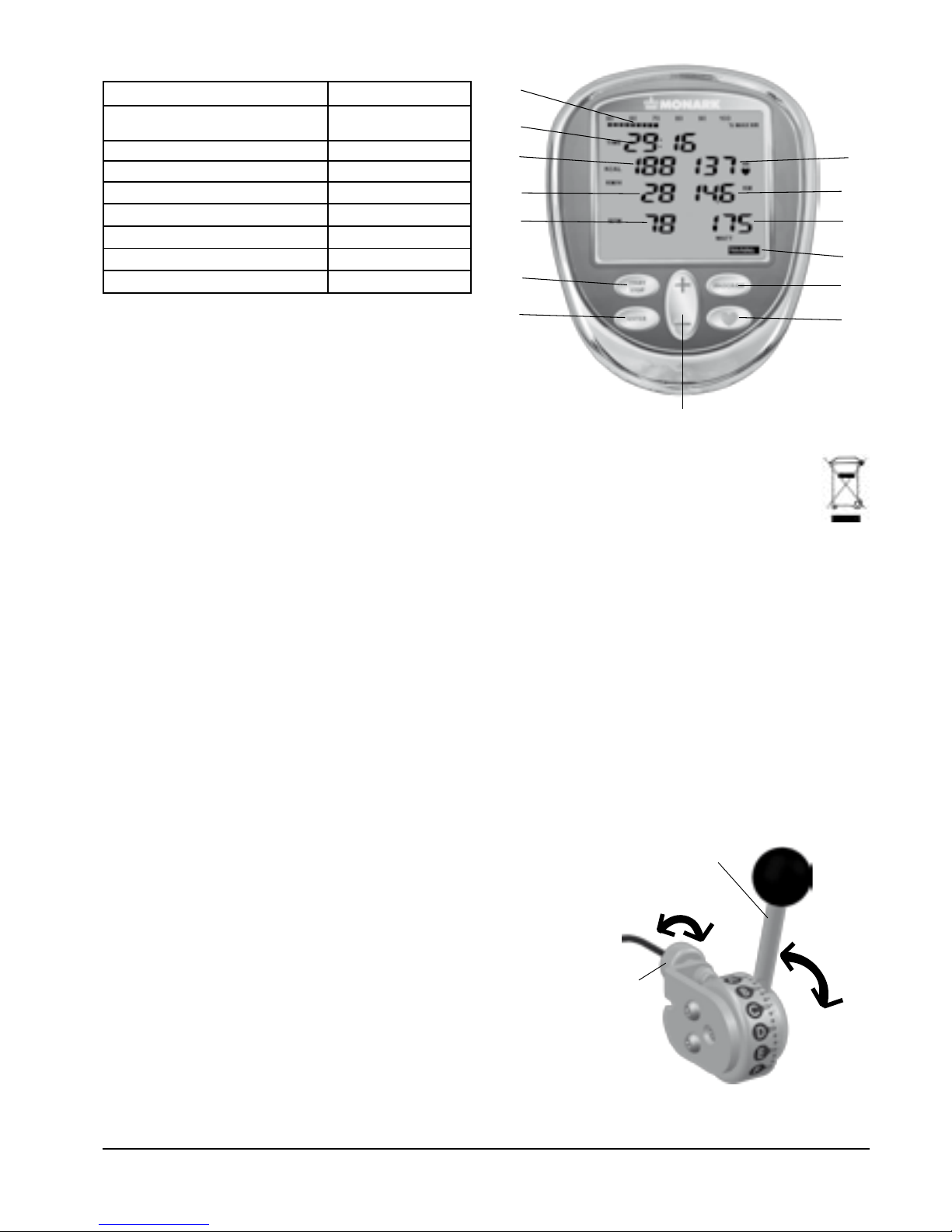

Fig: Display (Training)

1) % of max HR

2) Time

3) Kcal (estimated value)

4) Speed km/h

5) Pedal revolutions (rpm)

6) START STOP

7) ENTER

8) (+/-) button

9) Heart rate (HR)

10) Distance (km)

11) Workload (Watt)

12) Program

13) PROGRAM

14) HEART button

Batteries: 4 x 1.5 V, R14 Storing temperature: -10º C - +60º C Operating temperature: 0º C - +50º C

NOTE! Rechargeable batteries cannot be used!

Workload adjustment

The workload is adjusted by using the control lever (1) located on the handlebars. From A which is light workload to F which is heavy workload.

Fine adjustment of the workload is done by the cable adjuster (2). See Fig: Workload adjustment.

Fig: Workload adjustment

1) Control lever

2) Cable adjuster

dAtA

Weight kg 75

dAtA

Age 35

dAtA

Max HR 185

Unit

KM/H KM

ML/ MIN/ KG KG

Unit

KM/H KM

ML/ MIN/ KPM/MIN K G

Unit

KM/H KM

ML/ MIN/ KP KG

Unit

KM/H KM

ML/ MIN/ WATT KG

LT2

11

Press ENTER to enter the menu for ‘Personal settings’.

Usually you are asked to set the personal data needed when you start a program or a test. This data can also be set before, during e.g. "Warm up" in Training program with this function.

Personal settings

Set weight

Set gender

Set age

The display returns to start view.

Set max HR

The meter suggests

an estimated max HR

based on your age (220-age) Change if desired.

Woman

Man

Alternative workload / force display

The meter displays workload in watts (default). If you want to display the workload in kpm / min instead, press the HEART button for 5 seconds. Then you can switch between WATT, KPM / MIN and current kpvalue using the (+/-) button. Press ENTER or wait 10 seconds to conﬁrm and exit the setting.

NOTE! Even if you select kp as unit, it is the workload in

watts which is set in the background when you press (+/-) button.

The displayed kpm / min is a simpliﬁed calculation (1 kp = 10 N) according to Astrand's tables.

(Although the displayed kp value is correct and not rounded as above. For all calculations in the display the exact value is used, 1 kp = 9.80665 N)

The settings are saved until the meter goes into sleep mode. When the display wakes up the personal settings are changed to default values (this is to protect your personal privacy).

Set units

Default (kg, km, km/h, ml/ min/kg)

Press HEART button for 5 seconds.

The display returns to start view.

You can switch between these different workload values.

When the workload value you want appears, press

ENTER to conrm.

NOTE! When you press the HEART button the

meter starts searching for a HR signal.

Unit

KM/H KM

ML/ MIN/ KG KG

ConStAnt

1.00

CAdEnCE

60

Id00

+2 +4 +6 +10-2-4-6-10 RF

(rpm)

+

LT2

12

User settings

BikeID

This ID is a parameter that the PC software can ask for. It is used to identify or number bikes when multiple bikes are controlled by same PC or similar.

Set units

Set cycle constant

Set metronome cadence

Set cycle-ID

green

(reference)

orange

red

yellow

orange

red

yellow

orange

Fig: Metronome

Here you can make individual adjustments to optimize the bike for your needs on ﬁrst use and when needed.

Cycle constant

The cycle constant is as default set to 1.00. Change using the (+/-) button.

When the cycle constant is set to 1.00 the power is measured at the ﬂywheel. This is used in Astrand test, YMCA etc.

When the cycle constant is set to 1.05 the power is measured at the crank. This is often used on electronically-braked bikes.

Metronome cadence

Metronome diodes show pedalling revolutions (rpm) relative to the set reference value. The metronome is located at the back of the meter. The default value is 60 and can be adjusted with (+/-) button. The green LED in the middle ﬂashes twice for each pedal revolution which helps to keep the right pedal cadence, see Fig: Display and Fig: Metronome.

The meter can be rotated so that the rider does not see the values in the display, but only sees the ﬂashing diodes (in order to keep the right pedal cadence).

If START STOP is pressed, or if no button is pressed for 20 seconds (in all steps) the changes are saved and the display returns to normal with the new settings active.

The display returns to start view.

Press PLUS and PROGRAM for 5 seconds to set ‘User settings’.

Units

Kg, km, km / h, ml / min / kg are default. You can switch between the different unit combinations with (+/-) button.

Kg, km, km / h, ml / min / kg (default)• Kg, km, km / h, METS• Lbs, miles, miles / h, ml / min / kg• Lbs, miles, miles / h, METS•

1

2

3

4

6

5

Lt2 03 10 0 C 100

52 0.0

KP

Lt2 03 10 0 C 100

93 2.0

KP

Lt2 03 10 0 C 100

135 4.0

KP

Lt2 03 10 0 C 100

174 6.0

KP

Lt2 03 10 0 C 100

52 0.0

KP

1

2

3

4

5

8

9

6

7

+

LT2

13

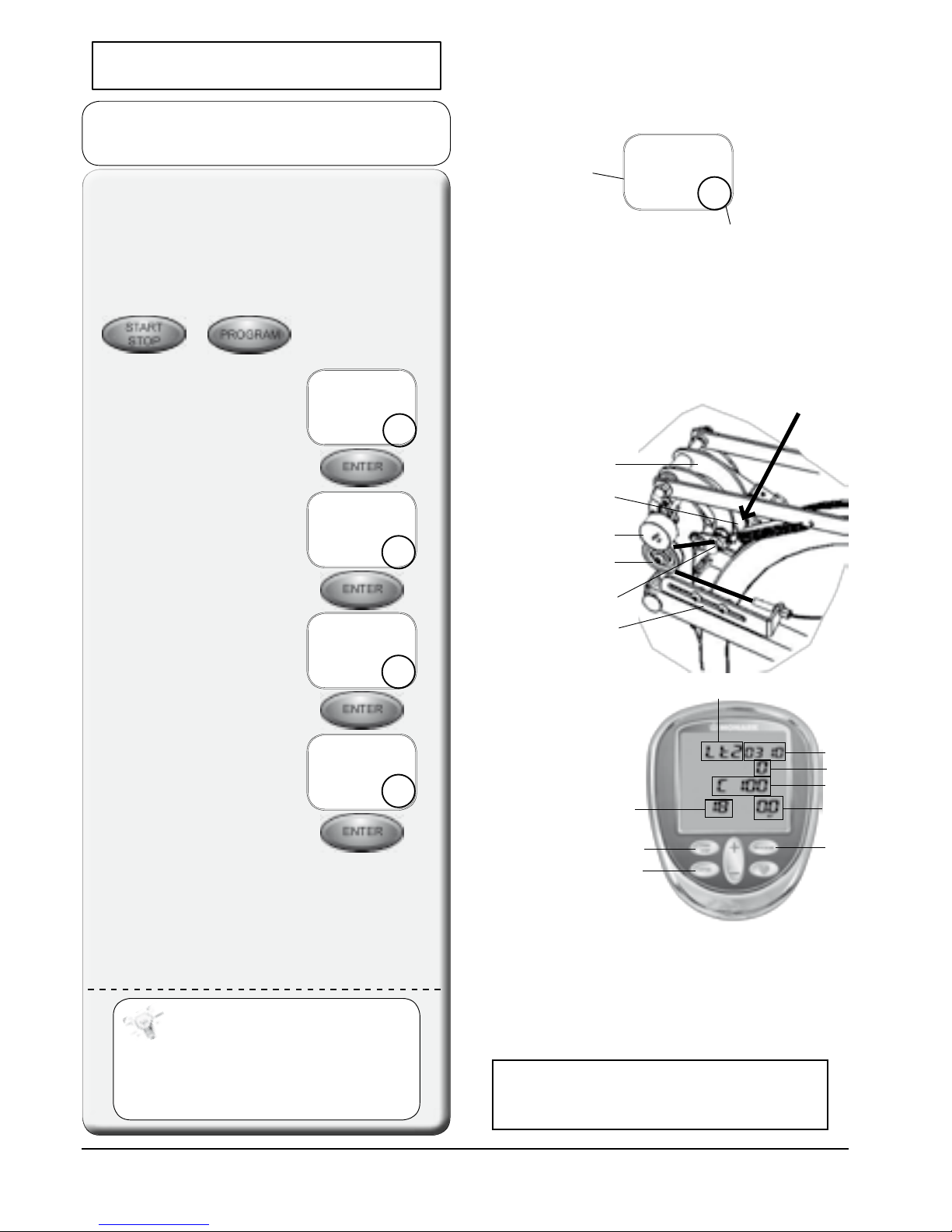

Calibration

Set the workload lever to minimum load• Remove the cover over the ywheel • Press the pressure roller and remove the wire •

from the black pulley (below the potentiometer) so that the pressure arm goes up completely and loosen the brake belt, see Fig: Workload

unit

Press START STOP and PROGRAM for 2 seconds to enter calibration mode.

Two short beeps are heard and the calibration is nished.

Lift off the weights, reassemble the wire and put on the cover.

The bike is ready to use.

Hang a 2 kg calibration

weight in the spring hook.

Fig: Workload unit

1) Pressure arm

2) Pressure roller

3) Potentiometer

4) Pulley

5) Wire lock

6) Wire adjuster

Hang a 4 kg calibration weight in the spring hook.

Hang a 6 kg (or 2 + 4 kg) calibration weight in the spring hook.

Current potentiometer value

Next calibration point

For best ﬂexibility we recommend a potentiometer value between 40 and 60 at 0 kp.

Error message: CalErr - if the value is outside the window.

Check the potentiometer value at 0 kp.

Press

Fig: Display ’Calibration mode’

1) Bike model

2) Current potentiometer value

3) START STOP button

4) ENTER button

5) Software version

6) Hours of use

7) Cycle constant

8) Calibration point

9) PROGRAM button

Current potentiometer value

To calibrate the bike, you must have a 2 kg and a 4 kg calibration weight. These are available as accessories.

Monark Exercise AB recommends that you make a mechanical calibration once a year to ensure the cycle’s accuracy.

If you have started the calibration mode

but change your mind, you can press the

START STOP button to exit without saving.

(However, if you press ENTER the calibration process has begun and must also be completed.)

NOTE!

Calibration can only be done from the display!

TIME

KCAL HR

KM/H KM

RPM WATT

TIME tot KCAL HR KM/H KM RPM WATT

TIME HI KCAL HR KM/H KM RPM WATT

TIME Lo KCAL HR KM/H KM RPM WATT

To end the Training program, press START STOP and the results are displayed on three pages.

LT2

14

Personal data can be set for estimated HR (default

HR is 185). See ‘Personal settings’.

Average

value

Max valueMin value

Press ENTER (for 5 seconds during the test) and a new test is started with the same settings.

Press START STOP (for 5 seconds during the test) and the test is reset.

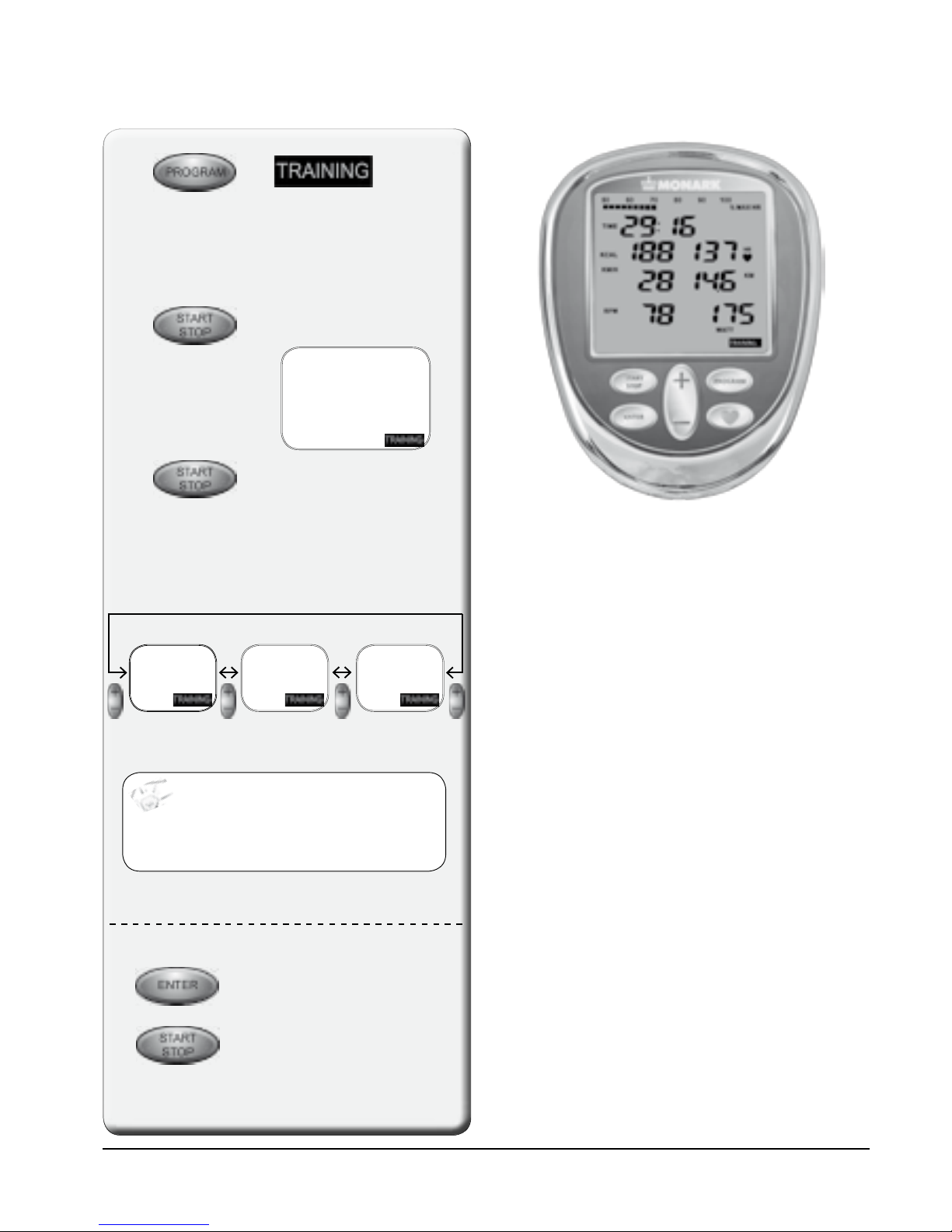

TRAINING

Press START STOP in 'Quick Start' and the display begins to show, count and log values. Press START STOP again and the test is completed and the results are displayed on three pages in the display and you can switch between the pages by pressing (+/-) button.

QUICK START

’Quick start’ can be used as a separate program. (If START STOP is pressed, the TRAINING program is activated.)

The program is active and starts with base workload, adjust with (+/-) button. No time is counted so the test person can warm up, use it as a 'quick start' or train without logging any values.

Start Training program

Stop Training program

Training

Interval training

You can do interval training by moving the workload control between two different modes, e.g. B and E.

Workload adjustment

The workload is adjusted by using the lever located on the handlebars. From A which is a light load, to F which is a heavy load..

dAtA

Weight kg 75

dAtA

Age 35

dAtA

Max HR 185

TIME

HR

METS L/MIN

RPM WATT

TIME tot METS HR L/MIN RPM WATT

TIME HI METS HR L/MIN RPM WATT

TIME Lo METS HR L/MIN RPM WATT

LT2

15

METS

During the test METS and l/min are continuously counted and displayed.

Calculation

METS values are displayed and calculated from the current workload. The t wo VO

2

values displayed during the test continuously calculate the average value for 5 seconds.

The formula used (values from ASTRAND original table) to calculate VO

2

at different workloads is:

0.2333 ... l / kpm = 0.01428 L / W (2.8 l / min at 1200 kpm)

This is according to Astrand's table between 150 W and 300 W, and a good approximation for 15-700 W and a cadence of about 50-65 rpm.

Stop METS program

To end the test, press START STOP and the results are displayed on three pages.

Set weight

Set age

Set max HR

Start METS program

Max valueMin value

References / Literature:

Astrand P-O, ”Ergometri - konditionsprov”, Monark, Sverige• Åstrand I, ”Aerobic work capacity in men and women with special •

reference to age”, Acta Physiol Scand. 49 (suppl. 169), 1960 Astrand P-O, ”Experimental studies of physical working capacity in •

relation to sex and age”, Munksgaard, Köpenhamn, 1952. Astrand P-O, Rodahl K, ”Textbook of Work Physiology”, McGraw-•

Hill, New York, 1970.

The meter suggests an

estimated max HR based

on your age (220-age) Change if desired.

Press ENTER (for 5 seconds during the test) and a new test is started with the same settings.

Press START STOP (for 5 seconds during the test) and the test is reset.

Average

value

LT2

16

Troubleshooting guide

Symptoms Probable Cause / Corrective Action

Display does not light up No batteries in the meter•

No current in the outlet (if power adaptor is used). Check the fuses. • Check cables and connections. • If you use power adaptor: Is it the correct power adaptor? Check that the •

transformer information (voltage, current, polarity, AC / DC) in section ‘Facts’ complies with the transformer which is used.

No workload Check calibration.•

Check that brake belt is hooked in the spring.•

No heart rate Check that the battery is alright in the chest belt, moisten your thumbs and •

click on the electrodes, a low clicking sound will be heard at the battery cover, alternatively that the heart rate is displayed in the computer software. Make sure the belt ﬁts correctly on the test person, see • Fig: Placement of chest belt in section ‘Heart Rate’, and that the strap is sufﬁciently tightened. Moisten the electrodes, in severe cases it may be necessary to use gel alternative, one drop of dish washing liquid mixed in water. Pulse signal strength varies from person to person. Try the belt with a person known to have a good pulse wearing a chest belt. Make sure there are no loose cables. Use another HR receiver (HR watch or • test bike monitor) to check the chest belt.

Uneven heart rate Use an external unit, for example a HR watch, to check if it also indicates •

an irregular pulse. If this is the case, there is probably disturbance in the room. The disturbance may be electronic ﬁelds from power cables, elevators, lamps etc. or other electronic devices which are too close (e.g. cell phones). Move the bike to a different location in the room or change rooms. If an irregular HR remains it should be checked manually If the HR remains

irregular at work the person's health should be examined. No rpm reading Check cable.• Unable to calibrate force The potentiometer shaft is not attached to the pendulum shaft, tighten the •

screw.

The potentiometer is misadjusted.• There’s a click noise when pedalling

(increases with the weight)

The pedals are not tight. Tighten them or change pedals. •

The crank is loose. Check, tighten. •

The base bearing is loose. Contact your dealer for service. • Scratching sound is heard when

pedalling

Check that the carriage block is taken off and that nothing is against the •

crank, chain, or wheel except the brake belt. There’s a click noise and a squeak

noise when pedalling

Loosen the chain. •

Warranty

EU countries - Private use

If you are a consumer living in the EU you will have a minimum level of protection against defects in accordance with EC Directive 1999/44/EC. In short, the directive states that your Monark dealer will be liable for any defects, which existed at the time of delivery. In case of defects, you will be entitled to have the defect remedied within a reasonable time, free of charge, by repair or replacement.

EU countries - Professional use

Monark Exercise products and parts are guaranteed against defects in materials and workmanship for a period of one year from the initial date of purchase of the unit. In the event of a defect in material or workmanship during that period, Monark Exercise will repair or replace the product. Monark Exercise will not, however, refund costs for labour or shipping.

Other countries

Monark Exercise products and parts are guaranteed against defects in materials and workmanship for a period of one year from the initial date of purchase of the unit. In the event of a defect in material or workmanship during that period above, Monark Exercise will repair or replace (at its option) the product. Monark Exercise will not, however, refund costs for labour or shipping.

Service check and Maintenance

It is important to carry out a regular service on your ergometer, to ensure it is kept in good condition.

Always keep the bike clean and well lubricated.

Service action:

We recommend isopropyl alcohol to disinfect the • surface of the bike. Use a damp but not wet cloth to clean the surface you wish to disinfect.

Surface treatment with a rust inhibitor, especially • when the bike is clean and the surfaces are dry This is done to protect the chrome and zinc parts as well as the painted parts (4 times per year).

Check now and then that both pedals are ﬁrmly • tightened. If not the threading in the pedal arms will be damaged. When the Ergometer is new it is important to tighten the pedals after 5 hours of pedalling (4 times per year).

Check that the pedal crank is secure to the crank • axle (4 times per year).

Be sure that the pedals are moving smoothly, and • that the pedal axle is clear of dirt and ﬁbres (4 times per year).

When cleaning and lubricating be sure to check that • all screws and nuts are properly tightened (twice a year).

Check that the chain is snug and there is no play in • the pedal crank (twice a year).

Check that pedals, chain and freewheel sprocket are • lubricated (twice a year).

Be sure that the brake belt does not show signiﬁcant • signs of wear (twice a year).

Check that the handlebars and seat adjustment • screws are lubricated (2 times per year).

Be sure that all moving parts, crank and ﬂywheel • are working normally and that no abnormal play or sound exists. Play in bearings causes fast wearing and with that follows a highly reduced lifetime.

Check that the ﬂywheel is placed in the center and • with plane rotation.

Grind the brake belt contact surface, see section • ‘Brake belt contact surface’ (once a year).

Service

Warning

Make sure the voltage indicated on the appliance corresponds to the local mains voltage before making connections.

Note that the text about service and maintenance is universal and that all parts may not be relevant to your bike.

LT2

17

If the meter is battery-operated, the batteries are in a separate package at delivery. If the storing time has been long the battery power can be too low to make the computer act correctly. Batteries must then be changed.

Flywheel bearing

The ﬂywheel bearing is long term greased and requires no supplementary lubrication. If a problem arises, please contact your Monark dealer.

Crank bearing

The crank bearing is greased and normally requires no supplementary lubrication. If a problem arises, please contact your Monark dealer.

Transportation

During transport the brake belt / cord should be tightened to prevent it from falling off the ﬂywheel.

Replacement of brake belt

To replace the brake belt remove covers if necessary. Make sure that the belt is loose.

Pendulum bike with engine:

To loosen the brake belt on pendulum bikes with engine, connect power to the unit and raise the pendulum to 4 kp. Hold it there until brake belt is loose. Please note how the belt is assembled. Remove it from the bike. Attach the new brake belt and assemble the bike in reverse order.

Weight basket bike: To loosen the brake cord on cycles with a weight

basket set the basket to its upper position. Loosen the lock washer that is holding the cord and remove it from the tension center. Loosen or cut off the knot on the other end of the cord and then remove the whole cord from the bike. When assembling a new brake cord, ﬁrst enter one end into the hole in the tension center, and tie a knot and let the knot fall into the bigger part of the hole. Lock the end of the cord with the lock washer.

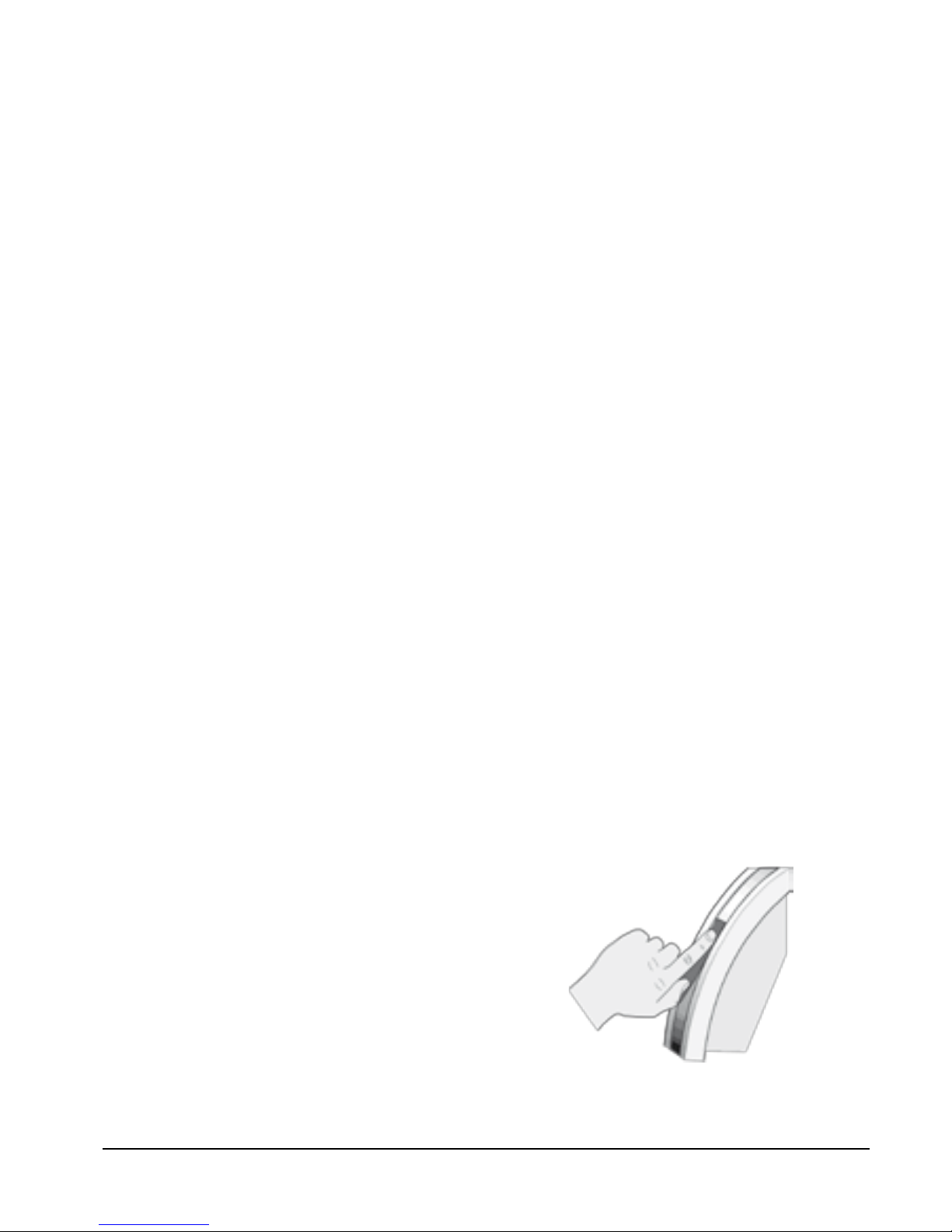

Brake belt contact surface

Deposits of dirt on the brake belt and on the contact surface may cause the unit to operate unevenly and will also wear down the brake belt. The contact surface of the ﬂywheel should be smoothed with ﬁne sandpaper and any dust removed with a clean dry cloth.

Remove any potential covers and all workload on the brake belt and then remove it. Grind with a ﬁne sand paper. Grinding is easier to perform if a second individual cautiously and carefully pedals the cycle.

Irregularities on the brake belt contact surface are removed by means of a ﬁne sand paper or an abrasive cloth. Otherwise unnecessary wear on the brake belt may occur and the unit can become noisy.

Always keep the brake belt contact surface clean and dry. No lubricant should be used. We recommend replacing the brake belt when cleaning the contact surface. In regard to assembly and adjustment of the brake belt, see ‘Replacement of brake belt’.

Manual pendulum bike / exercise bike:

To loosen the brake belt on the bike remove all tension. Please note how the belt is assembled. Remove it from the bike. Attach the new brake belt and assemble the bike in reverse order.

NOTE! When replacing the brake belt it is recommended to clean the brake surface. See ‘Brake belt contact surface’.

Batteries

LT2

18

Fig: Brake belt contact surface

Chain 1/2“ x 1/8“

Check the lubrication and tension of the chain at regular intervals. In the middle of its free length the chain should have a minimum play (3) of 10 mm (1/4 inch). See Fig: Chain adjustments. When the play in the chain is about 20 mm (3/4 inch) the chain must be tightened. Otherwise it will cause abnormal wear of the chain and sprockets. Therefore it is always recommended to keep the chain play as small as possible. Loosen the axle nut (2) on both sides and tense the chain with the chain adjuster (1) when needed.

When the chain has become so long that it can no longer be tightened with the chain adjusters it is worn out and should be replaced with a new one.

To adjust or replace the chain, remove covers if required.

To adjust the chain the axle nuts (2) should be loosened. Loosening or tightening the nuts on the chain adjusters (1) will then move the hub and axle forward or backward. Then tighten the nuts on the hub axle again. See Fig: Chain adjustments.

To replace the chain, loosen the chain adjusters as much as possible. Dismantle the chain lock (6) and remove the chain. Use pliers to both release the lock washer and mount it again (4). Put on a new chain and assemble the chain lock. The spring of the chain lock should be assembled with the closed end in the movement direction (5) of the chain. See Fig: Chain replacement.

NOTE! At assembly the ﬂywheel has to be parallell with the centerline of the frame. Otherwise the chain and sprockets make a lot of noise and wear out rapidly.

Then assemble the removed parts as above but in reverse order.

4

6

5

3

2

1

LT2

19

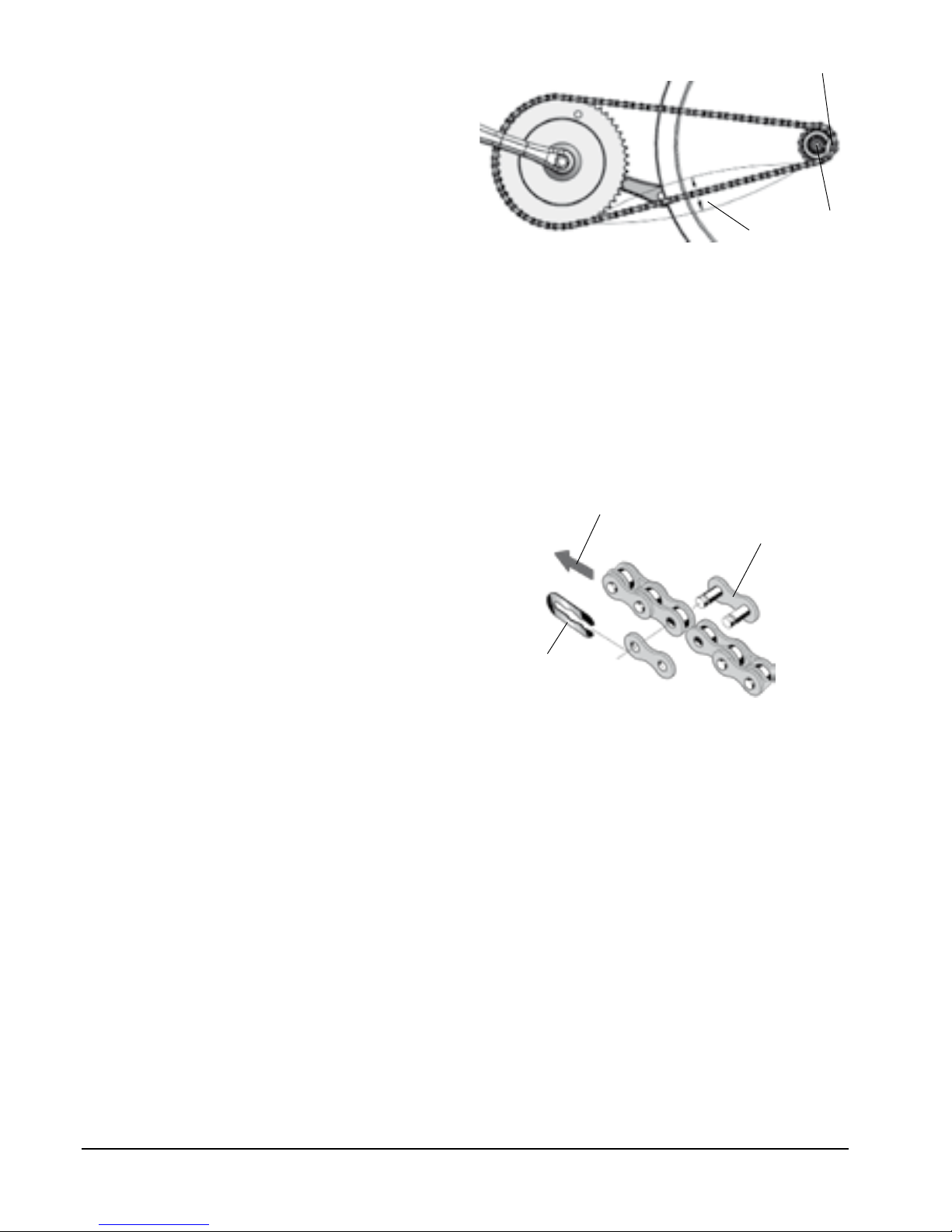

Fig: Chain replacement

4) Lock spring

5) Movement direction

6) Chain lock

Fig: Chain adjustments

1) Chain adjuster

2) Axle nut

3) Chain play

Freewheel sprocket

When replacing the freewheel sprocket remove frame covers if necessary. Remove the chain according to section ‘Chain 1/2” x 1/8”’.

Loosen the axle nuts and lift off the ﬂywheel. Remove the axle nut, washer, chain adjuster and spacer on the freewheel side. Replace sprocket-adaptor and assemble the new parts in reverse order according to the above.

NOTE! Do not tighten the axle nut completely. It must be possible to loosen the sprocket-adaptor half a turn.

The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle to make it easier for the oil to reach the bearing. See Fig: Lubrication.

LT2

20

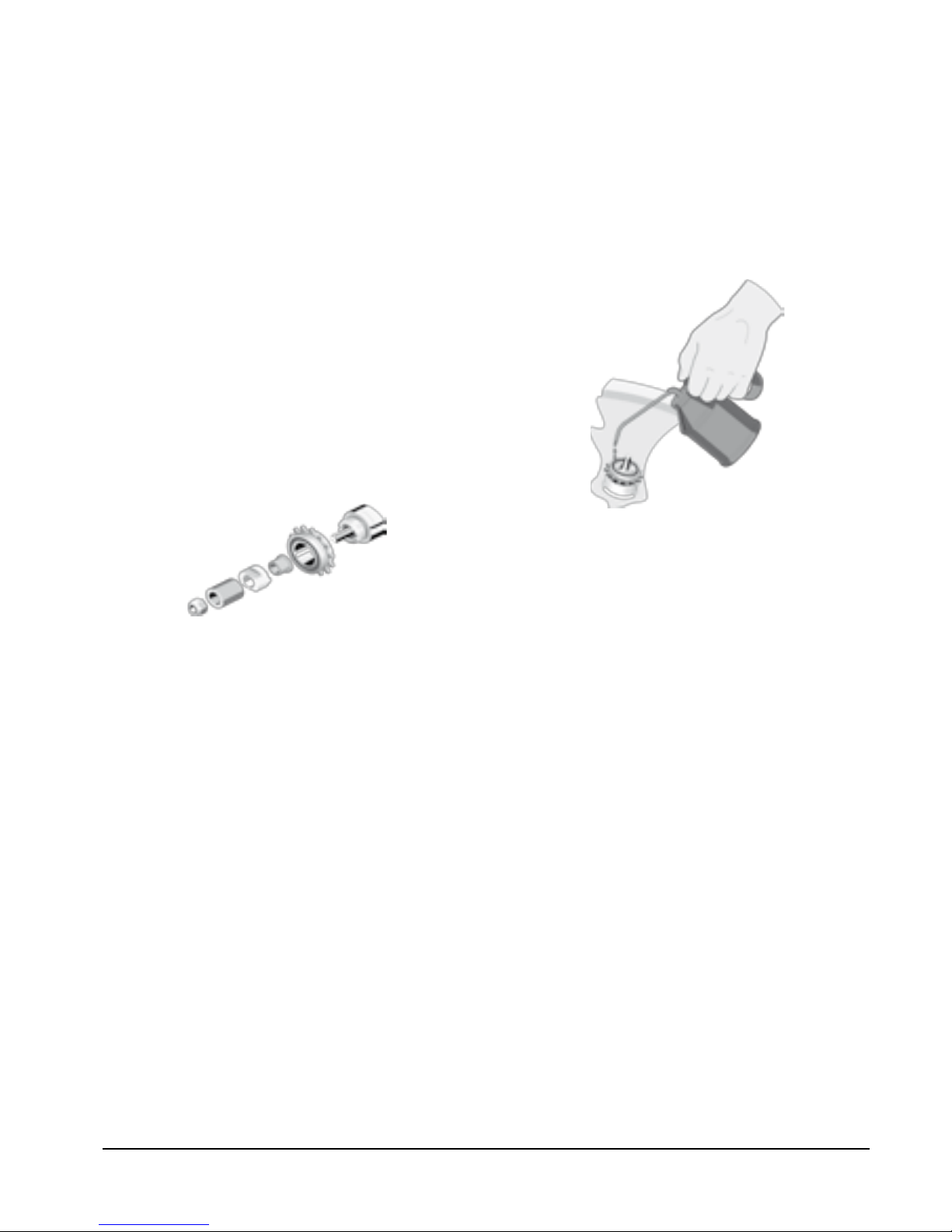

Fig: Lubrication

Fig: Hub assembly

4

3

2

1

8

7

5

9

6

12

15

13

14

10

11

LT2

21

Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description

1 2 9125-86 Spring 9 1 9384-27 Pulley

2 1 9311-73 Brake belt LT, complete 10 1 9326-164 Magnet

3 1 9300-3 Flywheel complete 11 1 9300-475

Crank set, 52T, 172.5 mm, Q 146 mm

4 1 9300-24 -Wheel suspension complete set 12 1 9300-480

Cartridge bottom bracket 68/110 mm

5 1 9100-20 Spring for press arm 13 1 9310-90 Inner chain guard

6 1 9311-59 Press arm 14 1 9311-161 Sensor with cable

7 1 9328-43 Tension lever 15 1 9310-118 Chain 9300, 120 L, with chain lock

8 1 9311-67 Potentiometer

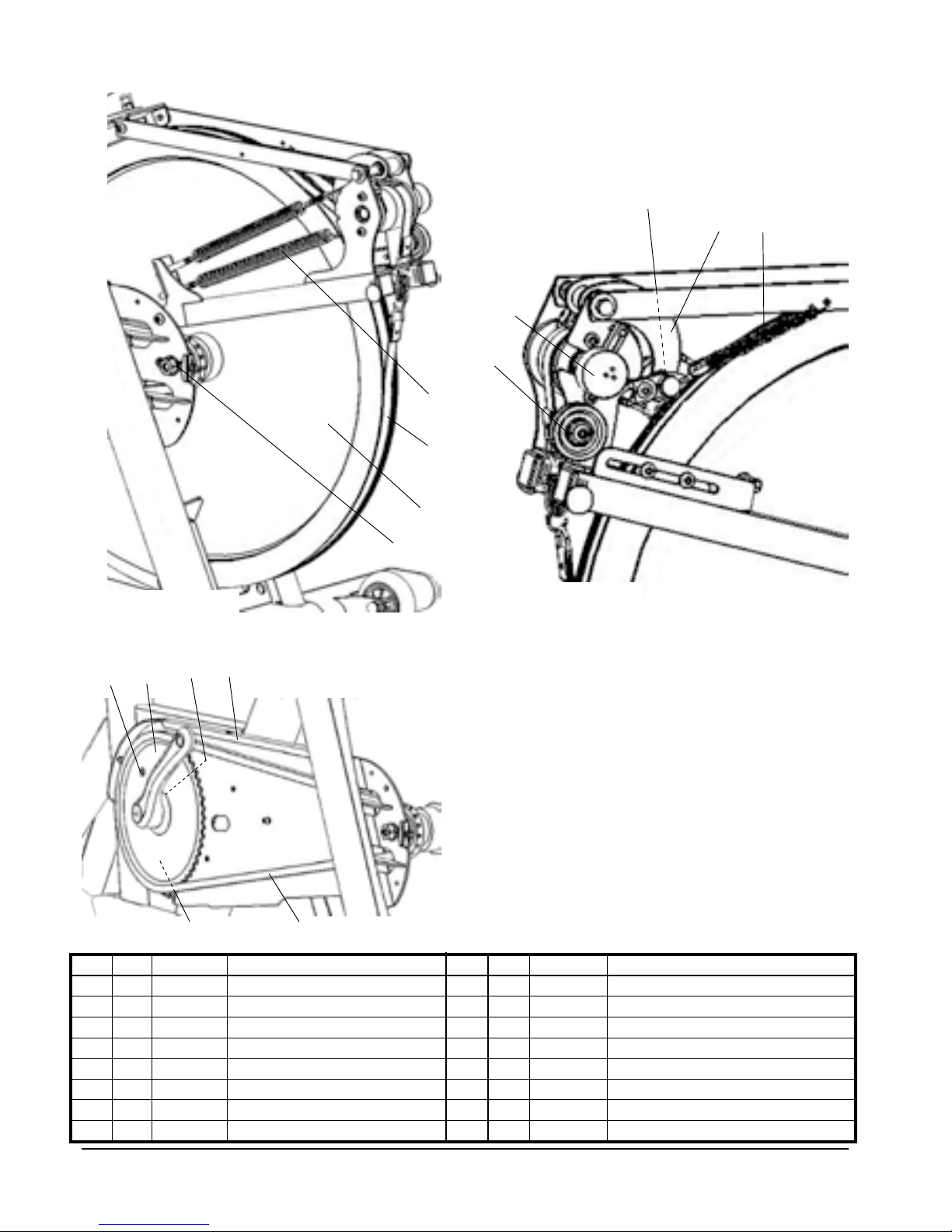

Spare parts list

Workload device left side

Workload device right side

1

7

15

11

12

18

10

17

14

13

8

9

10

6

16

5

4

3

2

11

19

9

22

21

20

LT2

22

LT2

23

Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description

1 1 9334-110 Saddle 1 9311-3

Handlebar with stem and clamp, compl.

1 9336-2 Saddle adaptor 22 mm 12 1 9311-33 -Handlebar stem

2 1 9311-23 Sled, complete 13 1 9311-31 -Handlebar clamp

3 1 9311-24 -Locking handle M10x32, black 14 1 9311-24 -Locking handle M10x32, black

4 1 9311-21 Saddle post 15 1 C2305771-42 -Reparto corse handlebar

5 2 8321-75 Pedals SPD with clips and strap 1 C2600079 -Handlebar tape EVO black

6 1 9301-3 Support tube rear, complete 16 1 9311-4

Resistance control unit, complete

2 9328-51 -Plastic cap 1 9311-44 -Wire adjustment

2 9328-26 -Rubber foot with screw M8 1 9311-45 -Rubber ball 32/M8 black

7 1 9301-4 Support tube front, complete 17 1 9311-164 Display LT2

2 9328-51 -Plastic cap 18 2 9000-104 Pole screw M5x12, black

2 9328-26 -Rubber foot with screw M8 19 1 9326-801 End cap with hole, black

2 9328-37 -Transport wheel, complete 20 1 9311-610 Cover

8 1 9310-595 Side cover rear, left 21 1 9310-605 Side cover rear, left

9 2 9000-103 Pole screw M5x12, white 22 1 9000-103 -Pole screw M5x12, white

10 2 9310-27 Piston locking, complete 1 9384-650 Power adaptor SE

(accessory)

2 9100-289 -Locking handle blue, M10x50 1 9384-62 Power adaptor other countries

(accessory)

11 2 9328-315 Bushing with hole 1 9311-75 Chest belt (accessory)

1 9000-211 Calibration weight 4 kg (accessory)

1 9000-212 Calibration weight 2 kg (accessory)

Fig: Power adaptor SE (accessory)

Fig: Chest belt (accessory)

KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81

Version 1402

Art. No: 7950-378
