Monark 928 G2, 928 G3r User Manual

EN

Manual for

928 G3

928 G3r

Monark Exercise AB �� 4 Product Information �� 5

Facts �� 5 Serial number �� 5 PC software ��5

Operating Instruction �� 6

Workload adjustment �� 6 Power measurement �� 6 Power Connection �� 6 Connection to an external unit �� 6 Cycle adjustments �� 6 Calories �� 6

Pulse function �� 7

Pulse standard (chest belts) �� 7 Pairing display and chest belt �� 7

Display Description �� 8

Sleep mode �� 8 Personal settings ��9 Alternative power / force display �� 9

User settings �� 10

Units �� 10 Cycle constant ��10 Metronome cadence �� 10 BikeID ��10 Base Power �� 11 Steady State HR �� 11

Calibration �� 12

Manual motor control �� 12 Current potentiometer value �� 12 Scale - zero adjustment �� 13 Mechanical calibration ��13

Training �� 14 METS �� 15 Astrand �� 16 YMCA �� 18 Increment �� 20 PWC �� 22 Troubleshooting guide �� 24 More information �� 25

References / Literature: ��25

Service �� 26

Warranty ��26

Spare parts list �� 30

2014 MONARK EXERCISE AB, Vansbro, Sweden

Contents

Important

Read the manual carefully before using the cycle and save it for future use.

4

Monark 928 G3 / 928 G3r

Monark Exercise AB

Monark has 100 years’ experience of bicycle production. The Monark tradition has yielded know-how, experience, and a real feel for the product and quality. Since the early 1900s, Monark’s cycles have been living proof of precision, reliability, strength and service. Those are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles.

We manufacture, develop and market ergometers and exercise bikes, transport bikes and specialized bicycles. Our largest customer groups are within health care, sports medicine, public authorities, industry and postal services.

For more information: http://www.monarkexercise.se

1

Monark 928 G3 / 928 G3r

5

Product Information

Thank you for choosing a test cycle from Monark!

The Monark 928 E G3 / 928 G3r is designed to, in a simple way, be used for submaximal exercise test and make calculations of the maximum oxygen uptake. The bike can also be used for normal exercise.

Ergometer 928 G3 is equipped with a meter that is available in two versions - 928 G3 and 928 G3r 928 G3 has 6 different programs and 928 G3r has two programs. The cycle can also be connected to a computer with software for testing (software is available for free download from our website: www. monarkexercise.se).

The G3 models also have a new and more powerful engine for faster power control.

For more detailed description of the meter's functions, see the section "Display Description".

All 928 G3 and 928 G3r are calibrated at the factory. This means that you can begin to use the ergometer directly after assembly. However, if the user wishes to verify the scale calibration please read the instruction for ” Calibration” in this manual.

Facts

Large, well-balanced ﬂywheel 20 kg (44 lbs)• Can be calibrated.• Adjustable saddle with quick release lever• Adjustable handlebar• Stable frame, solid steel tube• Powder painted• Wheels for easy transport• Electronic display with multiple functions•

Width

500 mm (20 1/3”) at handlebar 640 mm (25”) at support tubes

Length

1240 mm (49 4/5")

Height

1260 mm (49 2/3”) at handlebar 780-1170 mm (31"-46”) at seat

Weight

58 kg (128 lbs) Max user weight 250 kg (551 lbs)

Included

Chest belt Calibration weight 4 kg Power adaptor

Technical data power adaptor

Input voltage: 100-240 V AC, 47-63 Hz Output voltage: 12 V DC Current: 2.5 A Polarity: n/a (Art. No: adaptor 9328-183, plug (EUR) 9328-192)

Serial number

The serial number is placed according to Fig: Serial number.

Fig: Serial number (1)

NOTE! Use of the product may involve considerable physical stress. It is therefore recommended that people who are not accustomed to cardiovascular exercise or who do not feel completely healthy, should consult a physician for advice.

PC software

If you need a software (for PC) to do exercise tests on the bike, our software is available for free download from our website: www.monarkexercise.se.

1

3

2

1

2

6

Monark 928 G3 / 928 G3r

Operating Instruction

Workload adjustment

A change of the workload is done either by changing the pedal speed or by pressing (+/-) button on the meter to increase or decrease the brake belt tension on the ﬂywheel. See Fig: Workload adjustment and

connections.

Power measurement

The cycle is designed to measure the power on the ﬂywheel, because tests/protocols are made for it (for example Åstand’s and YMCA).

Power Connection

The bike is designed to be used with the AC adaptor which is included with the bike. Connects (3) to the bike as shown in Fig: Adjustments.

Fig: Adjustments

1) Locking knob, saddle

2) Locking handle, handlebar

3) Connection unit

Fig: Workload adjustment and connections

1) USB

2) Workload (+/-)

Connection to an external unit

When the USB connector is inserted or when the meter detects a connected computer, you will hear a quick double beep. An icon for the USB lights in the display. Otherwise, the meter will turn off except rpm and HR. When the meter is connected to a computer, it turns to passive mode. No buttons are active except HEART button (to pairing the display and chest belt).

The socket for the USB connector (1) is shown in Fig: Workload adjustment and connections.

Calories

There have been different theories on how to calculate this, since it depends on several factors and this means that it can only be seen as an estimate.

As a standard calculation when we display calories on our calibrated bikes we use: 1 minute with 100W gives 7 kcal. It is easy to convert watts to calories if it was on the ﬂywheel (the formula is 1W=0,2388x10

-3

kcal/s with four decimals), but when you normally show calories you want to show the total amount of calories your body has used during your training, not only the calories "burnt" on the ﬂywheel.

We have chosen the formula given above that we think complies with the results given for a standard cycle position.

Cycle adjustments

When adjusting the seat height:

Turn the knob (1) on the seat post and pull it out. Adjust the height and lock the knob again.

Handlebar settings

To adjust the handlebar angle loosen the quick release lever (2). See Fig: Adjustments.

1

Monark 928 G3 / 928 G3r

7

The user's heart rate can be measured with a chest belt that senses the electronic output of the heart. Chest belt ANT+ is supplied as standard.

Fuss-free HR measurement requires that the belt is correctly placed. Make sure that your skin is clean where the chest belt should be placed. When it is correctly ﬁtted the logo on the belt will be central and readable, outward and upright, by another person. The chest belt should be secured at a comfortable tension around the mid section, just below the breast muscle, see Fig: Placement of the chest belt. Moisten the electrodes before use, see Fig: Moistening the electrodes.

NOTE! Electromagnetic waves can interfere with the telemetry system. Cellular phones are not allowed to be used near the bike during test.

Pulse standard (chest belts)

The following pulse standard / chest belts can be used:

Standard, uncoded 5K chest belts (5-5.6 kHz)• Chest belts with ANT+•

Short range ANT+: 0.6-0.8 m (24"-31 ½") Long range ANT+: 4-5 m (13-16 ft) Range 5K: 0.8 m (31 ½")

Pairing display and chest belt

Normally the display connects to the ﬁrst ANT+ chest belt in "short range" and shows the heart rate until the chest belt is outside the "long range". If there is no ANT+ chest belt but a 5K chest belt in "short range", the heart rate from the 5K chest belt is displayed until the signal is lost.

ANT+ is prioritized and the ﬁrst choice of the display. 5K is discriminated, but after 30 seconds with only 5K the display is locked to this chest belt as long as you do not lose the signal.

Pulse function

Monark Exercise AB recommend that you

use an ANT+ chest belt for best function.

Fig: Placement of the chest belt

Fig: Moistening the electrodes (1)

The images above are used with permission of Polar Sweden.

1

2

3

4

5

6

7

8

9

10

11

13

14

12

8

Monark 928 G3 / 928 G3r

Sleep mode

Sleep mode is activated after 10 minutes if you do not press any button or if no rpm is recorded.

All settings are saved, but the personal settings are erased (to protect your personal privacy).

The meter wakes up when you press any button or if rpm is recorded. The meter goes directly to 'Quick start' (see separate section).

Display Description

The meter has the following functions:

Settings for different units of measurement • It is possible to calibrate the meter to get the •

correct workload Personal data like age, max pulse, weight and •

gender can be set USB port for continuous output of data to an •

external computer Several different programs, see table "Available •

Programs" The meter also shows current pulse as percentage •

of max. HR The workload is rpm independent•

Display

Pedal revolution (RPM) pedal revolutions /

min

HR bpm

TIME min:sec

Workload (WATT alt. kpm/min) Watt

Speed km/h

Distance km

Calories (KCAL) kcal

% Max HR %

We recommend to use only the AC adaptor when using the bike. Without the AC adaptor, there will be no workload control and display alarm is activated.

Calibration and basic settings are saved even when the power fails.

(The display can be powered by batteries, 4x1.5V, R14, but only when you make the basic settings.)

Fig: Display (Training)

1) % of max HR

2) Time

3) Kcal (estimated value)

4) Speed (km/h)

5) Pedal revolutions (rpm)

6) START STOP

7) ENTER

8) (+/-) button

9) Heart rate (HR)

10) Distance (km)

11) Workload (Watt)

12) Program

13) PROGRAM

14) HEART button

Available programs:

928 G3 928 G3r

Training Training

METS METS

Astrand -

YMCA -

Increment -

PWC -

If the values for rpm and watt start ﬂashing during use, the set workload requires higher brake power than 7 kp. To solve this, increase the rpm or decrease the set workload.

dAtA

Weight kg 75

dAtA

Age 35

dAtA

Max HR 185

Unit

KM/H KM ML/

MIN/ KG KG

Unit

KM/H KM ML/

MIN/ KPM/MIN K G

Unit

KM/H KM ML/

MIN/ KP KG

Unit

KM/H KM ML/

MIN/ WATT KG

Monark 928 G3 / 928 G3r

9

Press ENTER to enter the menu for "Personal settings"

Usually you are asked to set the personal data needed when you start a program or a test. This data can also be set before, during e.g. "Warm up" in Training program with this function.

Personal settings

Set weight

Set gender

Set age

The display returns to start view

Set max HR

The meter suggests an estimated max HR based on your age (220-age) Change if desired.

Woman

Man

The settings are saved until the meter goes into sleep mode. When the display wakes up the personal settings are changed to default values (this is to protect your personal privacy).

Alternative power / force display

The meter displays power in watts (default). If you want to display the power in kpm / min instead, press the HEART button for 5 seconds. Then you can switch between WATT, KPM / MIN and current kpvalue using the (+/-) button. Press ENTER or wait 10 seconds to conﬁrm and exit the setting.

NOTE! Even if you select kp as unit, it is power in watts which

is set in the background when you press (+/-) button. The displayed kpm / min is a simpliﬁed calculation

(1 kp = 10 N) according to Astrand's tables.

(Although the displayed kp value is correct and not rounded as above. For all calculations in the display the exact value is used, 1 kp = 9.80665 N)

Set units

Default (kg, km, km/h, ml/ min/kg)

Press HEART button for 5 seconds.

The display returns to start view

You can switch between these different units

When the unit you want use appears, press ENTER to

conrm

NOTE! When you press the HEART button the

meter starts searching for a HR signal. (Remember this if you also set the Steady State.)

Unit

KM/H KM ML/

MIN/ KG KG

ConStAnt

1.00

CAdEnCE

60

Id00

bASE

25

WATT

St-StAtE 3

HR

+2 +4 +6 +10-2-4-6-10 RF

(rpm)

+

10

Monark 928 G3 / 928 G3r

Units

Kg, km, km / h, ml / min / kg are default. You can switch between the different unit combinations with (+/-) button.

Kg, km, km / h, ml / min / kg (default)• Kg, km, km / h, METS• Lbs, miles, miles / h, ml / min / kg• Lbs, miles, miles / h, METS•

User settings

BikeID

This ID is a parameter that the PC software can ask for. It is used to identify or number bikes when multiple bikes are controlled by same PC or similar.

Set units

Set cycle constant

Set metronome cadence

Set cycle-ID

Set base power

928 G3

Set steady State HR

928 G3

928 G3:

The display returns to start view

green

(reference)

orange

red

yellow

orange

red

yellow

orange

Fig: Metronome

Here you can make individual adjustments to optimize the bike for your needs on ﬁrst use and when needed.

Cycle constant

The cycle constant is as default set to 1.00. Change using the (+/-) button.

When the cycle constant is set to 1.00 the power is measured at the ﬂywheel. This is used in Astrand test, YMCA etc.

When the cycle constant is set to 1.05 the power is measured at the crank. This is often used on electronically-braked bikes.

Metronome cadence

Metronome diodes show pedalling revolutions (rpm) relative to the set reference value. The metronome is located at the back of the meter. The default value is 60 and can be adjusted with (+/-) button. The green LED in the middle ﬂashes twice for each pedal revolution which helps to keep the right pedal cadence, see Fig: Display and Fig: Metronome.

The meter can be rotated so that the rider does not see the values in the display, but only sees the ﬂashing diodes (in order to keep the right pedal cadence).

If START STOP is pressed, or if no button is pressed for 20 seconds (in all steps), the changes are saved and the display returns to normal with the new settings active.

928 G3r:

The display returns to start view.

Press PLUS and PROGRAM for 5 seconds to set ‘User settings’.

1

2

3

4

5

6

Monark 928 G3 / 928 G3r

11

Fig: Display

1) START STOP

2) ENTER

3) (+/-) button

4) HEART button (pairing meter and chest belt)

5) PROGRAM

6) Metronome (on the back)

Base Power

(Except 928 G3r)

Default value which is used as "idle" power when no program or test is active. The default value is 25 but can be adjusted with (+/-) button.

Steady State HR

(Except 928 G3r)

Default value is (±)3 but can be adjusted between 1 and 10 with (+/-) button.

Steady State (SS) HR is used only in Astrand program. SS is checked by comparing the mean value of HR during the period 4:45 to 05:00, and the mean time between 5:45 to 6:00. If the difference between these two values is the same or less HR is counted in SS.

KP

928E 03 10 0 C 100 112 1.0

KP

928E 03 10 0 C 100 179 2.0

KP

1

2

3

4

5

6

7

9

8

KP

928E 03 10 0 C 100 58 0.0

KP

928E 03 10 0 C 100 58 0.0

KP

928E 03 10 0 C 100 319 4.0

KP

+

12

Monark 928 G3 / 928 G3r

Current potentiometer value

Calibration

Two short beeps are heard and the

calibration is nished.

The bike is ready to use.

Fig: Display ’Calibration mode’

1) Bike model

2) Current potentiometer value

3) START STOP

4) ENTER

5) Software version

6) Hours in use

7) Cycle constant (1.00)

8) Calibration point

9) PROGRAM

Next calibration point

= Tightens brake belt = Slackens brake belt

Check the potentiometer value at 0 kp

Current potentiometer value

Zero the scale, see "Scale - Zero adjustment"• Release the brake belt tension by lifting the • pendulum over 0.5 kp (the motor starts).

(The brake belt tension can also be loosened • by running the engine manually. This is done by pressing (-) in the calibration mode.)

Move the pendulum to the value and hold it still until the potentiometer value stabilized

Press ENTER for next step

Repeat according to the pictures to the right

Manual motor control

By pressing the (+/-) button in the calibration mode, the motor can be run manually if rpm is less than

30. This is to ensure the functioning of the engine for service or support, and to release the brake belt tension.

For best ﬂexibility we recommend a potentiometer value between 40 and 60 at 0 kp.

Error message: CalErr - if the value is outside the window.

NOTE! Potentiometer values shown in the photos are

examples only, varies depending on the potentiometer value at 0 kp.

Press START STOP and PROGRAM for 2 seconds to enter calibration mode.

If you have started the calibration mode

but change your mind, you can press the

START STOP button to exit without saving.

(However, if you press ENTER the calibration process has begun and must also be completed.)

NOTE!

Calibration can only be done from the display!

1

2

3

1

2

1

2

6

5

4

Fig: Calibration mode

1) Hook bracket

2) Calibration hook

Fig: Normal mode

1) Hook bracket

2) Calibration hook

Monark 928 G3 / 928 G3r

13

Scale - zero adjustment

Connect power to the bike. Loosen possible tension in the brake belt by moving the indicator to 0.5 kp. Hold it there until the belt feels loose. Then move the indicator to 0 again. Now check if the indicator is aligned with the 0-index on the scale.

If adjustment is needed, loosen the locknut(1) and then change the position of the scale board, so that it will have its 0-index in line with the pointer. Tighten the lock nut after the adjustment. See Fig: Scale

adjustment.

Fig: Scale adjustment

1) Locking screw

Mechanical calibration

Although all Ergometers are calibrated at the factory the user may wish to verify this by performing a mechanical scale calibration. If so, please do the following:

First, follow the steps in the "Scale - zero • adjustment”. Adjust the pendulum if necessary.

Loosen the calibration hook from the hook • bracket, see Fig: Calibration mode.

A checked and approved weight(4), 4 kg (Art. No: • 9000-211), attached to the calibration hook (5), see Fig: Calibration. Note! The calibration hook should always be left in the hook control.

If the calibration is correct, the indicator should • point to 4 kp on the scale.

Lift off the weight and replace the calibration • hook in the hook bracket, see Fig: Normal mode. Note! The hook must be inserted in the holder during operation.

If there is a deviation, adjust the pendulum to the right position on the scale by adjusting the weight inside the pendulum (2). To do this the left cover must be removed.

To adjust the position of the weight, the locking screw, in the center of the pendulum(3), must be loosened.

If the pointer shows too low, the internal weight must be moved upwards. If the pointer shows too high, the adjustment weight is moved down. This process is repeated until pointer is in the correct position.

Check the calibration of the pendulum weight once a year or when needed.

Fig: Calibration

1) The pointer’s 0-position

2) Adjustment weight

3) Locking screw

4) Calibration weight

5) Hook for calibration weight

6) Pointer at 4 kp

TIME

KCAL HR KM/H KM RPM WATT

TIME tot KCAL HR KM/H KM RPM WATT

TIME HI KCAL HR KM/H KM RPM WATT

TIME Lo KCAL HR KM/H KM RPM WATT

14

Monark 928 G3 / 928 G3r

Personal data can be set for estimated HR (default HR is 185). See "Personal settings".

Average

value

Max valueMin value

Press ENTER (for 5 seconds during the test) and a new test is started with the same settings.

Press START STOP (for 5 seconds during the test) and the test is reset.

Interval training

Start with eg. 300 W - press START STOP and the cycle goes down to the base power - press ENTER and the power returns to the previous power (300 W).

TRAINING

Press START STOP in 'Quick Start' and the display begins to show, count and log values. Press START STOP again and the test is completed and the results are displayed on three pages in the display and you can switch between the pages by pressing (+/-) button.

Workload adjustment

The power is adjusted with (+/-) button, press and hold for quick adjustment. The power can be set between 15 and 700 W in 5 W steps.

QUICK START

’Quick start’ can be used as a separate program. (If START STOP is pressed, the TRAINING program is activated.)

The program is active and starts with base power, adjust with (+/-) button. No time is counted so the test person can warm up, use it as a 'quick start' or train without logging any values.

Start Training program

Stop Training program

To end the Training program, press START STOP and the results are displayed on three pages.

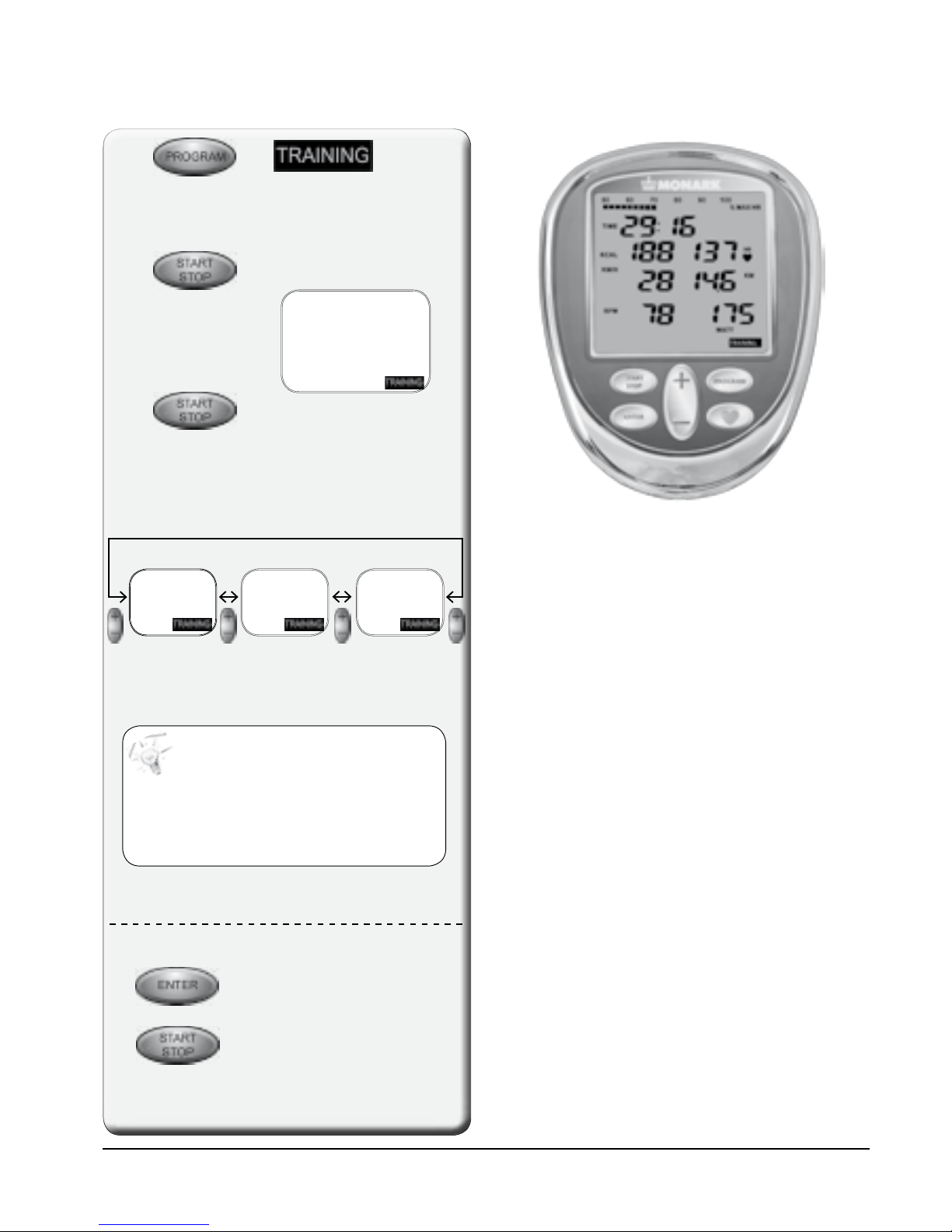

Training

dAtA

Weight kg 75

dAtA

Age 35

dAtA

Max HR 185

TIME

HR METS L/MIN RPM WATT

TIME tot METS HR L/MIN RPM WATT

TIME HI METS HR L/MIN RPM WATT

TIME Lo METS HR L/MIN RPM WATT

Monark 928 G3 / 928 G3r

15

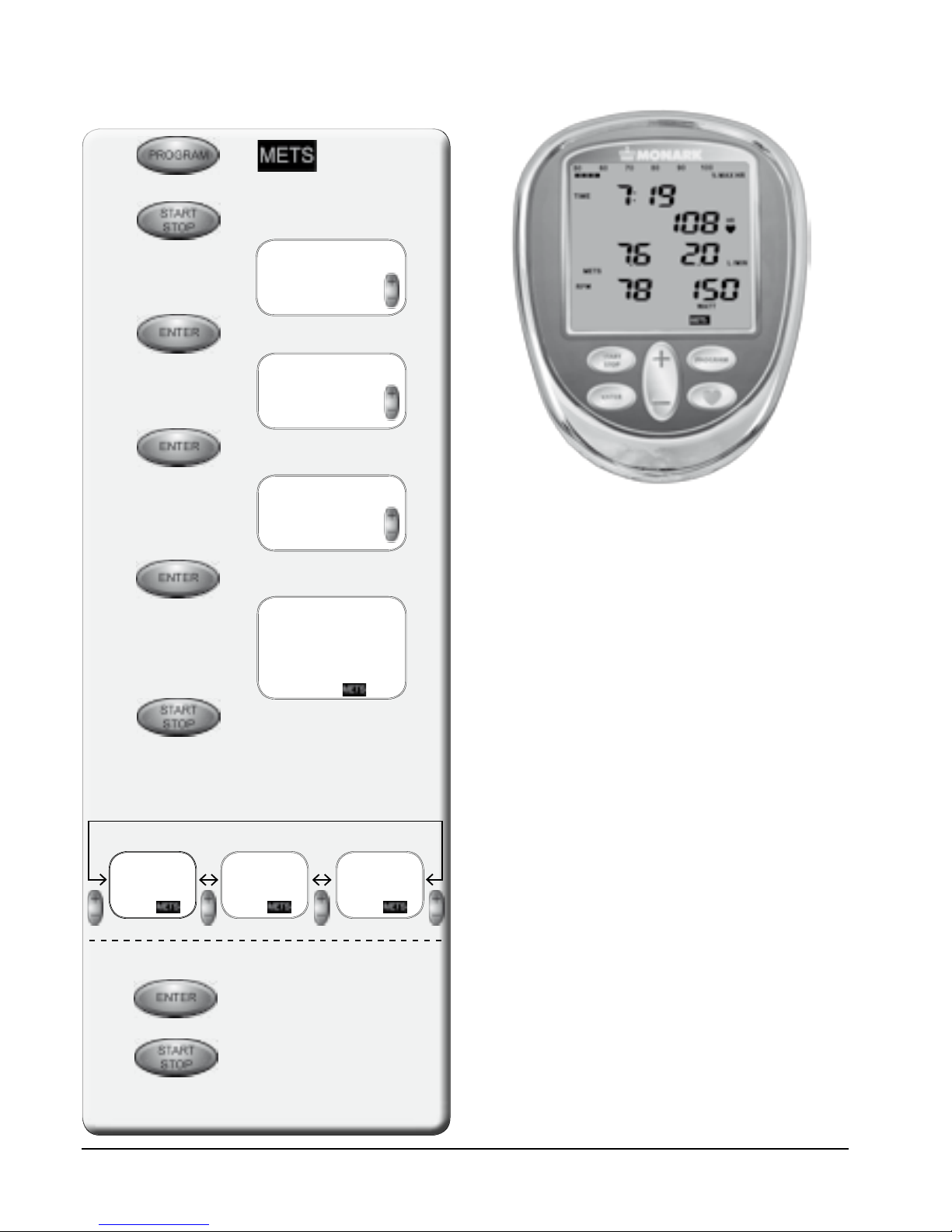

METS

During the test METS and l/min are continuously counted and displayed.

Calculation

METS values are displayed and calculated from the current workload. The two VO

2

values displayed during the test continuously calculate the average value for 5 seconds.

The formula used (values from ASTRAND original table) to calculate VO

2

at different workloads is:

0.2333 ... l / kpm = 0.01428 L / W (2.8 l / min at 1200 kpm)

This is according to Astrand's table between 150 W and 300 W, and a good approximation for 15-700 W and a cadence of about 50-65 rpm.

Stop METS program

To end the test, press START STOP and the results are displayed on three pages.

Set weight

Set age

Set max HR

Start METS program

Max valueMin value

References / Literature:

Astrand P-O, ”Ergometri - konditionsprov”, Monark, Sverige• Åstrand I, ”Aerobic work capacity in men and women with special •

reference to age”, Acta Physiol Scand. 49 (suppl. 169), 1960 Astrand P-O, ”Experimental studies of physical working capacity in •

relation to sex and age”, Munksgaard, Köpenhamn, 1952. Astrand P-O, Rodahl K, ”Textbook of Work Physiology”, McGraw-•

Hill, New York, 1970.

The meter suggests an estimated max HR based on your age (220-age) Change if desired.

Press ENTER (for 5 seconds during the test) and a new test is started with the same settings.

Press START STOP (for 5 seconds during the test) and the test is reset.

Average

value

dAtA

Weight kg 75

dAtA

Age 35

dAtA

Max HR 185

TIME

HR

RPM WATT

dAtA

Woman

Man

TIME tot KCAL HR KM/H KM RPM WATT

TIME HI KCAL HR KM/H KM RPM WATT

TIME Lo KCAL HR KM/H KM RPM WATT

(

)

16

Monark 928 G3 / 928 G3r

Astrand

(Except 928 G3r)

Max valueMin value

Press ENTER (for 5 seconds during the test) and a new test is started with the same settings.

Press START STOP (for 5 seconds during the test) and the test is reset.

It is recommended not to adjust the braking power after the ﬁrst three minutes.

Average

value

Set weight

Set gender

Set age

Set max HR

Start Astrand program

The meter suggests an estimated max HR based on your age (220-age) Change if desired.

Stop

Astrand

program

If Steady State is reached the test stops after 6 minutes. If not, the test continues until Steady State is reached or the time reaches 12 minutes. After 6 minutes, the test can also be stopped manually.

Monark 928 G3 / 928 G3r

17

Astrand

(Except 928 G3r)

The test is automatically stopped after six minutes if Steady State (SS) is active. If not, the test continues until SS is reached or the time reaches 12 minutes.

Steady State (SS) is checked by comparing the average HR during the period 4:45 to 5:00 with the average HR during the period 5:45 to 6:00. If the difference between these two average values is the same or less considered SS.

When the test is completed the results are calculated and shown directly in the display.

You can stop the test manually after six minutes by pressing START STOP even if SS is not active (an error message is shown). The result is calculated and displayed.

References / Literature:

Astrand P-O, ”Ergometri - konditionsprov”, Monark, Sverige• Åstrand I, ”Aerobic work capacity in men and women with special •

reference to age”, Acta Physiol Scand. 49 (suppl. 169), 1960 Astrand P-O, ”Experimental studies of physical working capacity in •

relation to sex and age”, Munksgaard, Köpenhamn, 1952. Astrand P-O, Rodahl K, ”Textbook of Work Physiology”, McGraw-•

Hill, New York, 1970.

Explanations to error messages:

LO Hr

HI Hr

Err

No SS

The end pulse is too low and outside the Astrand tables so no results can be calculated.

The end pulse is too high and outside the Astrand tables so no results can be calculated.

Another reason why no results can be obtained.

The test is cancelled manually without SS after 6 minutes or no SS at time 12 minutes.

dAtA

Weight kg 75

dAtA

Woman

Man

dAtA

Age 35

dAtA

Max HR 185

TIME

HR

RPM WATT

18

Monark 928 G3 / 928 G3r

YMCA

(Except 928 G3r)

The test is automatic after it has been started. Two or three levels (6 or 9 minutes) run automatically according to the table on the next page.

After six or nine minutes the test stops automatically and the YMCA will stop ﬂashing. The results are shown in the display.

You can stop the test manually after two levels (6 minutes) by pressing START STOP and the results are calculated if the values are within the tables.

If the test values are outside tables so that no results can be given, you will hear a long beep and an error message appears.

Explanations to error messages:

LO Hr

HI Hr

Err

The end pulse is too low and outside the Astrand tables so no results can be calculated.

The end pulse is too high and outside the Astrand tables so no results can be calculated.

If the test is stopped manually too early, or other reasons that no results can be given.

References / Literature:

Golding L. A, Myers C. R, Sinning W. E, Y´s way to physical ﬁtness“, • YMCA of the USA, Rosemont, IL, 1982

Set weight

Set gender

Set age

Set max HR

Start YMCA program

Stop YMCA program

The test stops automatically after 6 or 9 minutes (depends on start HR)

Press ENTER (for 5 seconds during the test) and a new test is started with the same settings.

Press START STOP (for 5 seconds during the test) and the test is reset.

The meter suggests an estimated max HR based on your age (220-age) Change if desired.

150 kpm/min / 25W

450 kpm/min / 75W

300 kpm/min / 50W

750 kpm/min / 125W

600 kpm/min / 100W

600 kpm/min / 100W 450 kpm/min / 75W

< 103

> 102

> 122 > 137 < 138 < 123

300 kpm/min / 50W

900 kpm/min / 150W 750 kpm/min / 125W 600 kpm/min / 100W

1350

225

1200

200

1050

175

1200

200

1050

175

900

150

1050

175

900 150

1350 kpm/min 225 W

< 120 120 - 135 > 135

< 90

90 - 105 > 105

>135 <120 120 - 135 >135 <120 120 - 135

Monark 928 G3 / 928 G3r

19

YMCA

(Except 928 G3r)

Men:

Women:

Level 1:

HR:

Level 2:

HR:

Level 3:

Level 1:

HR:

Level 2:

HR:

Level 3:

NOTE! The given HR values are at the end of each level

dAtA

Age 35

dAtA

Max HR 185

TIME NEXT

HR

RPM WATT

dAtA

TIME 3:00

dAtA

Init WATT 25

dAtA

Step WATT 25

TIME End

Heart rate

RPM WATT

TIME HI

Heart rate

RPM WATT

TIME Lo

Heart rate RPM WATT

20

Monark 928 G3 / 928 G3r

Increment

(Except 928 G3r)

Remaining time to next step

Current time

Set time for each step

Set age

Set max HR

Start Increment program

Stop Increment program

The test is stopped when:

The cadence is <30 for more • than 5 seconds When you press START STOP • 700 W workload is achieved•

Set start power

Set power increase per step

The results are displayed on three pages that you switch between with the (+/-) button:

Press ENTER (for 5 seconds during the test) and a new test is started with the same settings.

Press START STOP (for 5 seconds during the test) and the test is reset.

End value Max valueMin value

NOTE!

If the meter does not get any rpm indication at start, the test stops. To restart, press ENTER.

The meter suggests an estimated max HR based on your age (220-age) Change if desired.

Monark 928 G3 / 928 G3r

21

Increment

(Except 928 G3r)

Time for each step Set the time (minutes:seconds) for each single step.

Preset time setting the ﬁrst time is 3 minutes.

Start power

Set the ﬁrst power level.

Power increase per step (step)

Set the power increase between each step of 5 to 200 W. Last value is presented as default.

Test procedure

The display begins with the start power (which is speciﬁed in "Start Power") and begins the countdown to the next step. The display will increase the power at the speciﬁed power increase each time the set time has passed and a new countdown begins. At the same time you hear a beep.

The test is automatic after it has been started.

If the test is stopped because of the low rpm it starts automatically even if the rpm increases again.

About Increment test Increment is a testing protocol, where the power is

increased according to a predetermined schedule. An increment is used to see the HR increase in relation to the rising power. It is used in both submaximal to maximal tests to track the maximum capacity.

The test continues until the test manager or test person cancels the test.

dAtA

Weight kg 75

dAtA

Age 35

P 150

TIME NEXT

HR

RPM WATT

Cool 5 m

Cool 3 m

Cool 1 m

0:00

...

>

Second last

End value

Results

02:00

Watt

25

Init

Watt

25

Stop PWC program

22

Monark 928 G3 / 928 G3r

PWC

(Except 928 G3r)

Set test level

Set weight

Set age

Set start power

Set power increment per step

The program is automatic until the test HR level is exceeded.

The test can always be stopped manually by pressing START STOP. Then the display shows the analysis pages but "Err" is displayed instead of watts value and watts / kg results, if the test is stopped before the countdown started and only the complete step the data is displayed.

To see the results that appear on each page, see the table on the next page.

Press ENTER (for 5 seconds during the test) and a new test is started with the same settings.

Press START STOP (for 5 seconds during the test) and the test is reset.

The test continues until the selected HR level is reached

The test is stopped when:

HR level is reached (cool down • starts) You press START STOP (if you • press START STOP after the HR level reached the results are displayed)

Remaining time to next step

Current time

The meter suggests a level based on your age and estimated max HR.

Power increase (two set) 25 W step 2 min / 50 W step 3 min

Monark 928 G3 / 928 G3r

23

PWC

(Except 928 G3r)

PWC test level The meter suggests a level based on your age. Can be adjusted with (+/-) button.

PWC target HR watt calculation:

The estimated watt value at target HR (WPT) is calculated from the following data:

W1 = Watts value set in penultimate step W2 = Watts value set in the last step P1 = 15-second average HR at the end of the

penultimate step P2 = 15-second average HR at the end of the last

step PT = Target HR: 130, 150 or 170 beats / min

Formula for the WPT: WPT = W1 + (W2-W1)x(PT-P1)/(P2-P1) [W] Relative WPT: WPT / kg = WPT / Weight [W / kg] For further information please refer to the reference

literature.

Age (year) Program

<30 P170

30-50 P150

>50 P130

References / Literature:

Dr. Theodor Stemper, Diplom-Sportlehrer• ROST, R, H. HECK, W. HOLLMANN, Die Fahrradergeometrie in • der Praxis. Broschüre der BAYER AG STEMPER, Th.: Gesundheit - Fitness - Freizeitsport. Bund-Verlag, • Köln 1988 (zu beziehen über SSV-Verlag, Hamburg)

Power step

The display shows time 2:00 and power 25 W. Switch with (+/-) button to time 3:00 and power 50 W. Press ENTER to save.

Start power

The display shows "Init". Set the initial power of the ﬁrst step between 25 and 400 W with 25 W steps. Default value is 25 W. Press ENTER to save.

How it works

At the end of each step calculated average HR during the last 15 seconds, a beep sounds, 25 W or 50 W is applied workload, and a new countdown starts. In the ﬁrst ﬁve seconds of the next steps the display shows test time, workload and estimated average HR during the previous step. During these ﬁve seconds the values ﬂash.

This continues until the 15-second average HR is higher than the target HR (130 / 150 / 170). Then the test is stopped, a beep sounds, the workload reverts to start power, the ﬁnal 15 seconds of average HR is displayed. The text "COOL" is displayed and the sixminute countdown starts. A 15-second average HR is displayed after 1, 3 and 5 minutes of the countdown.

You can skip the "cool down" by pressing the START STOP and the results appear instantly.

Page Results that are displayed

Results Total test time (end time), chosen test,

total kcal, target HR, calculated result W

PT

/kg and calculated result W

PT

End value Total test time (end time), chosen test,

target HR (end value) and calculated

value per step

Second last Second last test time, chosen test, step

HR and calculated value per step

...> Chosen test, step HR and calculated

value per step

0:00 Test time, chosen test, start HR and

calculated value per step

Cool 1 m Time C1:00, chosen test and step HR

Cool 3 m Time C3:00, chosen test and step HR

Cool 5 m Time C5:00, chosen test and step HR

Results

After "cool down" two quick beeps are heard and the meter calculates and displays the results. The results are displayed on several pages that you switch between with the (+/-) button:

NOTE! The displayed value for calories is the total estimated calorie consumption incl. "Cool down".

24

Monark 928 G3 / 928 G3r

Troubleshooting guide

Symptoms Probable Cause / Corrective Action

The Display is not working Check that there is power in the socket and that no fuse has blown. •

If there is power in the socket but the display still does not work, •

contactthe•servicecentre.

No heart rate Check the chest belt (battery). Wet the thumbs and place them on the •

electrodes. A low clicking sound will appear near battery lid while you click on the electrodes with one thumb. Use another external HR monitor to check the belt. Check that the chest belt is positioned correctly on test person and • tight enough. Check that the electrodes are wet, in difﬁcult cases it is necessary to use a contact gel or a mixture of water with a few drops of washing-up liquid. The level for HR signal can vary from person to person. Put chest belt on another known person who has a good pulse reading.

Uneven Heart rate Use an external unit, for example a HR watch, to check if it also •

indicates irregular pulse. If this is the case there are probably a disturbance in the room. The disturbance may be electronic ﬁelds from power cables, elevators, lamps etc. or other electronic devices which are too close (eg. cell phones). Move the bike to a different location in the room or change rooms. If an irregular HR remains it should be checked manually. If the HR remains irregular at work the person's health should be examined.

There is a click noise when pedalling (increases with the weight)

The pedals are not tight. Tighten them or change pedals.• The crank arms is loose. Check, tighten.• The base bearing is loose. Contact your dealer for service.•

There’s a click noise and a squeak noise when pedalling

Loosen the chain.•

CalErr shows in the display Incorrect calibration or not calibrated at all. Calibrate the Ergometer. •

Pendulum pointer scrapes in the scale Try to bend the scale slightly inwards•

Scale plate scrapes in the pendulum Try to bend the scale plate slightly outwards•

Problems with the computer software Describe the problem in an e-mail (in English) and send it to the •

software developer HUR labs support: support@hurlabs.com

Monark 928 G3 / 928 G3r

25

More information

References / Literature:

If you want to learn more about the different tests, information is available in the following literature.

Astrand P-O, ”Ergometri - konditionsprov”, Monark, Sverige• Astrand I, ”Aerobic work capacity in men and women with special reference to age”, Acta Physiol Scand. •

49 (suppl. 169), 1960 Astrand P-O, ”Experimental studies of physical working capacity in relation to sex and age”, Munksgaard, •

Köpenhamn, 1952. Astrand P-O, Rodahl K, ”Textbook of Work Physiology”, McGraw-Hill, New York, 1970.• Golding L. A, Myers C. R, Sinning W. E, Y´s way to physical ﬁtness“, YMCA of the USA, Rosemont, IL, •

1982 Dr. Theodor Stemper, Diplom-Sportlehrer• Rost, R, H. Heck, W. Hollmann, Die Fahrradergeometrie in der Praxis. Broschüre der BAYER AG• Stemper, Th.: Gesundheit - Fitness - Freizeitsport. Bund-Verlag, Köln 1988 (zu beziehen über SSV-Verlag, •

Hamburg)

Service check and Maintenance

It is important to carry out a regular service on your ergometer, to ensure it is kept in good condition.

Service action:

We recommend isopropyl alcohol to disinfect the • surface of the bike. Use a damp but not wet cloth to clean the surface you wish to disinfect.

Always keep the bike clean and well lubricated • (once a week).

Periodically wipe the surface with a rust preventative, • especially when it has been cleaned and the surface is dry. This is done to protect the chrome and zinc parts as well as the painted parts (4 times per year).

Check now and then that both pedals are ﬁrmly • tightened. If not the threading in the pedal arms will be damaged. Also check that pedal arms are ﬁrmly tightened on the crank axle, tighten if necessary. When the Ergometer is new it is important to tighten the pedals after 5 hours of pedalling (4 times per year).

Check that the pedal crank is secure to the crank • axle (4 times per year).

Be sure that the pedals are moving smoothly, and • that the pedal axle is clear of dirt and ﬁbres (4 times per year).

When cleaning and lubricating be sure to check that • all screws and nuts are properly tightened (twice a year).

Check that the chain is snug and there is no play in • the pedal crank (twice a year).

Check that pedals, chain and freewheel sprocket are • lubricated (twice a year).

Be sure that the brake belt does not show signiﬁcant • signs of wear (twice a year).

Check that the handlebars and seat adjustment • screws are lubricated (2 times per year).

Be sure that all moving parts, crank and ﬂywheel • are working normally and that no abnormal play or sound exists. Play in bearings causes fast wearing and with that follows a highly reduced lifetime.

Check that the ﬂywheel is placed in the center and • with plane rotation.

Service

Note! Make sure the voltage indicated on the appliance corresponds to the local mains voltage before making connections.

Note that the text about service and maintenance is universal and that all parts may not be relevant to your bike.

Warranty

EU countries - Private use

If you are a consumer living in the EU you will have a minimum level of protection against defects in accordance with EC Directive 1999/44/EC. In short, the directive states that your Monark dealer will be liable for any defects, which existed at the time of delivery. In case of defects, you will be entitled to have the defect remedied within a reasonable time, free of charge, by repair or replacement.

EU countries - Professional use

Monark Exercise products and parts are guaranteed against defects in materials and workmanship for a period of one year from the initial date of purchase of the unit. In the event of a defect in material or workmanship during that period, Monark Exercise will repair or replace the product. Monark Exercise will not, however, refund costs for labour or shipping.

Other countries

Monark Exercise products and parts are guaranteed against defects in materials and workmanship for a period of one year from the initial date of purchase of the unit. In the event of a defect in material or workmanship during that period above, Monark Exercise will repair or replace (at its option) the product. Monark Exercise will not, however, refund costs for labour or shipping.

26

Monark 928 G3 / 928 G3r

Batteries

If the meter is battery-operated, the batteries are in a separate package at delivery. If the storing time has been long the battery power can be too low to make the computer act correctly. Batteries must then be changed.

Flywheel bearing

The ﬂywheel bearing is long-term greased and requires no supplementary lubrication. If a problem arises, please contact your Monark dealer.

Crank bearing

The crank bearing is greased and normally requires no supplementary lubrication. If a problem arises, please contact your Monark dealer.

Transportation

During transport the brake cord should be tightened to prevent it from falling off the ﬂywheel.

Replacement of brake belt

To replace the brake belt remove covers if necessary. Make sure that the belt is loose.

Alt. 1: To loosen the brake belt on pendulum bikes with engine, connect power to the unit and raise the pendulum to 4 kp. Hold it there until brake belt is loose. Please note how the belt is assembled. Remove it from the bike. Attach the new brake belt and assemble the bike in reverse order.

Alt. 2: To loosen the brake cord on cycles with a weight basket set the basket to its upper position. Loosen the lock washer that is holding the cord and remove it from the tension center. Loosen or cut off the knot on the other end of the cord and then remove the whole cord from the bike. When assembling a new brake cord, ﬁrst enter one end into the hole in the tension center, and tie a knot and let the knot fall into the bigger part of the hole. Lock the end of the cord with the lock washer.

Brake belt contact surface

Deposits of dirt on the brake belt and on the contact surface may cause the unit to operate unevenly and will also wear down the brake belt. The contact surface of the ﬂywheel should be smoothed with ﬁne sandpaper and any dust removed with a clean dry cloth.

Remove any potential covers and all workload on the brake belt and then remove it. Grind with a ﬁne sand paper. Grinding is easier to perform if a second individual cautiously and carefully pedals the cycle.

Irregularities on the brake belt contact surface are removed by means of a ﬁne sand paper or an abrasive cloth. Otherwise unnecessary wear on the brake belt may occur and the unit can become noisy.

Always keep the brake belt contact surface clean and dry. No lubricant should be used. We recommend replacing the brake belt when cleaning the contact surface. In regard to assembly and adjustment of the brake belt, see ”Replacement of brake belt”.

Alt. 3: To loosen the brake belt on the bike remove all tension. Please note how the belt is assembled. Remove it from the bike. Attach the new brake belt and assemble the bike in reverse order.

NOTE! When replacing the brake belt it is recommended to clean the brake surface. See ”Brake belt contact surface”.

Fig: Brake belt

Monark 928 G3 / 928 G3r

27

Chain 1/2“ x 1/8“

Check the lubrication and tension of the chain at regular intervals. In the middle of its free length the chain should have a minimum play (3) of 10 mm (1/4 inch). See Fig: Chain adjustments. When the play in the chain is about 20 mm (3/4 inch) the chain must be tightened. Otherwise it will cause abnormal wear of the chain and sprockets. Therefore it is always recommended to keep the chain play as small as possible. Loosen the hub nut (2) on both sides and tense the chain with the chain adjuster (1) when needed.

When the chain has become so long that it can no longer be tightened with the chain adjusters it is worn out and shall be replaced with a new one.

To adjust or replace the chain, remove covers if required.

To adjust the chain the hub nuts (2) should be loosened. Loosening or tightening the nuts on the chain adjusters (1) will then move the hub and axle forward or backward. Then tighten the nuts on the hub axle again. See Fig: Chain adjustments.

To replace the chain, loosen the chain adjusters as much as possible. Dismantle the chain lock (6) and remove the chain. Use a pair of tongs for dismantling spring. Put on a new chain and assemble the chain lock. The spring of the chain lock should be assembled with the closed end in the movement direction(5) of the chain. Use a pair of tongs for dismantling and assembling the spring (4). See Fig: Chain replacement.

NOTE! At assembly the ﬂywheel has to be parallell with the centerline of the frame. Otherwise the chain and sprockets make a lot of noise and wear out rapidly.

Then assemble the removed parts as above but in reverse order.

3

2

1

4

6

5

28

Monark 928 G3 / 928 G3r

Fig: Chain replacement

4) Lock spring

5) Movement direction

6) Chain lock

Fig: Chain adjustments

1) Chain adjuster

2) Axle nut

3) Chain play

Freewheel sprocket

When replacing the freewheel sprocket remove frame covers if necessary. Remove the chain according to section ”Chain 1/2” x 1/8””.

Loosen the axle nuts and lift off the ﬂywheel. Remove the axle nut, washer, chain adjuster and spacer on the freewheel side. Replace sprocket-adaptor and assemble the new parts in reverse order according to the above.

The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle to make it easier for the oil to reach the bearing. See Fig: Lubrication.

Monark 928 G3 / 928 G3r

29

Fig: Lubrication

Fig: Hub assembly

11

12

13

14

15

16

19

17

18

10

3

4

5

6

2

7

8

20

1

9

30

Monark 928 G3 / 928 G3r

Spare parts list

Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description

1 1 9300-3 Flywheel, complete 14 1 9328-29 Scale lock, complete

2 9300-24 -Flywheel suspension, complete 15 1 9328-62 Stop

3 1 9328-85 Brake belt, complete 16 1 9338-19 Stay

4 1 9328-94 - Hook for calibration weight 17 1 9328-92 Adapter

5 2 9300-99 Pendulum stop, plastic 18 1 9310-55 Motor

6 1 9328-33 Adaptor M20/M16 19 1 9328-96 Bracket for servo

7 1 9328-91 Hook control 20 1 9328-1 Frame

8 1 9311-66 Pendulum, complete 1 9000-211 Calibration weight, 4 kg

9 1 9338-43 - Brake belt release

10 1 9328-93 -Holder pot. adjustment

11 1 9311-67 -Potentiometer with cable

12 1 9328-803 -Plate with kp-scale

13 1 9000-105 -Screw M5x10

42

3 4

3 5

3 6

3 7

25

26 27

28 29

30

31

32

33

3 8

3 9

40

41

Monark 928 G3 / 928 G3r

31

Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description

1 1 9328-39 Frame cover, left 25 1 9309-3 Joint list

2 1 9328-4 Aluminium prole 26 4 9300-12 Screw M8x16

3 1 9328-38 Frame cover, right 27 1 9328-5 Support tube, front

4 9 5675-9 Screw M5x6,5 28 4 5845 Locking nut M8

5 21 5673-9 Screw M5x12 29 4 9328-26 Rubber foot

6 1 4994-5 Saddle 30 1 9328-131 Bushing f. saddle post

7 1 5605-1 Screw M8x46 31 1 9311-162 Display G3

8 1 5864 Washer 31 1 9311-163 Display G3r

9 1 5775 Nut 32 1 9000-105 Screw M5x10

10 1 9328-135 Saddle post 33 1 9328-196

Multicable 1850 mm

11 1 9328-132 Locking knob 34 1 9328-188 Power cable 2200 mm

12 1 9328-37 Transport wheel complete

(pair)

1 9328-78 Handlebar, compl. with handles,

clamp and locking handle

13 1 9328-6 Support tube, rear 35 1 9328-9 -Handlebar

14 4 9328-51 Plastic cap 36 1 9328-72 -Handgrip, blue (pair)

15 2 8523-115 Screw M8x1x20 37 1 5864 -Washer

16 2 8523-2 Dust cover for crank 38 1 9127-37 -Spacer

17 1 9300-207 Foot straps (pair) 39 1 9100-280 -Screw

18 1 9300-220 Pedal (pair) 40 1 9328-2 -Handlebar clamp

19 1 9300-430 Steel crank set, complete 41 4 9337-38 -Screw M8x16

20 1 9371-16 -Magnet 42 1 9328-183 Power adaptor

21 1 9326-55 Chain, 98 L with chain lock 1 9328-192 -Plug EUR

22 1 8966-175 BB cartridge bearing 1 9338-36 USB cable 3 m

23 1 8966-176 Support casing for BB-bracket 1 9328-150 Screw set

24 1 9311-161 Sensor with cable 150 mm 1 9311-75 Chest belt, Garmin ANT+

Version 1409

Art. No: 7950-384

KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81

Monark 928 G2, 928 G3r User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
