Monark Ergomedi 894 E, 894 E User Manual

Manual for 894 E

EN

Monark Exercise AB �� 4 Product Information �� 5

Facts �� 5 Serial number �� 5

Operating Instruction �� 6

Workload adjustment �� 6 Power measurement �� 6 Cycle adjustments �� 6 Connection to PC �� 7 Anaerobic testing �� 7 Meter instructions �� 8 Calories �� 9 Heart rate �� 9 Adjusting the brake cord/belt tension �� 10

Troubleshooting guide �� 11 Service �� 14

Warning �� 14 Warranty ��14 Service check and Maintenance �� 14 Batteries �� 15 Flywheel bearing �� 15 Crank bearing ��15 Transportation �� 15 Replacement of brake belt �� 15 Brake belt contact surface ��15 Chain 1/2“ x 1/8“ ��16 Freewheel sprocket �� 17

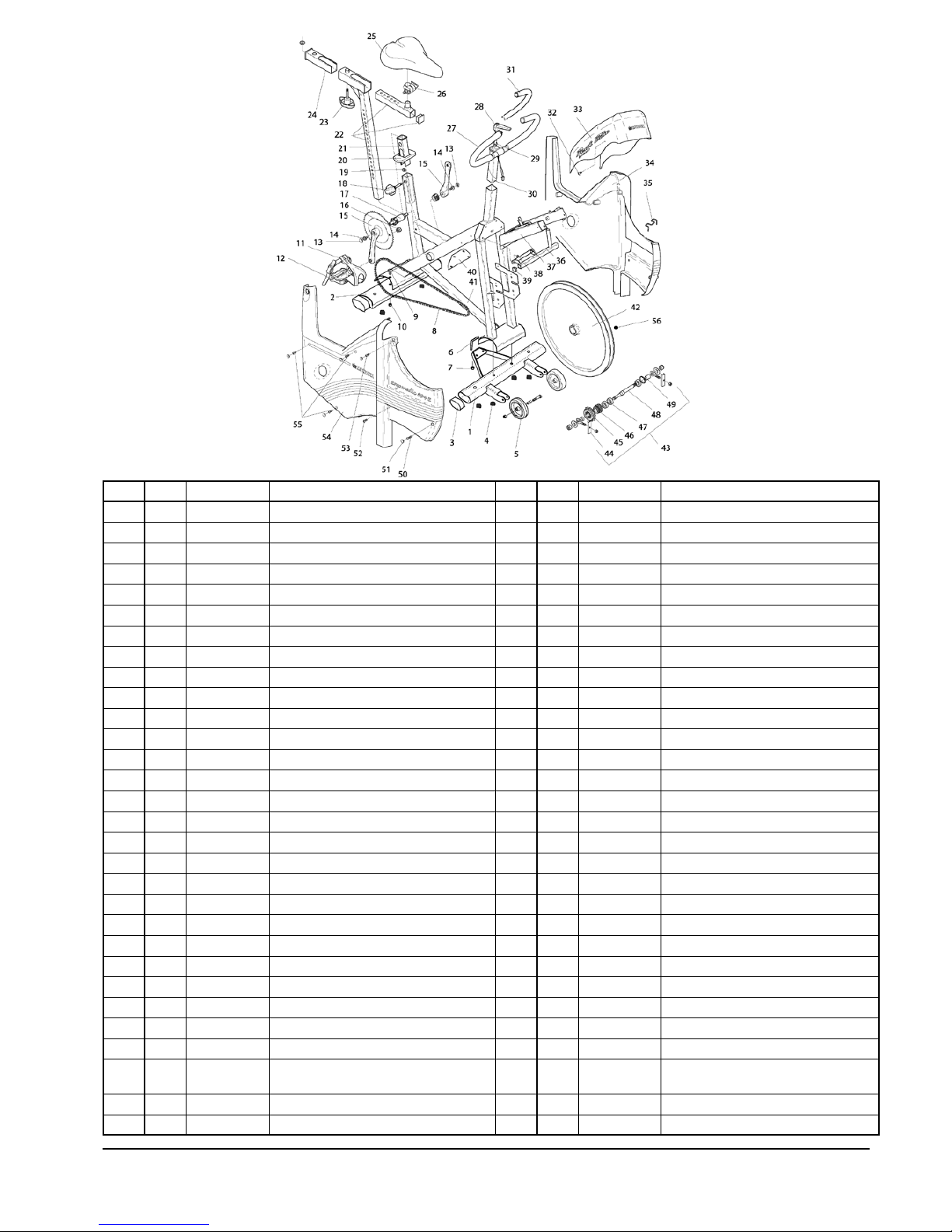

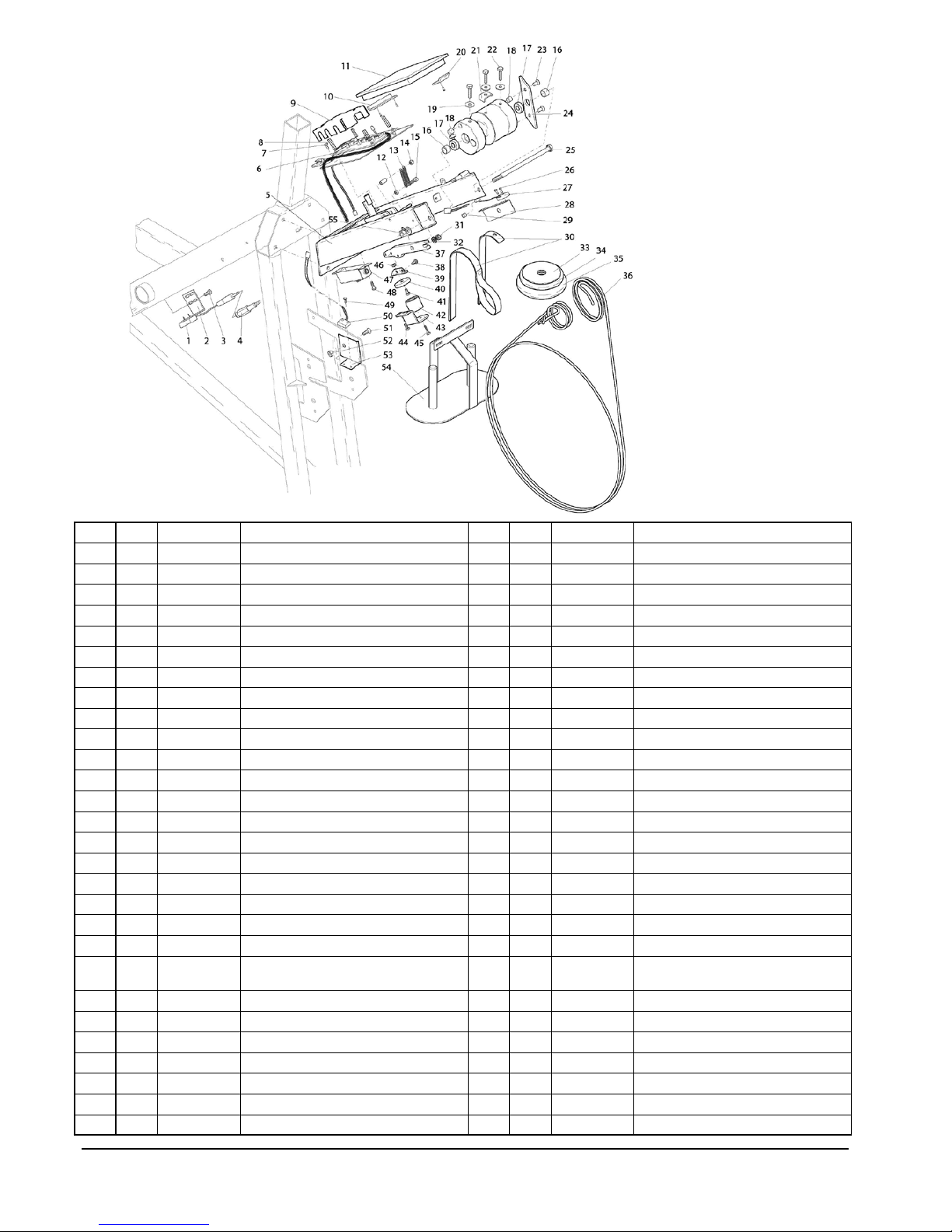

Spare parts list �� 18

2013 MONARK EXERCISE AB, Vansbro, Sweden

Contents

Important

Read the manual carefully before using the cycle and save it for future use.

Monark 894 E

4

Monark Exercise AB

Monark has 100 years’ experience of bicycle production. The Monark tradition has yielded know-how, experience, and a real feel for the product and quality. Since the early 1900s, Monark’s cycles have been living proof of precision, reliability, strength and service. Those are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles.

We manufacture, develop and market ergometers and exercise bikes, transport bikes and specialized bicycles. Our largest customer groups are within health care, sports medicine, public authorities, industry and postal services.

For more information: http://www.monarkexercise.se

1

Monark 894 E

5

Facts

Large, well-balanced ﬂywheel 20 kg (44 lbs)• Adjustable saddle and handlebar• Stable frame, solid steel tube• Powder painted• Wheels for easy transport• Electronic meter with heart rate•

Width

517 mm (20 1/3”) at handlebar 640 mm (25”) at support tubes

Length

1120 mm (48 4/5")

Height

945-1295 mm (37-51”) at handlebar 780-1105 mm (31-43½”) at seat

Weight

65 kg / 143 lbs (without weights) Max user weight 125 kg (275 lbs)

Included

Chest belt• PC software• Power adaptor• Weight kit consisting of: • 4 pcs. 0.1 kg (0.2 lbs) 1 pcs. 0.5 kg (1.1 lbs) 8 pcs. 1.0 kg (2.2 lbs)

Technical data power adaptor

Output voltage: +9 V DC Current: 500 mA Polarity: Minus (-) in the middle of connector. See Fig: Polarity. (Art. No. 9384-650, USA Art. No: 9384-62)

Serial number

The serial number is placed according to Fig: Serial number.

Product Information

Congratulations on your new Ergometer!

The Monark 894 E is an ergometer for anaerobic tests that also works as a normal traditional weight ergometer. It has a brake system where the workload is determined by weights added in the weight basket. The patented weight basket system does not require calibration, the precision of the weights ensures that the workload is correct. RPM-controlled release of weight basket and test duration up to 99 minutes increase safety and the potential for optimal tests.

The easy-to-use Windows-based software has more setting possibilities with clear presentation graphics. Thanks to double sensors, faster electronics and improved mechanics, performing anaerobic tests is now more efﬁcient and less complicated.

Fig: Serial number (1)

Fig: Polarity

NOTE! Use of the product may involve considerable physical stress. It is therefore recommended that people who are not accustomed to cardiovascular exercise or who do not feel completely healthy, should consult a physician for advice.

1

3

min. 8 cm (4”)

2

1

2

Monark 894 E

6

Operating Instruction

Workload adjustment

Through pedalling the test person supplies kinetic energy to the ﬂywheel. The ﬂywheel is then braked by means of a brake belt/cord which runs around the ﬂywheel. The workload is changed either by using other pedalling speed or by increasing or decreasing the tension of the brake belt/cord against the ﬂywheel by place weights in the weight basket. Weights are available in 1 kg / 2.2 lb, 0,5 kg / 1.1 lb and 0,1 kg / 0.2 lb. This makes it possible to vary the workload from 1 kp up to maximum 11 kp in steps of 0,1 kp. Braking power is expressed in kp where mass 1 kg /

2.2 lb gives the braking force 1 kp.

NOTE! 1 kg /2.2 lbs is the lowest work load that can be set as this is the weight of the basket itself. A weight basket that only weighs 0,5 kg /1.1lb is available as an option. The weight basket can also be set in its upper free/resting position and does then not give any work load at all. The weight basket is released by pushing the release button(1), on the handlebar. See

Fig: Workload adjustment.

Power measurement

The cycle is designed to measure the power on the ﬂywheel, because tests/protocols are made for it (for example Åstrand’s and YMCA).

Cycle adjustments

Seat height should be adjusted to a comfortable position. The appropriate height is to have the knee slightly bent when the sole of the foot is centred over the pedal axle with the pedal in the bottom position. To adjust the seat height loosen the lever (1) on the seat tube. See Fig: Adjustments.

The handlebar setting should be in a comfortable position when cycling. During longer exercise sessions it is recommended to occasionally change handlebar position. To adjust the handlebar, loosen the quick release lever (2). See Fig: Adjustments.

NOTE! The handlebar stem should be inserted into the frame tube at least 3 inches (about 8 cm). This measure is marked with “MAX” on the stem (3).

Fig: Workload adjustment

1) Release button, release basket

2) LED

Fig: Adjustments

1) Locking knob, saddle

2) Locking handle, handlebar

3) Inserted min. 3”

Monark 894 E

7

Anaerobic testing

Model 894 E has a computer for anaerobic testing and makes the bike possible to connect to an external PC, PC-cable is included. A Windows application, included in the bike, makes it possible to make a lot of different type of anaerobic tests for ex. Wingate tests and so forth. The anaerobic tests can easily be set from 5 up to 300 seconds duration. For a closer explanation of the application look in the program manual, ”Monark Anaerobic Test Software User Manual”.

NOTE! To carry out anaerobic tests must cycle computer equipped with power from a wall outlet. Connect the supplied power adaptor into an appropriate wall outlet (230V). The circular connector on the secondary cable from the power adaptor is connected to the corresponding socket on the cycle under the instrument cover on the right side. PC cable is connected into the serial port underneath and to a serial port on an external PC. See Fig: Brake device in section ”Adjusting the break cord/belt tension”. The LED (2) on the front of the instrument panel, see ﬁg: Workload adjustments in section ”Workload device", indicates both that there is power to the unit and that the weight basket is in its upper locked position. If the weight basket produces resistance it must be moved up in its upper locked position where it does not give any workload. Then the LED is lit - with a delay of about ﬁve seconds - indicating that the computer and cycle is in a ready position for a test.

Connection to PC

To connect a PC to the bike, use a 0-modem cable (RS232) with 9-pin D-sub connector (female) at both ends. If no RS232 Serial port is available on the computer use a USB serial converter to connect to an USB port on the computer instead.

Before installing the Monark Software for your ergometer, you must take the following steps.

Locate the USB adaptor. 1. Inside the USB adaptor packaging, there is a mini-2.

CD. Insert the mini-CD into the CD-ROM drive and 3.

install the driver software. If there is no CD drive on your computer, driver software is available for download from the website (http:www.vscom.de/ USB-CD).

Finalize the driver software installation by 4. inserting the USB adaptor.

Install the Monark Software disk. 5. Connect the USB Adaptor to the Serial Cable and 6.

proceed with testing.

Monark 894 E

8

Meter instructions

The ergometer is equipped with a Fitness computer showing pedal revolutions per minute (RPM), heart rate in bpm (HR), exercise time in minutes and seconds (TIME), cycling speed in km per hour or miles per hour (SPEED), covered distance in km or mile (DISTANCE). Furthermore the workload (kp = weight basket + weights in kg) can be set which gives a reading of burned calories (CAL) as well as power (WATT) on the computer display. The energy is usually expressed in kJ (kilojoule) or cal (kilocalories, kcal). One kcal is approx. 4,2 kJ. The power is depending on the pedalling speed which makes it possible to adjust the workload/power by increasing or decreasing the pedalling speed.

When pressing any button, or move the pedals, a signal gives to the meter that activates all functions.

At the display for heart rate (HR) a heart symbol is lit which means that the meter is trying to ﬁnd a pulse signal from an external source, chestbelt with electrodes, If the meter cannot ﬁnd such a signal the HR function is automatically turned off after 30 seconds. When the function is turned off the heart symbol is not lit any more. The heart rate function can be turned on again by pressing a key.

The timer starts automatically when pedals are moved. Meter values for Time, Distance and Calories can be set to zero by pressing the RESET button for more than two seconds.

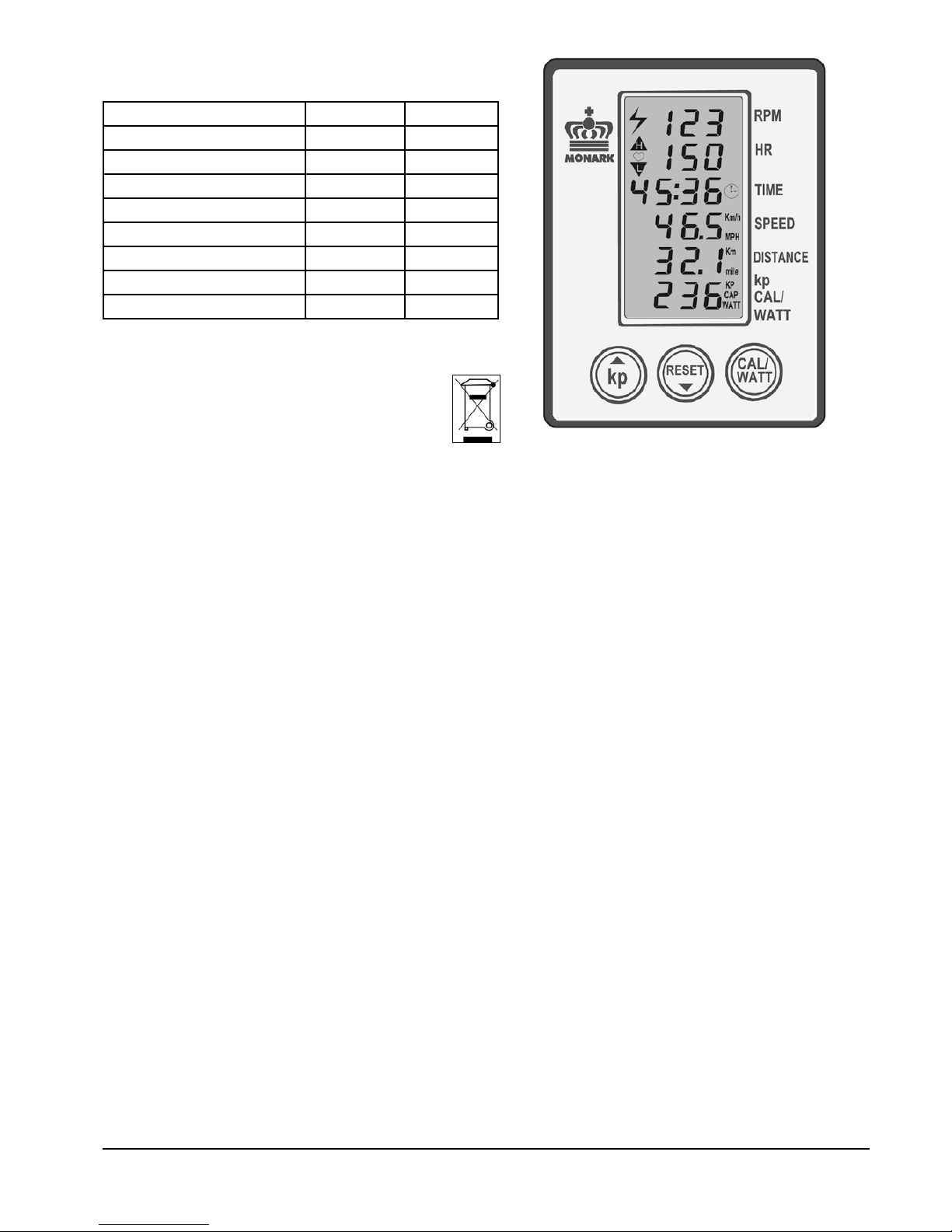

Display

Pedal revolution (RPM) 0 - 250 rev./min. HR 50 - 240 bpm TIME 0:00-99:59 min:sec SPEED 0 - 99 km/h DISTANCE 0.0 - 99.9 km FORCE 0.0 - 7.0 kp Calories (CAL) 0 - 999 kcal WATT 0 - 7 x rpm watt

Batteries: 1.5 V x 2, R6 (AA) Storing temperature: -10º C - +60º C Operating temperature: 0º C - +50º C

To get correct readings for calories and watts the kp value on the electronic meter has to be set to the same value as the workload that is the weight of the basket including the weights in it. The rubber plates are included in the calibrated weight of the 1 kg weight basket.

Example: The workload is 3 kg / 6.6 lbs (weight basket 1 kg / 2.2 lbs + 2 x 1 kg / 1.1 lbs weight). Press the kp key to the left on the meter. The lower display window is now ﬂashing and showing ﬁgures in kp. Increase or decrease in steps of 0.1 kp by pressing the kp button (arrow up) or the RESET button (arrow down) until the reading is corresponding with the actual or desired kp values (workload) from the weight basket. After that press the CAL/WATT button to either show the CAL or WATT ﬁgures. After that press the CAL/WATT button to either show the CAL or WATT ﬁgures. The watt reading in the display is depending on the pedalling speed. The watts can accordingly be adjusted by increasing or decreasing the pedalling speed. Calories are calculated continuously, more information in the section "Calories".

1

MONARK

1

Monark 894 E

9

Fig: Switch km/miles (1)

Heart rate

A person's heart rate can be measured with a chest belt that senses the electronic output of the heart. The chest belt is standard equipment.

Heart rate monitoring requires that the chest belt is correctly placed. When it is correctly ﬁtted the logo on the belt will be central and readable, outward and upright, by another person. Before putting on the belt, clean the skin where the belt is to be placed. The chest belt should be secured at a comfortable tension around the mid section, just below the breast muscle, see Fig: Placement of the chest belt. Moisten the electrodes before use, see Fig: Electrodes on the back of the chest belt. To make contact with the HR receiver on the bike, the distance should not be more than 100 cm. It is especially important when ﬁrst used to identify the chest belt with the sensor, by standing close to get the HR (maximum 60 cm).

NOTE! Electromagnetic waves can interfere with the telemetry system. Cellular phones are not allowed to be used near the bike during test.

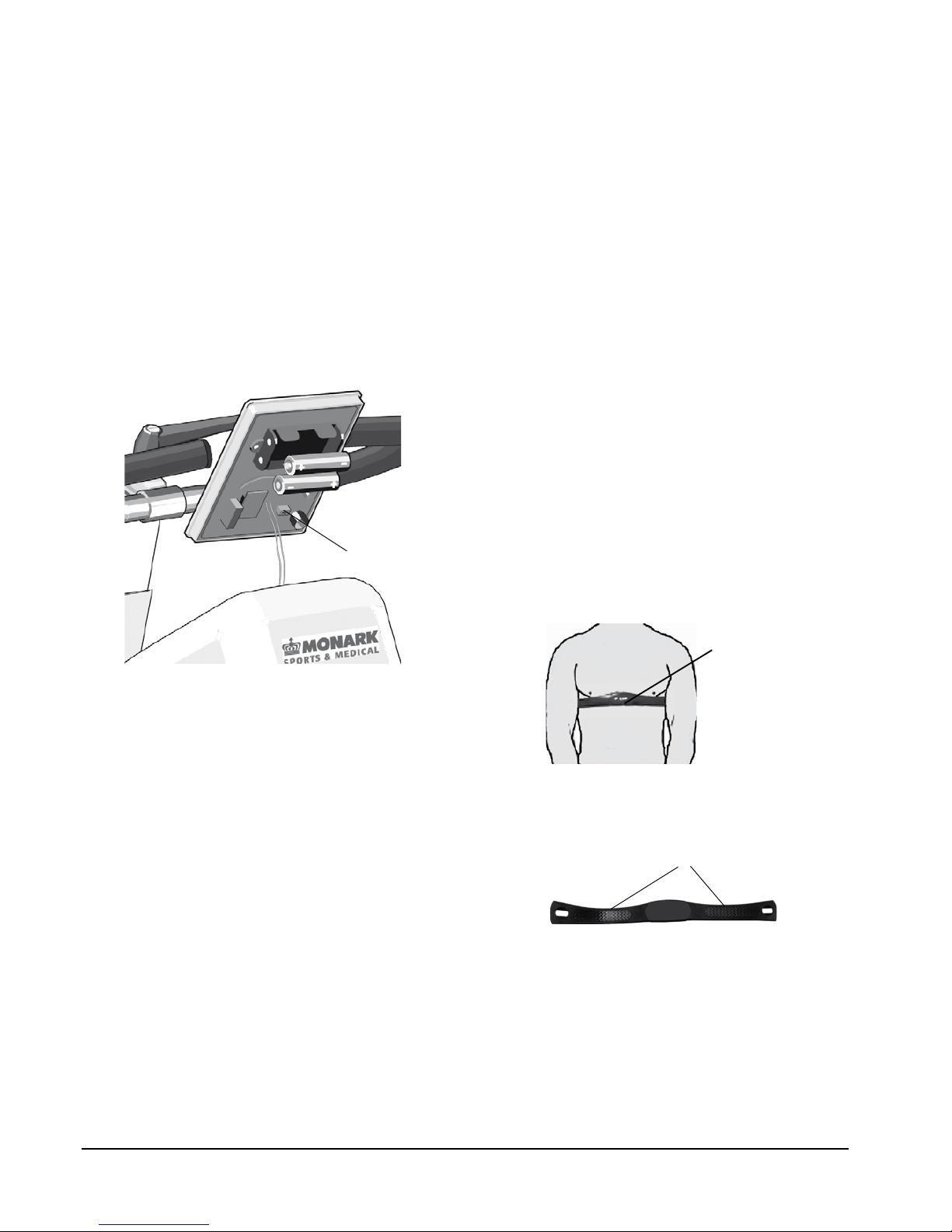

Fig: Placement of the chest belt

Fig: Electrodes on the back of the chest belt (1)

Calories

There have been different theories on how to calculate this, since it depends on several factors and this means that it can only be seen as an estimate.

As a standard calculation when we display calories on our calibrated bikes we use: 1 minute with 100W gives 7 kcal. It is easy to convert watts to calories if it was on the ﬂywheel, the formula is 1W=0,2388x10

-3

kcal/s with four decimals. But when you normally show calories you want to show the total amount of calories your body has used during your training, not only the calories "burnt" on the ﬂywheel.

We have chosen the formula given above that we think complies with the results given for a standard cycle position.

Km/Miles

Km and km/h is the default setting from the factory. If you want to make a setting in miles take the meter out of the panel. Turn off the meter by taking out one battery. On the back side is a switch(1) with two settings – 1 and ON. See Fig: Switch km/miles. 1 is equal to km and km/h and is the default setting. ON is equal to mile and mph. Choose position and install the battery again. Put the meter back again into the panel.

Do not expose the electronic meter to direct sunlight or extremely high temperature. Do not use any dissolvents when cleaning. Use only dry cloth.

2

3

4

1

5

6

7

8

9

10

Monark 894 E

10

Adjusting the brake cord/belt tension

1. Check at ﬁrst that the brake belt is lying correct on the ﬂywheel brake surface. See Fig: Brake cord and Brake device. If the weight basket is in its upper position, press the release button(1). The basket will fall down and increase the tension of the brake belt/ cord against the ﬂywheel. Put 9 kg in the weight basket(6). See Fig: Brake device. Rotate the ﬂywheel by hand. The basket shall now lift up so the distance to the ﬂywheel is at least 40 mm /1.6" and maximum 60 mm / 2.4". If this is not the case the brake belt has to be loosened or tightened at the tension centre (4). If the basket is too low, shorten the belt somewhat. If the basket is too high, lengthen the cord somewhat. Tighten the bracket again and check that the distance between the weight basket and ﬂywheel is between 40 and 60 mm when the ﬂywheel is rotated by hand.

2. Also check the brake cord tension with no load weight basket. Then check the distance between the pin on the tension center and the tip of the magnet arm, as shown in Fig: Brake device This distance should be between 5 and 10 mm (1/4" and 1/2").

NOTE! To receive correct workload it is important to place the weight basket according to the description above.

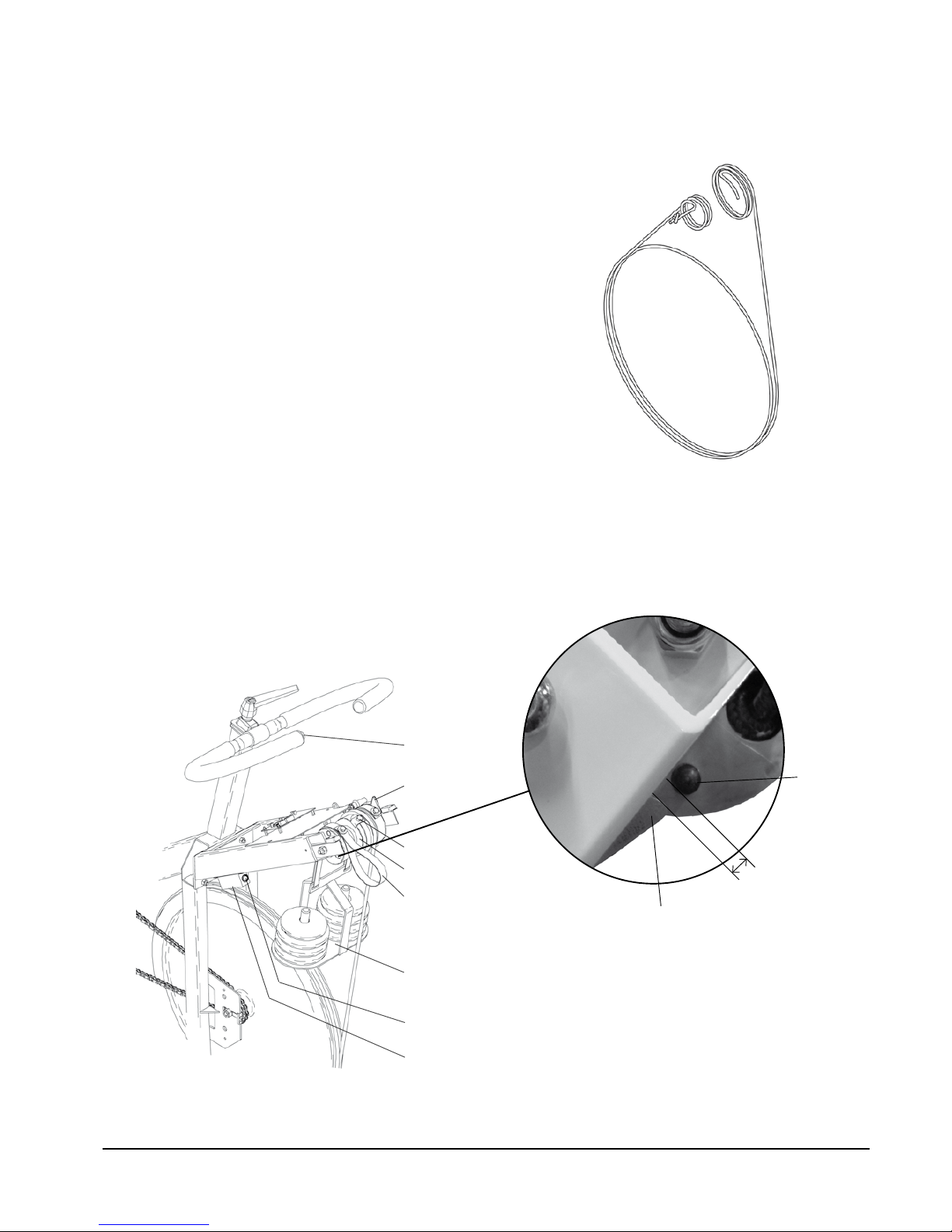

Fig: Brake cord

Fig: Brake device

1) Release button

2) Stop

3) Cord bracket

4) Tension center

5) Return strap

6) Weight basket

7) DC connector

8) PC serial port

9) Pin on tension center

10) Tip of the magnet arm

5-10 mm

Monark 894 E

11

Troubleshooting guide

Symptoms Probable Cause / Corrective Action

There is a click noise when pedalling (increases with the weight)

The pedals are not tight. Tighten them or change pedals. • The crank is loose. Check, tighten.• The base bearing is loose. Contact your dealer for service. •

Scratching sound is heard when pedalling. Check that the carriage block is taken off and that none of the covers is •

scratching.

There’s a click noise and a squeak noise when pedalling

Loosen the chain.•

The display is not working Check that the batteries are OK.• Time counting does not start. Check if the brake belt is to tight so the magnet will not pass the •

sensor. This will result in no signal from sensor. There is a video available of website www.monark.net which describe adjustment.

Bike would not start. Weight basket does not lock in upper position.

Power adaptor is not connected.• Main switch is not in ON position. Located on bikes right side •

underneath tension devise. The power jack is not functioning, the fuse is blown.• Incorrect type of power adaptor is used. A marking label should be •

found with the text ”Peak bike 894 E”. Power adaptor is broken and needs to be replaced.•

The yellow LED lamp will not light up when the weight basket is hoisted up (should light within 2-3 seconds after the basket been hoisted up).

Check that magnets on both side of tension device has not fallen off • and without damages.

Check so basket lock sensor and basket drop sensor is working • properly and also connected to correct ports on bikes circuit board. See Fig: Connections on circuit board.

Problems with the sensors Technical advice how to check sensors of magnetic type:

1. Unplug the sensor on bikes circuit board.

2. In the jack in the end of sensor cable measure with a summer or an ohm meter then angle the magnet in near of the sensor. A signal should be heard or value approx. 0 ohm displayed on ohm meter.

No heart rate Check the chestbelt (battery). Wet the thumbs and place them on the •

electrodes. A low clicking sound will appear near battery lid while you click on the electrodes with one thumb.

Check that the chest belt is positioned correctly on test person and • tight enough. Check that the electrodes are wet. In hard cases it is necessary to use a contact gel or a mixture of water with a few drops of washing-up liquid. The level for HR signal can vary from person to person. Put chest belt on another known person who has a good pulse reading.

Uneven heart rate Use an external unit, for example a HR watch, to check if it also •

indicates an irregular pulse. If this is the case, there is probably disturbance in the room. Magnetic ﬁelds from high voltage cables, elevators, ﬂuorescent tube etc. can cause the disturbance. Other electronic equipment could be placed too close. Move the bike to a different location in the room or change rooms. If an irregular HR remains it should be checked manually. If the HR remains irregular at work the person's health should be examined.

File

Settings

Search Connection

Monark 894 E

12

Symptoms Probable Cause / Corrective Action

Communication could not be established between the bike and the computer. No RPM visible in Monark software.

1. Data cable between the bike and the computer is not connected or it is damaged.

2. Incorrect type of data cable is used. Correct type 0-modem cable.

3. Start button in Monark software has not been activated.

4. Communication settings within the Monark software is not correct. Try to change COM-port. In the software’s menu click on –

Choose the suggested COM-port in the box to the right and conﬁrm by click OK.

5. The computer’s serial port is broken or its settings are incorrect. Contact your network administrator to check the computer and software installation. Alternative you could try to install Monark software on a different computer.

Technical accessory, COM-port tester (Art. No: 9394-525) can be used if you have problems with the communications between bike and PC. Procedure:

1. Connect the data cable between the COM-port tester and the bike.

2. Connect power adaptor and turn the main switch to ON.

3. The green LED on the COM-port tester should light up. This will indicate that the bike’s circuit board is powered on.

4. When the weight basket is hoisted up, the red LED on the tester ﬂash brieﬂy. The same thing will happen when the weight basket is dropped again.

5. When a person starts to pedal the bike the red LED on COM-port tester will ﬂash in the same tact as the RPM.

If all expected ﬂashes could be seen on the COM-port tester the bike can be consider being without malfunction.

The communication problems is probably caused by the PC where the PC program is installed. Its COM-port could be broken or has an incorrect driver. If that is the problem please contact your network administrator for control of program installations. Alternative you could try to install Monark software on a different computer. If a USB-Serial adapter used to connect the bike to a laptop, make sure the drivers are installed.

No RPM visible in Monark software 1. Start button in Monark software has not been activated.

2. Check that the sensor on ﬂywheel is working properly and that it is connected to the correct port on the bike’s circuit board.

See Fig: Connections on circuit board.

3. Check that the magnets on the ﬂywheel’s left side does not have fallen off. See Fig: Sensor and magnets on ﬂywheel.

1

2

Monark 894 E

13

Fig: Sensor and magnets on ywheel.

1) Sensor

2) Magnets (6 pcs.)

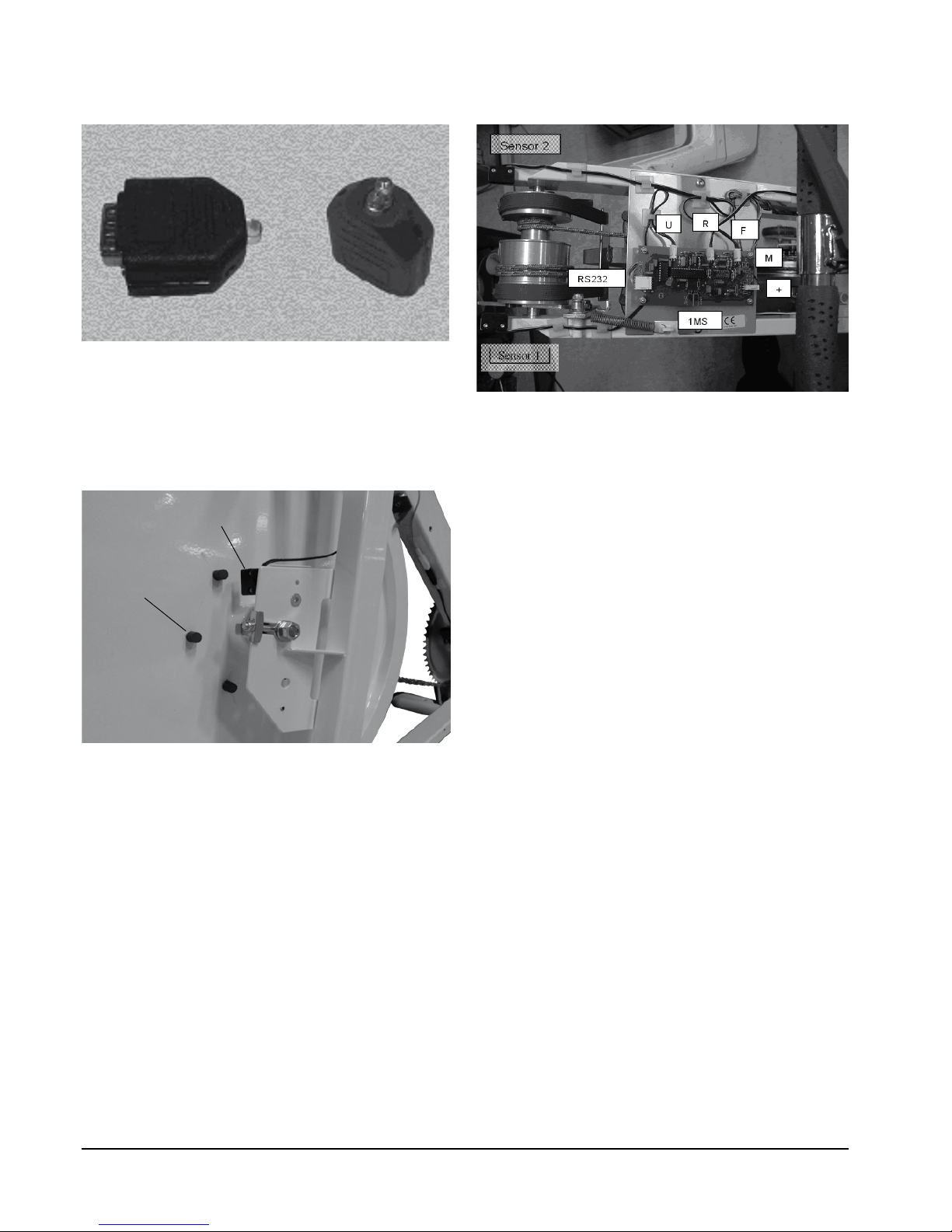

Fig: Connections on circuit board Connector U: Sensor 1 Connector F: Sensor 2

Connector R: Sensor on ywheel

Connector +: Power supply (red/black wire) Connector M: Magnet Connector RS232: Communication cables (5 pcs) Connector 1MS: Button on handlebar

Fig: COM-port tester

Service check and Maintenance

It is important to carry out a regular service on your ergometer, to ensure it is kept in good condition.

Service action:

We recommend isopropyl alcohol to disinfect the • surface of the bike. Use a damp but not wet cloth to clean the surface you wish to disinfect.

Always keep the bike clean and well lubricated • (once a week).

Periodically wipe the surface with a rust preventative, • especially when it has been cleaned and the surface is dry. This is done to protect the chrome and zinc parts as well as the painted parts (4 times per year).

Check now and then that both pedals are ﬁrmly • tightened. If not the threading in the pedal arms will be damaged. Also check that pedal arms are ﬁrmly tightened on the crank axle, tighten if necessary. When the Ergometer is new it is important to tighten the pedals after 5 hours of pedalling (4 times per year).

Check that the pedal crank is secure to the crank • axle (4 times per year).

Be sure that the pedals are moving smoothly, and • that the pedal axle is clear of dirt and ﬁbres (4 times per year).

When cleaning and lubricating be sure to check that • all screws and nuts are properly tightened (twice a year).

Check that the chain is snug and there is no play in • the pedal crank (twice a year).

Check that pedals, chain and freewheel sprocket are • lubricated (twice a year).

Be sure that the brake belt does not show signiﬁcant • signs of wear (twice a year).

Check that the handlebars and seat adjustment • screws are lubricated (2 times per year).

Be sure that all moving parts, crank and ﬂywheel • are working normally and that no abnormal play or sound exists. Play in bearings causes fast wearing and with that follows a highly reduced lifetime.

Check that the ﬂywheel is placed in the center and • with plane rotation.

Service

Monark 894 E

14

Batteries

If the meter is battery-operated, the batteries are in a separate package at delivery. If the storing time has been long the battery power can be too low to make the computer act correctly. Batteries must then be changed.

Flywheel bearing

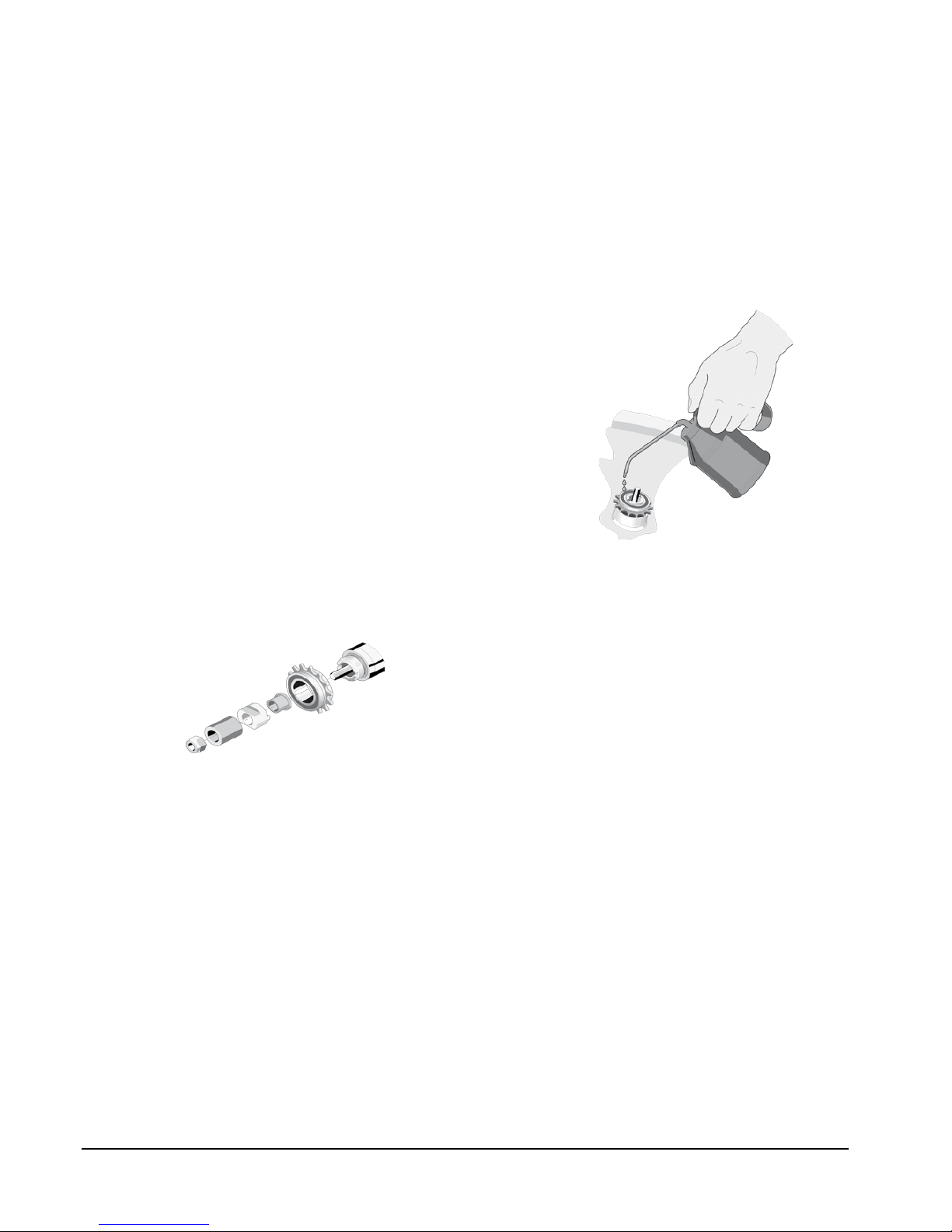

The ﬂywheel bearing is long-term greased and requires no supplementary lubrication. If a problem arises, please contact your Monark dealer.

Crank bearing

The crank bearing is greased and normally requires no supplementary lubrication. If a problem arises, please contact your Monark dealer.

Transportation

During transport the brake cord should be tightened to prevent it from falling off the ﬂywheel.

Replacement of brake belt

To replace the brake belt remove covers if necessary. Make sure that the belt is loose.

Alt. 1: To loosen the brake belt on pendulum bikes with engine, connect power to the unit and raise the pendulum to 4 kp. Hold it there until brake belt is loose. Please note how the belt is assembled. Remove it from the bike. Attach the new brake belt and assemble the bike in reverse order.

Alt. 2: To loosen the brake cord on cycles with a weight basket set the basket to its upper position. Loosen the lock washer that is holding the cord and remove it from the tension center. Loosen or cut off the knot on the other end of the cord and then remove the whole cord from the bike. When assembling a new brake cord, ﬁrst enter one end into the hole in the tension center, and tie a knot and let the knot fall into the bigger part of the hole. Lock the end of the cord with the lock washer.

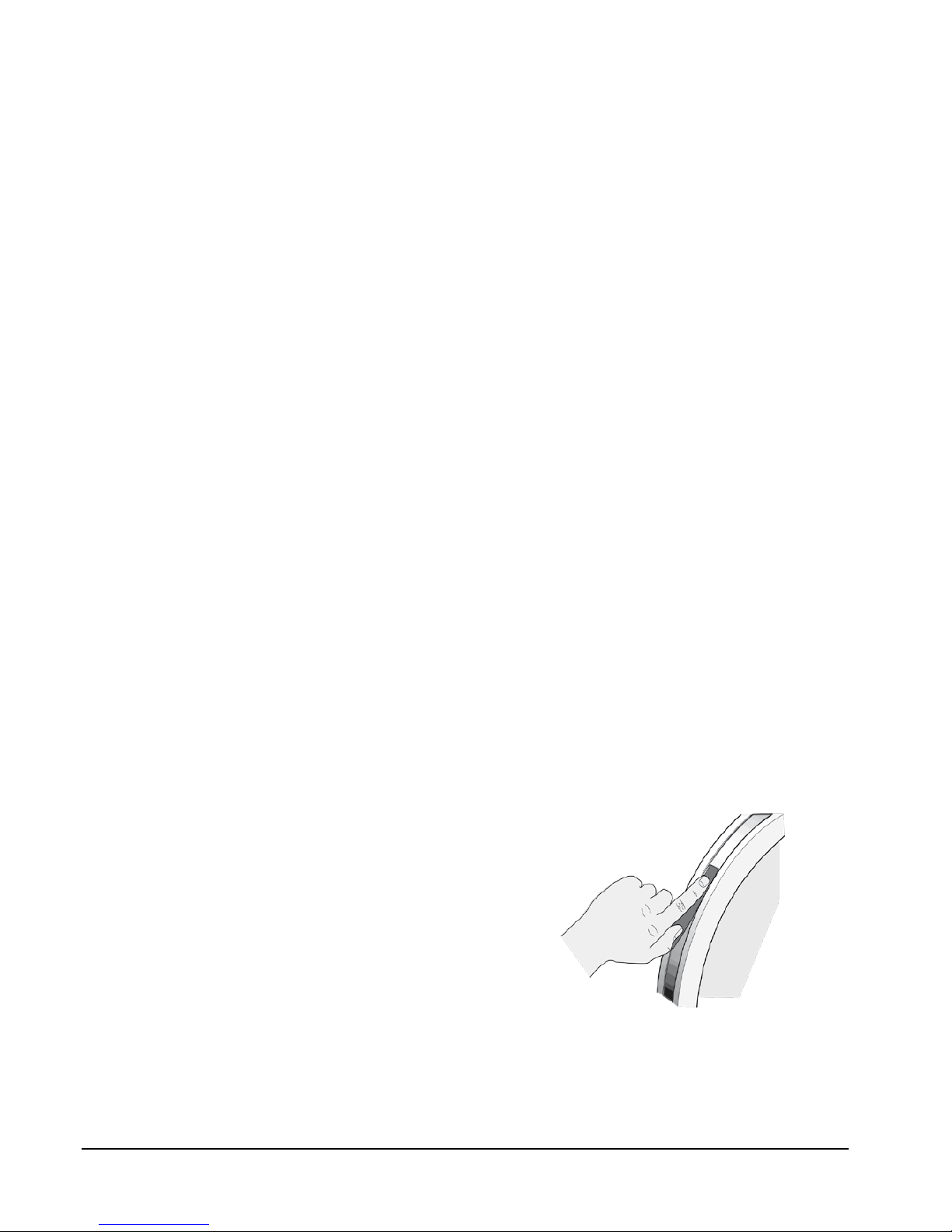

Brake belt contact surface

Deposits of dirt on the brake belt and on the contact surface may cause the unit to operate unevenly and will also wear down the brake belt. The contact surface of the ﬂywheel should be smoothed with ﬁne sandpaper and any dust removed with a clean dry cloth.

Remove any potential covers and all workload on the brake belt and then remove it. Grind with a ﬁne sand paper. Grinding is easier to perform if a second individual cautiously and carefully pedals the cycle.

Irregularities on the brake belt contact surface are removed by means of a ﬁne sand paper or an abrasive cloth. Otherwise unnecessary wear on the brake belt may occur and the unit can become noisy.

Always keep the brake belt contact surface clean and dry. No lubricant should be used. We recommend replacing the brake belt when cleaning the contact surface. In regard to assembly and adjustment of the brake belt, see ”Replacement of brake belt”.

Alt. 3: To loosen the brake belt on the bike remove all tension. Please note how the belt is assembled. Remove it from the bike. Attach the new brake belt and assemble the bike in reverse order.

NOTE! When replacing the brake belt it is recommended to clean the brake surface. See ”Brake belt contact surface”.

Monark 894 E

15

Fig: Brake belt contact surface

Chain 1/2“ x 1/8“

Check the lubrication and tension of the chain at regular intervals. In the middle of its free length the chain should have a minimum play (3) of 10 mm (1/4 inch). See Fig: Chain adjustments. When the play in the chain is about 20 mm (3/4 inch) the chain must be tightened. Otherwise it will cause abnormal wear of the chain and sprockets. Therefore it is always recommended to keep the chain play as small as possible. Loosen the hub nut(2) on both sides and tense the chain with the chain adjuster(1) when needed.

When the chain has become so long that it can no longer be tightened with the chain adjusters it is worn out and shall be replaced with a new one.

To adjust or replace the chain, remove covers if required.

To adjust the chain the hub nuts (2) should be loosened. Loosening or tightening the nuts on the chain adjusters (1) will then move the hub and axle forward or backward. Then tighten the nuts on the hub axle again. See Fig: Chain adjustments.

To replace the chain, loosen the chain adjusters as much as possible. Dismantle the chain lock (6) and remove the chain. Use a pair of tongs for dismantling spring. Put on a new chain and assemble the chain lock. The spring of the chain lock should be assembled with the closed end in the movement direction(5) of the chain. Use a pair of tongs for dismantling and assembling the spring (4). See Fig: Chain replacement.

NOTE! At assembly the ﬂywheel has to be parallell with the centerline of the frame. Otherwise the chain and sprockets make a lot of noise and wear out rapidly.

Then assemble the removed parts as above but in reverse order.

3

2

1

4

6

5

Monark 894 E

16

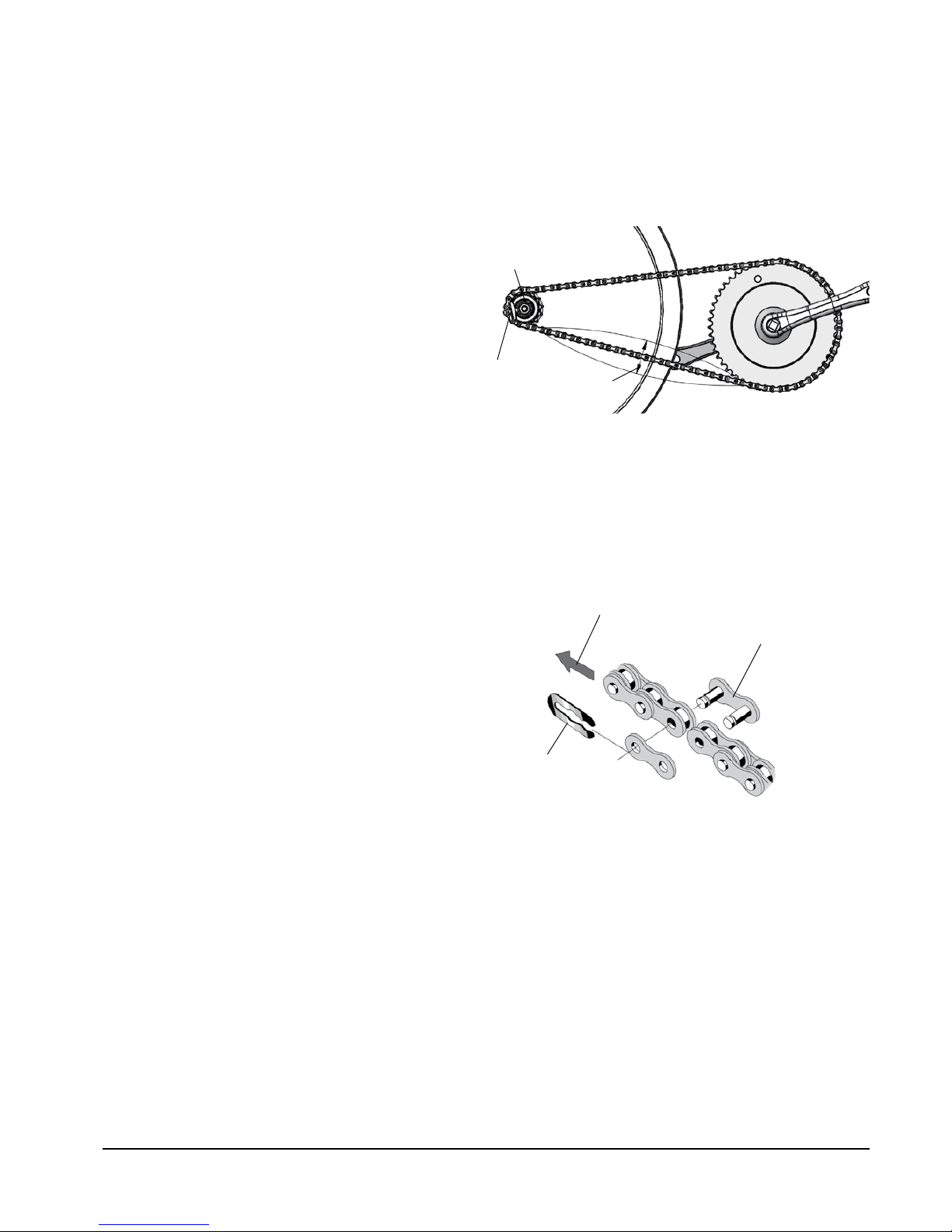

Fig: Chain replacement

4) Lock spring

5) Movement direction

6) Chain lock

Fig: Chain adjustments

1) Chain adjuster

2) Axle nut

3) Chain play

Freewheel sprocket

When replacing the freewheel sprocket remove frame covers if necessary. Remove the chain according to section ”Chain 1/2” x 1/8””.

Loosen the axle nuts and lift off the ﬂywheel. Remove the axle nut, washer, chain adjuster and spacer on the freewheel side. Replace sprocket-adaptor and assemble the new parts in reverse order according to the above.

NOTE! Do not tighten the axle nut completely. It must be possible to loosen the sprocket-adaptor half a turn.

The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle to make it easier for the oil to reach the bearing. See Fig: Lubrication.

Monark 894 E

17

Fig: Lubrication

Fig: Hub assembly

Monark 894 E

18

Spare parts list

From serial number: WBK 285390 H

Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description

1 1 9301-19 Support tube, front 30 1 9300-291 -Expander wedge

2 1 9301-14 Support tube, rear 31 1 9126-72 Handgrip, blue (pair)

3 4 9328-51 Plastic cap, blue 32 2 5675-9 Screw

4 6 9328-26 Rubber foot 33 1 9394-41 Instrument cover

5 1 9328-37 Transport wheel, (pair) compl. 34 1 9394-71 Frame cover, left

6 1 9394-13 Hoop 35 1 9384-45 Belt control

7 2 5843 Locking nut to hoop 36 1 9374-29 Weight holder

8 1 9300-55 Chain 1/2 x 1/8”, 116 l 37 1 9374-9 Frame for equipment

9 2 9300-12 Screw MVBF M8x16 mm 38 2 5843-9 Locking nut M6

10 4 5845 Locking nut M8 39 2 9302-28 Plastic cap, black

11 1 8321-75 Pedal (pair) 40 1 9374-60 Bracket

12 1 8323-2 -Pedal cleats, pair, VP 41 1 9301-5 Frame

13 2 8523-2 Dust cover 42 1 9300-3 Flywheel

14 2 8523-115 Screw M6S 8.8 M8 x 20 FZB 43 1 9300-24 Wheel suspension compl. set

15 1 9300-430 Steel crank set, complete 44 1 9000-12 -Chain adjuster (pair)

16 1 9326-164 Magnet 45 1 9106-13 -Sprocket

17 1 8966-175 BB cartridge bearing 46 1 9106-14 -Connection

1 9300-133 Locking knob, complete 47 3 19001-6 -Bearing 6001-2z

18 1 9300-122 -Locking knob 48 1 9300-18 -Axle

19 1 9300-134 -Pressure washer 49 1 9300-17 -Bush, 23 mm

20 1 9300-123 Top cover 50 1 5683 Screw

21 1 9300-115 Bushing f. saddle post 51 10 9306-12 Dust cover

22 1 9336-111 Saddle post complete 52 1 5673-9 Screw

23 1 9300-718 -Locking screw 53 1 5681 Screw

24 1 9300-716 Bushing f. saddle post 54 1 9394-70 Frame cover, right

25 1 9334-110 Saddle 55 3 5671-19 Screw

26 1 5466 -Saddle clamp 56 6 9374-16 Magnet

27 1 9300-293 Handlebar, complete with but-

ton

1 9339-98 Chest belt

28 1 9100-180 -Screw 1 9300-365 PC program

29 1 5866 -Washer 1 9338-20 USB- Serial converter

Monark 894 E

19

Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description

1 1 9326-162 Sensor 29 1 9374-12 Damper

2 1 9326-166 Holder for sensor 30 1 9324-26 Suspension belt

3 2 9326-59 Screw 31 1 5842-9 Nut

4 1 9326-263 Cable 32 1 5862 Washer

5 1 9374-9 Frame for equipment 33 4 9102-30 Weight 0.1 kg / 0.2 lb

6 1 9394-10 Electronic set 34 1 9102-27 Weight 0.5 kg / 1.1 lb

7 4 5675 Screw 35 8 9102-26 Weight 1 kg / 2.2 lb

8 4 9384-432 Spacer nut 36 1 9384-47 Brake belt

9 1 9394-431 Cover for electronic set 37 1 9384-33 Magnet arm

10 1 9374-172 Bracket 38 2 5673-9 Screw M5x12

11 1 9374-170 Digital meter 39 1 9384-37 Holder

12 1 5842-9 Locking nut 40 1 9384-34 Plate

13 2 9384-36 Spring 41 1 5680-9 Screw M5x12

14 1 5767-9 Nut 42 1 9384-32 Electro magnet

15 1 9384-3 Screw 43 1 9384-31 Magnet bracket

16 2 9127-37 Spacer 44 3 5673-9 Screw M5x12

17 2 19088-6 Bearing 45 1 5670 Screw

18 2 9374-37 Magnet 46 1 5842-9 Nut M5

19 2 5862 Washer 47 1 9374-240 Contact holder with cables

20 1 9374-171 Bracket 48 4 5675-9 Screw

21 1 9324-70 Self-locking cap with washer

5878

49 2 9103-41 Screw

22 3 14323 Screw 50 1 9326-169 Sensor with cable 620 mm

23 2 14379 Screw 51 1 14380 Screw

24 1 9374-21 Stop 52 1 5843-9 Locking nut

25 1 14374 Screw M8 160mm 53 1 9374-23 Holder for sensor

26 4 9103-41 Screw 54 1 9324-25 Weight basket

27 2 9326-270 Sensor with cable 390 mm 55 1 5844 Locking nut M8

28 2 9374-22 Holder for sensor 1 9384-650 Power adaptor

From serial number: WBK 285390 H

KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81

Version 1312

Art. No: 7950-312

Monark Ergomedi 894 E, 894 E User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
