Monark 874 E User Manual

Manual 874 E

Monark Exercise AB �� 4 Product Information �� 5

Facts �� 5 Serial number �� 5 PC software ��5

Operating Instruction �� 6

Workload adjustment �� 6 Power measurement �� 6 Cycle adjustments �� 6 Meter instructions �� 7 Calories �� 7 Adjusting the brake cord/belt tension �� 8 Heart rate �� 8

Troubleshooting guide �� 9 Service �� 10

Warning �� 10 Warranty ��10 Service check and Maintenance �� 10 Batteries �� 11 Flywheel bearing �� 11 Crank bearing �� 11 Transportation �� 11 Replacement of brake belt �� 11 Brake belt contact surface �� 11 Chain 1/2“ x 1/8“ ��12 Freewheel sprocket �� 13

Spare parts list �� 14

2013 MONARK EXERCISE AB, Vansbro, Sweden

Contents

Important

Read the manual carefully before using the cycle and save it for future use.

Monark 874 E

4

Monark Exercise AB

Monark has 100 years’ experience of bicycle production. The Monark tradition has yielded know-how, experience, and a real feel for the product and quality. Since the early 1900s, Monark’s cycles have been living proof of precision, reliability, strength and service. Those are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles.

We manufacture, develop and market ergometers and exercise bikes, transport bikes and specialized bicycles. Our largest customer groups are within health care, sports medicine, public authorities, industry and postal services.

For more information: http://www.monarkexercise.se

1

Monark 874 E

5

Product Information

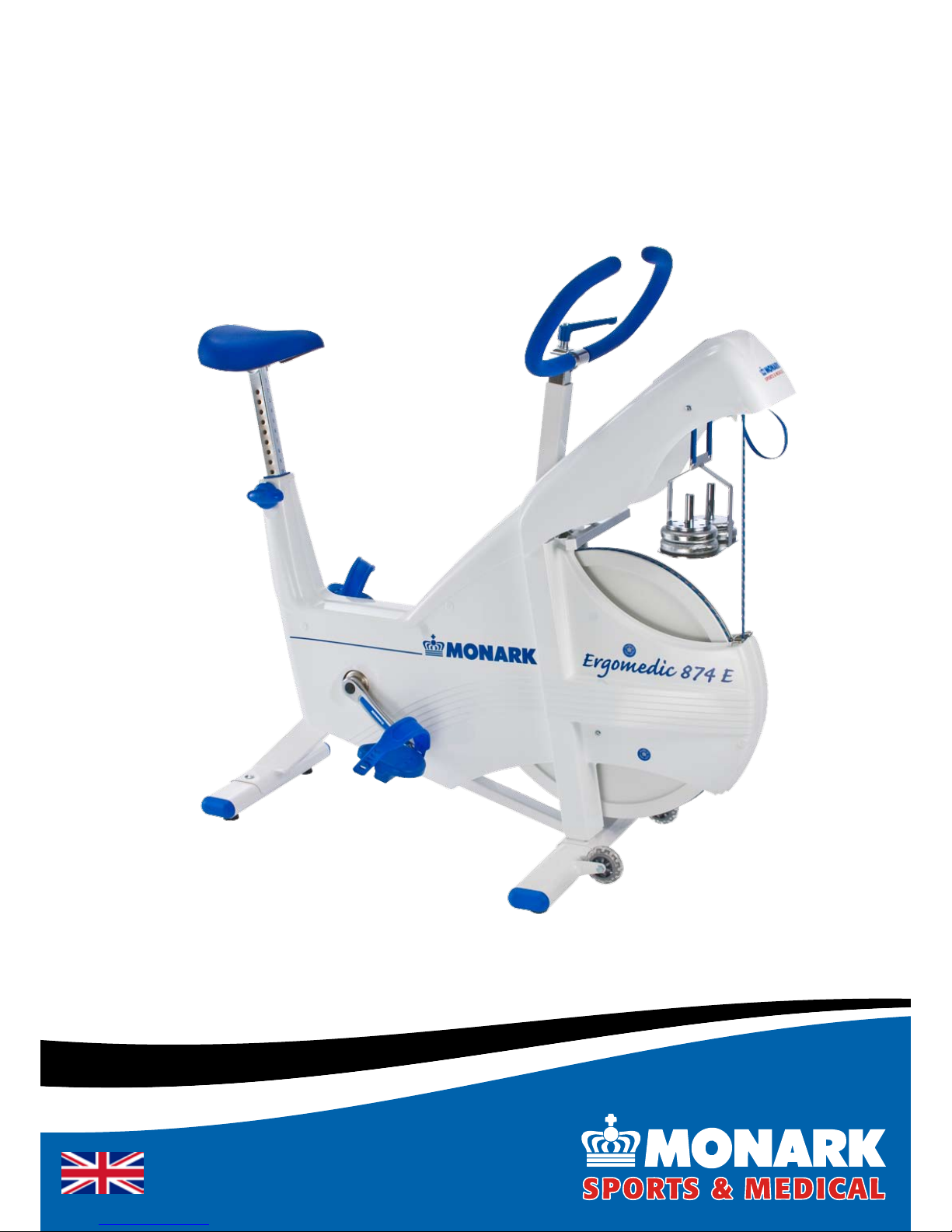

Congratulations on your new Ergometer!

Monark Ergometer model 874 E is a safe, easy-touse bike for ﬁtness testing and work tests. It has a brake system where the workload is determined by weights added in the weight basket. The patented weight basket system does not require calibration, the precision of the weights ensures that the workload is correct.

Facts

Large, well-balanced ﬂywheel 20 kg (44 lbs)• Adjustable saddle and handlebar• Stable frame, solid steel tube• Powder painted• Wheels for easy transport• Electronic meter with heart rate•

Width

517 mm (20 1/3”) at handlebar 640 mm (25”) at support tubes

Length

1120 mm (44")

Height

945-1295 mm (37-51”) at handlebar 780-1105 mm (31-43 ½”) at seat

Weight

57 kg / 125 2/3 lbs (without weights) Max user weight 250 kg (551 lbs)

Included

Chest belt• Weight kit consisting of: • 4 pcs. 0.1 kg (0.2 lbs) 1 pcs. 0.5 kg (1.1 lbs) 4 pcs. 1.0 kg (2.2 lbs)

Serial number

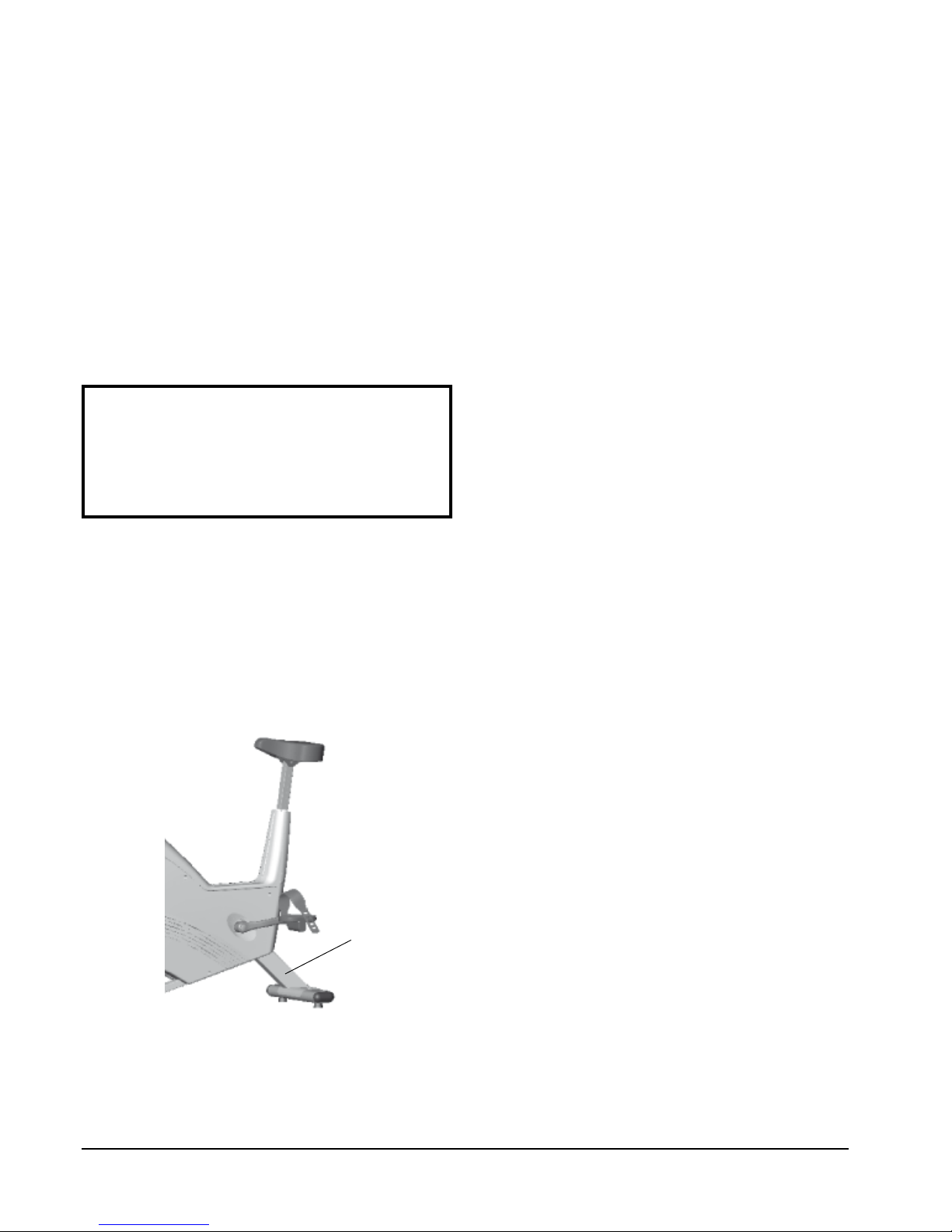

The serial number is placed according to Fig: Serial number.

Fig: Serial number (1)

NOTE! Use of the product may involve considerable physical stress. It is therefore recommended that people who are not accustomed to cardiovascular exercise or who do not feel completely healthy, should consult a physician for advice.

PC software

If you need a pc software to do exercise tests on the bike, our software is available for free download from our website: www.monarkexercise.se.

1

Monark 874 E

6

Operating Instruction

Workload adjustment

Through pedalling the test person supplies kinetic energy to the ﬂywheel. The ﬂywheel is then braked by means of a brake belt/cord which runs around the ﬂywheel. The workload is changed either by using other pedaling speed or by increasing or decreasing the tension of the brake belt/cord against the ﬂywheel by place weights in the weight basket. Weights are available in 1 kg / 2.2 lb, 0.5 kg / 1.1 lb and 0.1 kg / 0.2 lb. This makes it possible to vary the workload from 1 kp up to maximum 11 kp in steps of 0,1 kp. Braking power is expressed in kp where mass 1 kg /

2.2 lb gives the braking force 1 kp.

NOTE! 1 kg /2.2 lbs is the lowest work load that can be set as this is the weight of the basket itself. A weight basket that only weighs 0.5 kg /1.1lb is available as an option. See Fig: Workload adjustment.

Power measurement

The cycle is designed to measure the power on the ﬂywheel, because tests/protocols are made for it (for example Åstrand’s and YMCA).

Cycle adjustments

Seat height should be adjusted to a comfortable position. The appropriate height is to have the knee slightly bent when the sole of the foot is centred over the pedal axle with the pedal in the bottom position. To adjust the seat height loosen the lever (1) on the seat tube. See Fig: Adjustments.

The handlebar setting should be in a comfortable position when cycling. During longer exercise sessions it is recommended to occasionally change handlebar position. To adjust the handlebar, loosen the quick release lever (2). See Fig: Adjustments.

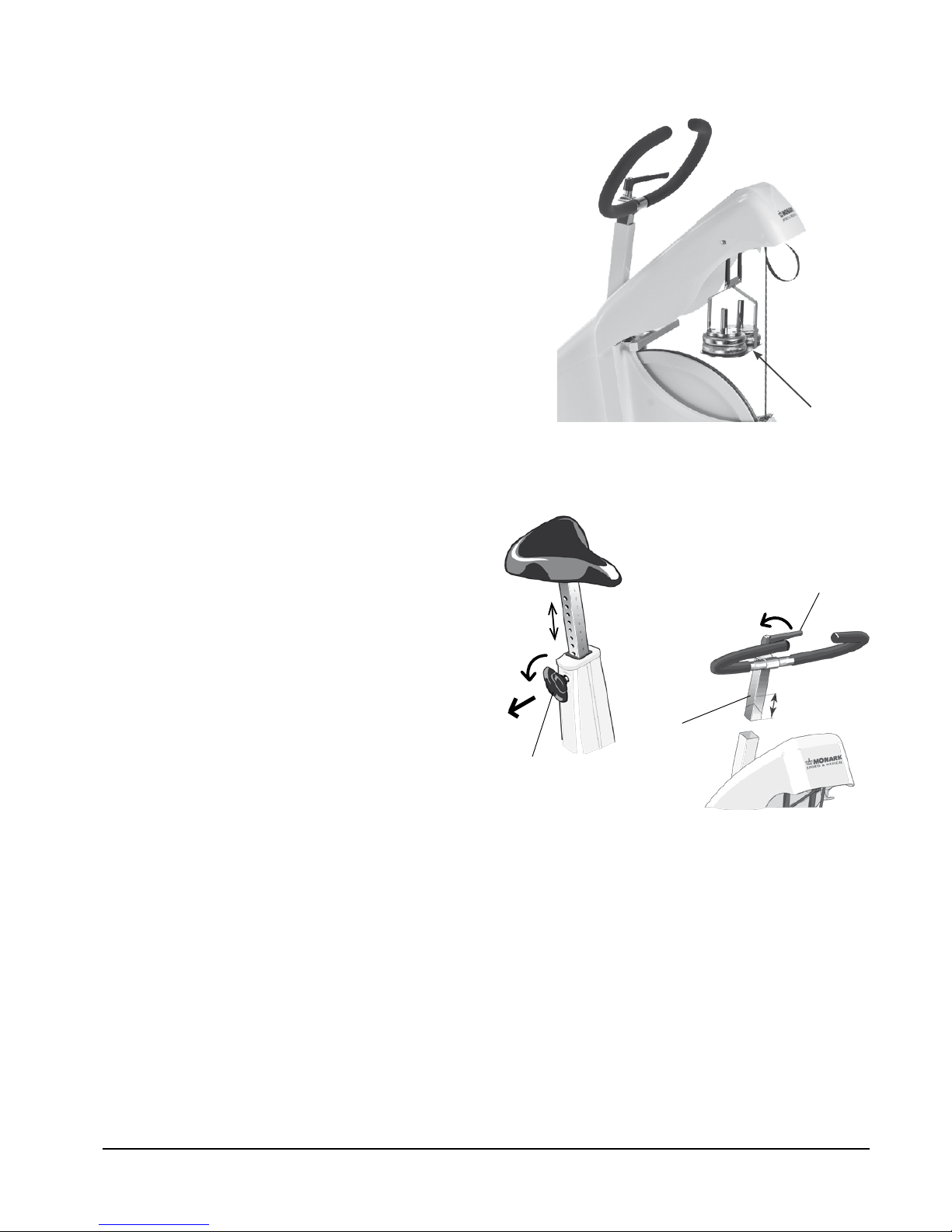

Fig: Workload adjustment

1) Weight basket with weights

Fig: Adjustments

1) Locking knob, saddle

2) Locking handle, handlebar

3) Inserted min. 3”

2

3

min. 8 cm (3”)

NOTE! The handlebar stem should be inserted into the frame tube at least 3 inches (about 8 cm). This measure is marked with “MAX” on the stem (3).

Monark 874 E

7

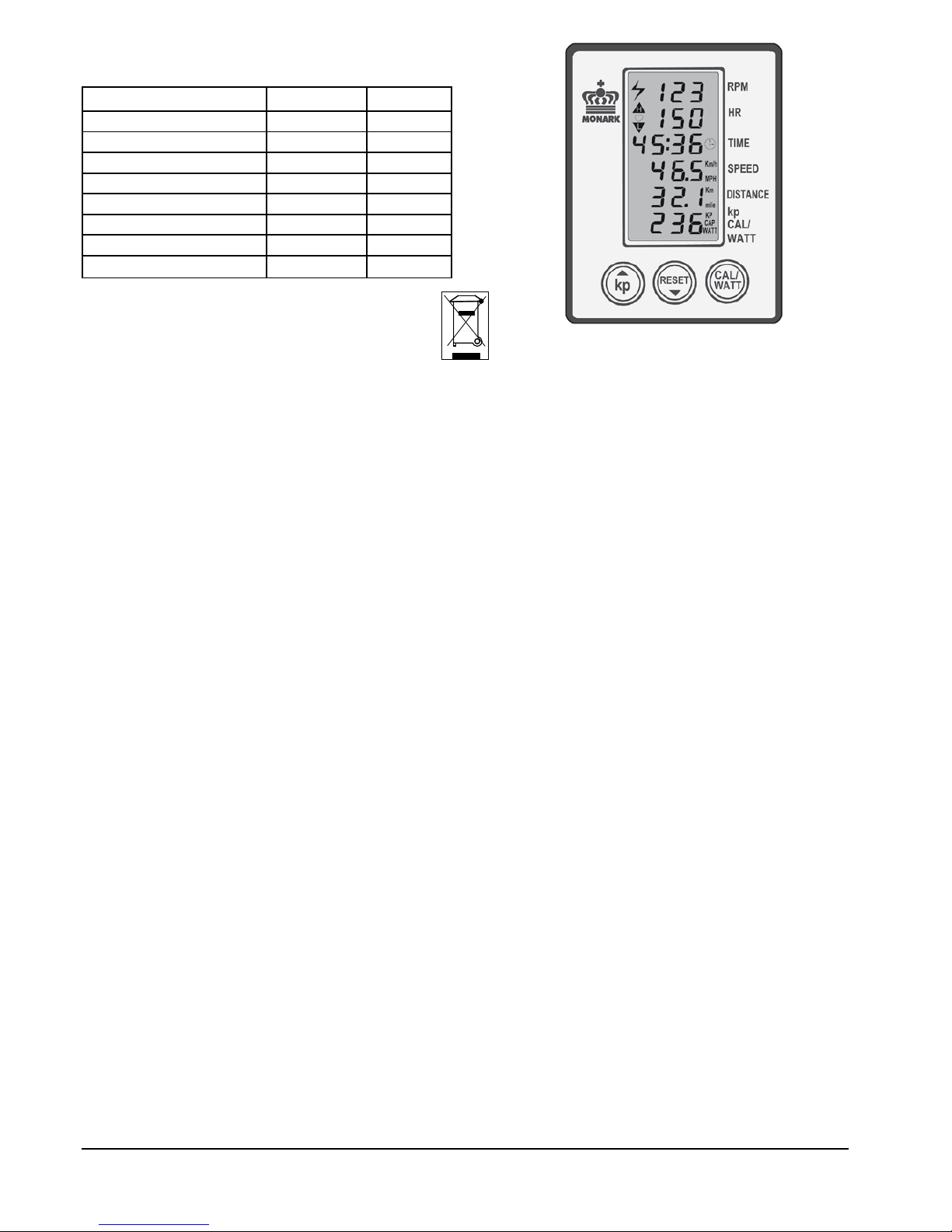

Meter instructions

The ergometer is equipped with a Fitness computer showing pedal revolutions per minute (RPM), heart rate in bpm (HR), exercise time in minutes and seconds (TIME), cycling speed in km per hour or miles per hour (SPEED), covered distance in km or mile (DISTANCE). Furthermore the workload (kp = weight basket + weights in kg) can be set which gives a reading of burned calories (CAL) as well as power (WATT) on the computer display. The energy is usually expressed in kJ (kilojoule) or cal (kilocalories, kcal). One kcal is approx. 4,2 kJ. The power is depending on the pedalling speed which makes it possible to adjust the workload/power by increasing or decreasing the pedalling speed.

Press any key or move the pedal gives a signal to the meter that activates all functions.

At the display for heart rate (HR) a heart symbol is lit which means that the meter is trying to ﬁnd a pulse signal from an external source, chestbelt with electrodes, If the meter cannot ﬁnd such a signal the HR function is automatically turned off after 30 seconds. When the function is turned off the heart symbol is not lit any more. The heart rate function can be turned on again by pressing a key.

The timer starts automatically when pedals are moved. Meter values for Time, Distance and Calories can be set to zero by pressing the RESET button for more than two seconds.

To get correct readings for calories and watts the kp value on the electronic meter has to be set to the same value as the workload that is the weight of the basket including the weights in it. The rubber plates are included in the calibrated weight of the 1 kg weight basket.

Display

Pedal revolution (RPM) 0-250 rev./min.

HR 50-240 bpm

TIME 0:00-99:59 min:sec

SPEED 0-99 km/h

DISTANCE 0.0-99.9 km

FORCE 0.0-7.0 kp

Calories (CAL) 0-999 kcal

WATT 0 - 7 x rpm watt

Batteries: 1.5 V x 2, R6 (AA) Storing temperature: -10º C - +60º C Operating temperature: 0º C - +50º C

Example: The workload is 3 kg (weight basket 0,1 kg + 2 x 1kg weight). Press the kp key to the left on the meter. The lower display window is now ﬂashing and showing ﬁgures in kp. Increase or decrease in steps of 0.1 kp by pressing the kp button (arrow up) or the RESET button (arrow down) until the reading is corresponding with the actual or desired kp values (workload) from the weight basket. After that press the CAL/WATT button to either show the CAL or WATT ﬁgures. After that press the CAL/WATT button to either show the CAL or WATT ﬁgures. The watt reading in the display is depending on the pedalling speed. The watts can accordingly be adjusted by increasing or decreasing the pedalling speed. Calories are calculated all the time.

Do not expose the meter to direct sunlight or extremely high temperature. Do not use any dissolvents when cleaning. Use only dry cloth.

Calories

There have been different theories on how to calculate this, since it depends on several factors and this means that it can only be seen as an estimate.

We have chosen the following formula that we think complies with the results given for a standard cycle position.

As a standard calculation when we display calories on our calibrated bikes we use: 1 minute with 100W gives 7 kcal.

It is easy to convert watts to calories if it was on the ﬂywheel (the formula is 1W=0,2388x10

-3

kcal/s with four decimals), but when you normally show calories you want to show the total amount of calories your body has used during your training, not only the calories "burnt" on the ﬂywheel.

1

2

3

4

MONARK

1

Monark 874 E

8

Adjusting the brake cord/belt tension

Check at ﬁrst that the brake belt is lying correctly on the ﬂywheel brake surface. See Fig: Brake cord and

Brake device. Put 4 kg in the weight basket (4), see Fig: Brake device. Rotate the ﬂywheel by hand. The

basket shall now lift up so the distance to the ﬂywheel is at least 40 mm and maximum 60 mm. If this is not the case the brake belt has to be loosened or tightened a little at the tension center. If this is not the case the brake belt has to be loosened or tightened a little at the tension centre.

Loosen the cord bracket (2) somewhat so that the cord length can be adjusted. If the basket is too low, shorten the belt somewhat. If the basket is too high, lengthen the cord somewhat. Turn the tension center (3) approximately 45 degrees and after that tighten the bracket again. Tighten the bracket again and check that the distance between the weight basket and ﬂywheel is between 40 and 60 mm when the ﬂywheel is rotated by hand.

To give the correct workload, the basket in principle can hang anywhere between the ﬂywheel and the tension center frame bracket. Note however that the tension center's stops must not go against its upper or lower stop position with any part. If so, the self-adjustment system is not working and correct workload can not be obtained.

NOTE! To receive correct workload it is important to place the weight basket according to the description above. If the basket hangs too low it may touch the ﬂywheel. If the basket is too high, wrong workload may obtains.

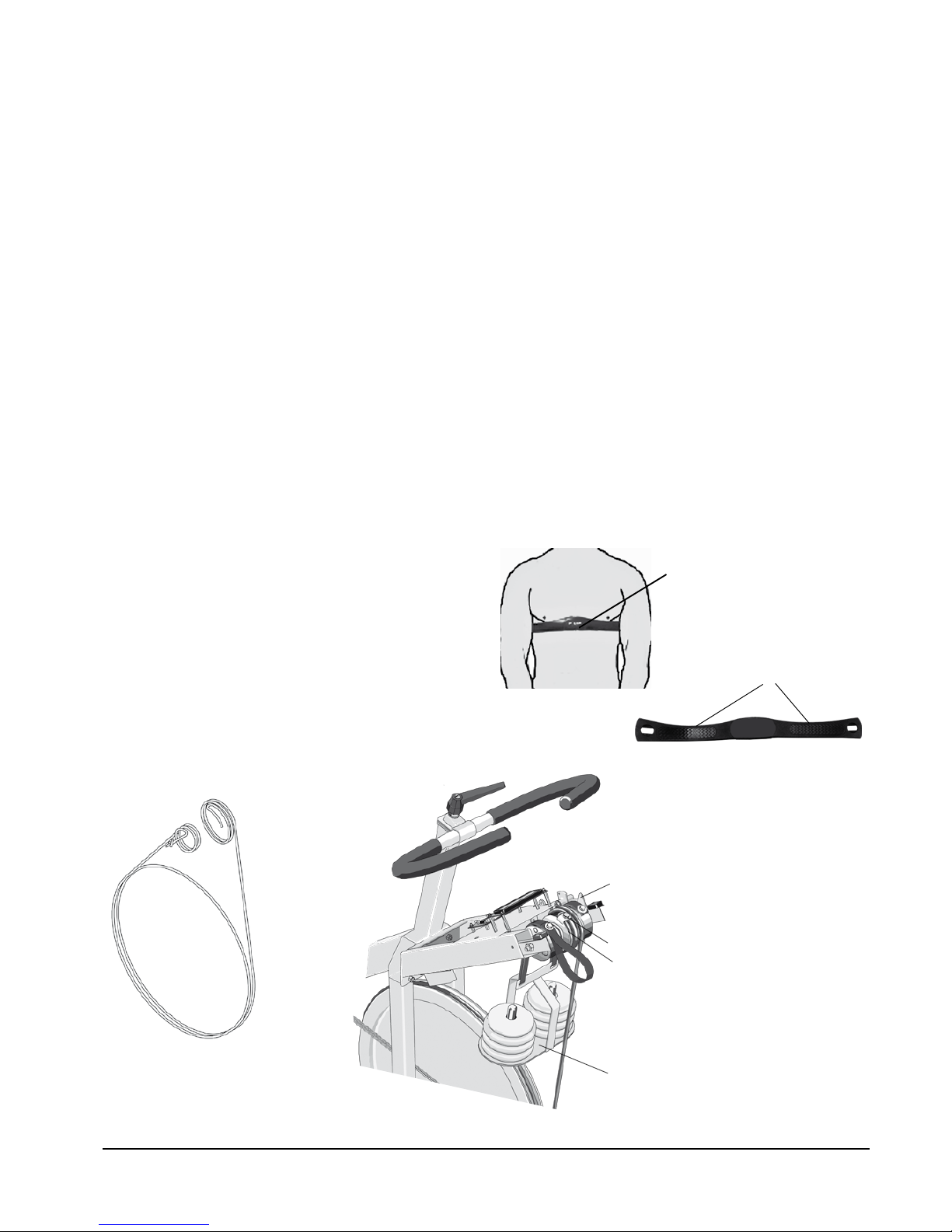

Fig: Brake cord

Fig: Brake device

1) Stop

2) Cord bracket

3) Tension center

4) Weight basket

Heart rate

A person's heart rate can be measured with a chest belt that senses the electronic output of the heart. The chest belt is standard equipment.

Fuss-free HR measurement requires that the belt is correctly placed. When it is correctly ﬁtted the logo on the belt will be central and readable, outward and upright, by another person. Before putting on the belt, clean the skin where the belt is to be placed. The chest belt should be secured at a comfortable tension around the mid section, just below the breast muscle, see Fig: Placement of the chest belt. Moisten the electrodes before use, see Fig: Electrodes on the back of the chest belt. To make contact with the HR receiver on the bike, the distance should not be more than 100 cm. It is especially important when ﬁrst used to identify the chest belt with the sensor, by standing close to get the HR (maximum 60 cm).

NOTE! Electromagnetic waves can interfere with the telemetry system. Cellular phones are not allowed to be used near the bike during test.

Fig: Placement of the chest belt

Fig: Electrodes on the back of the chest belt (1)

Monark 874 E

9

Troubleshooting guide

Symptoms Probable Cause / Corrective Action

The display is not working Check that the batteries are OK.• No heart rate Wet the thumbs and place them on the electrodes. A low clicking sound •

will appear near battery lid while you click on the electrodes with one thumb. Check that the chest belt is positioned correctly on test person and tight • enough. Check that the electrodes are wet, in difﬁcult cases it is necessary to use a contact gel or a mixture of water with a few drops of washingup liquid. The level for HR signal can vary from person to person. Put chest belt on another known person who has a good pulse rendering.

Uneven heart rate Use an external unit, for example a HR watch, to check if it also indicates •

an irregular pulse. If this is the case, there is probably disturbance in the room. Magnetic ﬁelds from high voltage cables, elevators, ﬂuorescent tube etc. can cause the disturbance. Other electronic equipment could be placed too close. Move the bike to a different location in the room or change rooms. If an irregular HR remains it should be checked manually. If the HR remains irregular at work the person's health should be examined.

There is a click noise when pedalling (increases with the weight)

The pedals are not tight. Tighten them or change pedals. • The crank is loose. Check, tighten.• The base bearing is loose. Contact your dealer for service.•

Scratching sound is heard when pedalling Check that the carriage block is taken off and that none of the covers is •

scratching.

There is a click noise and a squeak noise when pedalling

Loosen the chain.•

Any problems with the computer software

Send an email to the software developer HUR labs support: •

software@hur.ﬁ

Service check and Maintenance

It is important to carry out a regular service on your ergometer, to ensure it is kept in good condition.

Service action:

We recommend isopropyl alcohol to disinfect the • surface of the bike. Use a damp but not wet cloth to clean the surface you wish to disinfect.

Always keep the bike clean and well lubricated • (once a week).

Periodically wipe the surface with a rust preventative, • especially when it has been cleaned and the surface is dry. This is done to protect the chrome and zinc parts as well as the painted parts (4 times per year).

Check now and then that both pedals are ﬁrmly • tightened. If not the threading in the pedal arms will be damaged. Also check that pedal arms are ﬁrmly tightened on the crank axle, tighten if necessary. When the Ergometer is new it is important to tighten the pedals after 5 hours of pedalling (4 times per year).

Check that the pedal crank is secure to the crank • axle (4 times per year).

Be sure that the pedals are moving smoothly, and • that the pedal axle is clear of dirt and ﬁbres (4 times per year).

When cleaning and lubricating be sure to check that • all screws and nuts are properly tightened (twice a year).

Check that the chain is snug and there is no play in • the pedal crank (twice a year).

Check that pedals, chain and freewheel sprocket are • lubricated (twice a year).

Be sure that the brake belt does not show signiﬁcant • signs of wear (twice a year).

Check that the handlebars and seat adjustment • screws are lubricated (2 times per year).

Be sure that all moving parts, crank and ﬂywheel • are working normally and that no abnormal play or sound exists. Play in bearings causes fast wearing and with that follows a highly reduced lifetime.

Check that the ﬂywheel is placed in the center and • with plane rotation.

Service

Warranty

EU countries - Private use

If you are a consumer living in the EU you will have a minimum level of protection against defects in accordance with EC Directive 1999/44/EC. In short, the directive states that your Monark dealer will be liable for any defects, which existed at the time of delivery. In case of defects, you will be entitled to have the defect remedied within a reasonable time, free of charge, by repair or replacement.

EU countries - Professional use

Monark Exercise products and parts are guaranteed against defects in materials and workmanship for a period of one year from the initial date of purchase of the unit. In the event of a defect in material or workmanship during that period, Monark Exercise will repair or replace the product. Monark Exercise will not, however, refund costs for labour or shipping.

Other countries

Monark Exercise products and parts are guaranteed against defects in materials and workmanship for a period of one year from the initial date of purchase of the unit. In the event of a defect in material or workmanship during that period above, Monark Exercise will repair or replace (at its option) the product. Monark Exercise will not, however, refund costs for labour or shipping.

Warning

Make sure the voltage indicated on the appliance corresponds to the local mains voltage before making connections.

Note that the text about service and maintenance is universal and that all parts may not be relevant to your bike.

Monark 874 E

10

Batteries

If the meter is battery-operated, the batteries are in a separate package at delivery. If the storing time has been long the battery power can be too low to make the computer act correctly. Batteries must then be changed.

Flywheel bearing

The ﬂywheel bearing is long-term greased and requires no supplementary lubrication. If a problem arises, please contact your Monark dealer.

Crank bearing

The crank bearing is greased and normally requires no supplementary lubrication. If a problem arises, please contact your Monark dealer.

Transportation

During transport the brake cord should be tightened to prevent it from falling off the ﬂywheel.

Replacement of brake belt

To replace the brake belt remove covers if necessary. Make sure that the belt is loose.

Alt. 1: To loosen the brake belt on pendulum bikes with engine, connect power to the unit and raise the pendulum to 4 kp. Hold it there until brake belt is loose. Please note how the belt is assembled. Remove it from the bike. Attach the new brake belt and assemble the bike in reverse order.

Alt. 2: To loosen the brake cord on cycles with a weight basket set the basket to its upper position. Loosen the lock washer that is holding the cord and remove it from the tension center. Loosen or cut off the knot on the other end of the cord and then remove the whole cord from the bike. When assembling a new brake cord, ﬁrst enter one end into the hole in the tension center, and tie a knot and let the knot fall into the bigger part of the hole. Lock the end of the cord with the lock washer.

Brake belt contact surface

Deposits of dirt on the brake belt and on the contact surface may cause the unit to operate unevenly and will also wear down the brake belt. The contact surface of the ﬂywheel should be smoothed with ﬁne sandpaper and any dust removed with a clean dry cloth.

Remove any potential covers and all workload on the brake belt and then remove it. Grind with a ﬁne sand paper. Grinding is easier to perform if a second individual cautiously and carefully pedals the cycle.

Irregularities on the brake belt contact surface are removed by means of a ﬁne sand paper or an abrasive cloth. Otherwise unnecessary wear on the brake belt may occur and the unit can become noisy.

Always keep the brake belt contact surface clean and dry. No lubricant should be used. We recommend replacing the brake belt when cleaning the contact surface. In regard to assembly and adjustment of the brake belt, see ”Replacement of brake belt”.

Alt. 3: To loosen the brake belt on the bike remove all tension. Please note how the belt is assembled. Remove it from the bike. Attach the new brake belt and assemble the bike in reverse order.

NOTE! When replacing the brake belt it is recommended to clean the brake surface. See ”Brake belt contact surface”.

Monark 874 E

11

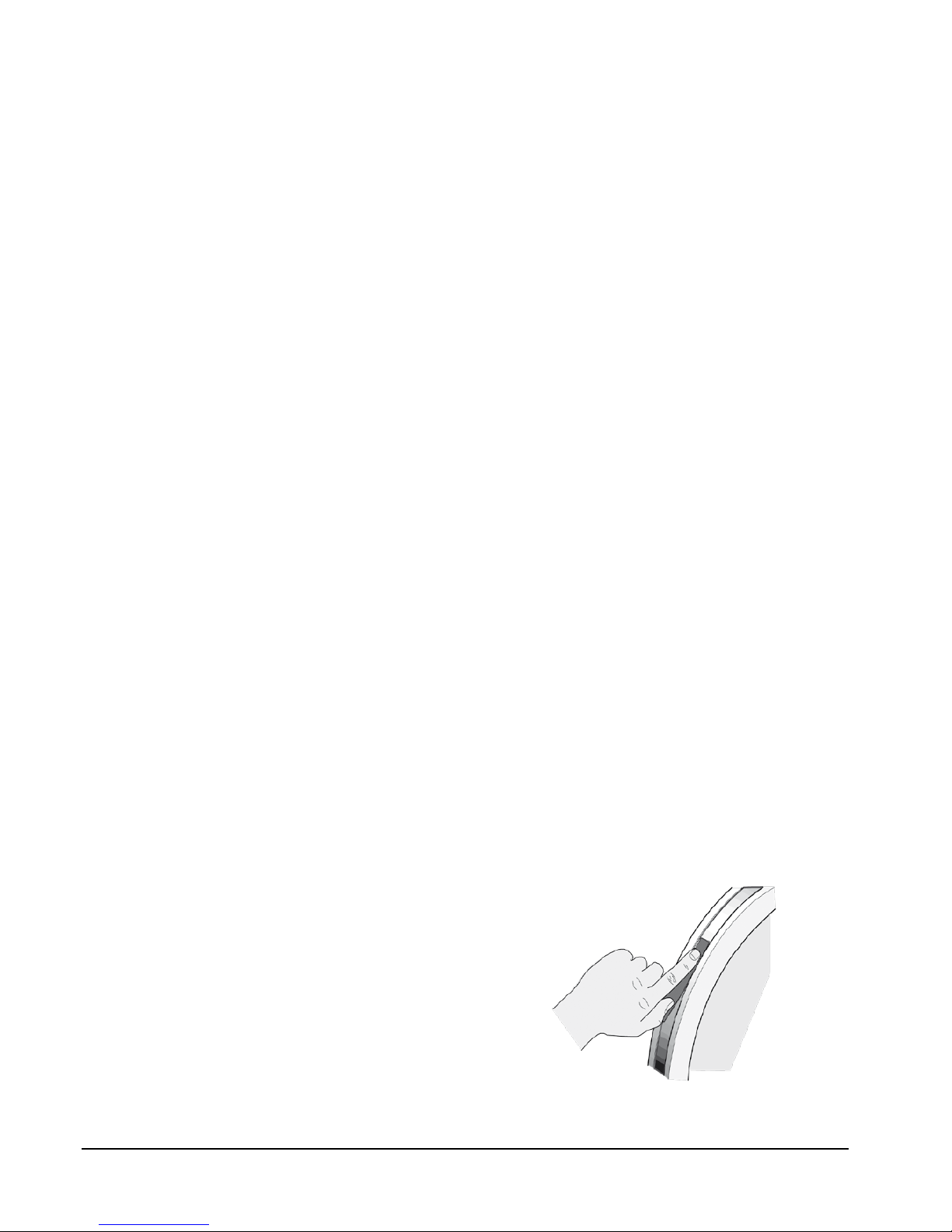

Fig: Brake belt contact surface

Chain 1/2“ x 1/8“

Check the lubrication and tension of the chain at regular intervals. In the middle of its free length the chain should have a minimum play (3) of 10 mm (1/4 inch). See Fig: Chain adjustments. When the play in the chain is about 20 mm (3/4 inch) the chain must be tightened. Otherwise it will cause abnormal wear of the chain and sprockets. Therefore it is always recommended to keep the chain play as small as possible. Loosen the hub nut (2) on both sides and tense the chain with the chain adjuster (1) when needed.

When the chain has become so long that it can no longer be tightened with the chain adjusters it is worn out and shall be replaced with a new one.

To adjust or replace the chain, remove covers if required.

To adjust the chain the hub nuts (2) should be loosened. Loosening or tightening the nuts on the chain adjusters (1) will then move the hub and axle forward or backward. Then tighten the nuts on the hub axle again. See Fig: Chain adjustments.

To replace the chain, loosen the chain adjusters as much as possible. Dismantle the chain lock (6) and remove the chain. Use a pair of tongs for dismantling spring. Put on a new chain and assemble the chain lock. The spring of the chain lock should be assembled with the closed end in the movement direction(5) of the chain. Use a pair of tongs for dismantling and assembling the spring (4). See Fig: Chain replacement.

NOTE! At assembly the ﬂywheel has to be parallell with the centerline of the frame. Otherwise the chain and sprockets make a lot of noise and wear out rapidly.

Then assemble the removed parts as above but in reverse order.

3

2

1

4

6

5

Monark 874 E

12

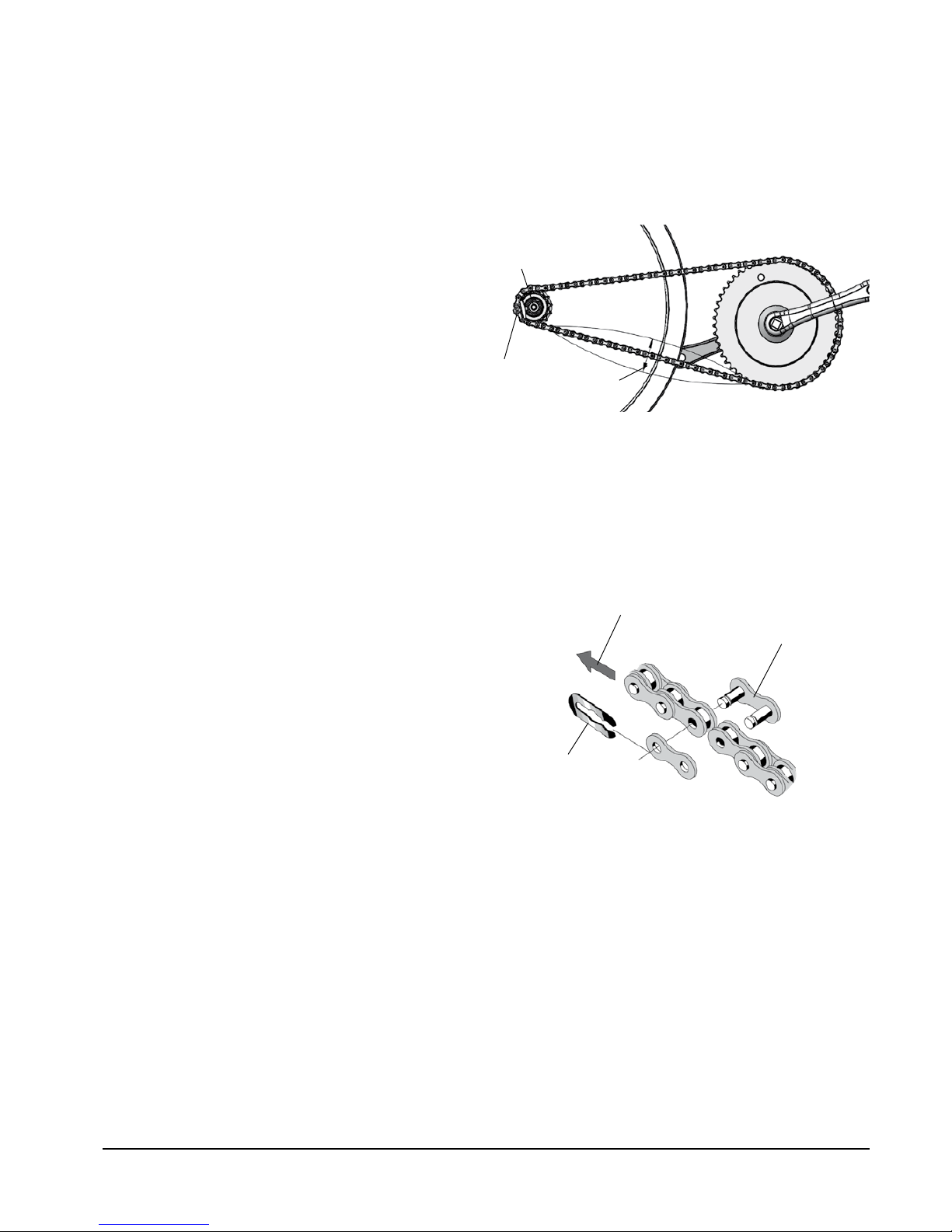

Fig: Chain replacement

4) Lock spring

5) Movement direction

6) Chain lock

Fig: Chain adjustments

1) Chain adjuster

2) Axle nut

3) Chain play

Freewheel sprocket

When replacing the freewheel sprocket remove frame covers if necessary. Remove the chain according to section ”Chain 1/2” x 1/8””.

Loosen the axle nuts and lift off the ﬂywheel. Remove the axle nut, washer, chain adjuster and spacer on the freewheel side. Replace sprocket-adaptor and assemble the new parts in reverse order according to the above.

NOTE! Do not tighten the axle nut completely. It must be possible to loosen the sprocket-adaptor half a turn.

The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle to make it easier for the oil to reach the bearing. See Fig: Lubrication.

Monark 874 E

13

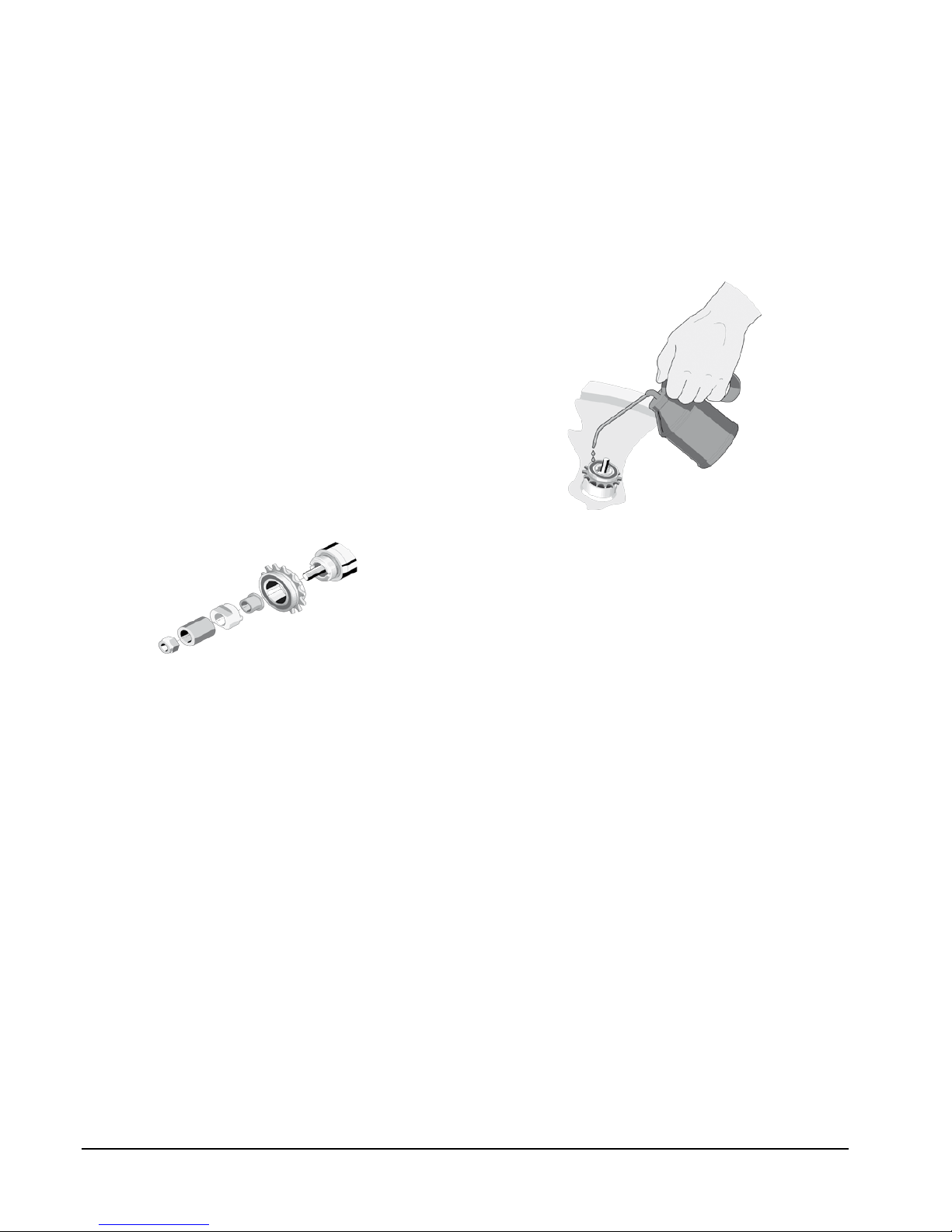

Fig: Lubrication

Fig: Hub assembly

Monark 874 E

14

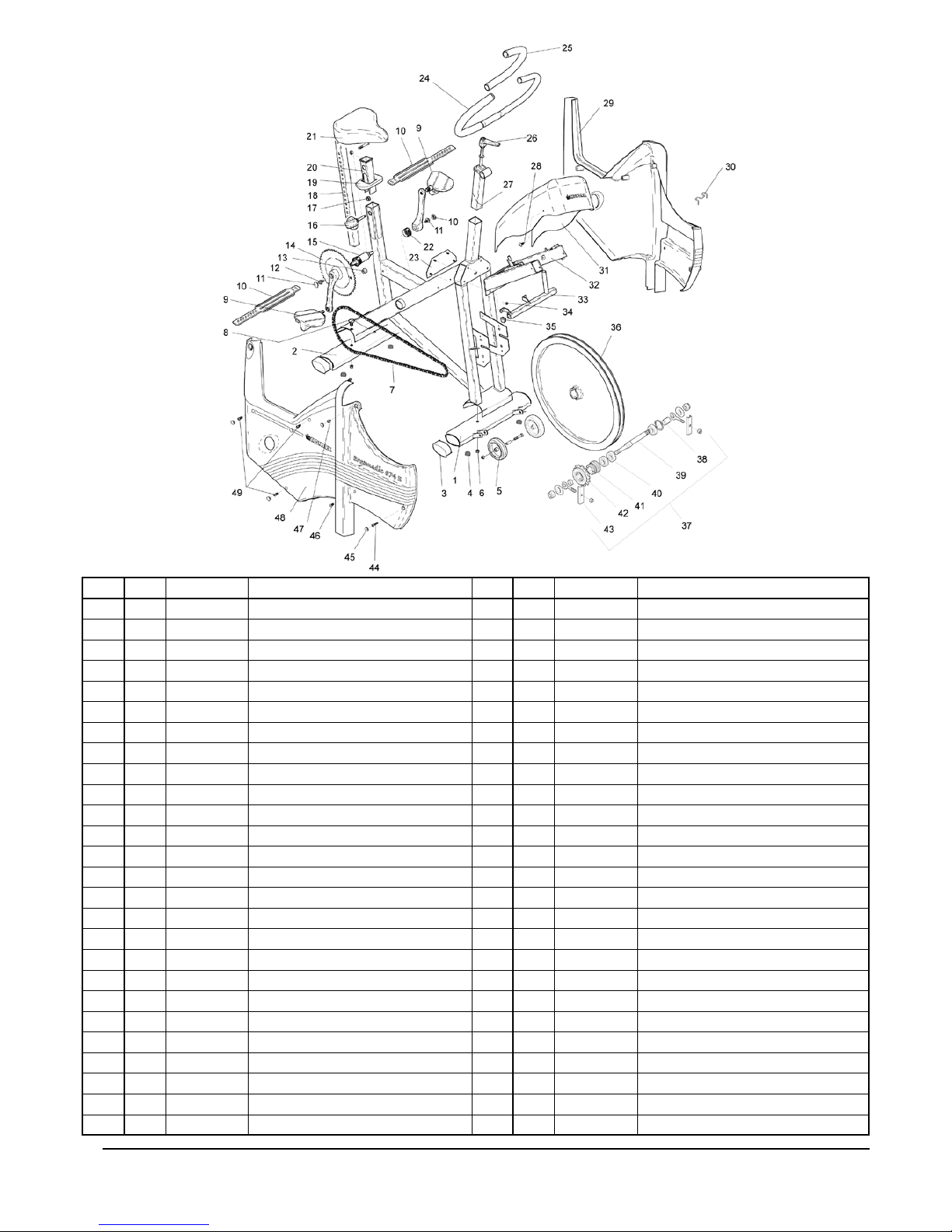

Spare parts list

From serial number: WBK 285390 H

Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description

1 1 9301-15 Support tube, front 25 1 9126-72 -Handgrip (pair)

2 1 9301-16 Support tube, rear 26 1 9100-180 -Screw

3 4 9328-51 Plastic cap, blue 27 1 9300-291 -Expander wedge

4 4 9328-26 Rubber foot 28 2 5675-9 Screw

5 1 9328-37 Transport wheel, (pair) compl. 29 1 9394-71 Frame cover, left

6 4 5845 Locking nut M8 30 1 9384-45 Belt control

7 1 9300-55 Chain 1/2 x 1/8”, 116 l 31 1 9374-41 Instrument cover

8 2 9300-12 Screw MVBF M8x16 mm 32 1 9374-9 Frame for equipment

9 1 9300-220 Pedal (pair) 33 1 9374-29 Weight holder

10 1 9300-207 Pedal strap, (pair) 34 1 5843-9 Nut M6

11 2 8523-2 Dust cover 35 1 9302-28 Plastic plug

12 2 8523-115 Screw M6S 8.8 M8 x 20 FZB 36 1 9300-3 Flywheel

13 1 9326-164 Magnet 37 1 9300-24 Wheel suspension complete set

14 1 9300-430 Steel crank set, complete 38 1 9300-17 -Bush, 23 mm

15 1 8966-175 BB cartridge bearing 39 1 9300-18 -Axle

1 9300-133 Locking knob, complete 40 3 19001-6 -Bearing 6001-2z

16 1 9300-122 -Locking knob 41 1 9106-14 -Connection

17 1 9300-134 -Pressure washer 42 1 9106-13 -Sprocket

18 1 9300-138 Saddle post 43 1 9000-12 -Chain adjuster (pair)

19 1 9300-123 Top cover 44 1 5683 Screw M5x5 mm

20 1 9300-115 Bushing f. saddle post 45 10 9306-12 Plastic plug

21 1 4994-5 Saddle 46 2 5673-9 Screw M5 x 12 mm

1 9300-114 -Saddle bracket 47 1 5681 Screw M5

22 1 8966-176 Support casing for BB-bracket 48 1 9374-70 Frame cover, right

23 1 9374-60 Bracket for frame 49 3 5671-19 Screw M5x2 mm

24 1 9300-280 Handlebar complete

Monark 874 E

15

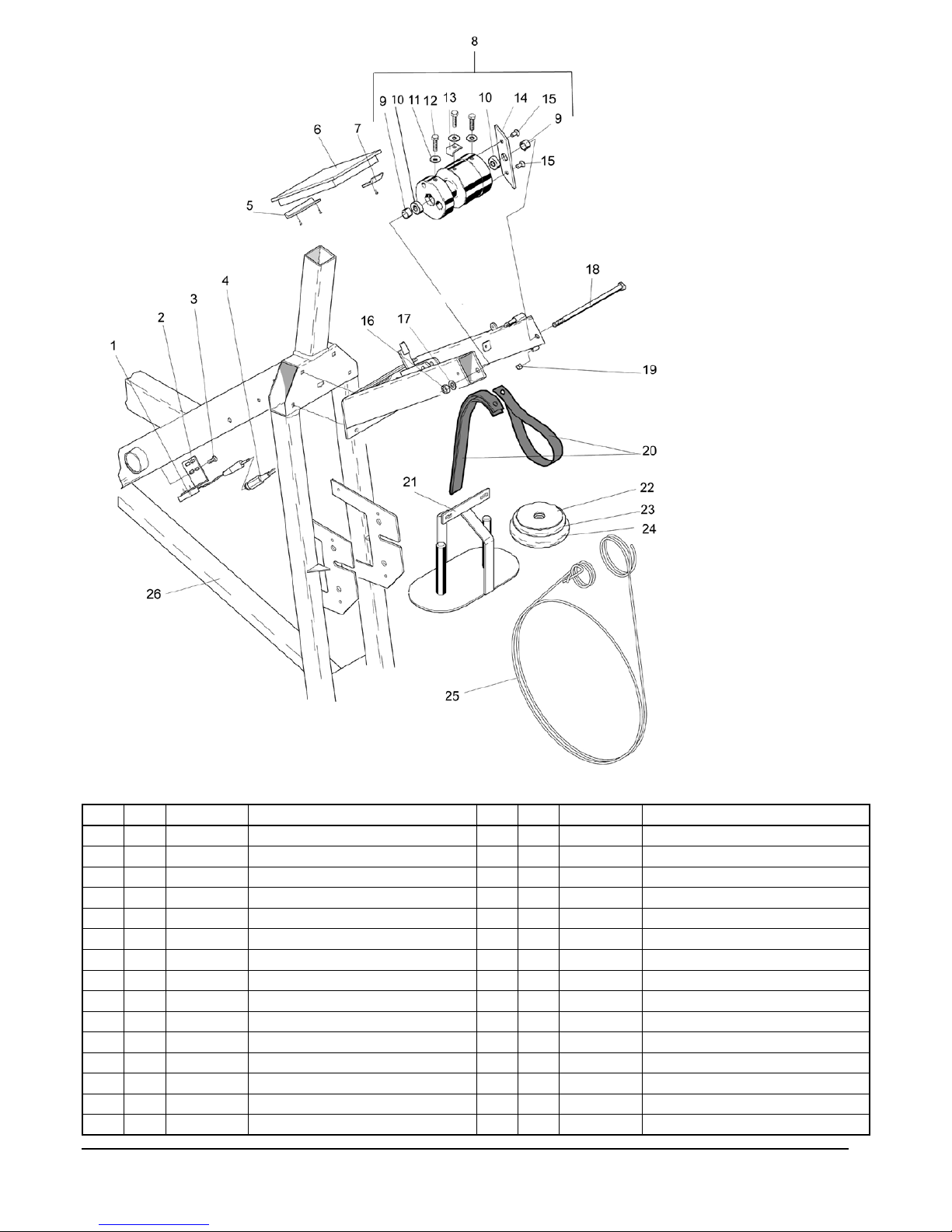

Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description

1 1 9326-162 Sensor 1 5878 -Washer

2 1 9326-166 Holder for sensor 16 1 5844 Nut M8

3 2 9326-59 Screw 17 1 5864 Washer M8

4 1 9326-263 Cable 18 1 14374 Screw M8 x 160 mm

5 1 9374-172 Bracket 19 1 9374-12 Damper

6 1 9374-170 Digital meter 20 1 9324-26 Suspension belt

7 1 9374-171 Holder 21 1 9324-25 Weight basket, 1 kg

8 1 9374-20 Tension device, complete 22 4 9102-30 Weight, 0.1 kg

9 2 9127-37 -Spacer 23 1 9102-27 Weight, 0.5 kg

10 2 19088-6 -Bearing 608-2z 24 4 9102-26 Weight, 1kg

11 2 5862 -Washer 25 1 9384-47 Brake cord, complete

12 3 14323-9 -Screw M6 x 16 mm 26 1 9301-5 Frame

13 1 9324-70 -Lock spring 1 9339-98 Chest belt

14 1 9374-21 -Stop

15 2 14379 -Screw M6 x 16 mm

From serial number: WBK 285390 H

KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81

Version 1311

Art. No: 7950-306
