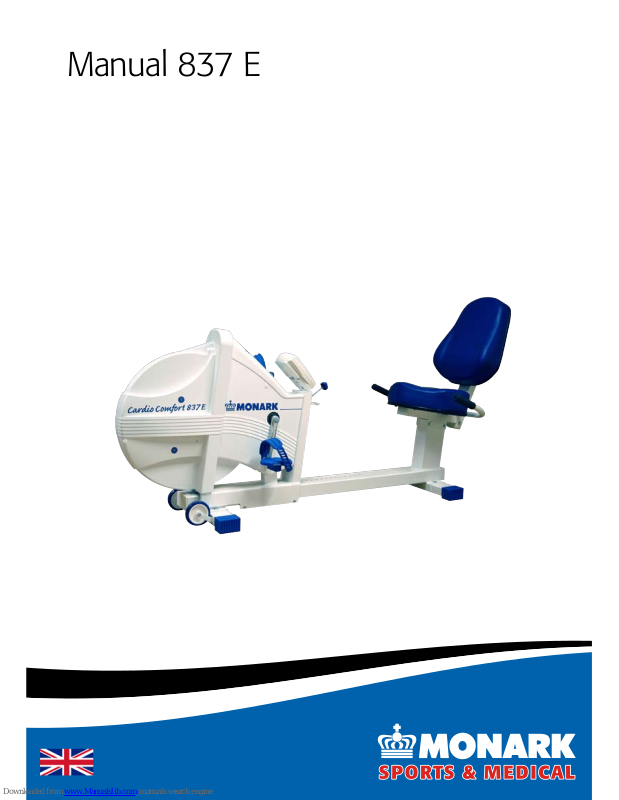

Monark 837 E User Manual

Manual 837 E

Monark Exercise AB �� 4 Product Information �� 5

Facts �� 5 Serial number �� 5

Operating Instruction �� 6

Workload device ��6 Cycle adjustments �� 6 Computer specications �� 7 Battery replacement pulse sensor �� 8

Trouble shooting guide �� 9 Service �� 10

Warning �� 10 Warranty ��10 Service check & Maintenance �� 10 Batteries �� 11 Crank bearing �� 11 Flywheel bearing �� 11 Transport �� 11 Replacement of brake belt �� 11 Brake belt contact surface �� 11 Chain 1/2“ x 1/8“ ��12 Freewheel sprocket �� 13

Spare parts �� 14

Contents

Important

Read the manual carefully before using the cycle and save it for future use.

Monark 837 E

4

Monark Exercise AB

Monark has 100 years’ experience of bicycle production. The Monark tradition has yielded know-how, experience, and a real feel for the product and quality. Since the early 1900s, Monark’s cycles have been living proof of precision, reliability, strength and service. That are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles.

We manufacture, develop and market ergometers and exercise bikes, transport bikes and specialized bicycles. Our largest customer groups are within health care, sports medicine, public authorities, industry and postal services.

For more information: www.monarkexercise.se

837-003

1

Monark 837 E

5

Product Information

Congratulations on your new Recumbent.

Monark Cardio Comfort 837 E is designed to be used for exercise and rehabilitation. This model is perfect for people with back or weight problems where it is difﬁcult to sit on a normal bike.

Monark model 837 E is a recumbent bike with adjustable resistance. The bike is equipped with an electronic meter showing speed, time, distance, calories and pulse. At the end of the handlebar are handgrips with built in pulse.

Facts

Large, well-balanced ﬂywheel 20 kg (44 lbs)• Easy entrance and stable saddle• Wheels for easy transport• Stable frame, solid steel tube• Powder painted• Adjustable backrest• Electronic display with heart rate in handgrips or • chestbelt

Width

665 mm (26”) at handlebar 460 mm (18”) at support tubes

Length

1700-2000 mm (67-79”)

Distance pedal and saddle

490-890 mm (19-35”)

Height

980 mm (39”) at seat 800 mm (31”) at front

Weight

70 kg (154 lbs) Max user weight 250 kg (550 lbs)

Accessories

Chestbelt Extra foot plates

Serial number

The serial number of your Ergometer is placed according to ﬁg: Serial number.

NOTE!

Use of the product may involve considerable physical stress. It is therefore recommended people who are not accustomed to cardio or not feel completely healthy to ﬁrst consult a physician for advice.

Fig: Serial number (1)

E

A

B

C

D

1

2

837-003

2

1

2

Monark 837 E

6

Operating Instruction

Workload device

When pedalling the subject stores energy in the ﬂywheel. The ﬂywheel is then braked by means of a brake belt/cord which runs around the ﬂywheel. The workload is changed either by using other pedalling speed or by increasing or decreasing the tension of the brake belt/cord against the ﬂywheel by using the tension knob(2). A change of brake force is showed in the window(1). See g: Workload device.

Cycle adjustments

The pedalling unit can be moved forward or backward and locked in a comfortable position. To move the unit pull the catch(1) and place the pedals at a suitable distance. Let go of the catch and make sure that it locks (a ”click sound”). The back support can also be adjusted up and down to a comfortable position by loosing the knob(2). See ﬁg: Adjustments.

Fig: Workload device

1) Workload window

2) Tension knob

Fig: Adjustments

1) Catch

2) Locking knob

Monark 837 E

7

Computer speciﬁcations

Display

SPEED 0 - 199 km/h TIME (up/down) 0:00-99:59 min:sec DISTANCE 0:0- 99.99 km Calories, CAL 0 - 999 kcal Heart rate, PULSE 50 - 199 bpm PULSE HI 50 - 199 bpm PULSE LOW 30-(over-10) bpm

Batteries: 1.5 V x 2, R6 (AA) Storing temperature: -10ºC - +60ºC Operating temperature: 0ºC - 50ºC

MODE key:

Use MODE key to set mode and cycle through the display windows as below: TIMER - DISTANCE - CALORIES - PULSE HI -PULSE LOW

SET key:

Press SET key to set desired value. If you hold/press this key for two seconds or more, you can advance the function value at a faster rate.

RESET key:

A press on the key will clear the values separately for TIME, DISTANCE, CALORIES (kcal) and HI/LOW pulse limit individually. If you hold down the button for more than two seconds at normal display, all values except upper and lower pulse limit will be set to zero at the same time.

Programming HIGH and LOW pulse rate limit:

Press MODE key to advance to the pulse window, then use SET key to enter your desired high and low pulse rate/heart rate limit. Each press of the SET will advance 5 bpm. If your heart rate is above the high pulse limit you programmed, the computer will generate a beeping to warn you to stop exercise. In contrast, if your pulse rate is lower than your desired low pulse rate limit, the buzzer will also beep to remind you to continue your exercise.

Programming exercise time:

Press MODE key to advance to the time window, then use SET key to enter your desired time. Each press of the SET key will advance time by one minute.

837-007.ai

Monark 837 E

8

Programming target trip distance:

Press MODE key to advance to the distance window, then use SET key to enter your desired target trip distance. Each press of the SET will advance distance by

0.5 km.

Programming calories:

Press MODE key to advance to the calories window, then use SET key to enter your desired calories burned. Each press of the SET will advance calories by 10 Kcal.

NOTE: When no key has been pressed for ﬁve seconds the display will return to normal. The computer starts automatically when one of the keys is pressed or meter get speed indication - is pedalled.

In normal display, please make sure the heart symbol appears on the display before measuring your pulse rate. The heart symbol will automatically disappear to save power when no key has been pressed or no signal has been received for 30 seconds or more. By pressing SET or RESET the heart symbol will turn on again and the pulse function will get active.

Do not expose the ﬁtness computer to direct sunlight or extremely high temperature. Do not use any dissolvents when cleaning. Use only dry cloth.

Battery replacement pulse sensor

Lifting of the cap by prying it up in the intended slot. The batteries, 2 x 1,5 V size R6 (AA), can then easily be changed. Be sure to place the (+)- and (-)-ends in the right order. See ﬁg: Batteries pulse sensor. Replace the cap.

Fig: Batteries pulse sensor

Monark 837 E

9

Trouble shooting guide

Symptom Probable Cause/Corrective Action

The display is not working. Check that the batteries are OK.

No heart rate. Check the chestbelt (battery). Wet the thumbs and place them on the elec-

trodes. A low clicking sound will appear near battery lid while you click on the electrodes with one thumb. Use another external HR monitor to check the belt.

Check that the chestbelt is positioned correct on test person and tight enough. Check that the electrodes are wet, in hard cases it is necessary to use a contact gel or a mixture of water with a few drops of washing-up liquid.

The level for HR signal can vary from person to person. Put chestbelt on another known person who has a good pulse rendering.

Uneven heart rate. Use an external unit for example a pulse watch to check if it also indicates

irregular pulse. If it is the case there are probably disturbance in the room. Magnetic ﬁelds from high voltage cables, elevators, ﬂuorescent tube etc can cause the disturbance. Other electronic equipment could be placed to close.

If irregular pulse remains we recommend measuring HR manually. If HR still remains irregular at workload test person’s health need to be examined.

There is a click noise with every pedalling (increases with the weight).

The pedals are not tightly drawn, tighten them or change pedals. There is a loose in the crank cheek, tighten. There is a loose in the base bearing, contact your dealer for service.

Scratching noise is heard when pedalling. Check that the carriage block is taken off and that none of the covers is

scratching.

There is a click noise and a squeak noise when pedalling.

Untighten the chain a bit.

Service check & Maintenance

To keep your Ergometer in good shape you should make a regular service.

Service action:

If you wish to disinfect the surface of the bike we • recommend isopropyl alcohol. Use a damp but not wet cloth to clean the surface you wish to disinfect. Keep your Ergometer clean and properly lubricated • (once a week). Periodically wipe the surface with a rust preventa-• tive, especially when it has been cleaned and the surface is dry. This is done to protect the chromeand zinc parts as well as the painted parts (4 times per year). Check now and then that both pedals are ﬁrmly • tightened. If not the threading in the pedal arms will be damaged. Also check that pedal arms are ﬁrmly tightened on the crank axle, tighten if necessary. When the Ergometer is new it is important to tighten the pedals after 5 hours of pedalling (4 times per year). Check that the pedal crank is secure to the crank • axle (4 times per year). Be sure that the pedals are moving smoothly, and • that pedal axle is clear of dirt and ﬁbres (4 times per year). When cleaning and lubricating be sure to check that • all screws and nuts are properly tightened (2 times per year). Check that the chain is snug and there is no play in • the pedal crank (2 times per year). Check that pedals, chain and freewheel sprocket are • lubricated (2 times per year). Be sure that the brake belt does not show signiﬁcant • signs of wear (2 times per year). Check that the handlebars and seat adjustment • screws are lubricated (2 times per year). Be sure that all moving parts as crank and ﬂywheel • are working normal and that no abnormal play or sound exists. I.e. play in bearings causes fast wearing and with that follows a highly reduced lifetime. Check that the ﬂywheel is placed in the centre and • with plane rotation.

Warranty

EU countries - Private use

If you are a natural person you will have a minimum level of protection against defects in accordance with EC Directive 1999/44/EC. In short, the directive provides for that your Monark Dealer will be liable for any defects, which existed at the time of delivery. In case of defects, you will be entitled to have the defect remedied within a reasonable time, free of charge, by repair or replacement.

EU countries - Professional use

Monark Exercise products and parts are guaranteed against defects in materials and workmanship for a period of one year from the initial date of purchase of the unit. In the event of a defect in material or workmanship during that period above, Monark Exercise will repair or replace (at its option) the product. Monark Exercise will do so at its expense for the cost of materials but not for labour or shipping.

Other countries

Monark Exercise products and parts are guaranteed against defects in materials and workmanship for a period of one year from the initial date of purchase of the unit. In the event of a defect in material or workmanship during that period above, Monark Exercise will repair or replace (at its option) the product. Monark Exercise will do so at its expense for the cost of materials but not for labour or shipping.

Service

Warning

Make sure the voltage indicated on the appliance corresponds to the local mains voltage before making connections.

Monark 837 E

10

Batteries

If the meter is battery-operated, the batteries are in a separate package at delivery. If the storing time has been long the battery power can be too low to make the computer act correctly. Batteries must be changed.

Crank bearing

The crank bearing is long term greased and require normally no supplementary lubrication. If problem arises, please contact your Monark dealer.

Flywheel bearing

The bearings in the ﬂywheel are lifetime greased and require normally no maintenance. If problem arises, please contact your Monark dealer.

Transport

At transport the brake belt should be somewhat tightened to prevent it from falling off the ﬂywheel.

Replacement of brake belt

To replace the brake belt remove covers if necessary. Make sure that the belt is loose.

Alt. 1: To loosen the belt on pendulum bikes with motor, turn the power on and move the pendulum to 4 kp. Hold it there until brake belt is loose. Observe how the belt is connected. Take it apart and remove it from the bike. Attach the new brake belt and assemble the bike in reverse order.

Alt. 2: To loosen the brake cord on cycles with weight basket set the basket to its upper position. Loosen the lock washer that is holding the cord and remove it from the tension center. Loosen or cut of the knot in the other end of the cord and then remove the hole cord from the bike. When assembling a new brake cord, ﬁrst enter one end into the hole in the tension center, and tie a knot and let the knot fall into the bigger part of the hole. Lock the end of the cord with the lock washer.

Brake belt contact surface

Deposits of dirt on the brake belt and on the contact surface may cause the unit to operate unevenly and will also wear down the brake belt. The brake belt contact of the ﬂywheel surface should then be ground off with ﬁne sandpaper and any dust removed with a clean dry cloth.

Remove if there are any covers and loosen the tension on the brake belt. Grind with a ﬁne sandpaper. Grinding is easier to perform if a second individual cautiously and carefully pedals the cycle.

Irregularities on the brake belt contact surface are removed by means of a ﬁne sandpaper or an abrasive cloth. Otherwise unnecessary wear on the brake belt may occur and the unit can become noisy.

Always keep the brake belt contact surface clean and dry. No lubricant should be used. We recommend replacing the brake belt when cleaning the contact surface. In regard to assembly and adjustment of the brake belt, see ”Replacement of brake belt”.

Alt. 3: To loosen the belt on other bikes remove all possible tension. Observe how the belt is connected. Take it apart and remove it from the bike. Attach the new brake belt and assemble the bike in reverse order.

NOTE: When replacing the brake belt it is recommended to clean the brake surface. See ”Brake belt contact surface”.

Monark 837 E

11

Chain 1/2“ x 1/8“

It is strongly recommended to keep the chain clean. Dirt build-up on the chain will cause excess wear. A chain lubricant and solvent for normal road bikes may be used.

Check the lubrication and tension of the chain in regular intervals. In the middle of its free length the chain should have a minimum play(3) of 10 mm (1/4 inch). See ﬁg: Chain adjustments. When the play in the chain is about 20 mm (3/4 inch) it must be tightened otherwise it will cause abnormal wear of the chain and chainwheels. Because of this it is always recommended to keep the chain play as little as possible. Loosen the hub nut(2) on both sides and tense the chain with the chain adjuster(1) when needed.

When the chain has become so long that it can no longer be tightened with the chain adjusters it is worn out and shall be replaced with a new one.

To adjust or replace the chain remove frame covers if necessary.

To adjust the chain the hub nuts(2) should be loosened. Loosening or tightening the nuts on the chain adjusters(1) will then move the hub and axle forward or backward. Adjust according to above recommendation. Then tighten the nuts on the hub axle again. See ﬁg: Chain adjustments.

To replace the chain loosen the chain adjuster as much as possible. Dismantle the chain lock(6) and remove the chain. Put on a new chain and assemble the chain lock. The spring of the chain lock should be assembled with the closed end in the movement direction(5) of the chain. Use a pair of tongs for dismantling and assembling the spring(4). See ﬁg: Chain replacement.

NOTE: At assembly the ﬂywheel has to be parallel with the center line of the frame otherwise the chain and chain wheels makes a lot of noise and wears out rapidly.

Adjust chain adjusters to allow chain play according to above. Tighten hub nuts ﬁrmly. Put on frame covers again.

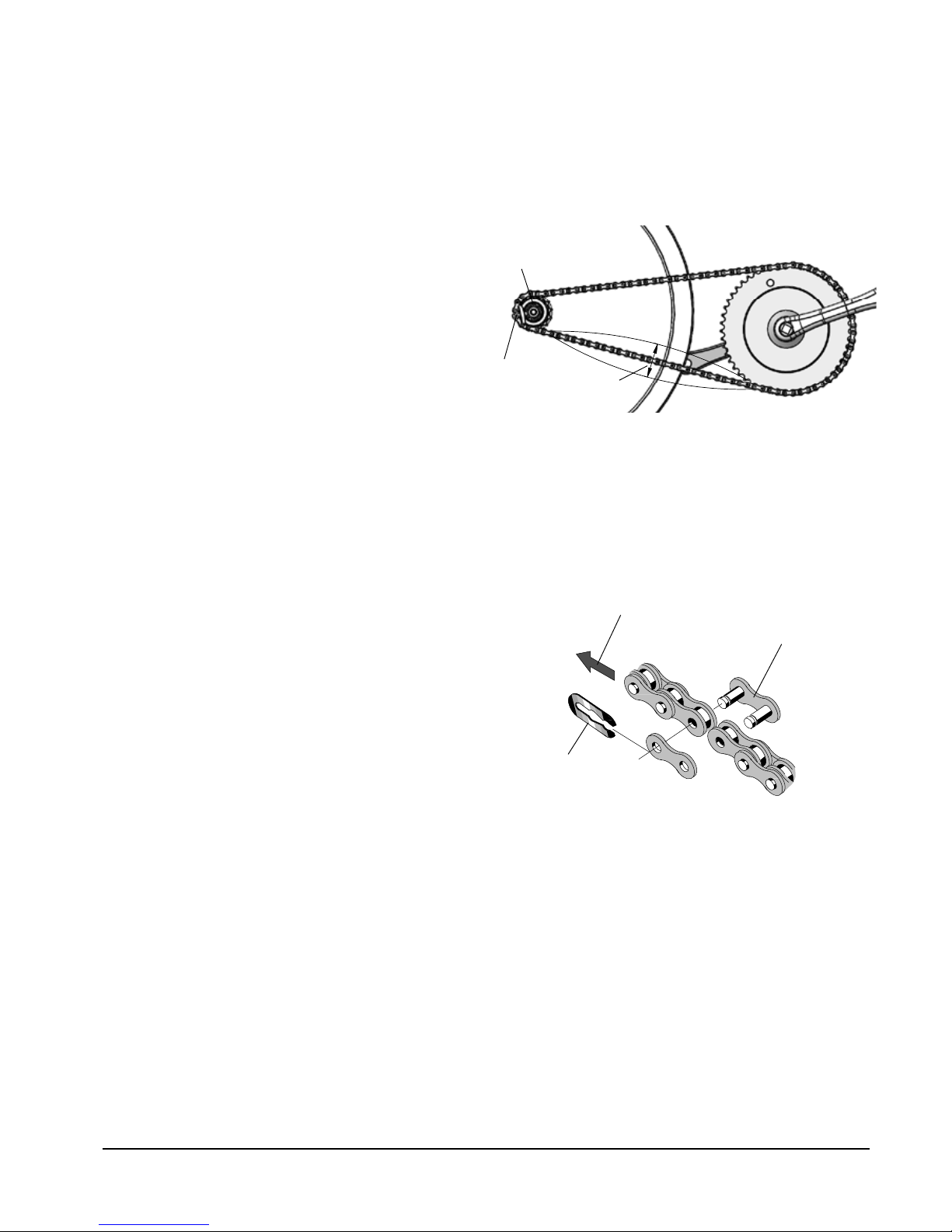

Fig: Chain adjustments

1) Chain adjuster

2) Hub nut

3) Chain play

Fig: Chain replacement

4) Lock spring

5) Movement direction

6) Chain lock

3

2

1

4

6

5

Monark 837 E

12

Freewheel sprocket

When replacing the freewheel sprocket remove frame covers if necessary. Dismantle the chain as described in part ”Chain 1/2” x 1/8” ”.

Loosen the axle nuts and lift off the ﬂywheel. Remove the axle nut, washer, chain adjuster and spacer on the freewheel side. Place the special remover (Art. No: 9100-14) in the adapter and place the spacer and axle nut outside. See ﬁg: Special remover. Replace sprocket- adapter and assemble the new parts in reverse order according to the above.

NOTE: Do not tighten the axle nut completely. It must be possible to loosen the adapter-sprocket half a turn.

The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle somewhat to make it easier for the oil to reach the ball bearing. See ﬁg:

Lubrication.

Fig: Special remover (Art. No: 9100-14)

Fig: Lubrication

Fig: Hub assembly

Monark 837 E

13

4

5

6

3

2

1

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

24

25

26

27

21 22 23 19

24

28

29

30

31

Monark 837 E

14

Spare parts

Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description

1 10 9306-12 Plastic cup 16 1 5842-9 Locking nut, M6

2 5 5673-9 Screw 17 1 5861-9 Washer

3 1 9337-51 Frame cover, right 18 1 L7267 Spacer

4 2 8523-2 Dust cover 19 2 9000-112 Chain adjuster, pair

5 2 8523-115 Screw 20 1 9106-13 Sprocket, 14 t

6 1 9300-401 Crank set complete 21 2 19001-6 Bearing 6001-2z

7 1 9326-164 Magnet 22 1 9000-15 Locking ring, SgH 23

8 1 9300-220 Pedal (pair) 23 1 9300-17 Spacer

1 9300-207 Footstraps (pair) 24 2 5799 Nut

9 1 1079-88 Chain 25 1 9000-17 Spacer

10 1 8966-177 BB cartridge bearing 26 1 9106-14 Connection

11 2 5842-9 Nut 27 1 9300-18 Axle

12 2 5861-9 Washer, BRB5 28 1 9337-52 Frame cover, left

13 1 9337-3 Frame 29 1 9300-3 Flywheel complete

14 1 9326-162 Sensor 30 1 9337-35 Brake belt, complete

15 1 9326-166 Sensor holder 31 1 9306-31 Spring

9

12

13

12

9

10

11

16

9

8

7

6

4

3

2

1

5

18

14

17

15

Monark 837 E

15

Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description

1 1 9337-3 Frame 11 2 9010-102 Self-locking cap

2 1 9337-180 Digital meter 12 4 9337-16 Washer

3 1 9337-7 Holder for Digital meter 13 2 9337-24 Axle

4 2 9300-12 Screw 14 1 9337-31 Tension lever complete

5 1 9337-22 Plastic cap 15 1 9337-12 Stay

6 1 9300-25 Locking screw, complete 16 1 9337-23 Axle

7 1 9337-13 Lever 17 1 9337-36 Washer

8 2 9100-20 Spring 18 1 9306-27 Tension plate

9 4 9337-15 Bearing 1 9337-550 Decalset

10 1 9337-4 Holder 1 9337-150 Screw, washer and nut set

1

2

3

4

5

6

7

1

8

9

10

11

7

9

12

13

1

14

15

16

Monark 837 E

16

Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description

1 3 9300-10 Plastic cap 9 4 9300-7 Plastic cap, blue

2 1 9337-8 Lock washer 10 1 9337-5 Frame

3 1 9337-122 Locking screw 11 1 9300-5 Support tube, front

4 1 9337-6 Backsupport 12 2 9000-29 Transport wheel, complete

5 1 9337-38 Screw 13 1 9337-1 Hand holder

6 1 9337-2 Saddle post 14 2 9337-181 Sensor handle

7 2 9337-21 Plastic cap 15 1 9337-182 Pulse transmitter

8 1 9300-6 Support tube, rear 16 1 4997-5 Saddle

Monark 837 E

17

Notes:

...........................................................................................................................................................................

Monark 837 E

18

Notes:

...........................................................................................................................................................................

Monark 837 E

19

Notes:

...........................................................................................................................................................................

KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81

Version 1010

Art. No: 7950-300
