Manual 808/809
Monark Exercise AB ������������������������������������������ 4
Product Information ������������������������������������������ 5
Facts ������������������������������������������������������������������������ 5
Serial number ����������������������������������������������������������� 5
Operating Instruction ���������������������������������������� 6
Workload device ������������������������������������������������������ 6
Mechanical meters ��������������������������������������������������� 6
Cycle adjustments ���������������������������������������������������� 7
Replacement of hub connection forspeedometer ���� 8
Replacement of the sprocket model 808 ����������������� 8
Brake wheel ������������������������������������������������������������ 8
Troubleshooting guide �������������������������������������� 9
Service �������������������������������������������������������������� 10
Warning ������������������������������������������������������������������ 10
Warranty ���������������������������������������������������������������� 10
Service check & Maintenance �������������������������������� 10
Batteries ������������������������������������������������������������������11
Crank bearing ���������������������������������������������������������11
Flywheel bearing �����������������������������������������������������11
Transport �����������������������������������������������������������������11
Replacement of brake belt ��������������������������������������11

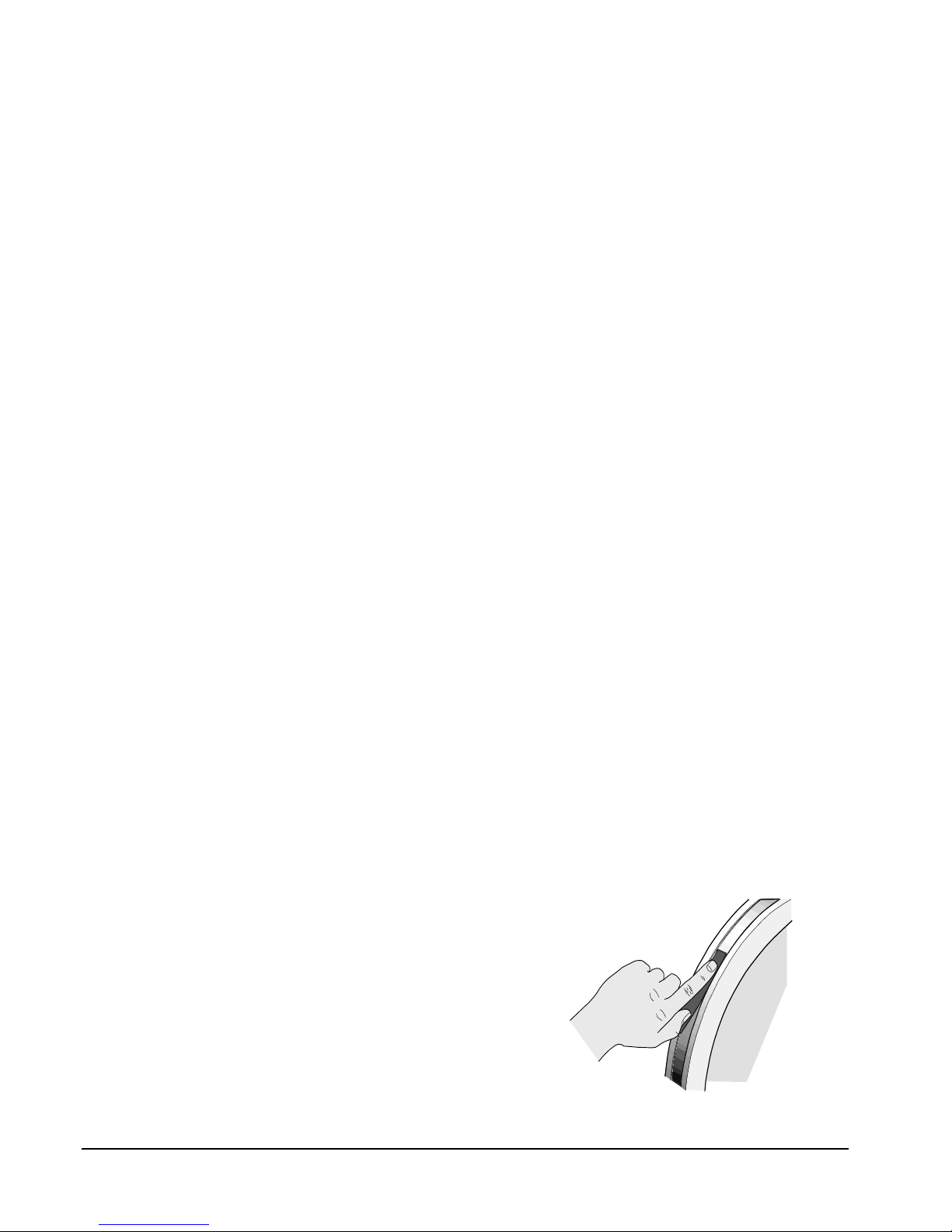

Brake belt contact surface ��������������������������������������11

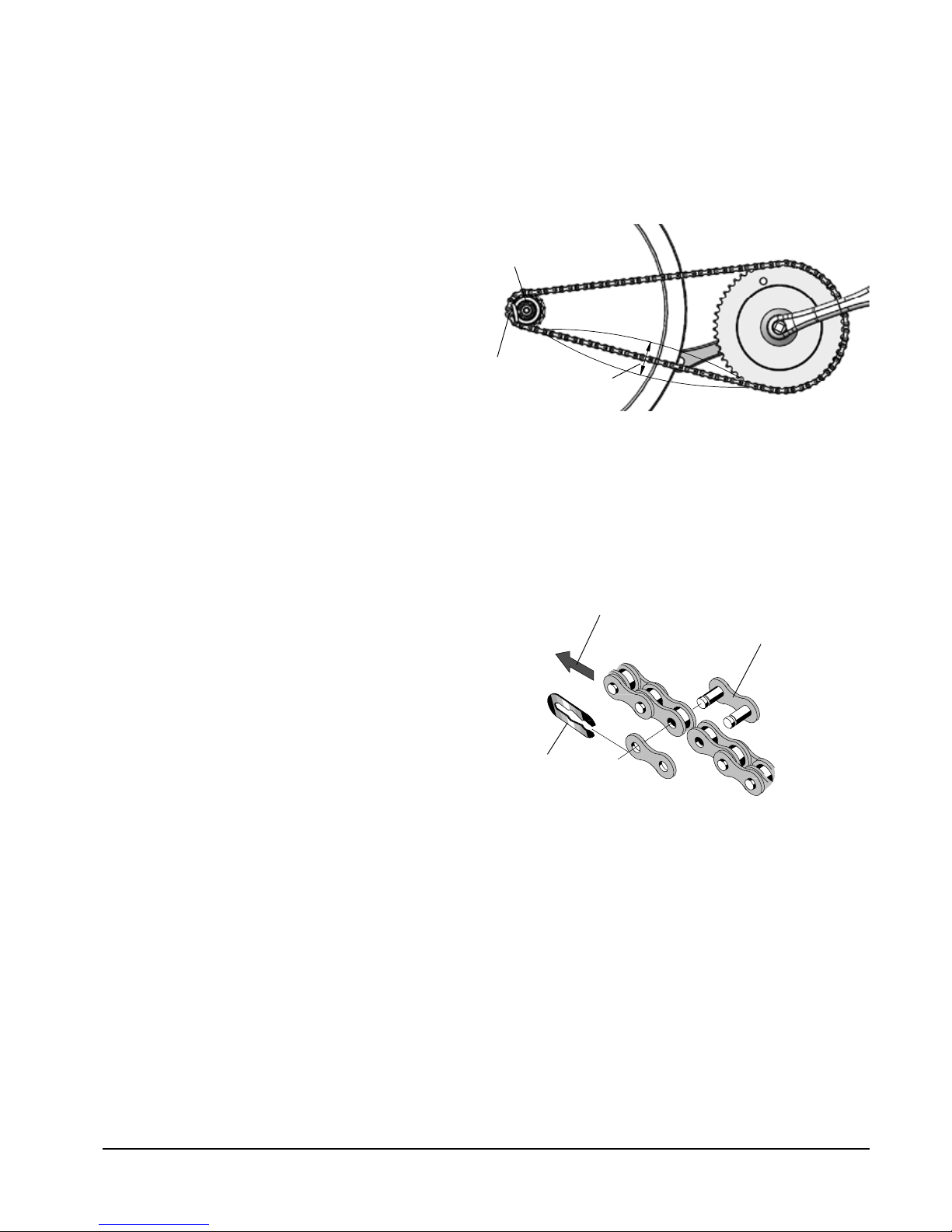

Chain 1/2“ x 1/8“ ���������������������������������������������������� 12

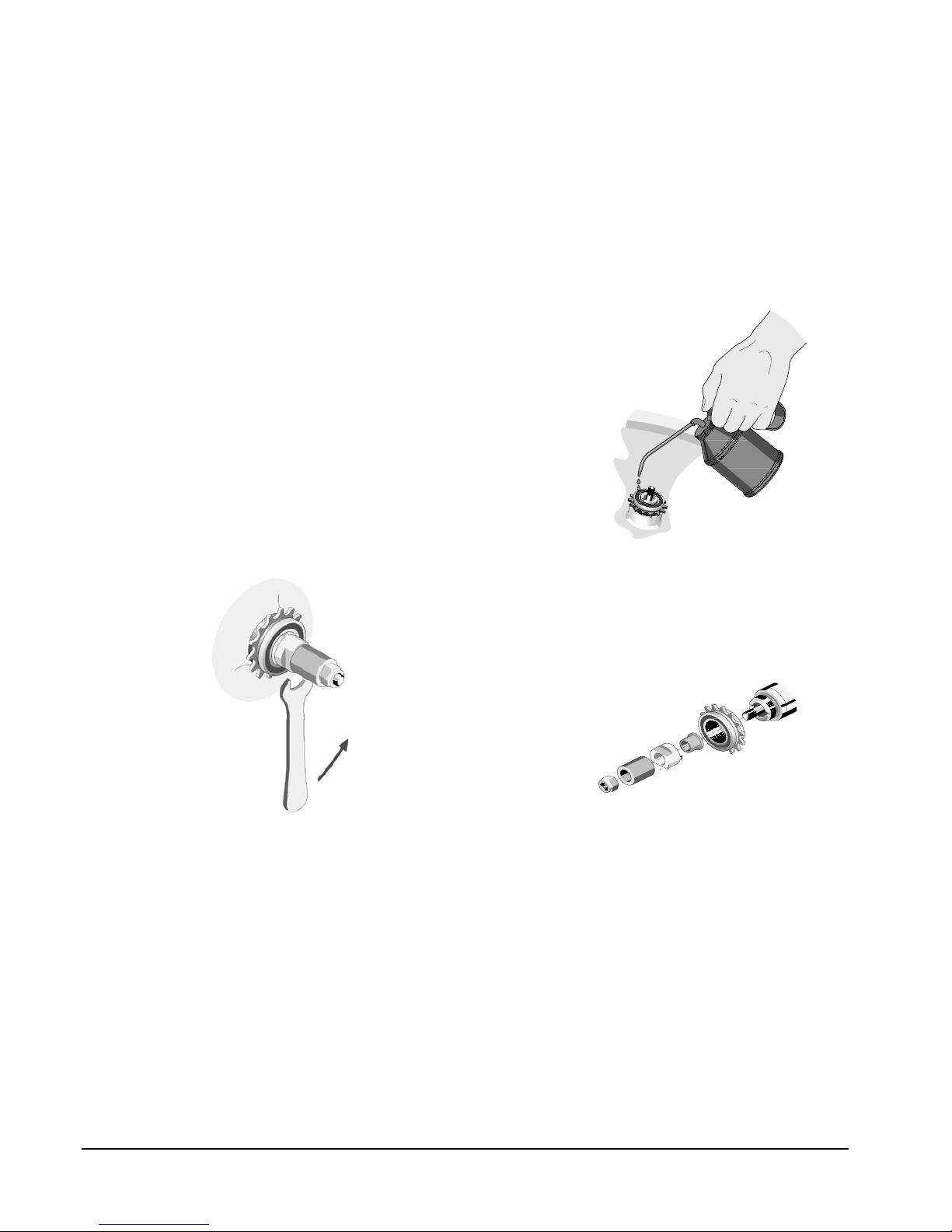

Freewheel sprocket ������������������������������������������������ 13

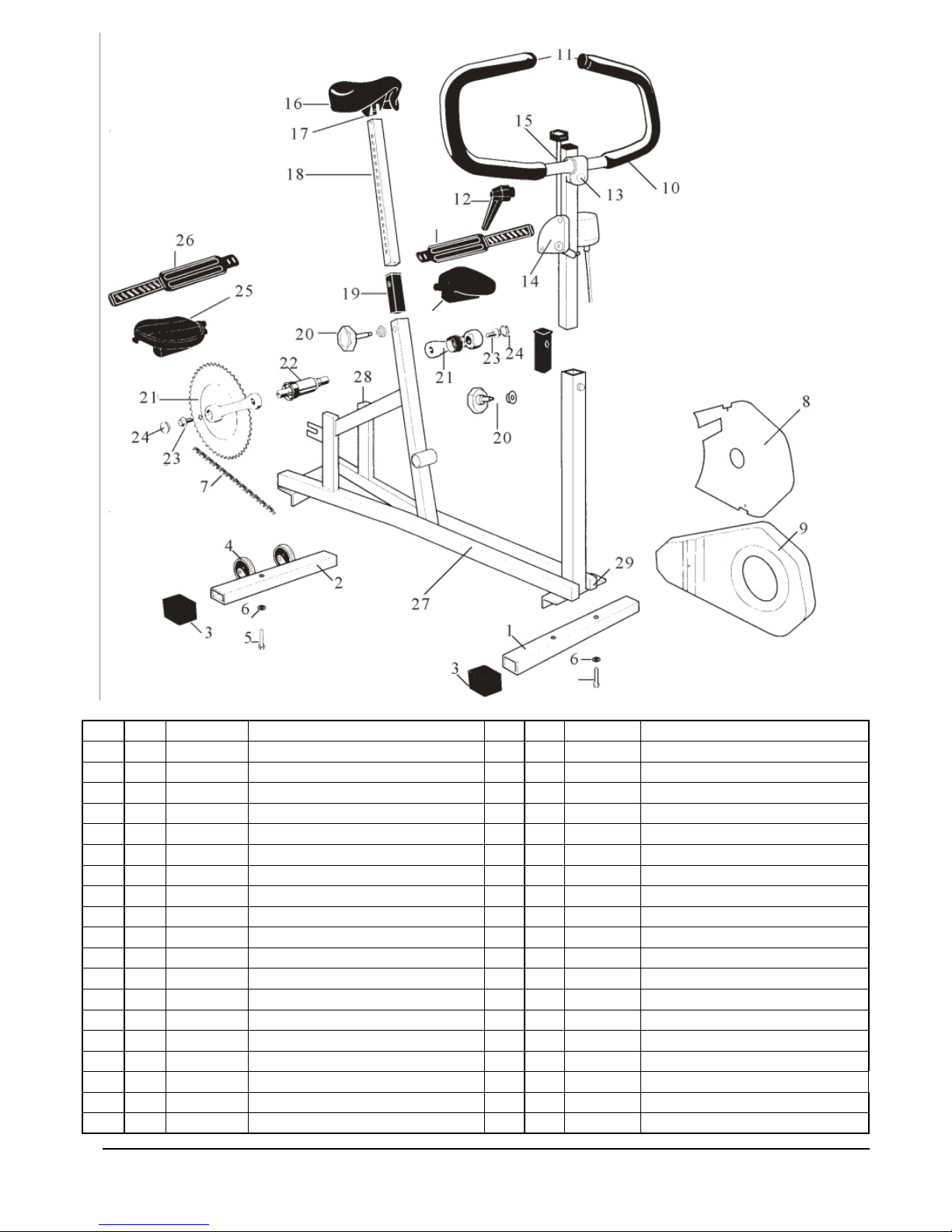

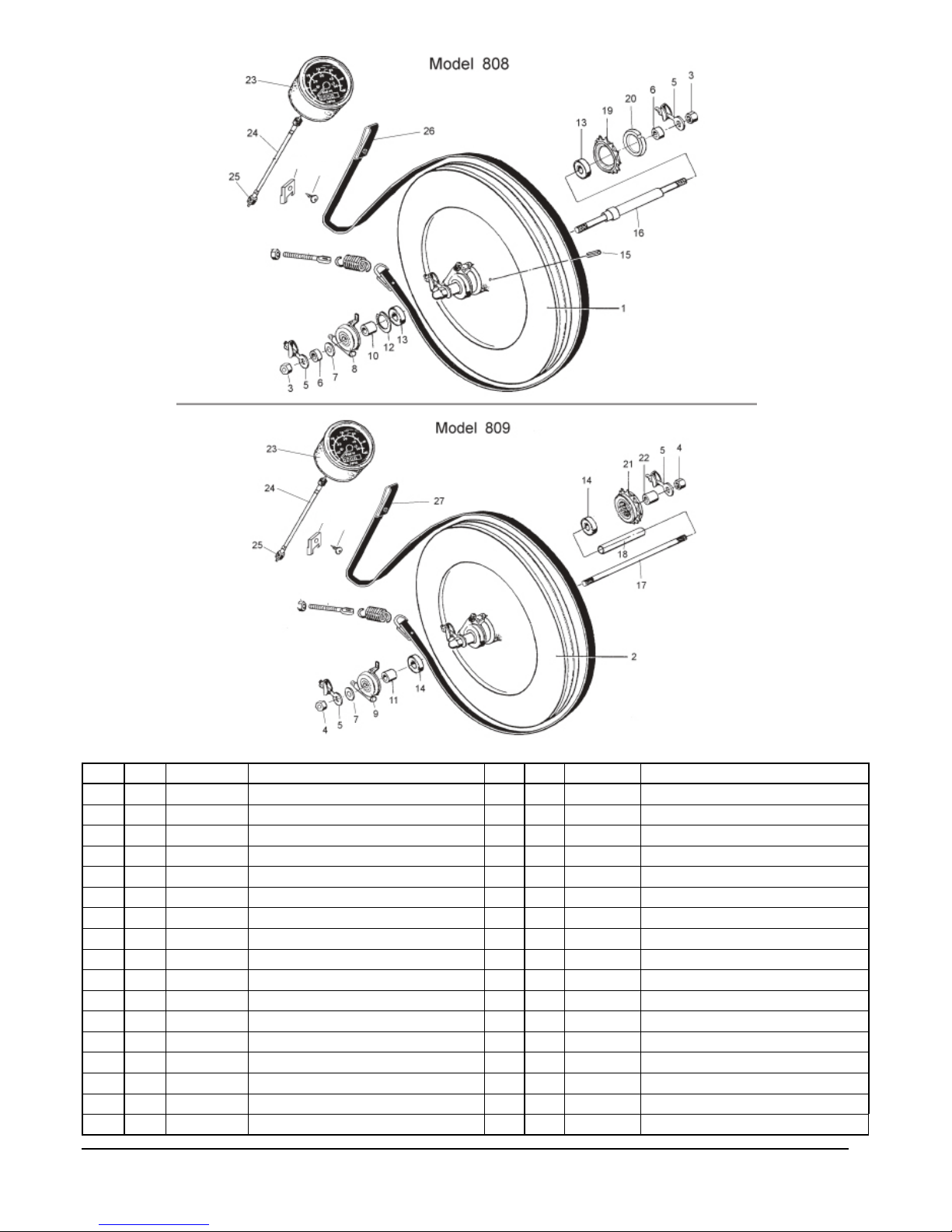

Spare parts ������������������������������������������������������� 14
© 2010 MONARK EXERCISE AB, Vansbro, Sweden
Contents
Important
Read the manual carefully before using the cycle
and save it for future use.
Monark 808/809
4
Monark Exercise AB
Monark has 100 years’ experience of bicycle production. The Monark tradition has yielded know-how, experience, and a real feel for the product and quality. Since the early 1900s, Monark’s cycles have been living proof of precision, reliability, strength and service. That are the reasons why we are now the world
leader in cycle ergometers and the market leader in Scandinavia in transport cycles.
We manufacture, develop and market ergometers and exercise bikes, transport bikes and
specialized bicycles. Our largest customer groups are within health care, sports medicine,
public authorities, industry and postal services.
For more information: www.monarkexercise.se
1
Monark 808/809
5
Product Information
Congratulations on your new exercise bike.
Exercise bike Monark Sparr 808/809 is designed for
example motion stimulus, the load of the circulatory
system and the prevention of contracture. In most
cases, the training done under expert guidance. Many
should also be under medical supervision in connection with exercise training.
Facts
808 without freewheel, 809 with freewheel•
Heavy, well-balanced flywheel•
Height adjustable saddle •
Adjustable handlebar•
Road and speedometer•
Easy to vary the pedal resistance•
Powder painted•
Wheels for easy transport•
Low entrance frame•
Width
530 mm (21”) at handlebar
Length
890 mm (35”)
Height
1020 mm (40”) at handlebar
670-1000 mm (26,5-39,5”) at saddle
Weight
32 kg (71 lbs)
Max user weight 125 kg (276 lbs)
Serial number
The serial number of your Ergometer is placed according to fig: Serial number.
NOTE!
Use of the product may involve considerable
physical stress. It is therefore recommended
people who are not accustomed to cardio or not
feel completely healthy to first consult a physician for advice.
Fig: Serial number (1)
In front of the rear support tube
1
2
3
Monark 808/809
6
Operating Instruction
Workload device
Monark Sparr Rehab 808 and 809 are both fitness
and rehabilitation bikes that are equipped with adjustable workload.
Model 808 is equipped with a sprocket, model 809 is
equipped with a sprocket on the crank. The bikes are
also equipped with a meter that shows the intended
cycling speed in km per hour and the distance travelled in kilometres. See fig Workload and meter.
Through cycling the test person supplies the flywheel
with a certain kinetic energy. This is braked by means
of a brake belt which runs around the bigger part of
the brake surface of the flywheel. The brake power is
changed either by using another pedalling speed or by
increasing or decreasing the tension of the brake belt
against the flywheel by means of the load adjustment
wheel(1). See fig: Workload and meter.
Fig: Workload and meter
1) Adjustment wheel
2) Speed
3) Distance
Mechanical meters
The mechanical meter shows pedal revolutions per
minute (rpm), intended cycling speed(2) in km per
hour (SPEED) and the distance(3) covered in km
(DISTANCE). See fig: Workload and meter
1
2
3
Monark 808/809
7

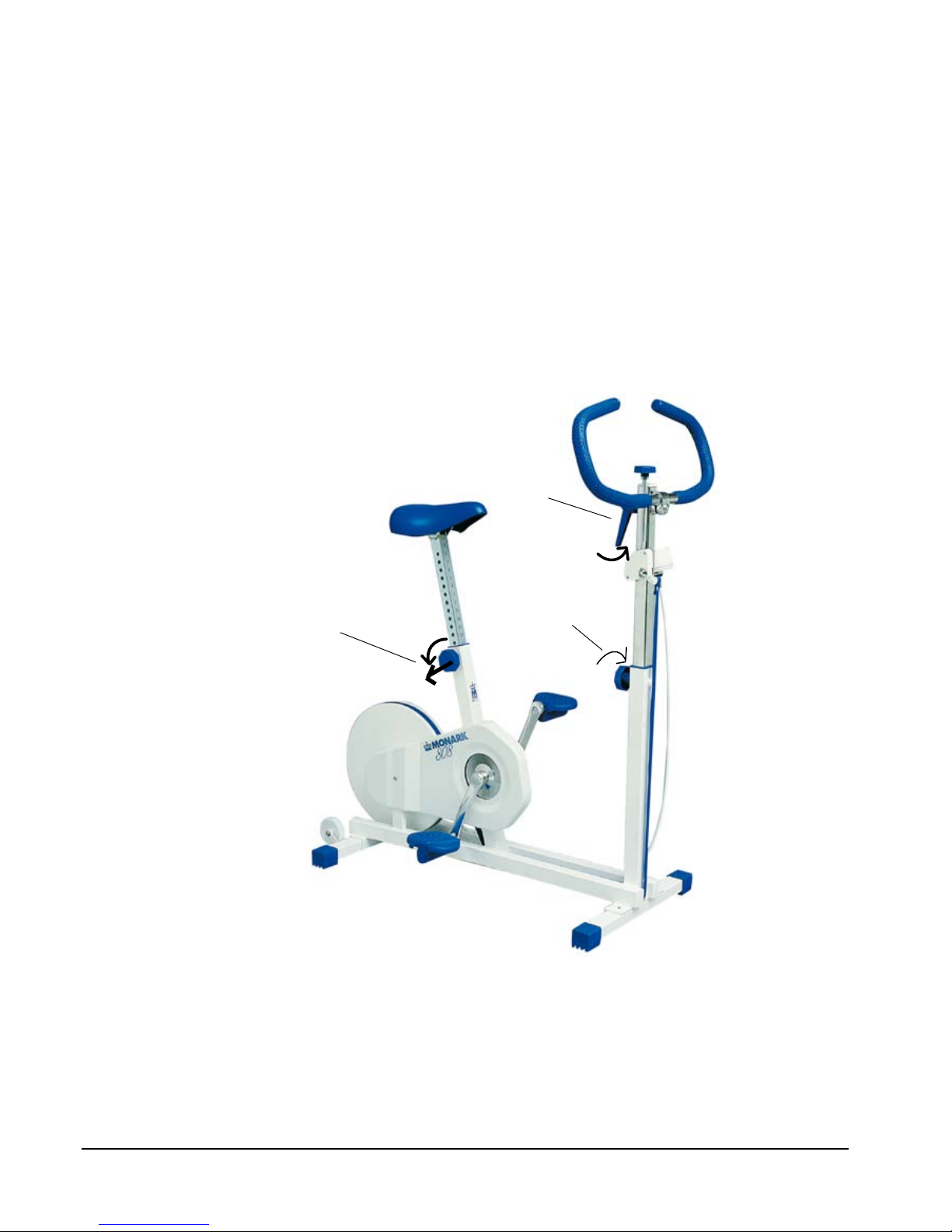

Fig: Adjustments
1) Saddle height adjustment
2) Handlebar height adjustment
3) Handlebar angle adjustment
Cycle adjustments
Seat height is adjusted so that it fits comfortably. The
appropriate height can be to have the knee slightly
bent when the sole of the foot is centered over the
pedal axle with the pedal to the bottom position.
When adjusting the saddle height, loosen the locking
knob by turning it counterclockwise and then remove
it completely and then change the height. Then screw
in the knob again. See fig: Adjustments.
Adjust the handlebar to provide a comfortable seating position. For longer periods of cycling may be
appropriate to change the setting. The handlebar is
adjusted by loosening the handlebar locking knob to
change the height, and by turning the knob to adjust
the handlebar angle. See fig: Adjustments.
1
2
3
4
5
1
2
3
4
Monark 808/809
8
Dismantle the chain guard1.
Loosen the brake belt2.
Dismantle the chain3.
Loosen the transmission cable4.
Loosen the axle nuts5.
Lift off the wheel6.
Replace hub sensor and then assemble the wheel 7.
in reverse order according to the above points. See
fig: Hub connection 1 and Hub connection 2.
Hub connection and wire should be lubricated with a
few drops of oil once or twice a year.
Replacement of hub connection for
speedometer

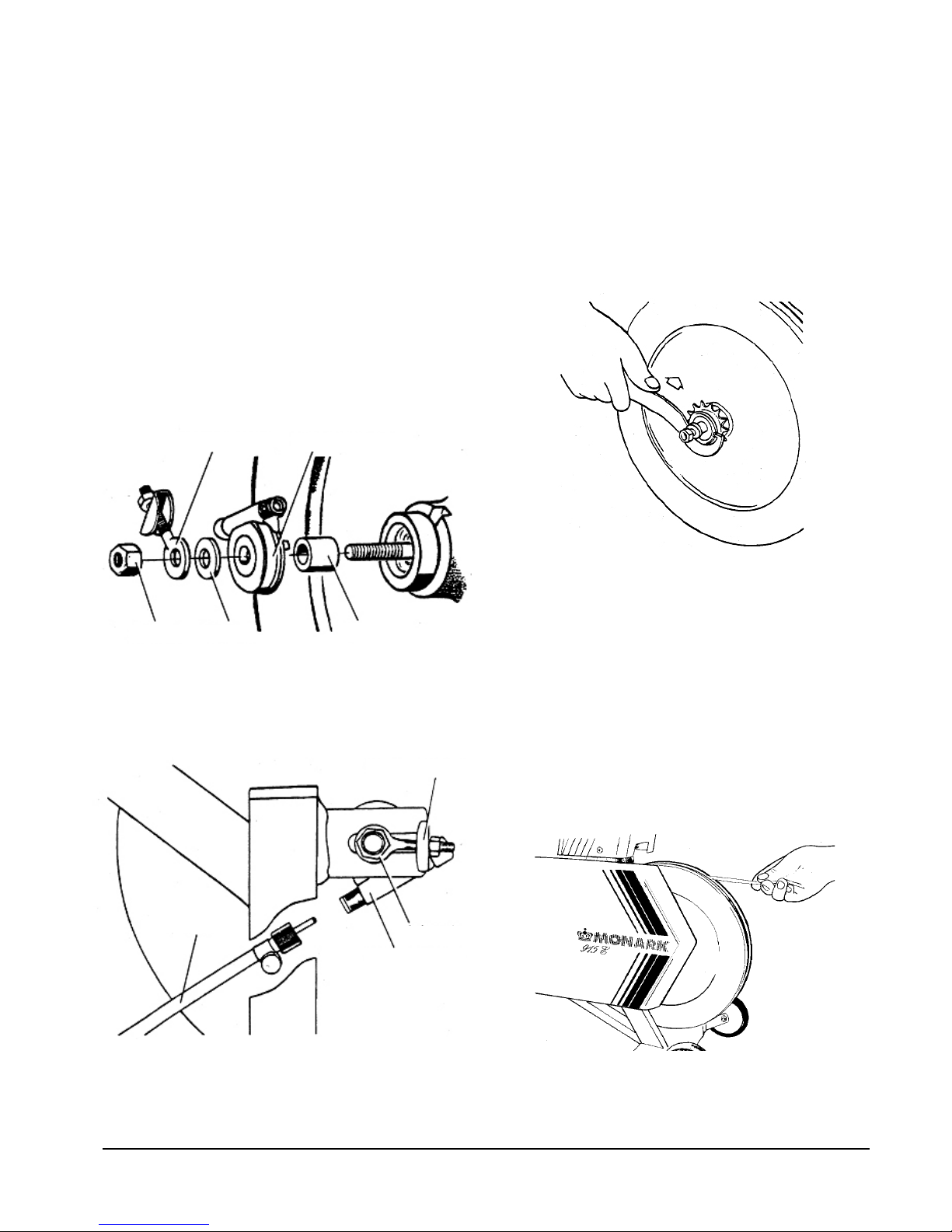

Fig: Hub connection 1
1) Chain tensioner
2) Hub connection
3) Axle nut
4) Washer
5) Spacer
Fig: Hub connection 2
1) Chain tensioner
2) Transmission cable
3) Hub connection
4) Axle nut
Replacement of the sprocket model 808
Lift off the wheel1.
Dismantle the axle nut, chain tensioner and spac-2.
er on the sprocket side
Thread off the sprocket clockwise (tool, Art. No: 3.
8798)
Thread off the sprocket anti-clockwise4.
Replace he sprocket and assemble in reverse order according to the above points.
Brake wheel
NOTE! Lift the brake belt and remove the plastic strip
from the brake flywheel. It is very important that all
the protective tape is removed, the residue can lead to
pressure in the loading device. Replace the brake belt
as before. See fig: Plastic strip.
Fig: Plastic strip
Monark 808/809
9
Troubleshooting guide
Symptoms Probable Cause/Corrective Action
There is a click noise with every pedalling
(increases with the weight).
The pedals are not tightly drawn, tighten them or change pedals.
There is a loose in the crank cheek, tighten.
There is a loose in the base bearing, contact your dealer for service.
Scratching sound is heard when pedalling. Check that the carriage block is taken off and that none of the covers is
scratching.
There is a click noise and a squeak noise
when pedalling.
Untighten the chain.
Service check & Maintenance
To keep your Ergometer in good shape you should
make a regular service.
Service action:
If you wish to disinfect the surface of the bike we •
recommend isopropyl alcohol. Use a damp but not
wet cloth to clean the surface you wish to disinfect.
Keep your Ergometer clean and properly lubricated •
(once a week).
Periodically wipe the surface with a rust preventa-•
tive, especially when it has been cleaned and the
surface is dry. This is done to protect the chromeand zinc parts as well as the painted parts (4 times
per year).
Check now and then that both pedals are firmly •
tightened. If not the threading in the pedal arms
will be damaged. Also check that pedal arms are
firmly tightened on the crank axle, tighten if necessary. When the Ergometer is new it is important to
tighten the pedals after 5 hours of pedalling (4 times
per year).
Check that the pedal crank is secure to the crank •
axle (4 times per year).
Be sure that the pedals are moving smoothly, and •
that pedal axle is clear of dirt and fibres (4 times
per year).
When cleaning and lubricating be sure to check that •
all screws and nuts are properly tightened (2 times
per year).
Check that the chain is snug and there is no play in •
the pedal crank (2 times per year).
Check that pedals, chain and freewheel sprocket are •
lubricated (2 times per year).
Be sure that the brake belt does not show significant •
signs of wear (2 times per year).
Check that the handlebars and seat adjustment •
screws are lubricated (2 times per year).
Be sure that all moving parts as crank and flywheel •
are working normal and that no abnormal play or
sound exists. I.e. play in bearings causes fast wearing and with that follows a highly reduced lifetime.
Check that the flywheel is placed in the centre and •
with plane rotation.
Warranty
EU countries - Private use
If you are a natural person you will have a minimum
level of protection against defects in accordance with
EC Directive 1999/44/EC. In short, the directive provides for that your Monark Dealer will be liable for
any defects, which existed at the time of delivery. In
case of defects, you will be entitled to have the defect
remedied within a reasonable time, free of charge, by
repair or replacement.
EU countries - Professional use
Monark Exercise products and parts are guaranteed
against defects in materials and workmanship for a
period of one year from the initial date of purchase of
the unit. In the event of a defect in material or workmanship during that period above, Monark Exercise
will repair or replace (at its option) the product. Monark Exercise will do so at its expense for the cost of
materials but not for labour or shipping.
Other countries
Monark Exercise products and parts are guaranteed
against defects in materials and workmanship for a
period of one year from the initial date of purchase of
the unit. In the event of a defect in material or workmanship during that period above, Monark Exercise
will repair or replace (at its option) the product. Monark Exercise will do so at its expense for the cost of
materials but not for labour or shipping.
Service
Warning
Make sure the voltage indicated on the appliance corresponds to the local mains voltage before making
connections.
Monark 808/809
10
Batteries
If the meter is battery-operated, the batteries are in
a separate package at delivery. If the storing time
has been long the battery power can be too low to
make the computer act correctly. Batteries must be
changed.
Crank bearing
The crank bearing is long term greased and require
normally no supplementary lubrication. If problem
arises, please contact your Monark dealer.
Flywheel bearing
The bearings in the flywheel are lifetime greased and
require normally no maintenance. If problem arises,
please contact your Monark dealer.
Transport
At transport the brake belt should be somewhat tightened to prevent it from falling off the flywheel.
Replacement of brake belt
To replace the brake belt remove covers if necessary.
Make sure that the belt is loose.
Alt. 1: To loosen the belt on pendulum bikes with motor, turn the power on and move the pendulum to 4
kp. Hold it there until brake belt is loose. Observe
how the belt is connected. Take it apart and remove it
from the bike. Attach the new brake belt and assemble the bike in reverse order.
Alt. 2: To loosen the brake cord on cycles with weight
basket set the basket to its upper position. Loosen the
lock washer that is holding the cord and remove it
from the tension center. Loosen or cut of the knot in
the other end of the cord and then remove the hole
cord from the bike. When assembling a new brake
cord, first enter one end into the hole in the tension
center, and tie a knot and let the knot fall into the bigger part of the hole. Lock the end of the cord with the
lock washer.
Brake belt contact surface
Deposits of dirt on the brake belt and on the contact
surface may cause the unit to operate unevenly and
will also wear down the brake belt. The brake belt
contact of the flywheel surface should then be ground
off with fine sandpaper and any dust removed with a
clean dry cloth.
Remove if there are any covers and loosen the tension on the brake belt. Grind with a fine sandpaper.
Grinding is easier to perform if a second individual
cautiously and carefully pedals the cycle.
Irregularities on the brake belt contact surface are removed by means of a fine sandpaper or an abrasive
cloth. Otherwise unnecessary wear on the brake belt
may occur and the unit can become noisy.
Always keep the brake belt contact surface clean and
dry. No lubricant should be used. We recommend
replacing the brake belt when cleaning the contact
surface. In regard to assembly and adjustment of the
brake belt, see ”Replacement of brake belt”.
Alt. 3: To loosen the belt on other bikes remove all
possible tension. Observe how the belt is connected.
Take it apart and remove it from the bike. Attach the
new brake belt and assemble the bike in reverse order.
NOTE: When replacing the brake belt it is recommended to clean the brake surface. See ”Brake belt
contact surface”.
Monark 808/809
11
Chain 1/2“ x 1/8“
It is strongly recommended to keep the chain clean.
Dirt build-up on the chain will cause excess wear. A
chain lubricant and solvent for normal road bikes
may be used.
Check the lubrication and tension of the chain in regular intervals. In the middle of its free length the chain
should have a minimum play(3) of 10 mm (1/4 inch).
See fig: Chain adjustments. When the play in the chain
is about 20 mm (3/4 inch) it must be tightened otherwise it will cause abnormal wear of the chain and
chainwheels. Because of this it is always recommended to keep the chain play as little as possible. Loosen
the hub nut(2) on both sides and tense the chain with
the chain adjuster(1) when needed.
When the chain has become so long that it can no
longer be tightened with the chain adjusters it is worn
out and shall be replaced with a new one.
To adjust or replace the chain remove frame covers if
necessary.
To adjust the chain the hub nuts(2) should be loosened. Loosening or tightening the nuts on the chain
adjusters will then move the hub and axle forward or
backward. Adjust according to above recommendation. Then tighten the nuts on the hub axle again. See
fig: Chain adjustments.
To replace the chain loosen the chain adjuster as much
as possible. Dismantle the chain lock(6) and remove
the chain. Put on a new chain and assemble the chain
lock. The spring of the chain lock should be assembled
with the closed end in the movement direction(5) of
the chain. Use a pair of tongs for dismantling and
assembling the spring(4). See fig: Chain replacement.
NOTE: At assembly the flywheel has to be parallel
with the center line of the frame otherwise the chain
and chain wheels makes a lot of noise and wears out
rapidly.
Adjust chain adjusters to allow chain play according
to above. Tighten hub nuts firmly. Put on frame covers again.
Fig: Chain adjustments
1) Chain adjuster
2) Hub nut
3) Chain play
Fig: Chain replacement
4) Lock spring
5) Movement direction
6) Chain lock
3
2
1
4
6
5
Monark 808/809
12
Freewheel sprocket
When replacing the freewheel sprocket remove frame
covers if necessary. Dismantle the chain as described
in part ”Chain 1/2” x 1/8” ”.
Loosen the axle nuts and lift off the flywheel. Remove
the axle nut, washer, chain adjuster and spacer on the
freewheel side. Place the special remover (Art. No:
9100-14) in the adapter and place the spacer and axle
nut outside. See fig: Special remover. Replace sprocket-
adapter and assemble the new parts in reverse order
according to the above.
NOTE: Do not tighten the axle nut completely. It
must be possible to loosen the adapter-sprocket half
a turn.
The sprocket should be lubricated with a few drops
of oil once a year. Tilt the cycle somewhat to make
it easier for the oil to reach the ball bearing. See fig:
Lubrication.
Fig: Special remover
(Art. No: 9100-14)
Fig: Lubrication
Fig: Hub assembly
Monark 808/809
13
5
26
25
Monark 808/809
14
Spare parts
Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description
1 1 9327-6 Support tube, front 15 1 9300-26 Tension screw, compl.
2 1 9327-5 Support tube, rear 1 9100-25 -Knob
3 4 9327-7 Plastic cap, blue 1 5775 -Nut M8
4 2 9010-12 Transport wheel, compl. 16 1 4992-5 Saddle
5 2 14331-37 Screw 17 1 9300-114 -Saddle bracket
6 2 5901 Washer 18 1 9300-113 Saddle post
7 1 9000-55 Chain 84 links incl. lock 19 1 9300-115 Bushing
8 1 9308-51 Chain cover, inner 20 2 9300-131 Locking screw
2 5673-9 Screw for above 2 9300-134 -Pressure washer
9 1 9308-50 Chain cover, outer 21 1 9300-401 Crank set, compl.
2 5675-9 Screw for above 1 9300-164 Magnet
10 1 9308-65 Handlebar, compl. 22 1 8966-175 BB cartridge bearing
11 2 1069-5 -Handlebar plug, blue 23 2 8523-115 Screw M6S 8.8 M8x1x20
12 1 9100-106 -Lever 24 2 8523-2 Dust cover
13 1 9308-66 -Screw MVBF 8x80 25 1 9300-215 Pedal 9/16”, pair
1 6668-5 -Washer 28x8,5x3 26 1 9300-207 Pedal strap, pair
14 1 9308-32 Tension lever, compl. 27 1 9308-1 Frame
28 4 9308-10 Endcap
29 1 9308-11 Endcap
28
28
29
29
Monark 808/809
15
Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description
1 1 9308-30 Flywheel compl. 808, no ywheel 18 1 9309-38 Spacer, 809
2 1 9309-30 Flywheel compl. 809, w. ywheel 19 1 1210 Sprocket 14t, 808
3 2 5799 Nut 9.5x26g, 808 20 1 2420-49 Sprocket nut, 808
4 2 9309-39 Nut M10x1, 809 21 1 76441 Freewheel sprocket 16t, 809
5 1 9000-12 Chain adjuster, pair, 808, 809 22 1 9309-37 Spacer 13 mm, 809
6 2 9000-17 Spacer 5 mm, 808 23 1 9327-61 Speedometer, 808, 809
7 1 5881 Washer 10x21,5x3 mm, 808, 809 24 1 9308-62 Speedometer cable
8 1 9327-62 Hub connection 2.6, 808 25 1 9308-63 Connection collar M11
9 1 9309-62 Hub connection 3.0, 809 26 1 9309-63 Brake belt, compl. 808
10 1 9000-16 Spacer 16 mm, 808 27 1 9309-63 Brake belt, compl. 809
11 1 9309-36 Spacer 9.5 mm, 809 28 2 9308-37 Belt guide, 808, 809
12 1 9000-15 Locking ring SgH 028, 808 29 1 9308-66 Screw
13 2 19001-6 Bearing 6001-2z, 808 1 9308-36 Wheel suspension, 808
14 2 19001-5 Bearing 6000-2z, 809 1 9309-34 Wheel suspension, 809
15 1 9010-38 Locking pin 5x18 mm, 808
16 1 9308-35 Axle 9.5x26g, 808
17 1 9309-35 Axle M10, 809
KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81
Version 1010
Art. No: 7950-292
Loading...
