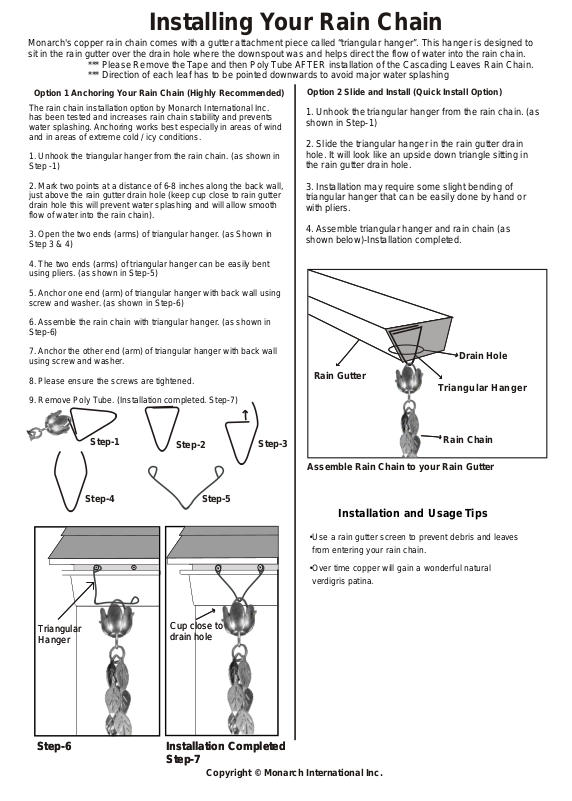

Installing Your Rain Chain
Monarch's copper rain chain comes with a gutter attachment piece called “triangular hanger”. This hanger is designed to
sit in the rain gutter over the drain hole where the downspout was and helps direct the flow of water into the rain chain.
*** Please Remove the Tape and then Poly Tube AFTER installation of the Cascading Leaves Rain Chain.
*** Direction of each leaf has to be pointed downwards to avoid major water splashing
Option 1 Anchoring Your Rain Chain (Highly Recommended)
The rain chain installation option by Monarch International Inc.
has been tested and increases rain chain stability and prevents
water splashing. Anchoring works best especially in areas of wind
and in areas of extreme cold / icy conditions.
1. Unhook the triangular hanger from the rain chain. (as shown in
Step -1)
2. Mark two points at a distance of 6-8 inches along the back wall,
just above the rain gutter drain hole (keep cup close to rain gutter
drain hole this will prevent water splashing and will allow smooth
flow of water into the rain chain).
3. Open the two ends (arms) of triangular hanger. (as Shown in
Step 3 & 4)
4. The two ends (arms) of triangular hanger can be easily bent
using pliers. (as shown in Step-5)
5. Anchor one end (arm) of triangular hanger with back wall using
screw and washer. (as shown in Step-6)
6. Assemble the rain chain with triangular hanger. (as shown in
Step-6)
Option 2 Slide and Install (Quick Install Option)
1. Unhook the triangular hanger from the rain chain. (as
shown in Step-1)
2. Slide the triangular hanger in the rain gutter drain
hole. It will look like an upside down triangle sitting in
the rain gutter drain hole.
3. Installation may require some slight bending of
triangular hanger that can be easily done by hand or
with pliers.
4. Assemble triangular hanger and rain chain (as
shown below)-Installation completed.
7. Anchor the other end (arm) of triangular hanger with back wall
using screw and washer.
8. Please ensure the screws are tightened.
9. Remove Poly Tube. (Installation completed. Step-7)
Step-1
Step-4
Step-2
Step-5
Step-3
Drain Hole
Rain Gutter
Triangular Hanger
Rain Chain
Assemble Rain Chain to your Rain Gutter
Installation and Usage Tips
•Use a rain gutter screen to prevent debris and leaves
from entering your rain chain.
•Over time copper will gain a wonderful natural
verdigris patina.
Triangular
Triangular
Hanger
Hanger
Step-6
Step-6
Cup close to
Cup close to
drain hole
drain hole
Installation Completed
Installation Completed
Step-7
Step-7
Copyright © Monarch International Inc.
