Chapter 1. Introduction
This manual applies only if you have purchased optional ROM
fonts for your printer.
The fonts described in this manual were designed to be used
with any MPCLII (Monarch® Printer Control Language version
II) printer. Be sure you understand the information in the
MPCLII Packet Reference Manual before you read this manual.
About this Manual ––––––––––––––––––––––––––––––––––––––––––
This manual provides the information you need to use any one
of the available ROM sets of predefined fonts on your tags or
labels. This manual includes print samples for each available
font family.
For information on incorporating ROM fonts into your tag or
label designs, see the MPCLII Packet Reference Manual.
Sample formats using ROM fonts are shown in Appendix B,
"Sample Formats."
If you wish to use a combination of fonts other than those
described in this manual, contact your Monarch Sales
Representative. Customized ROM font sets can be created to
meet your needs.
1-1
MPCLII Optional Fonts
Terms to Know –––––––––––––––––––––––––––––––––––––––––––––
Proportional
spaced fonts
All characters have different widths and
are difficult to center justify.
ROM Fonts These are stored on a ROM chip which is
installed in your priner. They cannot be
erased.
Scalable (Vector)
fonts
These fonts reside in the printer’s RAM or
in a ROM chip. Changing the point size
and magnification prints a smooth font.
There is no jaggedness at any point size,
because the font is created from an
equation every time it is used.
1-2
Chapter 2. Using ROM Fonts
This chapter describes
!
how to use ANSI characters with ROM fonts.
!
the available ROM fonts.
!
ordering information for additional ROM fonts.
Optional fonts are available in one of several ROM sets.
Refer to the following tables to locate the style for your chosen
font.
Fonts 1-6 and 12 use the ANSI character set. Fonts 7-11 use
the non-standard character sets shown in Appendix A,
"Character Sets."
Point sizes are approximate. A 12-point character is 12 points
wide. There are 72 points to an inch, so there would be six
12-point characters to an inch. Use these point sizes to
determine which fonts will fit on your format.
n
The quality of your printed fonts is affected by print speed,
head energy, and the quality of your stock. To maximize the
quality of printing, you may wish to use a premium quality
stock. Contact your Monarch Sales Representative for
information about "premium" supplies. To improve the
appearance of your fonts, slow down the print speed. Refer to
your MPCLII Packet Reference Manaul to adjust the print
speed.
Check your bar codes when you change your print speed to
ensure an in-specification bar code.
2-1
MPCLII Optional Fonts
Using ANSI Characters ––––––––––––––––––––––––––––––––––––––
To use one of these characters in your format, press and hold
the Alt key and type in the character codes for your chosen
character using the numeric keypad. To determine the
character code, add the column number and row number for
the character. For example, to produce the ÿ character, you
would press Alt 255 (column 15 + row 240). Keep in mind
that the character may appear differently on your screen than
it may appear when printed, because screen fonts and printer
fonts are not necessarily the same.
Refer to the chart on the following page for the available ANSI
characters.
2-2

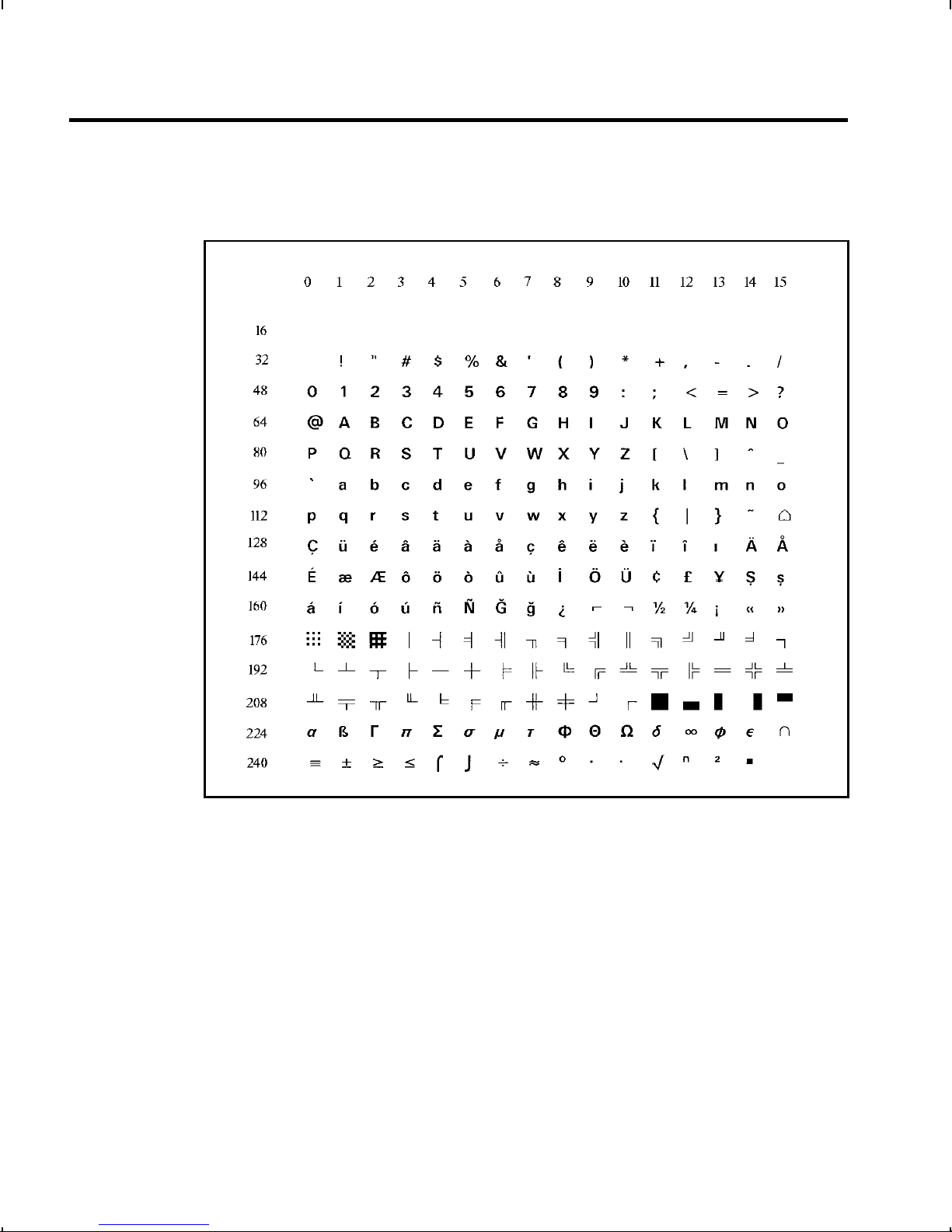

ANSI Character Set
Chapter 2. Using ROM Fonts
n
designates non-printing characters.
2-3
MPCLII Optional Fonts
ROM Fonts Using ANSI Characters –––––––––––––––––––––––––––
The following ROM fonts use the ANSI characters in the
formats.
Rom #1: Intensive Font
The Intensive Font family is used for text intensive tags or
labels. These fonts are very readable.
Font Style Point Size CG Times
500 10
501 12
502 14
503 16
504 18
505 10
506 12
507 14
508 16
509 18
CG Triumvirate
2-4

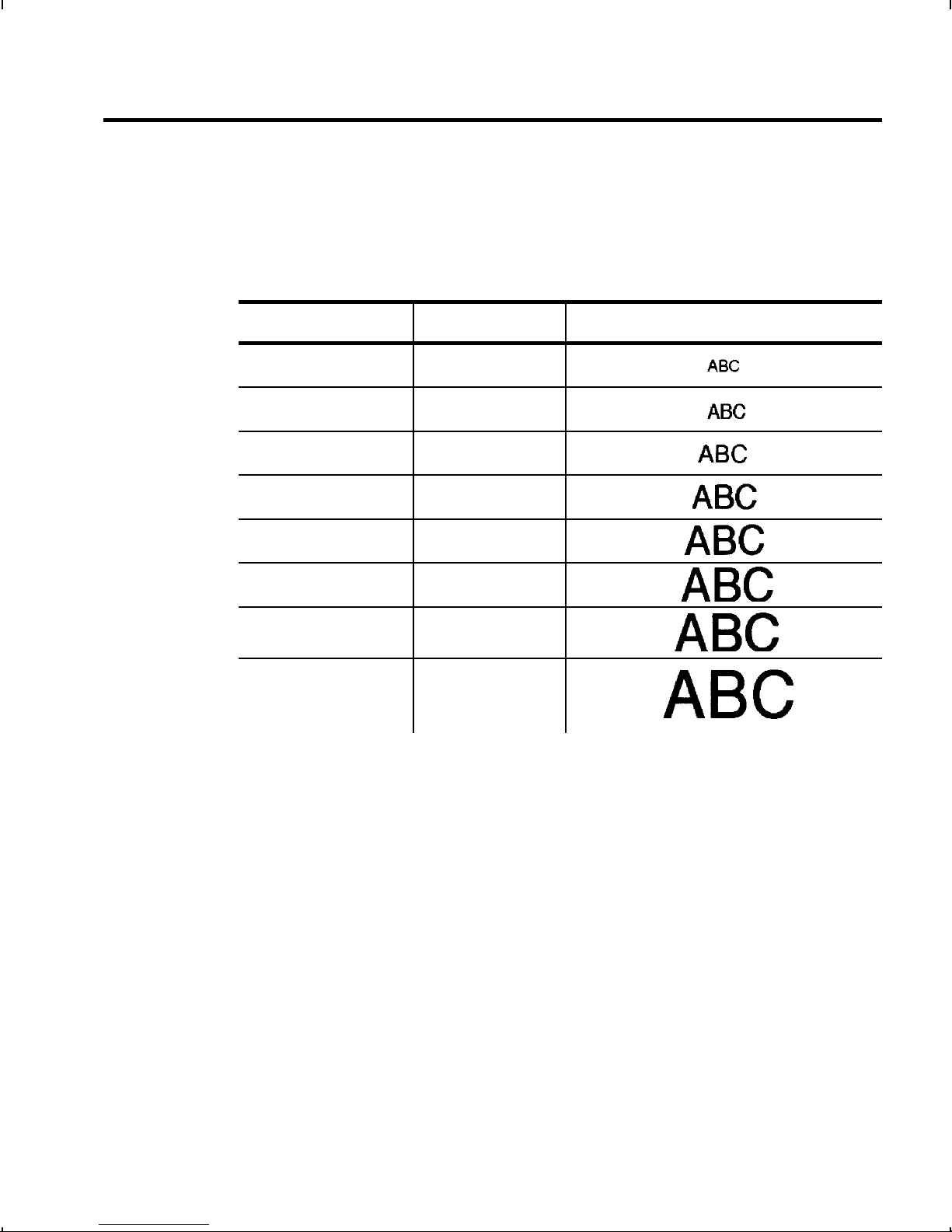

Rom #2: Compliance Label Font
The Compliance Label Font family is used on compliance
labels. Compliance labels are shipping labels used
exclusively for a certain retailer. The label complies with the
retailer’s standards.
Font Style Point Size CG Triumvirate
510 7
511 9
512 11
513 15
Chapter 2. Using ROM Fonts
514 18
515 21
516 24
517 30
2-5
MPCLII Optional Fonts
Rom #3: Headline Font #1
The Headline and Large Font families give a variety of looks to
information that requires emphasis on your tags or labels.
Font Style Point Size Copper Black
520 12
521 14
522 18
523 24
524 28
Refer to Appendix B, "Sample Formats," for a format using the
headline font.
Rom #4: Headline Font #2
Font Style Point Size CG Poster Bondini
530 12
531 14
532 18
533 24
534 30
2-6
Rom #5: Large Font
Font Style Point Size CG Times
540 24
541 30
542 40
Chapter 2. Using ROM Fonts
CG Triumvirate
Rom #6: Script Font
The Script Font family gives tags or labels a calligraphic effect.
Font Style Point Size Signet Roundhand
550 10
551 12
552 15
553 18
554 24
555 30
2-7
MPCLII Optional Fonts
Rom #12: Scalable Font
The Scalable Font (CG Triumvirate Bold) family produces
clear and readable fonts at point sizes from 4-90. Scalable
fonts are smooth at any point size or magnification. The
scalable font is a proportionally spaced font. Therefore, the
field height and width varies with each letter.
The height and width magnification entered in the format
packet (text or constant text field) are point sizes (4-90)
instead of magnifiers (1-7).
n
If height and width magnification are not set to the same point
size, the printed characters look tall and thin or short and
thick. This allows for greater flexibility in the appearance of
the font.
Refer to Appendix B, "Sample Formats," for a format using the
scalable font.
Font Style Point Size CG Triumvirate Bold
50 6
50 10
50 24
50 48
ABC
ABC
ABC
ABC
50 72
2-8
ABC
Chapter 2. Using ROM Fonts
ROM Fonts Using Non-Standard Characters –––––––––––––––––––
The following ROM fonts use the Non-Standard Characters in
the formats. Refer to Appendix A, "Character Sets" for the
available foreign characters and their corresponding codes.

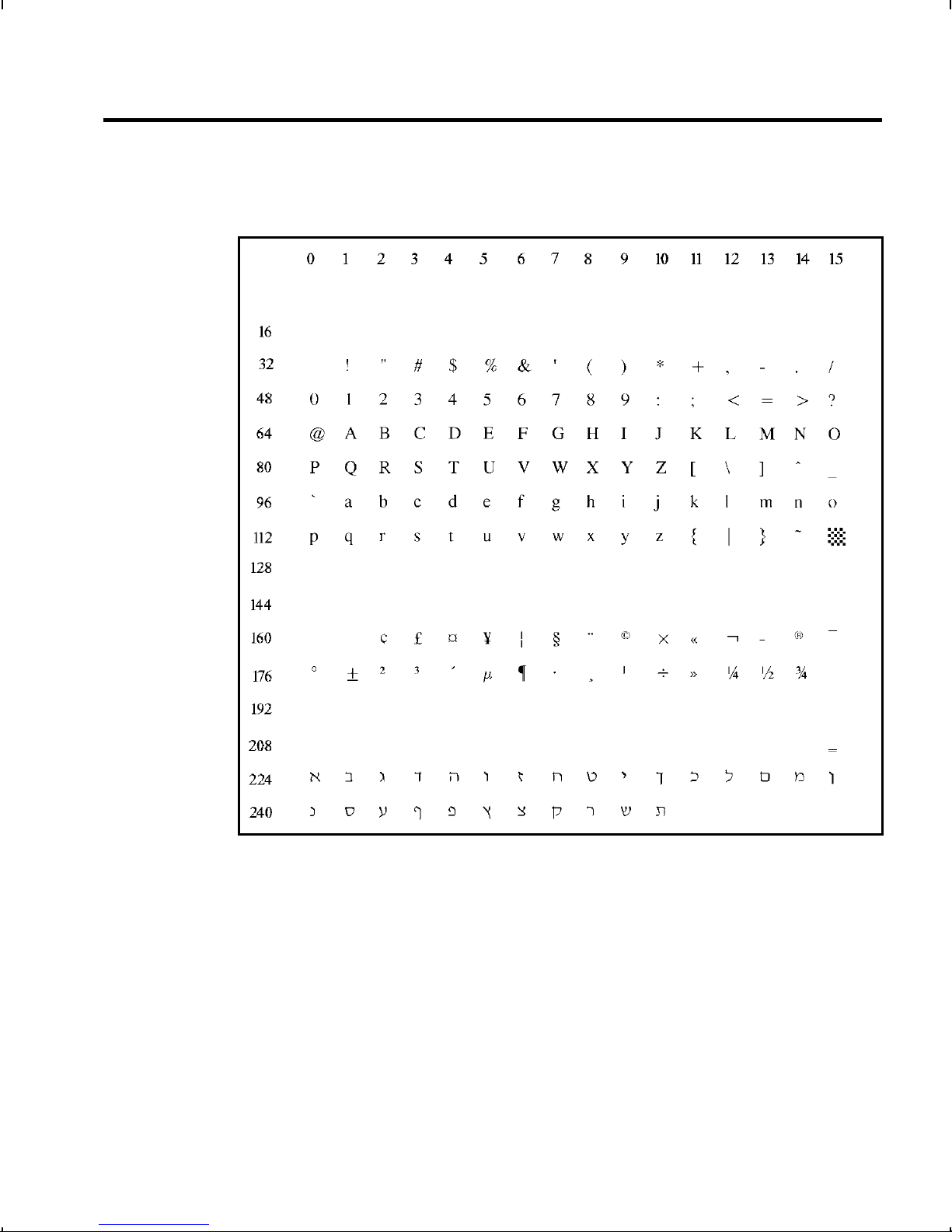

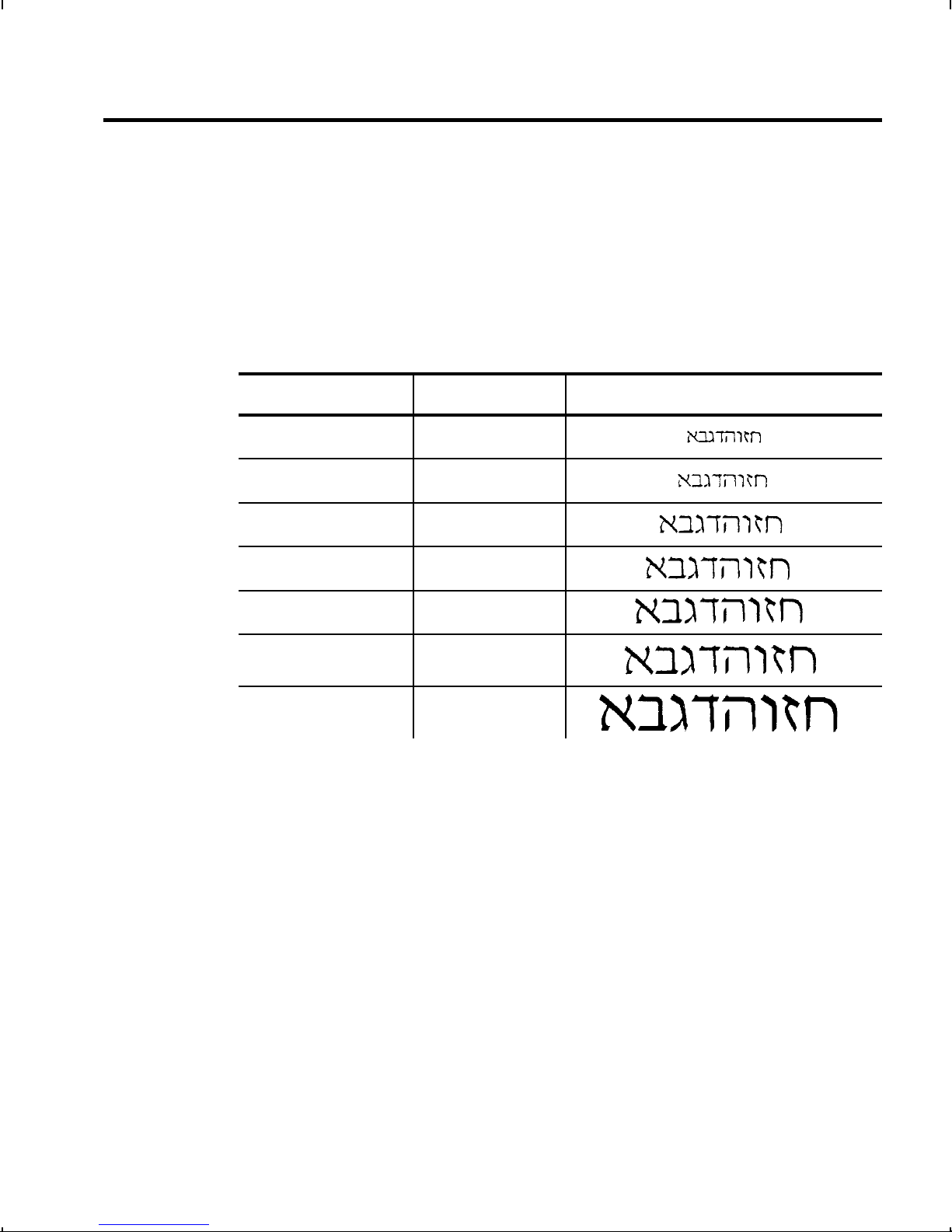

Rom #7: Latin-Hebrew Font
The Latin-Hebrew Font family prints Latin-Hebrew characters.
Font Style Point Size CG Times
561 9
562 11
563 15
564 18
565 21
566 24
567 30
2-9
MPCLII Optional Fonts
Rom #8: Latin-Arabic Font
The Latin-Arabic Font family prints Latin-Arabic characters.
Font Style Point Size CG Times
571 10
572 12
573 15
574 18
575 21
576 24
577 30
2-10
Rom #9: Greek Font
The Greek Font family prints Greek characters.
Font Style Point Size Univers
580 7
581 9
582 11
583 15
584 18
585 21
Chapter 2. Using ROM Fonts
586 24
587 30
2-11
MPCLII Optional Fonts
Rom #10: Cyrillic Font
The Cyrillic Font family prints Cyrillic characters.
Font Style Point Size Univers
590 7
591 9
592 11
593 15
594 18
595 21
596 24
597 30
2-12
Rom #11: Turkish Font
The Turkish Font family prints Turkish characters.
Font Style Point Size Univers
600 7
601 9
602 11
603 15
604 18
605 21
Chapter 2. Using ROM Fonts
606 24
607 30
2-13
MPCLII Optional Fonts
Ordering Additional ROM Fonts –––––––––––––––––––––––––––––
If you would like to order any of the ROM Fonts shown earlier
in this chapter, use the following part numbers.
ROM Number Part Number
1 (Intensive) 11497710
2 (Compliance Label) 11497810
3 (Headline #1) 11497910
4 (Headline #2) 11498010
5 (Large) 11498110
6 (Script) 11498210
7 (Latin-Hebrew) 11498310
8 (Latin-Arabic) 11498410
9 (Greek) 11498510
10 (Cyrillic) 11498610
11 (Turkish) 11498710
12 (Scalable) 11745110
Additional Fonts –––––––––––––––––––––––––––––––––––––––––––
You can download fonts to all of these printers. The
MONARCH® PLATFORM Font Utility converts any
Hewlett-Packard® or TrueType font into a file that can be
downloaded to Monarch® MPCLII printers. Call your Monarch
Representative for more information.
2-14
Appendix A. Character Sets
This appendix includes the non-standard character sets for
Arabic, Hebrew, Greek, Cyrillic, and Turkish fonts.
To use one of these characters in your format, press and hold
the Alt key and type in the character code for your chosen
character using the numeric keypad. To determine the
character code, add the column number and row number for
the character. For example, to produce the ∞ character, you
would press Alt 145 (column 144 + row 1). Keep in mind that
the character may appear differently on your screen than it
may appear when printed, because screen fonts and printer
fonts are not necessarily the same.
A-1
MPCLII Optional Fonts
Using Arabic Characters–––––––––––––––––––––––––––––––––––––
Refer to the chart below for the available Arabic characters.
A-2
Appendix A. Character Sets
Using Hebrew Characters ––––––––––––––––––––––––––––––––––––
Refer to the chart below for the available Hebrew characters.
A-3
MPCLII Optional Fonts
Using Greek Characters –––––––––––––––––––––––––––––––––––––
Refer to the chart below for the available Greek characters.
A-4
Appendix A. Character Sets
Using Cyrillic Characters ––––––––––––––––––––––––––––––––––––
Refer to the chart below for the available Cyrillic characters.
A-5
MPCLII Optional Fonts
Using Turkish Characters ––––––––––––––––––––––––––––––––––––
Refer to the chart below for the available Turkish characters.
A-6
Appendix B. Sample Formats
This appendix includes sample formats and their
accompanying batch packets.
Sample Standard Font Format Packet ––––––––––––––––––––––––––
{
F,20,A,R,E,160,160,"Fmt 20" p
T,001,03,V,0115,0008,0,1,1,1,B,L,0,0 p
T,002,03,V,0115,0075,0,1,1,1,B,L,0,0 p
T,003,03,V,0091,0008,0,1,1,1,B,L,0,0 p
T,004,06,V,0091,0052,0,1,1,1,B,L,0,0 p
B,005,12,F,0053,0014,1,0,0030,1,L,0 p
T,006,1,F,0038,0014,0,2,1,1,B,L,0,0 p
R,4,005,1,1,1,1 p
T,007,1,F,0038,0104,0,2,1,1,B,L,0,0 p
R,4,005,12,1,1,1 p
T,008,07,V,0010,0017,0,1,1,1,B,L,0,0 p
}
Standard Font
Selector
Sample Batch Packet
{
B,20,N,1 p
1,"111" p
2,"222" p
3,"333" p
4,"44444" p
5,"55555555555" p
6,"" p
7,"" p
8,"$99.99" p
}
Font 1
Font 1
Standard Font
Selector
Sample Tag
B-1
MPCLII Optional Fonts
Sample Headline Font Format Packet––––––––––––––––––––––––––
{
Headline Font
Selector
F,20,A,R,E,160,160,"Fmt 20" p
T,001,03,V,0115,0008,0,520,1,1,B,L,0,0 p
T,002,03,V,0115,0075,0,520,1,1,B,L,0,0 p
T,003,03,V,0091,0008,0,520,1,1,B,L,0,0 p
T,004,06,V,0091,0052,0,520,1,1,B,L,0,0 p
B,005,12,F,0053,0014,1,0,0030,1,L,0 p
T,006,1,F,0038,0014,0,2,1,1,B,L,0,0 p
R,4,005,1,1,1,1 p
T,007,1,F,0038,0104,0,2,1,1,B,L,0,0 p
R,4,005,12,1,1,1 p
T,008,07,V,0010,0017,0,522,1,1,B,L,0,0 p
}
Headline Font
Selector
Sample Batch Packet
Sample Tag
B-2
{
B,20,N,1 p
1,"111" p
2,"222" p
3,"333" p
4,"44444" p
5,"55555555555" p
6,"" p 7,"" p
8,"$99.99" p
}
Font 520
Font 522
Appendix B. Sample Formats
Sample Scalable Font Format Packet ––––––––––––––––––––––––––
Scalable Font
F,2,A,R,E,200,250,"FONT50" p
T,1,8,V,160,45,0,50,24,24,B,L,0,0,0 p
T,2,5,V,125,45,0,50,24,24,B,L,0,0,0 p
T,3,15,V,100,45,0,50,14,14,B,L,0,0,0 p
T,4,15,V,75,45,0,50,12,12,B,L,0,0,0 p
B,5,12,F,10,45,1,2,40,1,L,0 p
}
Selector
Height
Magnification
Width
Magnification
Sample Batch Packet
{
B,2,N,1 p
1,"MERRY" p
2,"MART" p
3,"LG Winter Coat" p
4,"$189.95" p
5,"345911871209" p
}
Sample Tag
Font 50
(24 pt.)
Font 50
(12 pt.)
B-3
MPCLII Optional Fonts
Sample Greek Font Format Packet ––––––––––––––––––––––––––––
{
F,1,A,R,E,200,250,"Greek" p
T,1,18,V,165,45,0,587,1,1,B,L,0,0,0 p
T,2,18,V,135,45,0,583,1,1,B,L,0,0,0 p
T,3,18,V,115,45,0,582,1,1,B,L,0,0,0 p
T,4,18,V,90,45,0,582,1,1,B,L,0,0,0 p
B,5,12,F,10,45,1,0,40,1,L,0 p
T,6,8,V,65,45,0,582,1,1,B,L,0,0,0 p
}
Greek Font
Selector
Sample Batch Packet
Sample Tag
{
B,1,N,1 p
1,"+-++" p
Font 587
2,"College-Wear" p
3,"--+" p
4,"Sm. Sweatshirt" p
5,"345911871209" p
Font 582
6,"$49.95" p
}
Greek Font
Selector
B-4
For supplies, service, or assistance call:
TOLL FREE:
1-800-543-6650 (In the U.S.A.)
1-800-263-4650 (In Canada)
INTERNET ADDRESS:
www.monarch.com
Published by the Technical Communications Department.
Printed in U.S.A.
Loading...
