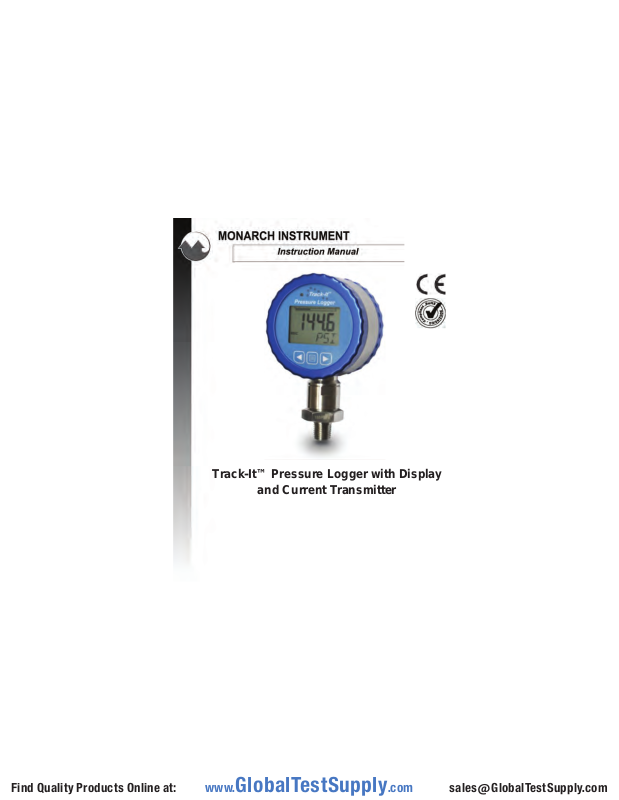

Monarch 5396-1331 User manual

Track-It™ Pressure Logger with Display

and Current Transmitter

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Safeguards and Precautions

1. Read and follow all instructions in this manual carefully, and retain this
manual for future reference.

2. Do not open the unit in a high humidity environment; it will cause
condensation inside the unit.

3. Do not make wiring connections or changes while power is on.

4. Do not operate this device in flamma ble or ex plosive atmospheres.

5. This device has no power switch. It will be in operation as soon as power is
connected.

6. This unit is designed to operate from 24Vdc; DO NOT under any
circumsta nces connect to AC ma ins.

7. Do not use this instrument in any manner inconsistent with these
operating instructions or under any conditions that exceed the
environmental specification s sta ted.

8. There are no user serviceable parts in this instrument. Refer service to a
qualified technician.

In order to comply with EU Directive 2012/19/EU on Waste Electrical
and Electronic Equipment (WEEE): This product may contain material

which could be hazardous t o human health and the enviro nment. DO NOT

DISPOSE of this product as unsorte d municipal wast e. This produ ct need s
to be RECYCLED in accor dance with local regula tions, contact your local authorities
for more information. This p roduct ma y be return able to your dist ributor f or recyclin g ­contact the distributor for details.

Monarch Instrument’s Limited Warranty applies.

Track-It is a trademark of Monarch Instrument.

Android and Google Play are trademarks of Google, Inc.

The Android robot is repro duced or modified from work cre ated and shared by Google and us ed according
to terms described in the Creave Commons 3.0 Aribuon License.

Excel is either a registered trademark or trademark of Microso Corporaon in the United States and/or
other countries

Find Quality Products Online at: [e-mail]

.

www.GlobalTestSupply.com

TABLE OF CONT ENTS :

1.0 INTRODUCTION .......................................................... 1

2.0 GETTING STARTED ...................................................... 2

2.1 Install USB Driver and Track-It SoŌware ....................... 2

2.2 Connect Logger and Start Track-It SoŌware .................. 3

2.3 Configure Logger .......................................................... 3

3.0 INSTALLATION............................................................ 4

4.0 POWER / TRANSMITTER CONNECTIONS ...................... 5

5.0 BUTTONS AND MENU ................................................. 7

5.1 Menu Modes ................................................................ 7

5.2 Menu OpƟons .............................................................. 8

6.0 LCD DISPLAY ............................................................ 10

7.0 LED .......................................................................... 12

8.0 TRACK-IT PC SOFTWARE .......................................... 12

8.1 Preferences ................................................................ 13

8.2 Input Setup ................................................................ 14

8.3 Output Setup .............................................................. 15

8.4 Display Setup ............................................................. 16

8.5 Menu Setup ................................................................ 17

9.0 TRACK-IT TRANSPORT APP ....................................... 18

10.0 SPECIFICATIONS ....................................................... 19

10.1 Measurement ............................................................. 19

10.2 General ...................................................................... 19

10.3 OperaƟng Environment .............................................. 22

10.4 Compliance ................................................................ 22

11.0 ACCESSORIES ........................................................... 23

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

1.0 INTRODUCTION

The Track-It Pressure Logger with Display and Current Transmier is a
24V DC powered waterght (IP65) compact data logger with an isolated 4
to 20mA current transmier output for pressure.

It can be configured to record both Pressure and Temperature up to
130,000 samples or Pressure alone, to maximize data storage space. Real
me data, alarms and min/max informaon can be displayed on the
mul-line LCD. The pressure transmier output current (4-20mA) can be
scaled by the user to provide maximum resoluon over the desired
pressure span. Power and mA out connecon is via a 4 pin DIN 43650
IP65 “Solenoid Valve” connector on the rear panel. The unit is easily
configured using the free downloadable Track-It PC Soware. There is a
mini-USB connector on the rear of the unit allowing connecon to a PC
for programming and data upload. Data upload can also be done with an
Android™ device using the Transporter App available on the Google
Play™ store.

The logger can be programmed to record data from once every two
seconds to once a day. The recording can be iniated by the user to
commence immediately, manually via the keypad buons, at some preset
me in the future, or on an alarm condion. Current output does not
depend on record-rate or sample-rate; it updates in real me at
approximately 8 mes per second.

The display can be programmed to display pressure in various
engineering units depending on pressure range. It can also display
temperature, minimum and maximum values, percentage of memory
used, me and date.

1

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

The Track-It pressure logger with display has a rugged waterght
anodized aluminum and stainless steel housing. The pressure sensor has
a standard ¼”-NPT or ½”-NPT fing.

2.0 GETTING STARTED

2.1 Install USB Driver and Track-It SoŌware

IMPORTANT: Do NOT plug the Track-It Data Logger into the USB
port unƟl AFTER the USB Driver and Track-It SoŌware have been
installed.

Unzip the downloaded file to a local directory on your PC.

Double-click “CD_Start.exe”. This will launch the Track-It Data
Loggers installation screen shown right:

1. Click “Install the USB
Driver” and follow the
prompts. Click “ConƟnue
Anyway” if you see the
message about soware
installaon.

2. Click “Install SoŌware”
and follow the
instrucons to complete
the installaon. The soware is now ready for use.

Logger and Soware manuals may also be accessed from the
installaon screen.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

2

2.2 Connect Logger and Start Track-It SoŌware

Plug the Track-It logger into an available USB port on the PC using
the supplied cable. If the Found New Hardware Wizard appears,
follow the prompts to complete the installaon.

Start the Track-It Soware by double-clicking the Track-It
icon (shown right) on your PC desktop or from the Start
menu.

If the USB drivers installed
properly you will see
“Device Connected”
displayed in the lower
right hand corner of the
Track-It Soware window.

2.3 Configure Logger

Select the “Device Setup” tab as shown below. The soware will
automacally retrieve and display the data logger configuraon.

3

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Review default factory configuraon sengs and make any
necessary changes—sample rates, triggers, alarms, etc. Be sure that
the me and date is set properly.

Click the “Send Config” buon under the Device Configuraon
secon of the window. Your data logger is now operaƟonal!

3.0 INSTALLATION

The logger can be ordered with various pressure sensor ranges to cover
most applicaons. Sensors have a ¼” NPT or ½”-NPT thread, dependent
on pressure range, that is intended to screw into the pressure source.
Make sure to use suitable tape or thread sealant/dope on the threads
before inserng the logger into the port. Use an adjustable wrench on
the SENSOR NUT to ghten the device into the port and test for leaks.

Once installed the dial can be rotated 300
degrees about the sensor to the intended
viewing direction. The gauge face can also be
rotated ±90 degrees by undoing the blue bezel,
lifting the front panel and associated electronics
and rotating it to the desired position. Ensure the
O-ring is in place before replacing the bezel. Do
not stress any of the internal wiring.

4

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

4.0 POWER / TRANSMITTER CONNECTIONS

The Logger has a 4 pole
DIN43650 solenoid valve style
connector on the rear panel for
power and current out
connecons.

A mang plug (Hirschmann GDS 307) and flat
gasket (Hirschmann GDS 307-4) are supplied.
The plug is a Form C connector with 3 Poles +
Ground, 9.4 mm pin spacing, with a black
fiberglass reinforced polyamide housing, and a
PG 7 cable entry which accommodates a

4.5 mm to 6 mm (0.177 to 0.236 inch) cable. It
has screw terminaon connecons for field
installaon and is water and dust proof to IP 65 standards when used
with the supplied gasket. The cover can be inserted on the inner plug in
one of four 90° orientaons.

The output is an isolated 4 to 20mA current source with a 12Vdc
compliance voltage capable of driving loads up to 600 Ohms with 24Vdc
power.

5

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

To connect, remove the screw and plug
base from the housing. Thread the
cable through the PG7 gland (A), metal
washer (B) and rubber washer (C).
Insert the wires into the plug housing
(D) and strip the wire ends
~0.24” (6mm).

The plug has four compression screw
connecons. Match pin numbers printed on the
connector against numbers displayed in the
image right – note that pin 4 is not marked and
is the ground pin -

Make a note of the wire colors, insert the
stripped ends of the wires into the connecons
and secure with the screw. The connecons are
as follows:

1) Power +24V DC

2) mA isolated output -

3) mA isolated output +

4) Power 24VDC COM

Once wired, insert the plug into the housing –
note the orientaon of the plug housing. When
connecng the plug to the socket ensure the
gasket is between the plug and socket. Tighten
the screw.

6

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

5.0 BUTTONS AND MENU

If the display is off, pressing any buon will turn it on
for the duraon set in the Track-It PC Soware.

There are 3 buons: e (le arrow), MENU
and f (right arrow).

Pressing the e or f buons will scroll the display
through the various display values as set in the
Track-It PC Soware. This includes Pressure, Temperature, Date/Time,
Memory Usage, Max/Min for Pressure and/or Temperature.

5.1 Menu Modes

There are two menu modes: the Regular menu and the Admin
menu. What is visible in each menu is a funcon of how the device is
programmed using the PC soware. See secon 8.5 Menu Setup.
Some menu items are context sensive.

The Regular menu is accessed by pressing the MENU buon.

The Admin menu is accessed by pressing and holding the e (le
arrow) buon then pressing the MENU buon.

In the menu mode the e buon is the escape or exit buon, the f
buon is the accept/change buon and the MENU buon will move
to the next menu item. The display will automacally exit back to the
real me display if there is no acvity for 10 seconds.

The content of each menu is set up in the Track-It PC Soware. In
addion, the admin menu can be locked in which case the user at

7

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

the logger cannot enter this menu and will receive a LOCK message.
See secon 8.5 Menu Setup.

5.2 Menu OpƟons

(In alphabecal order – the actual order in which these items appear
is dependent on sengs in the Track-It PC Soware)

Back Light BKLT – AUtO/OFF – In Auto Mode the backlight

will come on whenever the display is on. Press f
buon to toggle auto/off status.

Clear Alarm Clr ALRM – Will clear any pending Alarm. Press f

buon to clear. (Only visible during Alarm.)

Clear Minimum Clr MIN – Will clear minimum values for Pressure

and/or Temperature. Press f buon to clear. It
depends on whether Pressure or Temperature is
displayed when menu is pressed and if Pressure
maximum is selected in the display menu in the
Track-It Soware.

Clear Maximum Clr MAX – Same as above for Maximum.

Cycle Mode CYCL – On/OFF – If on, display will toggle between

Pressure and Temperature.

Bar Graph BAR – On/OFF – Turns the bar graph on or off.

Press f buon to toggle on/off status.

Decimal Point DCPT – AUtO, 0, 1 – Used to set preferred

number of decimal places. Auto will use all the

8

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

digits and adjust the number of digits aer the
decimal accordingly.

Engineering Units Unit – Used to change the engineering units for

the pressure display. The lower line will show the
current engineering units. Use the f to scroll
through the available units and press e to
accept. Not all units are available depending on
the full scale value of the sensor. The choice is
limited by the number of digits on the display.

Record On/Off rEC – ON/OFF – Will toggle the record mode of

the unit (Only visible if record mode set to
“Buon Press” in the Track-It PC Soware). Press
f buon to toggle on/off status.

Zero Mode ZERO – OFF/EnAb – Will enable the zero offset

feature. Available only in the Admin menu. If Off
(not enabled) the Zero Set menu item will not
display.

Zero Set ZERO – SEt/OFF – Will set the current Pressure

value to zero (offset into relave mode). Press f
buon to toggle between modes. SEt will
acvate relave mode, OFF will set to absolute
mode. NOTE: When set, the OFS icon will show
on the display. This menu item is only visible if
the Zero Mode is enabled in the Admin menu
and the Admin menu is NOT Locked.

9

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

6.0 LCD DISPLAY

The display has 4½
7-segment digits to show
actual values of pressure
and temperature. There is
also a line of 4
alphanumeric digits used
to display ASCII text (e.g.
Pressure Units). The
display is oponally
backlit. If the pressure is
greater than 19999, the resoluon is set to 10 units and is indicated by
the x10 icon. The maximum value displayed is therefore 199990.

There is a bar graph at the top of the display (which can be turned off by
the user) giving an analog indicaon of values relave to 100% which is
the full scale value of the sensor. Note that in the pressure offset mode
the bar graph indicates the absolute value of the pressure as a funcon of
full scale.

In addion to these values, the display can be scrolled using the e or f
buons and may show (depending on configuraon) minimum and
maximum values of pressure and temperature, date as day/month
(24.07) or month/day (07.24), me in 12 or 24 hour format (12 hour
format will be indicated by AM or PM – 08:30 AM), and memory usage as
a % of available memory. Values shown are set in the display setup using
the Track-It PC Soware. See secon 8.4 Display Setup.

10

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

There are various icon indicaons on the display that indicate the
following:

REC

TRG

OFS

Bar graph shows percentage of full scale (0 to 100%) of the value
indicated. This can indicate Pressure, Temperature or percentage of
memory used when recording. Note that in the Pressure offset mode the
bar graph will show the percentage of full scale of the absolute value not
the offset value currently displayed. The bar can be disabled in the menu.

Indicates the unit is currently recording. This icon will blink at
a 2 second rate.

Indicates the unit is currently triggered and waing to record.
Record is iniated by me delay, alarm or buon depending
on configuraon.

Indicates an Alarm condion with the following -

Indicates High Alarm, Indicates Low Alarm.

On its own (no Alarm) indicates Maximum value. Visible
when scrolling through display if set.

On its own indicates Minimum value. Visible when scrolling
through display if set.

Indicates the reading has been offset and is relave. (Zero
mode acve).

Indicates the current numerical value displayed must be
mulplied by 10.

11

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

7.0 LED

There is an LED (Light Eming Diode) above the display to the le. This
LED is user programmable using the Track-It PC Soware (see secon 8.4

Display Setup) and can indicate that the unit is recording (Green blink) or

an Alarm condion exists (Red blink). It will also blink green when serial
communicaon is taking place through the USB port.

8.0 TRACK-IT PC SOFTWARE

IMPORTANT: Before using your Track-It Data Logger it needs to be
configured. You must first download and install the USB Drivers and PC
SoŌware. Please refer to secƟon 2.0 Geƫng Started.

The free Track-It Soware runs on a PC and gives the user complete
control in programming the logger and allows for the upload,
examinaon and archiving of data recorded on the logger and seng the
current output. The operaon of the Track-It Soware is described in its
own manual which is accessed via the Help - Manual opon.

Some of the features of Track-It Soware are:

x Delayed recordings, fixed duraon recordings by me or number of

samples, mulple record mes, manual record by buon press,
record on alarms

x Sample rates from 2 seconds to 24 hours. Instantaneous, average,

maximum or minimum values

x Two Alarms, high or low, latched or momentary and record under

these alarm condions

x Display of data graphically, digitally or tabular formats with alarm

indicaon

12

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

x Export user selected data in CSV formats for import into Excel

data to be exported.

®

. Filter

x Scale output current to user specified pressure range

There are a number of unique opons specifically for this Display
Pressure Logger with Current Transmier which are covered in the
following secons.

8.1 Preferences

Select “Preferences” then the “Eng Units” tab. You will see the
pop-up box shown below.

These Engineering Units apply to the data read from the Logger and
displayed on the graph or in the data table.

13

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

If the “Units from Logger” box is checked - the selecon of
engineering units here is ignored and the engineering units used will
be as set by default in the Logger. If the “Units from Logger” box is
unchecked, then the unit selected here will override that set in the
Logger.

8.2 Input Setup

Under the “Device Setup” tab select the “Input” tab and the “Chan
1” tab.

This seng allows the user to select the default engineering units
that will be displayed on the Logger LCD Display. Note that not all
engineering units are available; it depends on the full-scale range of

14

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

the pressure sensor, as some values will be too large to display on
the Logger. Note also that these units may be changed locally at the
Logger if the menu is set up to allow this. See secon 8.5 Menu

Setup.

The units selected here will be used when reading data from the
Logger unless overridden in the Preferences menu.

The Pressure channel cannot be disabled – the Logger will always
record Pressure.

Note that selecng anything other than “Instantaneous” for Sample
Mode (the Logger only takes a reading at the Record Rate) will cause
the Logger to take readings at the highest sample rate .

The “Chan 2” tab is similar but for the Temperature channel. The
Temperature channel can be disabled in which case the Logger will
only record Pressure, not Temperature and Pressure.

8.3 Output Setup

The current output can be scaled by the user. Under the “Device
Setup” tab select the
“Output” tab. This will
display the seng for
the current output of
the aached device.
The user can set the
pressure values
corresponding to the
4mA or zero scale and
20mA or full scale

15

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

output. The logger will scale the output linearly to pressure between
the two set points.

If “Default” is checked the output will be 4mA at 0 pressure and
20mA at the full scale pressure of the device. The scaling cannot be
changed in default mode. The pressure is set and shown in the units
selected under the “Input” tab.

The sengs from the aached device can be refreshed using the
“Read from Device” buon if not in default mode.

NOTE: The new sengs will not be updated in the device unl the
user sends a configuraon file using the “Send Config” buon.

8.4 Display Setup

Under the “Device Setup” tab select the “Display” tab.

These sengs allow the user to decide what is displayed on the
Logger LCD display and defines the funcon of the LED.

16

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

The “Display List” column shows the available funcons that are
available to be displayed on the Logger. The “LCD Display” column
are the funcons that will be displayed on the Logger. The user can
move the opons between the columns by selecng the opon
(clicking on it) and using the arrow keys. Note that Pressure cannot
be moved from the LCD display.

“Decimal Places:” will define how the data is displayed. Auto will
always use the maximum number of digits available.

“LCD Time Out:” determines how long the LCD display will be on
before blanking.

The “Time:” and “Date:” formats can be selected as shown.

The “Display Average” checkbox enables the real-me update to be
a rolling average of the last four readings. This will quiet a noisy
display but does affect the response of the readout.

8.5 Menu Setup

Under the “Device Setup” tab select the “Menu” tab.

This seng allows the user to determine which menu funcons
appear in the Normal menu and which appear in the Admin menu.
Menu items will appear in the Logger menus in the order of top to
boom in the lists. By highlighng a menu item (clicking on it) the
user can manipulate its posion using the arrow buons. The Zero
Mode cannot be moved from the Admin menu.

17

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

If the “Lock Admin Menu” box is checked the user will not be able to
access the Admin Menu features at the Logger, and the Zero Set
menu opon (display offset) will not be available in the Normal
Menu.

9.0 TRACK-IT TRANSPORT APP

Track-It Transport is a free Applicaon
for Android that allows you to use
your device for Android to start and
stop recording and transfer data using
a USB On-the-Go cable.

Scan for Applicaon

for Android

18

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

10.0 SPECIFICATIONS

Note: Product specificaons are subject to change without noce.

10.1 Measurement

Pressure Ranges: Various pressure ranges absolute and

gauge. Check ordering informaon

Accuracy: ±0.25% Full Scale typical (incl. linearity,

repeatability and hysteresis)

Resoluon: 0.01%. Display 4½ Digits. Max 2 decimal

places.

Compensated Range -10°C to +70°C typical

Temperature Coeff. 0.02% Full Scale/°C. (> 580 PSI or 4MPa)

0.03% Full Scale/°C. (< 580 PSI or 4MPa)

Overpressure Rang: 1.5 mes max

Port connecon: ¼” or ½” NPT Male

Sensor Housing & Diaphragm: Stainless Steel 316L Fill: Silicon Oil

Temperature Range: -20 to +85°C / -4 to 185°F

Accuracy: ± 5°C

Resoluon: 0.1°C / 0.2°F

10.2 General

Record: Sample Rates: User configured 1 every 2 seconds

up to 1 every 24 hours

No. of Samples: 130,000 (depends on setup)

19

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Record Trigger: Two independent triggers. Mulple trigger

modes: Instantaneous, buon control, on alarm,
me and date (start and stop), day of week

Record Mode: Fill to end of memory or cyclic, number of

samples, me duraon

Display: Two line, 4½ digit 7-segment LCD and 5-digit

alphanumeric display with custom icons, mul-
segment bar graph for 0-100% indicaon, backlit

Alarms: 2 user programmable alarms. High or Low

CommunicaƟon: Mini USB connecon

SoŌware: Track-It Soware—Program device, view data

(historic or real me), export to spreadsheet

BaƩery: Internal rechargeable Li-Ion. Not user serviceable.

Allow 24 hours to fully recharge when connected
to power.

Enclosure: Material: Anodized 6061 Aluminum and 316L

Stainless Steel

Dimensions: 2.94” (74.6mm) diameter x 1.82” (46.3mm) deep

x 4.78” (121.4mm) tall including port threads (see
diagram on page 21)

Weight: 0.85 lbs (385.55 grams)

Power: 24Vdc ±10% 1.2W max

20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Isolated Current Out:

Range: 4 to 20mA (Min. 3.6mA, Max. 21.5mA)

User scalable for pressure.

Isolaon: 500V to 24Vdc power

Compliance Voltage: 12Vdc @24Vdc supply (Min 11V

@21.6Vdc supply)

Accuracy: ±0.06%

Resoluon: 6μA

Update rate: 125 msec typical

4.78in

[121.4mm]

21

2.94in

[74.6mm]

1.82in

[46.2mm]

1.40in

[35.56mm]

0.61in[15.6mm]

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

10.3 OperaƟng Environment

Temperature: -20 °C to +85 °C (-4 °F to 185 °F)
Humidity: 100%

Environmental: IP65. Note: USB connector cover must be in

place.

10.4 Compliance

10.4.1 BaƩery Compliance

The Lithium-Ion baery used in this product meets the
requirements of UN DOT 38.3.

10.4.2 EU DeclaraƟon of Conformity

22

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

11.0 ACCESSORIES

O-Rings Replacement O-Ring Seal, 2-Pack

Garden Hose Adapter Brass Coupling

USB 2.0 Cable USB 2.0 to 2.0 mini 6-foot cable

USB On-The-Go Cable USB Cable for use with Android devices

USB Extension Cable 3-foot USB Extension Cable

Track-It SoŌware Track-It Soware on CD

DIN46350 MaƟng Plug Hirshmann GDS 307 mang plug and GDS

with Gasket

CAL-N.I.S.T N.I.S.T. Traceable Cerficate of Calibraon /

307-4 gasket for DC Power and Current Out
connecon

Recalibraon

23

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Check out our other product lines…

Handheld

Tachometers

Speed Sensors Temperature/

Paperless Recorders Track-It™ Data Loggers

Copyright 2016 Monarch Instrument, all rights reserved

Panel

Tachometers

Humidity Sensors

Printed in the U.S.A.

Portable

Stroboscopes

Machine Vision

Stroboscopes

VibraƟon Meters

1071-4396-210

-1216

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
