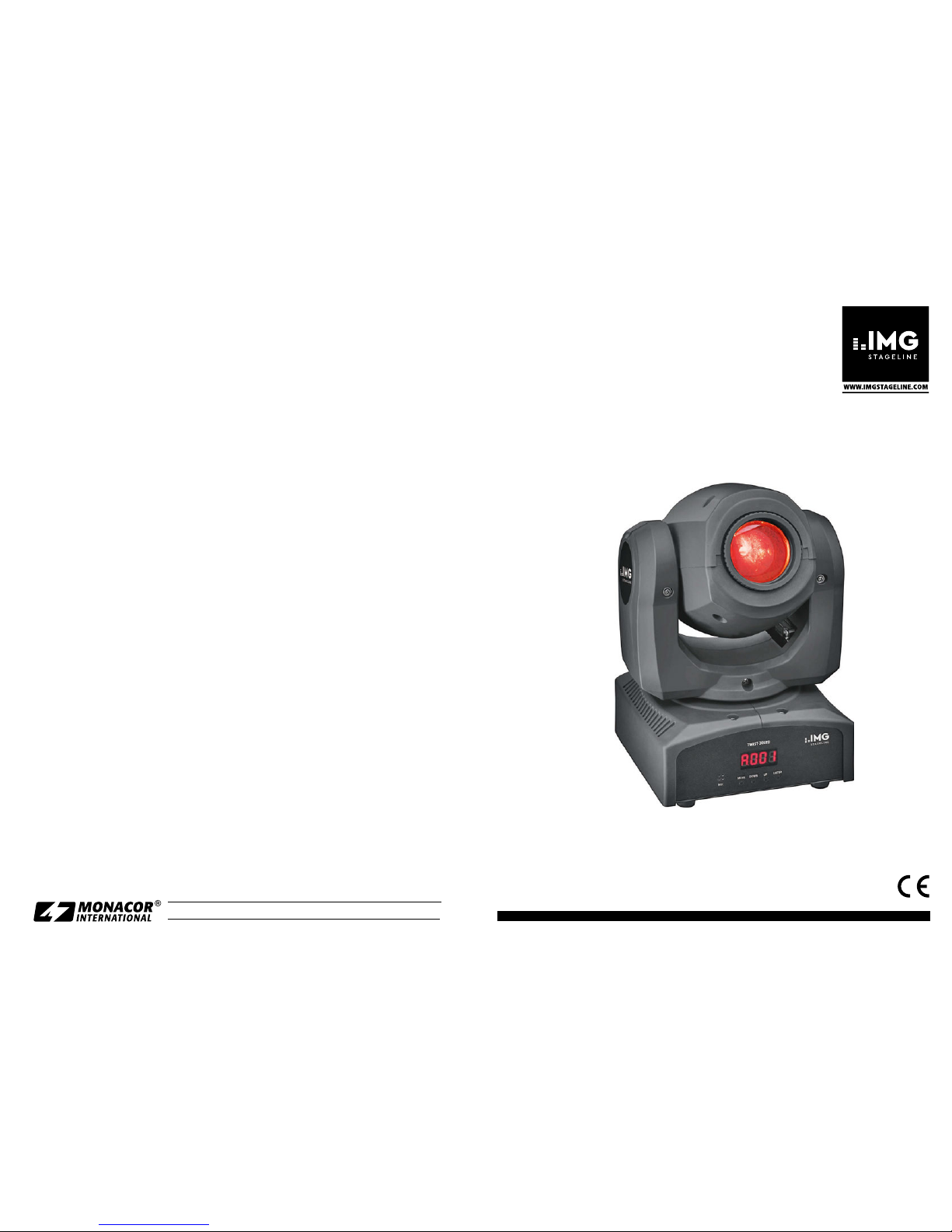

Page 1
Compact
LED Moving Head
TWIST-30LED
Order No. 38.8010
INSTRUCTION MANUAL
MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany
www.monacor.com 01.21.02.2017
ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS
Page 2
1.2 Safety Instructions
1. INTRODUCTION
■
1 x TWIST-30LED
■
1 x Power cord
■
1 x Mounting bracket
■
1 x User Manual
!
Warning!!! To reduce the risk of fire, electric shock, or injury to persons,
follow these important safety instructions:
Caution!
Avoid looking directly into the LED light beam at a close distance!
1
Thank you for selecting this product. Equipped with one 30W high power white
LED, this LED Moving Head is extremely bright. It offers DMX, Auto, Sound,
Master/Slave. Ideal for small clubs, bars, parties, etc. To optimize the performance
of this product, please read the user manual carefully before use.
1.1 Unpacking
The following items are included in the box:
1.3 Features
▪
LED Spot moving head
▪
1 color wheel: 7 colors + white
▪
1 Gobo wheel: 7 gobos + open
▪
Color rainbow + Gobo shaking
▪
Manual focus
▪
4 working modes: DMX, Auto, Sound, Master/Slave
▪
DMX modes: 10/5 channels
▪
Pan : 540° Tilt: 270°
▪
The product is for indoor use only.
▪
Always turn off, unplug power and allow fixture to cool before servicing.
▪
Ensure that fixture is properly grounded.
▪
Please keep this User Guide for future consultation.
▪
Always make sure that you are connecting to the proper voltage and that the line
voltage you are connecting to is not higher than that stated on decal or rear panel
of the fixture.
▪
Always disconnect from power before servicing or replacing fuse.
▪
Make sure power cord is never crimped or damaged.
▪
▪
▪
0-100% linear dimmer
1-25 fps strobe
4-button LED display
Carefully unpack the carton, check the
contents to ensure that all parts are
present, and have been received in good
condition. Contact your supplier
immediately and retain packing material
for inspection if any part is missing or
damaged.

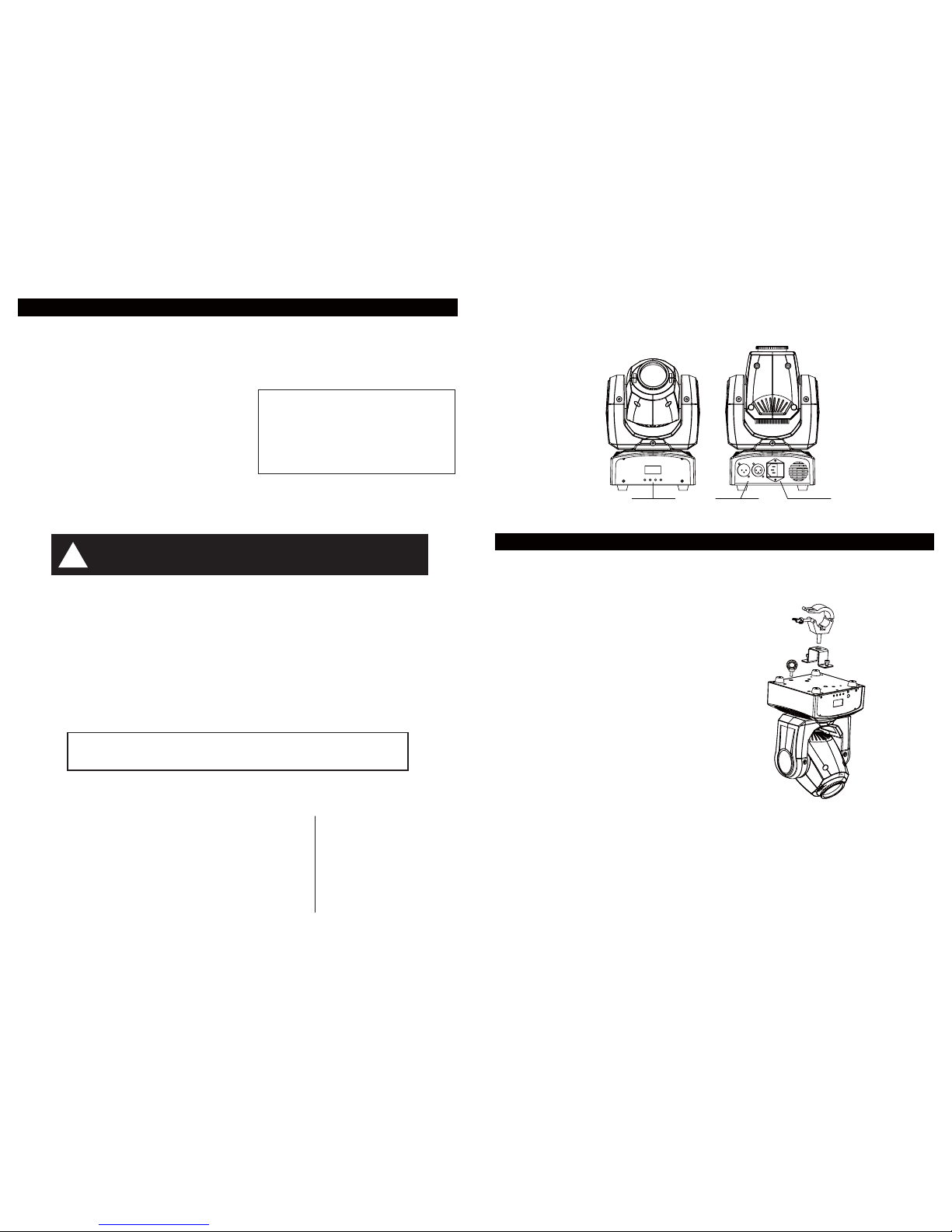

1.4 Product overview
2. SETUP
2
Control Panel
Power In/Fuse
DMX In/Out
2.1 Mounting
The Moving Head is fully operational in any mounting position, hanging upsidedown, side mounted, or set on a flat llevel surface, etc.
IMPORTANT!!! Safety cables must always
be used when unit is celling or truss
mounted. The safety cable must be
capable of holding 10 times the weight of
the fixture.
2.3 AC Power
The fixture is designed to work on
AC 230V 50Hz. All units must be powered
directly from a switched circuit.
This unit cannot be run on a rheostat or
dimmer circuit even if used solely for a
0% to 100% switching.
WARNING!!! All fixtures must be connected to circuits with a
suitable Earth Ground.
Page 3
3.1 Menu Map
3. OPERATION INSTRUCTIONS
3
Scroll through the main menu or exit from the
current sub-menu
the currently selected menu or confirm the current
function value Scroll
through the menu list or decrease the value of the
current function value Scroll
through the menu list or increase the value of the
current function
MENU
DOWN
UP
ENTER
A.001
C.HNd
S.LNd SL I NASt
SHNd SH 1 SH 8
Soun on off
PAn on off
ti L on off
dI SP on off
rFAC on off
Ad t
rSt
P000 dELE
P 000
120
t
C
g
A.0.0.1. A.5.1.2.
1.0CH
.5CH
MENU
MENU
DOWN
ENTER
UP
MENU
to set DMX address
to select DMX mode
to select Master/Slave
to select show program
to activate sound activation
to reverse Pan
to reverse Tilt
to reverse Display
to factory default
Calibration
P018
UP
DOWN
4
5 DMX Channels
CHANNEL VALUE FUNCTION
000-255 Pan movement
000-255 Tilt movement2
3
000-200
201-254 Strobe from slow to fast
255-255 Strobe open
Dimmer 0-100%
4
5
000-023 White (open)
024-047 Color 1
048-071 Color 2
072-095 Color 3
096-119 Color 4
120-143 Color 5
144-167 Color 6
168-191 Color 7
012-023 Gobo 1
024-035 Gobo 2
036-047 Gobo 3
048-059 Gobo 4
060-071 Gobo 5
072-083 Gobo 6
084-095 Gobo 7
192-255 Color rainbow effect from slow to fast
000-011 Open (White)
1
Tilt
Dimmer/Strobe
Color
Gobo/Auto
program
Pan
151-165 Auto program 2
096-135 Empty
136-150 Auto program 1
166-180 Auto program 3
181-195 Auto program 4
196-210 Auto program 5
211-225 Auto program 6
226-230 Auto program 7
231-240 Auto program 8
241-250 Sound activation
Open
1
2
3
4
5
6
7
White
Color1: orange
Color2: cyan
Color3: purple
Color4: yellow
Color5: green
Color6: blue
Color7: red
Page 4
10 DMX Channels
MODE VALUE FUNCTION
000-255 Pan movement1
000-255 Pan fine2
000-255 Tilt movement3
000-255 Tilt fine4
000-255 Pan/Tilt speed from fast to slow5
000-255 Dimmer 0-100%6
000-004 Strobe close
005-250 Strobe from slow to fast
251-255 Strobe open
7
000-023 White (open)
024-047 Color 1
048-071 Color 2
072-095 Color 3
096-119 Color 4
120-143 Color 5
144-167 Color 6
168-191 Color 7
012-023 Gobo 1
024-035 Gobo 2
036-047 Gobo 3
048-059 Gobo 4
060-071 Gobo 5
072-083 Gobo 6
084-095 Gobo 7
096-111 Gobo 1 shaking from slow to fast
112-127 Gobo 2 shaking from slow to fast
128-143 Gobo 3 shaking from slow to fast
144-159 Gobo 4 shaking from slow to fast
160-175 Gobo 5 shaking from slow to fast
176-191 Gobo 6 shaking from slow to fast
192-255 Gobo scrolls from slow to fast
192-255 Color rainbow effect from slow to fast
8
000-011 Open (White)
9
Pan
Pan fine
Tilt
Tilt fine
P/T speed
Dimmer
Strobe
Color
Gobo
5
6
I
MPORTANT INFORMATION!
In order to optimize the recovery and recycling of the materials that old
appliances contain and reduce the impact on human health and the
environment, ensure that this product is recycled at the end of its life.
5. Specifications
Source: 1 x 30W white LED
Beam angle: 13°
Power consumption: 70VA
Fuse: F2AL /250V
Power supply: AC 230V, 50Hz
Dimensions: 170 x 270 x 150 mm
Weight: 2.5 kg
4. General Maintenance
a.
Unscrew the fuse holder and remove the damaged fuse.
b.
Replace with exact same type fuse and screw the fuse holder back in its place.
4.1 Fuse Replacement
10 Auto program
033-058 Auto program 2
000-007 No function
008-032 Auto program 1
059-084 Auto program 3
085-110 Auto program 4
111-136 Auto program 5
137-164 Auto program 6
165-188 Auto program 7
189-214 Auto program 8
Auto program 9215-240
241-250 Sound activation
251-255 Reset (10s)
