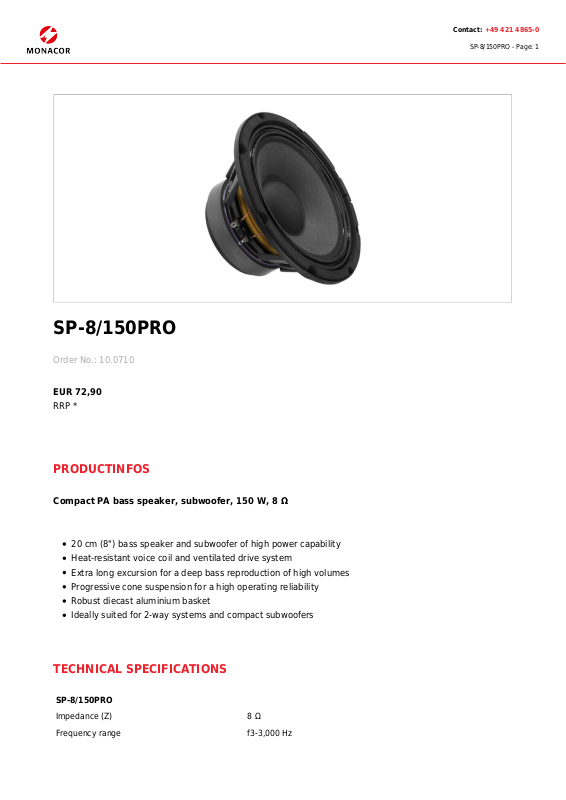

SP-8/150PRO - Page: 1
SP-8/150PRO
Order No.: 10.0710
EUR 72,90
RRP *
PRODUCTINFOS
Compact PA bass speaker, subwoofer, 150 W, 8 Ω
20 cm (8") bass speaker and subwoofer of high power capability
Heat-resistant voice coil and ventilated drive system
Extra long excursion for a deep bass reproduction of high volumes
Progressive cone suspension for a high operating reliability
Robust diecast aluminium basket
Ideally suited for 2-way systems and compact subwoofers
TECHNICAL SPECIFICATIONS
SP-8/150PRO
Impedance (Z) 8 Ω
Frequency range f3-3,000 Hz
Page 2
SP-8/150PRO
Resonant frequency (fs) 56 Hz
Power rating 150 W
Peak music power output 300 W
Sensitivity 93 dB
Suspension compl. (Cms) 0.35 mm/N
Moving mass (Mms) 22.8 g
Mech. Q factor (Qms) 1.52
Electr. Q factor (Qes) 0.41
Total Q factor (Qts) 0.32
Equivalent volume (Vas) 22 l
DC resistance (Re) 7.2 Ω
Contact: +49 421 4865-0
SP-8/150PRO - Page: 2
Force factor (BxL) 11.96 Tm
Voice coil induct. (Le) 2.0 mH
Voice coil diameter Ø 50 mm
Voice coil former aluminium
Linear excursion (X
Eff. cone area (Sd)
MAX
)
±6 mm
213 cm
2
Magnet weight 850 g
Magnet diameter Ø 120 mm
Mounting cutout Ø 185 mm
Mounting depth 90 mm
Dimensions Ø 210 mm x 100 mm
Outside diameter Ø 210 mm
Width Ø 210 mm
Depth 100 mm
Admiss. ambient temp. 0-40 °C
Weight 2.52 kg
Sales unit 1
Type of speaker
