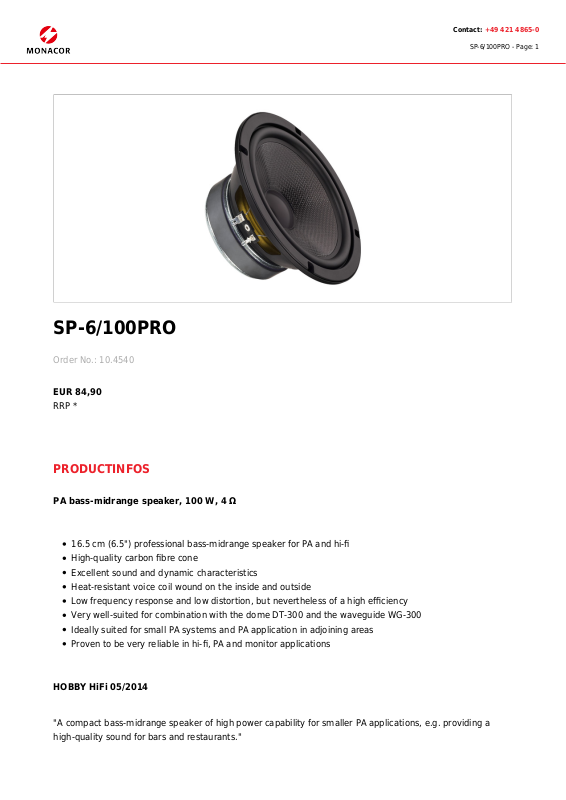

SP-6/100PRO - Page: 1
SP-6/100PRO
Order No.: 10.4540
EUR 84,90
RRP *
PRODUCTINFOS
PA bass-midrange speaker, 100 W, 4 Ω
16.5 cm (6.5") professional bass-midrange speaker for PA and hi-fi
High-quality carbon fibre cone
Excellent sound and dynamic characteristics
Heat-resistant voice coil wound on the inside and outside
Low frequency response and low distortion, but nevertheless of a high efficiency
Very well-suited for combination with the dome DT-300 and the waveguide WG-300
Ideally suited for small PA systems and PA application in adjoining areas
Proven to be very reliable in hi-fi, PA and monitor applications
HOBBY HiFi 05/2014
"A compact bass-midrange speaker of high power capability for smaller PA applications, e.g. providing a
high-quality sound for bars and restaurants."
Page 2
Contact: +49 421 4865-0
SP-6/100PRO - Page: 2
HOBBY HiFi 03/2014
"For a smooth bass reproduction and a clear midrange. The SP-6/100PRO provides an impressive sound with
a very clean frequency response."
TECHNICAL SPECIFICATIONS
SP-6/100PRO
Impedance (Z) 4 Ω
Frequency range f3-4,500 Hz
Resonant frequency (fs) 44 Hz
Power rating 100 W
Peak music power output 150 W
Sensitivity 93 dB/W/m
Suspension compl. (Cms) 1.08 mm/N
Moving mass (Mms) 12.2 g
Mech. Q factor (Qms) 5.52
Electr. Q factor (Qes) 0.29
Total Q factor (Qts) 0.27
Equivalent volume (Vas) 28 l
DC resistance (Re) 3.3 Ω
Force factor (BxL) 6.22 Tm
Voice coil induct. (Le) 0.4 mH
Voice coil diameter Ø 30 mm
Voice coil former Kapton
Linear excursion (X
Eff. cone area (Sd)
MAX
)
± 3 mm
137 cm
2
Magnet weight 570 g
Magnet diameter Ø 100 mm
Mounting cutout Ø 142 mm
Mounting depth 71 mm
Dimensions Ø 168 mm x 77 mm
Outside diameter Ø 168 mm
Width Ø 168 mm
Depth 77 mm
Admiss. ambient temp. 0-40 °C
Page 3
Contact: +49 421 4865-0
SP-6/100PRO - Page: 3
SP-6/100PRO
Weight 1.43 kg
Sales unit 1
Type of speaker
