MPT-005 - Page: 1

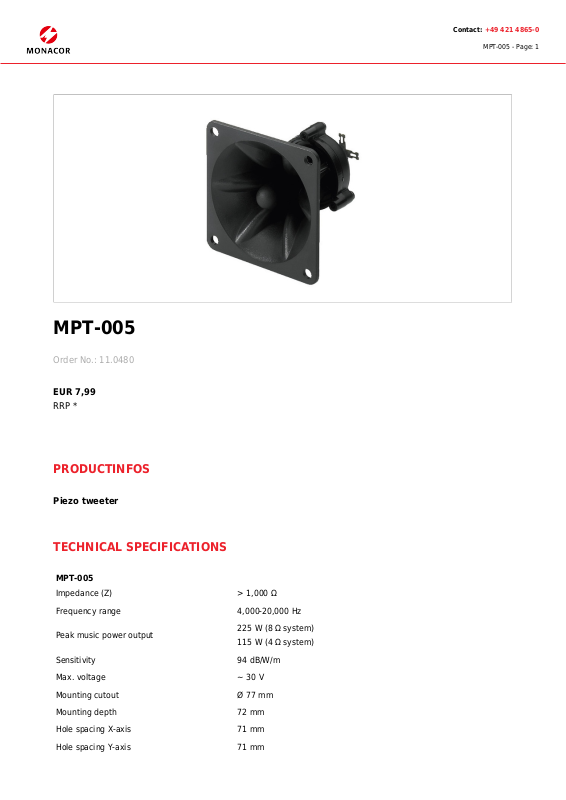

MPT-005
Order No.: 11.0480
EUR 7,99
RRP *
PRODUCTINFOS
Piezo tweeter
TECHNICAL SPECIFICATIONS
MPT-005
Impedance (Z) > 1,000 Ω
Frequency range 4,000-20,000 Hz
Peak music power output
Sensitivity 94 dB/W/m
Max. voltage ~ 30 V
Mounting cutout Ø 77 mm
Mounting depth 72 mm
Hole spacing X-axis 71 mm
Hole spacing Y-axis 71 mm
225 W (8 Ω system)
115 W (4 Ω system)
Page 2
Contact: +49 421 4865-0
MPT-005 - Page: 2
MPT-005
Dimensions 85 x 85 x 72 mm
Width 85 mm
Height 85 mm
Depth 72 mm
Admiss. ambient temp. 0-40 °C
Weight 60 g
Sales unit 1
