Niro
USER MANUAL
2
Contents
Introduction 4
Product Features 5
Niro LED Indicators 6
What’s Included 7
Wi-Fi Requirements 8
Mobile Device Requirements 8
Garage Door Opener Requirements 8
Download the Momentum App 9
Create an Account 9
Setup 10
Niro Installation 12
Setting up Rules 20
Triggers 20
Adding a New Rule 20
Mobile Alerts 21
Storage Options 22
Momentum Capture Cloud Storage 22
Micro-SD Card Storage 23
Your Dashboard 24
3
Garage Controls 25
Camera Functions 26
Watching Live Video 27
Taking Photos 28
Recording Videos 28
Audio Functions 29
Viewing Recorded Photos and Videos 30
Saving and Deleting Recordings 31
Device Settings 32
Deleting Devices 32

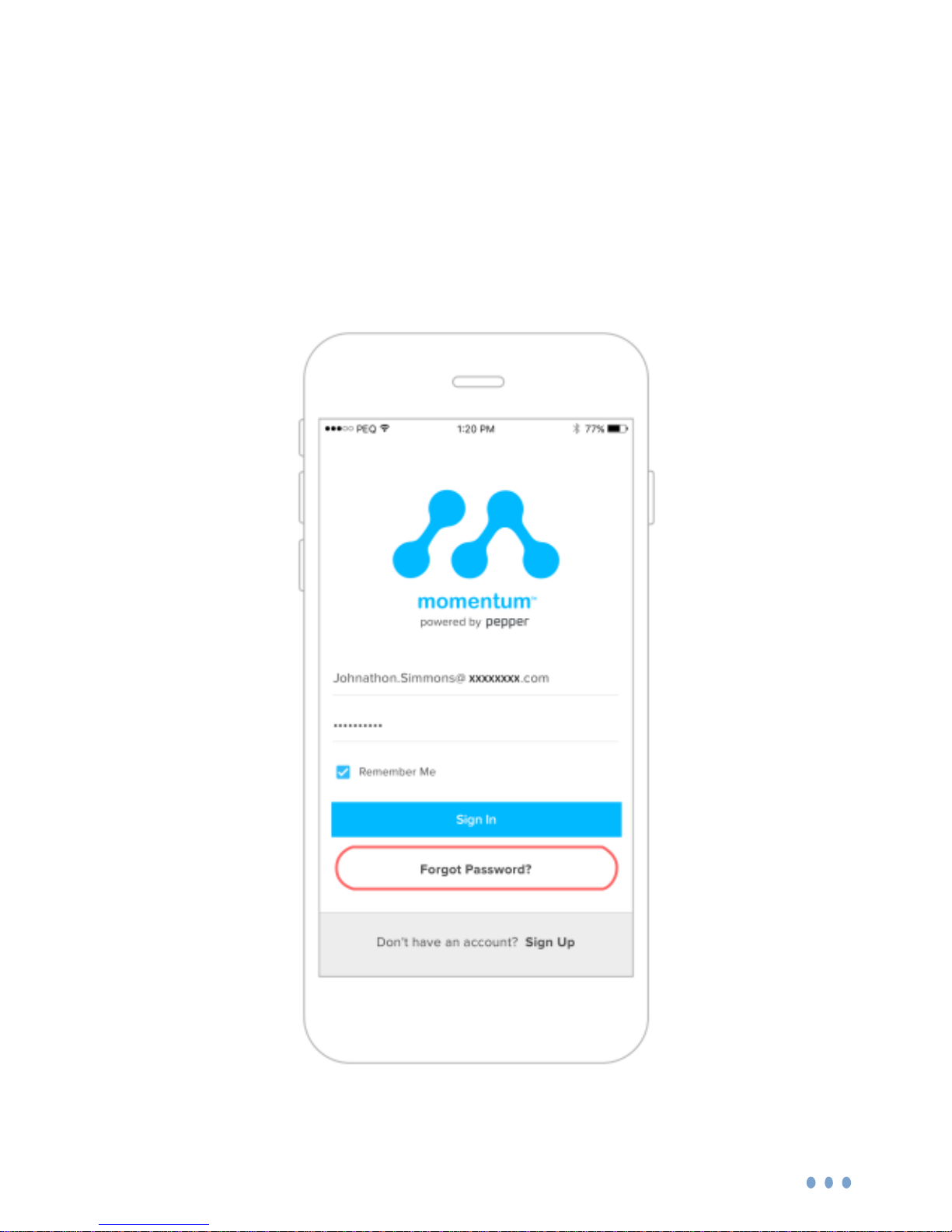

Restoring Forgotten Passwords 33
Resetting the Camera 34
Troubleshooting 35
About Momentum 35
© 2016 Momentum
Momentum is a registered trademark in the United States. Apple and iPhone
are registered trademarks of Apple Inc. Google Play and Android are
trademarks of Google Inc. All other brands and product names are or may be
trademarks of their respective owners.
Note: Screen shots and procedures described in this manual are subject to
change without notice. The latest Momentum User Guide is always available
on our website at http://www.momentumcam.com.
4
Introduction
The Momentum Niro™ is a remote garage door controller
and wireless monitoring device that can be accessed from
anywhere where you have an internet connection. It’s
great for surveillance in your garage at home and to make
sure you always stay in control no matter where you are.
All you need is a:
1. Compatible garage door opener
2. Wireless internet connection, and
3. Mobile device (Android or iOS)
See page #6 for device requirements.
Use your smartphone and/or tablet to use and manage
Niro’s functions remotely.
5
Product Features
Front Side
Rear
Built
-
in speakers
Magnetic base
Camera lens
DC power port
Wire connector ports
Pivot connector
Microphone
Micro SD card slot
Indicator light
Infrared light
Reset button
Release buttons
6
Niro LED Indicators
Niro displays an LED indicator light that lets you know
what it is doing.
Solid Red Light: Camera is booting up.
Slow Blinking Red Light: Disconnected from Wi-Fi.
Double Blinking Blue Light: Ready to connect to Wi-Fi.
Blinking Blue Light: Niro is connected to Wi-Fi.
Solid Blue Light: User is currently live streaming.
7
What’s Included
Niro
Wires
Power Cable and Adapter
Double-sided Tape
Metal Plate
8
Wi-Fi Requirements
Niro requires a 2.4GHz or 5GHz router (802.11bg/n) for
Wi-Fi connectivity. This is a standard home Wi-Fi router.
You will need your Wi-Fi name and password when
pairing your mobile device and GDC.
Note: If you are using a 2.4GHz + 5 GHz dual band router, create
separate SSID names for each band on your Wi-Fi router settings
page. This will make it easier for you to select the 2.4GHz or 5GHz
band for the device setup.
Mobile Device Requirements
The Momentum app requires a smart phone or tablet
device that runs on Android or iOS. Please see the in-app
description for device compatibility for the most up-to-date
info.
Garage Door Opener Requirements
Niro is compatible with most garage door openers
manufactured after 1993. However, it is not compatible
with any openers utilizing Security+ 2.0 or MyQ®
technology. Openers with Security+ 2.0 will usually have a
yellow ‘learn’ button on it.
9
Download the Momentum App
Download and install the Momentum app on your mobile
device.
Search for Momentum on the Google Play Store for
Android devices, or on the Apple App Store for iOS
devices. You may also scan the QR code below from your
mobile device to route you directly to the app.
Make sure the app logo you download matches the one
shown below.
Create an Account
If you don’t already have a Momentum account, you will
need to create one. To create a new account, follow the
in-app instructions.
10
Setup
To begin using your Momentum Niro™ you will first need
to pair it to your Momentum account and then connect it to
your Wi-Fi network.
Note: Pairing process has been changed from earlier
models. If you have trouble during this process, please
contact the Momentum customer service.
Pairing
IMPORTANT: Make sure your mobile device is
connected to the same Wi-Fi network as the one you
will be connecting the Momentum device to.
1) Power on Niro
Once your Niro has been powered on, it should already
be put into pairing mode. There will also be a sound
played to notify you that it’s in pairing mode as well.
- If it’s not in pairing mode, you will need to hold the
reset button for 10 seconds. You should hear a
sound play that the camera is ready to connect.
11
2) Open the app and select Niro.
From the Momentum app, select Pair device, then
select Momentum Niro Garage Door Controller.
3) Connect to Niro’s Wi-Fi access point.
When prompted in the app, go to your mobile device’s
Wi-Fi settings. You should see a Wi-Fi network option
for “MOGA-001”. Tap the “MOGA-001” network to
connect, then return to the Momentum app again.
Note: If you’re using an Android device and cannot proceed to the next step,
you may need to set the Niro Wi-Fi network to “automatically connect” or
confirm the connection again from the android notification pop-up the comes
up after attempting to connect to the Niro Wi-Fi network.
4) Enter Wi-Fi credentials.
Your Wi-Fi network will automatically be detected. Enter
in the password (if any) for the Wi-Fi network.
5) Name your device.
Select from the provided list of names or create a
custom name for your new camera. Once you’ve
finished naming your device, you may proceed to the
installation and wiring instructions.
12
Niro Installation
Before installing Niro to your garage door opener, make
sure you prepare the following:
A screwdriver (if needed)
A stepladder
An open outlet near your setup location
Reliable Wi-Fi network
A compatible mobile device
All items included in the box
Compatible garage door opener
WARNING
Mounting and connecting Niro may require another
person’s help as you will most likely need to use a
stepladder to setup the device. Please be safe and
cautious during installation to avoid injury.
13
Step 1: Mount Niro
Niro should be set up properly so that it’s hanging from
the bottom of your garage door opener unit.
IMPORTANT: Make sure to first clean the area you’ll be
mounting the camera, and be sure to dry off the area
before applying the adhesive sticker.
Method 1: Sticker Only
Method 2: M
etal
Plate with
Sticker
14
Step 2: Connect Wires to the Garage Opener
Unplug your garage opener. This is to prevent your
garage door from involuntarily opening/closing during
the next few steps.
Locate your garage wall remote console. You should
see some wires that come out of it that lead all the
way to terminals on the back of your garage opener.
Note: It is very important that you choose the correct
wires in the garage opener’s terminals. If you’re unsure,
refer to your garage opener’s owner’s manual for
clarification.
15
Most garage opener connection ports will look like the
images below.
For this type of terminal, use a flat head screwdriver or
a similar tool to press the tab to release the wires from
the terminals as shown above.
For a screw type terminal, use a screwdriver to loosen
the screws.
From Wall
Remote
Console
From Wall
Remote Console
16

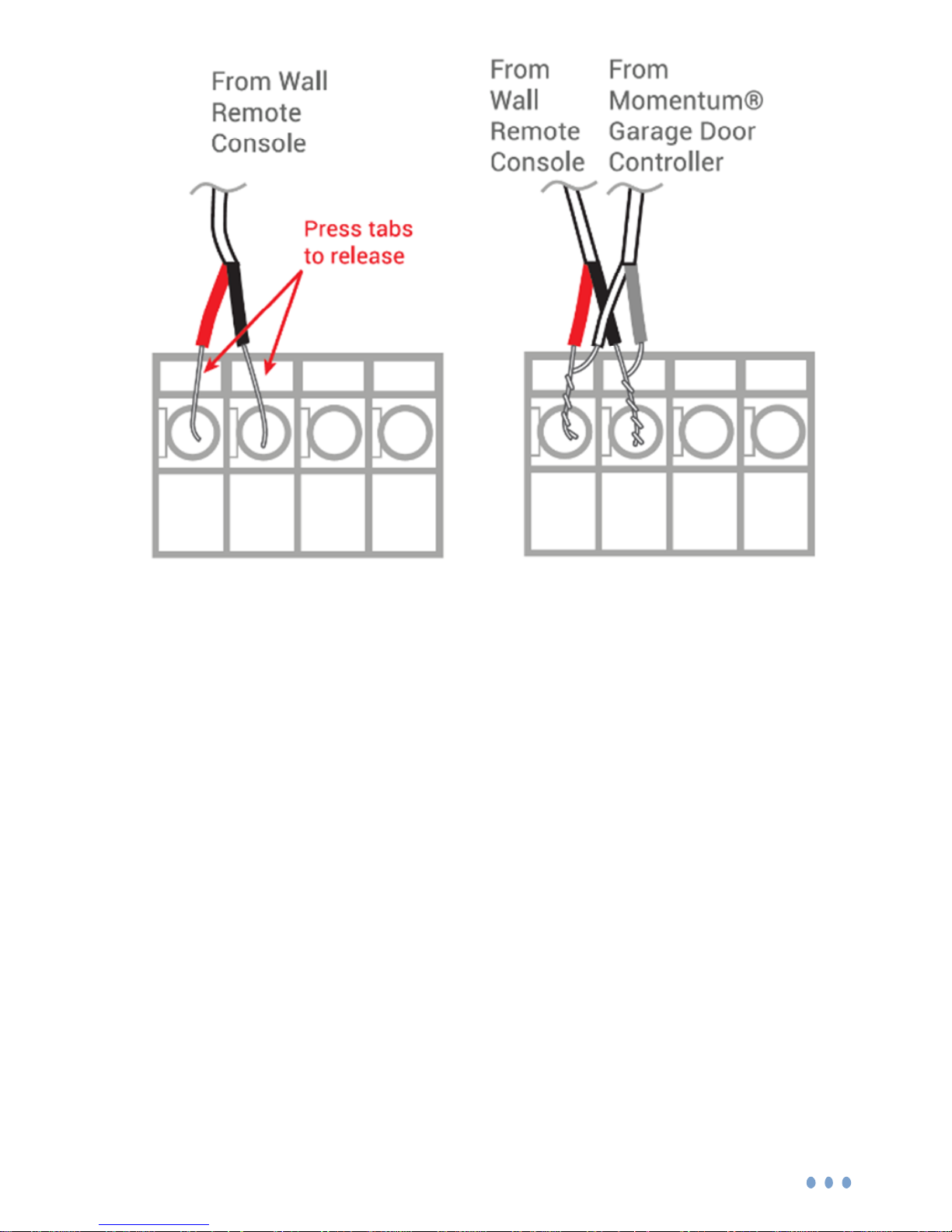

Connect the provided wires from Niro’s box into the
same wire terminals as your wall remote console.
The process may vary between different garage
opener models.
Notes:
Twisting the wires together for each terminal will help
for a better connection, however make sure the wall
console wires go back into their original terminals.
The provided wires for Niro are neutral, so it doesn’t
matter which wire goes into which terminal.
Before
After
17

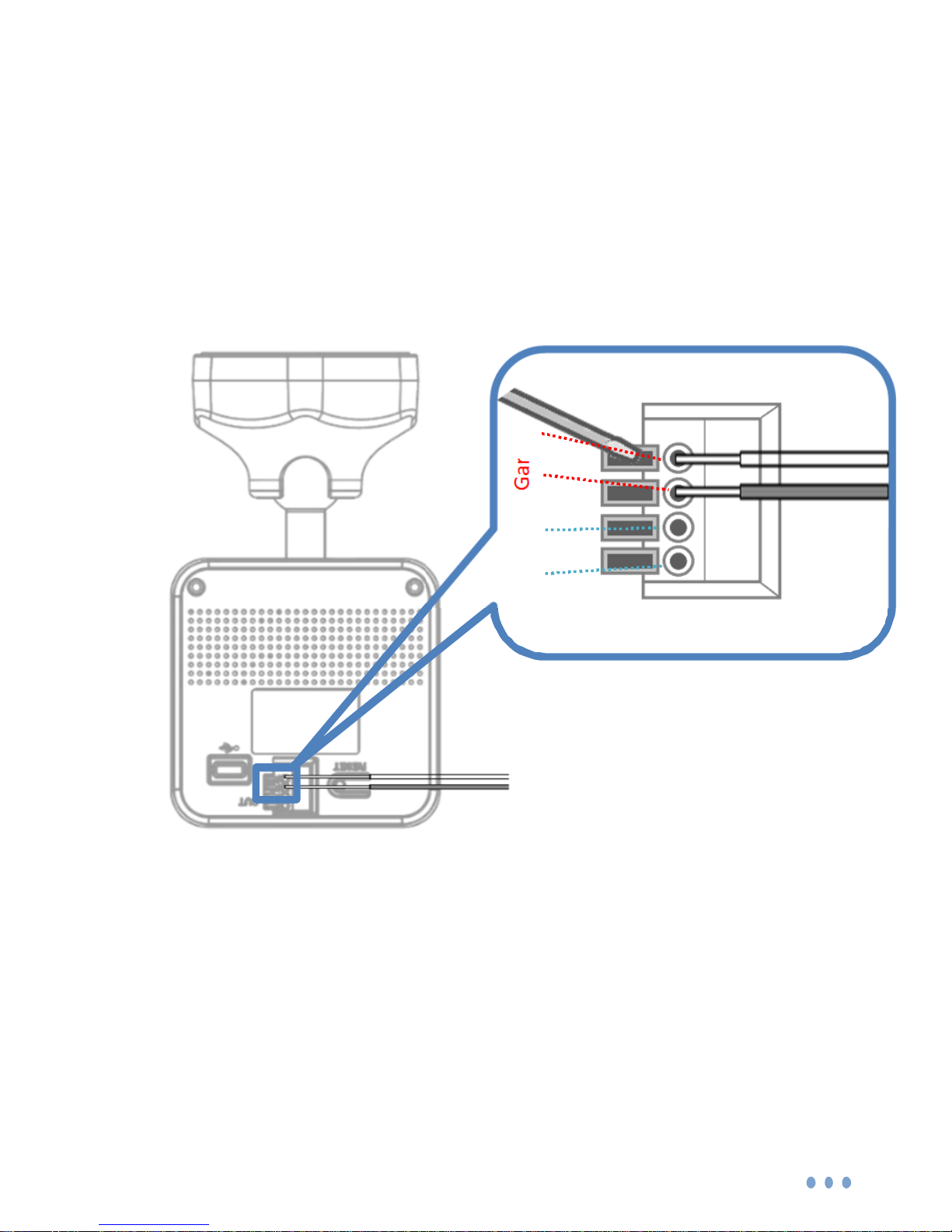

Step 3: Connect Wires to Niro
Connect the other end of the provided wires to the
first two terminals on the back of Niro.
Use a flat head screwdriver to press down the tabs to
release the terminals.
Note: Niro is capable of being connected to two garage
door openers. If you have a second garage door opener
you want to connect to Niro, follow the same process as
the first and connect the wires to the 3rd and 4th terminals
on the back of the Niro device.
Garage 1
Garage 2
18

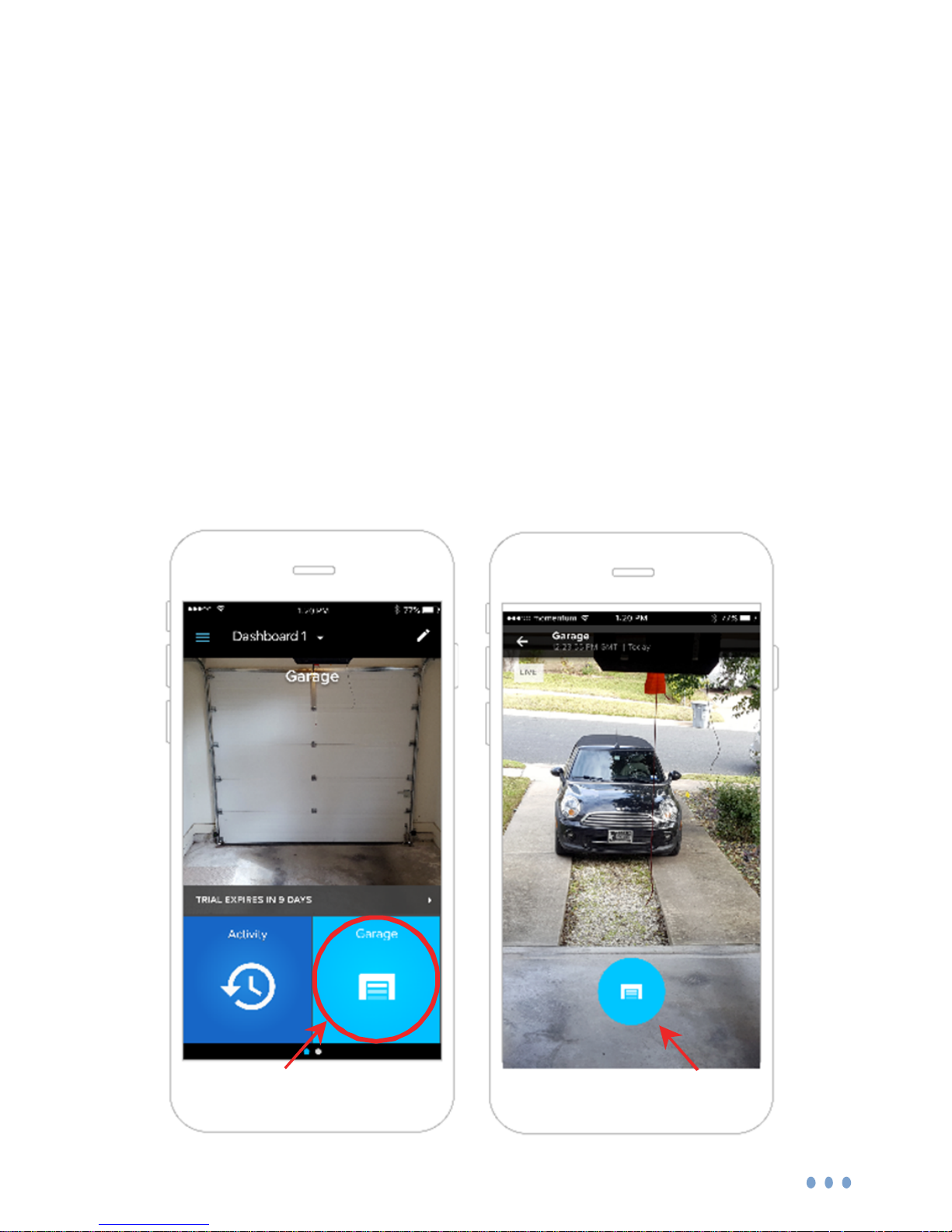

Step 4: Test the Controls
Plug back in your garage opener and open the
Momentum App. Select the blue Garage tile to access
the garage door control screen.
In this screen, you will get a live view of the state of
your garage. Tap the blue button at the bottom to
control the state of your garage door.
Once you’ve confirmed the controls are working, your
setup is complete!
19
Pairing additional Momentum Devices
To pair additional Momentum devices, select Pair Device
in the app menu and repeat steps 1-5 that were used in
pairing your initial Momentum device.
Pairing additional Non-Momentum Devices
You can use your Momentum app is also compatible to
control a Nest™ Learning Thermostat. To pair your Nest
thermostat, select Pair in the Devices section of the app
menu and select the non-Momentum device you wish to
pair. Simply follow the in-app instructions for pairing that
device with your Momentum app.
20
Setting up Rules
Your Niro camera will record video when rules have been
set through the Momentum App. Rules allow your device
to activate and monitor the area while you are not
watching the live stream. Set triggers to have your Niro
activate under certain conditions.
Note: You must have a Momentum Capture Cloud
Storage subscription or a micro-SD card to record videos
and photos.
Triggers
You can set a trigger for Niro to have it start automatically
recording after detecting motion.
Adding a New Rule
Add the days of the week and times of the days you want
the rule to be set in place. The trigger you have chosen
will then set off an action of your choosing, such as
Record a Video with the device you have selected.
Note: Scheduled times cannot carry over past midnight. (i.e.
cannot schedule 9PM-1AM. Must schedule two different times:
9PM-11:59PM; 12AM-1AM)
21
Mobile Alerts
Once you have created a Rule set to your chosen
parameters, you will receive a notification alert to your
mobile device if an event is triggered.
If you’d like to stop receiving alerts, you must delete the
Rule or you can turn it off from your mobile device’s
notification settings for the Momentum App.

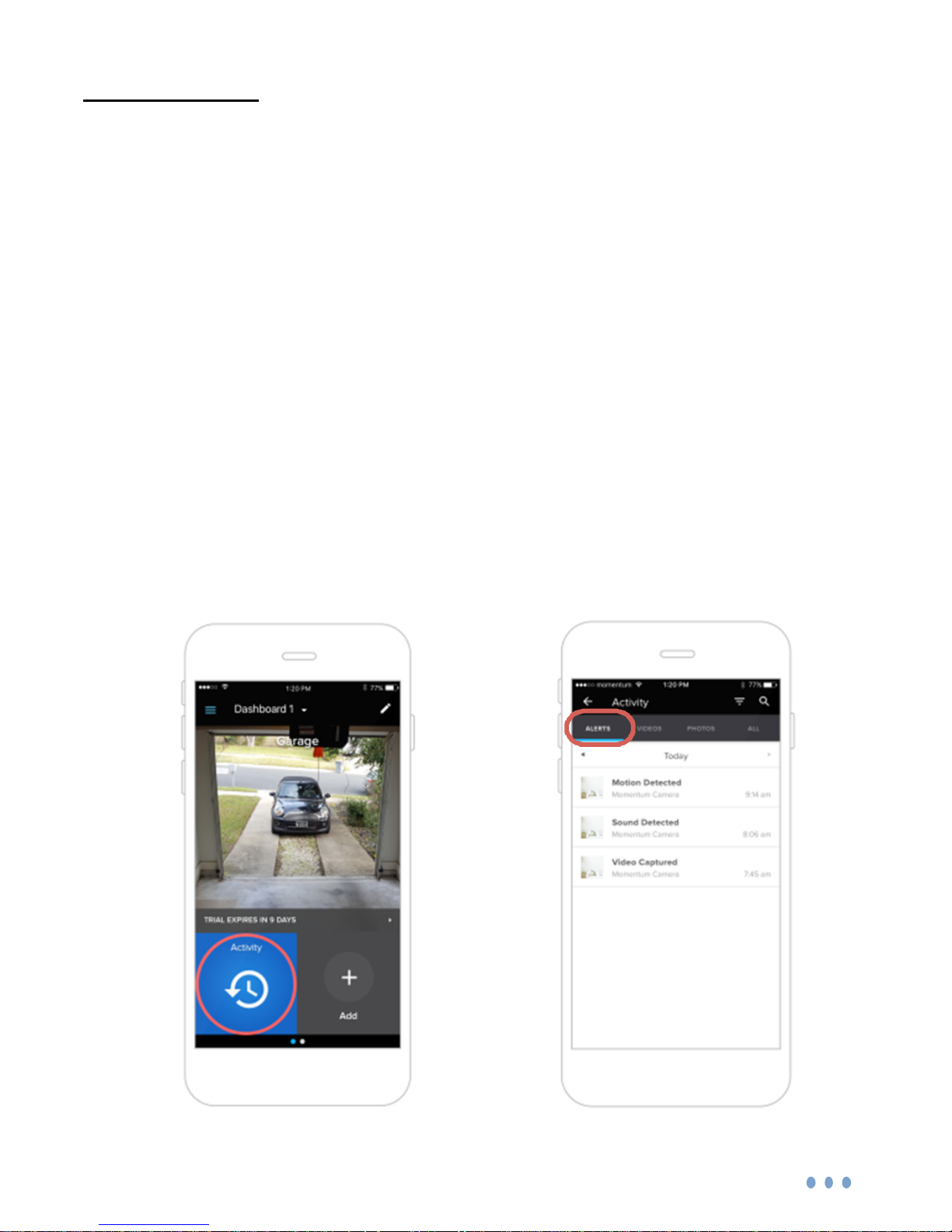

You may also view all of your previous alerts by tapping
the Activity tile on your Dashboard.
22
Storage Options
Niro can save your recorded videos or pictures through
the Momentum Capture Cloud Storage subscription plan
or with your own micro-SD card inserted into the device.
The micro-SD card slot can be found on the side of the
camera device. (see pg. 5).
Momentum Capture Cloud Storage
After you initially pair a Momentum device to your
Momentum account, you will be provided FREE cloud
recordings that last for 24hrs. The Momentum Capture
cloud storage subscription will allow you to store recorded
pictures and videos taken by your Niro camera.
If you wish to continue the cloud service after the trial
service has expired, you may purchase and manage your
subscription plans by logging into your Momentum
account at momentumcam.com.
23
Micro-SD Card Storage
You also have the option to use your own micro-SD card
(up to 128GB) instead for back-up storage.
Insert the micro-SD card into Niro’s micro-SD slot on the
side of the camera. The camera will automatically record
events and camera photos you take directly into the
micro-SD card as back-up storage.
Once the memory capacity has been reached on the card,
the new recording will loop over and begin to overwrite the
earliest saved recordings.

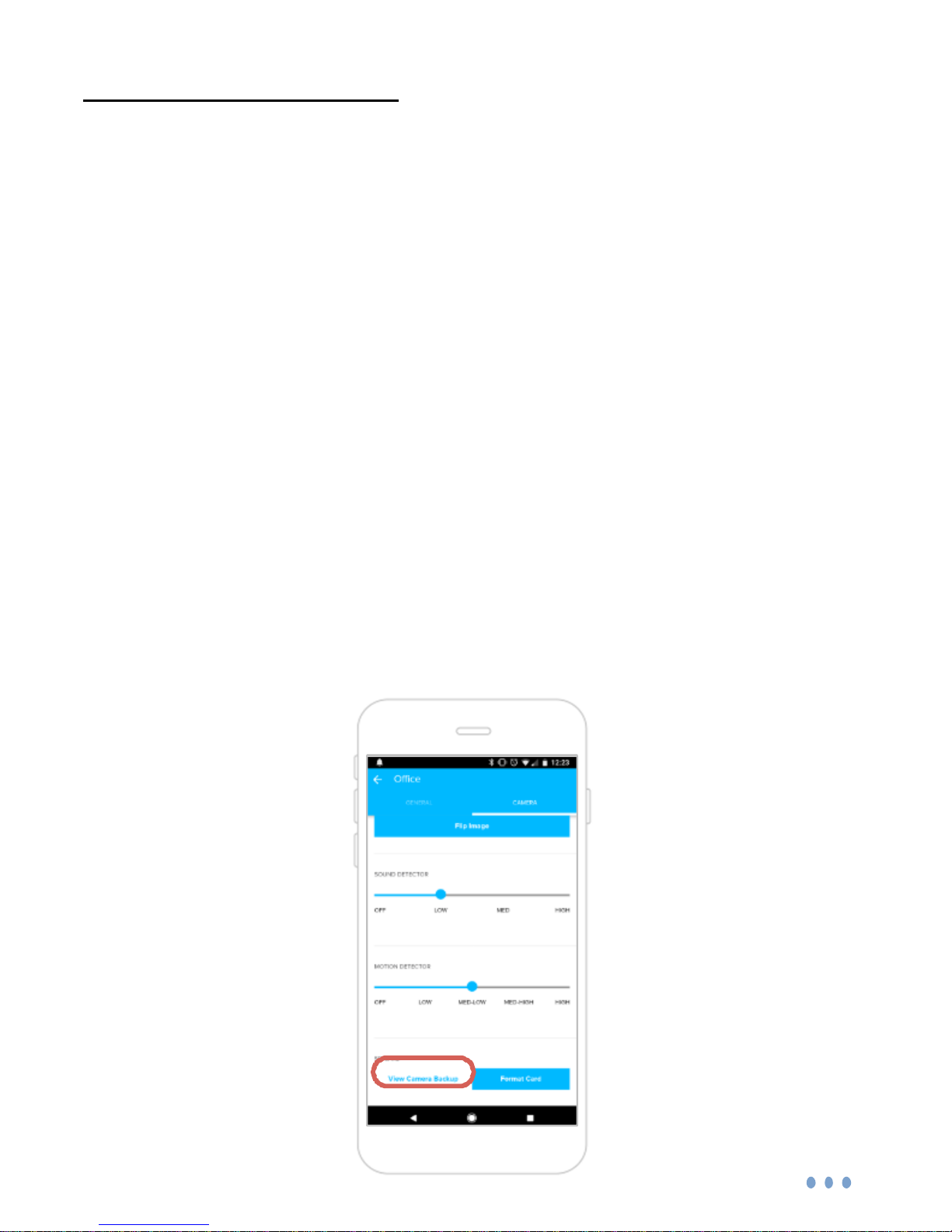

To access the back-up micro-SD card recordings, go to
the camera’s settings and select “View Camera Backup”.
24

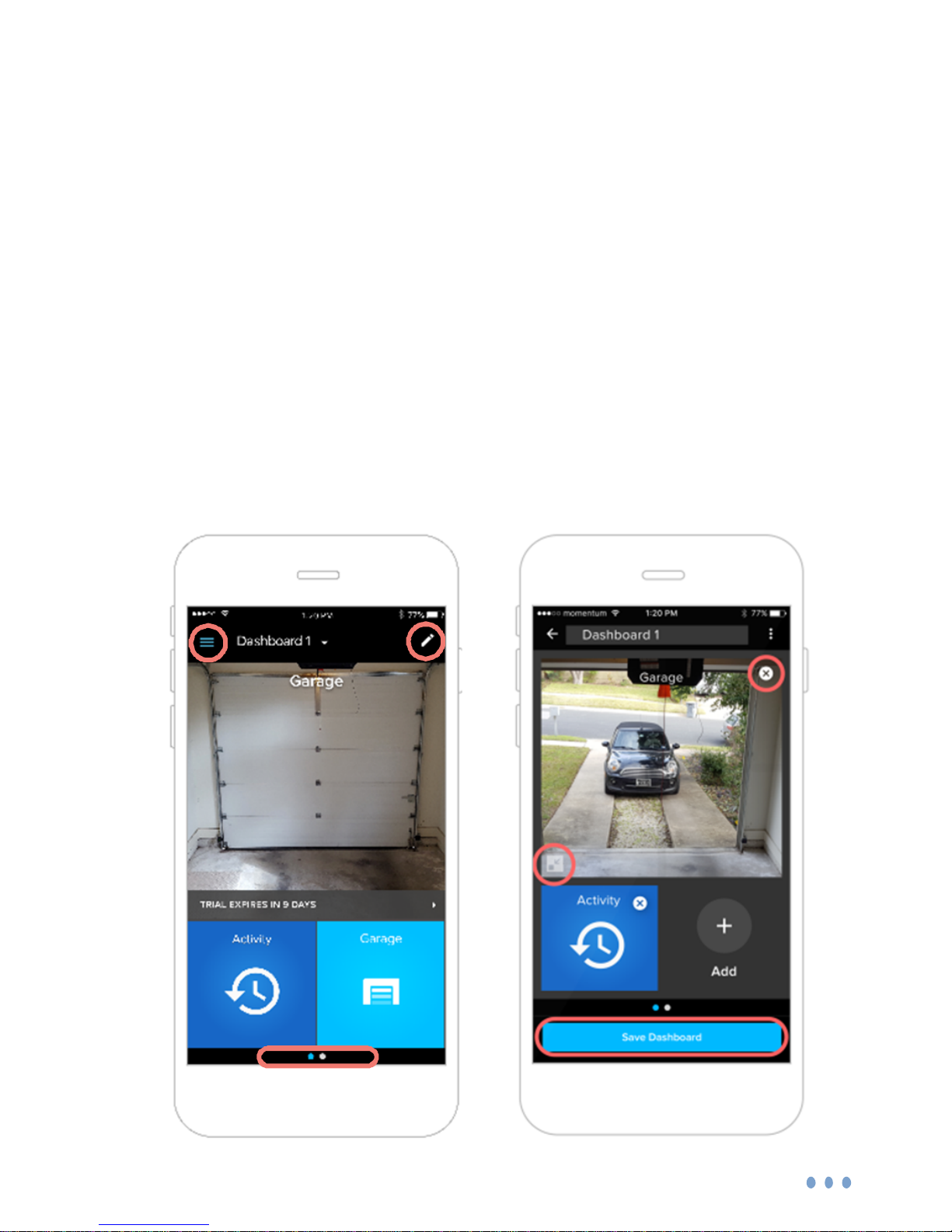

Your Dashboard
Your dashboard is your app’s home screen where you can
view and access your paired devices. You can rearrange
the Tiles on your dashboard by tapping the Pencil icon in
the top right corner of the app. You can also make some
device tiles larger or smaller when editing your dashboard.
Be sure to tap the Save Dashboard button at the bottom
when you are finished editing.
25
Garage Controls
After pairing your Momentum Niro™, a Garage tile will be
added to your dashboard.
To open or close your garage door, tap the Garage tile on
your dashboard to access the controller. Here you will
also see a live video from your Niro camera so you can
confirm whether your garage door is open or closed prior
to pressing the controller button.
Garage tile
Open/Close control
26
Pressing the controller button will signal your garage to
change the position of the door. As this action happens,
you will be able to watch your garage door open or close
in the background screen.
Camera Functions
Niro has several functions you can control through the
Momentum app. To enter the camera controls, select the
camera tile from the dashboard.
Camera tile
27
Watching Live Video
To view live video stream, first select the camera you
would like to view. Rotate your mobile device to view in
either portrait mode or landscape mode.
In portrait mode you can use your fingers to pan around
the video feed. Landscape mode will display the video in
full screen mode. You may use your fingers to pinch to
zoom in on the video as well.
(Note: You do not need a micro-SD memory card or a
cloud storage subscription for live video streaming.)
28
Taking Photos
Tap the Camera icon to save a screenshot while watching
live video.
To save images taken from your Niro you must either
have a:
1. Micro-SD card inserted into the camera, or
2. Cloud storage subscription for the specific device
through the Momentum app.
Recording Videos
Tap the Record Video icon to start recording. The video
will record based on a 20 second clip.
To save you must either have a:
1. Micro-SD card inserted into the camera.
2. Momentum Capture cloud storage subscription.
3.
Record Video
Take Photo
29
Audio Functions
You can engage in two-way conversations while you’re in
Niro’s live video stream option. Note that the audio will
only go through one source (camera or app) at a time.
To speak through the app to Niro’s speakers, tap on the
Microphone icon. You must tap on the icon again to deselect it to begin hearing Niro’s side again.
To only listen through Niro’s audio, make sure the
Microphone icon is de-selected.
Microphone Button
30
Viewing Recorded Photos and Videos
On the Home screen, tap the Activity tile to view recorded
videos, captured photos, or alerts for a specific day. You
can also access the activity list from the live camera view.
When you select a video in your activity list, it will begin
playing back automatically. To rewind or fast forward, tap
the video to reveal the video playback controls.
For back-up micro-SD card recordings, you may access
them from the camera settings and selecting the “View
Camera Backup” button (see pg.23).
31
Saving and Deleting Recordings
If you have purchased a cloud subscription and set up a
rule for recordings, footage of those recordings will be
automatically saved onto the cloud for the predetermined
time, depending on which plan you have purchased.
If you have inserted your own micro-SD card and set up a
rule for recordings, footage of those recordings will be
saved on the micro-SD card until the storage becomes full
and loops back over to record over your previous
recordings.
However, if you’d like to save your cloud or micro-SD card
recordings to your mobile device’s local storage, you can
do so while you’re viewing the specific recording. Press
the ‘save’ button at the bottom right corner to save a copy
of the footage onto your mobile device’s local storage.
You may also delete the recording permanently off your
cloud storage or micro-SD card swiping left on the
recording on the activity list page and pressing the
“Delete” button.
32
Device Settings
Under the Menu tab, you will find My Devices. Here you
can change your device’s name, check on the device’s
Cloud subscription status, update the firmware, and adjust
the camera’s image-quality, motion detection and sound
detection levels.
Use the slide bar to adjust the image-quality, motion
detector and sound detector to your liking.
Deleting Devices
If you’d like to remove a device from your account, tap
the Menu and go to My Devices. Select the specific
device and tap Remove Device at the bottom of the
screen.
33
Restoring Forgotten Passwords
If you've forgotten your login password, tap on the Forgot
Password button at the sign in page. You will receive an
email with instructions to guide you through the rest of the
way.
34
Resetting the Camera
If your camera is having connection issues, try these
steps to correct the issue.
Power cycle the Camera
1. Unplug the camera, wait 10 seconds, then plug it back
in. If it still does not fix the issue, trying resetting the
camera.
Reset the Camera
1. To reset your Momentum device, hold the Reset button
on the back of the camera for about 10 seconds. During
the reset sequence, the LED indicator light on the front
of the camera will first display a solid red, then double
blinking blue.
2. You will then need to re-pair the camera again. Follow
the same initial pairing process (see pg. 10).
35
Troubleshooting
Assistance is available both in the app and on the
Momentum website.
To access the most current version of the user’s
manual, tap the Menu icon to launch the screen
with a menu bar and tap Support.
For further assistance, go to
https://www.support.momentumcam.com.
About Momentum
Momentum provides an easy-to-setup home security
camera that connects to your smart phone or tablet giving
you real-time video streaming and two-way voice
communication – anywhere, anytime. Momentum
subscribers also have access to IOT cloud-based storage
for camera-captured videos from a user-friendly mobile
app. Whether you want to check on your babysitter, are
wondering what your pets are doing, or are leaving for
vacation, you’ll always have an eye in your home with
Momentum.
36
For more information, please visit
www.momentumcam.com or contact us at
help@momentumcam.com.
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Apollo Tech USA, Inc.
8608 Utica Ave. #220,
Rancho Cucamonga, CA 91730
Customer Service: +1 888 818 0436
E-mail: help@momentumcam.com
Version 2.0
Loading...
