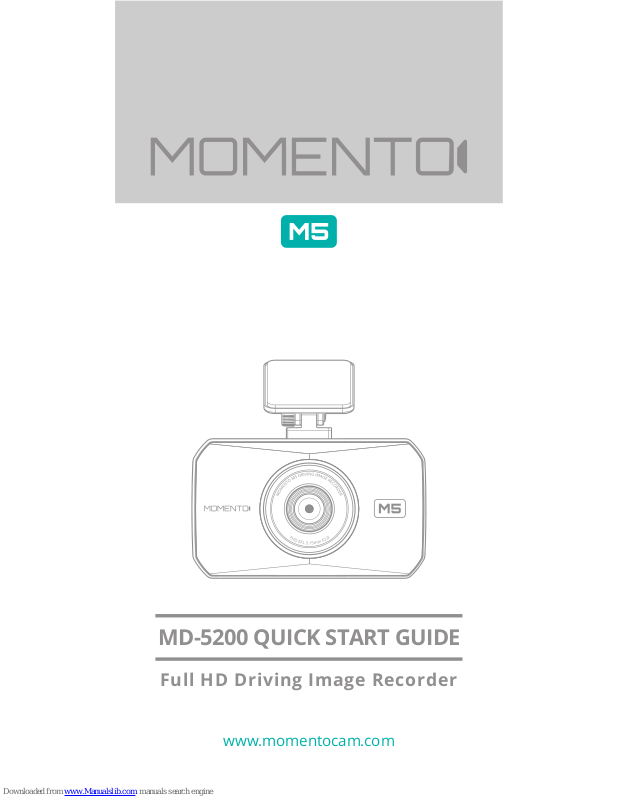

MD-5200 QUICK START GUIDE

Full HD Driving Image Recorder

www.momentocam.com

Before Using MOMENTO’s MD-5200

- Copyright laws prohibit this manual to be copied, modified or
translated without the written consent of MOMENTO.

- The contents in this manual can be changed or modified due to
technical errors or improvements therefore we cannot guarantee
the manual’s precise information.

- MOMENTO has the right to change or modify the product and
manual contents at anytime without prior notice for improvements
or customization.

< CAUTION >

- MOMENTO is not responsible for damages that can occur from using
unauthorized parts and accessories other than from the manufacturer.

- It is dangerous to operate this device while driving.

- The device and the recorded videos are intended for personal use
and reference only.

- Based on the user’s setting and environment, please be informed
that the device may NOT record videos of all accidents.

- Please test the Micro SD card for errors frequently and because it is
a consumable item, it should be replaced periodically.

- Handle the device with care.

- Install the device where it doesn't interfere the driver's vision.

- Check for local driving rules before installing the device (as it may be
different according to each region).

- Do not use wet hands when operating this device.

- Please use this device with the original parts provided from the
manufacturer.

1. Package Components

※ Check for any missing components.
※ The product and manual contents can be changed or modified at

anytime without prior notice for improvements or customization.
※ Additional components are sold separately.

Windshield Mount

Quick Start

Guide

Main Unit

32GB

Micro SD Card

Hardwire Cable

Rear Camera

Rear Camera

Cable

GPS Module

2. Product Overview

Rear camera port

GPS module port

Microphone for voice and audio recording

Power cable port

Installation mount

Reset button

Front camera for video recording

Indicates parking status and provides security effect

Notification for recording

Voice guidance

3.5” TFT LCD for live view, playback, menu operation

Memory card slot

Press more than 3 secs : Power ON/OFF
Press less than 3 secs : Manual Record

DescriptionMark

④ DC-IN

③ MIC

② GPS Port

① R-CAM

⑤ Mount

⑥ RESET
⑦ Camera Lens

⑩ Speaker

⑬ Power / Manual

Record

⑨ STATUS

⑧ Front LED

⑪ LCD

⑫ Micro SD Card

< Caution >

- Please check if the Micro SD card is inserted correctly before connecting
to power.

- Make sure the installation area is clean.

- Disconnect the power cable if you are not using the device for a long
period of time.

- Handle the device with care.

- Do not drop the product as it may not function properly.

- Please make sure that the device is used in the suggested operating
temperatures between -4°F ~ 140°F. (-20°C ~ 60°C)

- During extreme high temperatures or hot weathers, parking indoors
is suggested.

3. Device Installation

1) Main Camera Installation

Insert / Remove Micro SD Card

Insert

Do not apply excessive force to
the Micro SD card or insert it in
the wrong direction.

Remove

3. Device Installation

1. Select and clean the area where the product will be installed.

2. Connect the camera and the mount.

3. Remove the double sided tape and attach the device.

4. Connect the rear camera and GPS cables first, then connect the
power cable.

※

Before installation, make sure the engine is off.

※Do not install the device that interferes with the driver’s vision.
※Make sure the installation area is cleaned.

Hardwire Cable

Rear Camera

Cable

GPS

Module

1) Main Camera Installation

3. Device Installation

1. Select and clean the area where the camera will be installed.

2. Remove the double sided tape and attach the device.

3. Connect the rear camera cable.

※ Make sure the installation area doesn’t interfere with the window’s
infrared signals.
※ Before installation, make sure the engine is turned off.
※ Make sure the installation area is clean.
※ Turn the main power off to use the rear camera’s mirror function.

1. Connect the external GPS module to the right connector on the camera.

2. Organize the cable line across the car’s ceiling.

3. Remove the double sided tape and attach the module.

※

Before installation, make sure the engine is turned off.

※Make sure the installation area is clean.

2) Rear Camera Installation

3) External GPS Module Installation

4. Using Touch Screen - Live View

2016/11/27

MIC ON

Current Date and Time

①

②

③

④

Main Menu → System Settings → Time Settings

* Automatic setting if GPS is connected

GPS Status

Voice & Audio Record

Main Menu

Main menu → MIC ON/OFF
MIC ON : recording / MIC OFF : not recording

Main menu screen

GPS ON / OFF

※ Touch the LCD to use front view / rear view / PIP features

(Rear camera needs to be connected for rear view feature to work)

4. Using Touch Screen - Main Menu

①

②

③

④

⑤

⑥

⑦

※ Recording stops in Settings, ADAS, File List.

Settings

ADAS

File List

LCD Time Out

Volume

MIC

LIVE

Main menu settings
→ System Settings / Dashcam Settings / F/W version

List of recorded files

LCD screen off setting menu
→ 30sec / 1min / 3min / clock / always on

Changes the volume level (5=loudest)
→ OFF / 1 / 2 / 3 / 4 / 5

ADAS menu settings
→ FVMA / FCW

Audio/voice record using the microphone
→ ON / OFF

Go to Liveview

Settings ADAS

File List

LCD

Time out

Volume MIC

4. Using Touch Screen - System Settings

①

②

Language

Language setting
→ English / Francais

③

④

⑤

⑥

⑦

Time Settings

Touch Calibration

SD Card Format

Factory Reset

System’s time setting

* Automatic setting if GPS is connected

Resets touch screen

Micro SD Card Format

* Saved files will be deleted. Backup the files before formatting

Reset camera to factory settings (except for recorded files)

HOME

Move to Main menu screen

BACK

Back to previous screen

System Settings

Touch

Calibration

SD Card

Format

Factory

Reset

Language

Time

Settings
