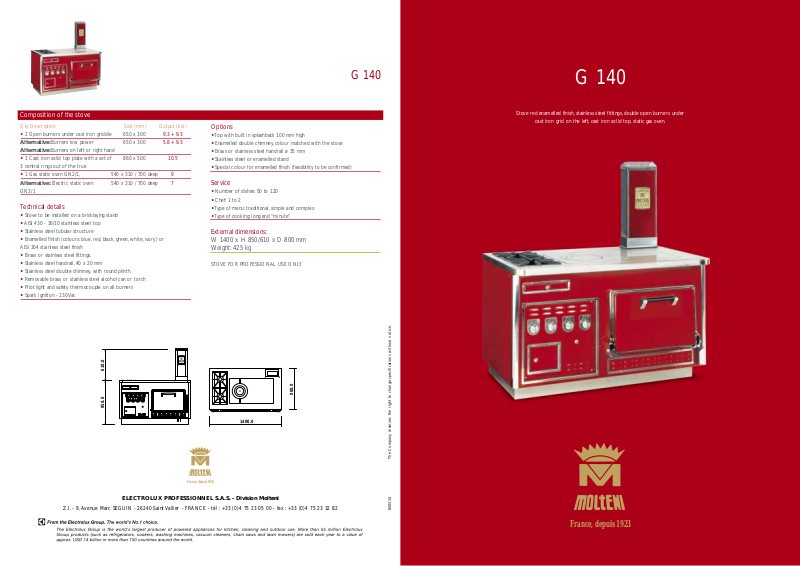

Molteni G140 User Manual

G 140

France, depuis 1923

Stove red enamelled finish,stainless steel fittings,double open burners under

cast iron grid on the left,cast iron solid top,static gas oven.

The Company reserves the right to change specifications without notice.

France, depuis 1923

G 140

ELECTROLUX PROFESSIONNEL S.A.S. - Division Molteni

Z.I. - 9,Avenue Marc SEGUIN - 26240 Saint Vallier - FRANCE - tél :[phone] - fax : [phone]

8S031U

Composition of the stove

Qty Description Size (mm) Output (kw)

• 2 Open burners under cast iron griddle 650 x 300 9.3 + 9.3

Alternative:Burners low power 650 x 300 5.8 + 9.3
Alternative:Burners on left or right hand

• 1 Cast iron solid top plate with a set of 860 x 500 10.5

3 central rings out of the true

• 1 Gas static oven GN2/1, 540 x 310 / 700 deep 9

Alternative: Electric static oven 540 x 310 / 700 deep 7
GN2/1

Technical details

• Stove to be installed on a bricklaying stand

• AISI 430 - 30/10 stainless steel top

• Stainless steel tubular structure

• Enamelled finish (colours: blue, red,black, green, white, ivory) or

AISI 304 stainless steel finish

• Brass or stainless steel fittings.

• Stainless steel handrail, 40 x 20 mm

• Stainless steel double chimney,with round plinth

• Removable brass or stainless steel alcohol can or torch

• Pilot light and safety thermocouple on all burners

• Spark ignition - 230 Vac

Options

•Top with built in splashback 100 mm high

• Enamelled double chimney,colour matched with the stove

• Brass or stainless steel handrail ø 35 mm

• Stainless steel or enamelled stand

• Special colour for enamelled finish (feasibility to be confirmed)

Service

• Number of dishes: 50 to 120

• Chef: 1 to 2

•Type of menu: traditional, simple and complex

•Type of cooking: long and “minute”

External dimensions:

W 1400 x H 850/610 x D 800 mm
Weight: 425 kg

STOVE FOR PROFESSIONAL USE ONLY

800.0

850.0 610.0

1400.0
