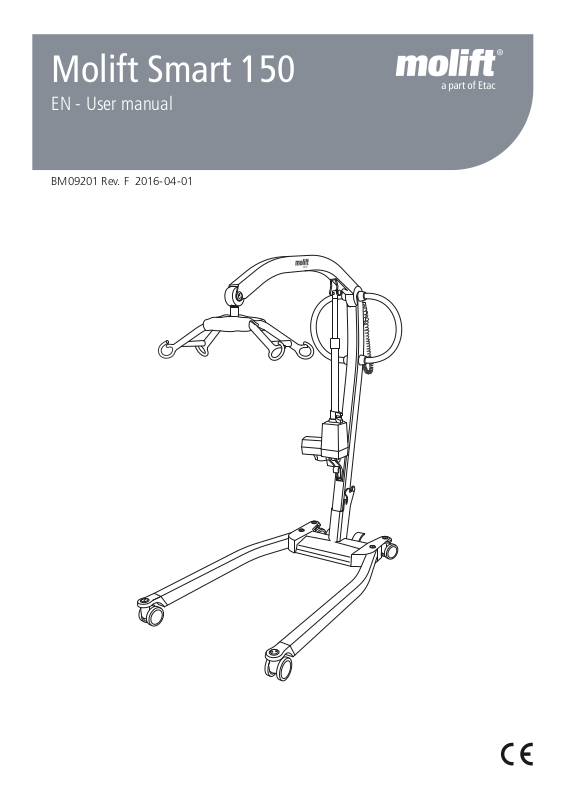

Molift Smart 150
EN - User manual
BM09201 Rev. F 2016-04-01
Page 2
Molift Smart 150 / www.etac.com
English manual
Content
Molift Smart 150 .......................................2
Lifter components ...................................2
About Molift Smart 150 ..........................2
General .....................................................3
Declaration of conformity ........................3
Conditions for Use ..................................3
Warranty ................................................3
Product identification ..............................3
Technical Data ...........................................4
Assembly ..................................................5
Battery and hand control ........................5
Folding ...................................................5
Checklist after assembly .......................... 5
How to use Molift Smart 150 ....................6
Before use / Daily check ..........................6
Hand control ..........................................6
Safety devices ......................................... 7
Pull handles ............................................7
Brakes ....................................................7
Emergency Stop / Emergency lowering ....7
Electronics .................................................8
Transport and Operating Conditions ........8
Batteries .................................................8
Battery and Service indicator ...................8
Service Scope .........................................8
Charging ................................................9
Transfer ...................................................10
Using Slings .......................................... 10
Lifting and lowering .............................. 10
Transfer ................................................ 11
Lowering into sitting ............................. 11
Accessories .............................................12
Slings ................................................... 12
Transport/Storage .................................12
Maintenance ........................................... 13
Cleaning and disinfeciton ...................... 13
Reconditioning...................................... 13
Recycling .............................................. 13
Spare Parts ...........................................13
Periodic Inspection ..................................13
Pericodic Inspection Scope ....................13
Troubleshooting ...................................... 14
Important
This user manual contains important safety
instructions and information regarding the use of
the lifter and accessories.
In this manual the user is the person being lifted.
The assistant is the person operating the lifter.
Warning!
This symbol indicates important
information related to safety.
Follow these instructions carefully.
Read User Manual before use!
It is important to fully understand
the content of the user manual
before attempting to use the
equipment.
Visit www.etac.com for download of documentation to ensure you have the latest version.
1
Page 3

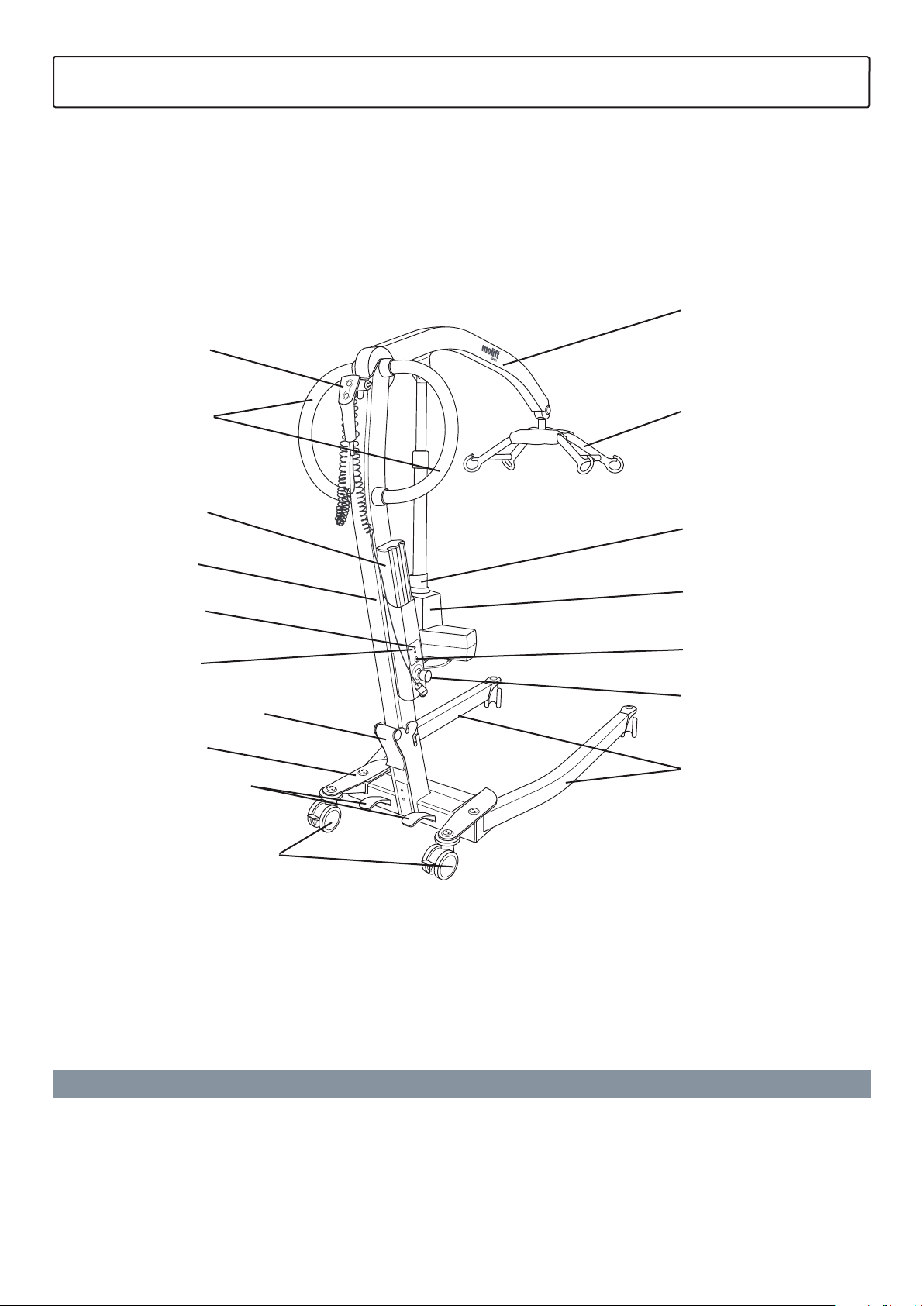

Lifter components:
Hand
control
Molift Smart 150 / www.etac.com
Molift Smart 150
Lifting arm
Push/pull
handles
Battery
Lifting
column
Service
indicator
Battery
indicator
Locking handle
Chassis
Pedals for leg
adjustment
Wheel / castor
(rear with brake)
Suspension
Manual
emergency
lowering
Motor /
actuator
Electric
emergency
lowering
Emergency
stop
Legs
About Molift Smart 150
Molift Smart 150 is a foldable mobile lifter
intended for lifting and transferring a person from/
to bed, floor, chair, wheelchair or toilet with a
sling. The lifter is made of light-weight materials,
has castors and electric actuator and is powered
by a battery. It has manual adjustable legs and a
lifting capacity of 150 kg ( 330 lbs).
It is ideal for hospitals and institutional care
settings, and can also be used in privates homes.
The lifter should only be used for transfers across
short distances, such as between a chair and a
bed or into bathroom / rest room. The lifter is
not intended to transport the user over longer
distances.
2
Page 4
Molift Smart 150 / www.etac.com
Gross weight 176kg / 388lbs
General
Declaration of conformity
The Molift Smart 150 and related accessories described in this operator manual are CE
marked in accordance with EU Council Directive 93/42/EEC concerning medical devices, class
1, and has been tested and approved by a third party according to standards IEC 60601-1, IEC
60601-1-2 and NS-EN ISO 10535:2006.
Conditions for use
Lift and transfer of a person will always pose a certain risk, and only trained personnel are allowed to
use the equipment and accessories covered by this user manual.
Modifications and use of components made by other manufacturers.
We recommend only using Molift components and spare parts. Declaration of conformity is not valid
and Etac is not responsible for warranty if any modifications are made to the product. Etac shall not be
liable for faults or accidents that can occur when using components made by other manufacturers.
Only certified personnel are allowed to open lifter or accessories to perform service
or repair. Risk of injury from rotating parts and electric shock.
The lifter is not intended to be operated by the person being lifted.
Warranty
2-year warranty against defects in workmanship and materials of our products.
For Terms and conditions, see www.etac.com
Product identification
Product label
The Product labels barcode contain article number,
serial number and production date.
SMART 150
SWL 150kg / 330lbs
14.4V DC, IP24
Duty cycle 10%
Type BF applied part
CE marked
Refer to user manual
Indoor use only
Etac AS, Etac Supply Gjøvik
Hadelandsveien 2
N-2816 Gjøvik NORWAY
www.etac.com

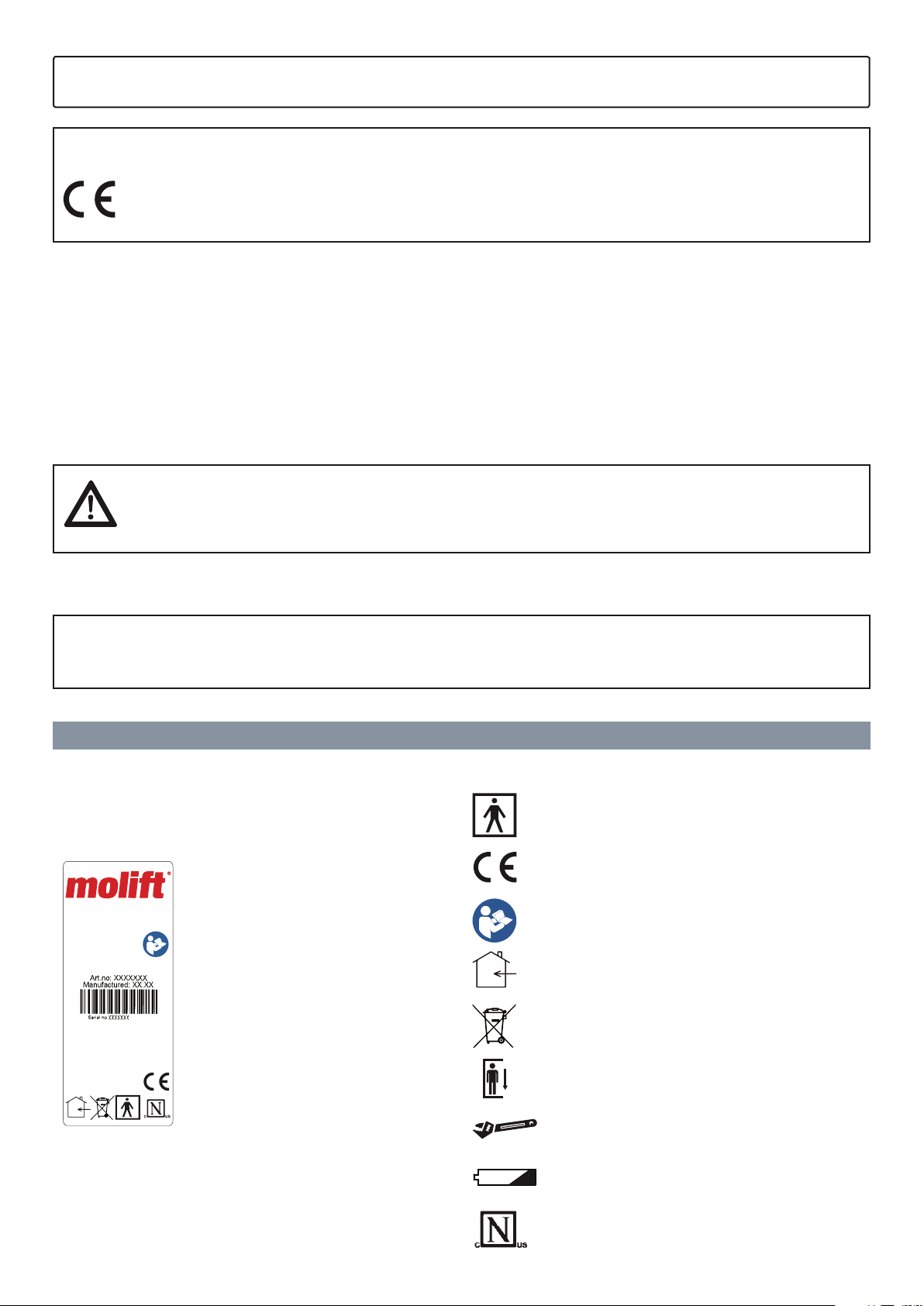

Warning labels and symbols
Symbols used on the product, explained in more
detail:
Do not dispose in general waste
Emergency lowering
60601-1
Service light
Battery light
Certification body mark
3
Page 5

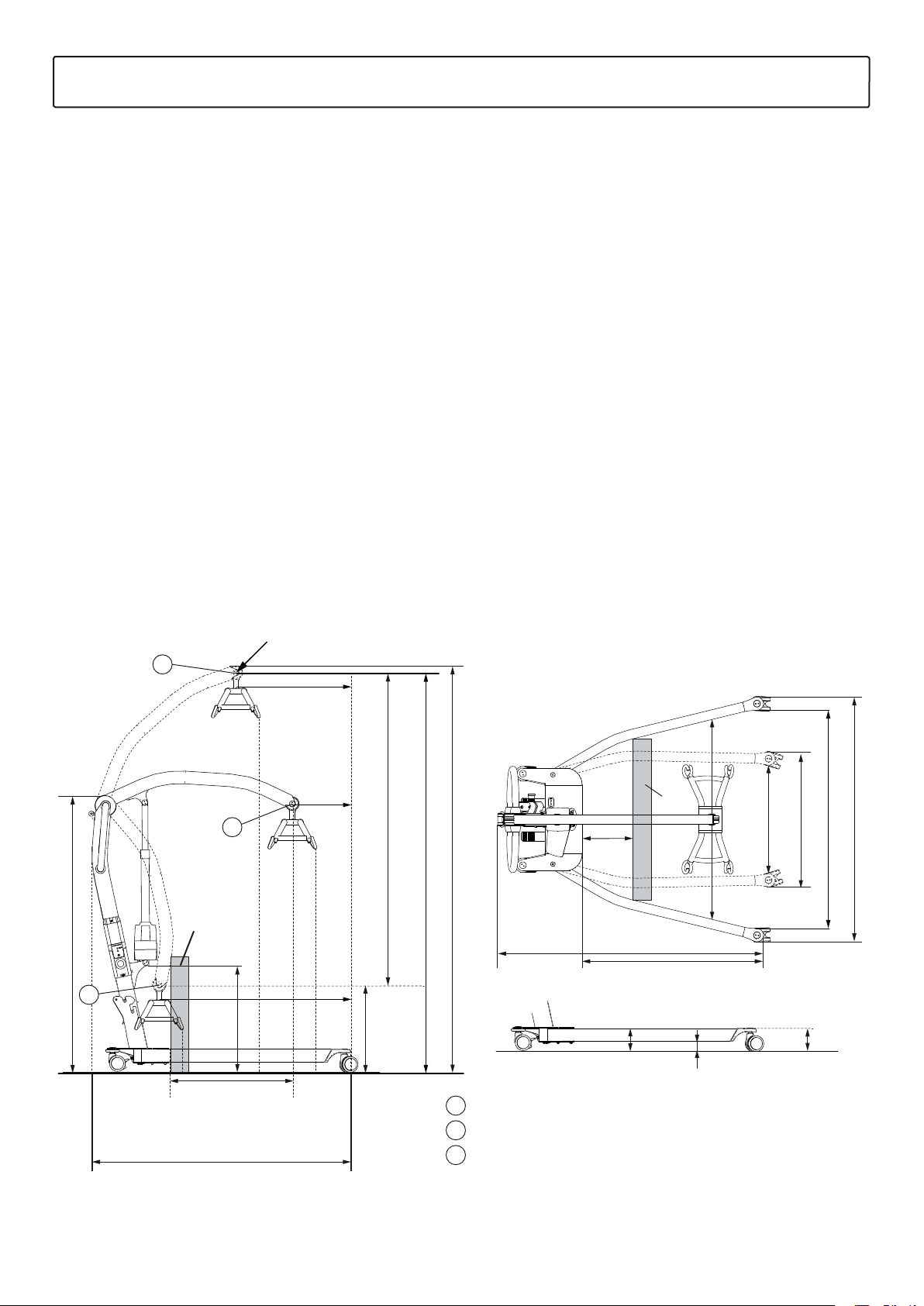

Technical data
w=700
h=600
CSP
1665 mm
(65
/in
)
1905 mm (75in)
1030 mm (40
/in
)
925 mm (36
/in
)
660 mm (25
/
)
545mm (21
/in
)
820 mm
(32
/in
)
1180 mm
(46
/in
)
1065 mm
(41
/in
)
530 mm
(20
/in
)
215 mm
(8
/in
)
1315 mm (51
/in
)
1200 mm (47
/in
)
105mm
(4
/in
)
1860 mm (73
/in
)
1260 mm (49
/in
)
400 mm (15
/in
)
610 mm
(24
/in
)
630 mm
(24
/in
)
240 mm
(9
/in
)
105 mm
(4
/in
)
45 mm
(1
/in
)
455 mm
(17
/in
)
200 mm
(7
/in
)
885 mm
(34
/in
)
1880 mm
(74
/in
)
410 mm
(16
/in
)
1450 mm
(57
/in
)
860 mm
(33
/in
)
1
Highest position:
2
Max reach:
3
Lowest position:
1
2
3
Molift Smart 150 / www.etac.com
Safe Working Load (SWL)
150 kg (330 lbs)
Weight of unit
Ex. battery: 25 kg / incl. battery: 25,8 kg
Battery:
Art: 0541000
14.4 V NiMH 2.6 Ah
Battery charger:
100-240 V AC, 50-60 Hz
0,9 A output
Lifting speed
50,7 mm/second (1.99 inches/second)
with 75kg (165 lbs) load
Protection class
Hand control IP24
Lift motor IP24
Maximum A-weighted sound power level
LWA = 49,4 dB
Operating forces button
Buttons on handset: 3.4 N
Material:
Aluminum, plastic, steel
Motor
Lifting motor/actuator: 12 V DC
Turning diameter:
1300 mm (51,2 inches)
Number of lifts with fully charged battery:
40 lifts ( 75 kg / 165 lbs, 50 cm / 20 inches)
Expected Lifetime:
The lifter has an expected lifetime of 30 000
cycles or 10 years.
Measurements folded (LxWxH):
1160 x 475 x 355mm (45.66 x 18.7 x 14”)
4
Page 6
Molift Smart 150 / www.etac.com
Assembly
Charge the battery. The battery must not be in
the battery holder on the lifting column during
assembly or folding.

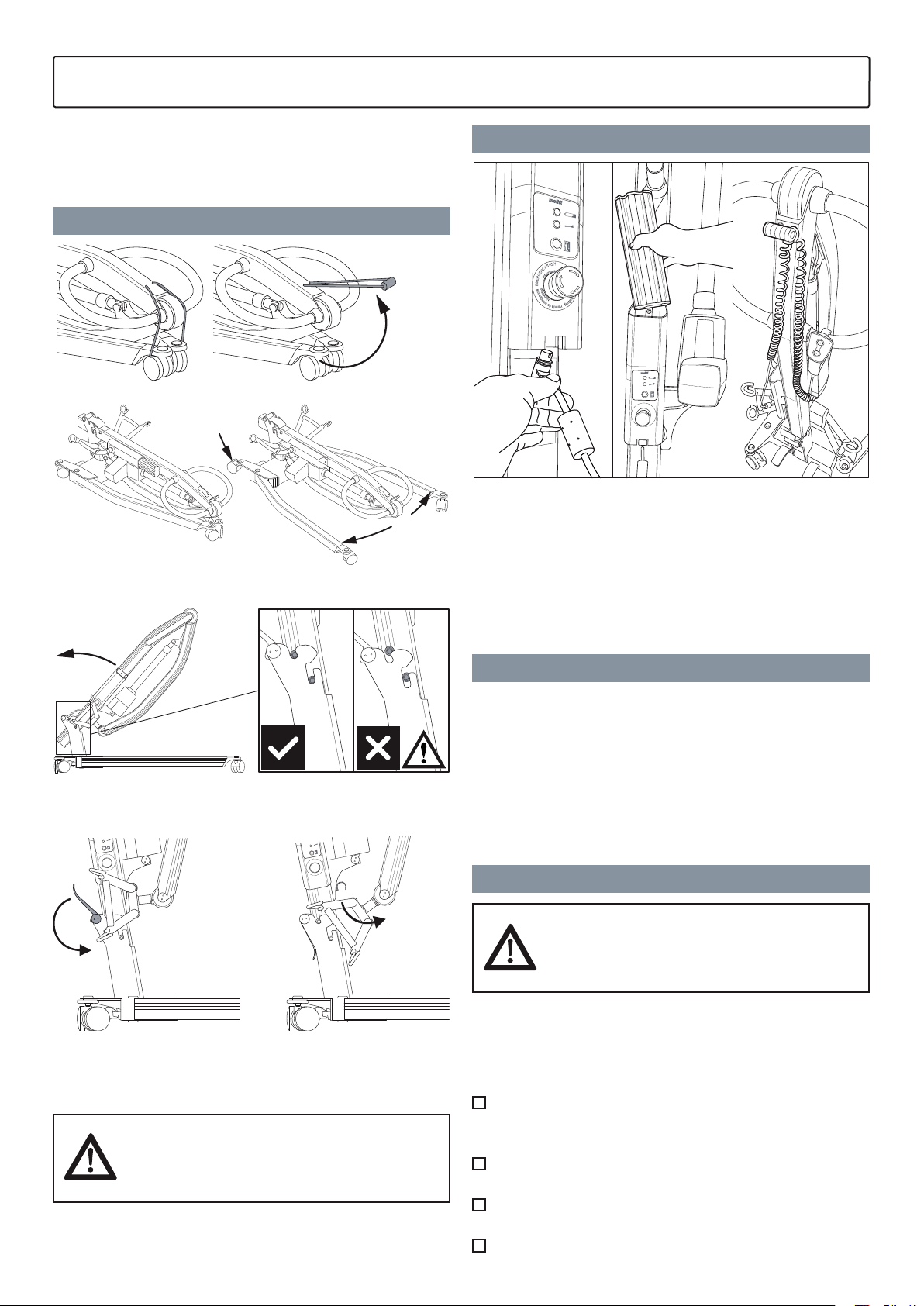

Assembly
Remove the transport elastic band.
Engange the break on the rear castors by stepping on the left pedal set. Open the legs.

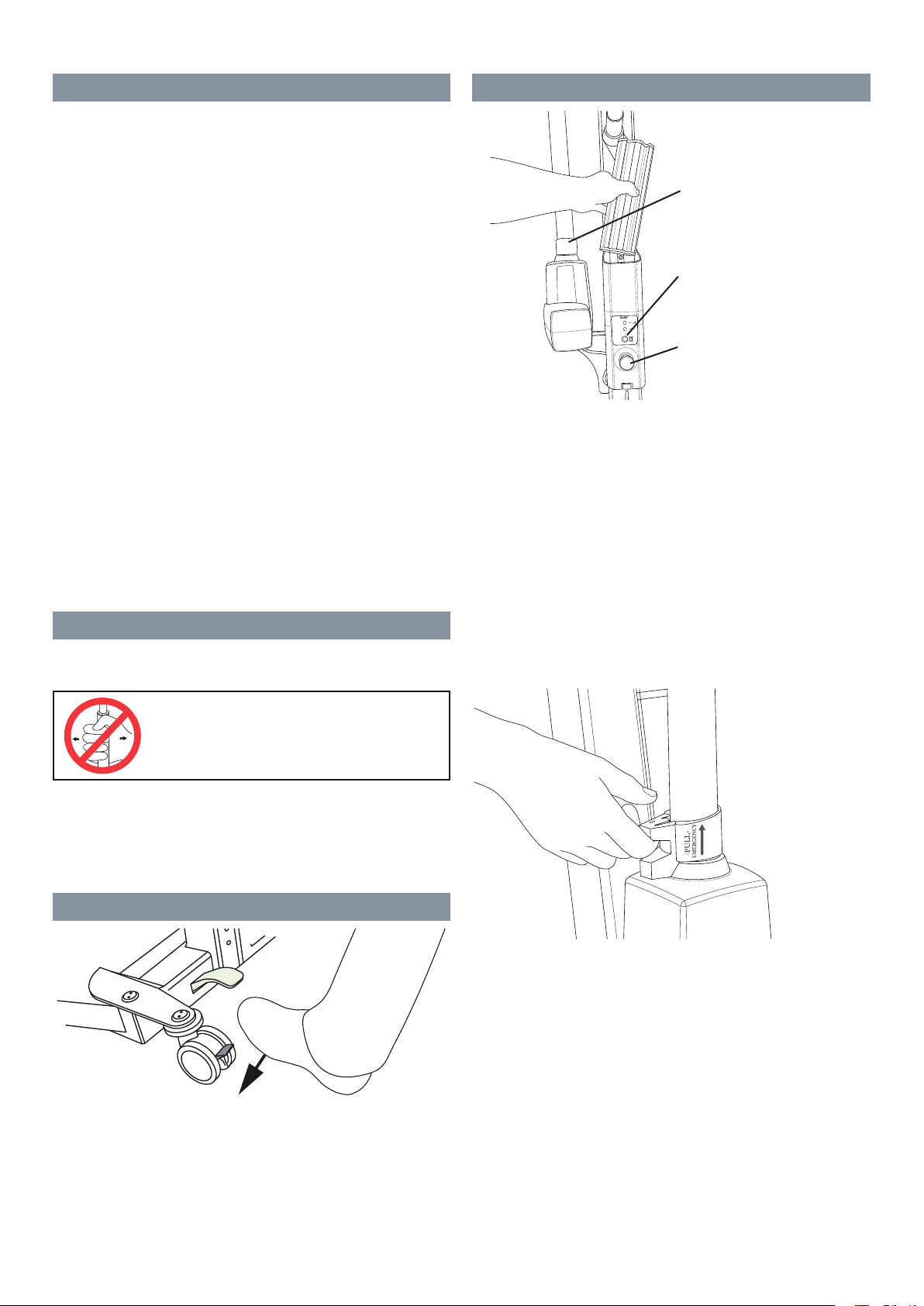

Battery and Hand control
1. Connect hand control to bottom of battery
holder.
2. Insert battery with terminals facing down.
3. Pull out elastic band and guide hand control
through. Pull some of the cable through so
the hand control does not fall to the floor
when dropped.
Lift up the lifting column and slide it down into
the bracket on the chassis. Make sure it is placed
completely in the bottom of chassis.
The column must be fixed with the locking handle
on the back of the chassis. Pull the suspension
out of the transport hook
Be careful not to get legs/arms/hands
caught between the parts when raising/folding down the lifting column.
Folding (Transport mode)
Run the lifting arm all the way down, and remove
battery. Fold the lifter in reverse order of assembly.
Fix the suspension back into the hook.
It is possible to split the lifter into two separate
parts by lifting the column from the chassis
completely.
Checklist after assembly
Do not use the product until you
have checked all points in the
checklist below
Use this checklist to verify that the lifter is properly
installed and can operate correctly and safely
before use.
Ensure that the lifting arm, lifting column and
suspension are properly fixed and that there
are no loose parts on the lifter.
Make sure battery is charged (no lights on the
battery indicator).
Check that the lifter has no apparent damage
or other faults.
Perform a lift with load (approximately 50 kg)
5
Page 7
How to use Molift Smart 150
Molift Smart 150 / www.etac.com
General safety precautions
Use only accessories and slings that are adjusted to
fit the user, type of disability, size, weight and type
of transfer.
Working pause ratio/Duty Cycle.
Molift Smart 150 should not be run constantly for
more than 2 minutes (with maximum load), and
rest for minimum 18 minutes.
Duty cycle 10% intermittence.
Before use / Daily check / Monthly
Inspection to be performed daily or before use:
Make sure lifter has no visible damage, defects
or deformations
Make sure battery indicator is not illuminated
and service indicator is green
Make sure wheels are rolling freely and lifter is
easy to manouvre
Safe working load (SWL)
The lifter is marked with Safe Working Load (SWL)
The lowest SWL shall always be used
if safe working load (SWL) differs
between lifter, suspension and body
support unit
Molift lifters shall only be used to lift
persons. Never use the lifter to lift or
move objects of any kind.
Inspection to be performed monthly:
Test all the lifters functions and make sure
lifter does not make any abnormal sounds
Test emergency stop button and emergency
lowering
If there are any faults or defects, the lift needs to
be taken out of operation and marked ”out of
order”

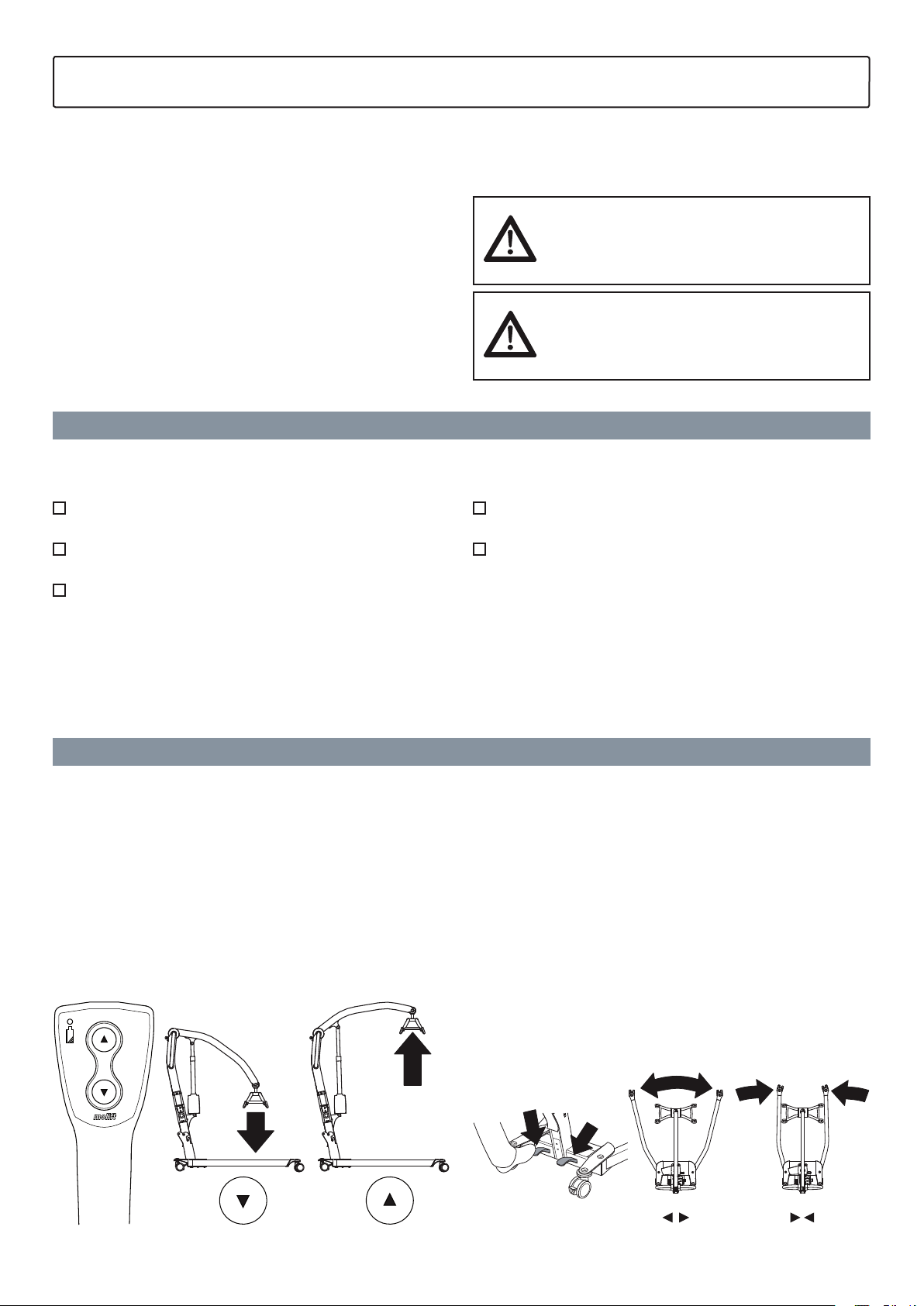

Hand control
The hand control has 2 buttons, one for lifting
and another for lowering of lifting arm. The
hand control has an indicator that will illuminate
when battery level is low and the battery requires
charging.
Hand Control 2 buttons
Art. no. 0440002
Lifting Arm - Up / Down
Leg spread mechanism is mechanical, and operated by two pedals. One pedal for legs inwards
and one pedal for legs outwards. Step on selected
pedal to open or close legs.
Legs - In / Out
NB! Open legs provides increased stability and
better access to chair or toilet.
6
Page 8
Molift Smart 150 / www.etac.com
Safety devices
Molift Smart 150 is equipped with several safety
devices, which are intended to prevent damage to
personnel and equipment in the case of incorrect
use.
The lifter has an overload sensor preventing the
lifter to be operated if the load exceeds SWL.
The lifting arm is hinged to prevent the arm
and suspension from squeezing the user. The
actuator will not produce any force when moving
downwards.
The legs are folded together during transport to
make the lifter as small as possible. When assembling the lifter, the legs must be opened to working position. The lifting column will not fix into
the bracket if the legs are not adjusted beyond
transport position - a safety feature ensures this.
The electronics are disabled if overheated. Wait
until the lifter has cooled down before using it
again.
Push / Pull handles
Emergency Stop / Emergency lowering
Manual
Emergency
lowering
Electrical
Emergency
lowering
Emergency
stop
Emergency stop
The emergency stop shuts off the power when
pushed in. Turn clockwise to reset (OK to operate
when the green ring is visible).
Electrical emergency lowering
Push and hold button for electrical emergency
lowering to lower lifting arm. The electrical emergency lowering function does not work when the
emergency stop is activated.
Use the pull handles to move the lifter.
Do not push or pull the user,
lifting arm or actuator.
This may cause instability and
lifter may tip over.
The lifter shall only be used for movement
over short distances. It is not a replacement
for wheelchair or similar.
Brakes
Manual emergency lowering
Pull handle on the actuator upwards to start
emergency lowering, and the lifting arm moves
downwards when loaded. The lowering will
increase in speed the higher the handle is pulled.
Release the handle gently. Releasing the handle
too quickly may cause person injury or damage to
the lifter.
Rear castors are equipped with brakes. Step on
pedal to lock brakes. Flip up to unlock.
The manual emergency lowering function on the
actuator should only be used when the electrical
emergency lowering does not work.
7
Page 9
x2
Electronics
Molift Smart 150 / www.etac.com
Transport and operating conditions
Transport and storage
For long time storage it is recommended that the
emergency stop button is activated (pushed in).
The lifter can be stored and transported under
temperatures between -25 - 70 °C.
Operating
The lifter is designed for use at standard room
temperatures (+5 to +40°C).
Air pressure: 70 - 106 kPa
Relative humidity: 15 - 93 %
Following storage or transport at other temperatures leave the lifter in a room with a suitable
temperature until it reaches a safe operating
temperature.
Medical electrical equipment
requires special precautions regarding electromagnetic compatibility
(EMC). Portable or mobile radio
communication equipment may
affect the medical electrical equipment, and should be kept minimum
25 cm (10 inches) from the lifters
electronics.
Battery
Molift Smart 150 is equipped with a 14.4 V 2.6Ah
NiMH battery. The battery has a life expectancy of
approx. 500 charging cycles.
Used batteries must be disposed
of as special waste according to
local rules and regulations. Do not
dispose in general waste
Battery and service indicator (LED)
The lifter has two indicator lights on battery
holder.
Service indicator
Battery indicator
The electrical system has a power save function
which will turn off the electrical system after ten
minutes without activity. All lights will turn off.
The system is activated when pushing one of the
operating buttons
Battery indicator (LED)
The battery indicator (LED) will illuminate and
make a sound when battery level is low and the
lifter requires charging. When this occurs the lifter
will have sufficient power available for one full lifting cycle with max load. When battery is critically
low it is only possible to lower the lifting arm.
Service indicator
Number of lifts performed is calculated and
recorded by the lifters electronics.
After a certain period of operation a signal is given
to indicate that service is required.
Service indicator
No light Power saving (Stand by)
Green Ready for use
Yellow Order service
Red Perform service
Red + sound Perform service
Mode
immediately
Batteries must be fully charged
and drained completely a couple of
times before it achieves full capacity. Also follow this procedure if
the lifter has not been in use for a
long period (4 weeks or more)
Service scope
Service involves replacing the lifting motor and
inspection/replacement of worn parts. This must
be carried out by authorized personnel.
Service is needed when the service light is red
(calculated 10.000 lifts in SWL.)
8
Page 10
Molift Smart 150 / www.etac.com
Charging
Battery
indicator
(LED)
Battery
charger
Mains cable
(disconnecting
device)

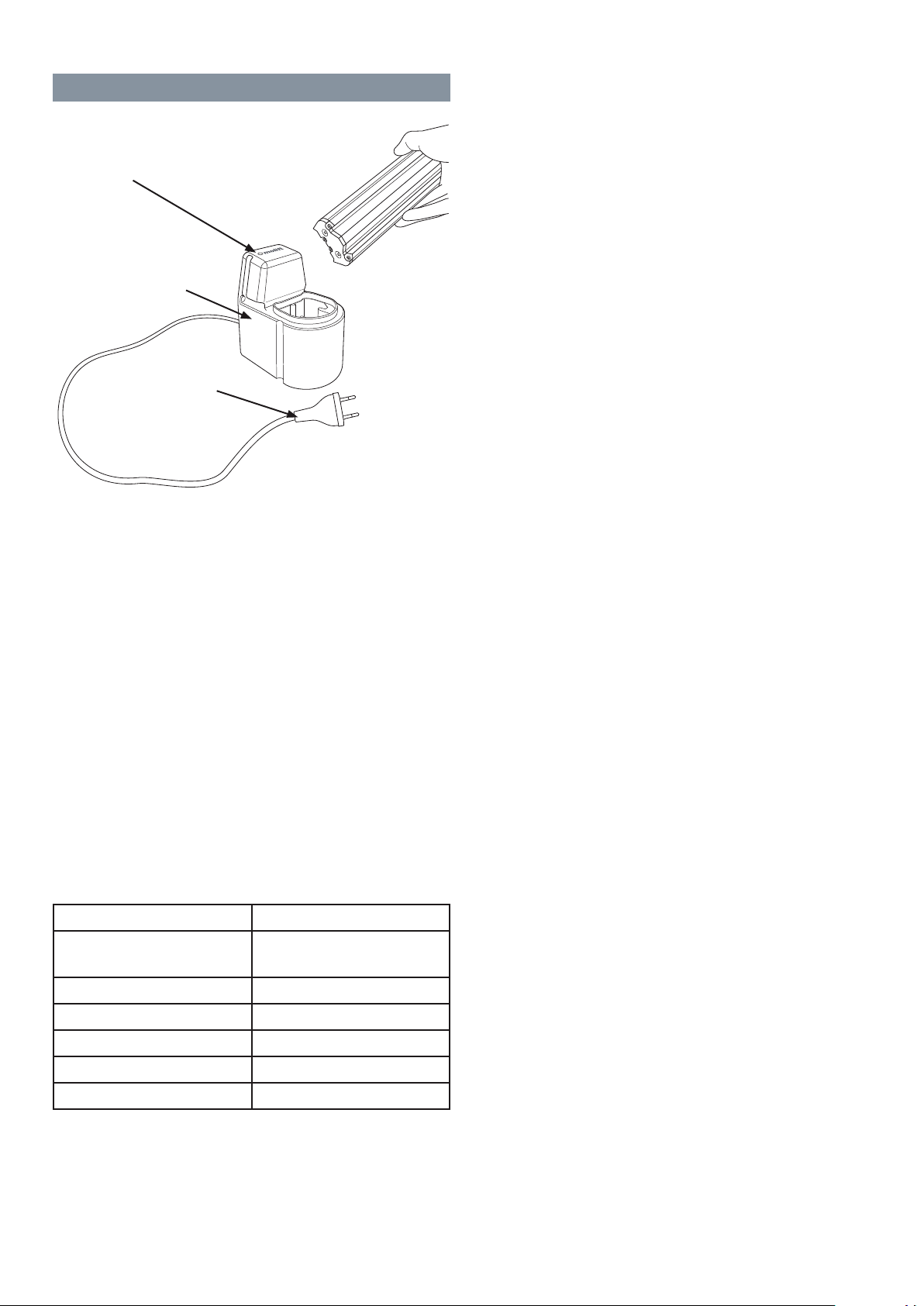

Battery charger
The battery charger can be used as a tabletop
charger or mounted to a vertical wall surface
close to a power outlet, minimum 120 cm above
the floor. The charger has to be used outside the
patient environment. The Charger must be placed
or installed in a way that makes it easy to disconnect mains cable plug. Take care not to damage
the cable. The charger can be connected to the
power outlet at all times.
Battery charger 12-24V
Art. no. 1340100
PowerPac 14,4 V NiMH
Art. no. 0541000
Charger indicator
Description of battery indicator (LED):
LED Mode
Yellow Ready for use, no bat-
tery connected
Yellow blinking Initialization
Red Fast Charge
Green/Yellow Top-off charge
Green Trickle charge
Red/Green Error
9
Page 11
Transfer
Plan the lifting operation in advance to ensure that
it is as safe and smooth as possible. Remember
to work ergonomically. Assess the risks and take
notes. The assistant is responsible for the safety of
the user.
Molift Smart 150 has a 4-point suspension for
different types of transfers; sitting, recumbent or
ambulating.
Molift Smart 150 / www.etac.com

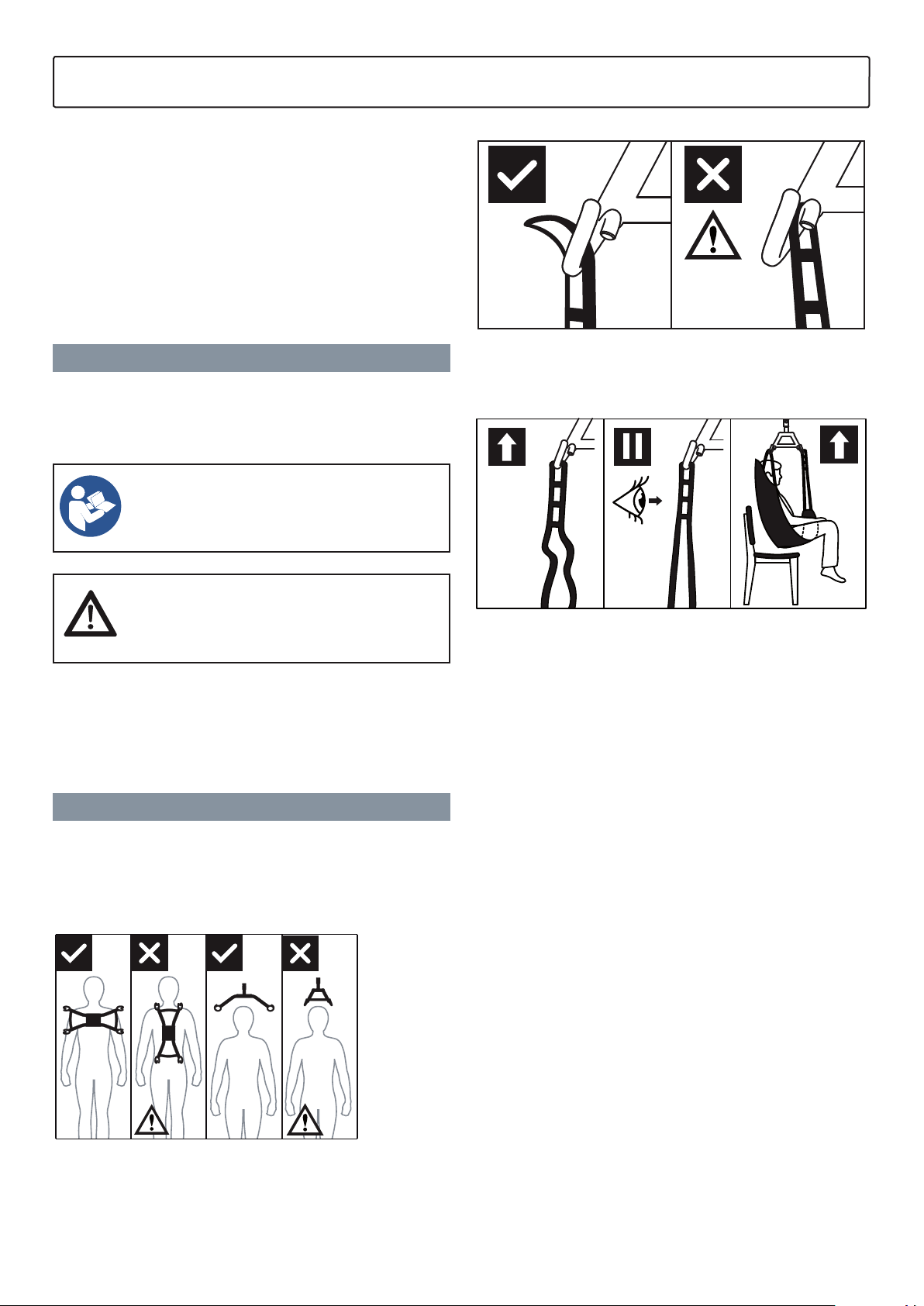

Using slings
It is important that the sling has been tested with
the individual user and for the intended lifting
situation.
Read user manual for the sling
prior to use.
Do not to use damaged or badly
worn slings.
Slings made by other manufacturers
We recommend only using Molift slings. Etac shall
not be liable for faults or accidents that can occur
when using slings made by other manufacturers.

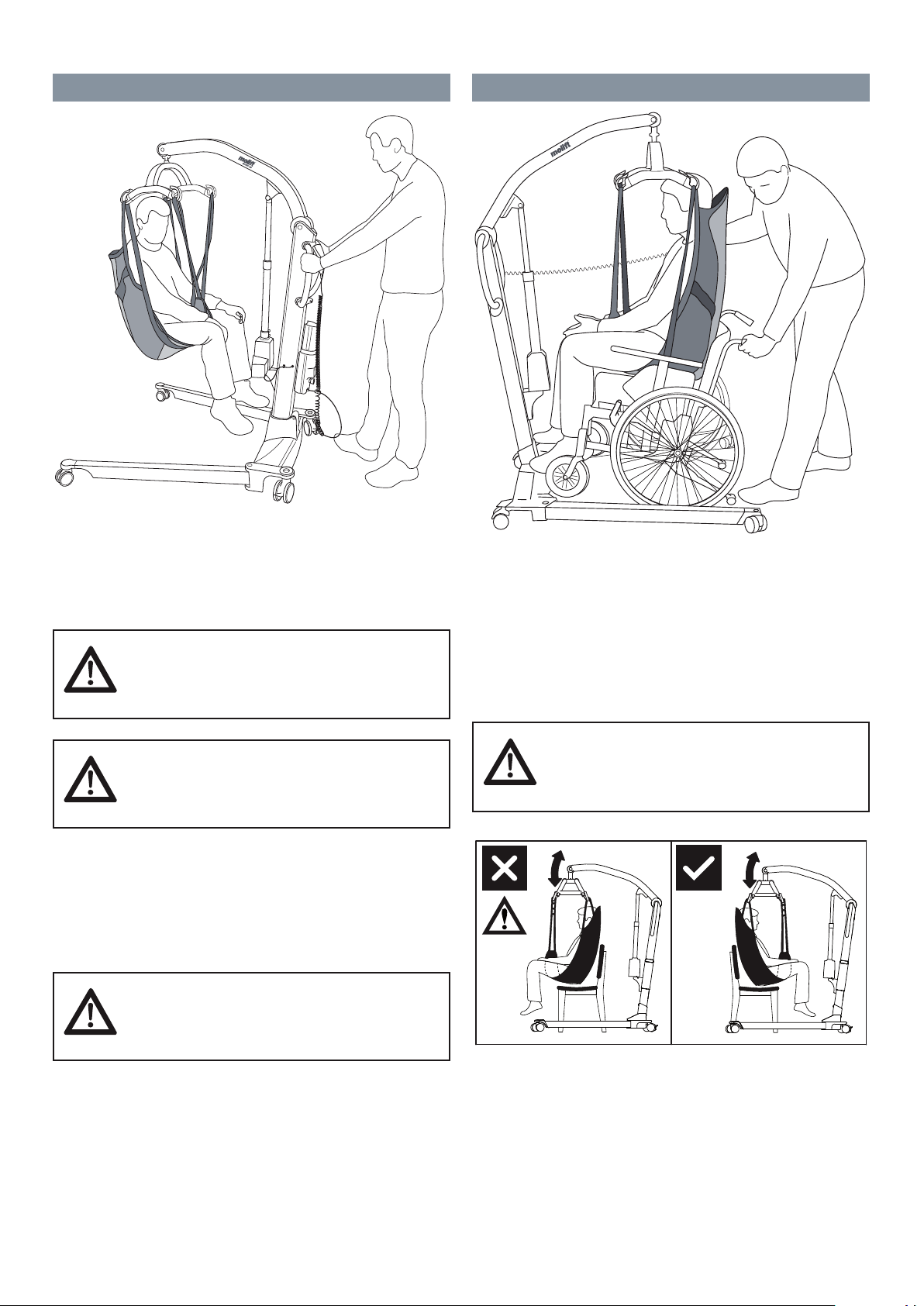

Lifting and lowering
The suspensions hook design prevents sling to be
inadvertently detached when mounted correct.
1. Check that the sling is correctly fitted around
the user and that the strap loops are correctly
fitted to the suspension hooks.
2. Stretch the sling straps without lifting the
user. Ensure that all four loops of the sling are
securely fastened to avoid the user slipping or
falling.
3. Lift user, and perform transfer.
When moving the user, stand to the side of the
person you are lifting. Make sure that arms and
legs do not obstruct the seat, bed, etc. Keep eye
contact with the user to help them feel safe.
The 4-point suspension must always be positioned
across the user, to prevent the user from unintentionally sliding out of the sling.
10
Page 12
Molift Smart 150 / www.etac.com
Transfer
Try to position the user as low as possible
(preferably resting the feet on the chassis) when
transferring the lifter with a suspended user. In this
way the centre of gravity will be low and reduce
the risk of instability.
Lowering into sitting
When transferring the user into sitting, the following techniques can be used when lowering the
user as far back into the seat as possible:
Never lift the user higher than
necessary to carry out a lift.
Remember that wheels on a mobile
lift must NOT be locked.
Never leave a user unattended in a
lifting situation.
Be careful during movement, the suspended user
may swing during turns, stops and starts. Be
careful when manoeuvring close to furniture to
prevent the suspended user from colliding with
these objects.
The lifter shall not be used to lift or
move users on sloping surfaces
A Position the user with the help of the push
handle
B Push gently on the users knees
C Tilt the seat backwards
User must be facing lifter when
lifting or lowering from or into a
chair.
Avoid deep pile carpets, high thresholds, uneven
surfaces or other obstacles that may block the castors. The lifter may become unstable if forced over
such obstacles increasing the risk of tipping over.
11
Page 13
Accessories
Recommended optional equipment and accessories for Molift Smart 150.
Slings
Etac supplies a wide selection of slings for different types of transfers.
The Molift RgoSling sling series is developed to be
combined with a 4-point suspension but the sling
also works with a 2-point suspension.
See the combination list in the slings user manual
for the correct sling and suspension combination.
The Molift RgoSling sling series is available in sizes
XXS – XXL, in polyester and polyester mesh.
Rgosling Mediumback Padded (XS-XXL)
Rgosling Highback Padded (XS-XXL)
Rgosling Mediumback Net (XXS-XXL)
Rgosling Highback Net (XXS-XXL)
Rgosling Toilet Lowback (XXS-XXL)
Rgosling Toilet Highback (XXS-XXL)
Rgosling Ampu Mediumback (XXS-XXL)
Rgosling Ampu Highback (XXS-XXL)
Rgosling Ambulating Vest
Rgosling Comfort Highback (S-L)
Molift Smart 150 / www.etac.com
Accessories:
Rgosling Extension Loops
Art. no.: 1721600
Rgosling Ambulating Vest Groin strap (XXS-XL)
Transport/Storage
Travel Suitcase for Molift Smart 150
Art. no. 0990200
This hard shell suitcase provides additional
protection when transporting by
air. It is TSA approved for air travel and
ideal for the client with an active life.
Travel Bag for Molift Smart 150
Art. no. 3049175
The soft shell travel bag has extra large
transport wheels. It protects the lift, and
enables easy transporting.
12
Page 14
Molift Smart 150 / www.etac.com
Maintenance
Cleaning and disinfection
Clean on a regular basis. Clean surfaces with
a damp cloth using an appropriate pH-neutral
detergent. Do not use solvents or strong liquids,
this may damage surfaces on the lifter. For
disinfection when needed; use isopropyl alcohol.
Avoid abrasive cleaning products. Remove hair
and pile from the castors and verify that the
castors rotates freely. Clean contact and hand
control with isopropyl alcohol to remove grease
and dirt. Check emergency stop and emergency
lowering after cleaning. The lift should not be
exposed to running water.
Make sure not to damage or
remove labels when cleaning.
Periodic inspection
Reconditioning
Follow cleaning and assembly procedure, complete
periodic inspection and use checklist after assembly to recondition the lifter.
Recycling
Refer to “Recycling instructions” for how to
properly dispose of product. This can be found on
www.etac.com.
Spare parts
A list of spare parts is available on request.
Periodic inspection scope
Periodic inspection is a visual examination (particularly of the lifter’s load bearing structure and lifting
mechanism with attachments, brakes, controls,
safety devices and person-support devices) according to Periodic inspection report for Molift Smart
150. This can be found on www.etac.com.
If there is any problems with the
lifter that could jeopardize someones safety, the lifter shall immediately be taken out of service and
marked “out of order”. Do not use
the lifter untill it is repaired.
Periodic inspection shall be performed annually or
more frequently if required by local requirements.
The inspection must be performed by service
personnel authorized by Etac.
Contact Etac at [email protected] for training and
authorization or recommendation of an approved
service partner.
If the inspection reveals defects and damages, the
owner shall be notified.
When periodic inspection is completed the

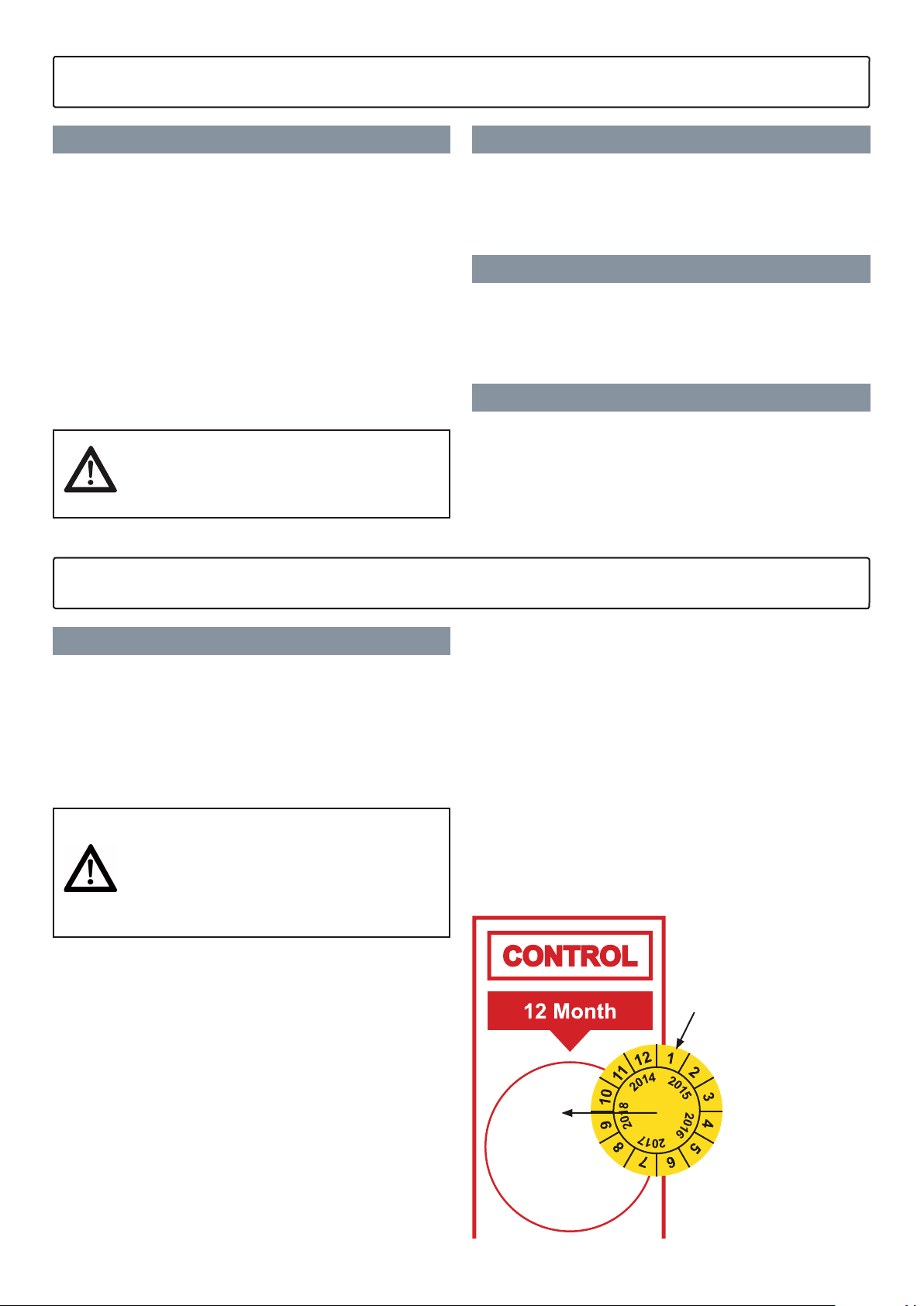

inspector shall mark the lifter with a sticker on
the control label showing the date when periodic
inspection is performed and a label (with 6-digit
ID from Etac or distributor) showing who has
performed the periodic control. The control label
can be found on the right side of the battery
holder, and this will then indicate the date when
next Inspection is due.
Mark label
with month
and year of
inspection
When performing a periodic inspection, the
inspector shall fill out the inspection report for
Molift Smart 150. The reports should be retained
by the person(s) responsible for servicing the lifter.
13
Page 15
Molift Smart 150 / www.etac.com
Troubleshooting
Symptom Possible cause / action
The lifting column is wobbly The lifting column is not correctly positioned in
the chassis.
Assemble column and chassis, and lock column by
the locking handle on the chassis.
The lifter moves unevenly on a plane surface The castors move unevenly because of pile and
dust.
Clean the castors. Remove hair and dirt.
The lifting arm moves uncontrolled. Short circuit between hand control and lifter.
Clean hand control plug surfaced with alcohol to
remove grease.
Defective hand control.
Replace hand control.
The control electronics has failed.
Contact local representative for service.
The lifting legs move uncontrolled. The leg opening mechanism has failed. The
product is unsafe to operate . Contact local
representative for service
The lifter does not respond to hand control action
/ The lifting arm does not move.
Battery does not charge Faulty batter y.
Emergency stop button is activated.
Turn button clockwise to reset emergency stop.
Battery is empty.
Change or charge battery.
The lifters electronics is overheated.
Wait for it to cool down.
The lifter is overloaded.
Make sure the load does not exceed SWL.
Hand control is not plugged in properly.
Plug in Hand control properly. Hand control, plug
or cord can be broken an should be replaced.
Defective control electronics.
Contact local representative for service.
Check indicators on charger when charging.
Try another battery.
Faulty battery charger.
Check indicators on charger when charging.
Try another charger.
14
Page 16
Etac AS
Etac Supply Gjøvik
Hadelandsveien 2, 2816 Gjøvik, Norway
Tel +47 4000 1004
[email protected] www.etac.com
Loading...
