Molift QuickRaiser 205
EN - User manual
BM13001 Rev. A 2017-01-17
1
Molift QuickRaiser 205 / www.etac.com
Content
Molift QuickRaiser 205 ..............................2
Lifter components ...................................2
About Molift QuickRaiser 205 .................2
General .....................................................3
Declaration of conformity ........................3
Conditions for Use ..................................3
Warranty ................................................3
Product identification ..............................3
Technical Data ...........................................4
Assembly ..................................................5
Battery ...................................................5
Leg support ............................................ 5
Lifting column ........................................5
Lifting arm ..............................................6
Mains cable ............................................6
Hand control ..........................................6
Checklist after installation .......................6
How to use Molift QuickRaiser 205 ............7
Before use / Daily check ..........................7
Hand control ..........................................7
Safety devices .........................................8
Steering handles .....................................8
Brakes ....................................................8
Emergency Stop / Emergency lowering ....8
Electronics .................................................9
Transport and Operating conditions .........9
Battery ...................................................9
Battery and Service indicator ...................9
Charging ..............................................10
Trans fer ...................................................11
Using Slings .......................................... 11
Adjusting leg support ...........................11
Using a 4-point lifting arm .................... 12
Using a 2-point lifting arm ....................12
Raising ................................................. 13
Trans fer ................................................13
Accessories .............................................14
Suspensions and Slings ..........................14
Leg Straps.............................................12
Maintenance ........................................... 15
Cleaning and disinfeciton ...................... 15
Reconditioning......................................15
Recycling ..............................................15
Spare Parts ...........................................15
Periodic Inspection ..................................15
Pericodic Inspection Scope ....................15
Troubleshooting ...................................... 16
Important
This user manual contains important safety
instructions and information regarding the use of
the lifter and accessories.
In this manual the user is the person being lifted.
The assistant is the person operating the lifter.
Warning!
This symbol indicates important
information related to safety.
Follow these instructions carefully.
Read User Manual before use!
It is important to fully understand
the content of the user manual
before attempting to use the
equipment.
Download documentation at www.etac.com to
ensure you have the latest version.
English Manual
2
Molift QuickRaiser 205 / www.etac.com
Molift QuickRaiser 205
Molift QuickRaiser 205 is a sit-to-stand mobile
lifter intended for raising and transferring a
person from/to a chair, wheelchair or toilet with
a sling. The shape of the lifter and geometry of
the lifting movement imitates the natural pattern
of movement of a person. The lifter is made of
light-weight materials, has castors, and an electric
motor powered by a battery. The hoist is operated
by using the hand control or the control panel on
the hoist. It has electrically adjustable legs and
with a lifting capacity of 205 kg (451lbs).
It is ideal for institutional care settings but can also
be used in privates homes and nursing homes. The
lifter should only be used for transfers across short
distances, such as between a chair and a bed or
into bathroom / rest room, and is not a replacement for wheelchair or similar.

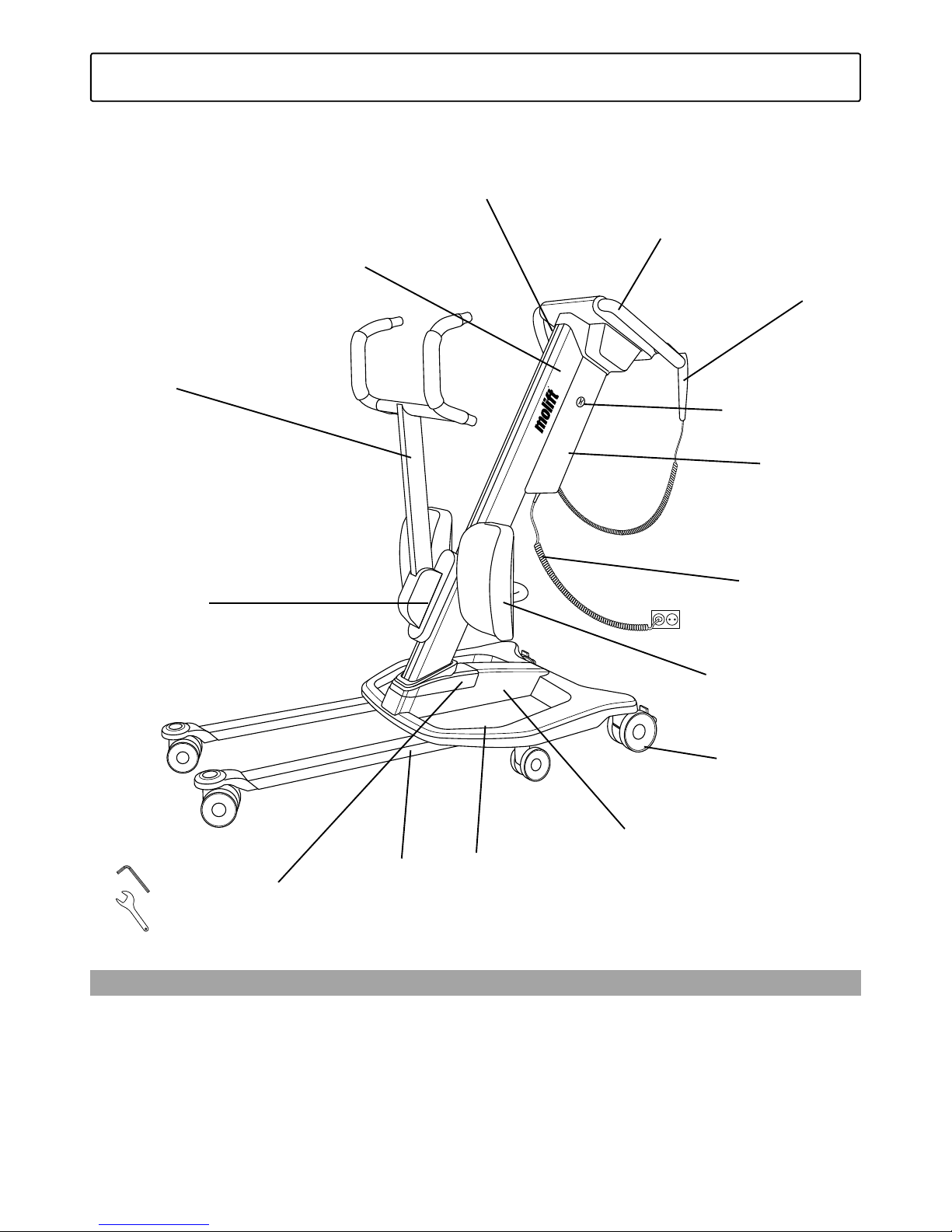

About Molift QuickRaiser 205
Components:
Lifting arm
Steering
handles
Emergency
stop
Leg support
Legs
Chassis
Trolley
Battery
Lifting
column
Hand
control
Wheel / Castor
(Rear with break)
Footplate
Mains cable
Mains cable holder
Assembly tools:
Allen key
17mm spanner
3
Molift QuickRaiser 205 / www.etac.com

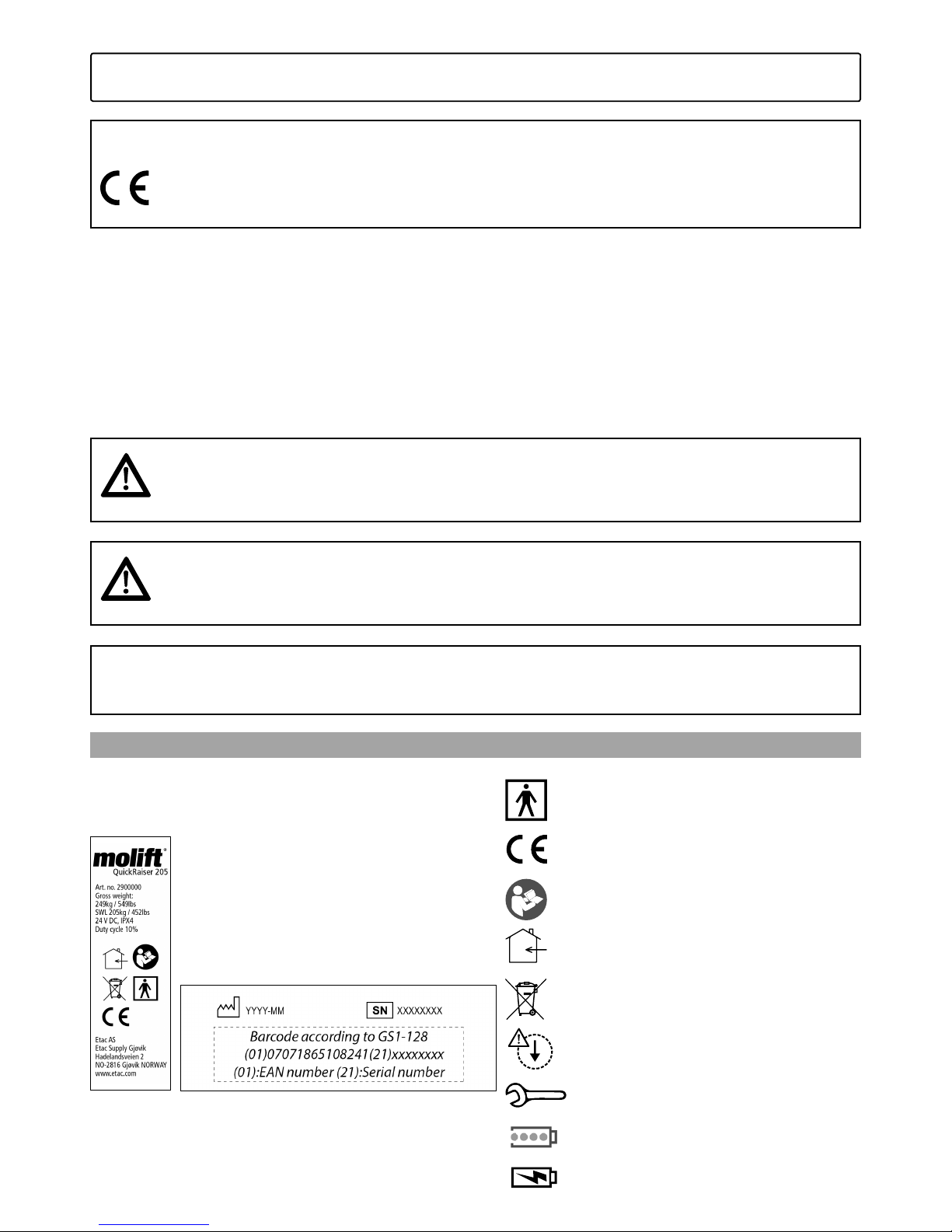

Product label / GS1-128
The barcode label contain EAN number,
serial number and production date.
Warning labels and Symbols
Symbols used on the product, explained in more
detail:
Type BF applied part
CE marked
Refer to user manual
Indoor Use only
Do not dispose in general waste
Emergency lowering

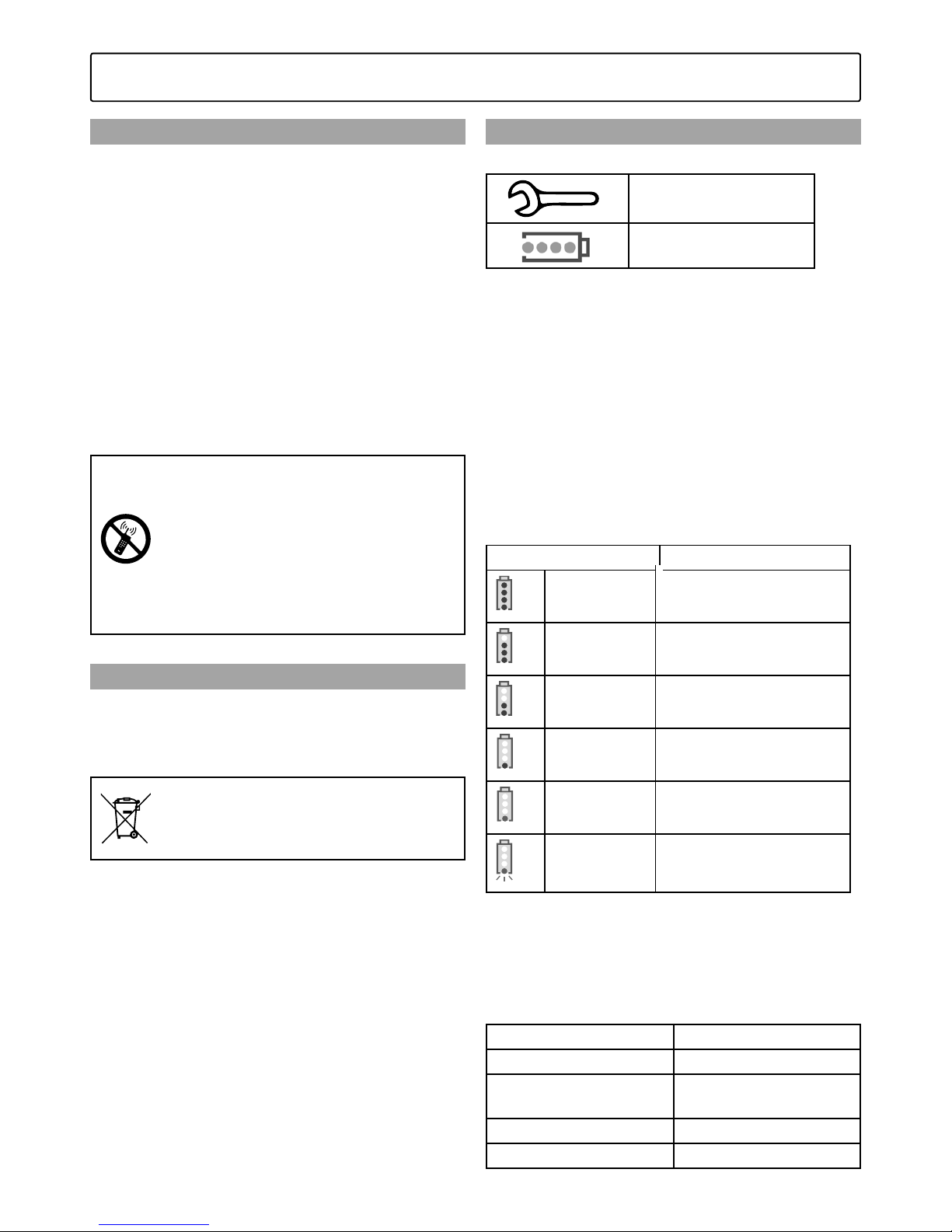

Service indicator
Battery indicator
Charging indicator
Product identification
General
Declaration of conformity
The Molift QuickRaiser 205 and related accessories described in this operator manual are CE
marked in accordance with EU Council Directive 93/42/EEC concerning medical devices, class
1, and has been tested and approved by a third party according to standards IEC 60601-1, IEC
60601-1-2 and NS-EN ISO 10535:2006.
Conditions for Use
Lift and transfer of a person will always pose a certain risk and only trained personnel are allowed to use
the equipment and accessories covered by this user manual.
Modifications and use of components made by other manufacturers.
We recommend only using Etac Molift components and spare parts. Declaration of conformity is not
valid and Etac is not responsible for warranty if any modifications are made to the product. Etac shall not
be liable for faults or accidents that can occur when using components made by other manufacturers.
Only certified personnel are allowed to open lifter or accessories to perform service
or repair. Risk of injury from rotating parts and electric shock.
The lifter shall not be operated by the person being lifted.
Warranty
2-year warranty against defects in workmanship and materials of our products.
For Terms and conditions, see www.etac.com
4
Molift QuickRaiser 205 / www.etac.com
Safe Working Load (SWL):
205 kg (451 lbs)
Weight of unit:
Total weight of unit: 44,5 kg/98 lbs
Chassis: 17 kg/37,5 lbs
Lifting column: 19 kg/41,9 lbs
Leg support: 3,5 kg/7,7 lbs
4-point lifting arm: 5 kg/11 lbs
Battery:
24 V SLA 2.9 Ah
Battery charger:
Input: 100-240 VAC, 50-60 Hz, max 0.35 A
Output: 29.4 VDC, 0,5 A
Lifting speed:
35mm/second (1,4 inches/second)
with 75kg (165 lbs) load
Protection class:
Hand control IPx4
Lift motor IPx4
Operating forces button:
Buttons on control panel: < 5 N
Buttons on handset: < 5 N
Material:
Aluminum, Plastic, steel
Motor:
Lifting motor: 24 V DC
Leg spreading motor: 24 V DC
Turning diameter:
1144 mm (57 inches)
Expected Lifetime:
The lifter has an expected lifetime of 30 000
cycles or 10 years.

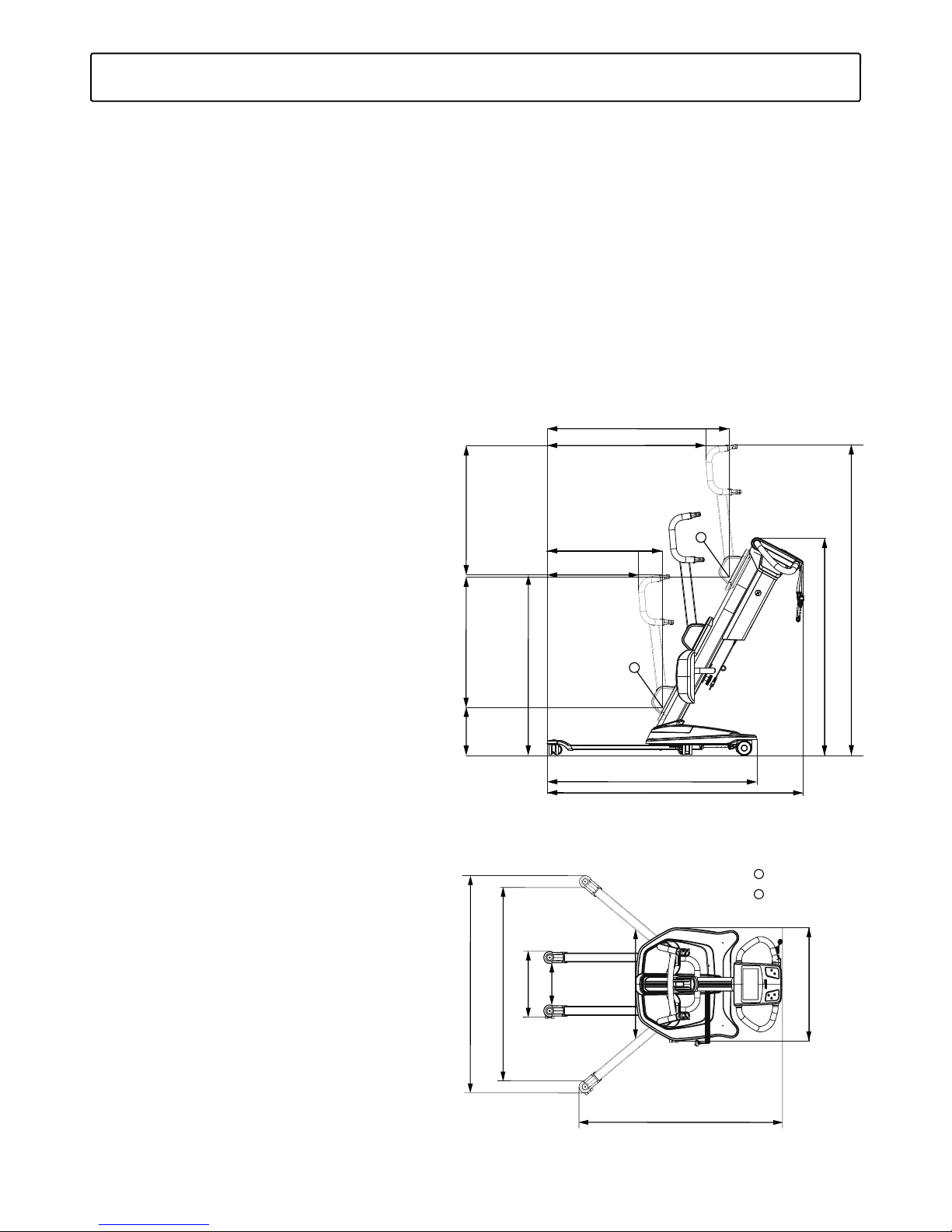

Technical Data QuickRaiser 205
922 mm
(36/in)
808 mm
(31/in)
574 mm
(22/in)
530 mm
(20/in)
1068 mm
(42/in)
1297 mm
(51/in)
1730 mm
(68
/in
)
1125 mm
(44/in)
1020 mm
(40/in)
657 mm
(25/in)
710 mm
(27/in)
273 mm
(10/in)
1
2
922 mm
(36/in)
808 mm
(31/in)
574 mm
(22/in)
530 mm
(20/in)
1068 mm
(42/in)
1297 mm
(51/in)
1730 mm
(68/in)
1125 mm
(44/in)
1020 mm
(40/in)
657 mm
(25/in)
710 mm
(27/in)
273 mm
(10/in)
1
2
1
2
Highest position CSP
Lowest position CSP
1160 mm
(45/in)
619 mm
(24/in)
590 mm
(23/in)
220 mm
(8/in)
350 mm
(13/in)
1080 mm
(42/in)
1210 mm
(47/in)
5
Molift QuickRaiser 205 / www.etac.com

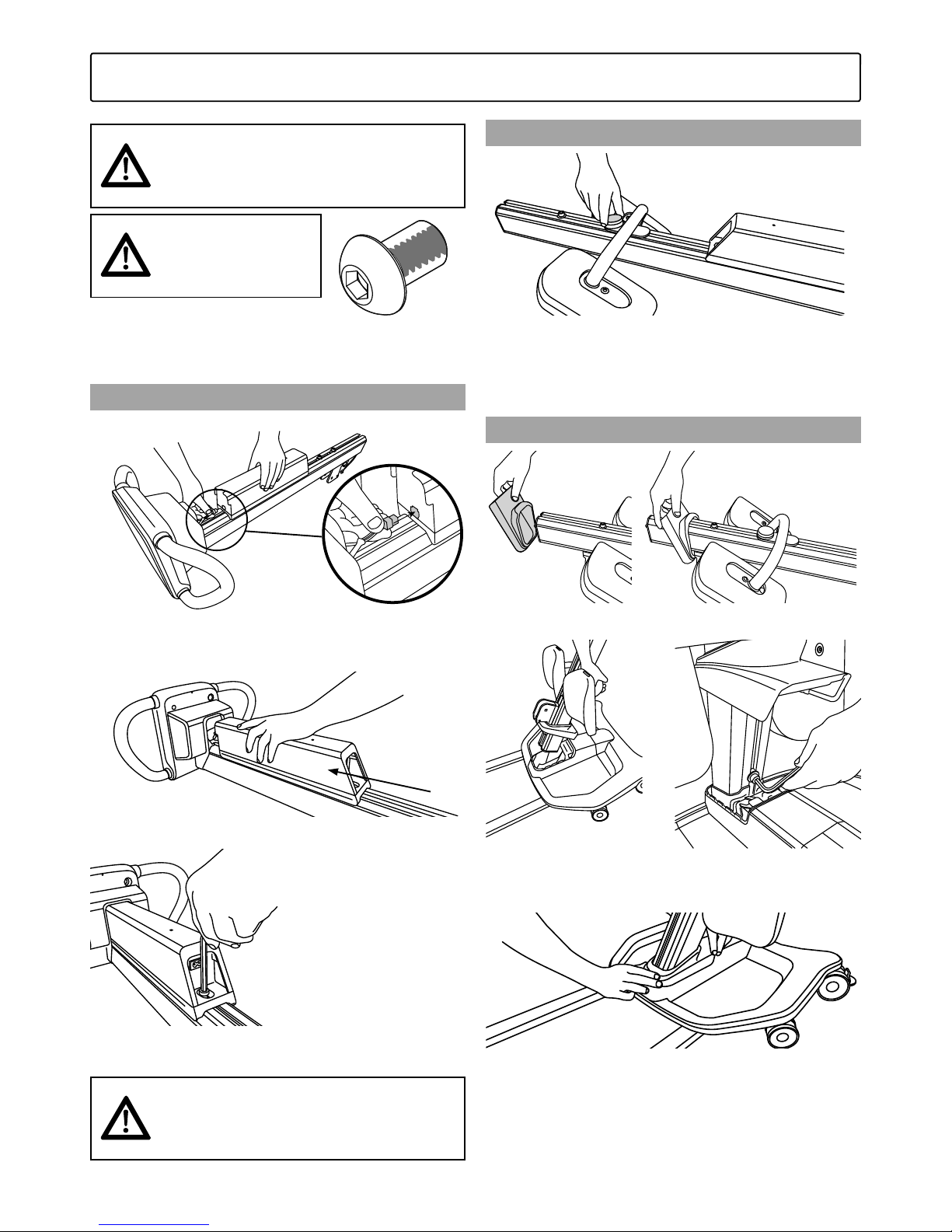

Assembly
Only trained personell shall assemble the lifter
All screws with pre
applied threadlock
must only be used
once.
Push in the emergency stop button
Battery
Place the column on a horizontal surface.
Make sure the emergency stop is pushed in.
Connect wire from control panel to battery box.
Slide the batterybox all the way in.
Use the allen key and tighten screw clockwise.
Make sure the battery is properly
fastened before mounting the
column in the chassis
Leg support
Mount the leg support bracket. Make sure the
turning knob is mounted in the correct direction.
Lifting column
Place the cover on to the lifting column.
Place the lifting column into the chassis and
tighten the first screw at the bottom of the
column.
Fit the cover on to the chassis.
6
Molift QuickRaiser 205 / www.etac.com

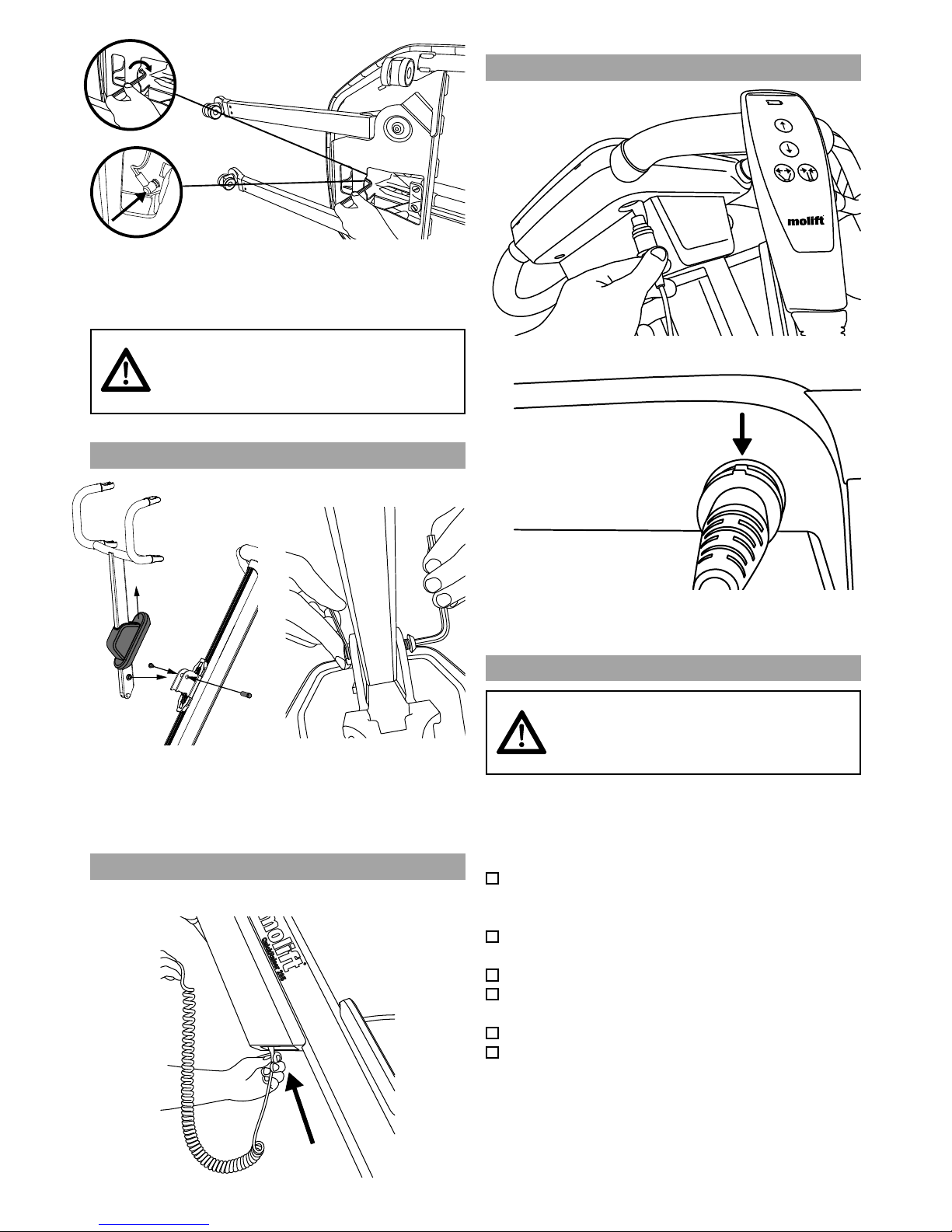

Turn the lifter over on the side. Tighten the second
screw from the chassis into the column and connect cable betwen column and chassis.
Screws will ensure that the column
cannot be pulled upwards. Do not use
lifter unless both screws are securely
fastened.
Lifting Arm
Make sure the lifting arm is properly fastened
to the trolley on the column. Insert the bolt and
tighten the screw using the 17mm spanner and an
allen key.

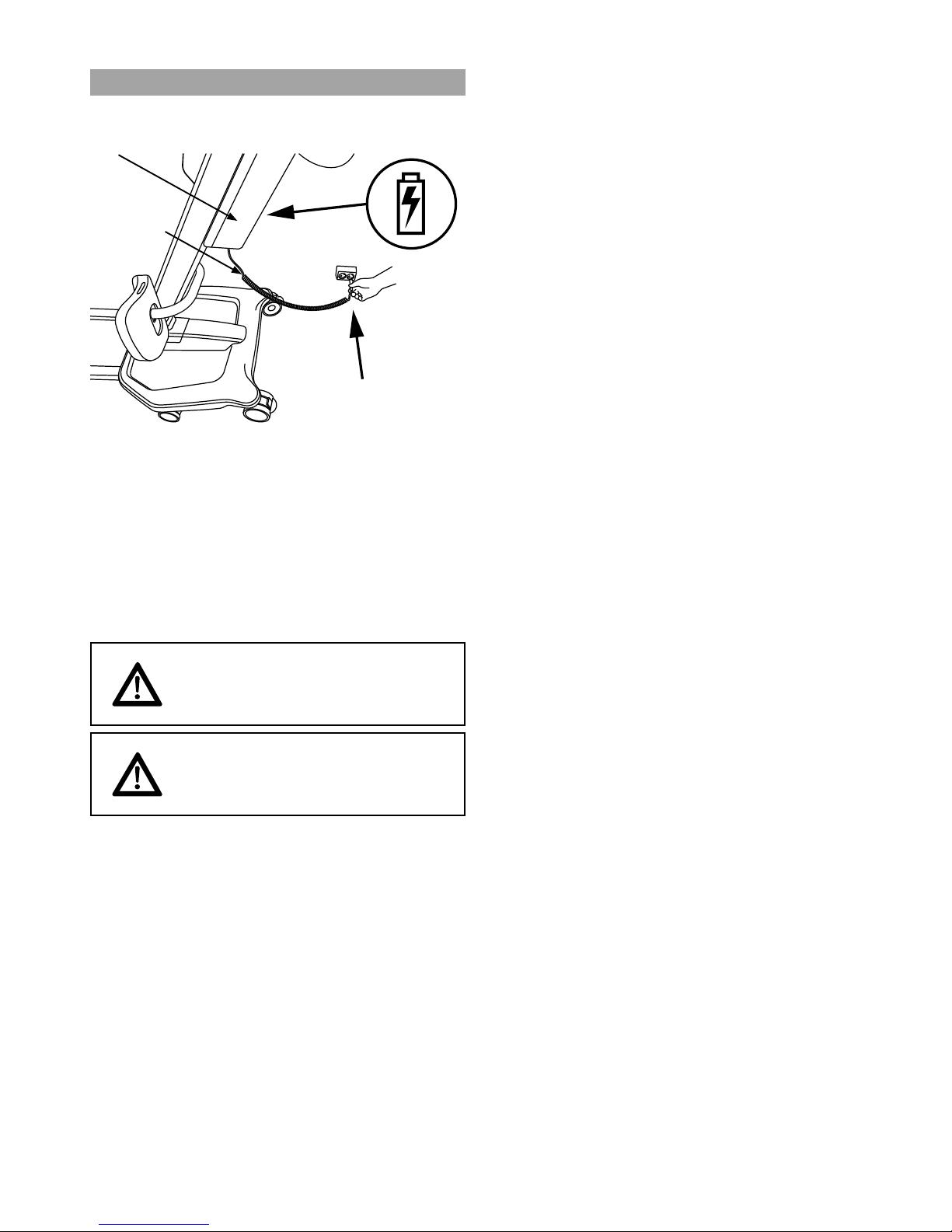

Mains cable
Connect the mains cable to the bottom of the
battery box.
Hand control
Connect the hand control to the control panel.
Checklist after assembly
Do not start using lifter before
completing control according to
checklist after assembly.
Use this checklist to verify that the lifter is properly
installed and can operate correctly and safely
before use.
Ensure that the lifting column, leg support and
lifting arm are properly fixed and that there are
no loose parts on the lifter.
Verify that the lifting column is properly placed
into the chassis - with both screws tightened.
Make sure battery is charged
Check that the lifter has no apparent damage
or other faults.
Perform one lift with normal load (60-80 kg)
Reset service indicator as described in “periodic
inspection”
7
Molift QuickRaiser 205 / www.etac.com

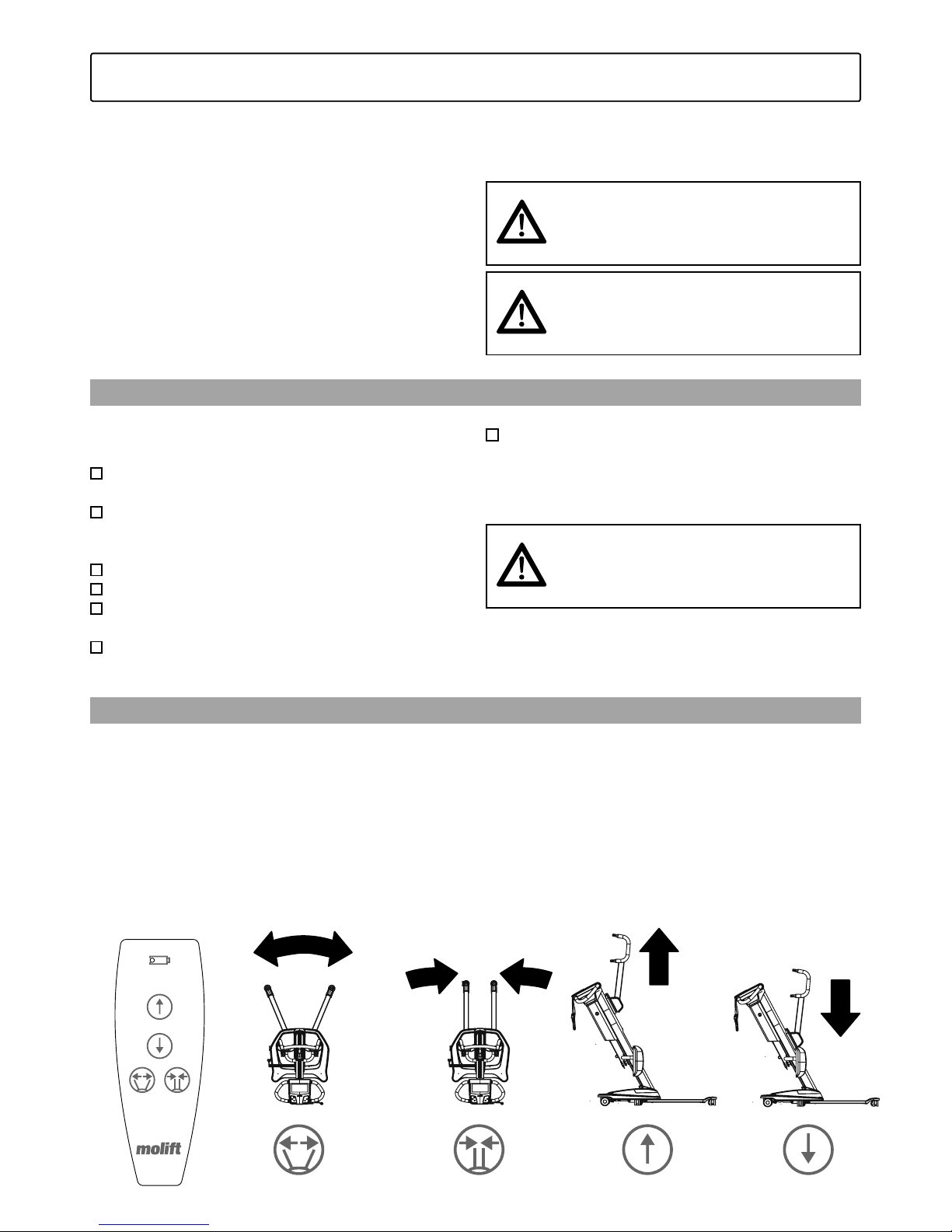

How to use Molift QuickRaiser 205
The hand control has 4 buttons for lifting and
lowering of lifting arm and leg spread mechanism
in and out.
The hand control has an indicator
light that will illuminate when battery level is
low and the lifter requires charging
Hand control 4 buttons
Art. no. 2910010
Lifting Arm - Up / Down
NB! The lifter is most unstable in top position.
Legs - In / Out
NB! Spreded legs gives increased stability and
better access to chair or toilet.
Hand control
General Safety Precautions
Only use accessories and slings that are adjusted
to fit the user, type of disability, size, weight and
type of transfer.
Working pause ratio/Duty Cycle.
Molift QuickRaiser 205 should not be run constantly for more than 2 minutes (with maximum
load), and rest for minimum 18 minutes. Duty
Cycle 10%. (Intermittence according to standard
ISO-EN 10535)
Safe Working Load
The lifter is marked with Safe Working Load (SWL)
If maximum load (SWL) differs
between lifter suspension and body
support unit, then the lowest maximum load shall always be used
Molift lifters shall only be used to lift
persons. Never use the lifter to lift or
move objects of any kind.
Inspection to be performed daily or before use:
Make sure lifter has no visible damage, defects
or deformations
Make sure lifting arm connection, leg sup-
port, battery box and all detachable parts are
properly connected and secured
Test emergency stop button
Check batterylevel and service indicator
Make sure sling strap does not have visible
damage or frays.
Make sure wheels are rolling freely and lifter is
easy to manouvre
Test run lifters operation functions and make
sure lifter does not make any abnormal
sounds
If there are any faults or defects, the
lift needs to be taken out of operation
and marked ”out of order”
Before use / Daily check
8
Molift QuickRaiser 205 / www.etac.com

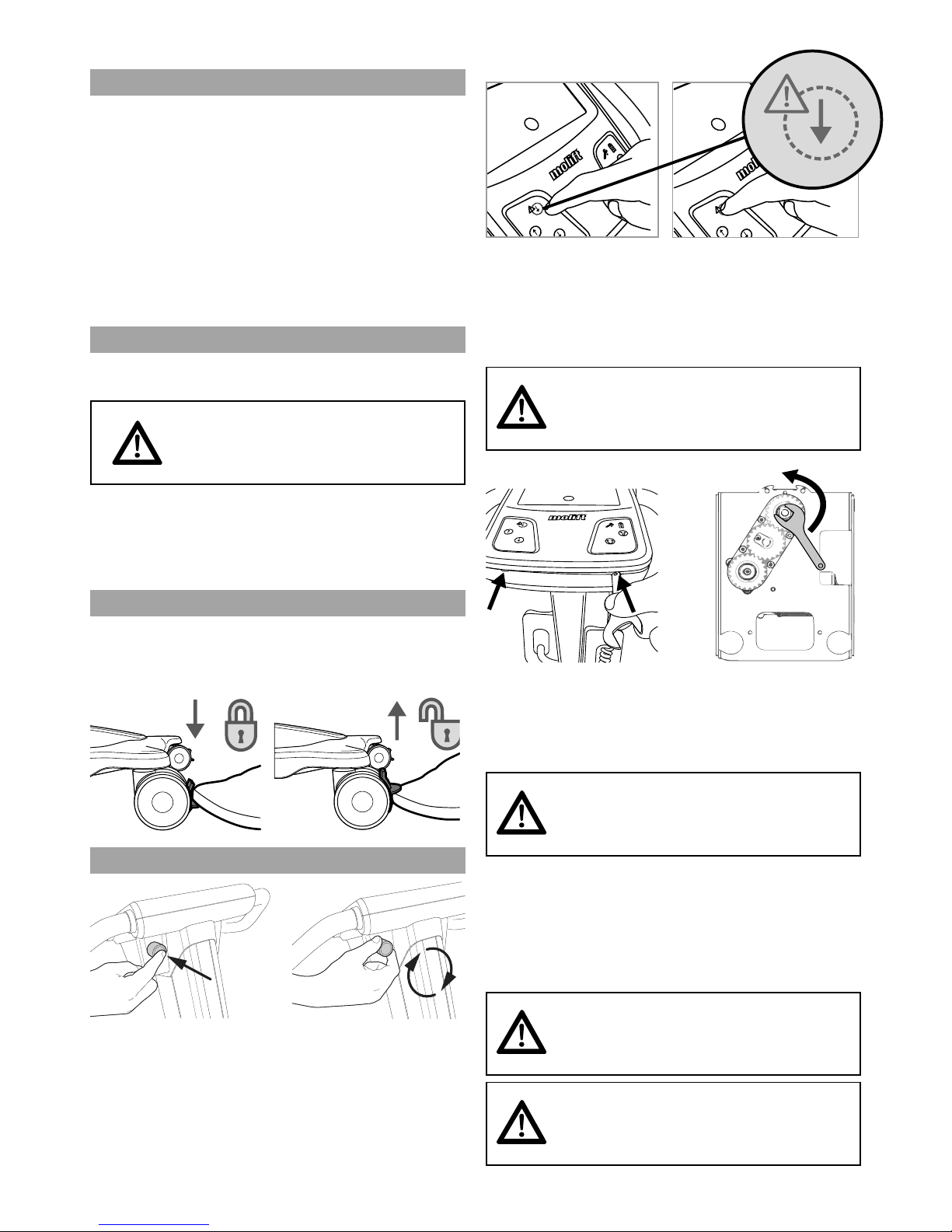

Safety devices
Molift QuickRaiser 205 is equipped with several
safety devices, which are intended to prevent
injury to personnel or damage to the equipment in
the case of incorrect use or failure
The lifter has an overload sensor preventing the
lifter to be operated if the load exceeds SWL.
The suspension is hinged to prevent the arm and
suspension from squeezing the user.
Steering handles
Use the steering handles to move the lifter.
Do not push or pull the user,
lifting column or lifting arm.
This may cause stability problems and lifter may tip over.
The lifter shall only be used for transfer
over short distances. It is not a replacement
for wheelchair or similar.
Brakes
Rear wheels/castors are equipped with kick brakes.
Step on the break to lock brakes. Push up or kick
on top part of the brake to unlock.
Emergency stop / Emergency lowering
Emergency Stop
The emergency stop shuts off the power when
pushed in. Turn clockwise to reset.
Electrical Emergency Lowering
Push and hold button for electrical emergency
lowering to lower suspension. The electrical
emergency lowering function does not work when
the emergency stop is activated.
Only use the electrical emergency
lowering if no other button works.
Manual Emergency lowering
Use the wrench located in the bottom cover to flip
the control panel cover off at the two points.
Push in the emergency stop button
before removing the cover. Disconnect
the mains cable before manual emergency lowering.
Use the 17mm spanner and turn ball screw counter clockwise until the user is safely lowered. The
manual emergency lowering function should only
be used when the electrical emergency lowering
does not work.
If emergency lowering is used, mark
the lifter “out of order” and order
service!
Rotating parts represents a squeezing
hazard!
9
Molift QuickRaiser 205 / www.etac.com
Transport and operating conditions
Transport and Storage
For long time storage it is recommended that the
emergency stop button is activated (pushed in).
The lifter can be stored and transported under
temperatures between -25 - 70 °C.
Operating
The lifter is designed for use at standard room
temperatures (+5 to +40°C).
Air Pressure: 70 - 106 kPa
Relative Humidity: 15 - 93 %
Storage or transport at other temperatures leave
the lifter in a room with a suitable temperature
until it reaches a safe operating temperature.
Medical electrical equipment
requires special precautions regarding electromagnetic compatibility
(EMC). Portable or mobile radio
communication equipment may
affect the medical electrical equipment, and should be kept minimum
25 cm (10 inches) from the lifters
electronics.
Battery
Molift QuickRaiser 205 is available with a 24V SLA
battery and has an integrated charger. The battery
has a life expectancy of approx. 500 charge cycles.
Batteries must be disposed of as
special waste according to local
rules and regulations. Do not
dispose in general waste
Battery and Service indicator
Wrench symbol /
Service indicator
Battery symbol /
Battery indicator
The electrical system has a power-save function
which will turn off the electrical system five
minutes after last operation. All indicators will turn
off.The system is activated when pushing one of
the operating buttons
Battery indicator
When the multi level battery indicator is yellow
the lifter will have sufficient power available for
one full lifting cycle with max load. When battery
is flashing yellow it is only possible to lower the
lifting arm.
Battery indicator Battery level
Green 80% or more
Green 80 - 60%
Green 60 - 40%
Green 40 - 20%
Yellow 20% or less
(recharge lifter)
Yellow
flashing
0% (recharge lifter)
Service indicator
The lifters electronics record the weight lifted and
number of lifts. After a certain period of operation
a signal is given to indicate that service is required.
Service light Mode
No light No service needed
Yellow flashing Periodic inspection
required
Yellow Order service
Red Perform service
Electronics
10
Molift QuickRaiser 205 / www.etac.com
Charging
The lifter has an integrated charger. Park the lifter
and connect to a wall socket to charge the battery. Lights on battery will be red while charging.
Lights on battery will show a steady green color
when lifter is charged.
Do not charge the lifter in a
bathroom or in any room with
wet surfaces!
Remove the main cable from
the wall socket outlet before
moving the lifter
Integrated Battery
Charger
Mains cable
(disconnecting
device)
11
Molift QuickRaiser 205 / www.etac.com

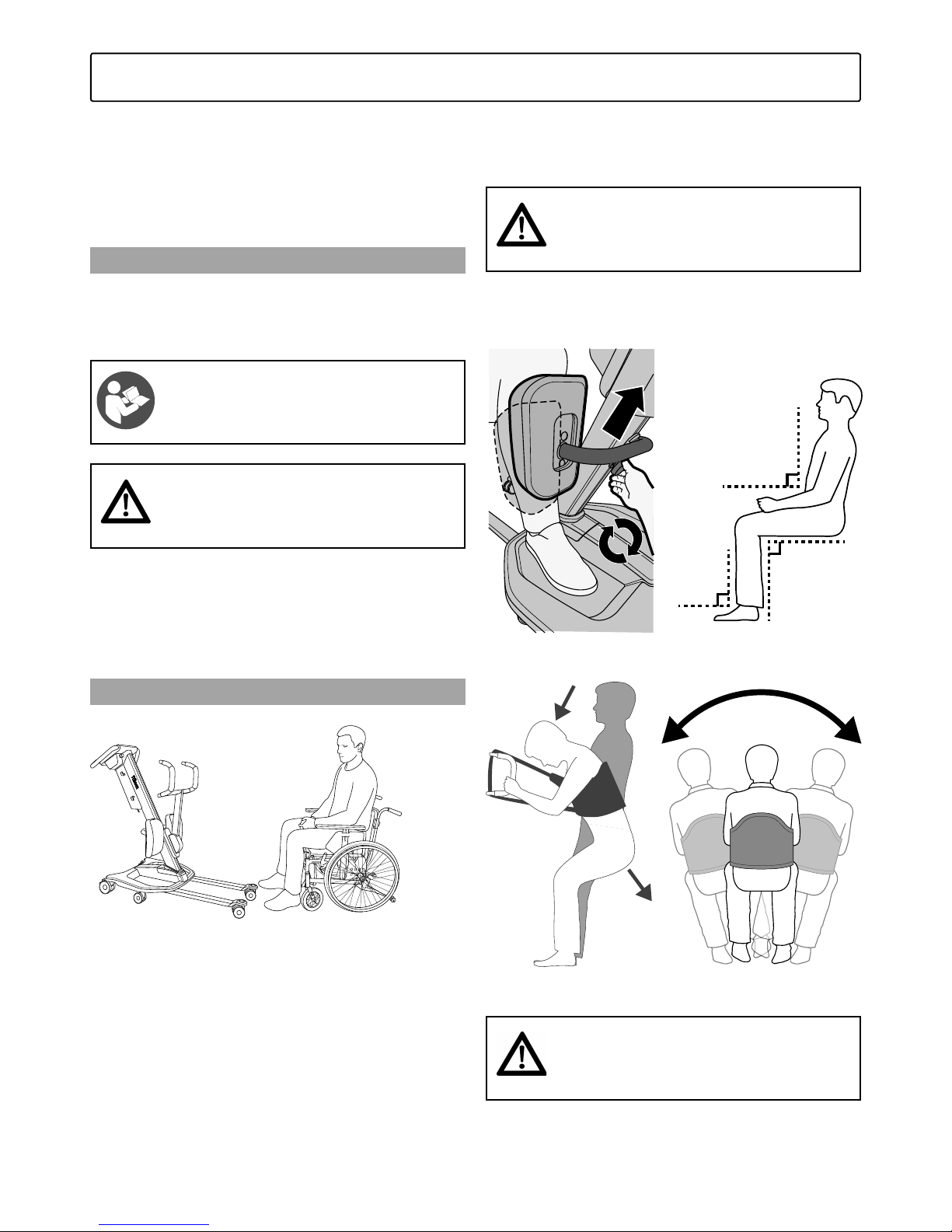

Transfer
Plan the lifting operation in advance to ensure that
it is as safe and smooth as possible. Remember
to work ergonomically. Assess the risks and take
notes. The assistant is responsible for the safety of
the user.
Using Slings
It is important that the sling has been tested with
the individual user and for the intended lifting
situation.
Read User Manual for the sling
prior to use.
Do not to use damaged or badly
worn slings.
Slings made by other manufacturers
Only use Molift slings. Etac shall not be liable for
faults or accidents that can occur when using
slings made by other manufacturers.
Adjusting leg support
Move the QuickRaiser 205 in front of the user.
Place the feet on the footplate. If necessary - help
the user to place the feet correctly. Lock the
wheels on the lifter before lifting the user.
The optimal angle of the users joints before
lifting is 90 degrees.
Make sure the height of the leg
support are adjusted to fit the
induvidual users anatomy.
Use the knob to adjust the leg support higher or
lower if necessary.
Make sure the user is not hanging
forward or swinging to the sides
under and before lifting or lowering the user.
CB
AAB C
90˚
90˚
90˚
12
Molift QuickRaiser 205 / www.etac.com

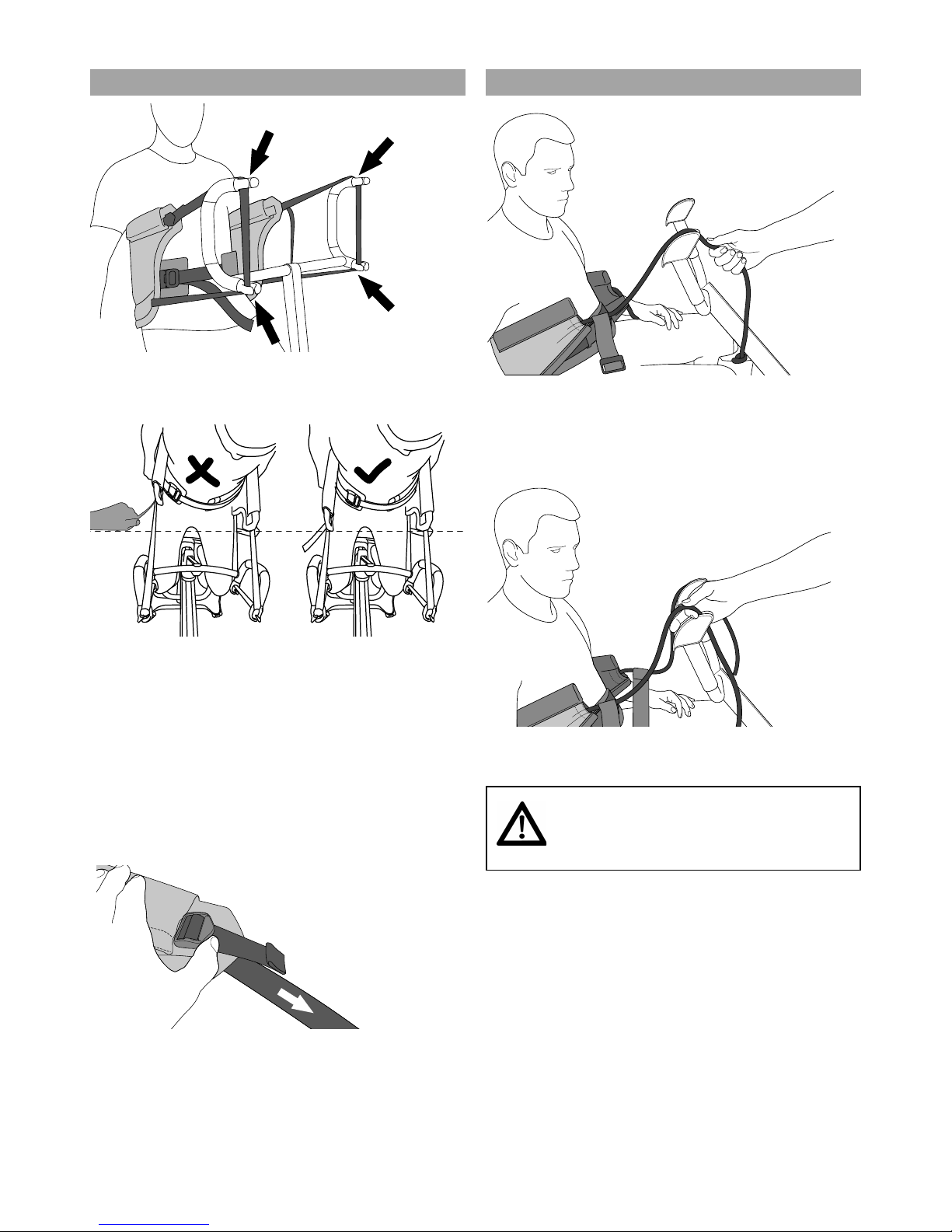

Using a 4-point suspension
Fasten the sling to the lifting arm by guiding the
strap into all 4 hooks.
Pull the loose strap to adjust the length of the
straps. Make sure both sides have equal length.
The patient’s weight ensures that the strap locks
into the lifting arm. The user must lean back
slightly when lifting, and if possible hold onto the
handles.
Removing sling
Loosen the straps again by angling the buckle and
puling the strap out.
Using a 2-point suspension
On the 2-point suspension arm the ropes is
attached to the lifting arm by pulling them firmly
from above and into the rope locks.
Removing sling
Release the band by sliding your fingers along the
rope away from the patient.
RgoSling Active can only be used
with the 4-point suspension.
RgoSling Stand Up can only be
used with the 2-point suspension.
13
Molift QuickRaiser 205 / www.etac.com

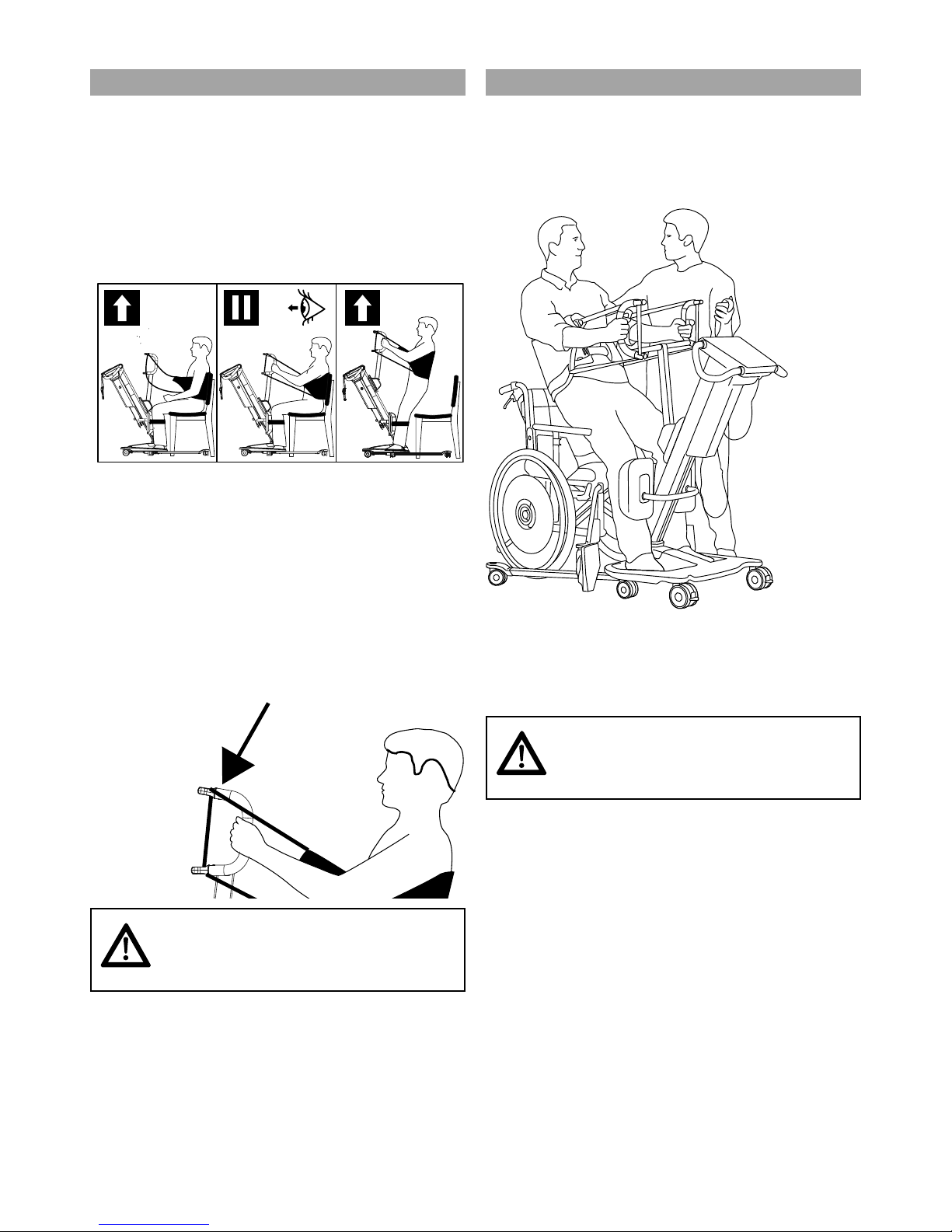

Raising/Lowering
When moving the user, stand to the side of the
person you are lifting. Make sure that arms and
legs do not obstruct the seat, bed, etc. Keep eye
contact with the user to help them feel safe.
If possible: Extend the width of the wheel base
prior to lifting using the button for base width
adjustment on the Hand control.
1. Check that the sling is correctly fitted around
the user and that the strap loops are correctly
fitted to the suspension hooks.
2. Make sure user has both feets placed firmly on
the footplate on the lifter.
3. Stretch the sling straps without lifting the user.
Ensure that both loops of the sling are securely
fastened to avoid the user slipping or falling.
4. Make sure the buckle is properly fastened
5. Lift user to standing postition, and tighten and
adjust the sling if necessary.
Make sure the users hands are
placed correctly to avoid that the
lifting straps are squeezing the
users hands and fingers.
NB! The wheels of the object the user is being
lifted from or into must be in the locked position.
Transfer
Raise the patient carefully until the buttocks are
clear from the seating and tighten the belt. Unlock
the wheels on the lifter and move the patient to
the next location.
Be careful during movement not to run into
furniture, walls, doors etc.
The lifter shall not be used to lift or
move users on sloping surfaces
Avoid deep pile carpets, high thresholds, uneven
surfaces or other obstacles that may block the castors. The lifter may become unstable if forced over
such obstacles increasing the risk of tipping over.
The lifter shall only be used for movement over
short distances. It is not a replacement for wheelchair or similar.
14
Molift QuickRaiser 205 / www.etac.com

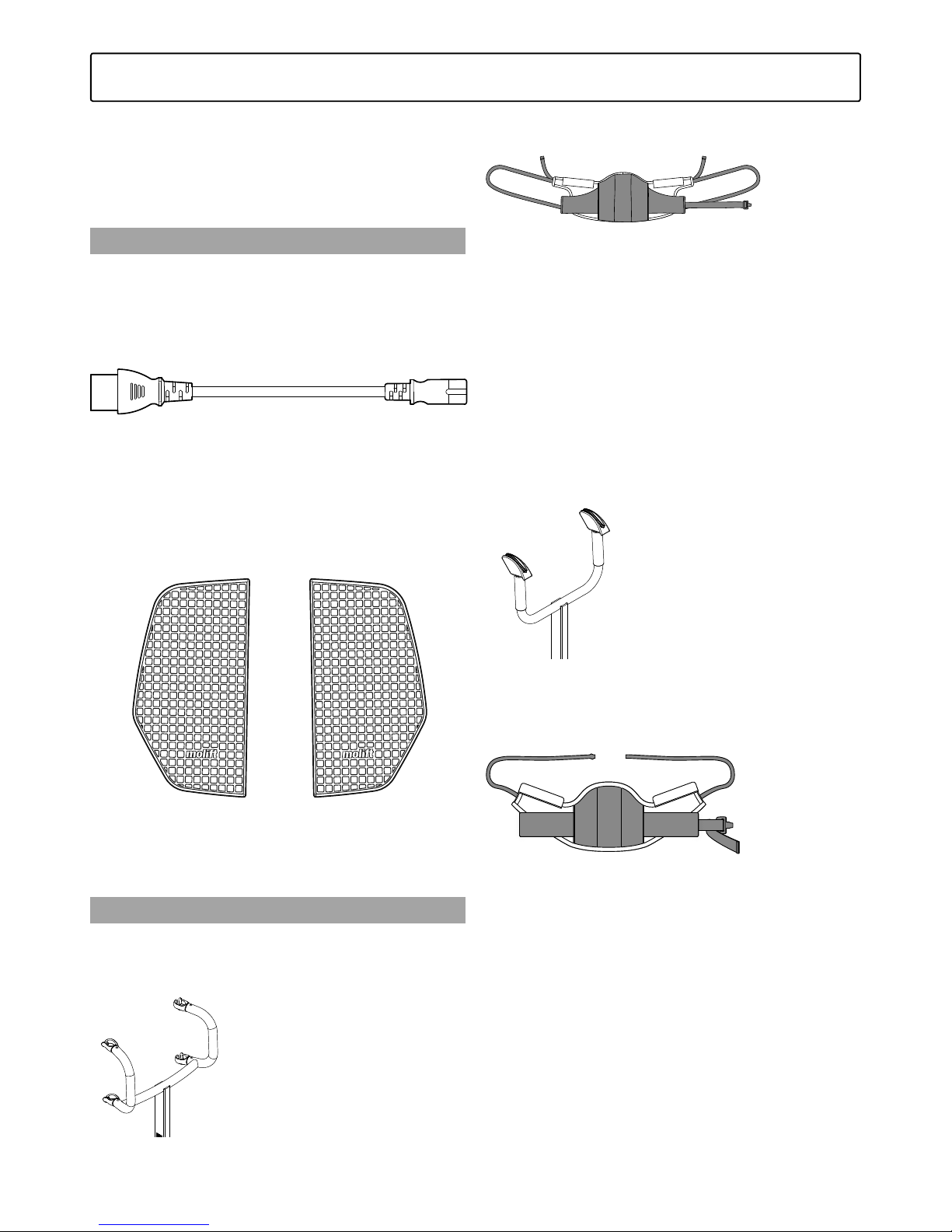

Accessories
(Recommended) optional equipment and accessories for Molift QuickRaiser 205.
Accessories
Extension for power cord
Art. no.: 2920117
Set of inlay for footplate
Art. no.: 2920151
Lifting arms and slings
4-point suspension
QuickRaiser Active lifting arm
Art. no.: 2910060
Rgosling Active
Art. no.: 1720910 Size XS
Art. no.: 1720920 Size S
Art. no.: 1720930 Size M
Art. no.: 1720940 Size L
Art. no.: 1720950 Size XL
2-point suspension
QuickRaiser Stand Up lifting arm
Art. no.: 2910061
Rgosling Stand Up
Art. no.: 1720710 Size XS
Art. no.: 1720720 Size S
Art. no.: 1720730 Size M
Art. no.: 1720740 Size L
Art. no.: 1720750 Size XL
Rgosling Stand Up Padded
Art. no.: 1720810 Size XS
Art. no.: 1720820 Size S
Art. no.: 1720830 Size M
Art. no.: 1720840 Size L
Art. no.: 1720850 Size XL
15
Molift QuickRaiser 205 / www.etac.com
Maintenance
Cleaning and disinfection
Clean on a regular basis. Clean surfaces with
a damp cloth using an appropriate pH-neutral
detergent. Do not use solvents or strong liquids,
this may damage surfaces on the lifter. For
disinfection when needed; use isopropyl alcohol.
Avoid abrasive cleaning products.
• Remove lifting arm cover to clean underneath
• If nessesary, remove the control panel cover to
clean inside
• If nessesary, remove the leg support and clean
it with running water
• Remove hair and pile from the castors and
verify that the castors rotates freely.
Clean contact and hand control with isopropyl
alcohol to remove grease and dirt if necessary.
Check emergency stop after cleaning.
The lift should not be exposed to running water.
Make sure not to damage or
remove labels when cleaning.
Reconditioning
Follow cleaning and assembly procedure, complete
periodic inspection and use checklist after assembly to recondition the lifter.
Recycling
Refer to “Recycling instructions” for how to properly dispose of product. See www.etac.com.
Spare Parts
A list of spare parts is available on request.
Periodic Inspection Scope
Periodic inspection is a visual examination (particularly of the lifter’s load bearing structure and lifting
mechanism with attachments, brakes, controls,
safety devices and person-support devices)
according to Periodic Inspection Report for Molift
QuickRaiser 205.
See www.etac.com.
In the event of danger to safety,
the lifter shall immediately be
taken out of service and marked
clearly with “out of order” and
shall not be used until the lifter is
repaired
Periodic Inspection shall be performed at least
once a year or more frequently if required by local
requirements. The inspection must be performed
by service personnel authorized by Etac. Contact
Etac at molift@etac.com for training and
authorization or recommendation of an approved
service partner.
When performing a periodic inspection, the
inspector shall fill out the inspection report for
Molift QuickRaiser 205. The reports should be
retained by the person(s) responsible for servicing
the lifter. If the inspection reveals defects and
damages, the lifter shall be taken out of operation
and marked “out of order” until it is repaired.
After performing periodic inspection reset the
service indicator
Reset service indicator
Reset the service indicator by pushing in and
holding “up” and “down” on the control panel for
5 seconds. A green light will blink for 5 seconds,
imedietly after this light starts to blink push in and
hold both “in” and “out” for five seconds. You
will hear two short beeps. The service light will no
longer flash. It will start to flash again when one
year has passed and it is time for new periodic
inspection.
Periodic Inspection
16
Molift QuickRaiser 205 / www.etac.com
Troubleshooting
Symptom Possible Cause/Action
The lifting column is wobbly Locking bolts are not properly secured or lifting
column is not properly in place in the chassis /
check if the column is correctly placed in the chassis and/or tighten bolts
Lifter only moves one way (up or down) / legs only
moves one way (in or out)
Fault on hand control / exchange with alterative
control from other lifter and/or new hand control
The ectronics has failed / contact your local service
representative
The lifter moves up and/or down by itself / legs
move by themselves
Short circuit between the hand control and lifter
/ clean the connectors of the hand control and
chassis with spirits to remove grease and dirt
The hand control has failed/ exchange hand
control / contact your local service representative
Relays/electronics malfunctions / exchange
electronics/relays / contact your local service
representative
The lifting arm does not move / legs does not
move
Discharged battery / charge battery
Emergency stop activated / turn clock wise to
reset
Hand control disconnected / reconnect hand
control
The hand control has failed/ exchange hand
control / contact your local service representative
Electronics malfunctions / contact your local
service representative
Motor has failed / contact your local service
representative
Check contact between column and chassis
Etac AS
Etac Supply Gjøvik
Hadelandsveien 2, 2816 Gjøvik, Norway
Tel +47 4000 1004
molift@etac.com www.molift.com
Loading...
