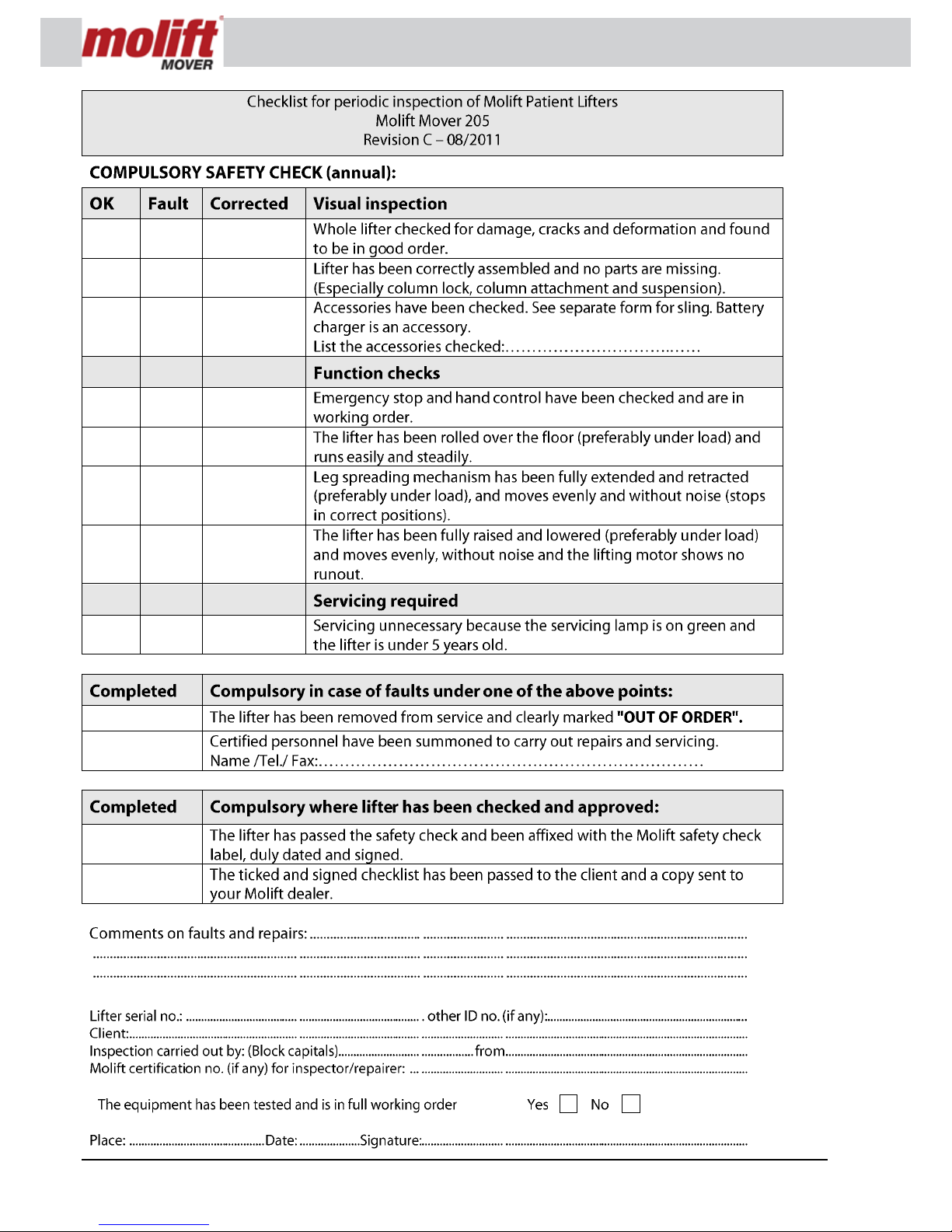

Checklist for periodic inspection ................ 22
IMPORTANT!
The patient lifter is only meant to be used by
qualied personnel.
The manual shall not be handed over, or
made available to, any unauthorised third
party, without a prior written consent from
Etac Supply Gjøvik. Existing laws, conventions
and agreements protects all documents. No
extract of this documentation can be reproduced, used or transferred without prior written consent from Etac Supply Gjøvik. Violation of these regulations may lead
to judicial repercussions and economic
responsibility. Industrial rights are reserved.
Page 3 of 24
General advice
This user manual contains important safety instructions and information regarding the use of
the lifter. Carefully read the manual before using
the lifter in order to be familiar in the function and
use of the lifter.
Explanation of symbols
This symbol is used to point out instructions
and information related to work place safety
where injury may occur if the information is
disregarded or ignored. Follow these instructions, be careful and attentive at all times.
This symbol indicates important information
regarding the use of the equipment. If not
taken into consideration, it may lead to damage or functional defects to the lifter or other
equipment.
This symbol indicates important and useful
information. If taken into consideration, it
will help the operator of the lifter to work efficiently. It may help simplify routines and to
explain complicated facts.
Before using the patient lifter
Before using a patient lifter, the operator must be
trained accordingly. Practice lifting a colleague,
and be lifted by others. It is important not only to
know how to move another person using the lifter,
but also how it is to be lifted. Try out and practice
using all the relevant slings for the dierent types
of lifter and movement you may encounter. Before
lifting a person, you should explain the procedure.
When using the lifter, it’s also important to use the
correct sling and accessories according to:
• type of disability
• size
• weight
• type of movement
Responsibility
Please read these operating instructions carefully
before putting the product into operation. We assume no liability for damage or malfunctions resulting from failure to comply with the instructions. Warranty claims must be made immediately
on detecting the defect. Remember to quote the
serial number. Consumable parts are not subject
to the warranty.
All technical information, data and instructions
for operation contained in these operating instructions were up-to-date at time of print and
are compiled on the basis of our experience and
to the best of our knowledge. We reserve the right
to incorporate technical modications within the
scope of further development of the product described in this manual. No claims can be derived
from the information, illustrations or descriptions
contained in these instructions. We assume no liability for any damage or malfunction caused by
operating errors, non-compliance with these operating instructions or inappropriate maintenance. We expressly point out that only genuine
Etac AS spare parts and accessories approved by
us may be used. For safety reasons, the tting and
use of spare parts or accessories, which have not
been approved, and unauthorised modication or
conversion of the product, are not permitted. Etac
AS will accept no liability for damages resulting
from such acts.
With the exclusion of product liability, Etac AS is
liable for faults or omissions on its part within the
scope of the warranty obligations stated in the
purchase contract. Claims for damages are excluded, irrespective of the legal reason from which
such claims are derived. Only documentation belonging to the actual equipment is valid.
Any failure to comply with the safety regulations
and precautionary measures stated in these operating instructions renders the declaration of conformity supplied with the system in accordance
with Council Directive (93/42/EEC) concerning
medical devices invalid.
Page 4 of 24 BM05101 Molift Mover 205 English - Rev. J/ 10/2012
• covers are removed by unauthorized personnel
• used incorrectly
• insucient maintenance
• load exceeds maximum limit. The maximum
load stated in this manual and on the lifter is
the maximum load
• unauthorized repair of electrical devices or cables
Lift and transfer
The patient lifter may tip over if used incor-
rectly! Ignorance of warnings and instructions may lead to personnel injury. Read instructions carefully before attempting to lift
anyone.
The Molift Mover 205 has a Safe Working
Load on 205 kg, meaning that it is tested and
approved for lifting of patients up to 205 kg.
Several factors have to be considered during
movement of the lifter:
• the user shall sit as low as possible facing the
lifting column
• the user should rest their feet on the chassis
Stand to the side of the user when lifting. Ensure
that arms and legs are clear of the lift, chair, bed
etc. Try to maintain eye contact with the user - this
will help the user feel safe and comfortable.
Pay close attention to your actions. Ensure
that all four loops of the sling are securely fastened to avoid the user slipping or falling
Use the drive handle to manoeuvre the lift, do
NOT attempt to manoeuvre the lift by pushing on the lifting arm, actuator or patient.
Do not touch the underside of chassis or be-
tween chassis and legs when manoeuvring
the legs.
Molift slings shall ONLY be used to lift persons.
NEVER use the sling to lift and/or move objects of any kind.
Molift Mover 205 should not be in constant
use for more than 2 minutes at a time (at
maximum load) with an 18-minute interval.
Safety precautions
General
Before putting a Molift Mover 205 into operation,
the operator must ensure that the lifter and accessories are in good working order, especially with
regards to safety. All instruction and information
in this manual regarding safety and general precautions must be read, understood and followed
carefully. Any disregard to these precautions may
result in personnel injury or damage to the equipment. If a fault associated with the operational
safety and reliability is identied, the lifter must
be taken out of use immediately and marked “Out
of order” or not put into use at all. Safety devices
and -equipment must not be removed, disabled or
in any other way altered. A Molift Mover 205 shall
only be used when all safety devices and equipment is in place and fully operational.Portable
and mobile radio frequency (RF) communication
equipment may aect medical electrical equipment and should be kept at a distance of 25 cm
(10 in.) from the electronics of the lifter.
The lifter is designed for use in room tempera-
ture, +5 to +40 °C. Following storage or transport at other temperatures leave the lifter in
a room with a suitable temperature until it
reaches a safe operating temperature.
The lifter has an expected lifetime of 10 years
or 30 000 lifts with max load (SWL), when all
recommended service is performed.
If defects or faults occur
The lifter must be switched o immediately if one
of the following conditions occur;
• damage to electrical devices or cables, or damage to parts of electrical insulation
• damage or failure on safety devices
If the lifting movement does not start when
the corresponding button is pressed, please
consult the fault finding table in the maintenance chapter to locate the fault.
Injury to personnel or equipment may occur if
Molift Mover 205 is used in an incorrect manner
and if:
Page 5 of 24
the lifting movement. At the end of the lifting arm,
you will nd the suspension with four hooks to attach the sling. The suspension rotates freely, allowing the Molift Mover 205 to be used at any angle.
Safety devices
Molift Mover 205 is equipped with several safety
devices, which are intended to prevent damage to
personnel and equipment in the case of incorrect
use.
• The lifter has an overload sensor preventing the
lifter to be operated with more than 205 kg.
• The lifting arm is hinged to prevent the arm
and suspension from squeezing the patient if it
is lowered too much. The actuator will not produce any force when moving downwards.
• The suspension has safety hooks to prevent the
sling loops to fall o.
• When activating the emergency stop button,
the power supply will be disconnected, and the
lifter will stop.
• If an error occurs on the lifter, it is possible to
lower the lifting arm electrically on the battery
holder or manually by operating the emergency lowering switch on top of the column.
• The lifter has a service lamp which gives a signal when the lifter needs service.
About the product
Molift Mover 205 is a mobile lifter intended for lifting and transferring persons to/from bed, oor,
chair or similar, wheelchair and toilet. The lifter is
made out of light-weight materials, has castors
and is powered by a battery. It has electrically adjustable legs and a lifting capacity of as much as
205 kg. It is therefore ideal for institutional care settings but can also be used in privates homes and
nursing homes. The lifter should only be used for
transfers across short distances, such as between
a chair and a bed or into bathroom/restroom and
cannot replace a wheelchair or similar.
Main parts
The lifter is built around a chassis unit comprising a
lifting column xing unit, rear castors and spreading mechanism for legs. The adjustable legs are
operated by an electrical motor and gives the operator a possibility to adjust the width of the lifter
to dierent needs and situations. On the lifting
column there is a drive handle and a battery holder. On the battery holder there is a connection for
the hand control and an emergency stop button.

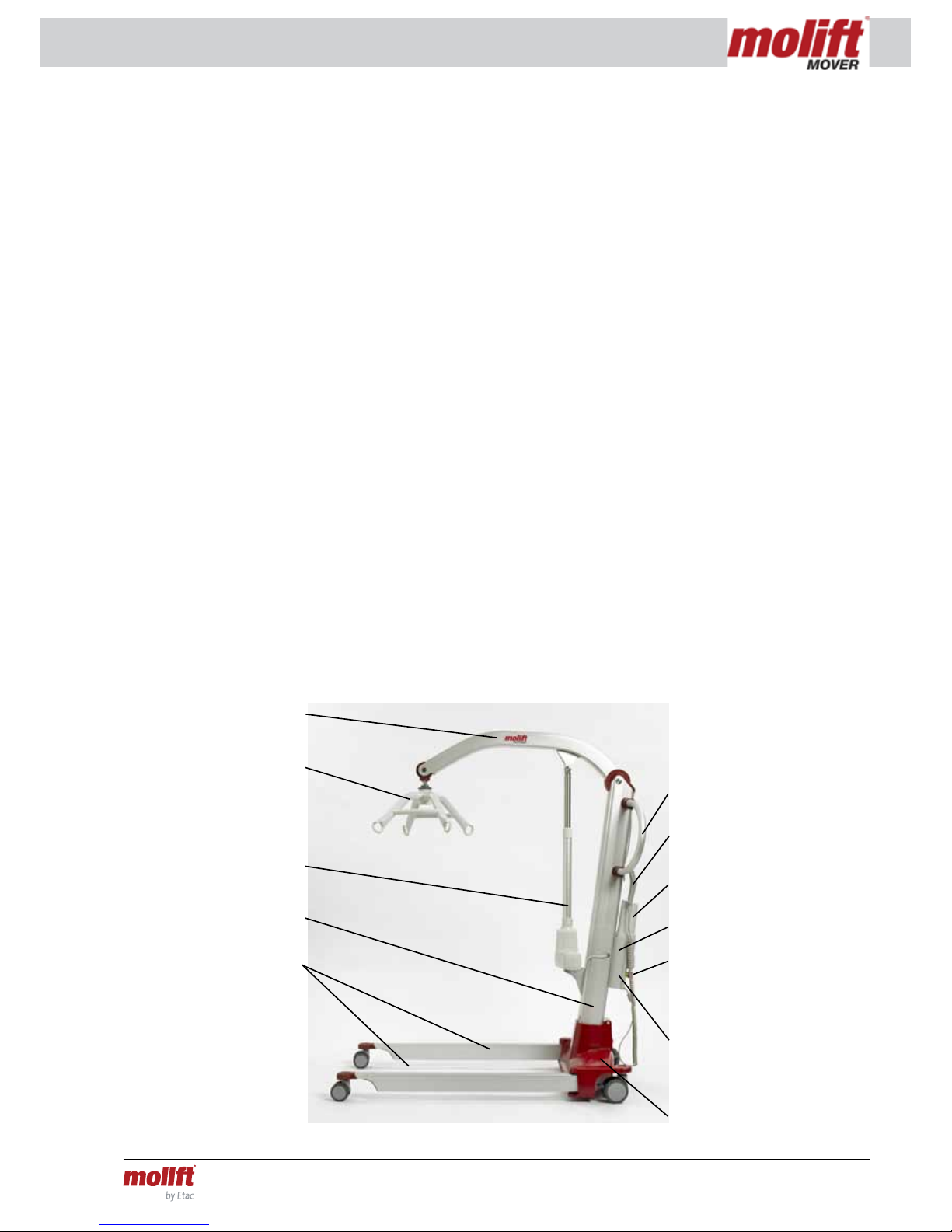

The lifting arm is joined to the top of the lifting
column and the battery driven actuator provides
Lifting arm
Control electronics,
incl service lamp,
battery lamp and
electrical emergency
lowering
Actuator
Lifting column
Drive handle
Chassis
Legs
Battery holder
Suspension
Battery
Emergency stop
Hand control unit
BACK
FRONT
Page 6 of 24 BM05101 Molift Mover 205 English - Rev. J/ 10/2012
1395
651
115
615
2010
600
544
700
600
998
Min
580
Designed/Drawn:
Date:
Scale:
Projection:
xx
1:20
xx/xx-xxxx
Technical data
Weight, totally:
excl. battery; 39.3 kg /
incl. battery: 40.6 kg
Material:
Steel, aluminium and composite plastic
Motor:
Lifting motor/actuator 24 V DC
Leg spreading motor 12 V DC
Battery:
26,4 V NiMH 2,2 Ah, ATO Fuse 20 A
Battery charger:
Type 2215MV 10-22 cells NiCd/NiMH
Protection*:
IP24
Number of lifts with fully charged battery:
75 lifts (75 kg, 50 cm)
SWL (Safe Working Load):
205 kg
Lifting range:
1395 mm (center suspension)
Lifting speed:
40 mm/sec
Turning diameter:
1400 mm
Sound level, max A-weighted sound power level:
LWA= 63,2 dB
Operating forces:
Buttons on hand control: 3,4 N
Height of legs:
Max 115 mm
Measurements:
1320 x 700 x 1380 mm (LxBxH)

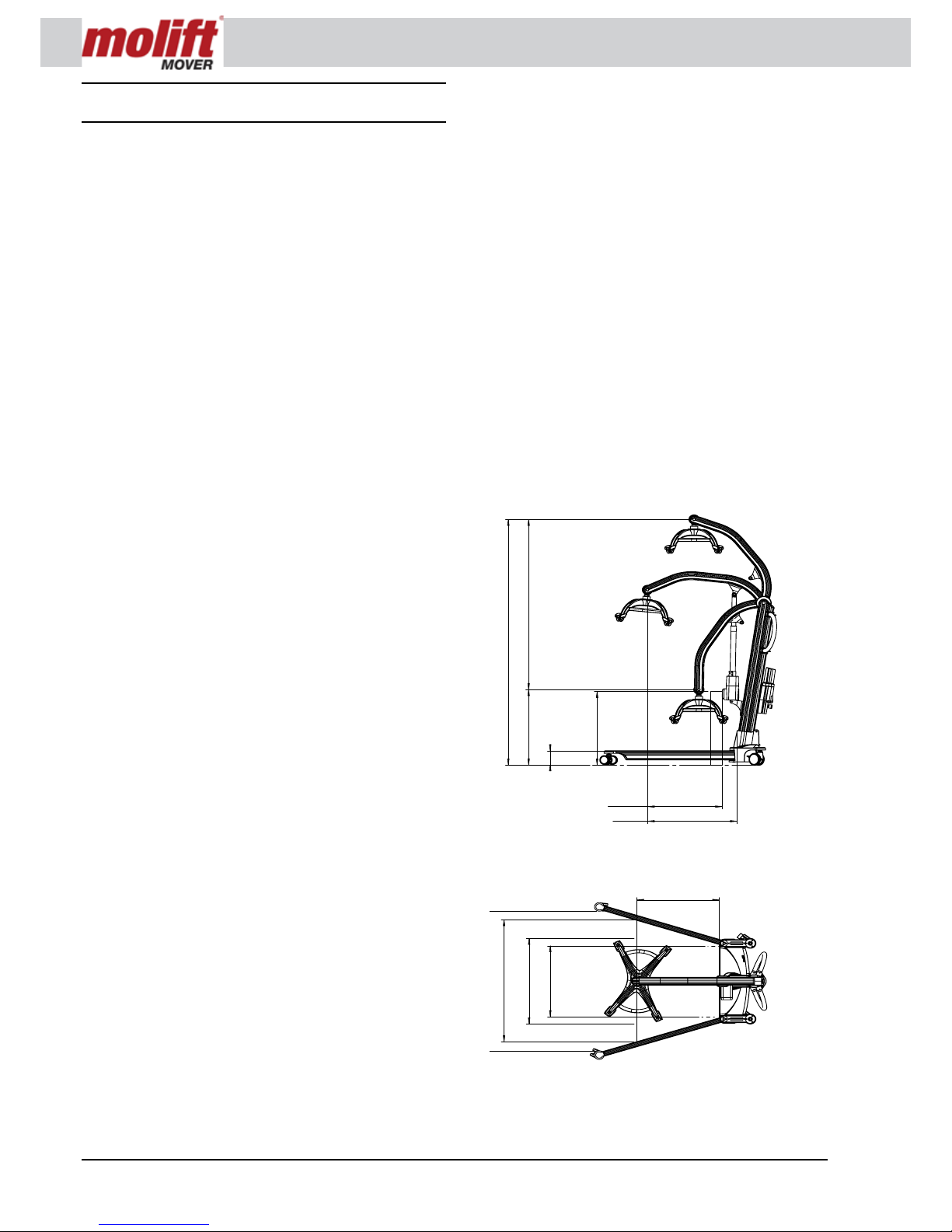

Measurements in illustration below are in millimetres.
Page 7 of 24
Assembly / disassembly
To be able to operate the Molift Mover 205, the operator must have good knowledge of the lift, including assembly, disassembly and preparation
before use.
Assembly and use of charger
It is possible to mount the charger on a wall surface or place it on a table. The charger shall be
connected to the power outlet when the battery is
placed in the charger.
Etac AS tests and charges all batteries before
packing and shipment. However, all batteries
must be charged before use.
Unpacking
• The lifter comes in one cardboard box. Verify
that the box has no apparent damage. If damaged, check the content and contact your dealer for assistance if components are damaged.
• The box contains one complete Mover lifter
with hand control, battery and battery charger
with mains cable.
The lifter can be stored and transported under
the following conditions: Pressure: 70 to 106
kPa. Relative humidity: 15 to 93% . Temperature: –25 to 70°C
Assembly
• The chassis should be rolled out of the box.
The battery must not be in the battery holder
during assembly!

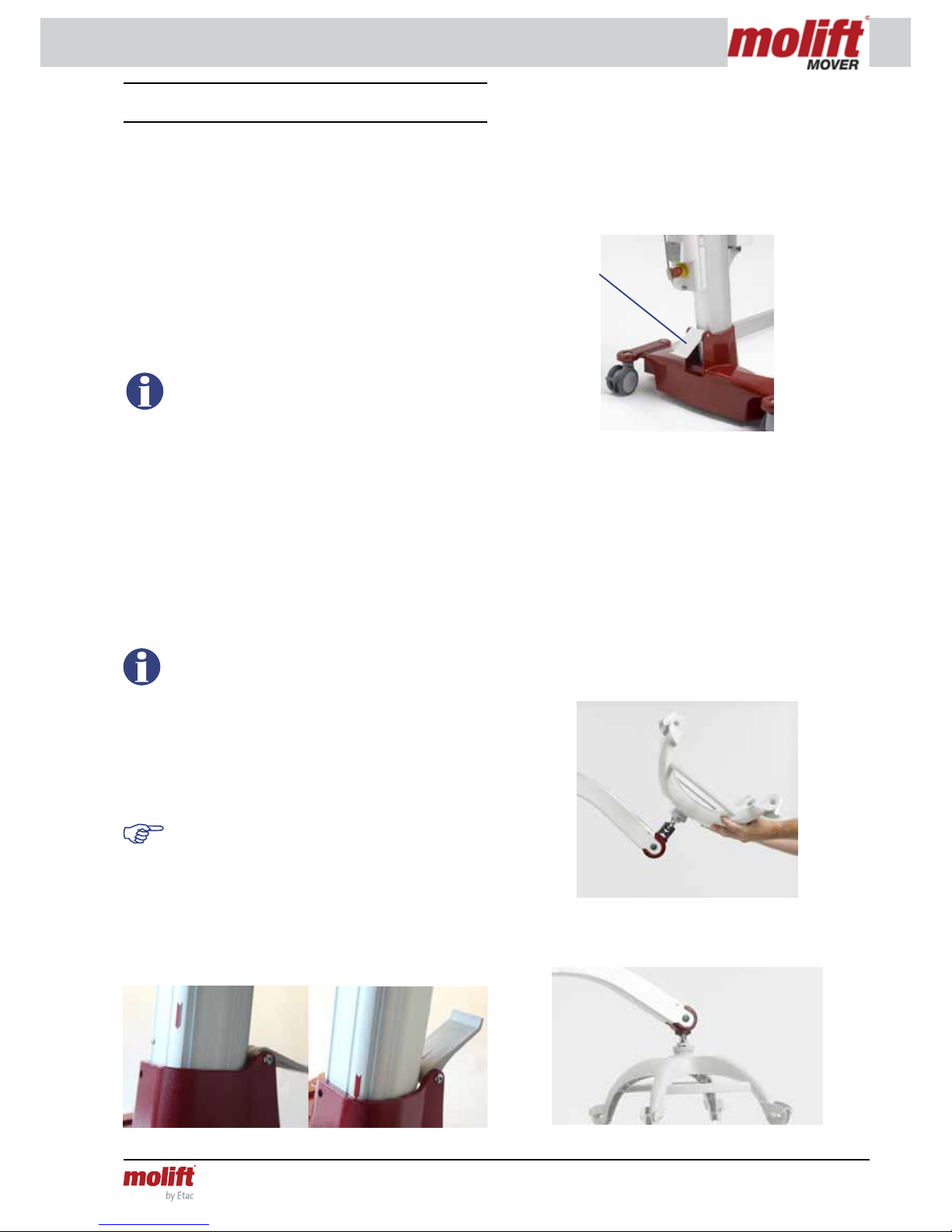

• Place the column in the attachment on the
chassis, and push the column down as shown
below. The screw in front of the column shold
t in the slot inside the chassis.
• Make sure that the red arrow on the lower part
of the column corresponds with the edge on
the chassis. Fix the column with the lock handle. If the column is not placed correct the lifter
will not work.
• Connect the hand control cable to the contact on the underside of the battery holder. The
hand control has a hook that makes it possible to hang it on the drive handle or the plastic
hooks on the column.
• Place the battery in the holder with the connectors facing down. Release the emergency stop
and run each function of the lifter a couple of
times without load to verify proper function.
• Mount the suspension by turning the opening
in the end cover upwards, and slide the attachment fork in place (as shown below).
• The suspension can only be released in the upper position. When the suspension is hanging
free it is locked to the arm.
Lock handle
Page 8 of 24 BM05101 Molift Mover 205 English - Rev. J/ 10/2012
Etac AS tests all lifters with and without load
before shipment. The control is an extra precaution to uncover any shipment damage
and/or incorrect assembly.
The lifters electronic system will be active as
long as the battery is connected. It is therefore
recommended to remove the battery or activate the emergency stop button when storing
the lifter.
Checklist before use
• Check that the lifter has no apparent damage
or other faults, especially that the suspension
has no damage or cracks.
• Ensure that the lifting arm and lifting column
are properly xed and that there is no loose
parts on the lifter. The lifting column must be
xed tight in the chassis attachment.
• Check that the emergency button is deactivated and that the lifter works.
• Check that you have suciently charged batteries to complete the task you have planned.
• Check that the service lamp gives a green light
indicating it is ready for use. If the service lamp
gives a yellow or red light, the lifter needs service.
Make sure that the suspension has no dam-
age or cracks, and that the lifting arm and
column is properly fixed before use!
Disassembly
The lifter can be disassembled in three parts
by removing the suspension, and then the lifting column with arm from the chassis.
• Remove the suspension.
• Run the lifting arm all the way down towards
the lifting column.
• Remove the battery.
• Release the lock handle on the chassis and remove the complete lifting column with lifting
arm.
The complete lifting column and lifting arm
weights approx. 20 kg (without suspension).
Operation
Battery care and charging
Molift Mover 205 is supplied with a battery with
a 26,4 V cell unit that is placed in the battery holder on the lift. A battery charger is also supplied to
be located easily accessible, either stand-alone or
mounted on the wall. Connect the charger mains
cable to the wall socket when charging the battery.
The charger has a LED (Light Emitting Diode) indicating the status of the battery as described below:
LED Mode
Yellow No battery
Yellow Initiation (10 sec)
Orange Fast charge
Green/yellow Top-off charge
Green Trickle charge
Orange/green Error
Place the battery in the charger. After a few seconds the LED will change from yellow to orange,
indicating that the battery is charging. When the
LED gives a constant green light the battery is fully
charged.
Disconnect the charger mains cable when the
charger is not used. Take care not to damage the
charger
The battery lifetime is about 500 charging cycles.

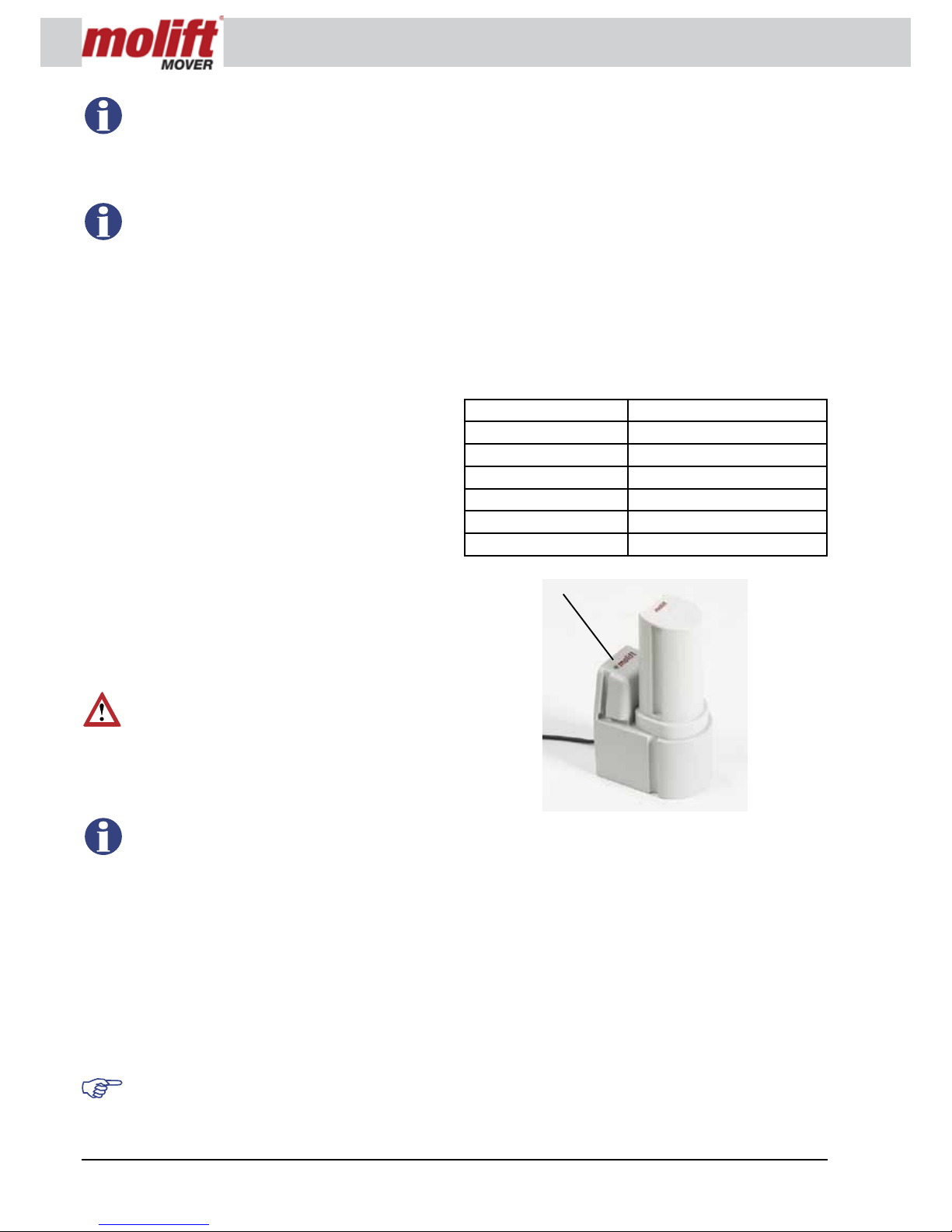

Charger LED
Page 9 of 24
Battery capacity
A Battery LED is situated on the battery holder on
the lift. If the voltage of the battery falls below a
certain level, the diode will change to orange, indicating the need for charging. There will also be
an audible alarm, which indicates that the battery
needs charging. There is still enough capacity to
perform 3-5 lift cycles (75 kg) at this point.
If the battery is discharged during a lift, it is
always enough power to lower the user down
again.
Operating the hand control
The hand control to Molift Mover 205 has four
buttons, two buttons for up and down, and
two buttons for adjusting the adjustable legs.
In addition there is a green diode which illuminates when the battery needs charging.
Art.no hand control unit: 2018004
Emergency stop and lowering
Emergency stop
All of the Molift patient lifts are equipped with
emergency stop and lowering. The emergency
stop button is situated on the battery holder. Push
the red button to cut the power to the motor. Turn
the button clockwise until it pops up to reset the
emergency stop.
Emergency lowering
It is possible to perform an emergency lowering
in case of a general malfunction. Molift Mover 205
has both an electrical and manual emergency lowering.
Electrical emergency lowering is placed on the
battery holder. Push the button and hold until the
patient is lowered.
The manually lowering function on the actuator is
only to be used if the electrical lowering does not
work.
Pull the red handle slightly upwards. Take
care, the lifter moves faster when activating the handle more. The lifter will stop dead
with a danger of personal injury and damage
on the lifter if the handle is released suddenly.
Incorrect use of the manually lowering may
lead to damage on lifter or personal injury.
Collecting
legs
Lower
Raise
Spreading
legs

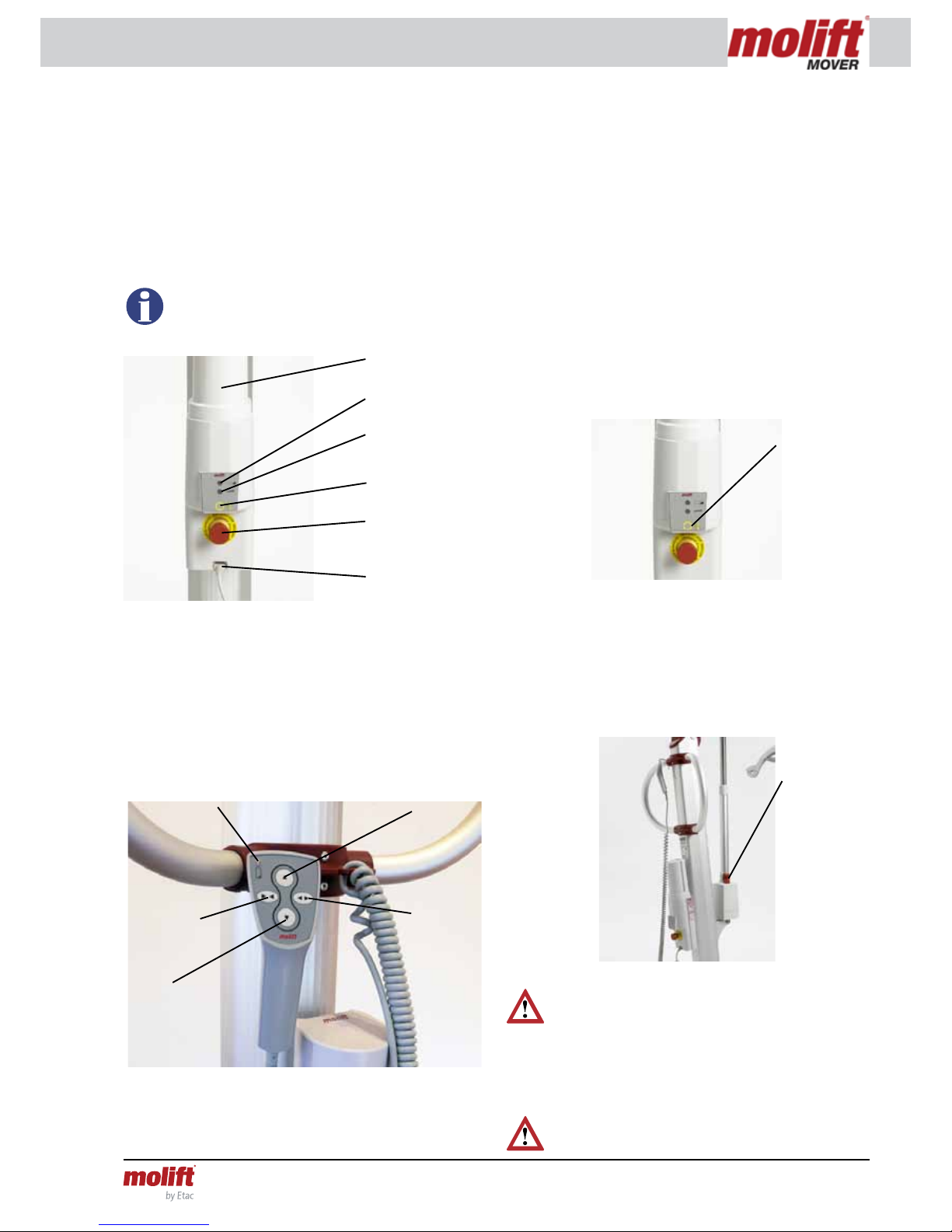

Battery LED
Battery LED
Servicelamp
Electrical emergency lowering
Emergency stop
Contact for
handcontrol
Battery
Manually
lowering
Electrical
emergency
lowering
Page 10 of 24 BM05101 Molift Mover 205 English - Rev. J/ 10/2012

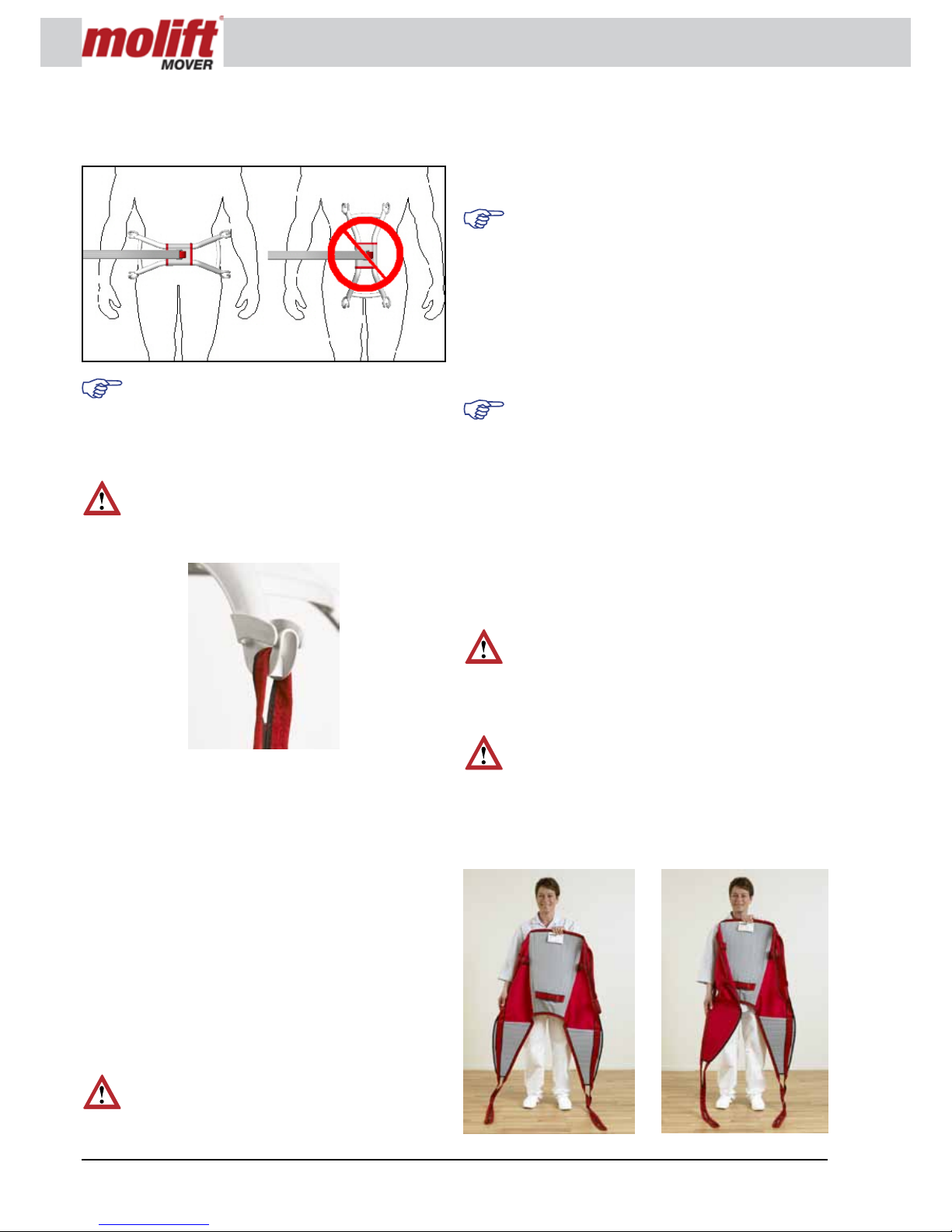

Lift and transfer

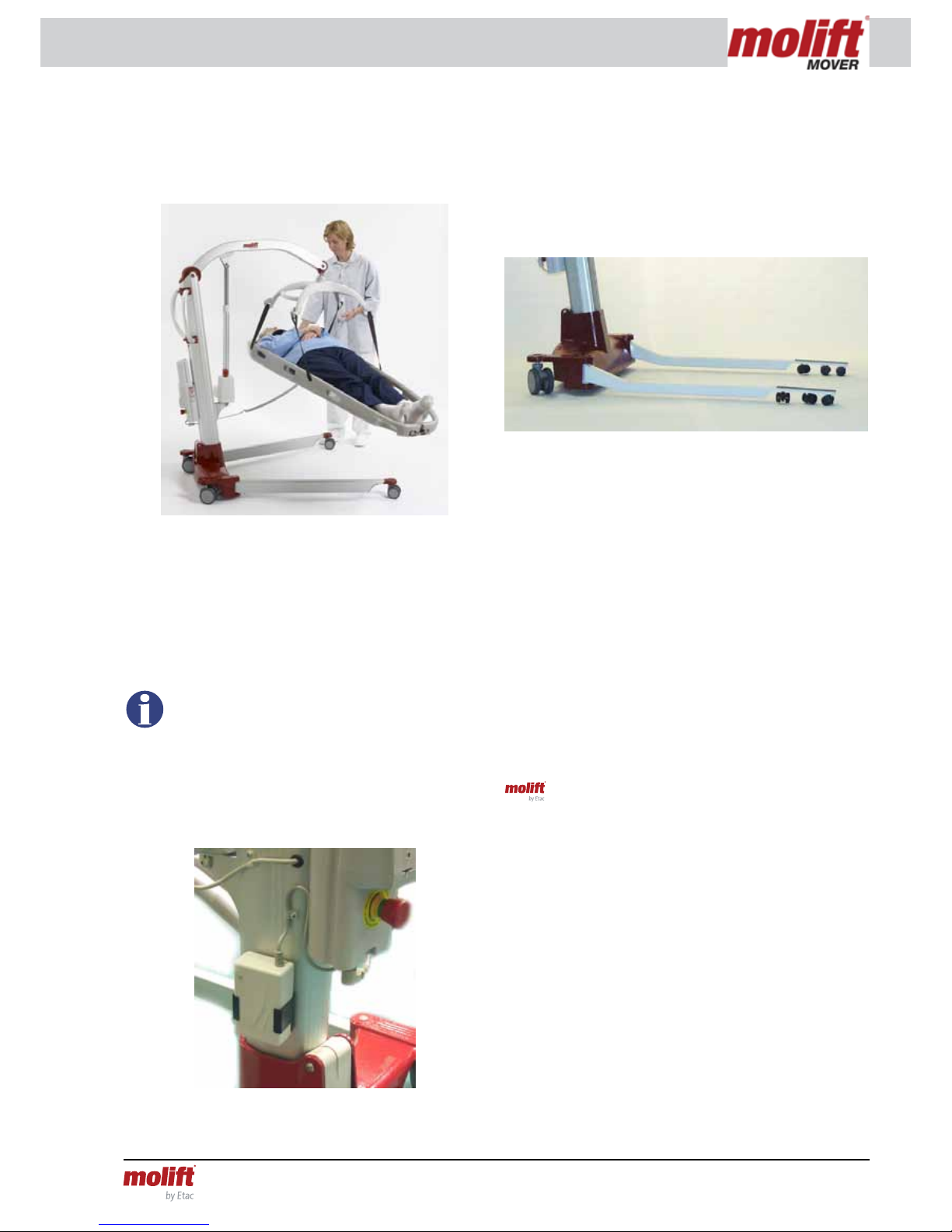

The suspension shall always be positioned across
the user as shown left in the illustration below.
When using slings intended for two point sus-
pension, the suspension shall be used diagonally, i.e. loops from the sling shall be fastened on hooks diagonally opposite.
Pay close attention to your actions. Ensure
that all four loops of the sling are securely fastened to avoid the user slipping or falling.
Try to position the user as low as possible (preferably resting the feet on the chassis) when transferring the lifter with a suspended user. In this way,
the centre of gravity will be as low as possible and
therefore reducing the risk of instability. The lifter
should be manoeuvred with spread legs in outer
position to achieve the highest possible stability.
Be careful during movement - the suspended user
may swing somewhat during turns, stops and
starts. Be particularly careful when manoeuvring
close to furniture to prevent the suspended user
from colliding with these objects.
The lifter shall not be used to lift or move users
on sloping surfaces.
Avoid deep pile carpets, high thresholds, uneven
surfaces or other obstacles that may block the castors. The lifter may become unstable if forced over
such obstacles increasing the risk of tipping over.
The lifter shall only be used for movement
over short distances. It is not a replacement
for wheelchair or similar.
Use of spread legs
Use wide legs wherever appropriate, for instance
to position the lifter around wheelchairs, toilets
etc.
The leg spreading mechanism has a safe-
ty function preventing it from sqeezing with
high force. This may lead the motor to stop if
changing direction quicly. Push another button to start again.
Using lifting slings
The Molift lifting slings are easy to use. Please see
the user manual that comes with the sling for specic instructions.
It is recommended to use Molift Easy slings.
Slings from other manufacturers may have
other specifications leading to unexpected instability and possible injury to personnel.
Torn, cut, frayed or broken slings can fail, re-
sulting in serious injury to the user. Use slings
in good condition only. Destroy and discard
old, unusable slings.
Molift Easy sling
Page 11 of 24
Fold the sling as indicated above before use. The
grey side should be facing away from the user
when putting the sling in place. The sling should
be held by one hand, leaving the other free to
move and support the user.

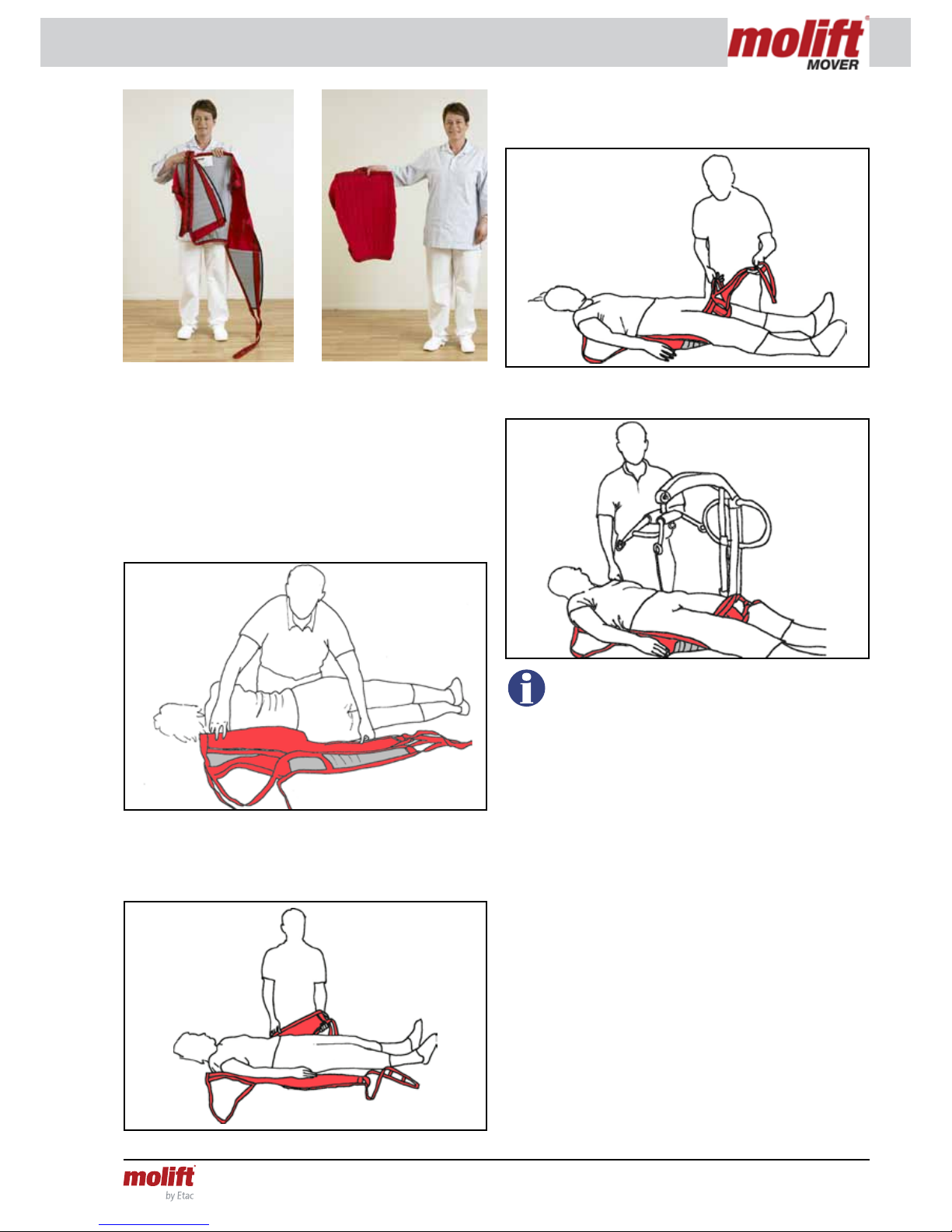

Lift and movement to and from bed
Lift from bed
Roll user onto her side. Put the folded sling behind
her back. The centre of the sling should be parallel
with the users spine. Roll her then onto her back.
Pull the leg loops forward and under the thighs as
shown.
Cross the loops, one through the other.
If the user has a bed which enables raising
and lowering, it should be lowered before the
lifting starts.
Position the legs under the bed with the suspension over the user. Be careful not to lower the suspension too low touching the user. Make sure that
the suspension is centred over the user before you
start the lifting. Remember - the castors should
not be locked.
Page 12 of 24 BM05101 Molift Mover 205 English - Rev. J/ 10/2012

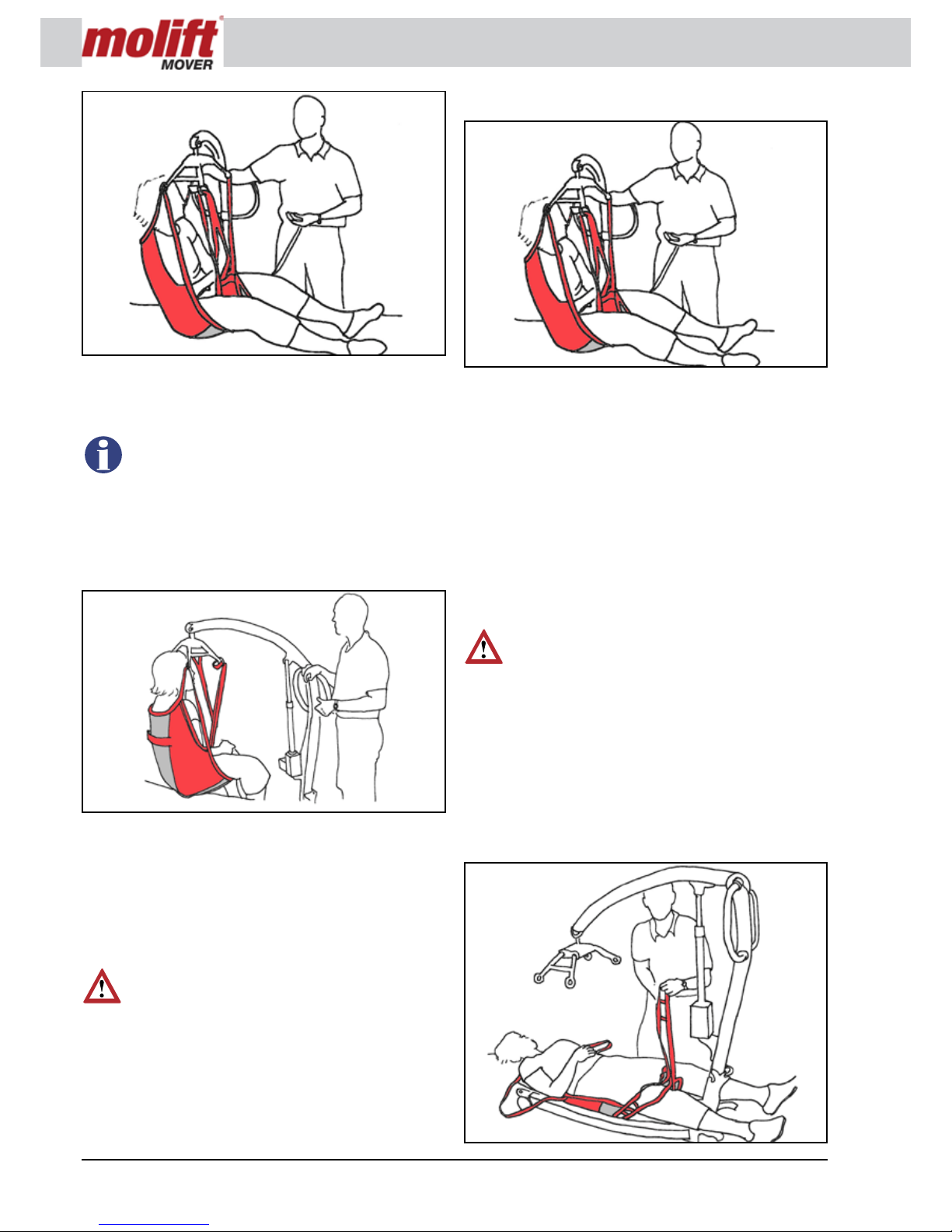

When all four loops are hooked onto the suspension, raise the user carefully.
If the user is in a hospital bed, it will help to
raise the head of the bed
Repositioning of the user may be needed to ensure that a safe and comfortable sitting position is
attained as the user is raised. Reposition using the
handle on the back of the sling.
Raise the user until the buttocks are just above the
mattress. Lift the user’s legs and turn her so she
faces the lifting column. When clear of bed, and
if practical, lower the user so that her feet rest on
the chassis. If possible, lower the bed before lifting.
Move the lifter away from bed.
Beware of obstructions under the bed that
can cause castors to stop or tip
Lift to bed
Centre the user over the bed and turn her so that
the feet point to the foot end of the bed. Lower the
user carefully. Remove the loops from the suspension.
Removing the sling
Gently pull leg section to the side, out from the
user’s thighs and towards yourself. Pull the shoulder section under the neck of the user and roll her
gently onto her side. Pull the sling away and roll
her onto her back.
Be careful when rolling the user onto her side.
Make sure you have control over the movement to prevent her from rolling completely
over and out of the bed.
Lift and transfer to and from oor
Lift and transfer from the oor is almost identical
to a lift and transfer from bed - please read this
section. There are two ways to lift from the oor.
Alternative lift 1
Page 13 of 24

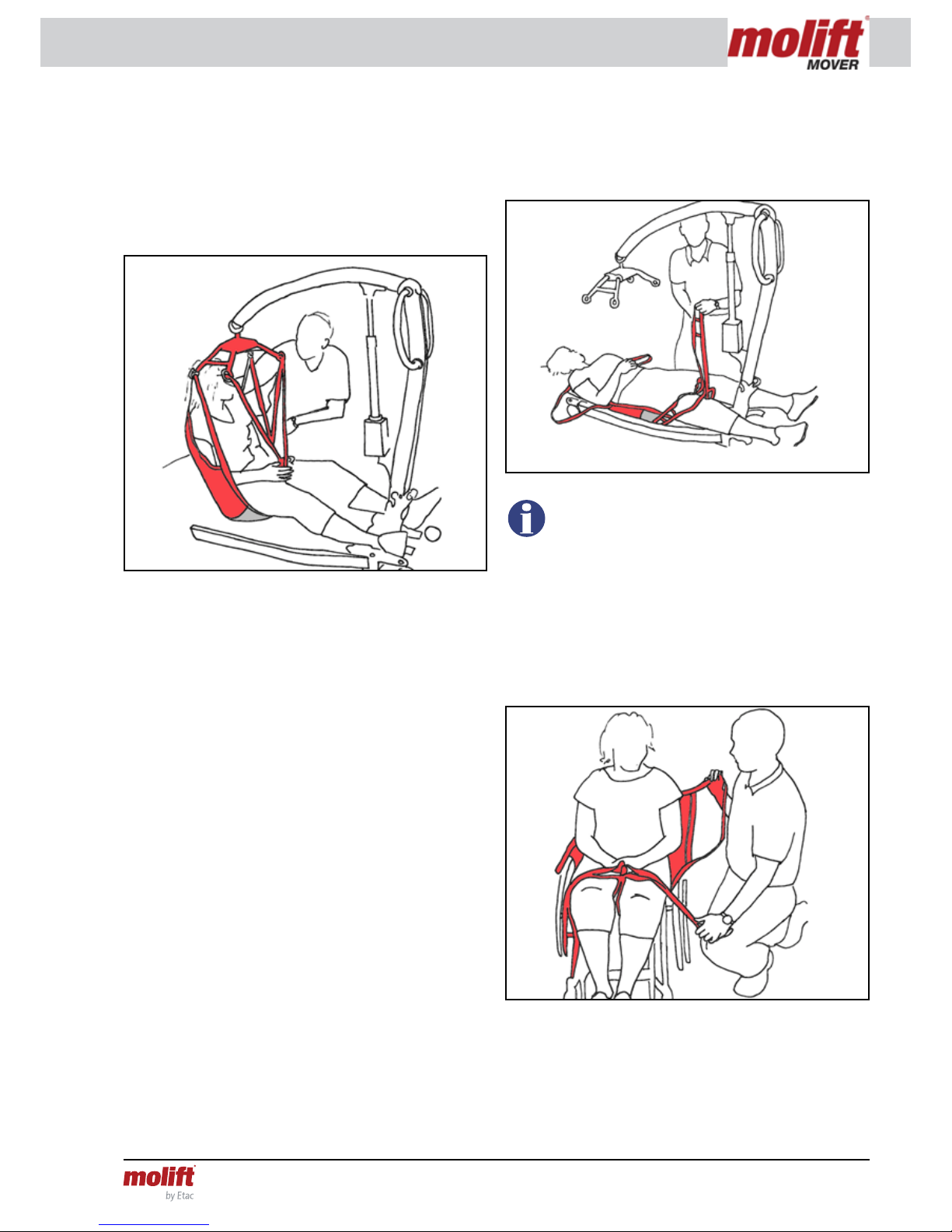

Place the sling as if in bed. Gently position the lifting column between the legs of the user as shown
above. The suspension shall be centred over the
user.
Lower the suspension enough to allow the sling
loops to be hooked up.
Raise the user from the oor. Position user in the
sling by pulling the handle on the back of the sling.
Turn user to face the lifting column, and place the
feet on the chassis.
Alternative lift 2
A oor based lift may also be performed by gently positioning the users head on the chassis. Use a
pillow if appropriate to protect the head and neck
of the user. Otherwise as alternative 1.
Lowering to oor
Place a pillow on the chassis or on the oor to protect the users head and neck (not necessary if you
are using a sling with head support). Otherwise as
described above.
Lift and transfer to and from (wheel)chair
Lift and transfer from (wheel)chair
Fold the sling as described in ”Using lifting slings”
If the users physique and ability allows it, the
user should be encouraged to take active part
in fitting the sling. The user can lean forward,
lift her thighs and help placing the leg section.
Lean the user forward gently, but ensure you continue to support her. Place the folded sling behind
the user’s back and push it down until it touches
the seat of the chair.
The leg sections of the sling are pulled forward and
beneath the user’s thighs by the loops. The loops
are then crossed, one through the other, as shown.
Page 14 of 24 BM05101 Molift Mover 205 English - Rev. J/ 10/2012

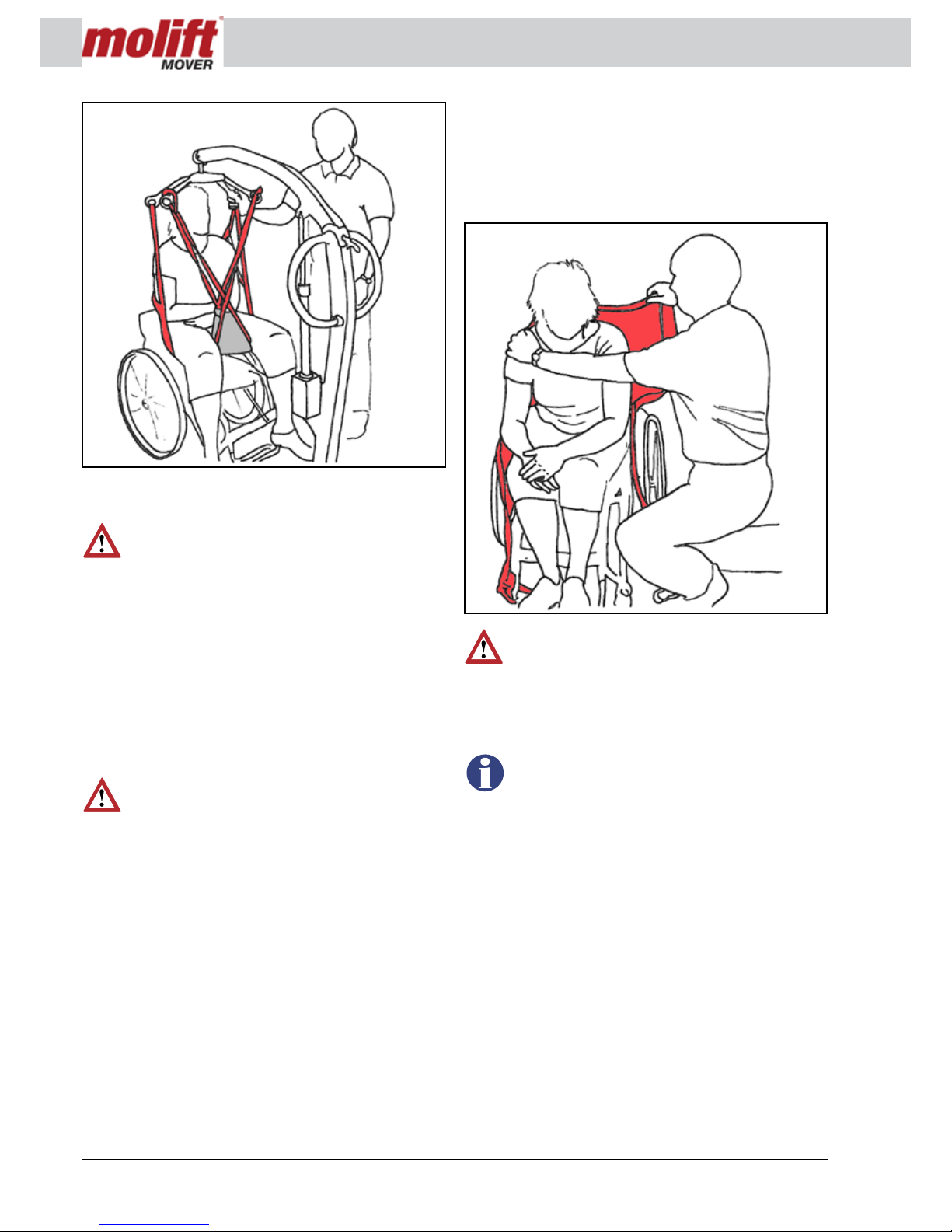

Move the lifter around chair.
If the transfer is from a wheelchair, the brakes
must be locked to prevent the wheelchair
from rolling away.
Raise/lift user above seat height, and perform the
transfer. It is not necessary to lift the person very
high.
Lift and transfer to (wheel)chair
Manoeuvre the lifter so that the user is as far back
in the (wheel)chair as possible.
If the transfer is from a wheelchair, the brakes
must be locked to prevent the wheelchair
from rolling away.
When lowering, you can use the following techniques or a combination of them to position and
get the user seated far back in the chair.
• push gently on the knees
• pull the loop on the back of the sling
• tilt the chair slightly backwards
Lower the user into chair, unhook sling from suspension and remove the lifter.
Removal of sling
Gently pull leg section to the side, out from the user’s thighs. Standing by the side of user, lean her
forward - supporting with one hand. Pull sling up
from behind her back.
Pulling sharply on sling may cause user to fall
forward resulting an injury. Always support
the user by keeping one arm around the user’s
shoulder when fitting or removing the sling
(see illustration).
If the users physique and ability allows it, the
user should be encouraged to take active part
in fitting the sling. The user can lean forward,
lift her tights and help placing the leg section.
Bathing
The procedure for lifting to/from the bath is in principle the same as for to/from bed. A special bathing sling is used for this purpose. This sling dries
quickly and may be washed at 85°C.
Page 15 of 24

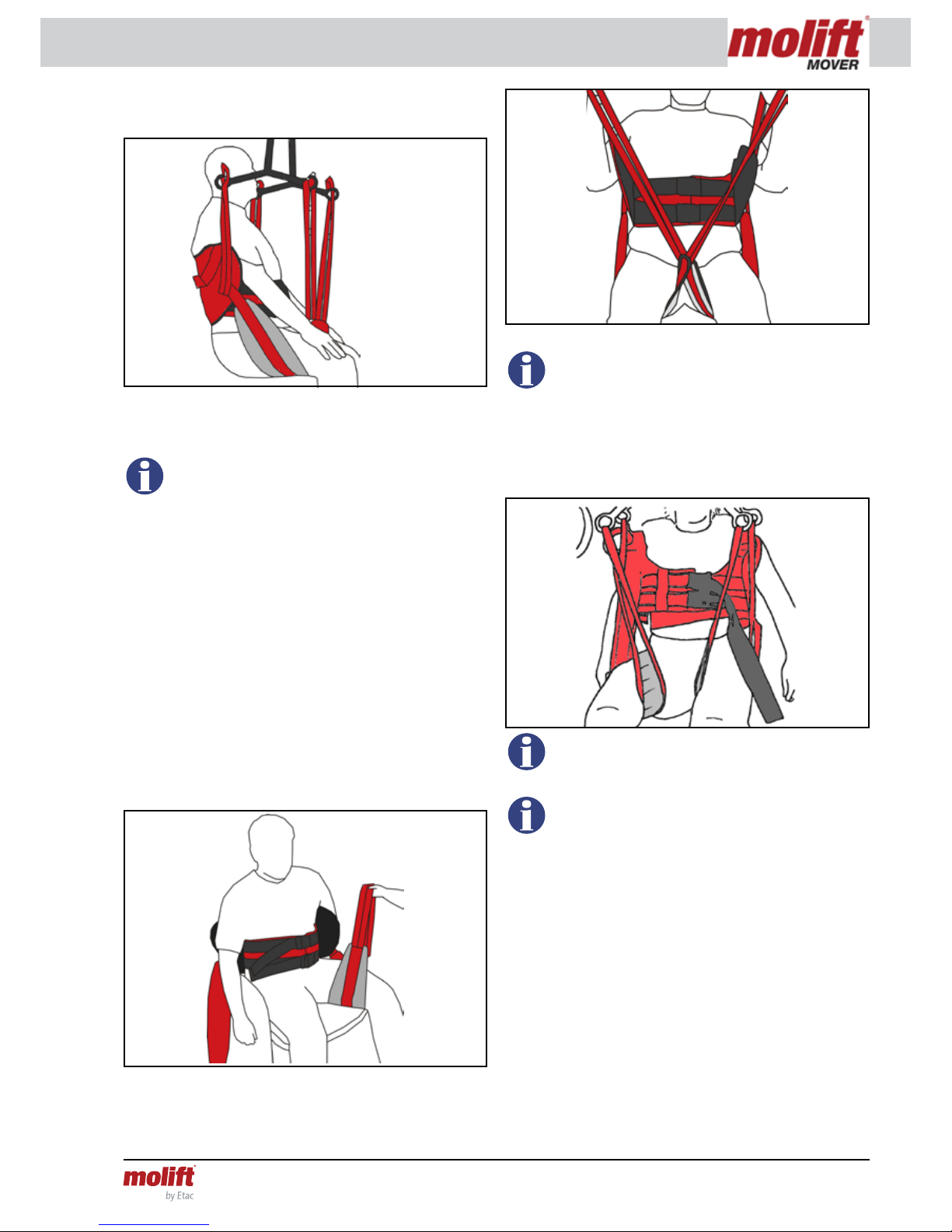

Toileting
The Molift Easy Toilet Sling is used with the standard 4-point suspensions.
Molift Easy Toilet sling is a toilet sling with a
thicker and wider upholstery. It is also available with head-support. The Molift Easy Toilet Comfort sling is easier to fit in narrow environments, and is available with a separate
head support
The toilet sling can be washed at 85 ºC, and is tted as follows:
• Insert the sling behind the users back with the
grey side away from user.
• Fasten the belt rmly around the user’s body.
• Place the leg section under the front part of
the thighs and pull the loops up between the
thighs.
By pulling the leg sections from the inside and
out, you will achieve a wider leg position.
On Molift Easy Toilet Comfort, place the leg section
over and down between the thighs and pull outwards from the inner part of the thighs.
By pulling the leg sections from the outside
and in, you will achieve a wider leg position.
The leg sections of Molift Easy Toilet Comfort
Sling are fitted to separate the legs, therefore
they should not be crossed as the other Easy
slings.
• Hook the four loops on the suspension as for
other slings.
• Position the lifter around the toilet and lower
the user.
• Pull the leg sections out of the way. The sling
can be left on during bathroom use.
Page 16 of 24 BM05101 Molift Mover 205 English - Rev. J/ 10/2012

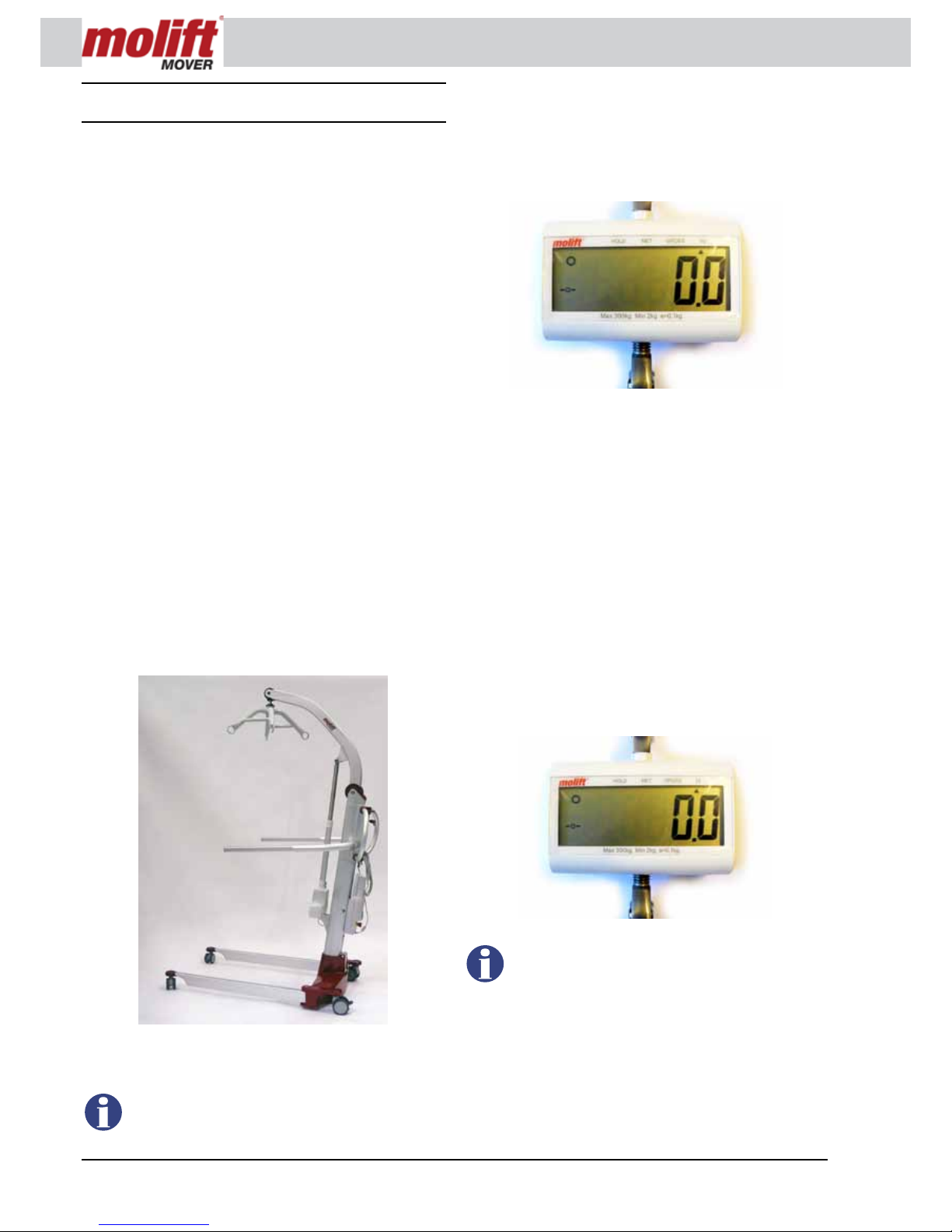

Equipment
Quick release suspensions
Plastic composite
• 4 point, Large, width 645 mm
Size 645x350 mm, part no: 1430000
• Padding - Part no 1330116
Steel suspensions
• 4 point steel, Large, size 560x350 mm,
Part no: 1430002
• 4 point steel, Medium, size 450x300 mm,
Part no: 1430001
• 4 point steel, Small, size 350x240 mm
Part no: 1430009
• 2 points steel, Large, size 560 mm,
Part no: 1430007
• 2 points steel, Medium, size 450 mm,
Part no: 1430006
• 2 points steel, Small, size 350
Part no: 1430008
Supporting arms
• Part no: 1311052
It is possible to use an alternative column with a
set of adjustable handles and supporting arms.
Replace the complete column according to Assembly instructions on page 7.
Read the operating manual that comes to-
gether with the Supporting arms
Castor with directional lock
- Part no 1320140
The castor can be changed according to description in Technical Manual by authorized personnel.
This castor has no brake, therefore we recommend
to change only one of the castors.
Push the red handle down to lock the direction.
Release by pulling the handle up.
Suspension with scale
• Scale with 4 point plastic composite suspension
Part no: 1431000
• Scale with 4 point steel suspension, Large,
Part no: 1431001
• Scale with 4 point steel suspension, Medium,
Part no: 1431002
Read the user manual that comes with the
Scale before use.
Change to suspension with scale with quick release as you change to any other suspension.
Page 17 of 24
Molift Stretcher
• Molift Stretcher (excl loops), Part. no: 2150103
Standard set of lifting loops, Part no: 2150357
Set of auto strap collector, Part no: 2150356
Set of Safety belt, Part no: 2150355
The Molift stretcher can be used in combina-
tion with all Molift 4-point suspensions on
Molift Mover 205.
• Molift Stretcher MR compatible
Part no: 2150108
Only available with Standard set of lifting loops,
Part no : 2150357
Read the operating manual that comes to-
gether with the stretcher before use.
Integrated charger
• Part no 1340101
The charger can be mounted on the lifter permanently.
Park the lifter and connect to a wall socket to
charge the battery.
Chassis Low base
- Part no 1420002
The chassis can be replaced with one with lower legs. This is suitable for level and even surfaces where the lifter legs must t under low beds or
similar. For normal use it is recommended to use
the standard chassis.
Mount the column and lifting arm as described on
page 7.
Technical data
Weight, totally:
excl. battery; 39 kg / 86 lbs
incl. battery: 40.6 kg / 89.5 lbs
Height of legs:
60 mm
The lifter can be used as normal, but extra precaution has to be taken on carpets or other kinds of
rough surface, as the front castors are smaller. Try
to pull the lifter backwards instead of pushing it.
It is necessary to use more push/pull force to
move the lifter with small castors. It might be
easier to pull than push - always use the drive
handles when maneouvring the lifter.
Page 18 of 24 BM05101 Molift Mover 205 English - Rev. J/ 10/2012
Accessories
Lifting sling
Molift Easy Paediatric Sling
Size No head support With head support
XXS Art. no 3005050 Art. no 3006050
XS Art. no 3005000 Art. no 3006000
Easy Toilet Sling and Basic Bathing Sling for kids,
see the tables below, size XXS and XS.
Molift Easy Sling
Size No head support With head support
XS Art. no 3025000 Art. no 3026000
S Art. no 3025100 Art. no 3026100
M Art. no 3025200 Art. no 3026200
L Art. no 3025300 Art. no 3026300
XL Art. no 3025400 Art. no 3026400
XXL Art. no 3025500 Art. no 3026500
Molift Basic Sling
Size No head support With head support
XXS Art. no 3021050 Art. no 3022050
XS Art. no 3021000 Art. no 3022000
S Art. no 3021100 Art. no 3022100
M Art. no 3021200 Art. no 3022200
L Art. no 3021300 Art. no 3022300
XL Art. no 3021400 Art. no 3022400
XXL Art. no 3021500 Art. no 3022500
Molift Basic Bathing Sling
Size No head support With head support
XXS Art. no 3023050 Art. no 3024050
XS Art. no 3023000 Art. no 3024000
S Art. no 3023100 Art. no 3024100
M Art. no 3023200 Art. no 3024200
L Art. no 3023300 Art. no 3024300
XL Art. no 3023400 Art. no 3024400
XXL Art. no 3023500 Art. no 3024500
Molift Basic Full Sling
Size With head support
S Part no 3047010
M Part no 3074011
L Part no 3047012
Molift Easy Toilet Sling
Size No head support With head support
XXS Art. no 3032050 Art. no 3033050
XS Art. no 3032000 Art. no 3033000
S Art. no 3032100 Art. no 3033100
M Art. no 3032200 Art. no 3033200
L Art. no 3032300 Art. no 3033300
XL Art. no 3032400 Art. no 3033400
XXL Art. no 3032500 Art. no 3033500
Molift Easy Toilet Sling Comfort
Size No head support Separate
head support
XXS Art. no 3016050 Art. no 3016055
XS Art. no 3016000 Art. no 3016001
S Art. no 3016100 Art. no 3016111
M Art. no 3016200 Art. no 3016222
L Art. no 3016300 Art. no 3016333
XL Art. no 3016400 Art. no 3016444
XXL Art. no 3016500 Art. no 3016555
Molift Easy Amputee Sling
Size No head support With head support
XXS Art. no 3027050 Art. no 3028050
XS Art. no 3027000 Art. no 3028000
S Art. no 3027100 Art. no 3028100
M Art. no 3027200 Art. no 3028200
L Art. no 3027300 Art. no 3028300
XL Art. no 3027400 Art. no 3028400
XXL Art. no 3027500 Art. no 3028500
Molift Patient Specic Sling
Size With head support
S Part no 3050100
M Part no 3050200
L Part no 3050300
XL Part no 3050400
Bag for slings - Art. no 3048000
Molift Hammock Sling
Størrelse with head support
One size Art.nr 3047000 Shell lining
One size Art.nr 3047001 Wool lining
One size Art.nr 3047002 Fleece lining
Page 19 of 24

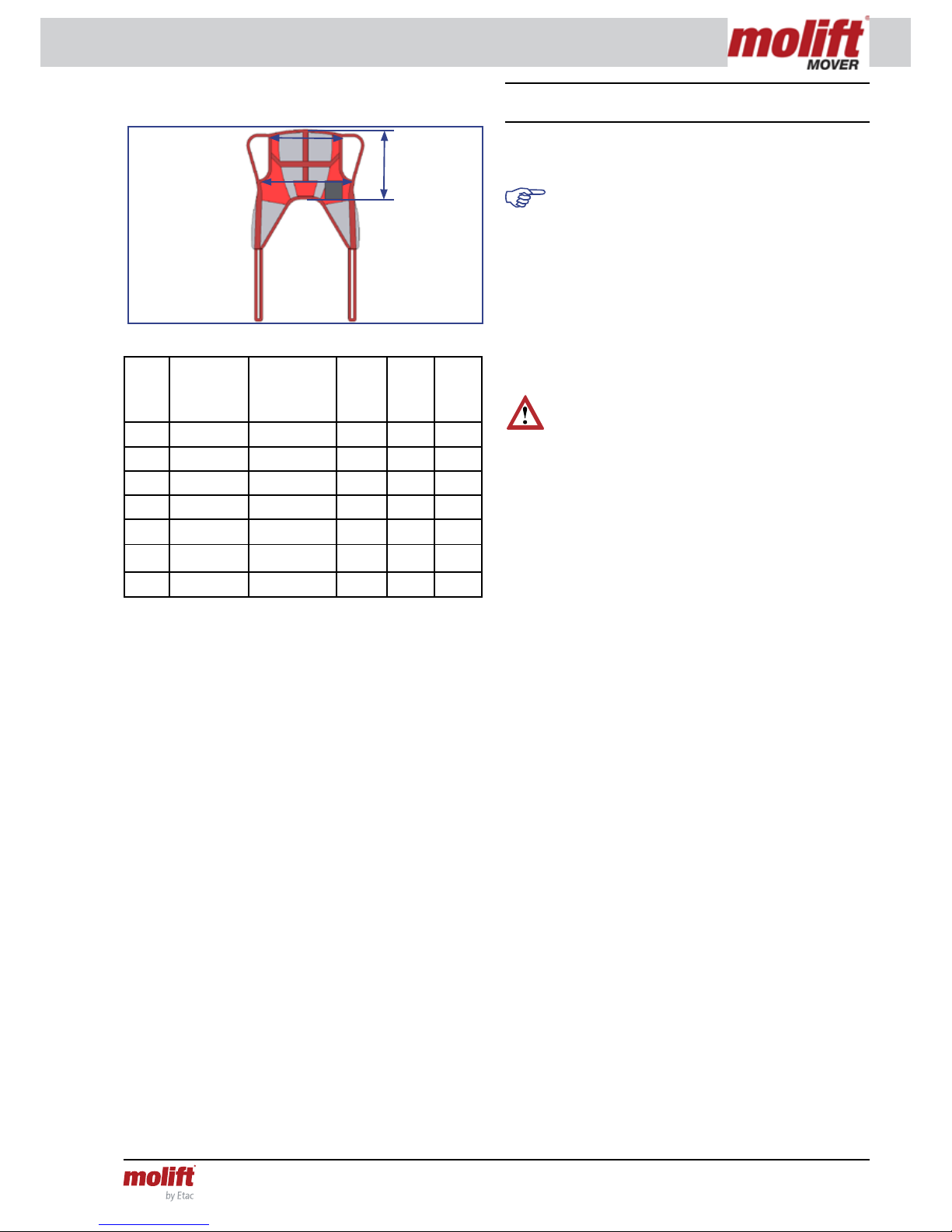

Sling size guide
Easy and Basic Slings
Size
Color
code
Recomm.
weight
(Kg)
A
(cm)B (cm)C (cm)
XXL White 230-300 86 130 68
XL Blue 160-240 76 115 66
L Green 90-160 66 100 64
M Yellow 45-95 56 85 62
S Red 25-50 51 75 60
XS Light blue 17-25 46 65 58
XXS Pink 12-17 41 55 56
Choice of sling size depends on both user weight
and shape/size of user.
Maintenance
Daily maintenance
Detergents must be pH-neutral. Do not use
solvents or strong liquids - this may damage
surfaces on the lifter and change the quality
of the material. For disinfection when needed;
use isopropyl alcohol. Avoid abrasive or etching cleaning products.
Clean surfaces with a damp cloth using an appropriate detergent.
Make sure that there is no damage or cracks
on supporting parts. The suspension shall
not be used if there are any visible damages
or cracks as it may cause personal injury or
damage to the lifter.
Monthly maintenance
• Check the lifter, and the suspension especially,
for damage. Make sure there is no loose parts
on the lifter
• Remove hair and pile from the castors and verify that the castors rotates without abnormal
friction
• Verify that the contacts of the hand control is
rmly in place, and that the battery ts correctly in the battery holder.
• Clean contact and hand control with spirit or
similar to remove grease and dirt
• Verify that the cables for the hand control and
charger are intact
• Run the lifter up and down, and legs in and out
to verify that it runs normally and without any
abnormal noise.
Periodic inspection
Etac AS recommends annual inspection according
to the checklist on page 22. The inspection is to
be done by an authorized service representative.
The owner of the lifter is responsible to ensure that
one checklist is lled out and signed for each inspection, and for keeping the checklist.
A
B
C
Page 20 of 24 BM05101 Molift Mover 205 English - Rev. J/ 10/2012

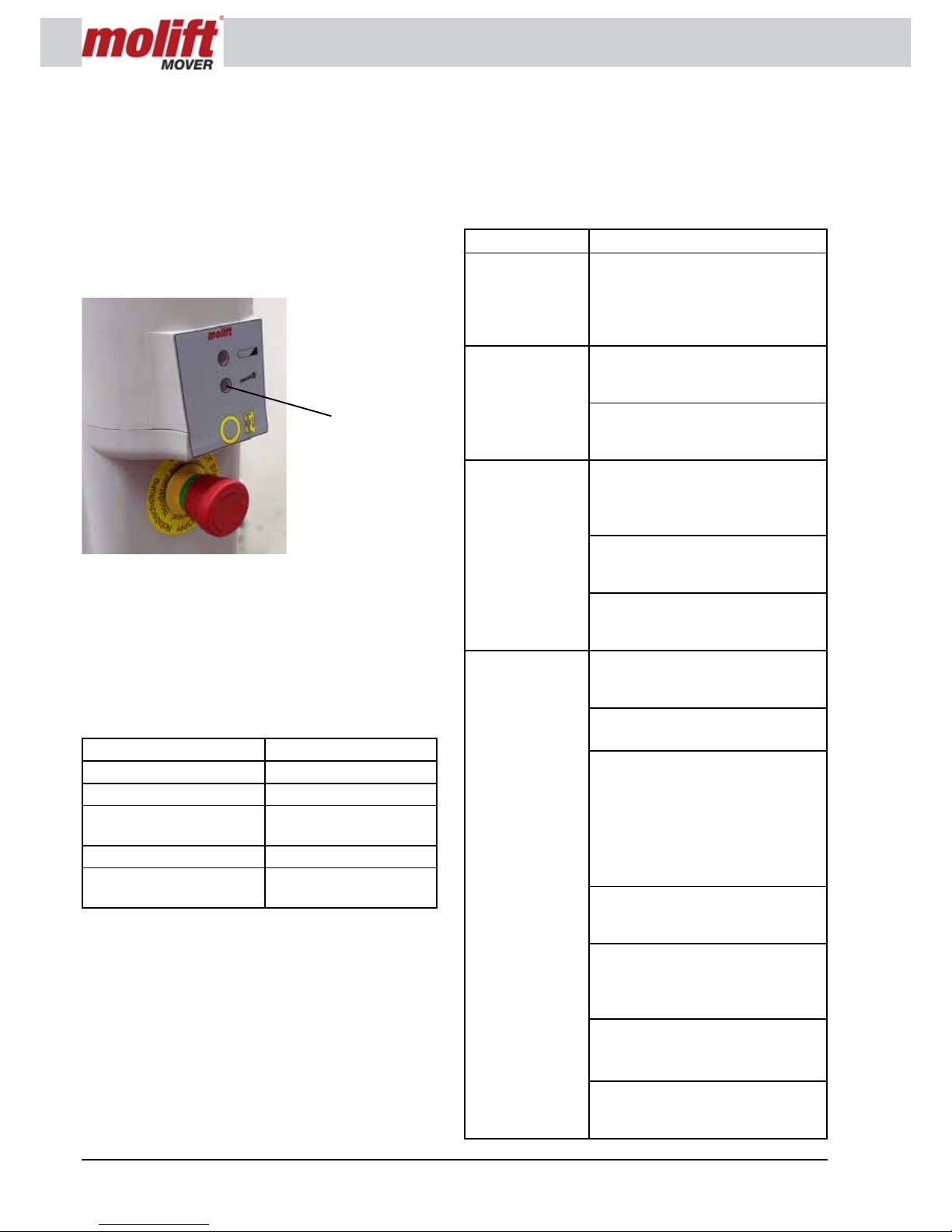

Service
Molift Mover 205 has a LED on the battery holder
indicating if the lifter needs service. The LED gives
a green light when the lifter is ready for use.
The electronics has a power save-function which
makes the system sleep after a while with no activity. All lights will go out. Activate the system by
pushing one of the buttons on the hand control.
The electronics logs how much the lifter is being
used, and the load it is used with. After a given
time of usage there will be given a signal that the
lifter needs service to the service LED. The LED will
rst give a yellow light, then red. Take contact with
your local service representative and order service.
If there is a sound together with the light, it means
the lifter needs service immediately.
Service lamp Status
No light Power save
Green Ready for use
Yellow Order service, lifter still
works
Red Perform service
Red + sound Perform service imme-
diately
Service is done by an authorised service representative according to procedures in the technical
manual. The service partner uses the Molift Service Tool to read the data from the lifter, and for
logging service and resetting the service LED. The
owner is responsible to ensure proper logging and
written verication performed by authorised service partner.
A list of spare parts is avalable on request
Troubleshooting
If you have access to other similar lifters, it might
be an advantage to “switch parts” in order to locate
the error. See the table for troubleshooting:
Symptom Possible cause/action
The lifting column is wobbly.
The lock handle is not locked
properly or the lifting column is out
of position in chassis / verify posi-
tion of lifting column and tighten
the lock
The lifter only
moves in one direction/ adjustable legs only
moves in one direction
Hand control has failed / test with
another hand control and change if
defective.
The control electronics has failed
/ change control electronics / con-
tact local representative for service
The lifter moves
uncontrolled /
adjustable legs
moves uncontrolled
Short circuit between hand control and lifter / clean the contact to
hand control with spirit to remove
grease
Hand control has failed / change
hand control / contact local representative for service
Defective control electronics /
change control electronics / con-
tact local representative for service
The lifting arm
does not move /
adjustable legs
does not move
Emergency stop activated (button
is pressed in) / turn button counter
clockwise to reset
Battery is empty / change to a new
battery or charge battery
The motor connection is not in
contact / Reposition the lifting col-
umn, use the Allen wrench on top
of column and check the arrow towards chassis (see page 7), clean
contact points on column and
chassis
The cable/contact to hand control
has disconnected / reconnect con-
tact
Hand control has failed / test with
another hand control and change if
defective / contact local represent-
ative for service
Defective control electronics /
change control electronics / con-
tact local representative for service
Motor is defective / change motor
/ contact local representative for
service
Service lamp
Page 21 of 24
If the lifter is run up and down constantly for a
longer period, the electronics may be overheated
and the lifter will stop. Wait until the lifter is cooled
down enough for further use.
If you are not able to solve the fault or problems
by yourself using this manual, please contact local authorised service representative. If you do not
know whom to contact locally, please contact your
dealer or Etac AS to get help.

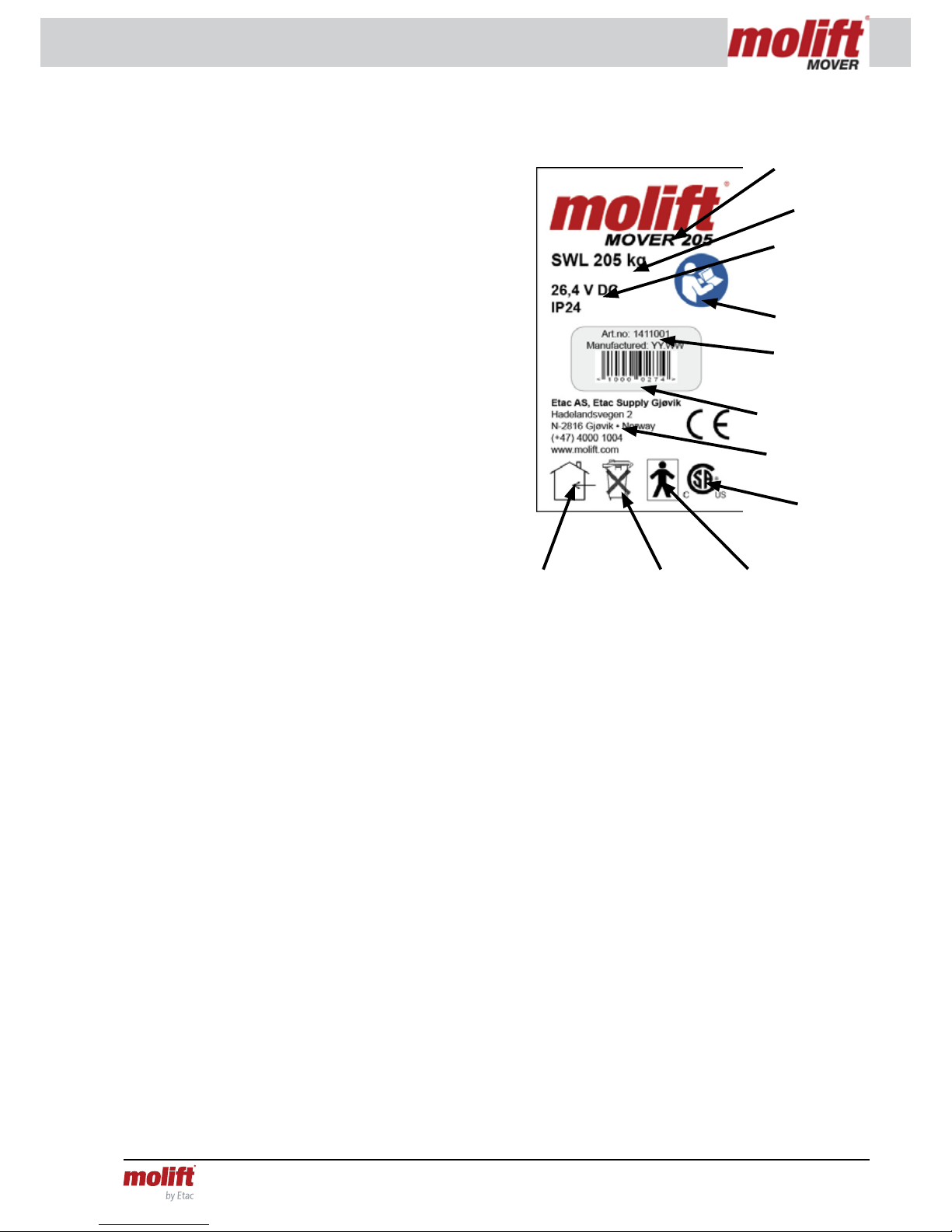

Labelling
The main label is placed on the column below the
battery holder.
Manufacturer
Read the
user manual
Maximum
load
Indoors
use only
Type BF applied
part (IEC 60601
Model name
Part number
Year.week of
manufacture
Serialnumber /
bar code
Nominal battery voltage
Separate waste
collection
CSA Approved
(Canada and
USA)
Page 22 of 24 BM05101 Molift Mover 205 English - Rev. J/ 10/2012
Checklist for periodic inspection
Loading...
