MOLEX MOLEX 39281183 Datasheet

FEATURES AND SPECIFICATIONS

Features and Benefits

■

Positive housing locks to mate with Mini-Fit, Jr. receptacle

■

Fully isolated terminals to protect contacts from damage

■

Drain hole option available

Reference Information

Product Specification: PS-5556-0001
Packaging: Tray or bag
UL File No.: E29179
CSA File No.: LR19980
TUV License No.: R75142
Mates With: 5557 dual row receptacle
Designed In: Millimeters

Electrical

Power Connectors

Voltage: 600V
Current: (Used with 16 AWG)

F

Circuits 2–3 4–6 7–10 12–24

Amperes-Jr.

9 8 76

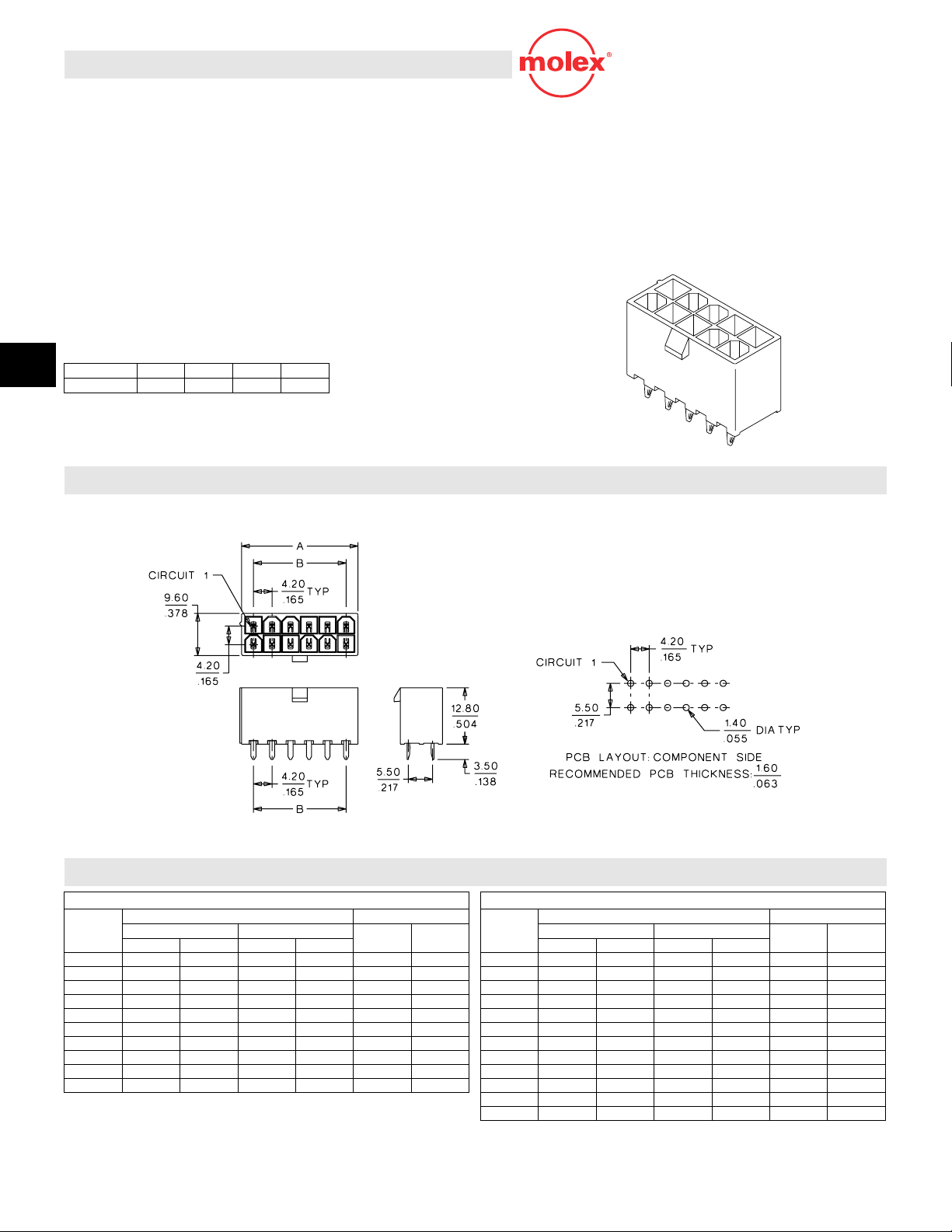

CATALOG DRAWING (FOR REFERENCE ONLY)

Electrical (cont’d)

Contact Resistance: 10m

Ω

max.
Dielectric Withstanding Voltage: 1500V AC
Insulation Resistance: 1000 M

Ω

min.

Mechanical

Contact Insertion Force: 1.5kg max.
Contact Retention to Housing: 3.0kg min.
Wire Pull-Out Force: 9.0kg min.
Insertion Force to PCB: 5.0kg max.
Mating Force: 0.7kg (1.54 lb) max.
Unmating Force: 0.35kg (0.7 lb) min.
Normal Force: 200g min.
Durability: 30 cycles

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0
Contact: Brass or Phosphor Bronze
Plating: Tin, select Gold or overall Gold
Operating Temperature: -40 to +105˚C

4.20mm (.165") Pitch
Mini-Fit, Jr.

™

Header

5566

Vertical, Dual Row
Without Pegs

ORDERING INFORMATION AND DIMENSIONS

With Drain Holes

Circuits

2 •39-29-3026 •39-31-0020 •39-31-0027 •39-31-0028 5.40 (.210)
4 •39-29-3046 •39-31-0040 •39-31-0047 •39-31-0048 9.60 (.380) 4.20 (.170)
6 •39-29-3066 •39-31-0060 •39-31-0067 •39-31-0068 13.8 0 (. 540) 8.40 (.330)

8 •39-29-3086 •39-31-0080 •39-31-0087 •39-31-0088 18.0 0 (. 710) 12.60 (.500)
10 •39-29-3106 •39-31-0100 •39-31-0107 •39-31-0108 22.2 0 (. 870) 16.80 (.660)
12 •39-29-3126 •39-31-0120 •39-31-0127 •39-31-0128 26.4 0 (1 .040) 21.00 (.830)
14 •39-29-3146 •39-31-0140 •39-31-0147 •39-31-0148 30.6 0 (1 .200) 25.20 (.990)
16 •39-29-3166 •39-31-0160 •39-31-0167 •39-31-0168 34.8 0 (1 .370) 29.40 (1.160)
20 •39-29-3206 •39-31-0207 43.2 0 (1 .700) 37.80 (1.490)
22 •39-29-3226 •39-31-0227 47.4 0 (1 .870) 42.00 (1.650)

• US Standard Product, available through Molex franchised distributors

Tin Plated Gold Plated (30 µ ")

94V-2 94V-0 94V-2 94V-0

F-48

Order No. Dimension

AB

Without Drain Holes

Circuits

2 •39-28-1023 •39-28-8020 •39-29-0023 •39-29-6028 5.40 (.210)
4 •39-28-1043 •39-28-8040 •39-29-0043 •39-29-6048 9.60 (.380) 4.20 (.170)
6 •39-28-1063 •39-28-8060 •39-29-0063 •39-29-6068 13.80 (.540) 8.40 (.330)
8 •39-28-1083 •39-28-8080 •39-29-0083 •39-29-6088 18.00 (.710) 12.60 (.500)
10 •39-28-1103 •39-28-8100 •39-29-0103 •39-29-6108 2 2.20 (.870) 16.80 (.660)
12 •39-28-1123 •39-28-8120 •39-29-0123 •39-29-6128 2 6.40 (1.040) 21.00 (.830)
14 •39-28-1143 •39-28-8140 •39-29-0143 •39-29-6148 3 0.60 (1.200) 25.20 (.990)
16 •39-28-1163 •39-28-8160 •39-29-0163 •39-29-6168 3 4.80 (1.370) 29.40 (1.160)
18 •39-28-1183 •39-28-8180 •39-29-0183 •39-29-6188 3 9.00 (1.540) 33.60 (1.320)
20 •39-28-1203 •39-28-8200 •39-29-0203 •39-29-6208 4 3.20 (1.700) 37.80 (1.490)
22 •39-28-1223 •39-28-8220 •39-29-0223 •39-29-6228 4 7.40 (1.870) 42.00 (1.650)
24 •39-28-1243 •39-28-8240 •39-29-0243 •39-29-6248 5 1.60 (2.030) 46.20 (1.820)

Tin Plated Gold Plated (30 µ ")

94V-2 94V-0 94V-2 94V-0

Order No. Dimension

MX01

AB
